◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#815) — 18 parça

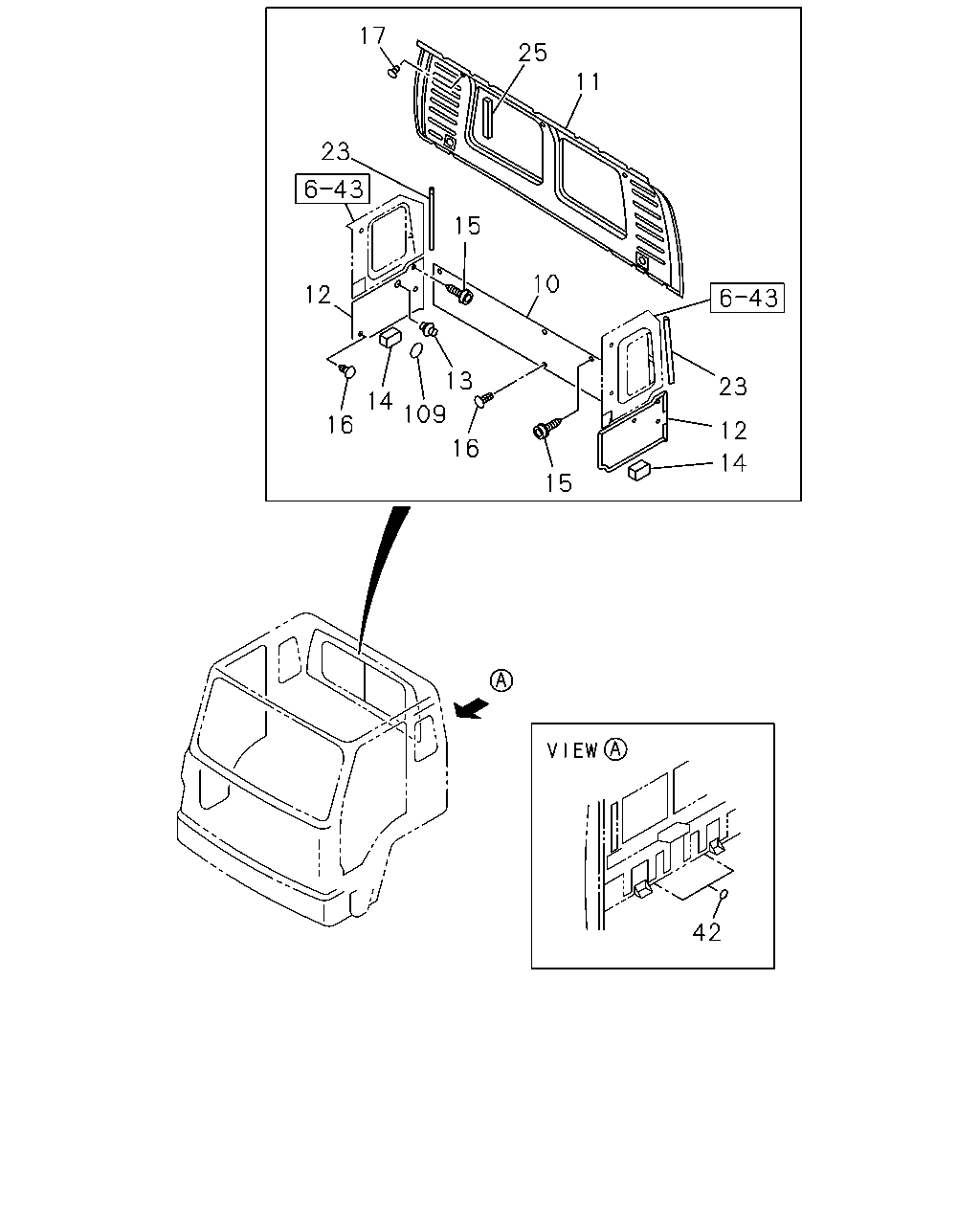

çizim 94521
17 25 11 23 15 10 12 13 23 14 109 16 12 16 14 15 42
BalonParca AdiParca NoAdetTipApplied Date A B
10 TRIM; BED ROOM CENTER
DARK GRAY 		1-73348-358-2 01 1 9202-9312 ● ●
10 TRIM; BED ROOM CENTER 1-73348-398-0 01 1 9401- ● ●
11 TRIM; ROOM,BACK INNER
DELUXE CAB(W14) GRAY 		1-73348-339-1 01 1 9202- ● ●
12 PAD; TRIM,BED ROOM SIDE
DARK GRAY 		1-73348-293-3 01 1 9202- ● ●
12 PAD; TRIM,BED ROOM SIDE
DARK GRAY 		1-73348-292-3 01 1 9202- ● ●
13 CLIP; BED ROOM TRIM 1-09987-119-1 02 1 9202- ● ●
14 INSULATOR; FLOOR SIDE REAR 1-73377-160-0 02 1 9202- ● ●
15 HOOK; BED ROOM TRIM
M4X14 HOOK MALE 		1-09981-370-0 11 1 9202- ● ●
16 CLIP; TRIM,BED ROOM
D6X23 BLACK 		1-09987-114-0 05 1 9202- ● ●
17 CLIP; ANCHOR,TRIM BACK INNER
DELUXE CAB(W14) 		1-09987-203-0 03 1 9202- ● ●
23 FINISHER; BACK INNER PANEL
DELUXE CAB(W14) GRAY 		1-73338-319-1 02 1 9202- ● ●
23 FINISHER; BACK INNER PANEL
EXC. DELUXE CAB(W14) WHITE 		1-73337-264-0 02 1 9202- ● ●
25 SPACER; ROOM TRIM
DELUXE CAB(W14) L=400 		1-73348-364-0 02 1 9202- ● ●
25 SPACER; ROOM TRIM
DELUXE CAB(W14) L=450 		1-73348-386-0 02 1 9202- ● ●
42 SEAL; BACK OUTER PANEL
D=36 		1-76778-007-0 02 1 9202- ● ●
109 SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR CALM WHITE(820),BODY COLOR GLACIAL WHITE(844) EXC. DELUXE CAB(W14) OD=20 CALM WHITE 		1-76777-076-0 03 1 9202- ● ●
109 SEAL; HOLE
BODY COLOR MARINE BLUE(890),BODY COLOR PURUTAMINA BLUE(918) EXC. DELUXE CAB(W14) OD=20 MARIN BLUE 		1-76777-075-0 03 1 9202- ● ●
109 SEAL; HOLE
BODY COLOR SUNRISE RED(816),BODY COLOR SAHARA BEIGE(829),BODY COLOR DARK GREEN(903),BODY COLOR GOLDEN YELLOW(904),BODY COLOR SMOKE YELLOW(905),BODY COLOR OMAHA ORANGE(906),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR WHEATLAND YELLOW(910),BODY COLOR LIME GREEN(911),BODY COLOR NEPAL ORANGE(912),BOD Y COLOR FIRE RED(915),BODY COLOR HIGHWAY YELLOW(916),BODY COLOR CATERPILLAR YELLOW(917),BODY COLOR PRIMER PAINT(927),BODY COLOR BCL YELLOW(930),BODY COLOR HIGHWAY ORANGE(944) EXC. DELUXE CAB(W14) OD=20 BLUCK 		1-76798-020-0 03 1 9202- ● ●
