◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51355 - NPR/NQR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#81499) — 57 parça

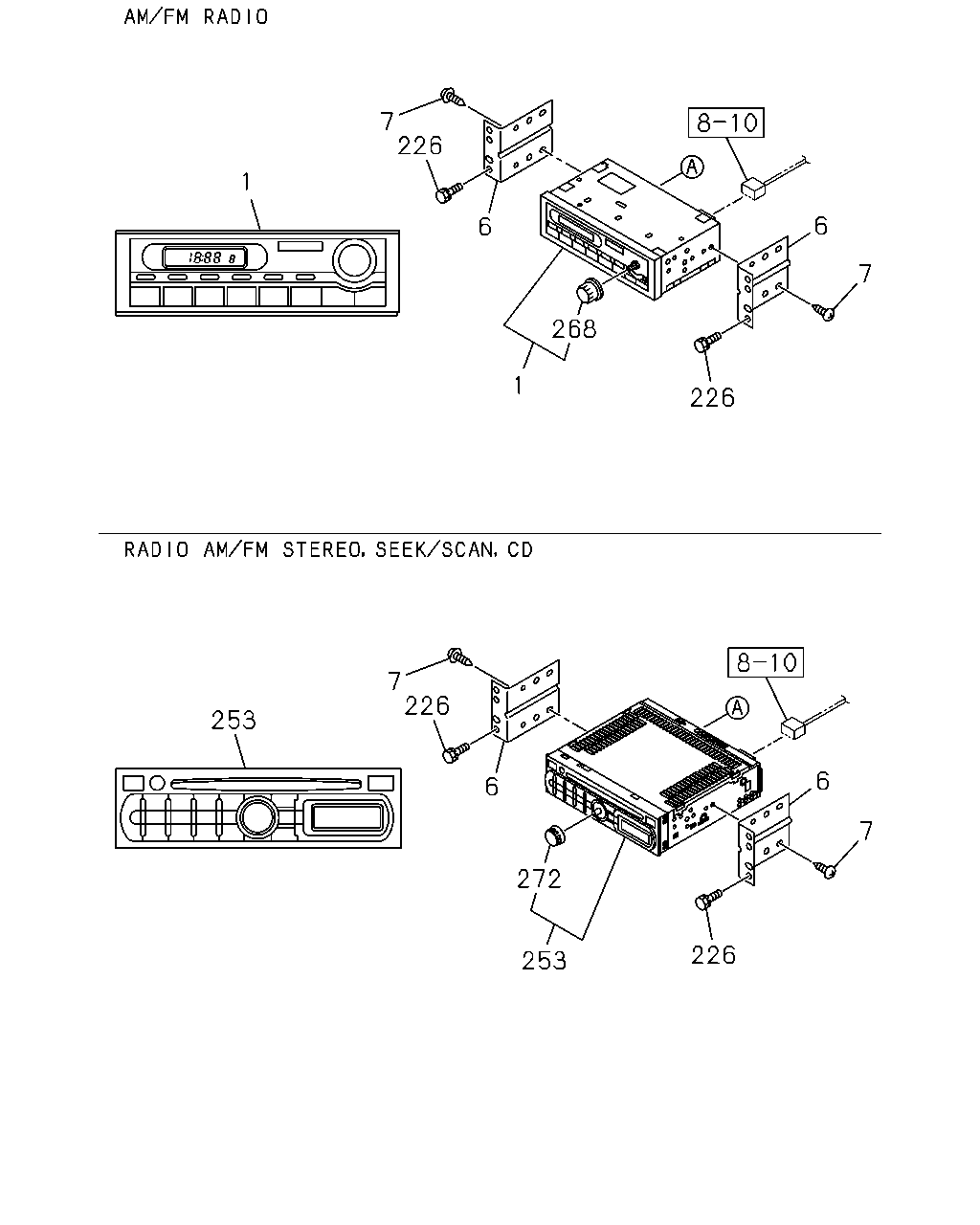

çizim 14308
7 226 1 6 6 7 268 1 226 7 226 253 6 6 7 272 226 253
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.650 RADIO
AM/FM RADIO(U69) 		8-98032-643-0 01 1 0803-0803 ● ●
1 09.650 RADIO
AM/FM RADIO(U69) 		8-98032-643-0 01 1 0804- ● ● ●
6 09.645 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 0803-0803 ● ●
6 09.645 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 0804- ● ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0803-0803 ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0804- ● ● ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0803-0803 ● ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0804-1101 ● ● ●
226 09.647 BOLT; BRKT
16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 02 1 1102-1212 ● ● ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1301- ● ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 		8-98017-752-0 01 1 0803-0803 ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 0803-0803 ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 0804- ● ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 0803-0803 ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 0804- ● ● ●
268 09.649 KNOB; VOL
AM/FM RADIO(U69) CLARION 		8-97375-820-0 01 1 0803-0803 ● ●
268 09.649 KNOB; VOL
AM/FM RADIO(U69) CLARION 		8-97375-820-0 01 1 0804- ● ● ●
272 09.649 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) CLARION 		8-98048-329-0 01 1 0803-0803 ● ●
272 09.649 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) CLARION 		8-98048-329-0 01 1 0804- ● ● ●

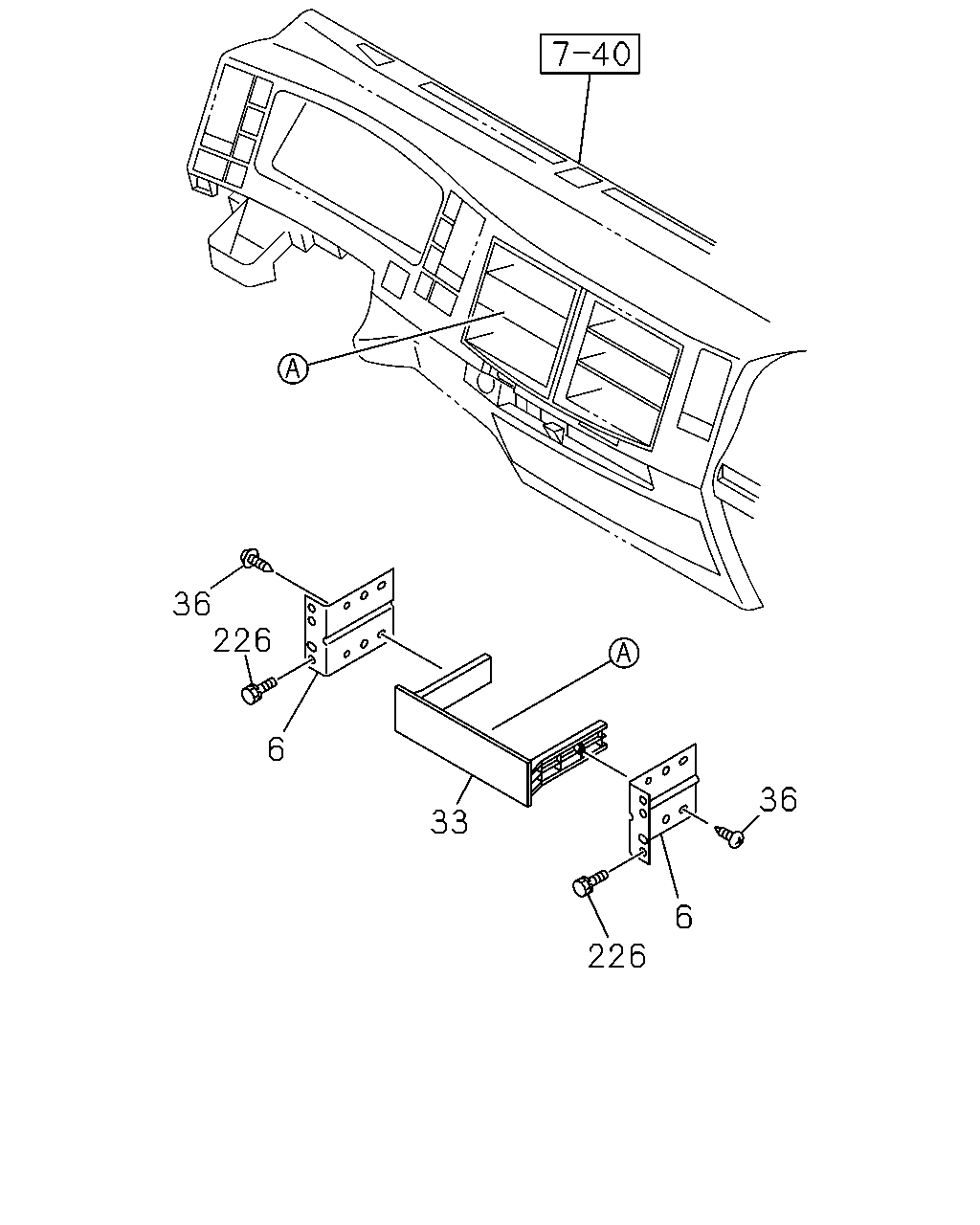

çizim 14335
36 226 6 36 33 6 226
BalonParca AdiParca NoAdetTipApplied Date A B C
6 09.645 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 0803-0803 ● ●
6 09.645 BRACKET; RADIO TO PANEL 8-97585-617-0 02 1 0804- ● ● ●
33 09.650 COVER; RADIO
EXC. RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),AM/FM RADIO(U69) BLACK 		8-97407-896-1 01 1 0803-0803 ● ●
33 09.650 COVER; RADIO
EXC. RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),AM/FM RADIO(U69) BLACK 		8-97407-896-2 01 1 0804- ● ● ●
36 09.779 SCREW; COVER
EXC. RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),AM/FM RADIO(U69) 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0803-0803 ● ●
36 09.779 SCREW; COVER
EXC. RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),AM/FM RADIO(U69) 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804- ● ● ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0803-0803 ● ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0804-1101 ● ● ●
226 09.647 BOLT; BRKT
16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 02 1 1102-1212 ● ● ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1301- ● ● ●

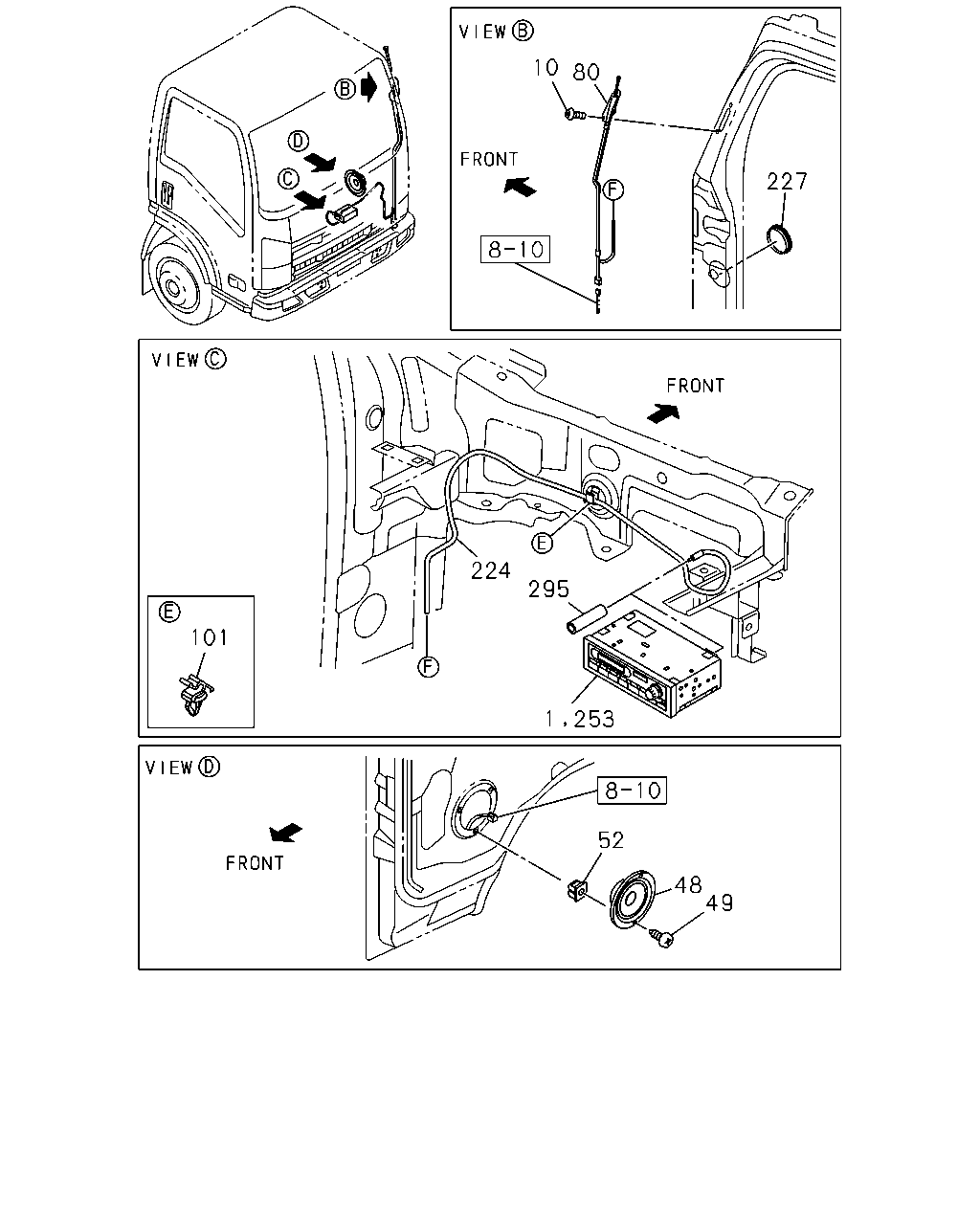

çizim 14462
227 224 295 101 253 1 52 48 49 10 80
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.650 RADIO
AM/FM RADIO(U69) 		8-98032-643-0 01 1 0803-0803 ● ●
1 09.650 RADIO
AM/FM RADIO(U69) 		8-98032-643-0 01 1 0804- ● ● ●
10 09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 0803-0803 ● ●
10 09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES 		8-98061-742-0 02 1 0804- ● ● ●
48 09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> 		8-97317-001-1 02 1 0803-0803 ● ●
48 09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> 		8-97317-001-1 02 1 0804- ● ● ●
49 09.655 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0803-0803 ● ●
49 09.655 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0804- ● ● ●
52 09.655 GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0803-0803 ● ●
52 09.655 GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> 01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0804- ● ● ●
80 09.645 ANTENNA 8-97387-265-3 01 1 0803-0803 ● ●
80 09.645 ANTENNA 8-97387-265-3 01 1 0804- ● ● ●
101 09.649 CLIP; FEEDER TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.647 ID=4.8 		8-94128-483-0 01 1 0803- ●
101 09.649 CLIP; FEEDER TO BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.342 ID=6.5 		5-09709-117-0 01 1 0803-0803 ●
101 09.649 CLIP; FEEDER TO BRKT
04.342 ID=6.5 		5-09709-117-0 01 1 0803-0803 ●
101 09.649 CLIP; FEEDER TO BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.342 ID=6.5 		5-09709-117-0 01 1 0804- ●
101 09.649 CLIP; FEEDER TO BRKT
04.342 ID=6.5 		5-09709-117-0 01 1 0804- ● ●
224 09.647 CABLE; EXT,FEEDER 8-98029-970-1 01 1 0803-0803 ● ●
224 09.647 CABLE; EXT,FEEDER 8-98029-970-1 01 1 0804- ● ● ●
227 09.647 PROTECTOR; EDGE 8-98053-117-0 01 1 0803-0803 ● ●
227 09.647 PROTECTOR; EDGE 8-98053-117-0 01 1 0804- ● ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) 		8-98017-752-0 01 1 0803-0803 ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 0803-0803 ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) EXC. TUNER BAND LATIN AMERICA<7DM> 		8-98017-752-0 01 1 0804- ● ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 0803-0803 ● ●
253 09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND LATIN AMERICA<7DM> 		8-98112-329-0 01 1 0804- ● ● ●
295 09.665 INSULATOR; ANTENNA
EXC. RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),AM/FM RADIO(U69) 		8-98095-617-1 01 1 0803-0803 ● ●
295 09.665 INSULATOR; ANTENNA
EXC. RADIO AM/FM STEREO,SEEK/SCAN, CD(UT3),AM/FM RADIO(U69) 		8-98095-617-1 01 1 0804- ● ● ●
