◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51355 - NPR/NQR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#81486) — 85 parça

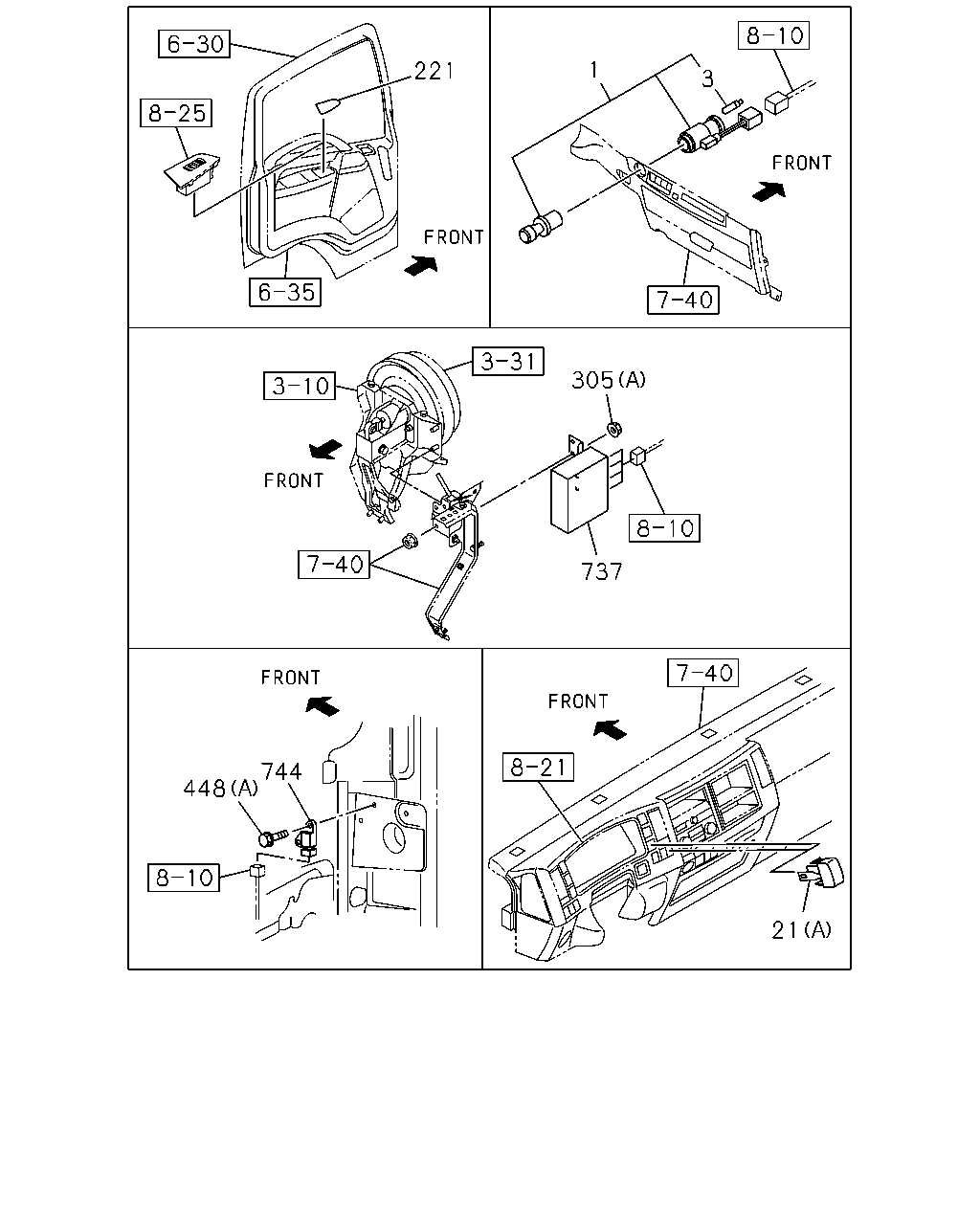

çizim 138121
1 221 3 305 737 744 448 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0803-0803 ● ●
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0804-0906 ● ● ●
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 0907- ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0803-0803 ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0804-0906 ● ● ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 09.748 (B) 		8-97101-974-0 01 1 0803- ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0803-0803 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0803-0803 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0803-0803 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0804-1106 ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0804-1106 ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0804-1106 ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1107- ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1107- ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1107- ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ) 16.081 (A) 		8-98025-954-1 01 1 1107- ●
21 09.744 COVER; HOLE
4JJ1-TCC ENG(RDU) 16.081 (A) 		8-98025-954-1 01 1 1107- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0803-0803 ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0804- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-915-2 01 1 0804- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0803-0803 ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0804- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-916-2 01 1 0804- ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0803-0803 ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0803- ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0803- ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 0803-0803 ● ●
448 02.500 BOLT; SENSOR
09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 0803-1501 ● ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 1502- ● ●
737 04.115 CONTROL UNIT; TRANSMISSION
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98067-712-5 01 1 0803- ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 0803- ●

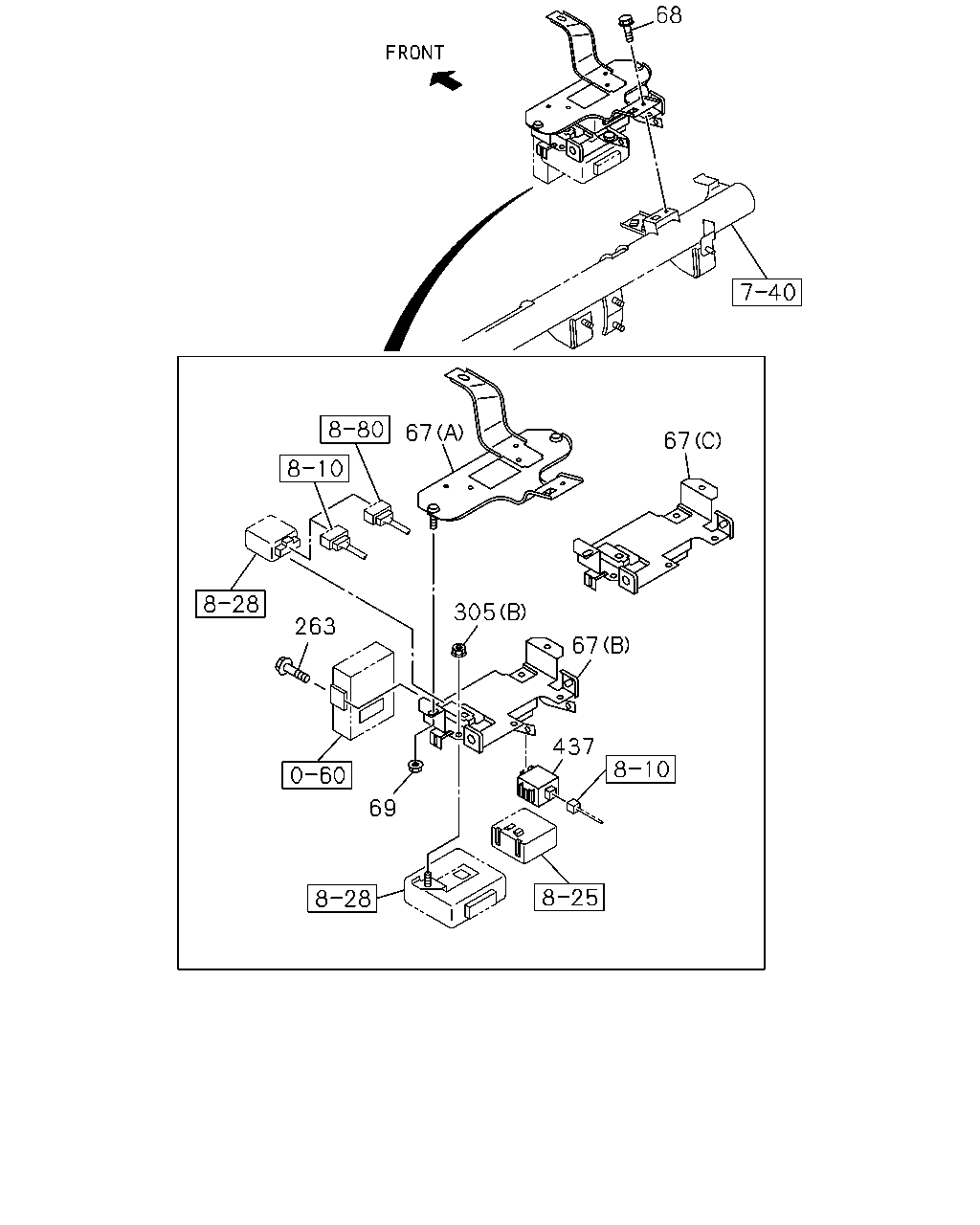

çizim 138170
68 67 67 305 437 69 263 67
BalonParca AdiParca NoAdetTipApplied Date A B C
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 0803-0803 ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98015-039-1 01 1 0804- ● ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-1 01 1 0803-0803 ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-1 01 1 0804-0906 ● ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0907-1111 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (B) 		8-98022-206-2 01 1 0907-1111 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (B) 		8-98022-206-2 01 1 0907-1111 ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (C) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (C) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1208-1212 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (C) 		8-98217-377-0 01 1 1208-1212 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (C) 		8-98217-377-0 01 1 1208-1212 ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (C) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (C) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (C) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
4JJ1-TCC ENG(RDU) (C) 		8-98217-377-0 01 1 1405- ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 0803-0803 ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 0804- ● ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0803-0803 ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ● ● ●
263 04.115 BOLT; CONT UNIT
4HK1-TCN ENG(RDQ) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0803-0809 ● ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0803-0803 ●
305 08.915 NUT; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER 		8-94279-050-0 02 1 0803- ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 0803-0803 ● ●
437 10.485 CONVERTER; DC
HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO 		8-97359-129-0 01 1 0804- ● ● ●

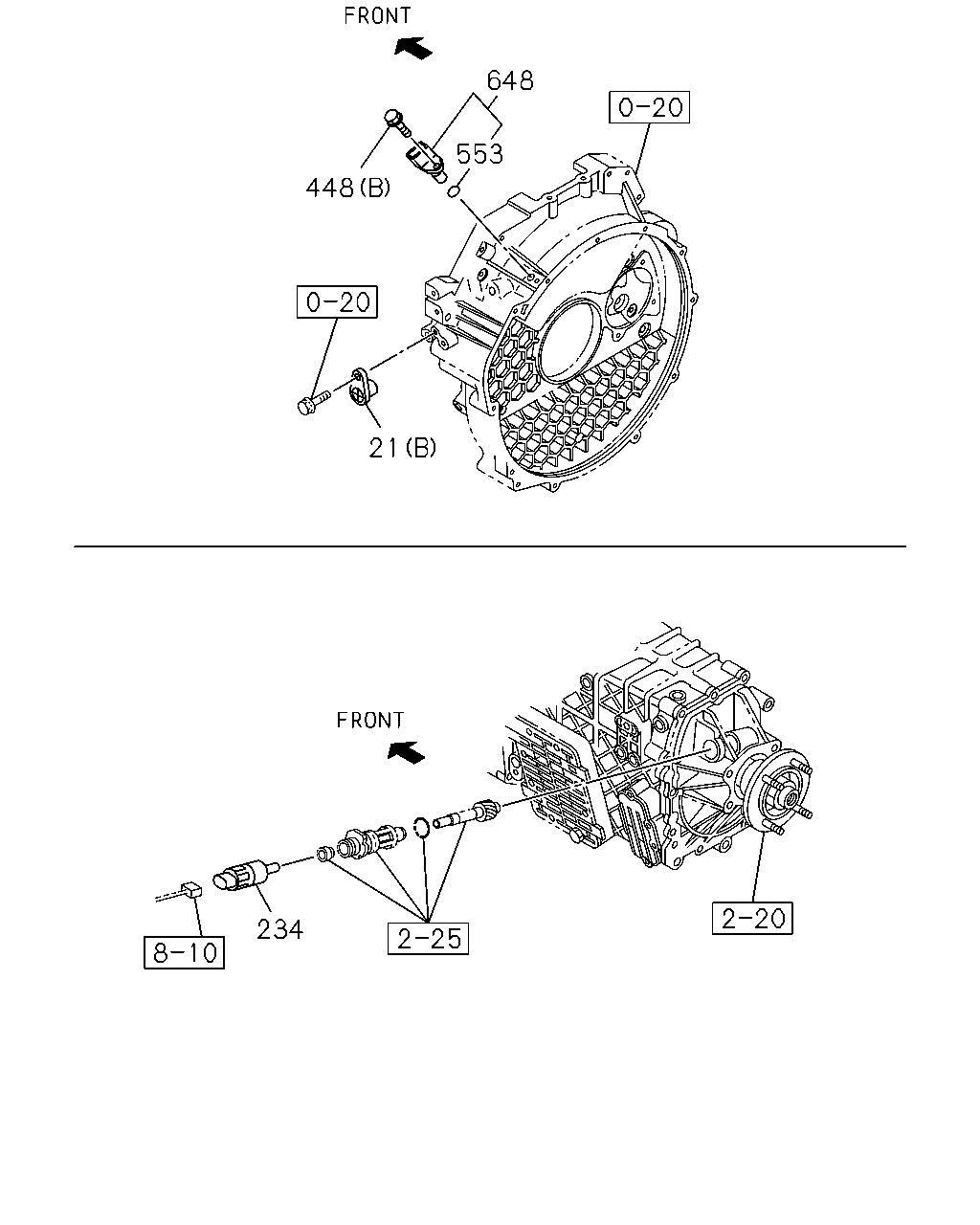

çizim 191694
648 553 448 21 234
BalonParca AdiParca NoAdetTipApplied Date A B C
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 09.748 (B) 		8-97101-974-0 01 1 0803- ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0803-0803 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0803-0803 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0803-0803 ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0804-1106 ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0804-1106 ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0804-1106 ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1107- ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1107- ● ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 1107- ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ) 16.081 (A) 		8-98025-954-1 01 1 1107- ●
21 09.744 COVER; HOLE
4JJ1-TCC ENG(RDU) 16.081 (A) 		8-98025-954-1 01 1 1107- ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0803-0803 ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0803-0803 ●
234 03.682 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0804- ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0804- ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0803- ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 0803-0803 ● ●
448 02.500 BOLT; SENSOR
09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 0803-1501 ● ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ) 09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 1502- ● ●
553 02.500 GASKET
4HK1-TCN ENG(RDQ) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0803-0803 ● ●
553 02.500 GASKET
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0803-1501 ● ●
553 02.500 GASKET
4HK1-TCN ENG(RDQ) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1502- ● ●
648 03.682 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ) 		8-97606-943-0 01 1 0803-0803 ● ●
648 03.682 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 0803-1501 ● ●
648 03.682 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ) 		8-97606-943-0 01 1 1502- ● ●
