Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#81483) — 521 parça

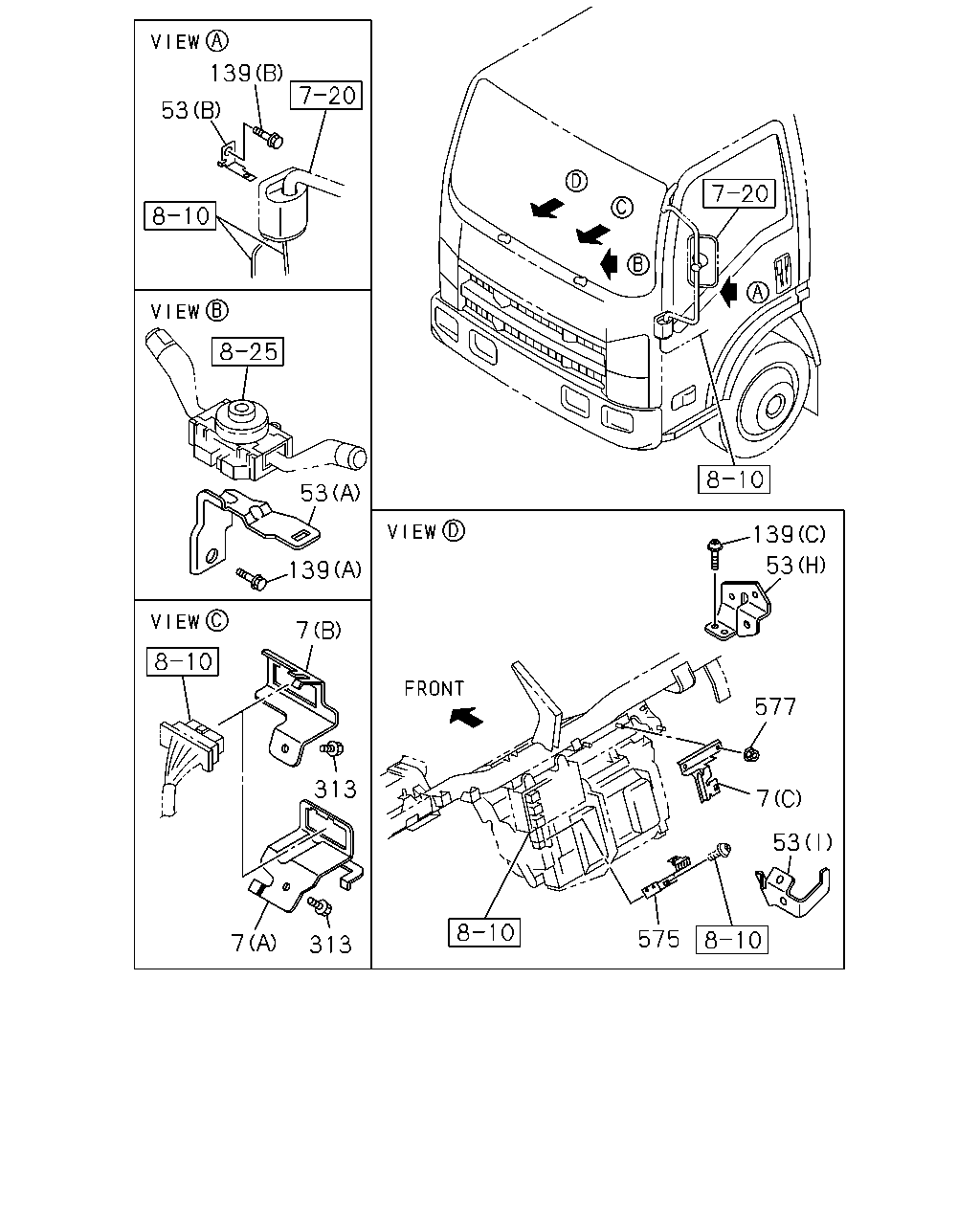

139 53 53 139 53 139 7 577 313 7 53 575 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98043-069-1	01	1	0803-0803	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98114-514-0	01	1	0804-	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98043-070-1	01	1	0803-0803	●
7	02.559 BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	0803-0803		●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98043-070-1	01	1	0804-	●
7	02.559 BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	0804-		●	●
7	02.559 BRACKET; CONNECTOR (C)	8-98056-073-3	01	1	0803-0803	●	●
7	02.559 BRACKET; CONNECTOR (C)	8-98056-073-3	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 02.559 (E)	8-98055-636-0	01	1	0803-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0803-	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0803-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	0803-1501	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1502-	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B)	8-98039-277-1	02	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B)	8-98039-277-1	02	1	0804-0805	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	0804-0906	●	●	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	0907-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98074-502-0	01	1	0907-		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98074-502-0	01	1	0907-			●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98083-225-1	01	1	0803-0803	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98083-225-1	01	1	0804-	●
53	02.483 BRACKET; HARNESS (L)	8-98083-225-1	01	1	0804-			●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (J)	8-98094-629-0	01	1	0803-0809	●
53	02.483 BRACKET; HARNESS (J)	8-98094-629-0	01	1	0803-0809		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (J)	8-98094-629-0	01	1	0810-1303	●
53	02.483 BRACKET; HARNESS (J)	8-98094-629-0	01	1	0810-1303		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (J)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1304-		●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-0803	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-0805	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0803-0803	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-0803	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-	●	●	●
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0803-0803	●	●
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0804-0809	●	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	0810-	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-0803	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-1101	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0803-0803	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-	●	●	●
575	02.559 BRACKET; FUSE BOX	8-98054-320-1	01	1	0803-0803	●	●
575	02.559 BRACKET; FUSE BOX	8-98054-320-1	01	1	0804-0808	●	●	●
575	02.559 BRACKET; FUSE BOX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	0809-	●	●	●
575	02.559 BRACKET; FUSE BOX EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98132-932-1	01	1	0809-	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0803-0803	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0804-	●	●	●

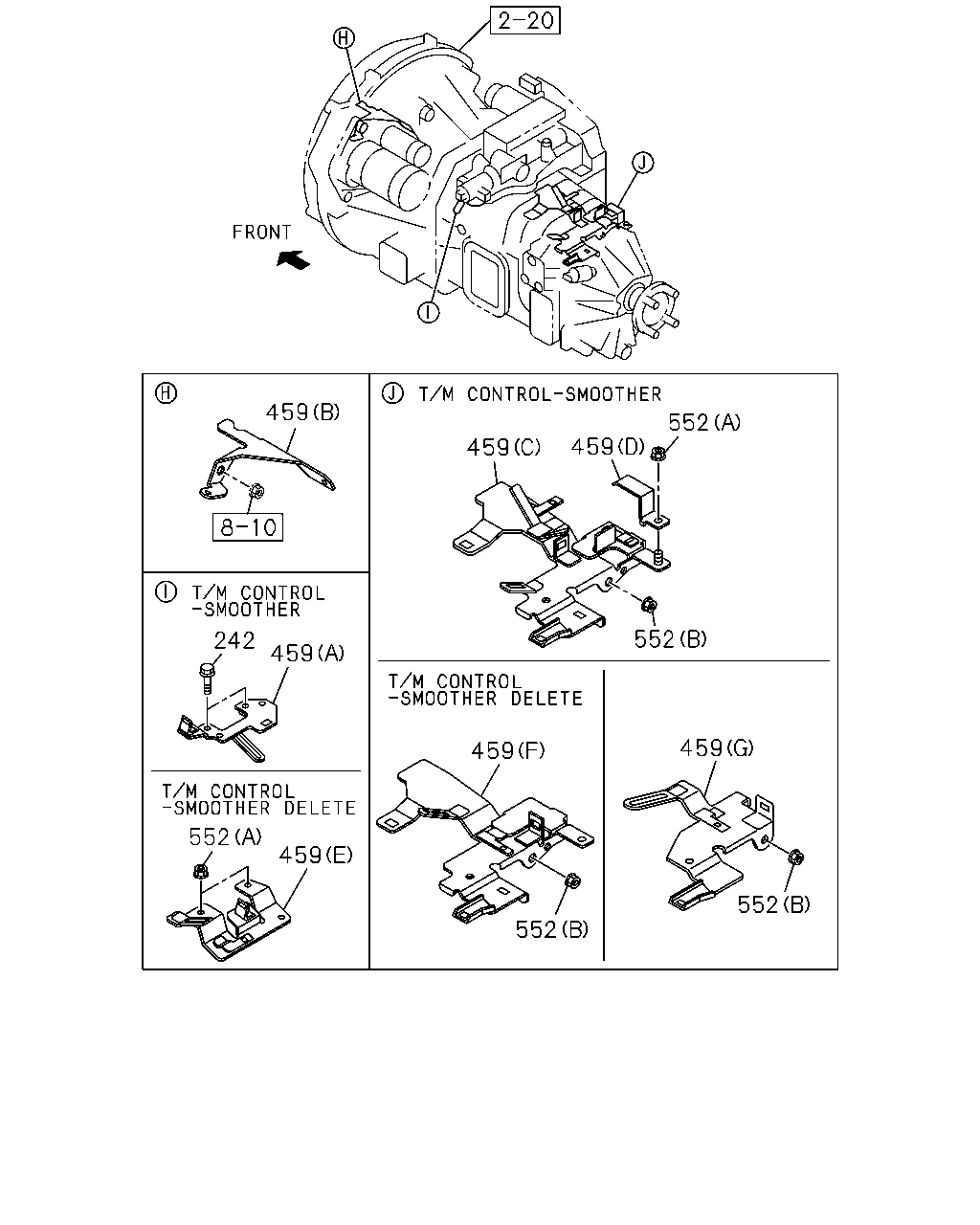

459 552 459 459 552 242 459 459 459 552 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0803-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	0803-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	0803-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	0803-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	0803-0803	●
459	02.483 BRACKET; SUPPORT,HARNESS (E)	8-98020-227-3	01	1	0803-0803		●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	0804-	●
459	02.483 BRACKET; SUPPORT,HARNESS (E)	8-98020-227-3	01	1	0804-		●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	0803-0803	●
459	02.483 BRACKET; SUPPORT,HARNESS (F)	8-98030-990-2	01	1	0803-0803		●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	0804-1109	●
459	02.483 BRACKET; SUPPORT,HARNESS (F)	8-98030-990-2	01	1	0804-1109		●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98196-974-0	01	1	1110-	●
459	02.483 BRACKET; SUPPORT,HARNESS (G)	8-98196-974-0	01	1	1110-		●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0803-0907	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98044-758-2	01	1	0908-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-		●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0803-0803	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0803-0803		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0804-	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0804-		●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0803-0907	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-	●

53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 02.559 (E)	8-98055-636-0	01	1	0803-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0803-	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0803-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	0803-1501	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1502-	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B)	8-98039-277-1	02	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B)	8-98039-277-1	02	1	0804-0805	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	0804-0906	●	●	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	0907-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98074-502-0	01	1	0907-		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98074-502-0	01	1	0907-			●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98083-225-1	01	1	0803-0803	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98083-225-1	01	1	0804-	●
53	02.483 BRACKET; HARNESS (L)	8-98083-225-1	01	1	0804-			●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (J)	8-98094-629-0	01	1	0803-0809	●
53	02.483 BRACKET; HARNESS (J)	8-98094-629-0	01	1	0803-0809		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (J)	8-98094-629-0	01	1	0810-1303	●
53	02.483 BRACKET; HARNESS (J)	8-98094-629-0	01	1	0810-1303		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (J)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1304-		●

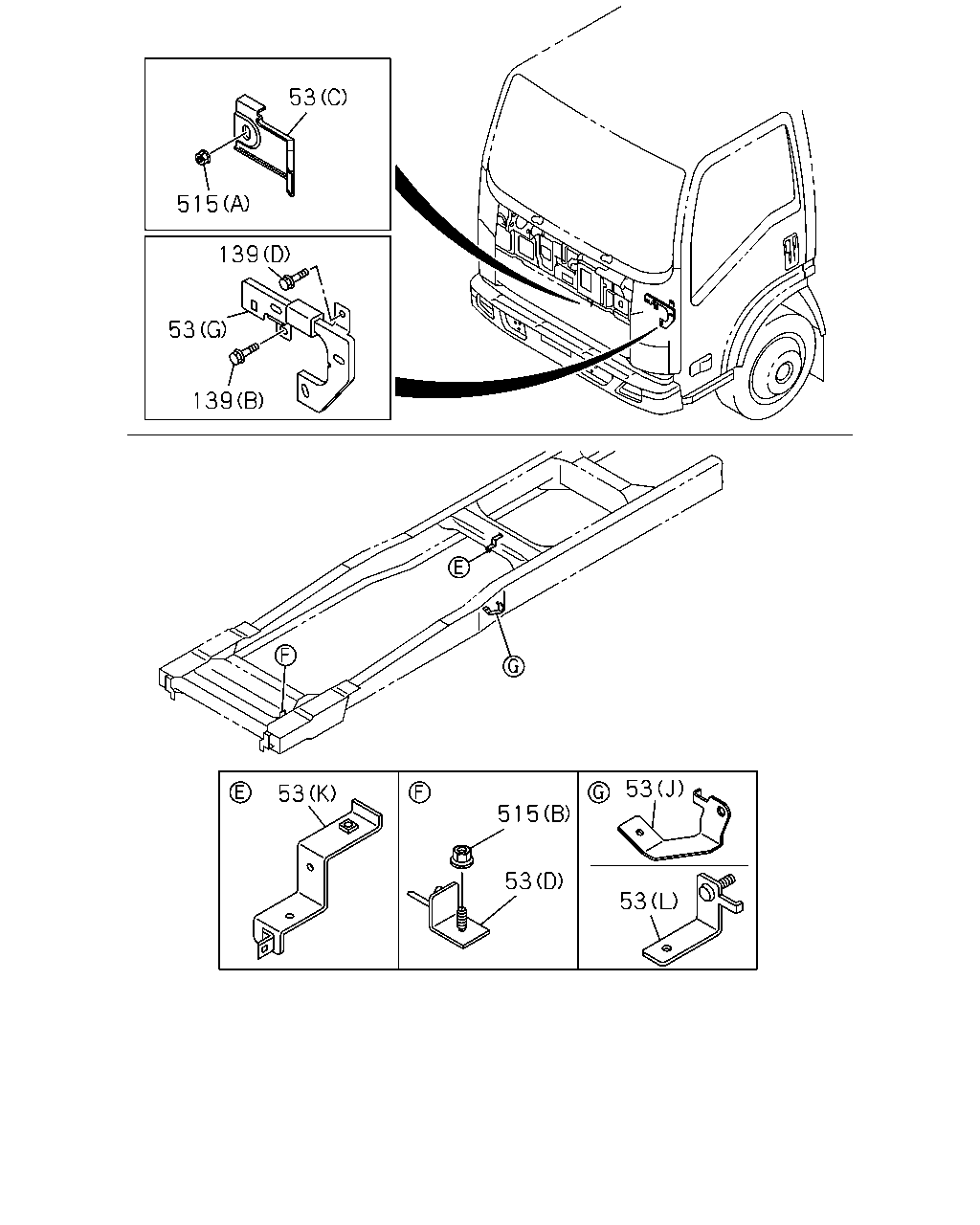

53 515 139 53 139 53 53 515 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 02.559 (E)	8-98055-636-0	01	1	0803-	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	0803-	●
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	0803-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS 02.559 (F)	8-98052-804-0	01	1	0803-1501	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1502-	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B)	8-98039-277-1	02	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> (B)	8-98039-277-1	02	1	0804-0805	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (C)	8-98014-410-2	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (D)	8-98032-016-1	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	0804-0906	●	●	●
53	02.483 BRACKET; HARNESS (I)	8-98074-502-0	01	1	0907-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (I)	8-98074-502-0	01	1	0907-		●
53	02.483 BRACKET; HARNESS 4JJ1-TCC ENG(RDU) (I)	8-98074-502-0	01	1	0907-			●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS (G)	8-98089-765-1	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	0803-0803	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98084-699-0	01	1	0804-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98083-225-1	01	1	0803-0803	●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (L)	8-98083-225-1	01	1	0804-	●
53	02.483 BRACKET; HARNESS (L)	8-98083-225-1	01	1	0804-			●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (J)	8-98094-629-0	01	1	0803-0809	●
53	02.483 BRACKET; HARNESS (J)	8-98094-629-0	01	1	0803-0809		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (J)	8-98094-629-0	01	1	0810-1303	●
53	02.483 BRACKET; HARNESS (J)	8-98094-629-0	01	1	0810-1303		●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (J)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS (J)	8-98130-669-1	01	1	1304-		●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-0803	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-0805	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0803-0803	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-0803	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-	●	●	●
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0803-0803	●	●
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0804-0809	●	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	0810-	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-0803	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-1101	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0809	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0809	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0809		●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909	●
515	02.559 NUT; BRKT EXC. DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909		●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-	●
515	02.559 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-0803	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0804-	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0803-0803	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-	●	●	●

14 102 48 488 16 16 22 14 22 102 570 617 22 102 488 22 22 22 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) L=140	5-09707-031-1	01	1	1502-	●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) 09.242 (A) L=150	8-97355-273-0	01	1	0803-0810	●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 09.242 (A) L=150	8-97355-273-0	02	1	0811-0906	●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 09.242 (A) L=150	8-97355-273-0	01	1	0907-1501	●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) 09.242 (A) L=150	8-97355-273-0	01	1	1502-	●	●

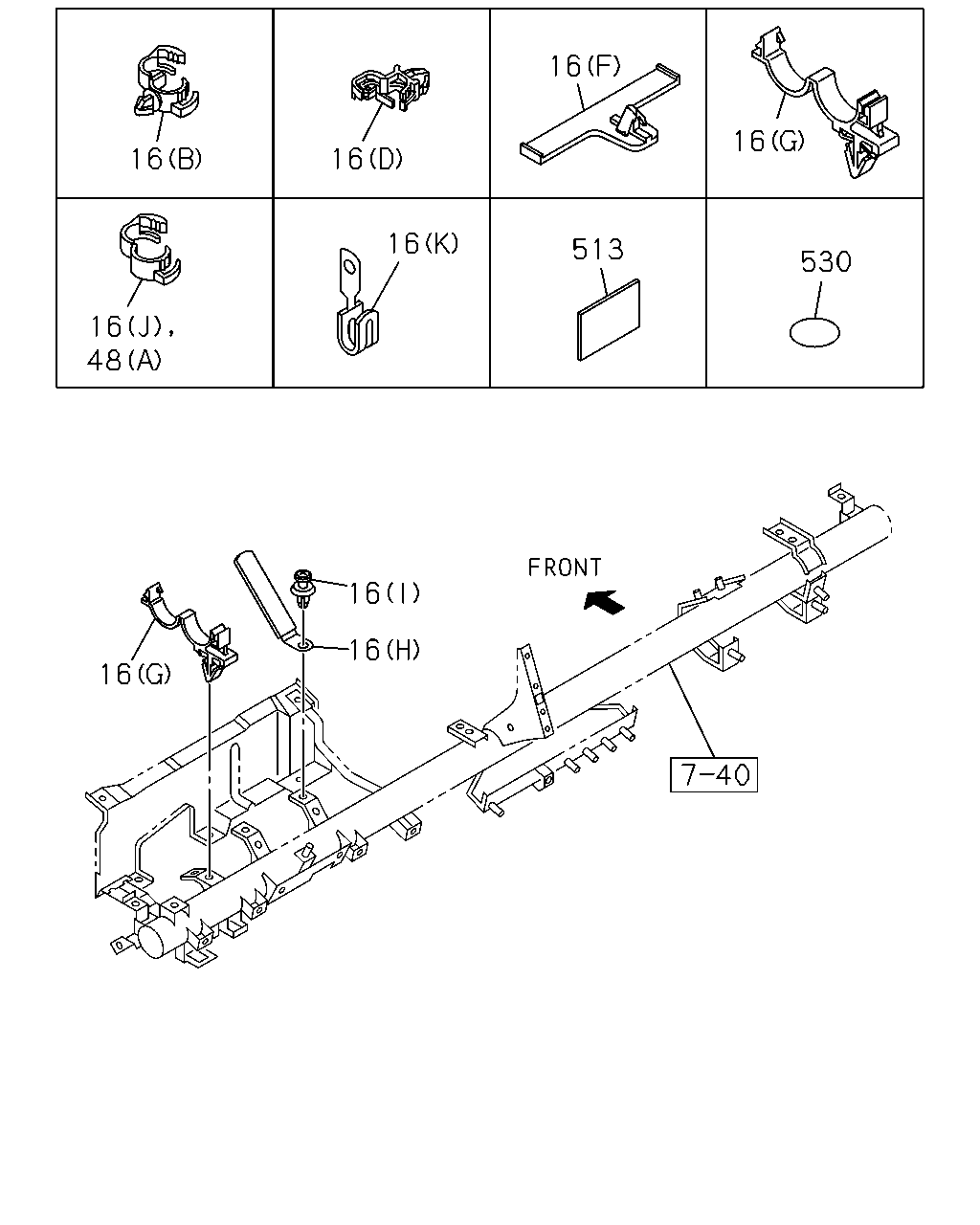

16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	0803-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (K)	8-97101-436-0	01	1	0803-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (K)	8-97101-436-0	01	1	0803-		●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (G) ID=28	8-94362-106-0	01	1	0803-	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0803-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	0803-0803	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	0804-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	0804-			●
16	02.559 CLIP; HARNESS 04.930 (H) L=91 ID=8.5	8-94329-956-0	01	1	0803-0803	●	●
16	02.559 CLIP; HARNESS 04.930 (H) L=91 ID=8.5	8-94329-956-0	01	1	0804-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0803-0803	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0804-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0803-0803	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0804-	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0803-0803	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0804-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	0804-			●
16	02.559 CLIP; HARNESS 16.578 (I) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0803-0803	●	●
16	02.559 CLIP; HARNESS 16.578 (I) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0804-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0803-0803	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0804-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (L) L=60	8-94449-165-0	02	1	0804-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (M) L=60	8-97063-335-0	02	1	0804-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 08.852 (E) L=350	8-94152-256-1	02	1	0803-0902	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=170.3	1-09987-182-0	01	1	0803-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	0804-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (F) L=119.5	1-09707-197-0	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (F) L=119.5	1-09707-197-0	01	1	0804-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (G) L=100	5-09707-036-1	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (G) L=100	5-09707-036-1	01	1	0804-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.425 (H) ID=6 & 8.3	8-94167-742-0	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.425 (H) ID=6 & 8.3	8-94167-742-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (H) ID=6 & 8.3	8-94167-742-0	01	1	0804-			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (I) ID=13.2 & 14.5	8-94475-649-0	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (I) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (I) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.104 (J) ID=12 & 6.8	8-97125-842-0	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.104 (J) ID=12 & 6.8	8-97125-842-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (J) ID=12 & 6.8	8-97125-842-0	01	1	0804-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (C) L=140	5-09707-031-1	02	1	0803-0804	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.162 (C) L=140	5-09707-031-1	02	1	0803-0804		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (C) L=140	5-09707-031-1	02	1	0805-0809	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	02	1	0805-0809	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.162 (C) L=140	5-09707-031-1	02	1	0805-0809		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	02	1	0810-0902	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (D) L=250	5-09707-030-1	01	1	0805-0902	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (G) L=450	1-09707-142-1	01	1	0803-	●
48	02.559 CLIP; FRAME HARNESS 03.483 (G) L=450	1-09707-142-1	01	1	0803-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0803-	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0803-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0803-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	0803-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	0803-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0803-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0803-0803	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0804-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0804-			●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0803-0803	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0804-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0804-			●
48	02.559 CLIP; FRAME HARNESS 08.852 (B) L=350	8-94152-256-1	01	1	0804-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0	5-09709-024-0	01	1	0803-0804	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E) T=6.0	5-09709-024-0	01	1	0803-0804		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (F) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (F) T=4.5 & 9	8-97371-947-0	01	1	0805-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0803-0805	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0803-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0803-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-		●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) L=170	5-09707-054-0	01	1	1104-1501	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 03.162 (C) L=170	5-09707-054-0	01	1	1502-	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 03.162 (A) L=140	5-09707-031-1	03	1	0803-	●
102	02.559 CLIP; BAND EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	04	1	0803-1202	●	●
102	02.559 CLIP; BAND EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	02	1	1203-	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) (B) L=250	5-09707-030-1	01	1	0803-0803	●	●
102	02.559 CLIP; BAND (B) L=250	5-09707-030-1	01	1	0803-1103	●	●
102	02.559 CLIP; BAND EURO2 SPECIFICATION(NT2) (B) L=250	5-09707-030-1	01	1	1104-	●	●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED(RS6) 02.587 (A) L=112	8-94232-618-0	05	1	0803-0803	●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED(RS6) 02.587 (A) L=112	8-94232-618-0	05	1	0804-	●		●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED(RS6) (B) L=250	5-09707-030-1	01	1	0803-0803	●
488	02.559 CLIP; CABLE,TRAILER (B) L=250	5-09707-030-1	01	1	0803-0803		●
488	02.559 CLIP; CABLE,TRAILER EXC. RR BODY FLAT BED(RS6) (B) L=250	5-09707-030-1	01	1	0804-	●		●
488	02.559 CLIP; CABLE,TRAILER (B) L=250	5-09707-030-1	01	1	0804-		●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0803-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0803-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=6.0	8-97371-948-0	01	1	0803-0804	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
617	02.559 STRAP; BAND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1012-1106	●
617	02.559 STRAP; BAND 03.162 L=140	5-09707-031-1	01	1	1012-1106		●	●

483 48 570 48 570 16 16 48 22 22 483 483 22 483 570 48 483 483 483 16 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	0803-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (K)	8-97101-436-0	01	1	0803-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (K)	8-97101-436-0	01	1	0803-		●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (G) ID=28	8-94362-106-0	01	1	0803-	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0803-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	0803-0803	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	0804-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	0804-			●
16	02.559 CLIP; HARNESS 04.930 (H) L=91 ID=8.5	8-94329-956-0	01	1	0803-0803	●	●
16	02.559 CLIP; HARNESS 04.930 (H) L=91 ID=8.5	8-94329-956-0	01	1	0804-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0803-0803	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0804-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0803-0803	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0804-	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0803-0803	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0804-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	0804-			●
16	02.559 CLIP; HARNESS 16.578 (I) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0803-0803	●	●
16	02.559 CLIP; HARNESS 16.578 (I) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0804-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0803-0803	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0804-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (L) L=60	8-94449-165-0	02	1	0804-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (M) L=60	8-97063-335-0	02	1	0804-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 08.852 (E) L=350	8-94152-256-1	02	1	0803-0902	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=170.3	1-09987-182-0	01	1	0803-	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0803-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (C) L=140	5-09707-031-1	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	0804-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (F) L=119.5	1-09707-197-0	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (F) L=119.5	1-09707-197-0	01	1	0804-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (G) L=100	5-09707-036-1	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (G) L=100	5-09707-036-1	01	1	0804-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.425 (H) ID=6 & 8.3	8-94167-742-0	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.425 (H) ID=6 & 8.3	8-94167-742-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (H) ID=6 & 8.3	8-94167-742-0	01	1	0804-			●

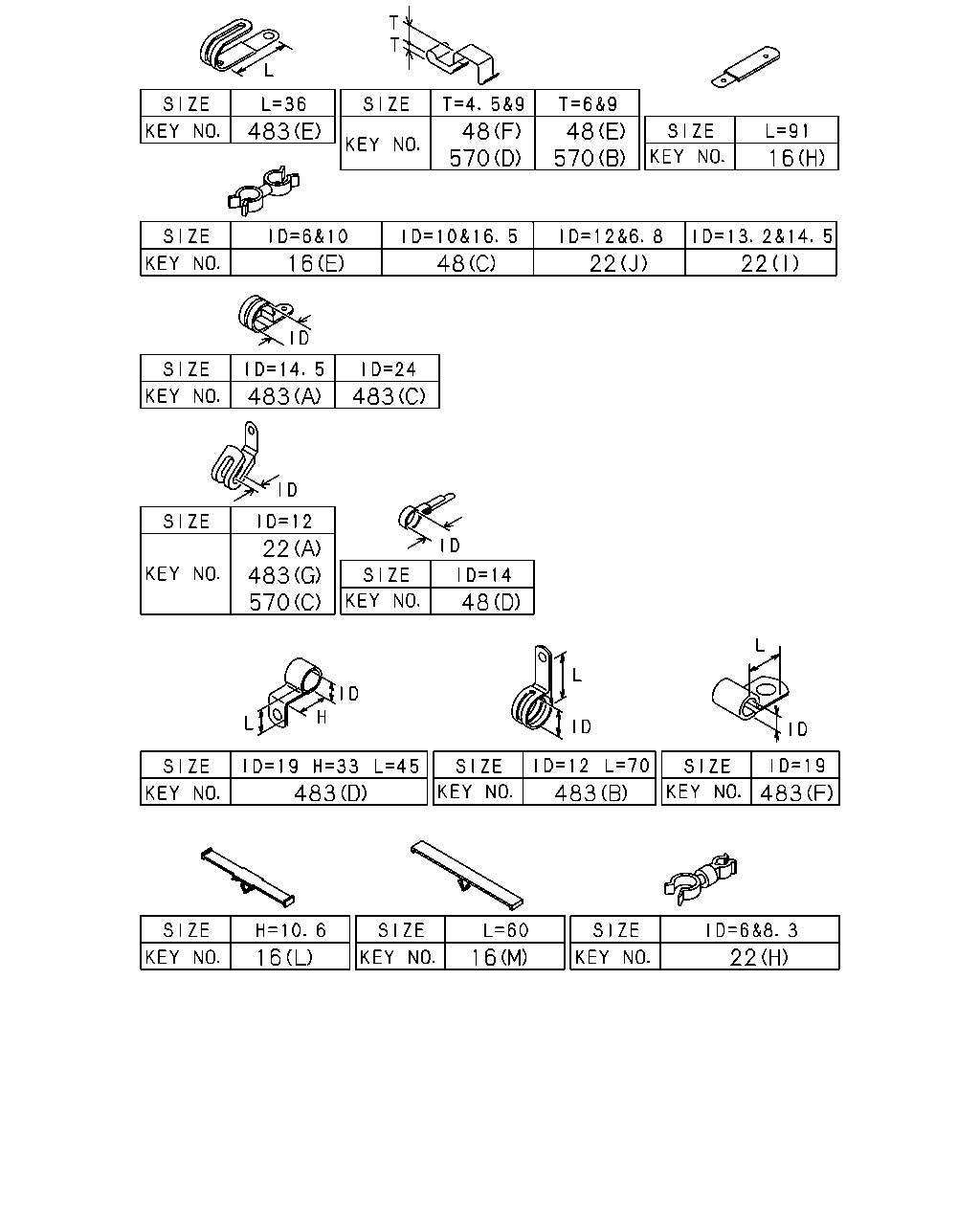

22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (I) ID=13.2 & 14.5	8-94475-649-0	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (I) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (I) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.104 (J) ID=12 & 6.8	8-97125-842-0	01	1	0803-0803	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.104 (J) ID=12 & 6.8	8-97125-842-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (J) ID=12 & 6.8	8-97125-842-0	01	1	0804-			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (C) L=140	5-09707-031-1	02	1	0803-0804	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.162 (C) L=140	5-09707-031-1	02	1	0803-0804		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (C) L=140	5-09707-031-1	02	1	0805-0809	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	02	1	0805-0809	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.162 (C) L=140	5-09707-031-1	02	1	0805-0809		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) L=140	5-09707-031-1	02	1	0810-0902	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (D) L=250	5-09707-030-1	01	1	0805-0902	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (G) L=450	1-09707-142-1	01	1	0803-	●
48	02.559 CLIP; FRAME HARNESS 03.483 (G) L=450	1-09707-142-1	01	1	0803-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0803-	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0803-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0803-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	0803-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	0803-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0803-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0803-0803	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0804-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0804-			●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0803-0803	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0804-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0804-			●
48	02.559 CLIP; FRAME HARNESS 08.852 (B) L=350	8-94152-256-1	01	1	0804-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0	5-09709-024-0	01	1	0803-0804	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E) T=6.0	5-09709-024-0	01	1	0803-0804		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (F) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (F) T=4.5 & 9	8-97371-947-0	01	1	0805-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0803-0805	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0803-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0803-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-		●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	0803-	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	0803-	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 01.152 (E) L=36	8-94224-891-1	01	1	0803-	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	0803-	●	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (C) ID=24 L=24	1-09701-001-1	01	1	0803-	●	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 01.152 (E) L=36	8-94224-891-1	04	1	0803-	●	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (F) ID=19 L=60	0-95235-896-0	01	1	0907-	●	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 03.671 (G) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-	●	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0803-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	0803-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=6.0	8-97371-948-0	01	1	0803-0804	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) T=4.5 & 9	8-97371-947-0	01	1	0805-	●

16 16 16 16 16 513 530 16 48 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	0803-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (K)	8-97101-436-0	01	1	0803-	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (K)	8-97101-436-0	01	1	0803-		●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 (G) ID=28	8-94362-106-0	01	1	0803-	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0803-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	0803-0803	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	0804-	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	0804-			●
16	02.559 CLIP; HARNESS 04.930 (H) L=91 ID=8.5	8-94329-956-0	01	1	0803-0803	●	●
16	02.559 CLIP; HARNESS 04.930 (H) L=91 ID=8.5	8-94329-956-0	01	1	0804-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0803-0803	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0804-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0803-0803	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0804-	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0803-0803	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0804-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	0804-			●
16	02.559 CLIP; HARNESS 16.578 (I) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0803-0803	●	●
16	02.559 CLIP; HARNESS 16.578 (I) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	0804-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0803-0803	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0804-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (L) L=60	8-94449-165-0	02	1	0804-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (M) L=60	8-97063-335-0	02	1	0804-			●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 03.483 (G) L=450	1-09707-142-1	01	1	0803-	●
48	02.559 CLIP; FRAME HARNESS 03.483 (G) L=450	1-09707-142-1	01	1	0803-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0803-	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0803-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0803-		●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	0803-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (C) ID=10 & 16.5	8-94424-440-0	01	1	0803-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	0803-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0803-0803	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0804-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0804-			●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0803-0803	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	0804-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0804-			●
48	02.559 CLIP; FRAME HARNESS 08.852 (B) L=350	8-94152-256-1	01	1	0804-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=6.0	5-09709-024-0	01	1	0803-0804	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (E) T=6.0	5-09709-024-0	01	1	0803-0804		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (F) T=4.5 & 9	8-97371-947-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (F) T=4.5 & 9	8-97371-947-0	01	1	0805-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0803-0805	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0803-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0803-0805		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	0806-		●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	0808-	●	●	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309	●	●	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0803-0803	●	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0804-	●	●	●

516 150 139 313 481 38 139 516 139 150 481 480 242 529 304 480 377 377 377 386 377 386 386 377 386 24 515 577 219 294 515 524 552 24 515 552 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-	●
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-		●
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-0803	●	●
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0804-1409	●	●	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-0803	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-0803	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-			●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0803-0803	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOORMIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDL E ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-0805	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0803-0803	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0803-0803	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-	●	●	●
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0803-0803	●	●
139	02.559 BOLT; BRKT 00.206 (D) M6X12 FLANGE	0-28450-612-0	01	1	0804-0809	●	●	●
139	02.559 BOLT; BRKT 03.604 (D) M6X12 FLANGE	8-97108-669-0	01	1	0810-	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-0803	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-1101	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
150	02.343 BOLT; CLIP EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE	0-28050-816-0	03	1	0803-0906	●	●
150	02.343 BOLT; CLIP EURO2 SPECIFICATION(NT2) (A) M8X16 FLANGE	0-28050-816-0	04	1	0907-	●	●
150	02.343 BOLT; CLIP EURO2 SPECIFICATION(NT2) 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	0907-	●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-		●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0803-	●
294	02.559 NUT 4HK1-TCN ENG(RDQ) 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	0803-0904	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
294	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803		●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
294	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●
294	02.559 NUT 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-			●
304	02.483 BOLT; ENG HARNESS CLIP 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) 00.029 M10X16 FLANGE	0-28151-016-0	01	1	0803-	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0803-0803	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0803-0803	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0804-1004	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-	●	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0803-0803	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0804-1004	●	●	●
377	02.559 BOLT; CAB EARTH (E) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0803-0803	●	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0804-1004	●	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0803-0803	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0804-1004	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0803-0803	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0804-1004	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-	●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-		●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0803-0803	●	●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0804-0809	●	●	●
480	02.483 BOLT; BRKT EXC. DUMP CHASSIS(V4D) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-	●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0810-		●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-0903	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0803-	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0809	●	●	●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0809	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0809		●
515	02.559 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909	●
515	02.559 NUT; BRKT EXC. DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909		●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0810-0909		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-	●
515	02.559 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0910-		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0803-0803	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0804-	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0803-0803	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-	●	●	●
516	02.559 BOLT; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0803-0803	●
516	02.559 BOLT; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0804-1111	●
516	02.559 BOLT; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0804-1111			●
516	02.559 BOLT; HARNESS 09.650 (A) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0803-0803	●	●
516	02.559 BOLT; HARNESS 09.650 (A) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0804-	●	●	●
524	02.559 NUT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0904-	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0803-0803	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0804-	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-		●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0803-0803	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0803-0803		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0804-	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0804-		●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0803-0907	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0908-	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0803-0803	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0804-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
