Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#81482) — 490 parça

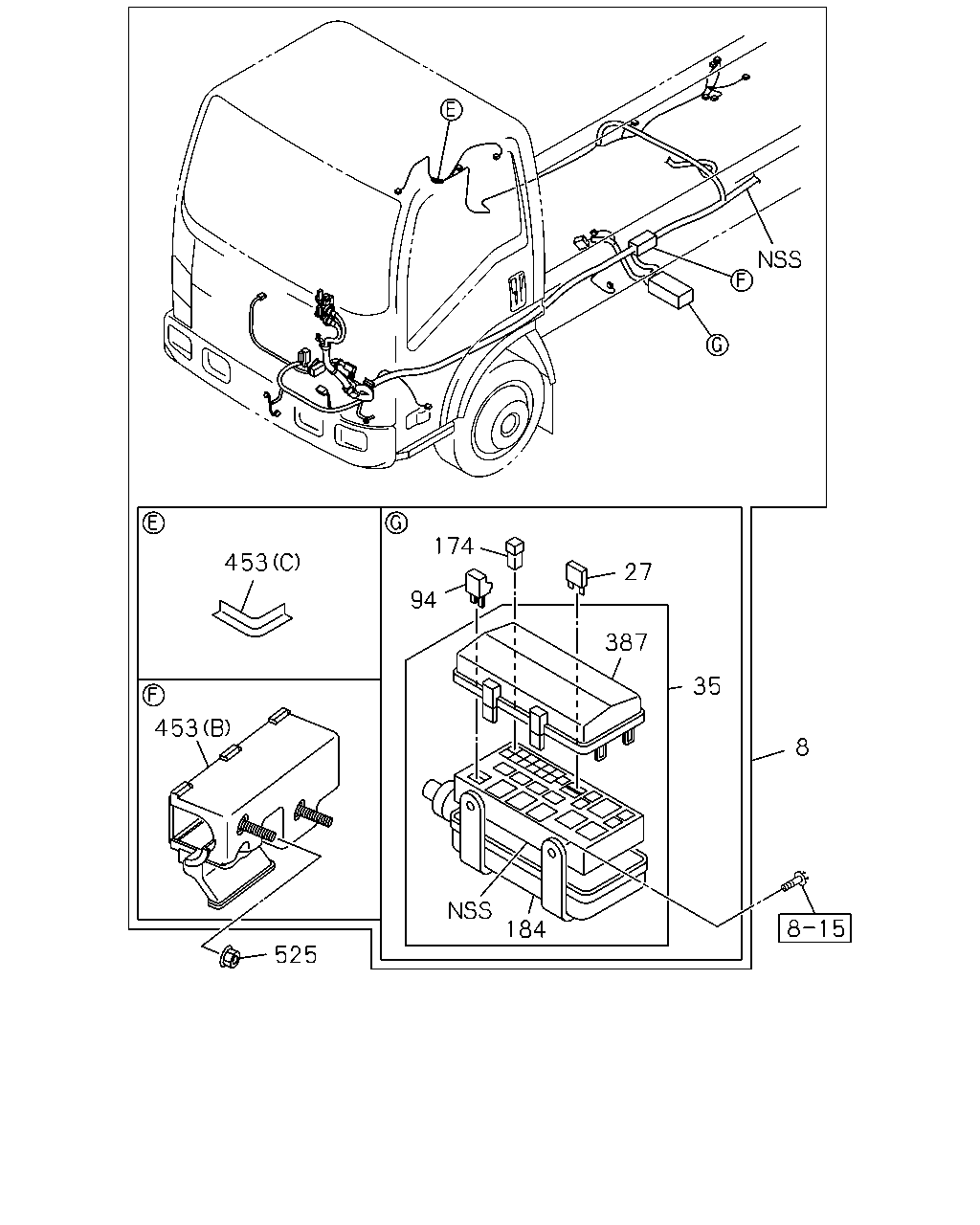

174 453 27 94 387 35 453 8 184 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-301-9	01	1	0803-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-250-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-304-9	01	1	0803-1301	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98225-714-0	01	1	1302-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-292-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-305-9	01	1	0803-1301	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98225-715-0	01	1	1302-1409	●
8	02.480 HARNESS; FRAME,FRT	8-98294-293-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-303-9	01	1	0803-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-252-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98101-917-1	01	1	0803-0803	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98101-917-5	01	1	0803-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-278-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU)	8-98070-273-6	01	1	0804-1409		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU)	8-98294-219-0	01	1	1410-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-300-7	01	1	0803-0804	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98070-300-7	01	1	0803-0804			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-300-9	01	1	0805-0904	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98145-576-1	01	1	0905-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-287-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98115-313-0	01	1	0803-0804	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98115-313-0	01	1	0803-0804			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D)	8-98115-313-4	01	1	0805-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98115-313-4	01	1	0805-1409			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D)	8-98294-280-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98294-280-0	01	1	1410-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98070-272-6	01	1	0803-0805	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98070-272-6	01	1	0806-1005	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98070-272-7	01	1	1006-1409	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98294-218-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98122-443-1	01	1	0806-1409	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98294-228-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98170-964-1	01	1	1006-1409	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98294-229-0	01	1	1410-	●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	0803-0803	●		●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	0804-	●	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	0803-0803	●		●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	0804-	●	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	0803-0803	●		●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	0804-	●	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	0803-0803	●		●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	0804-	●	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	0803-0803	●		●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	0804-	●	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	0803-0803	●		●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	0804-	●	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	0803-0803	●		●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	0804-	●	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	0803-0803	●		●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	0804-	●	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	0803-0803	●		●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	0804-	●	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-94417-716-0	04	1	0803-0803	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98031-620-1	02	1	0803-0803	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	0803-0803	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	0803-0803	●		●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	0804-	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0803-0803	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0803-0803	●		●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0804-	●	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	0803-0803	●		●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	0804-	●	●	●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0803	●		●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●

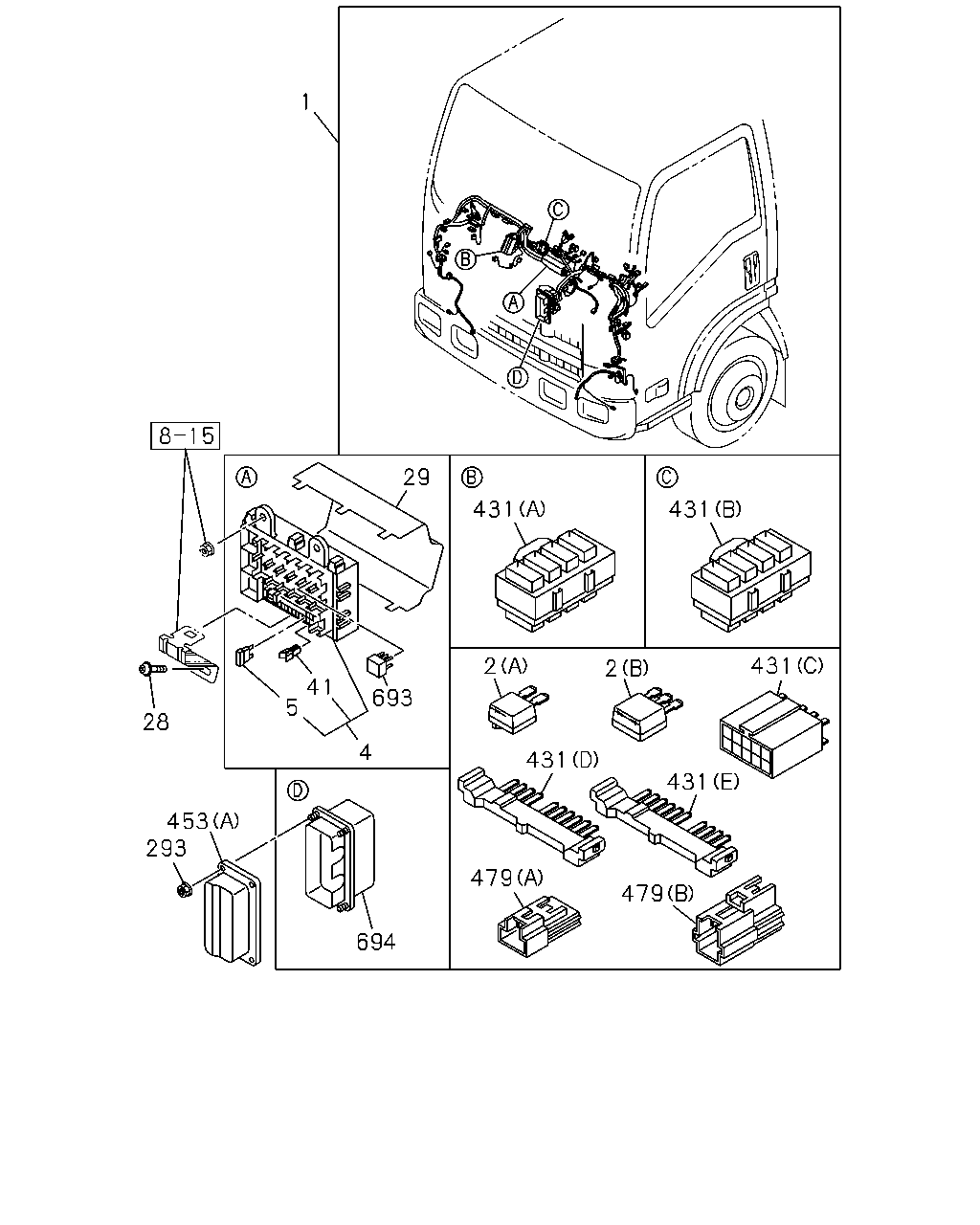

1 29 431 431 431 2 2 41 5 693 28 4 431 431 453 293 479 479 694

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-727-1	01	1	0803-0803	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-717-1	01	1	0803-0803	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98089-726-1	01	1	0803-0803	●
1	02.480 HARNESS; CAB REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98089-715-1	01	1	0803-0803	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98105-659-5	01	1	0803-0803	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98105-659-6	01	1	0803-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98201-654-0	01	1	1205-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98089-716-3	01	1	0803-0803	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-716-3	01	1	0803-0901	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO MANUAL CONTROL(6WC)	8-98089-716-4	01	1	0902-1001	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-716-5	01	1	1002-1012	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98089-725-3	01	1	0803-0803	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98089-725-7	01	1	0803-1204	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98201-652-0	01	1	1205-	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF>	8-98089-713-2	01	1	0803-0803	●
1	02.480 HARNESS; CAB	8-98089-713-2	01	1	0803-0803			●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98089-713-3	01	1	0803-0901	●
1	02.480 HARNESS; CAB	8-98089-713-3	01	1	0803-0901			●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,PTO MANUAL CONTROL(6WC)	8-98089-713-4	01	1	0902-0906	●
1	02.480 HARNESS; CAB EXC. PTO MANUAL CONTROL(6WC)	8-98089-713-4	01	1	0902-0906			●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,PTO MANUAL CONTROL(6WC)	8-98089-713-4	01	1	0907-1001	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) EXC. PTO MANUAL CONTROL(6WC)	8-98089-713-4	01	1	0907-1001			●
1	02.480 HARNESS; CAB POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98089-713-4	01	1	1002-1005	●
1	02.480 HARNESS; CAB POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98158-767-1	01	1	1006-1204	●
1	02.480 HARNESS; CAB POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98204-639-0	01	1	1205-	●
1	02.480 HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31>	8-98089-721-4	01	1	0804-0906		●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31>	8-98089-721-6	01	1	0907-1204		●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31>	8-98211-998-0	01	1	1205-		●
1	02.480 HARNESS; CAB EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98089-719-4	01	1	0804-0906		●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98089-719-4	01	1	0907-1005		●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEADLAMP LEVELING MANUAL CONTROL<TR6>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98158-765-1	01	1	1006-1204	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98158-765-1	01	1	1006-1204			●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) EXC. POWER WINDOW FRT&REAR DOOR<A31>, HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98158-765-1	01	1	1006-1204		●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HEADLAMP LEVELING MANUAL CONTROL<TR6>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98200-871-0	01	1	1205-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98200-871-0	01	1	1205-			●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) EXC. POWER WINDOW FRT&REAR DOOR<A31>, HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98200-871-0	01	1	1205-		●
1	02.480 HARNESS; CAB PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98140-033-1	01	1	0902-0906	●
1	02.480 HARNESS; CAB PTO MANUAL CONTROL(6WC)	8-98140-033-1	01	1	0902-0906			●
1	02.480 HARNESS; CAB PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98140-033-1	01	1	0907-1001	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC)	8-98140-033-1	01	1	0907-1001			●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98140-033-1	01	1	1002-1005	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ)	8-98140-033-1	01	1	1002-1005			●
1	02.480 HARNESS; CAB 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEADLAMP LEVELING MANUAL CONTROL<TR6>,POWER TAKE OFF CONTROL EL ECTRIC(7GR)	8-98158-766-1	01	1	1006-1204	●
1	02.480 HARNESS; CAB HEADLAMP LEVELING MANUAL CONTROL<TR6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98158-766-1	01	1	1006-1204	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98158-766-1	01	1	1006-1204			●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98158-766-1	01	1	1006-1204		●
1	02.480 HARNESS; CAB 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEADLAMP LEVELING MANUAL CONTROL<TR6>,POWER TAKE OFF CONTROL EL ECTRIC(7GR)	8-98200-872-0	01	1	1205-	●
1	02.480 HARNESS; CAB HEADLAMP LEVELING MANUAL CONTROL<TR6> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98200-872-0	01	1	1205-	●
1	02.480 HARNESS; CAB 4HK1-TCN ENG(RDQ) HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-98200-872-0	01	1	1205-			●
1	02.480 HARNESS; CAB 4JJ1-TCC ENG(RDU) HEADLAMP LEVELING MANUAL CONTROL<TR6> EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98200-872-0	01	1	1205-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98140-034-1	01	1	0902-1001	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98140-034-1	01	1	1002-1005	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98158-768-1	01	1	1006-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98200-874-0	01	1	1205-	●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	0803-	●	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	0803-	●	●	●

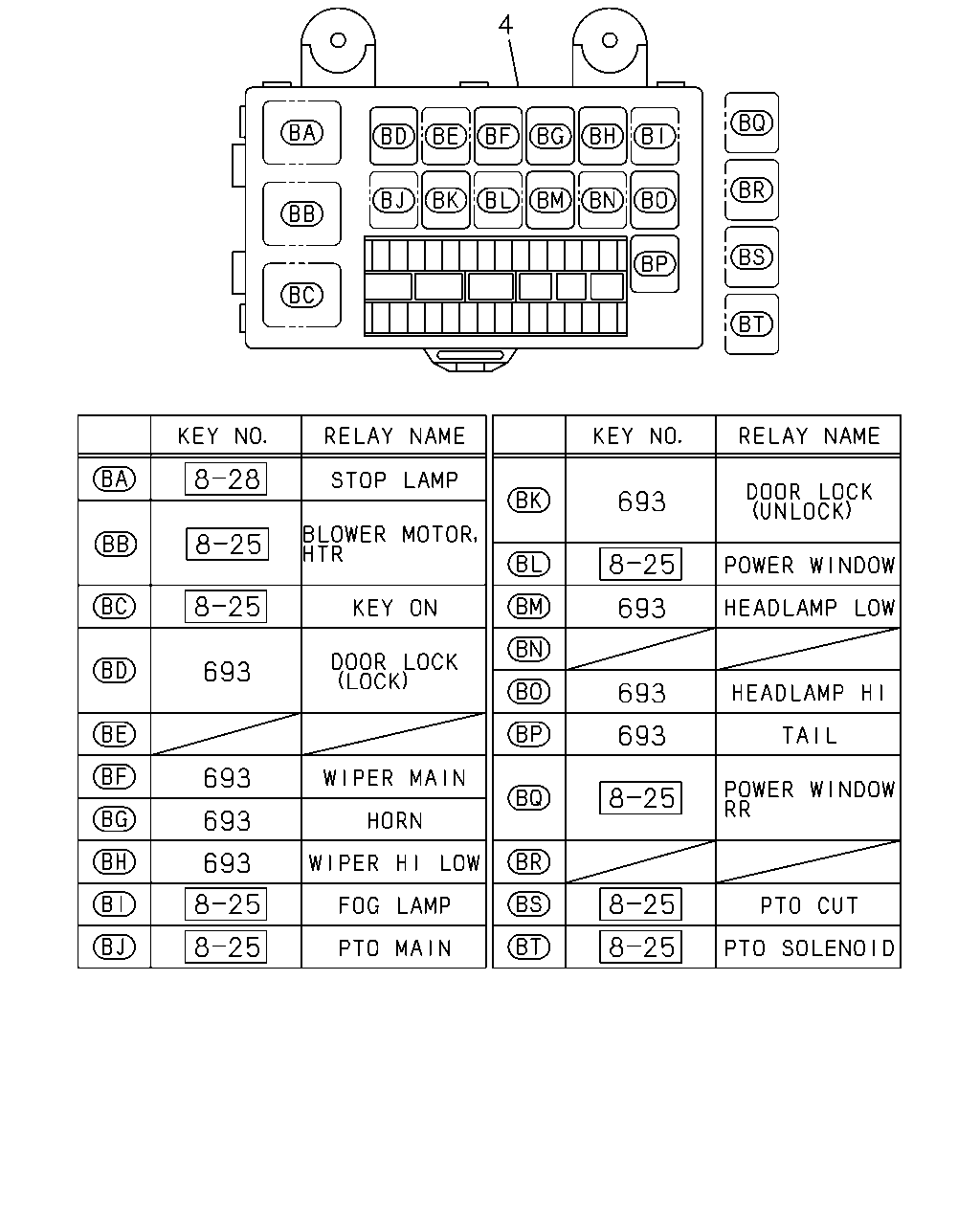

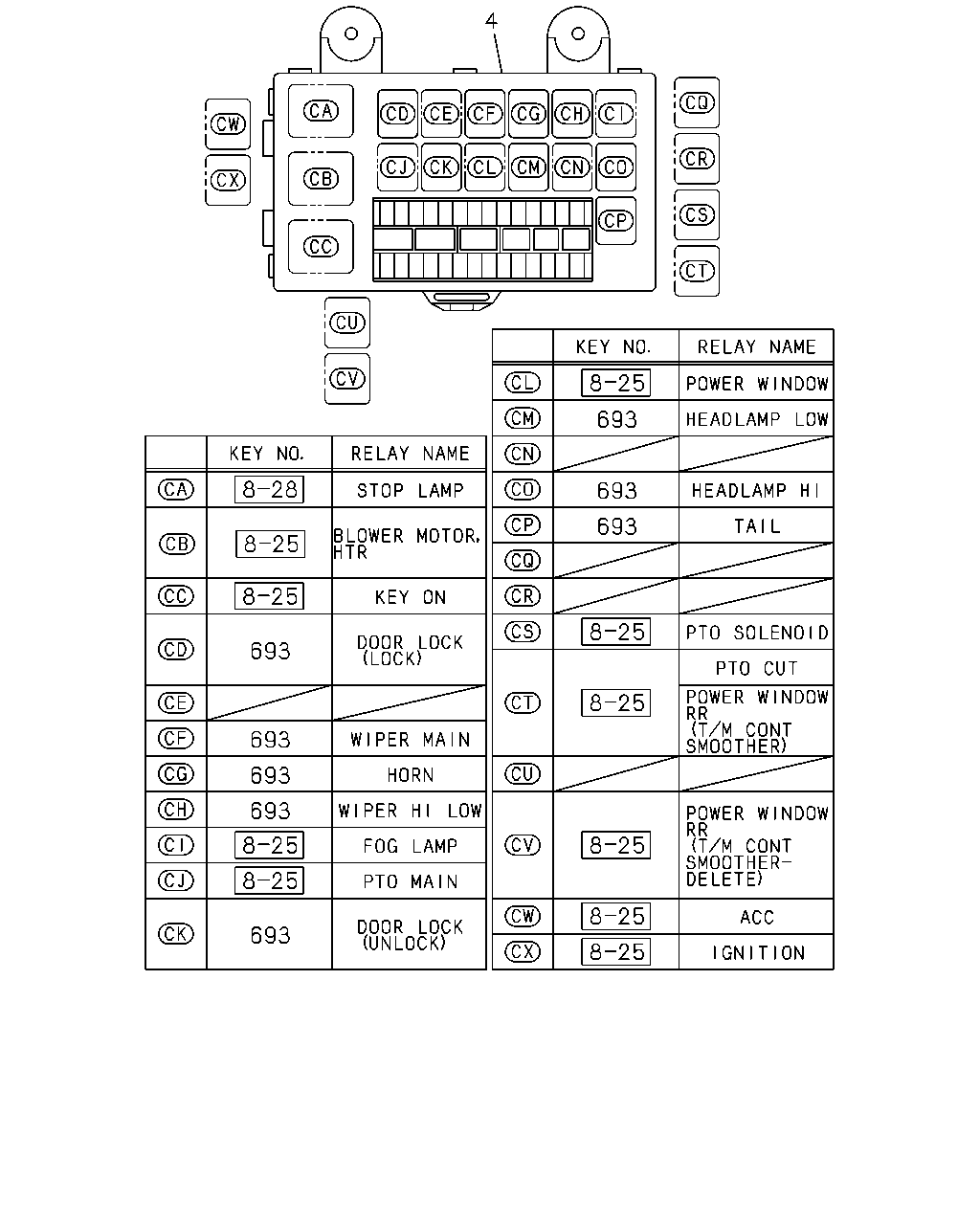

4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-0	01	1	0803-0803	●		●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0804-	●	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0803-0803	●		●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0804-	●	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0803-0803	●		●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0804-	●	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0803-0803	●		●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0804-	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-0803	●		●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-1101	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	0803-0803	●		●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	0804-	●	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	0803-0803	●		●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	0804-	●	●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	0803-0803	●		●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	0804-	●	●	●
431	02.530 CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 10P GREEN	1-82699-599-0	01	1	0803-1204	●
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	01	1	0803-0803	●		●
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	01	1	0804-1005	●	●	●
431	02.530 CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BLUE	1-82699-598-0	01	1	1006-1204	●
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	0803-0803	●		●
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	0804-1204	●	●	●
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	0803-0803	●		●
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	0804-	●	●	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	0803-0803	●		●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	0804-	●	●	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-94417-716-0	04	1	0803-0803	●
453	02.483 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98031-620-1	02	1	0803-0803	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	0803-0803	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	0803-0803	●		●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	0804-	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0803-0803	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0803-0803	●		●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0804-	●	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	0803-0803	●		●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	0804-	●	●	●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	0803-0803	●		●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	0804-	●	●	●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	0803-0803	●		●
479	02.530 CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	0804-	●	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0803-0803	●		●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0804-	●	●	●
694	02.483 BOX ASM; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98190-772-0	01	1	1101-1204	●
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1101-1204		●	●
694	02.483 BOX ASM; CONNECTOR	8-98190-772-0	01	1	1205-	●	●	●
694	02.483 BOX ASM; CONNECTOR	8-98057-640-0	01	1	0803-0803	●		●
694	02.483 BOX ASM; CONNECTOR	8-98057-640-0	01	1	0804-1012	●	●	●
694	02.483 BOX ASM; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-640-0	01	1	1101-1204	●

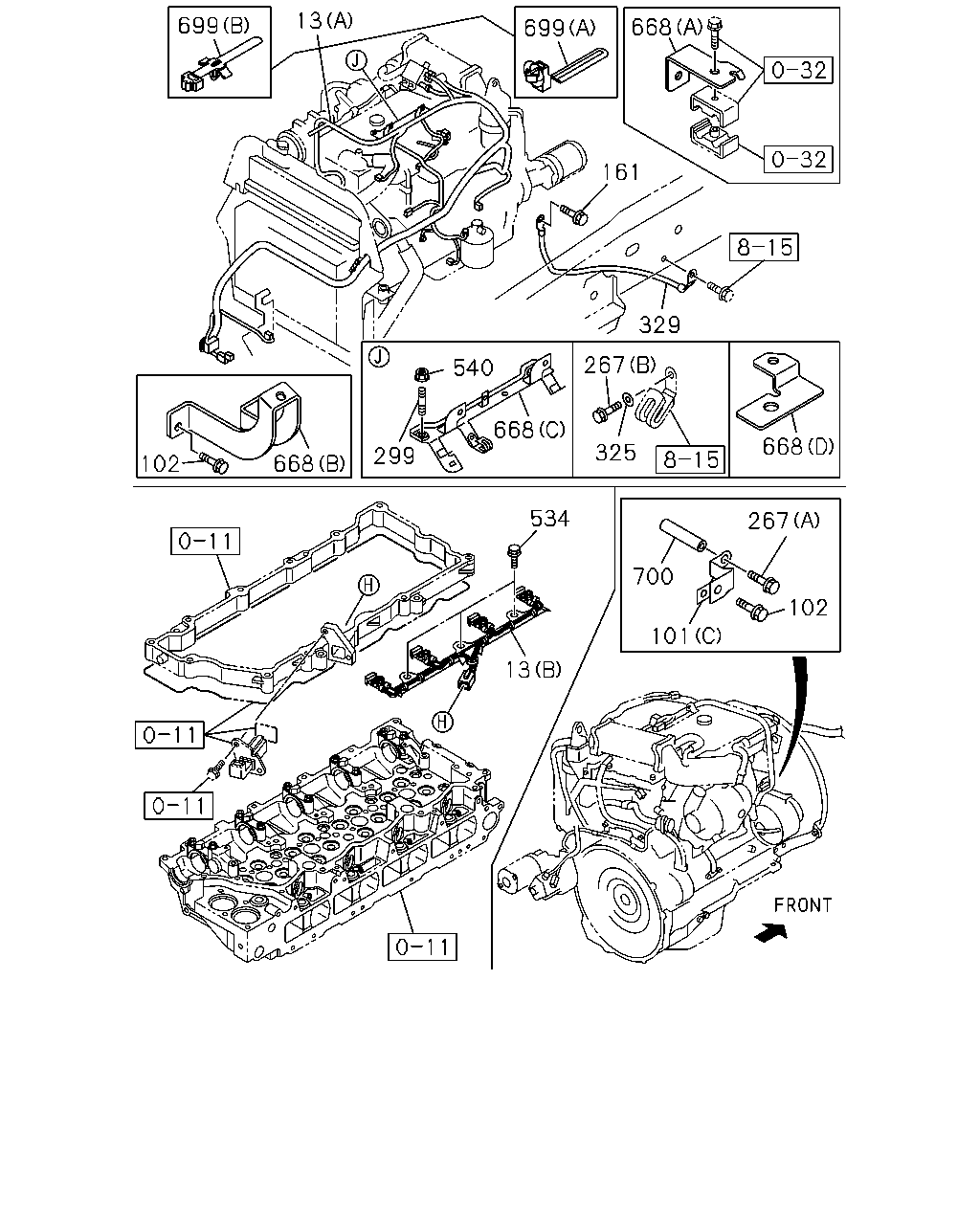

699 13 699 668 161 329 540 668 299 668 102 267 325 668 267 102 101 700 534 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98076-299-6	01	1	0803-0803	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98076-299-6	01	1	0803-0803			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98076-299-7	01	1	0803-0906	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98076-299-7	01	1	0803-0906			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98149-125-0	01	1	0907-1012	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98149-125-0	01	1	0907-1012			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98178-534-0	01	1	1101-1202	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98178-534-0	01	1	1101-1202			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98209-819-0	01	1	1203-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98209-819-0	01	1	1203-			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98076-298-6	01	1	0803-0803	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98076-298-6	01	1	0803-0803			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98076-298-7	01	1	0803-0906	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98076-298-7	01	1	0803-0906			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98149-126-0	01	1	0907-1012	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98149-126-0	01	1	0907-1012			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98178-535-0	01	1	1101-1202	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98178-535-0	01	1	1101-1202			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98209-820-0	01	1	1203-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98209-820-0	01	1	1203-			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-97332-133-3	01	1	0803-1007	●		●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1008-	●		●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98083-032-6	01	1	0803-0803	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98083-032-6	01	1	0804-1006	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) (C)	8-98083-032-6	01	1	0804-1006		●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98147-723-0	01	1	1007-1111	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) (C)	8-98147-723-0	01	1	1007-1111		●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98172-158-1	01	1	1112-	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) (C)	8-98172-158-1	01	1	1112-		●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN) (A)	8-98075-586-1	01	1	0803-0902	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN) (A)	8-98136-479-0	01	1	0903-1012	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN) (A)	8-98178-539-0	01	1	1101-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V80A(7YN) (A)	8-98075-587-1	01	1	0803-0902	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V80A(7YN) (A)	8-98136-480-0	01	1	0903-1012	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V80A(7YN) (A)	8-98178-540-0	01	1	1101-	●
101	02.483 BRACKET; HARNESS CONNECTOR EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D)	8-98079-137-2	01	1	0803-	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98052-805-0	01	1	0803-	●		●
101	02.483 BRACKET; HARNESS CONNECTOR FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (E)	8-98094-483-1	01	1	0803-	●
101	02.483 BRACKET; HARNESS CONNECTOR (E)	8-98094-483-1	01	1	0803-			●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0803-0803	●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0804-	●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) 02.183 (A)	8-98030-725-1	01	1	0804-		●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	0803-0803	●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	0804-	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98032-447-1	01	1	0804-		●
102	08.900 BOLT; BRKT,HARNESS CONNECTOR EURO2 SPECIFICATION(NT2) 00.029 M10X16 FLANGE	0-28151-016-0	02	1	0803-	●		●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0803-	●		●
161	02.559 BOLT; GROUND,HARNESS 4JJ1-TCC ENG(RDU) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0803-0803	●
161	02.559 BOLT; GROUND,HARNESS 4JJ1-TCC ENG(RDU) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0804-	●	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	0803-	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	0803-			●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	0803-	●		●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0803-	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0803-			●
299	02.559 STUD; BRKT EURO2 SPECIFICATION(NT2) 01.062 M6X18 L=27	0-41010-618-0	02	1	0907-1202	●		●
325	02.483 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 06.168 ID=8.4 OD=18	0-91610-608-0	01	1	0803-	●
325	02.483 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 06.168 ID=8.4 OD=18	0-91610-608-0	01	1	0803-			●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98030-126-1	01	1	0803-0803	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98030-126-1	01	1	0804-	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCC ENG(RDU)	8-98030-126-1	01	1	0804-		●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98039-304-2	01	1	0803-0804	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98039-304-2	01	1	0803-0804			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98102-465-0	01	1	0805-	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98102-465-0	01	1	0805-			●
534	02.483 BOLT 4HK1-TCN ENG(RDQ) 00.683 M10X55 FLANGE	8-94399-863-1	03	1	0803-0805	●		●
534	02.483 BOLT 00.683 M10X55 FLANGE	8-97365-449-0	03	1	0806-1501	●		●
534	02.483 BOLT 4HK1-TCN ENG(RDQ) 00.683 M10X55 FLANGE	8-97365-449-0	03	1	1502-	●		●
540	02.483 NUT; BRKT FIX EURO2 SPECIFICATION(NT2) 01.062 M6 FLANGE	0-91180-106-0	02	1	0907-1202	●		●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (A)	8-98001-095-0	01	1	0803-	●
668	02.559 BRACKET; HARNESS EURO2 SPECIFICATION(NT2) (B)	8-98011-484-0	01	1	0803-	●		●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98061-805-1	02	1	0907-1004	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (C)	8-98061-805-1	02	1	0907-1004			●
668	02.559 BRACKET; HARNESS EURO2 SPECIFICATION(NT2) (C)	8-98061-805-2	01	1	1005-1202	●		●
668	02.559 BRACKET; HARNESS EURO2 SPECIFICATION(NT2) (D)	8-98205-089-0	01	1	1203-	●		●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.105 (C) L=140	8-97122-360-0	03	1	0803-0803	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.105 (C) L=140	8-97122-360-0	03	1	0804-	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.105 (C) L=140	8-97122-360-0	03	1	0804-		●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98088-438-0	01	1	0803-0803	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98088-438-0	01	1	0804-	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (D)	8-98088-438-0	01	1	0804-		●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.128 (B) L=213.5	8-98000-506-1	01	1	0907-	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 04.128 (B) L=213.5	8-98000-506-1	01	1	0907-			●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=146.2	8-98052-677-0	01	1	0907-	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A) L=146.2	8-98052-677-0	01	1	0907-			●
700	02.483 TUBE; DISTANCE 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	0803-	●		●

4 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-0	01	1	0803-0803	●		●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0804-	●	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0803-0803	●		●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0804-	●	●	●

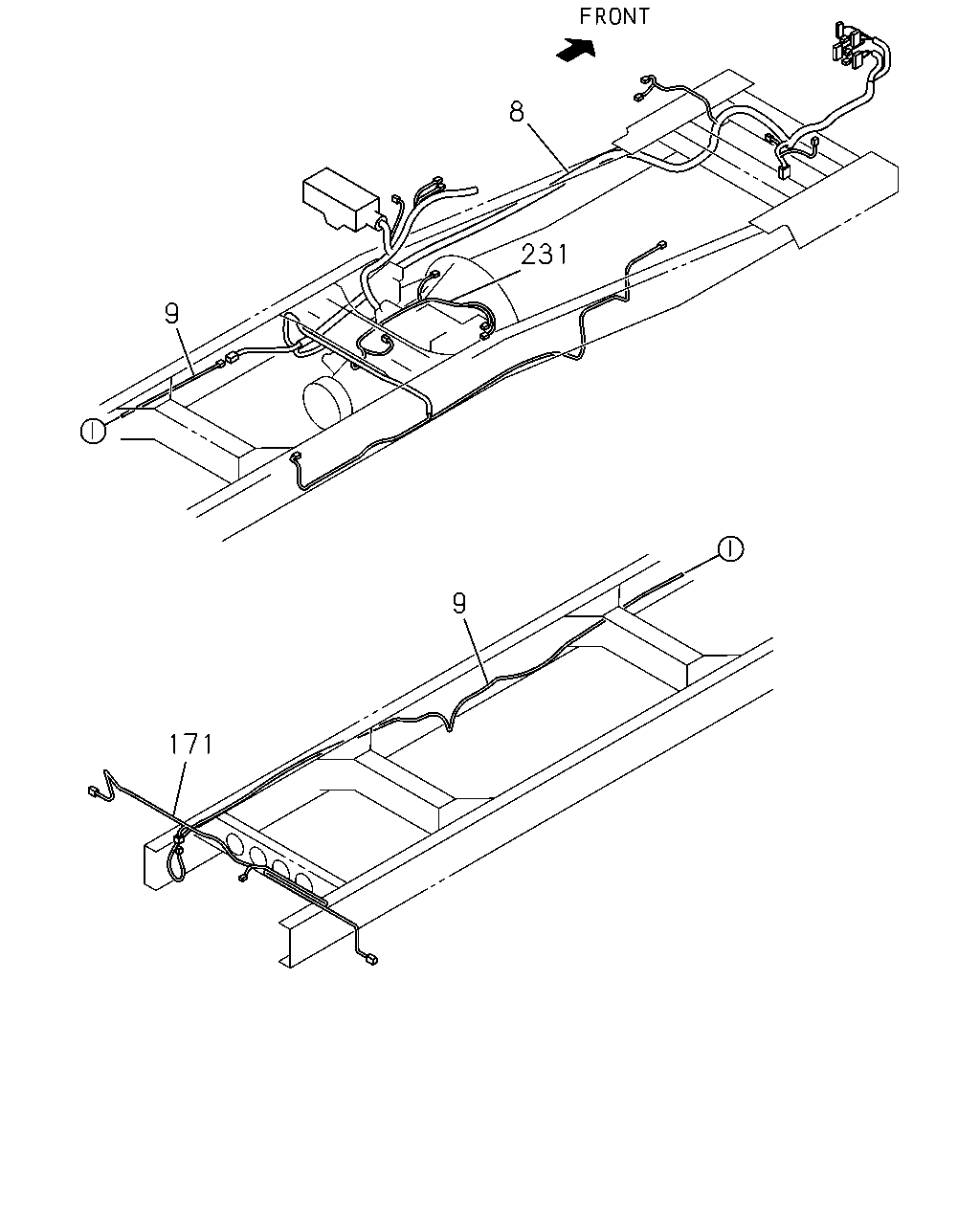

8 231 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-301-9	01	1	0803-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-250-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-304-9	01	1	0803-1301	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98225-714-0	01	1	1302-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98294-292-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-305-9	01	1	0803-1301	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98225-715-0	01	1	1302-1409	●
8	02.480 HARNESS; FRAME,FRT	8-98294-293-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-303-9	01	1	0803-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-252-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98101-917-1	01	1	0803-0803	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98101-917-5	01	1	0803-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98294-278-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU)	8-98070-273-6	01	1	0804-1409		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU)	8-98294-219-0	01	1	1410-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-300-7	01	1	0803-0804	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98070-300-7	01	1	0803-0804			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-300-9	01	1	0805-0904	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98145-576-1	01	1	0905-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98294-287-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98115-313-0	01	1	0803-0804	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98115-313-0	01	1	0803-0804			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D)	8-98115-313-4	01	1	0805-1409	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98115-313-4	01	1	0805-1409			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D)	8-98294-280-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ)	8-98294-280-0	01	1	1410-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98070-272-6	01	1	0803-0805	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98070-272-6	01	1	0806-1005	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98070-272-7	01	1	1006-1409	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98294-218-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98122-443-1	01	1	0806-1409	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98294-228-0	01	1	1410-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98170-964-1	01	1	1006-1409	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO2 SPECIFICATION(NT2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98294-229-0	01	1	1410-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-995-1	01	1	0803-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98046-994-2	01	1	0803-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-002-1	01	1	0803-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-010-1	01	1	0803-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98047-009-2	01	1	0803-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98047-001-1	01	1	0803-0803	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ>	8-98047-001-2	01	1	0804-	●
9	02.480 HARNESS; FRAME,RR	8-98047-001-2	01	1	0804-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98070-314-2	01	1	0803-0805	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98117-252-0	01	1	0806-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-313-1	01	1	0803-0805	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-247-0	01	1	0806-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98070-315-2	01	1	0803-0805	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98117-253-0	01	1	0806-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98067-970-2	01	1	0803-0805	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-248-0	01	1	0806-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98070-316-1	01	1	0803-0805	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98117-254-0	01	1	0806-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98067-971-1	01	1	0803-0805	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W)	8-98067-971-1	01	1	0803-0805			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-249-0	01	1	0806-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W)	8-98117-249-0	01	1	0806-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4100MM(41W)	8-98067-972-1	01	1	0803-0805			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4100MM(41W)	8-98117-250-0	01	1	0806-			●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98008-095-2	01	1	0803-0803	●		●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98008-095-2	01	1	0804-0911	●	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-028-0	01	1	0912-	●	●	●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98029-598-1	01	1	0803-	●
231	02.480 HARNESS; TRANS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98080-121-1	01	1	0803-0904	●
231	02.480 HARNESS; TRANS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98080-121-1	01	1	0905-0905	●
231	02.480 HARNESS; TRANS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98080-121-2	01	1	0906-	●
231	02.480 HARNESS; TRANS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98150-063-0	01	1	0905-0905	●
231	02.480 HARNESS; TRANS DUMP CONTROL LEVER<RC4> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98150-063-1	01	1	0906-	●
231	02.480 HARNESS; TRANS POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>	8-98150-063-1	01	1	0906-	●

4 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-0	01	1	0803-0803	●		●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0804-	●	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0803-0803	●		●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0804-	●	●	●

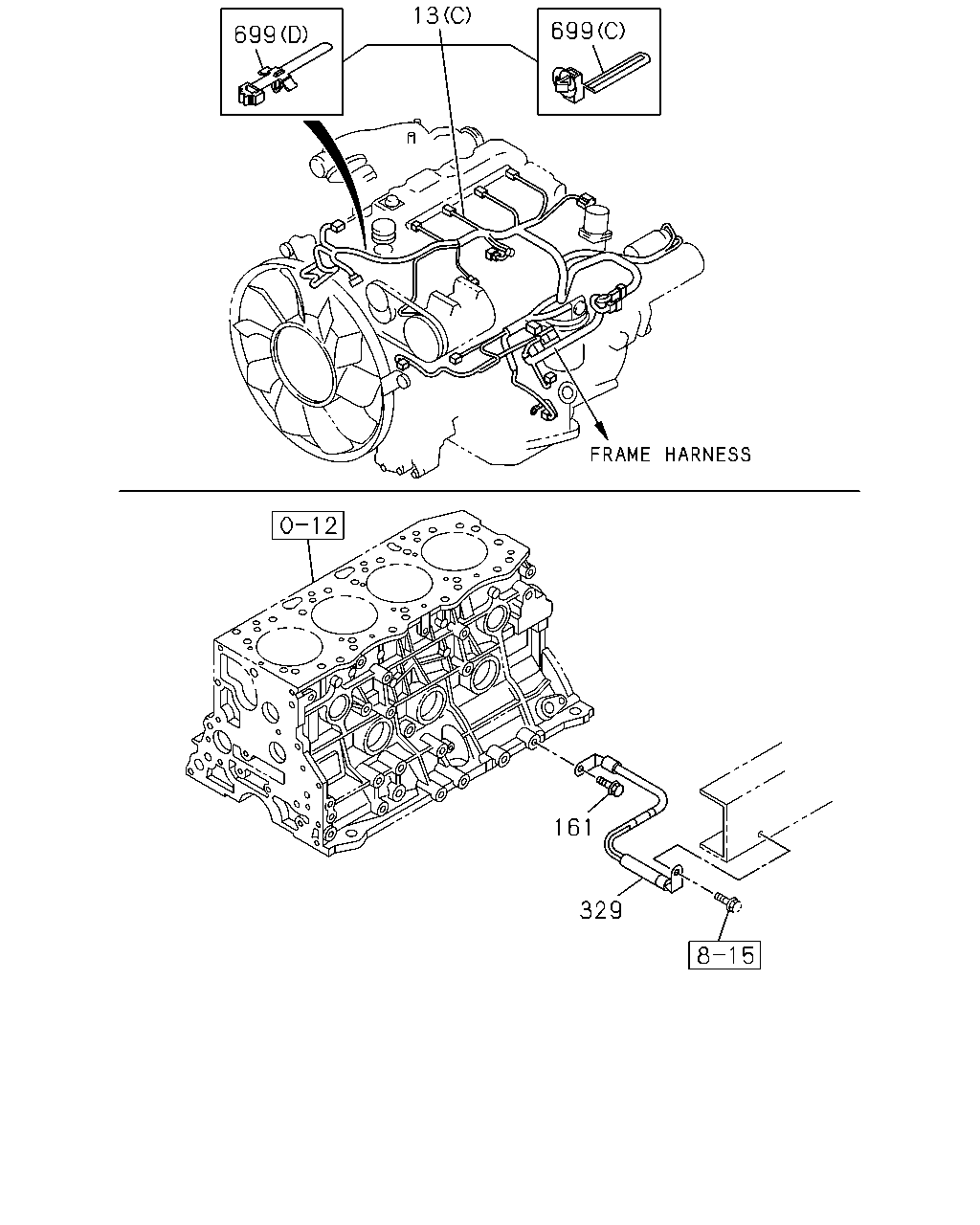

13 161 329 699 699

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98076-299-6	01	1	0803-0803	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98076-299-6	01	1	0803-0803			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98076-299-7	01	1	0803-0906	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98076-299-7	01	1	0803-0906			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98149-125-0	01	1	0907-1012	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98149-125-0	01	1	0907-1012			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98178-534-0	01	1	1101-1202	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98178-534-0	01	1	1101-1202			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98209-819-0	01	1	1203-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98209-819-0	01	1	1203-			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98076-298-6	01	1	0803-0803	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98076-298-6	01	1	0803-0803			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98076-298-7	01	1	0803-0906	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98076-298-7	01	1	0803-0906			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98149-126-0	01	1	0907-1012	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98149-126-0	01	1	0907-1012			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98178-535-0	01	1	1101-1202	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98178-535-0	01	1	1101-1202			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98209-820-0	01	1	1203-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98209-820-0	01	1	1203-			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-97332-133-3	01	1	0803-1007	●		●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1008-	●		●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98083-032-6	01	1	0803-0803	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98083-032-6	01	1	0804-1006	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) (C)	8-98083-032-6	01	1	0804-1006		●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98147-723-0	01	1	1007-1111	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) (C)	8-98147-723-0	01	1	1007-1111		●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98172-158-1	01	1	1112-	●
13	02.525 HARNESS; ENG 4JJ1-TCC ENG(RDU) (C)	8-98172-158-1	01	1	1112-		●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN) (A)	8-98075-586-1	01	1	0803-0902	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN) (A)	8-98136-479-0	01	1	0903-1012	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V50A(6QN) (A)	8-98178-539-0	01	1	1101-	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V80A(7YN) (A)	8-98075-587-1	01	1	0803-0902	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V80A(7YN) (A)	8-98136-480-0	01	1	0903-1012	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) GENERATOR 24V80A(7YN) (A)	8-98178-540-0	01	1	1101-	●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0803-	●		●
161	02.559 BOLT; GROUND,HARNESS 4JJ1-TCC ENG(RDU) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0803-0803	●
161	02.559 BOLT; GROUND,HARNESS 4JJ1-TCC ENG(RDU) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0804-	●	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98030-126-1	01	1	0803-0803	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98030-126-1	01	1	0804-	●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCC ENG(RDU)	8-98030-126-1	01	1	0804-		●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98039-304-2	01	1	0803-0804	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98039-304-2	01	1	0803-0804			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98102-465-0	01	1	0805-	●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98102-465-0	01	1	0805-			●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.105 (C) L=140	8-97122-360-0	03	1	0803-0803	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.105 (C) L=140	8-97122-360-0	03	1	0804-	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.105 (C) L=140	8-97122-360-0	03	1	0804-		●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98088-438-0	01	1	0803-0803	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98088-438-0	01	1	0804-	●
699	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (D)	8-98088-438-0	01	1	0804-		●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.128 (B) L=213.5	8-98000-506-1	01	1	0907-	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 04.128 (B) L=213.5	8-98000-506-1	01	1	0907-			●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=146.2	8-98052-677-0	01	1	0907-	●
699	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A) L=146.2	8-98052-677-0	01	1	0907-			●

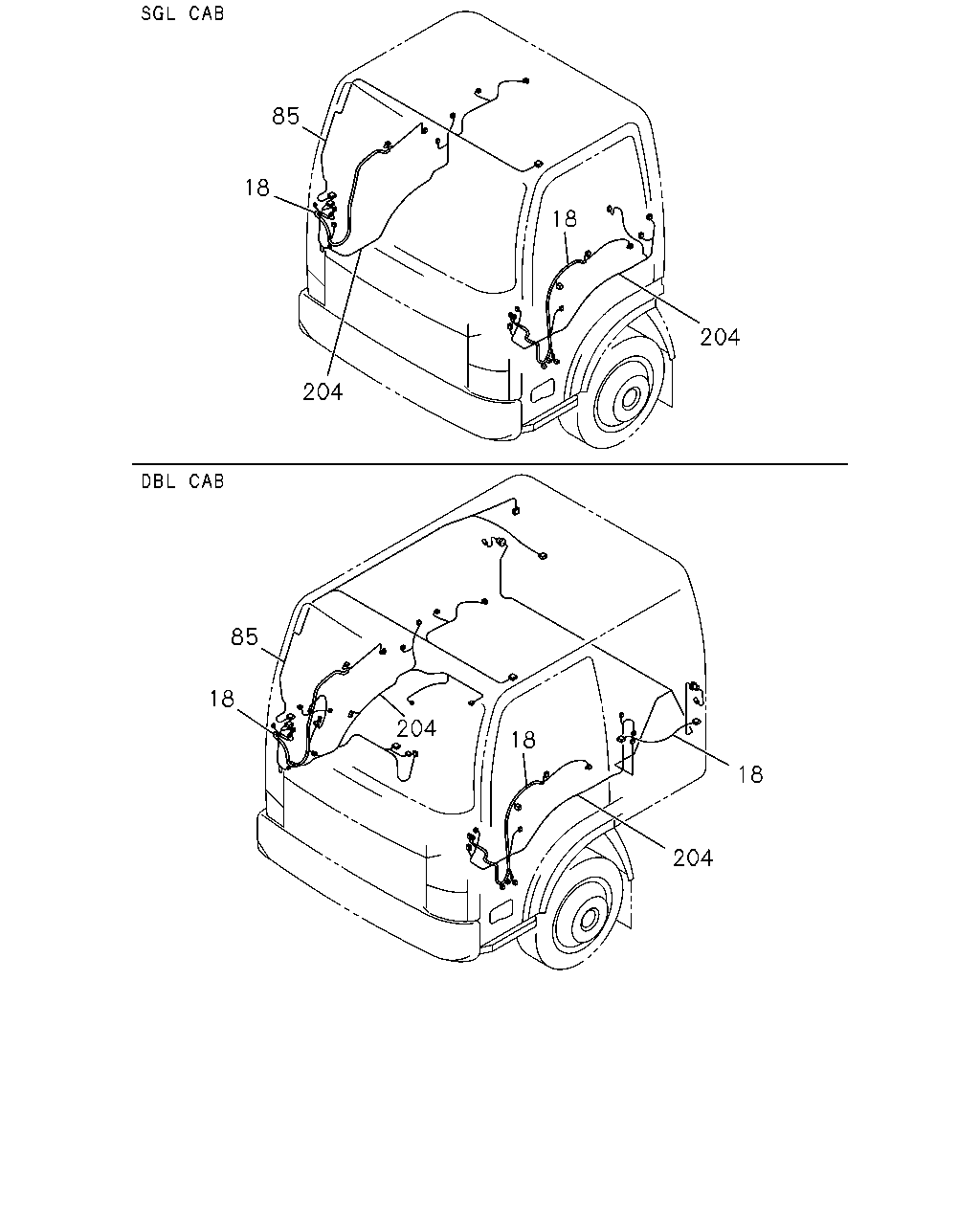

85 18 18 204 204 85 18 204 18 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98077-592-3	01	1	0803-0803	●		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98077-592-3	01	1	0804-	●		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98077-592-3	01	1	0804-		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98077-600-3	01	1	0803-0803	●		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> FRONT	8-98077-600-3	01	1	0804-	●		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98077-600-3	01	1	0804-		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98077-591-2	01	1	0803-0803	●		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98077-591-2	01	1	0804-	●		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98077-591-2	01	1	0804-		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98077-599-2	01	1	0803-0803	●		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98077-599-2	01	1	0804-	●		●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT	8-98077-599-2	01	1	0804-		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> REAR	8-98056-047-1	02	1	0804-1203		●
18	02.480 HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> REAR	8-98202-555-0	02	1	1204-		●
85	06.495 HARNESS; ROOM LAMP	8-98050-518-3	01	1	0803-	●		●
85	06.495 HARNESS; ROOM LAMP	8-98051-320-2	01	1	0804-0810		●
85	06.495 HARNESS; ROOM LAMP	8-98134-973-1	01	1	0811-		●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-802-5	01	1	0803-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-800-5	01	1	0803-	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-801-5	01	1	0803-	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-799-5	01	1	0803-	●
204	02.559 HARNESS; CABLE,FLOOR	8-98070-799-5	01	1	0803-			●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-595-1	01	1	0803-0803	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-595-1	01	1	0803-0803	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-595-1	01	1	0803-0803	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-595-3	01	1	0803-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-595-3	01	1	0803-	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-071-1	01	1	0803-0803	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-071-1	01	1	0803-0803	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-071-3	01	1	0803-	●
204	02.559 HARNESS; CABLE,FLOOR REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER<AK5>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-070-0	01	1	0803-0803	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-0	01	1	0803-0803	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-0	01	1	0803-0803	●
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-070-2	01	1	0803-	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	0803-	●
204	02.559 HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98070-804-5	01	1	0804-		●
204	02.559 HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98071-073-3	01	1	0804-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98070-803-5	01	1	0804-		●
204	02.559 HARNESS; CABLE,FLOOR EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98071-072-3	01	1	0804-		●

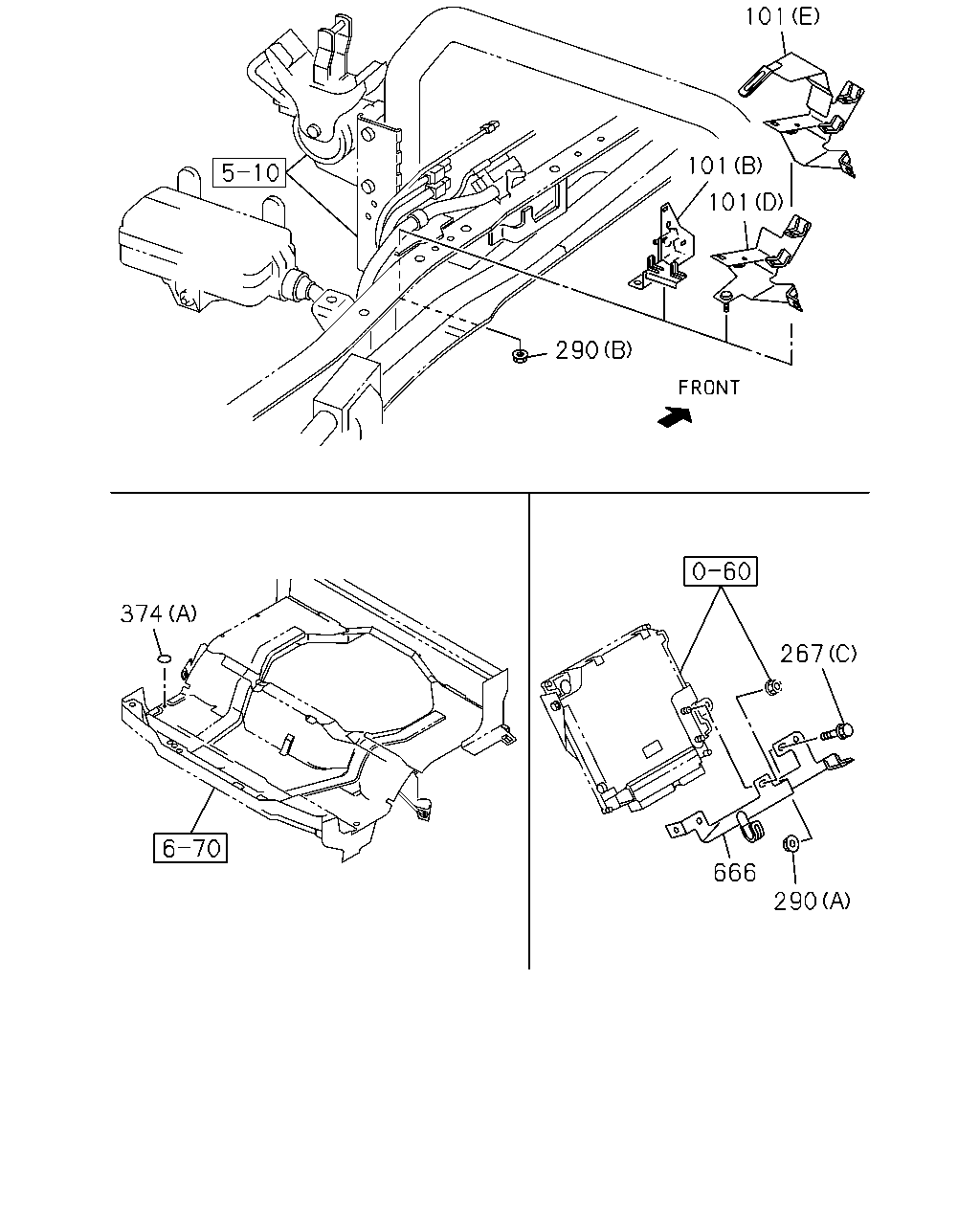

101 101 101 290 374 267 666 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	02.483 BRACKET; HARNESS CONNECTOR EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D)	8-98079-137-2	01	1	0803-	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98052-805-0	01	1	0803-	●		●
101	02.483 BRACKET; HARNESS CONNECTOR FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (E)	8-98094-483-1	01	1	0803-	●
101	02.483 BRACKET; HARNESS CONNECTOR (E)	8-98094-483-1	01	1	0803-			●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0803-0803	●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0804-	●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) 02.183 (A)	8-98030-725-1	01	1	0804-		●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	0803-0803	●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	0804-	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98032-447-1	01	1	0804-		●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	0803-	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	0803-			●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	0803-	●		●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0803-	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0803-			●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0803-	●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0803-			●
290	02.483 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
290	02.483 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
290	02.483 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-		●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0803-0803	●		●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●

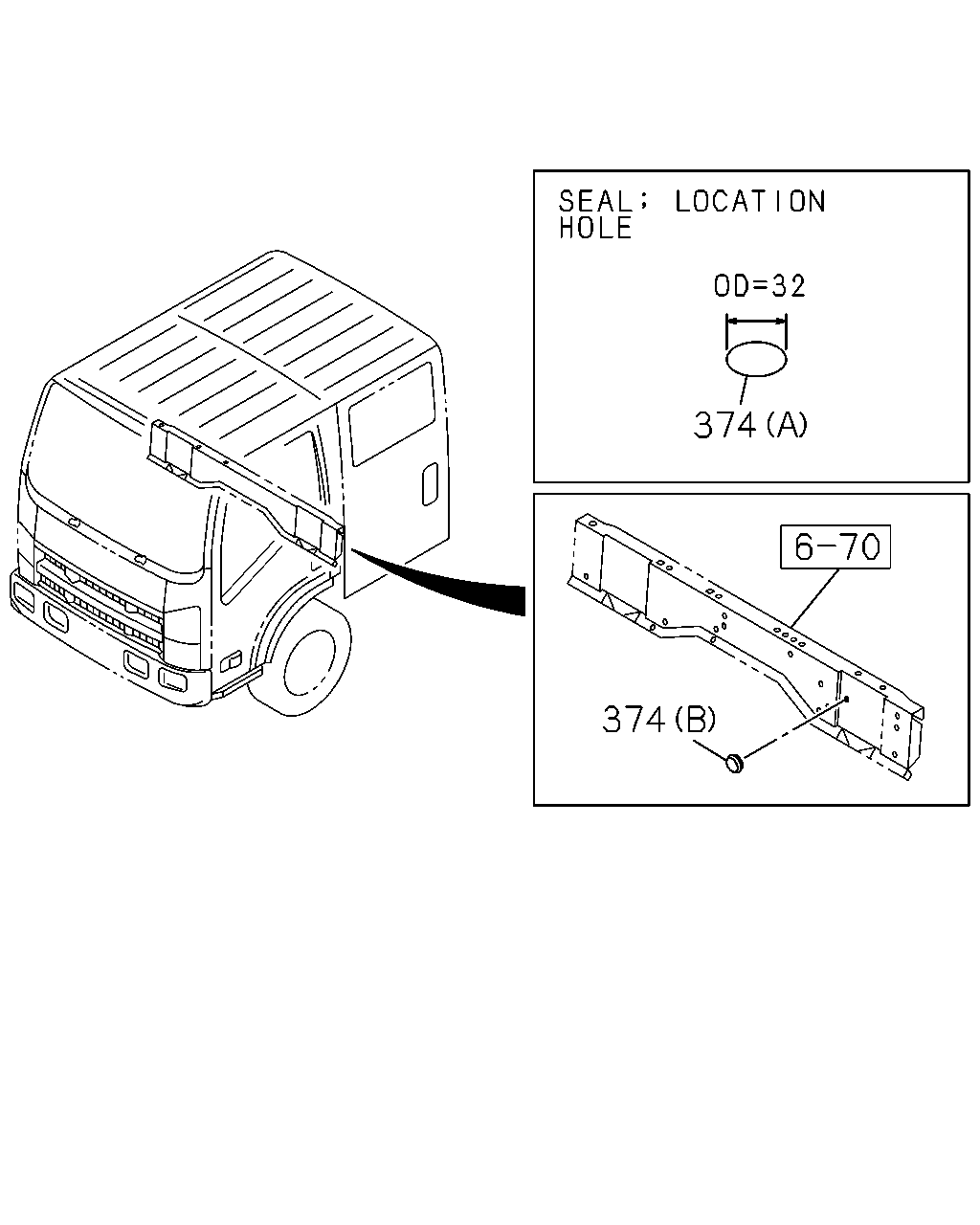

374	02.530 PLUG; HARNESS CONNECTOR EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0803-0803	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0803-0803			●
374	02.530 PLUG; HARNESS CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0803-0803	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0803-0803			●
374	02.530 PLUG; HARNESS CONNECTOR EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0803-0811	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0803-0811			●
374	02.530 PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF),TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0812-	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0812-			●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (B) OD=24.5 T=7.5	8-97224-683-0	01	1	0804-		●
666	02.483 BRACKET; CLIP 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2)	8-98110-213-0	01	1	0803-	●
666	02.483 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98110-213-0	01	1	0803-			●

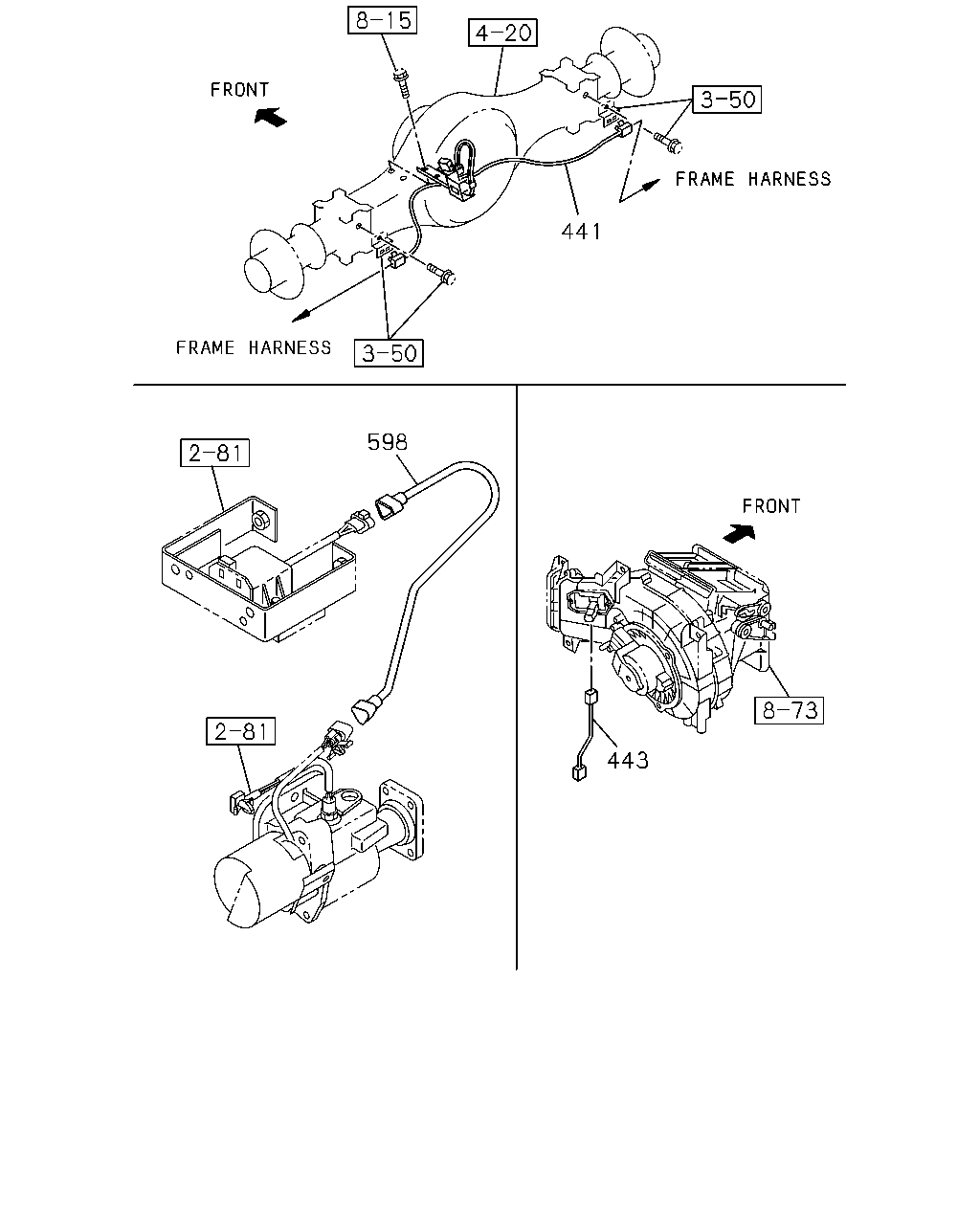

441 598 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97308-225-4	01	1	0803-	●
443	02.480 HARNESS; EXT,A/C FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98106-935-0	01	1	0803-0803	●	●
598	02.480 HARNESS; EXT,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98040-290-2	01	1	0803-0806	●
598	02.480 HARNESS; EXT,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98123-454-1	01	1	0807-	●

101 290 626

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	02.483 BRACKET; HARNESS CONNECTOR EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D)	8-98079-137-2	01	1	0803-	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98052-805-0	01	1	0803-	●		●
101	02.483 BRACKET; HARNESS CONNECTOR FRAME STRAIGHT TYPE<7KJ> EXC. EURO3 SPECIFICATION(NT3) (E)	8-98094-483-1	01	1	0803-	●
101	02.483 BRACKET; HARNESS CONNECTOR (E)	8-98094-483-1	01	1	0803-			●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0803-0803	●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0804-	●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCC ENG(RDU) 02.183 (A)	8-98030-725-1	01	1	0804-		●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	0803-0803	●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	0804-	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98032-447-1	01	1	0804-		●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0803-	●
290	02.483 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0803-			●
290	02.483 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
290	02.483 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
290	02.483 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-		●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0803-0803	●		●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●
626	02.480 HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97253-968-1	01	1	0803-	●
626	02.480 HARNESS; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97253-969-1	01	1	0803-	●

374 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
374	02.530 PLUG; HARNESS CONNECTOR EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0803-0803	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0803-0803			●
374	02.530 PLUG; HARNESS CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0803-0803	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0803-0803			●
374	02.530 PLUG; HARNESS CONNECTOR EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0803-0811	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0803-0811			●
374	02.530 PLUG; HARNESS CONNECTOR EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF),TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0812-	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0812-			●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (B) OD=24.5 T=7.5	8-97224-683-0	01	1	0804-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
