◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51355 - NPR/NQR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#81480) — 113 parça

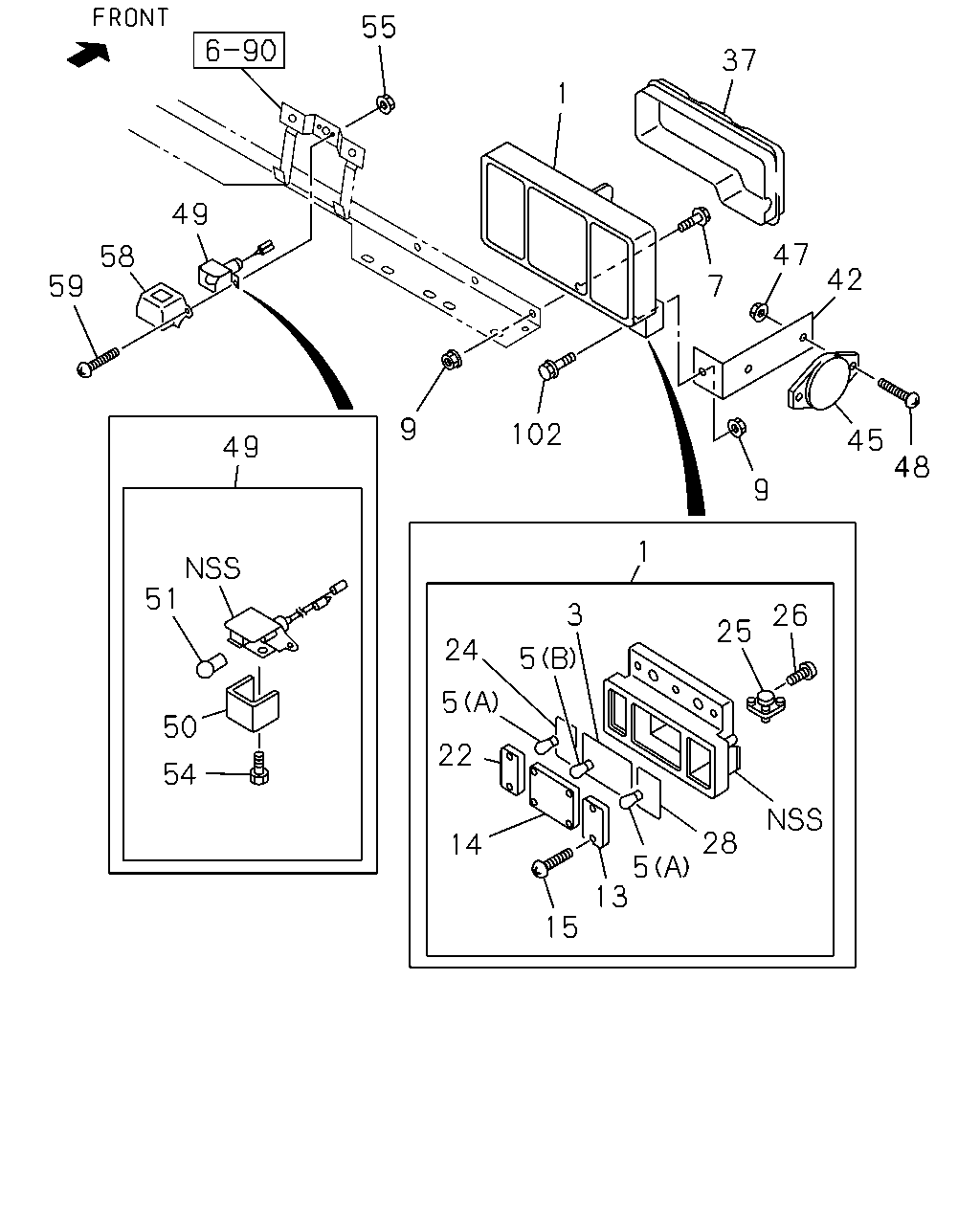

çizim 136188
55 37 1 49 47 58 42 59 7 9 102 45 48 49 9 1 51 3 26 25 24 5 5 50 22 54 28 14 5 13 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.679 LAMP ASM; RR COMB
RR BODY FLAT BED(RS6) 		8-98002-165-0 01 1 0803-0803 ●
1 02.679 LAMP ASM; RR COMB
RR BODY FLAT BED(RS6) 		8-98002-165-0 01 1 0804- ● ●
1 02.679 LAMP ASM; RR COMB
RR BODY FLAT BED(RS6) 		8-98002-166-0 01 1 0803-0803 ●
1 02.679 LAMP ASM; RR COMB
RR BODY FLAT BED(RS6) 		8-98002-166-0 01 1 0804- ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY FLAT BED(RS6) 		8-98034-325-0 01 1 0803-0803 ●
1 02.679 LAMP ASM; RR COMB 8-98034-325-0 01 1 0803-0803 ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY FLAT BED(RS6) 		8-98034-325-0 01 1 0804- ● ●
1 02.679 LAMP ASM; RR COMB 8-98034-325-0 01 1 0804- ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY FLAT BED(RS6) 		8-98034-328-0 01 1 0803-0803 ●
1 02.679 LAMP ASM; RR COMB 8-98034-328-0 01 1 0803-0803 ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY FLAT BED(RS6) 		8-98034-328-0 01 1 0804- ● ●
1 02.679 LAMP ASM; RR COMB 8-98034-328-0 01 1 0804- ●
3 02.684 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0803-0803 ● ●
3 02.684 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0803-0803 ● ●
3 02.684 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0804- ● ● ●
3 02.684 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0804- ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0803-0803 ● ●
5 08.991 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0803-0803 ● ●
5 08.991 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0804- ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0804- ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 0803-0803 ● ●
5 08.991 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 0803-0803 ● ●
5 08.991 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 0804- ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 0804- ● ● ●
7 02.664 SCREW; RR COMB LAMP
RR BODY FLAT BED(RS6) BOLT M6X20 		8-94402-623-0 06 1 0803-0803 ●
7 02.664 SCREW; RR COMB LAMP
RR BODY FLAT BED(RS6) BOLT M6X20 		8-94402-623-0 06 1 0804- ● ●
7 02.664 SCREW; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) BOLT M6X20 		8-94402-623-0 04 1 0803-0803 ●
7 02.664 SCREW; RR COMB LAMP
BOLT M6X20 		8-94402-623-0 04 1 0803-0803 ●
7 02.664 SCREW; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) BOLT M6X20 		8-94402-623-0 04 1 0804- ● ●
7 02.664 SCREW; RR COMB LAMP
BOLT M6X20 		8-94402-623-0 04 1 0804- ●
9 02.689 NUT; LAMP,RR COMB
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE 		5-09440-004-0 02 1 0803-0803 ●
9 02.689 NUT; LAMP,RR COMB
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 07.829 M6 FLANGE 		5-09440-004-0 02 1 0803-0803 ●
9 02.689 NUT; LAMP,RR COMB
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE 		5-09440-004-0 02 1 0804- ●
9 02.689 NUT; LAMP,RR COMB
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 07.829 M6 FLANGE 		5-09440-004-0 02 1 0804- ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE 		5-09440-004-0 02 1 0804- ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE 		5-09440-004-0 04 1 0803-0803 ●
9 02.689 NUT; LAMP,RR COMB
07.829 M6 FLANGE 		5-09440-004-0 04 1 0803-0803 ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE 		5-09440-004-0 04 1 0804- ● ●
9 02.689 NUT; LAMP,RR COMB
07.829 M6 FLANGE 		5-09440-004-0 04 1 0804- ●
13 02.682 LENS; TURN SIGNAL 8-94174-638-0 01 1 0803-0803 ● ●
13 02.682 LENS; TURN SIGNAL 8-94174-638-0 01 1 0804- ● ● ●
13 02.682 LENS; TURN SIGNAL 8-94174-639-0 01 1 0803-0803 ● ●
13 02.682 LENS; TURN SIGNAL 8-94174-639-0 01 1 0804- ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0803-0803 ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0804- ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0803-0803 ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0804- ● ● ●
15 02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0803-0803 ● ●
15 02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0803-0803 ● ●
15 02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0804- ● ● ●
15 02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0804- ● ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0803-0803 ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0803-0803 ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0804- ● ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0804- ● ● ●
24 02.697 GASKET; BACK,LAMP 8-94257-506-0 01 1 0803-0803 ● ●
24 02.697 GASKET; BACK,LAMP 8-94257-506-0 01 1 0803-0803 ● ●
24 02.697 GASKET; BACK,LAMP 8-94257-506-0 01 1 0804- ● ● ●
24 02.697 GASKET; BACK,LAMP 8-94257-506-0 01 1 0804- ● ● ●
25 02.810 HORN ASM; BACK 8-94257-518-0 01 1 0803-0803 ● ●
25 02.810 HORN ASM; BACK 8-94257-518-0 01 1 0804- ● ● ●
26 02.812 SCREW; BACK HORN
02.688 M4X12 TAPPING 		9-07076-412-0 02 1 0803-0803 ● ●
26 02.812 SCREW; BACK HORN
02.688 M4X12 TAPPING 		9-07076-412-0 02 1 0804- ● ● ●
26 02.812 SCREW; BACK HORN
09.655 M4X14 TAPPING 		9-07076-414-0 01 1 0803-0803 ● ●
26 02.812 SCREW; BACK HORN
09.655 M4X14 TAPPING 		9-07076-414-0 01 1 0804- ● ● ●
28 02.684 GASKET; TURN,LAMP 8-94257-507-0 01 1 0803-0803 ● ●
28 02.684 GASKET; TURN,LAMP 8-94257-507-0 01 1 0803-0803 ● ●
28 02.684 GASKET; TURN,LAMP 8-94257-507-0 01 1 0804- ● ● ●
28 02.684 GASKET; TURN,LAMP 8-94257-507-0 01 1 0804- ● ● ●
37 02.680 COVER; RR COMB LAMP 8-94128-858-4 01 1 0803-0803 ● ●
37 02.680 COVER; RR COMB LAMP 8-94128-858-4 01 1 0804- ● ● ●
37 02.680 COVER; RR COMB LAMP 8-94129-274-4 01 1 0803-0803 ● ●
37 02.680 COVER; RR COMB LAMP 8-94129-274-4 01 1 0804- ● ● ●
42 02.679 BRACKET; REFLECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. RR BODY FLAT BED(RS6) 		8-98033-660-0 02 1 0803-0803 ●
42 02.679 BRACKET; REFLECTOR
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 		8-98033-660-0 02 1 0803-0803 ●
42 02.679 BRACKET; REFLECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. RR BODY FLAT BED(RS6) 		8-98033-660-0 02 1 0804- ●
42 02.679 BRACKET; REFLECTOR
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 		8-98033-660-0 02 1 0804- ●
42 02.679 BRACKET; REFLECTOR
EXC. RR BODY FLAT BED(RS6) 		8-98033-660-0 02 1 0804- ●
45 02.682 REFLECTOR; REFLEX,SIDE GATE,MIDD 1-82290-009-0 02 1 0803-0803 ● ●
45 02.682 REFLECTOR; REFLEX,SIDE GATE,MIDD 1-82290-009-0 02 1 0804-0807 ● ● ●
45 02.682 REFLECTOR; REFLEX,SIDE GATE,MIDD 1-82290-011-1 02 1 0808- ● ● ●
47 02.689 NUT; REFLECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. RR BODY FLAT BED(RS6) 09.744 M5 FLANGE 		5-09440-003-0 04 1 0803-0803 ●
47 02.689 NUT; REFLECTOR
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 09.744 M5 FLANGE 		5-09440-003-0 04 1 0803-0803 ●
47 02.689 NUT; REFLECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. RR BODY FLAT BED(RS6) 09.744 M5 FLANGE 		5-09440-003-0 04 1 0804- ●
47 02.689 NUT; REFLECTOR
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 09.744 M5 FLANGE 		5-09440-003-0 04 1 0804- ●
47 02.689 NUT; REFLECTOR
EXC. RR BODY FLAT BED(RS6) 09.744 M5 FLANGE 		5-09440-003-0 04 1 0804- ●
48 02.664 SCREW; REFLECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0803-0803 ●
48 02.664 SCREW; REFLECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) RR BODY FLAT BED(RS6) 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0804- ●
48 02.664 SCREW; REFLECTOR
RR BODY FLAT BED(RS6) 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0804- ●
48 02.664 SCREW; REFLECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. RR BODY FLAT BED(RS6) 14.550 M5X20 		9-93490-520-0 04 1 0803-0803 ●
48 02.664 SCREW; REFLECTOR
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 14.550 M5X20 		9-93490-520-0 04 1 0803-0803 ●
48 02.664 SCREW; REFLECTOR
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. RR BODY FLAT BED(RS6) 14.550 M5X20 		9-93490-520-0 04 1 0804- ●
48 02.664 SCREW; REFLECTOR
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 14.550 M5X20 		9-93490-520-0 04 1 0804- ●
48 02.664 SCREW; REFLECTOR
EXC. RR BODY FLAT BED(RS6) 14.550 M5X20 		9-93490-520-0 04 1 0804- ●
49 02.700 LAMP; LICENSE PLATE
24V 10W 		8-98029-477-0 01 1 0803-0803 ● ●
49 02.700 LAMP; LICENSE PLATE
24V 10W 		8-98029-477-0 01 1 0804- ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 0803-0803 ● ●
50 02.709 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 0804- ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 0803-0803 ● ●
51 08.991 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 0804- ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
02.709 M4X8 		8-94419-312-0 01 1 0803-0803 ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
02.709 M4X8 		8-94419-312-0 01 1 0804- ● ● ●
55 02.708 NUT; LICENSE PLATE LAMP
03.444 M5 FLANGE 		8-94153-039-0 02 1 0803-0803 ● ●
55 02.708 NUT; LICENSE PLATE LAMP
03.444 M5 FLANGE 		8-94153-039-0 02 1 0804- ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP 8-97076-590-1 01 1 0803-0803 ● ●
58 02.705 COVER; LICENSE PLATE LAMP 8-97076-590-1 01 1 0804- ● ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
14.550 M5X20 		9-93490-520-0 02 1 0803-0803 ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
14.550 M5X20 		9-93490-520-0 02 1 0804- ● ● ●
102 02.705 BOLT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. RR BODY FLAT BED(RS6) 02.664 M6X20 		8-94402-623-0 02 1 0803-0803 ●
102 02.705 BOLT; BRKT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.664 M6X20 		8-94402-623-0 02 1 0803-0803 ●
102 02.705 BOLT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. RR BODY FLAT BED(RS6) 02.664 M6X20 		8-94402-623-0 02 1 0804- ●
102 02.705 BOLT; BRKT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 02.664 M6X20 		8-94402-623-0 02 1 0804- ●
102 02.705 BOLT; BRKT
EXC. RR BODY FLAT BED(RS6) 02.664 M6X20 		8-94402-623-0 02 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
