◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51355 - NPR/NQR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#81467) — 185 parça

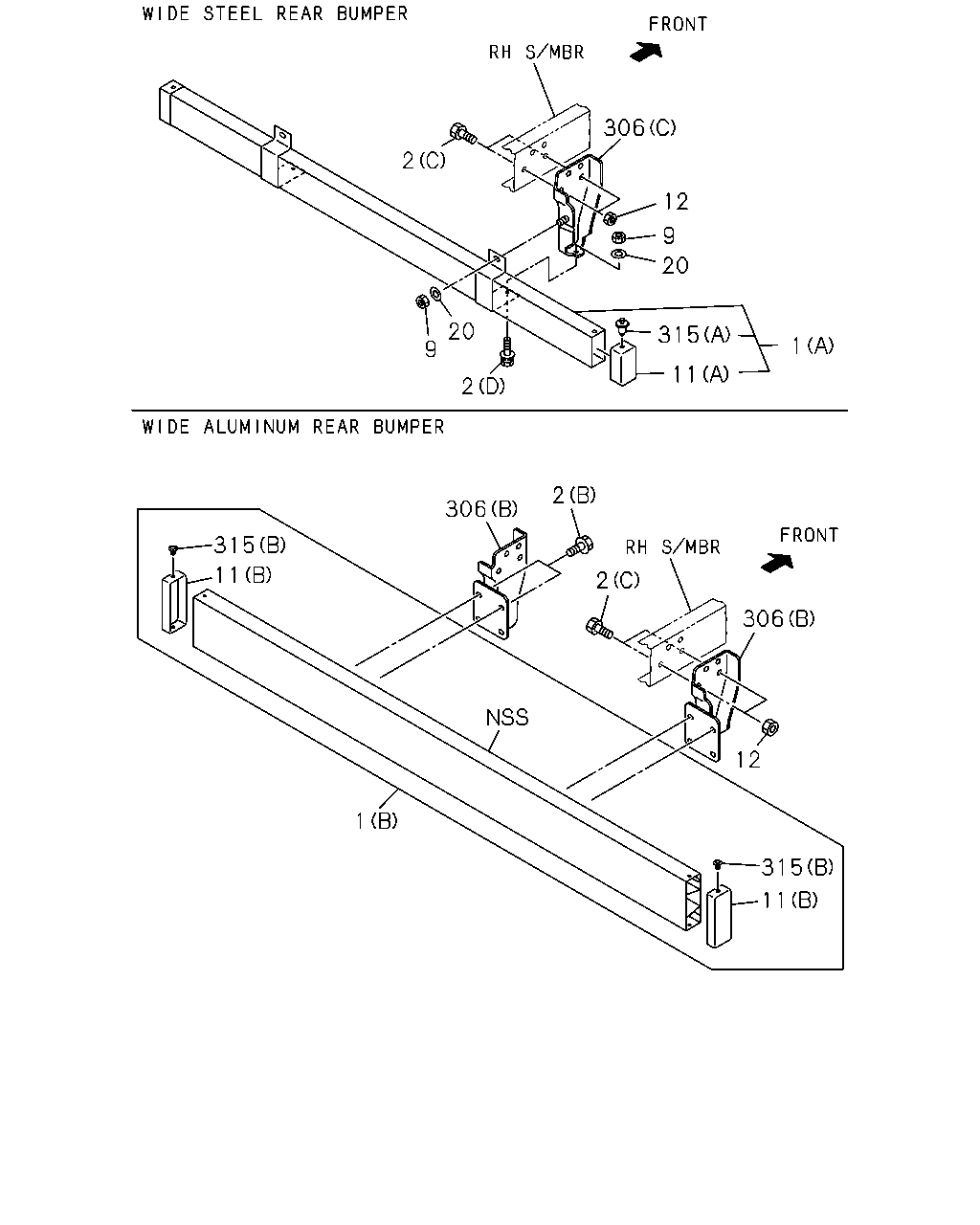

çizim 131967
2 306 12 9 20 315 1 11 20 9 2 315 11 1 11 315 12 306 2 2 306
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP IJ2Q 		8-98000-148-1 01 1 1505- ●
1 07.070 BUMPER; RR
WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP D8P 		8-98088-674-0 01 1 0803- ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2K 		8-98000-147-1 01 1 0803-0803 ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2K 		8-98000-147-1 01 1 0804-0909 ●
1 07.070 BUMPER; RR
(A) STEEL BUMPER STAMP IJ2K 		8-98000-147-1 01 1 0804-0909 ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2K 		8-98000-147-1 01 1 0910-1504 ● ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> EXC. FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP IJ2K 		8-98000-147-1 01 1 1505- ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2K 		8-98000-147-1 01 1 1505- ●
1 07.070 BUMPER; RR
WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP D8Q 		8-98088-675-0 01 1 0803-0907 ●
1 07.070 BUMPER; RR
(B) ALUMINUM BUMPER STAMP D8Q 		8-98088-675-0 01 1 0803-0907 ●
1 07.070 BUMPER; RR
WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP IH2Q 		8-98019-417-0 01 1 0908-0909 ●
1 07.070 BUMPER; RR
(B) ALUMINUM BUMPER STAMP IH2Q 		8-98019-417-0 01 1 0908-0909 ●
1 07.070 BUMPER; RR
WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP IH2Q 		8-98019-417-0 01 1 0910- ●
1 07.070 BUMPER; RR
WIDE ALUMINUM REAR BUMPER<7HZ> (B) ALUMINUM BUMPER STAMP IH2Q 		8-98019-417-0 01 1 0910- ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30 		8-94324-205-0 04 1 0803-0803 ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30 		8-94324-205-0 04 1 0804-0909 ●
2 07.874 BOLT; BACK BAR
01.271 (A) M10X30 		8-94324-205-0 04 1 0804-0909 ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30 		8-94324-205-0 04 1 0910-1209 ● ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> 00.029 (D) M10X25 FLANGE 		0-28651-025-0 02 1 1210- ● ●
2 07.874 BOLT; BACK BAR
WIDE ALUMINUM REAR BUMPER<7HZ> 07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 0803-0909 ●
2 07.874 BOLT; BACK BAR
07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 0803-0909 ●
2 07.874 BOLT; BACK BAR
WIDE ALUMINUM REAR BUMPER<7HZ> 07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 0910- ● ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> WIDE ALUMINUM REAR BUMPER<7HZ> (C) M14X30 		0-20851-430-0 08 1 0803-0803 ●
2 07.874 BOLT; BACK BAR
(C) M14X30 		0-20851-430-0 08 1 0803-0803 ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> WIDE ALUMINUM REAR BUMPER<7HZ> (C) M14X30 		0-20851-430-0 08 1 0804-0909 ●
2 07.874 BOLT; BACK BAR
(C) M14X30 		0-20851-430-0 08 1 0804-0909 ● ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> WIDE ALUMINUM REAR BUMPER<7HZ> (C) M14X30 		0-20851-430-0 08 1 0910- ●
2 07.874 BOLT; BACK BAR
WIDE ALUMINUM REAR BUMPER<7HZ> (C) M14X30 		0-20851-430-0 08 1 0910- ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> (C) M14X30 		0-20851-430-0 08 1 0910- ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 02 1 0803-0803 ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 02 1 0804-0909 ●
9 07.070 NUT; BUMPER
04.085 M10 FLANGE 		0-91180-210-0 02 1 0804-0909 ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 02 1 0910-1209 ● ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 04 1 1210- ● ●
11 07.829 CAP; RR BUMPER
WIDE STEEL REAR BUMPER<SMS> (A) 		8-97174-008-0 02 1 0803-0803 ●
11 07.829 CAP; RR BUMPER
WIDE STEEL REAR BUMPER<SMS> (A) 		8-97174-008-0 02 1 0804-0909 ●
11 07.829 CAP; RR BUMPER
(A) 		8-97174-008-0 02 1 0804-0909 ●
11 07.829 CAP; RR BUMPER
WIDE STEEL REAR BUMPER<SMS> (A) 		8-97174-008-0 02 1 0910- ● ●
11 07.829 CAP; RR BUMPER
WIDE ALUMINUM REAR BUMPER<7HZ> (B) 		8-98070-331-0 02 1 0803-0907 ●
11 07.829 CAP; RR BUMPER
(B) 		8-98070-331-0 02 1 0803-0907 ●
11 07.829 CAP; RR BUMPER
WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98070-331-0 02 1 0908- ●
11 07.829 CAP; RR BUMPER
WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) 		1-71290-064-0 02 1 0908-0909 ●
11 07.829 CAP; RR BUMPER
(B) 		1-71290-064-0 02 1 0908-0909 ●
11 07.829 CAP; RR BUMPER
WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) 		1-71290-064-0 02 1 0910- ●
11 07.829 CAP; RR BUMPER
WIDE ALUMINUM REAR BUMPER<7HZ> (B) 		1-71290-064-0 02 1 0910- ●
12 07.833 NUT; BRKT
WIDE STEEL REAR BUMPER<SMS> WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0803-0803 ●
12 07.833 NUT; BRKT
00.429 M14 FLANGE 		0-91180-214-0 08 1 0803-0803 ●
12 07.833 NUT; BRKT
WIDE STEEL REAR BUMPER<SMS> WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0804-0909 ●
12 07.833 NUT; BRKT
00.429 M14 FLANGE 		0-91180-214-0 08 1 0804-0909 ● ●
12 07.833 NUT; BRKT
WIDE STEEL REAR BUMPER<SMS> WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0910- ●
12 07.833 NUT; BRKT
WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0910- ●
12 07.833 NUT; BRKT
WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0910- ●
20 07.070 WASHER; PL,BUMPER
WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32 		0-91614-810-0 04 1 1210- ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-406-0 01 1 0803-0803 ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-406-0 01 1 0804-0909 ●
306 07.836 BAR; BACK,RR
(A) STAMP IA1 		8-98039-406-0 01 1 0804-0909 ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-406-0 01 1 0910-1209 ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1 		8-98208-979-0 01 1 1210- ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-407-0 01 1 0803-0803 ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-407-0 01 1 0804-0909 ●
306 07.836 BAR; BACK,RR
(A) STAMP IA1 		8-98039-407-0 01 1 0804-0909 ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-407-0 01 1 0910-1209 ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1 		8-98208-980-0 01 1 1210- ● ●
306 07.836 BAR; BACK,RR
WIDE ALUMINUM REAR BUMPER<7HZ> (B) STAMP IA3 		8-98039-408-0 01 1 0803-0909 ●
306 07.836 BAR; BACK,RR
(B) STAMP IA3 		8-98039-408-0 01 1 0803-0909 ●
306 07.836 BAR; BACK,RR
WIDE ALUMINUM REAR BUMPER<7HZ> (B) STAMP IA3 		8-98039-408-0 01 1 0910- ● ●
306 07.836 BAR; BACK,RR
WIDE ALUMINUM REAR BUMPER<7HZ> (B) STAMP IA3 		8-98039-409-0 01 1 0803-0909 ●
306 07.836 BAR; BACK,RR
(B) STAMP IA3 		8-98039-409-0 01 1 0803-0909 ●
306 07.836 BAR; BACK,RR
WIDE ALUMINUM REAR BUMPER<7HZ> (B) STAMP IA3 		8-98039-409-0 01 1 0910- ● ●
315 07.829 RIVET; CAP
WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5 		1-09987-248-1 04 1 0803-0803 ●
315 07.829 RIVET; CAP
WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5 		1-09987-248-1 04 1 0804-0909 ●
315 07.829 RIVET; CAP
08.155 (A) D8X13.5 		1-09987-248-1 04 1 0804-0909 ●
315 07.829 RIVET; CAP
WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5 		1-09987-248-1 04 1 0910- ● ●
315 07.829 RIVET; CAP
WIDE ALUMINUM REAR BUMPER<7HZ> (B) 		1-71290-062-0 04 1 0803-0909 ●
315 07.829 RIVET; CAP
(B) 		1-71290-062-0 04 1 0803-0909 ●
315 07.829 RIVET; CAP
WIDE ALUMINUM REAR BUMPER<7HZ> (B) 		1-71290-062-0 04 1 0910- ● ●

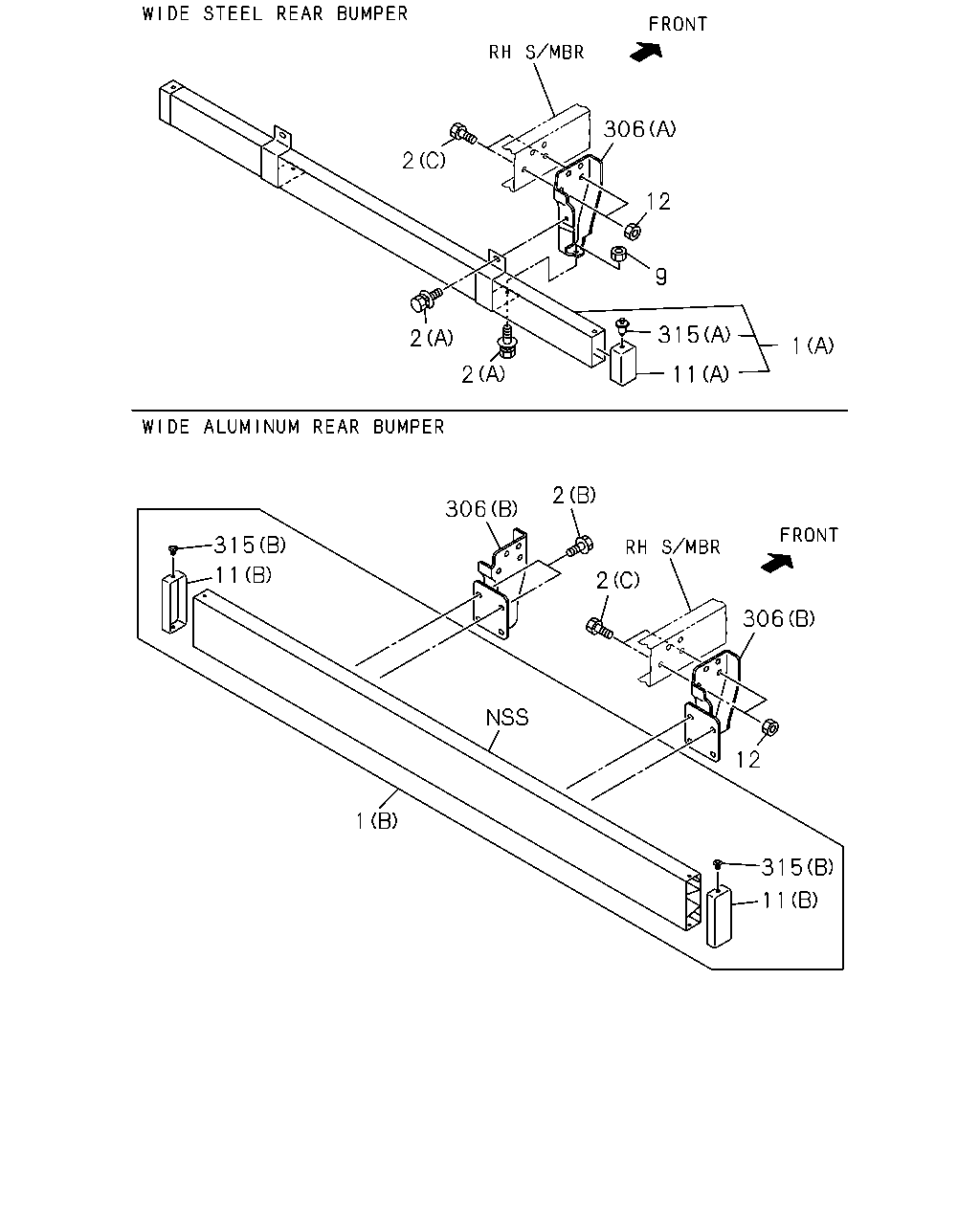

çizim 132398
2 2 2 306 12 9 315 11 1 306 2 2 306 12 315 11 1 11 315
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP IJ2Q 		8-98000-148-1 01 1 1505- ●
1 07.070 BUMPER; RR
WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP D8P 		8-98088-674-0 01 1 0803- ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2K 		8-98000-147-1 01 1 0803-0803 ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2K 		8-98000-147-1 01 1 0804-0909 ●
1 07.070 BUMPER; RR
(A) STEEL BUMPER STAMP IJ2K 		8-98000-147-1 01 1 0804-0909 ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2K 		8-98000-147-1 01 1 0910-1504 ● ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> EXC. FRAME STRAIGHT TYPE<7KJ> (A) STEEL BUMPER STAMP IJ2K 		8-98000-147-1 01 1 1505- ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> (A) STEEL BUMPER STAMP IJ2K 		8-98000-147-1 01 1 1505- ●
1 07.070 BUMPER; RR
WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP D8Q 		8-98088-675-0 01 1 0803-0907 ●
1 07.070 BUMPER; RR
(B) ALUMINUM BUMPER STAMP D8Q 		8-98088-675-0 01 1 0803-0907 ●
1 07.070 BUMPER; RR
WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP IH2Q 		8-98019-417-0 01 1 0908-0909 ●
1 07.070 BUMPER; RR
(B) ALUMINUM BUMPER STAMP IH2Q 		8-98019-417-0 01 1 0908-0909 ●
1 07.070 BUMPER; RR
WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) ALUMINUM BUMPER STAMP IH2Q 		8-98019-417-0 01 1 0910- ●
1 07.070 BUMPER; RR
WIDE ALUMINUM REAR BUMPER<7HZ> (B) ALUMINUM BUMPER STAMP IH2Q 		8-98019-417-0 01 1 0910- ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30 		8-94324-205-0 04 1 0803-0803 ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30 		8-94324-205-0 04 1 0804-0909 ●
2 07.874 BOLT; BACK BAR
01.271 (A) M10X30 		8-94324-205-0 04 1 0804-0909 ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30 		8-94324-205-0 04 1 0910-1209 ● ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> 00.029 (D) M10X25 FLANGE 		0-28651-025-0 02 1 1210- ● ●
2 07.874 BOLT; BACK BAR
WIDE ALUMINUM REAR BUMPER<7HZ> 07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 0803-0909 ●
2 07.874 BOLT; BACK BAR
07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 0803-0909 ●
2 07.874 BOLT; BACK BAR
WIDE ALUMINUM REAR BUMPER<7HZ> 07.395 (B) M12X30 FLANGE 		0-28651-230-0 08 1 0910- ● ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> WIDE ALUMINUM REAR BUMPER<7HZ> (C) M14X30 		0-20851-430-0 08 1 0803-0803 ●
2 07.874 BOLT; BACK BAR
(C) M14X30 		0-20851-430-0 08 1 0803-0803 ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> WIDE ALUMINUM REAR BUMPER<7HZ> (C) M14X30 		0-20851-430-0 08 1 0804-0909 ●
2 07.874 BOLT; BACK BAR
(C) M14X30 		0-20851-430-0 08 1 0804-0909 ● ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> WIDE ALUMINUM REAR BUMPER<7HZ> (C) M14X30 		0-20851-430-0 08 1 0910- ●
2 07.874 BOLT; BACK BAR
WIDE ALUMINUM REAR BUMPER<7HZ> (C) M14X30 		0-20851-430-0 08 1 0910- ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> (C) M14X30 		0-20851-430-0 08 1 0910- ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 02 1 0803-0803 ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 02 1 0804-0909 ●
9 07.070 NUT; BUMPER
04.085 M10 FLANGE 		0-91180-210-0 02 1 0804-0909 ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 02 1 0910-1209 ● ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 04 1 1210- ● ●
11 07.829 CAP; RR BUMPER
WIDE STEEL REAR BUMPER<SMS> (A) 		8-97174-008-0 02 1 0803-0803 ●
11 07.829 CAP; RR BUMPER
WIDE STEEL REAR BUMPER<SMS> (A) 		8-97174-008-0 02 1 0804-0909 ●
11 07.829 CAP; RR BUMPER
(A) 		8-97174-008-0 02 1 0804-0909 ●
11 07.829 CAP; RR BUMPER
WIDE STEEL REAR BUMPER<SMS> (A) 		8-97174-008-0 02 1 0910- ● ●
11 07.829 CAP; RR BUMPER
WIDE ALUMINUM REAR BUMPER<7HZ> (B) 		8-98070-331-0 02 1 0803-0907 ●
11 07.829 CAP; RR BUMPER
(B) 		8-98070-331-0 02 1 0803-0907 ●
11 07.829 CAP; RR BUMPER
WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98070-331-0 02 1 0908- ●
11 07.829 CAP; RR BUMPER
WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) 		1-71290-064-0 02 1 0908-0909 ●
11 07.829 CAP; RR BUMPER
(B) 		1-71290-064-0 02 1 0908-0909 ●
11 07.829 CAP; RR BUMPER
WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) 		1-71290-064-0 02 1 0910- ●
11 07.829 CAP; RR BUMPER
WIDE ALUMINUM REAR BUMPER<7HZ> (B) 		1-71290-064-0 02 1 0910- ●
12 07.833 NUT; BRKT
WIDE STEEL REAR BUMPER<SMS> WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0803-0803 ●
12 07.833 NUT; BRKT
00.429 M14 FLANGE 		0-91180-214-0 08 1 0803-0803 ●
12 07.833 NUT; BRKT
WIDE STEEL REAR BUMPER<SMS> WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0804-0909 ●
12 07.833 NUT; BRKT
00.429 M14 FLANGE 		0-91180-214-0 08 1 0804-0909 ● ●
12 07.833 NUT; BRKT
WIDE STEEL REAR BUMPER<SMS> WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0910- ●
12 07.833 NUT; BRKT
WIDE ALUMINUM REAR BUMPER<7HZ> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0910- ●
12 07.833 NUT; BRKT
WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0910- ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-406-0 01 1 0803-0803 ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-406-0 01 1 0804-0909 ●
306 07.836 BAR; BACK,RR
(A) STAMP IA1 		8-98039-406-0 01 1 0804-0909 ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-406-0 01 1 0910-1209 ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1 		8-98208-979-0 01 1 1210- ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-407-0 01 1 0803-0803 ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-407-0 01 1 0804-0909 ●
306 07.836 BAR; BACK,RR
(A) STAMP IA1 		8-98039-407-0 01 1 0804-0909 ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-407-0 01 1 0910-1209 ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (C) STAMP IA1 		8-98208-980-0 01 1 1210- ● ●
306 07.836 BAR; BACK,RR
WIDE ALUMINUM REAR BUMPER<7HZ> (B) STAMP IA3 		8-98039-408-0 01 1 0803-0909 ●
306 07.836 BAR; BACK,RR
(B) STAMP IA3 		8-98039-408-0 01 1 0803-0909 ●
306 07.836 BAR; BACK,RR
WIDE ALUMINUM REAR BUMPER<7HZ> (B) STAMP IA3 		8-98039-408-0 01 1 0910- ● ●
306 07.836 BAR; BACK,RR
WIDE ALUMINUM REAR BUMPER<7HZ> (B) STAMP IA3 		8-98039-409-0 01 1 0803-0909 ●
306 07.836 BAR; BACK,RR
(B) STAMP IA3 		8-98039-409-0 01 1 0803-0909 ●
306 07.836 BAR; BACK,RR
WIDE ALUMINUM REAR BUMPER<7HZ> (B) STAMP IA3 		8-98039-409-0 01 1 0910- ● ●
315 07.829 RIVET; CAP
WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5 		1-09987-248-1 04 1 0803-0803 ●
315 07.829 RIVET; CAP
WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5 		1-09987-248-1 04 1 0804-0909 ●
315 07.829 RIVET; CAP
08.155 (A) D8X13.5 		1-09987-248-1 04 1 0804-0909 ●
315 07.829 RIVET; CAP
WIDE STEEL REAR BUMPER<SMS> 08.155 (A) D8X13.5 		1-09987-248-1 04 1 0910- ● ●
315 07.829 RIVET; CAP
WIDE ALUMINUM REAR BUMPER<7HZ> (B) 		1-71290-062-0 04 1 0803-0909 ●
315 07.829 RIVET; CAP
(B) 		1-71290-062-0 04 1 0803-0909 ●
315 07.829 RIVET; CAP
WIDE ALUMINUM REAR BUMPER<7HZ> (B) 		1-71290-062-0 04 1 0910- ● ●

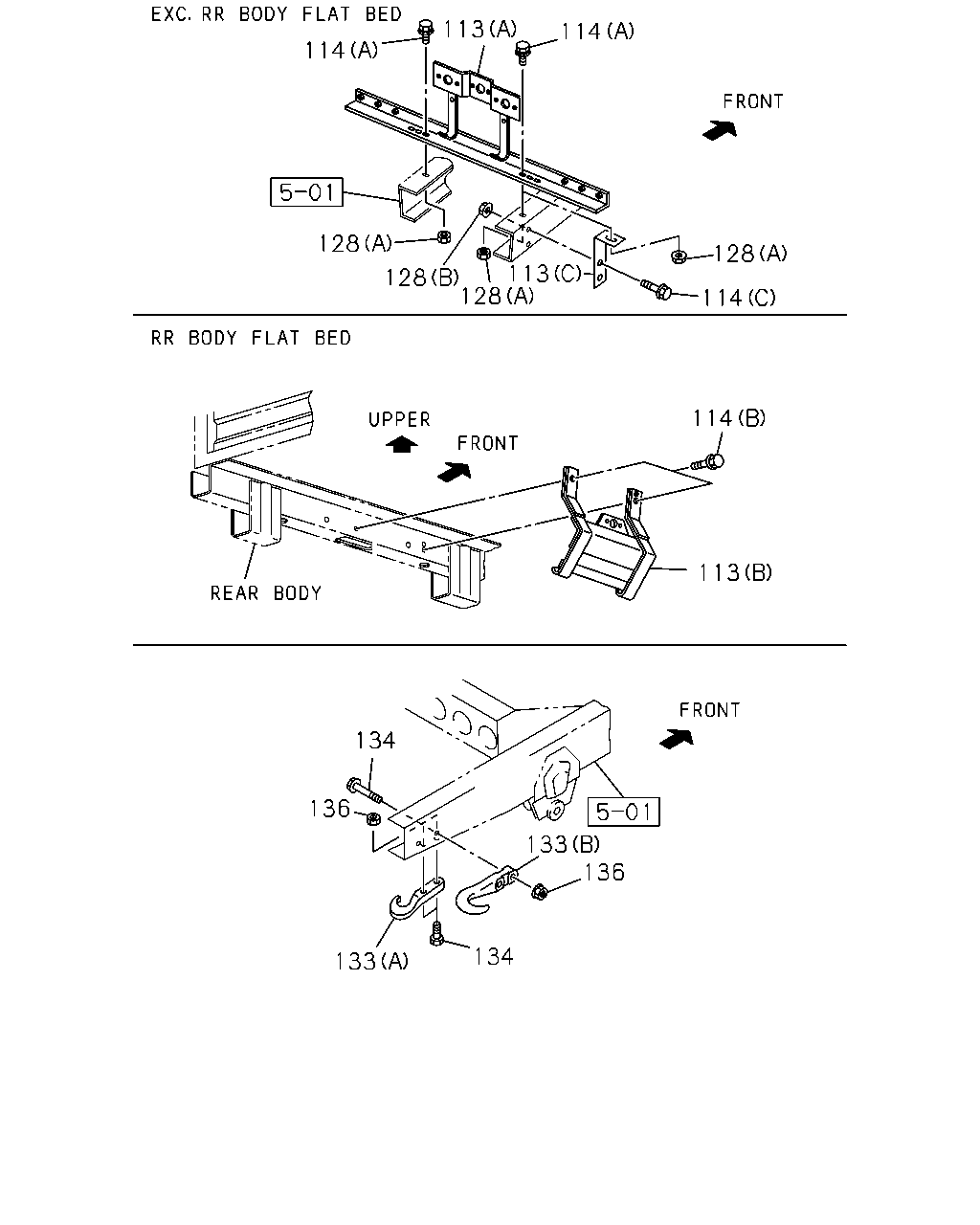

çizim 319256
114 128 114 114 113 133 136 134 133 136 134 128 113 128 128 114 113
BalonParca AdiParca NoAdetTipApplied Date A B C
113 07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W) (C) 		8-98091-681-0 02 1 0803- ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) (B) 		8-97077-573-2 01 1 0803-0803 ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) (B) 		8-97077-573-2 01 1 0804- ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) (A) 		8-98029-390-3 01 1 0803-0803 ●
113 07.800 BRACKET; LICENSE PLATE
(A) 		8-98029-390-3 01 1 0803-0803 ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) (A) 		8-98029-390-3 01 1 0804- ● ●
113 07.800 BRACKET; LICENSE PLATE
(A) 		8-98029-390-3 01 1 0804- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W) 07.833 (C) M10X25 FLANGE 		0-28661-025-0 04 1 0803- ●
114 07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED(RS6) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 02 1 0803-0803 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED(RS6) 00.685 (B) M6X25 FLANGE 		0-28650-625-0 02 1 0804- ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 0803-0803 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 0803-0803 ●
114 07.800 BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 0804- ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
00.685 (A) M8X40 FLANGE 		0-28650-840-0 02 1 0804- ●
128 02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 0803- ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0803-0803 ●
128 02.662 NUT; CROSS PLATE
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0803-0803 ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
128 02.662 NUT; CROSS PLATE
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0804- ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.068 (A) 		8-94249-270-2 01 1 0803- ●
133 07.112 HOOK
EXC. MINI BUS CHASSIS(V4B) 07.068 (A) 		8-94249-270-2 01 1 0803- ●
133 07.112 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 (B) 		8-97387-665-0 01 1 0803-0803 ●
133 07.112 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 (B) 		8-97387-665-0 01 1 0804- ●
133 07.112 HOOK
07.068 (B) 		8-97387-665-0 01 1 0804- ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10856-450-0 02 1 0803-0803 ●
134 07.068 BOLT; HOOK
EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50 		0-10856-450-0 02 1 0803-0803 ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10856-450-0 02 1 0804-1011 ● ●
134 07.068 BOLT; HOOK
EXC. MINI BUS CHASSIS(V4B) 07.039 M14X50 		0-10856-450-0 02 1 0804-1011 ●
134 07.068 BOLT; HOOK
M14X60 		0-10861-460-0 02 1 1012- ● ●
134 07.068 BOLT; HOOK
EXC. MINI BUS CHASSIS(V4B) M14X60 		0-10861-460-0 02 1 1012- ●
136 07.068 NUT; HOOK
00.429 M14 FLANGE 		0-91180-214-0 02 1 0803-0803 ●
136 07.068 NUT; HOOK
EXC. MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE 		0-91180-214-0 02 1 0803-0803 ●
136 07.068 NUT; HOOK
00.429 M14 FLANGE 		0-91180-214-0 02 1 0804- ● ●
136 07.068 NUT; HOOK
EXC. MINI BUS CHASSIS(V4B) 00.429 M14 FLANGE 		0-91180-214-0 02 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
