Sayfa 3-20 - Isuzu EPC

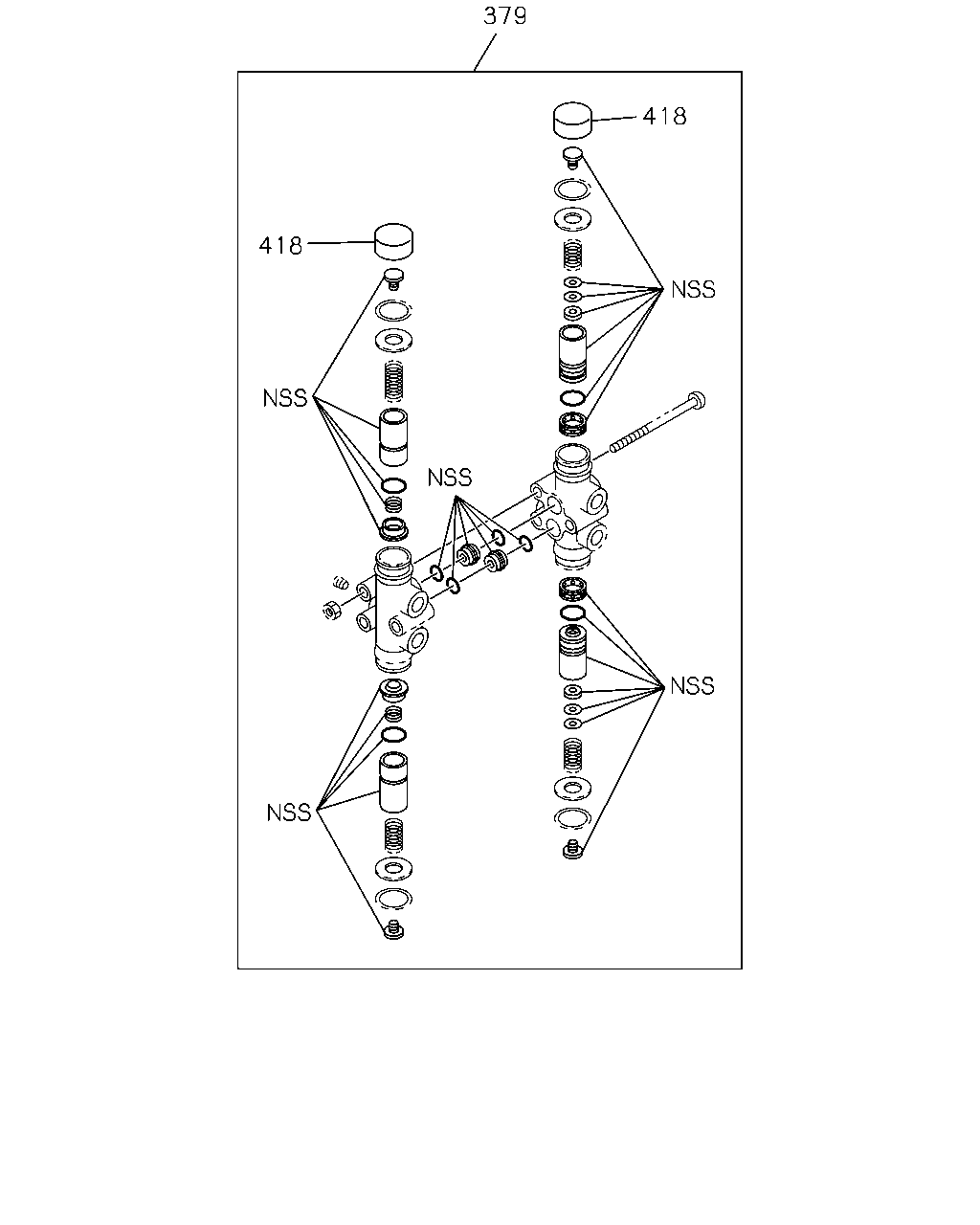

379 418 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
379	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0005-	●	●	●	●
379	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0005-	●	●	●	●
418	COVER; DUST	1-48119-450-0	02	1	0211-	●	●	●	●

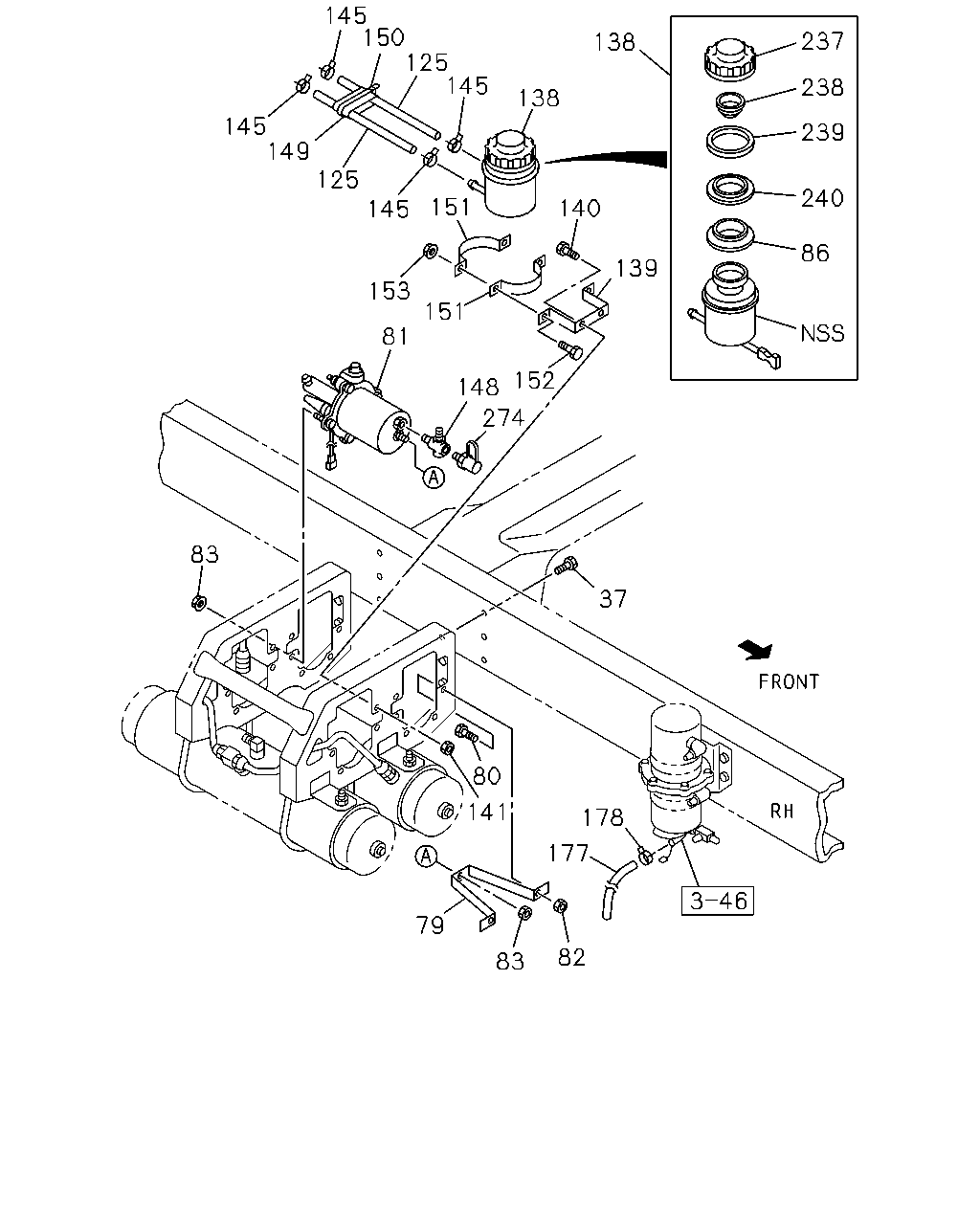

145 150 125 145 237 138 238 138 145 149 125 239 240 151 140 145 86 139 153 151 81 152 148 274 83 37 80 141 178 177 79 82 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	0005-0512	●	●	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-	●	●	●	●
79	STAY; AIR MASTER TO BRKT	1-53318-347-0	02	1	0005-0805	●	●	●	●
79	STAY; AIR MASTER TO BRKT	8-98120-254-0	02	1	0806-	●	●	●	●
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	0005-0512	●	●	●	●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-665-1	01	1	0005-	●	●	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-666-2	01	1	0005-	●	●	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	0005-0602	●	●	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	0005-0602	●	●	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-	●	●	●	●
86	SEAL; DUST	1-47529-019-0	01	1	0005-	●	●	●	●
125	HOSE; OIL TANK TO AIR MASTER L=270 SERVICED BY L=1800	1-09360-320-0	02	1	0005-	●	●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-170-1	01	1	0005-0011	●	●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-184-0	01	1	0012-0206	●	●	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0207-	●	●	●	●
139	BRACKET; OIL TANK	1-47537-081-2	01	1	0005-	●	●	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28681-020-0	02	1	0005-0512	●	●	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●	●	●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0005-	●	●	●	●
148	CONNECTOR; AIR MASTER	1-09656-462-1	02	1	0005-	●	●	●	●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	0005-	●	●	●	●
150	CLIP; BAND,RUBBER SLEEVE L=140	5-09707-031-1	01	1	0005-	●	●	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0005-	●	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
177	HOSE; RUBBER,DRAIN L=100	0-03216-100-0	01	1	0005-0109	●	●	●	●
177	HOSE; RUBBER,DRAIN L=100 SERVICED BY L=3000	0-03566-300-0	01	1	0110-0210	●	●	●	●
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	0005-0210	●	●	●	●
237	CAP; OIL TANK	1-47525-024-0	01	1	0005-0011	●	●	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	0012-	●	●	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0005-	●	●	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0005-	●	●	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0005-	●	●	●	●
274	CONNECTOR; VLV	1-47459-013-1	02	1	0005-	●	●	●	●

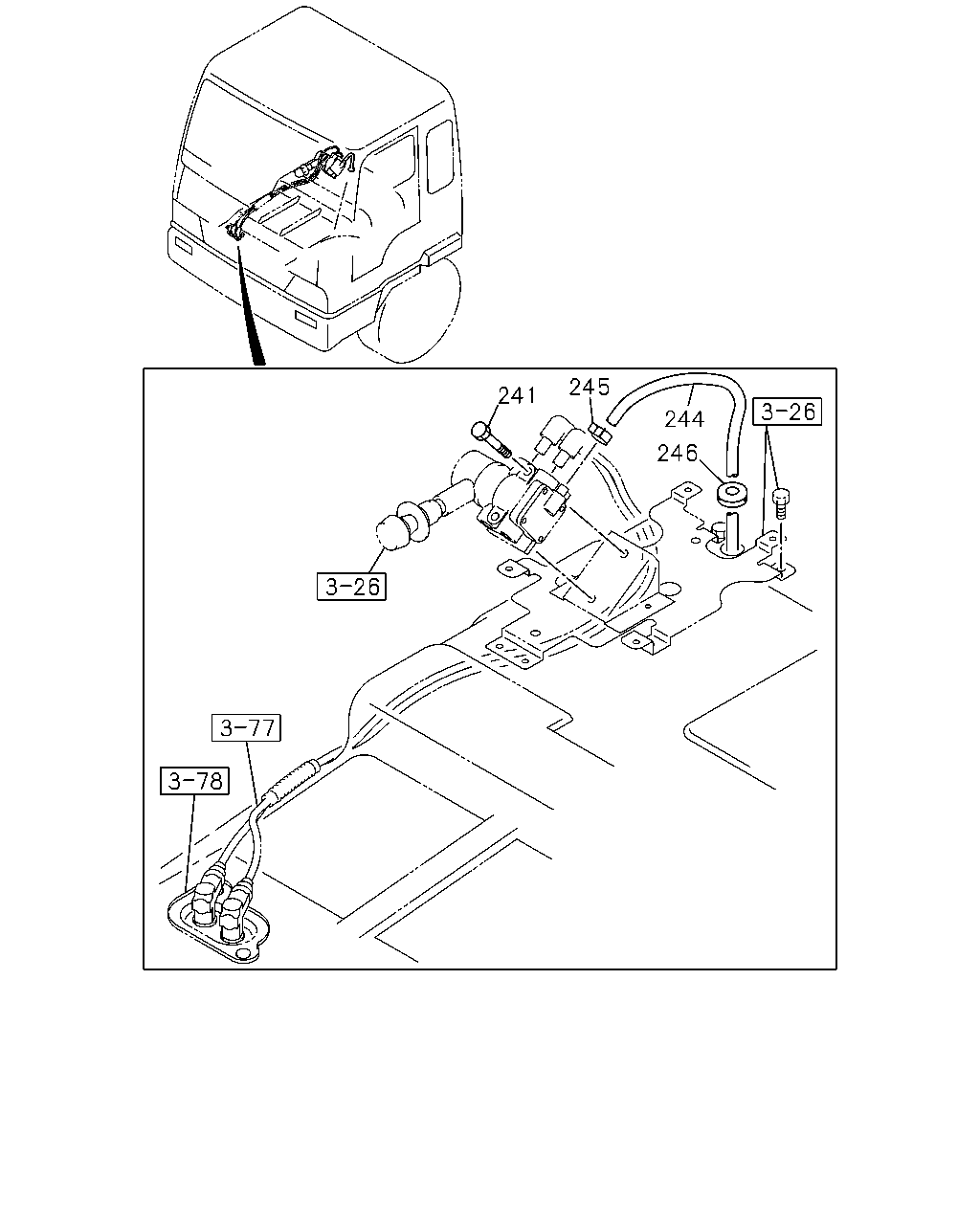

245 241 244 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28080-870-0	02	1	0005-0512	●	●	●	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●	●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0005-	●	●	●	●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	0005-	●	●	●	●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	0005-	●	●	●	●

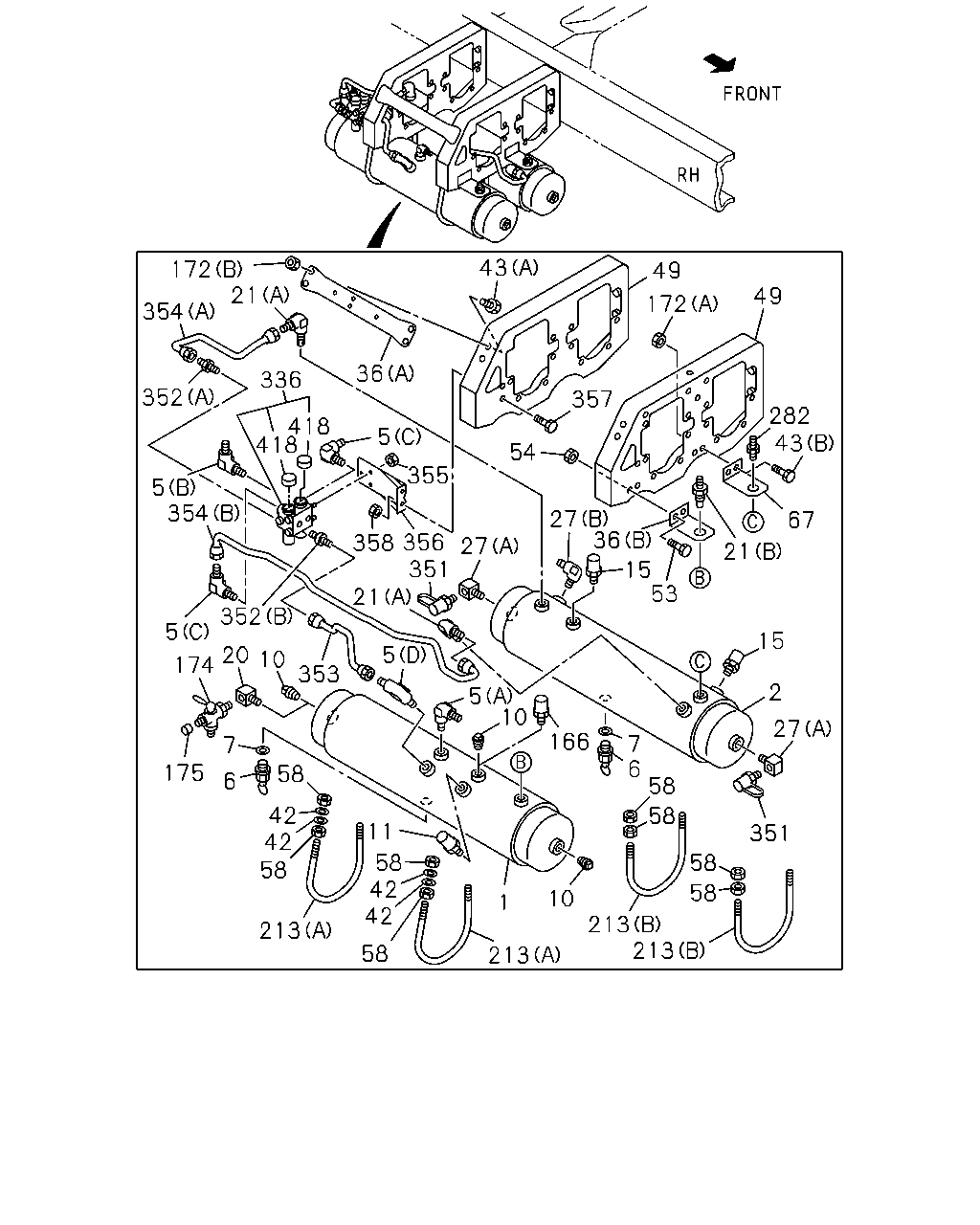

43 172 21 49 49 172 354 36 336 352 357 282 43 418 418 5 54 355 5 354 27 36 67 351 27 21 15 53 21 352 5 15 20 174 5 10 353 5 10 2 166 7 6 58 27 7 175 58 6 42 42 58 58 11 351 58 42 42 58 58 10 1 213 213 213 58 213 356 358

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; AIR	1-48330-598-0	01	1	0211-	●	●	●	●
1	TANK ASM; AIR	1-48330-598-0	01	1	0005-0210	●	●	●	●
2	TANK; AIR	1-48370-541-0	01	1	0005-	●	●	●	●
5	UNION; AIR TANK (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-	●	●	●	●
5	UNION; AIR TANK (B) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0005-	●	●	●	●
5	UNION; AIR TANK (C) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0005-	●	●	●	●
5	UNION; AIR TANK (D) M20 & PT3/8 ELBOW	1-09650-439-0	01	1	0005-0607	●	●	●	●
5	UNION; AIR TANK (D) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0608-	●	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0005-	●	●	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0005-	●	●	●	●
10	PLUG; AIR TANK TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	02	1	0005-0210	●	●	●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	01	1	0211-	●	●	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE(SG4) PT1/4	9-99204-513-0	03	1	0005-0210	●	●	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0005-	●	●	●	●
15	SWITCH; LOW PRESS,AIR TANK 530KPA	1-48340-054-1	02	1	0005-	●	●	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE(SG4) PT1/4 2WAY	1-09660-693-0	01	1	0005-0210	●	●	●	●
20	NIPPLE; AIR TANK PT1/4 2WAY	1-09660-693-0	01	1	0211-	●	●	●	●
21	VALVE; CHECK,AIR TANK (A)	1-48410-132-3	02	1	0005-	●	●	●	●
21	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	0005-	●	●	●	●
27	UNION; ELBOW,AIR TANK (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0005-	●	●	●	●
27	UNION; ELBOW,AIR TANK (A) PT1/4 2WAY	1-09660-693-0	02	1	0005-	●	●	●	●
36	STAY; MAIN TANK (A)	1-53318-293-1	01	1	0005-	●	●	●	●
36	STAY; MAIN TANK (B)	8-94301-490-0	01	1	0005-	●	●	●	●
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	0005-0605	●	●	●	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28681-025-0	04	1	0005-0512	●	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●	●	●
49	BRACKET; AIR TANK	1-53318-338-6	02	1	0005-	●	●	●	●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●	●
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
54	NUT; STAY M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	16	1	0005-0512	●	●	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	0601-	●	●	●	●
67	STAY; SUB TANK	1-48317-349-0	01	1	0005-	●	●	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	0211-	●	●	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	0005-0602	●	●	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE(SG4)	1-09680-036-0	01	1	0005-0009	●	●	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE(SG4)	1-09680-099-0	01	1	0010-0210	●	●	●	●
174	COCK; AIR,INFLATOR	1-09680-099-0	01	1	0211-	●	●	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	0005-0210	●	●	●	●
175	CAP; AIR COCK	9-48319-102-0	01	1	0211-	●	●	●	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	0005-	●	●	●	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	0005-	●	●	●	●
282	UNION; 2 WAY M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0005-	●	●	●	●
336	VALVE; PROTECTION	1-48110-113-5	01	1	0005-	●	●	●	●
351	CONNECTOR; TEST	1-47459-013-1	02	1	0005-	●	●	●	●
352	CONNECTOR; STRAIGHT (A) M16 & PT3/8 STRAIGHT	1-09650-032-1	01	1	0005-0210	●	●	●	●
352	CONNECTOR; STRAIGHT (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0211-	●	●	●	●
352	CONNECTOR; STRAIGHT (B) FLARE M20 PT3/8	9-09231-812-1	01	1	0005-0607	●	●	●	●
352	CONNECTOR; STRAIGHT (B) M20	0-92121-812-0	01	1	0608-	●	●	●	●
353	PIPE; AIR,AIR TANK TO MULTI PROTECTION	1-49118-126-0	01	1	0005-	●	●	●	●
354	PIPE; AIR,MULTI PROTECTION (A)	1-49118-127-0	01	1	0005-	●	●	●	●
354	PIPE; AIR,MULTI PROTECTION (B)	1-49119-063-0	01	1	0005-0210	●	●	●	●
354	PIPE; AIR,MULTI PROTECTION (B)	1-49123-596-0	01	1	0211-	●	●	●	●
355	NUT; PROTECTION VLV M8 FLANGE	0-91150-108-0	03	1	0005-0602	●	●	●	●
355	NUT; PROTECTION VLV M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●
356	BRACKET; PROTECTION VLV	1-47478-111-1	01	1	0005-	●	●	●	●
357	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	0005-0512	●	●	●	●
357	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●	●	●
358	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	0005-0602	●	●	●	●
358	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●	●
418	COVER; DUST	1-48119-450-0	02	1	0211-	●	●	●	●
