◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51355 - NPR/NQR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#81442) — 57 parça

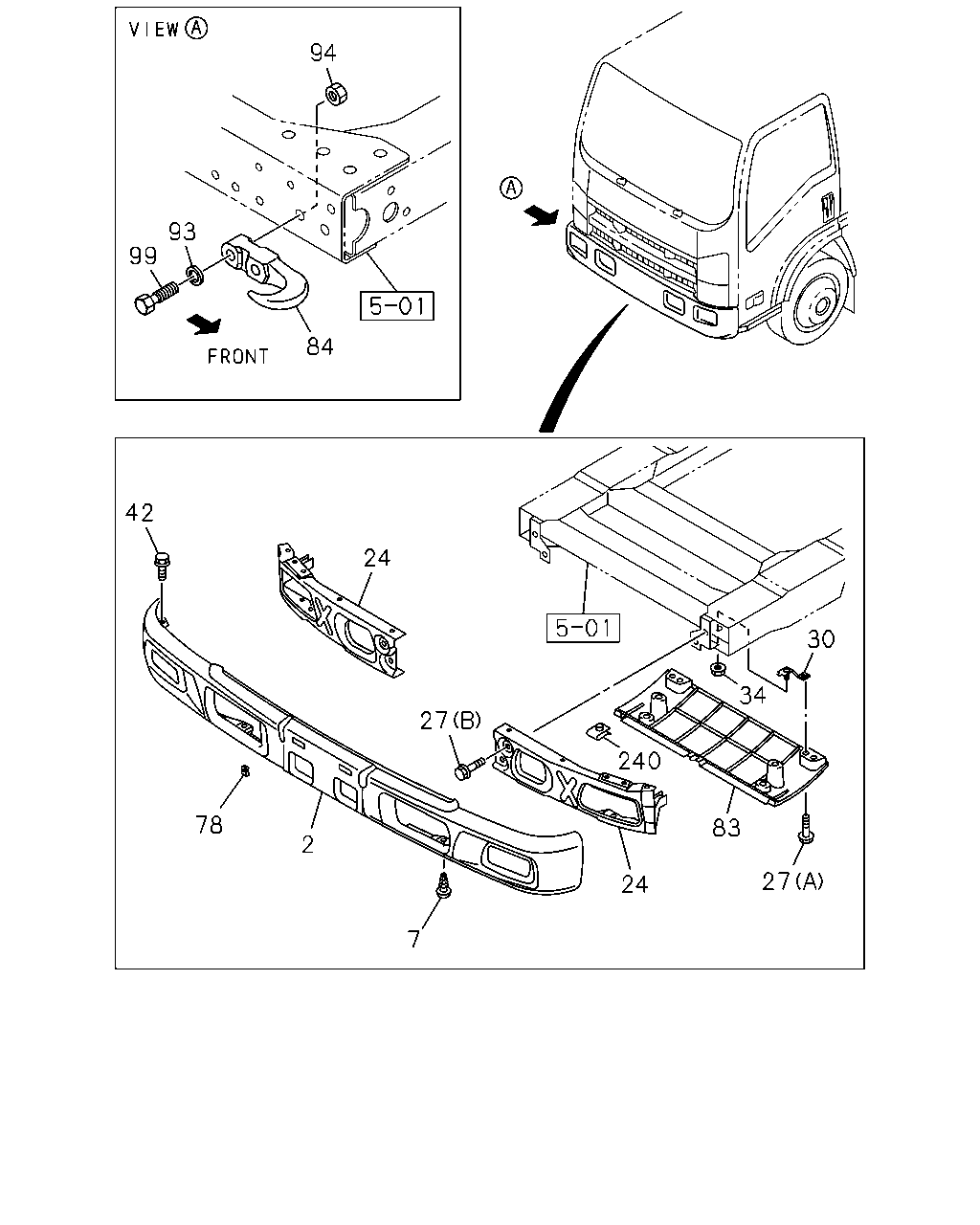

çizim 125777
94 93 99 84 42 24 30 34 27 240 78 83 2 27 24 7
BalonParca AdiParca NoAdetTipApplied Date A B C
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-079-2 01 1 0803-0803 ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97405-627-5 01 1 0803-0803 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97405-628-5 01 1 0803-0803 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97405-629-5 01 1 0803-0803 ● ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER 		8-98055-080-2 01 1 0803-0803 ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97405-634-5 01 1 0803-0803 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97405-635-5 01 1 0803-0803 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97405-636-5 01 1 0803-0803 ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-079-2 01 1 0804- ● ● ●
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97405-627-5 01 1 0804- ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97405-628-5 01 1 0804- ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97405-629-5 01 1 0804- ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER 		8-98055-080-2 01 1 0804- ● ● ●
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97405-634-5 01 1 0804- ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97405-635-5 01 1 0804- ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97405-636-5 01 1 0804- ● ● ●
7 07.833 SCREW; FRT BUMPER
4JJ1-TCC ENG(RDU) M6X20 TAPPING 		8-98082-975-0 03 1 0803-0803 ●
7 07.833 SCREW; FRT BUMPER
4JJ1-TCC ENG(RDU) M6X20 TAPPING 		8-98082-975-0 03 1 0804- ● ●
24 07.869 BAR; FRT BUMPER 8-98025-184-4 01 1 0803-0803 ● ●
24 07.869 BAR; FRT BUMPER 8-98025-184-5 01 1 0804- ● ● ●
24 07.869 BAR; FRT BUMPER 8-98025-185-4 01 1 0803-0803 ● ●
24 07.869 BAR; FRT BUMPER 8-98025-185-5 01 1 0804- ● ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
4JJ1-TCC ENG(RDU) 16.679 (A) M8X20 W/PL WASHER 		8-98031-841-0 02 1 0803-0803 ●
27 07.833 BOLT; BUMPER TO BACK BAR
4JJ1-TCC ENG(RDU) 16.679 (A) M8X20 W/PL WASHER 		8-98031-841-0 02 1 0804- ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES 		8-98092-250-0 04 1 0803-0803 ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES 		8-98092-250-0 04 1 0804- ● ● ●
30 07.869 BRACKET; FRT BUMPER
4JJ1-TCC ENG(RDU) 		8-98025-203-0 01 1 0803-0803 ●
30 07.869 BRACKET; FRT BUMPER
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 		8-98025-203-0 01 1 0803-0803 ●
30 07.869 BRACKET; FRT BUMPER
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 		8-98025-203-0 01 1 0804- ● ●
30 07.869 BRACKET; FRT BUMPER
4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 		8-98025-203-0 02 1 0803-0803 ●
30 07.869 BRACKET; FRT BUMPER
4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 		8-98025-203-0 02 1 0804- ●
30 07.869 BRACKET; FRT BUMPER
4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) 		8-98025-203-0 02 1 0804- ●
34 07.874 NUT; BRKT,BUMPER
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0803 ●
34 07.874 NUT; BRKT,BUMPER
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0803-0803 ●
34 07.874 NUT; BRKT,BUMPER
4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ●
34 07.874 NUT; BRKT,BUMPER
4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-0803 ●
34 07.874 NUT; BRKT,BUMPER
4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ●
34 07.874 NUT; BRKT,BUMPER
4JJ1-TCC ENG(RDU) EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ●
42 07.874 BOLT; BUMPER
08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 0803-0803 ● ●
42 07.874 BOLT; BUMPER
08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 0804- ● ● ●
78 07.874 NUT; SPIRE
M6 		8-98029-416-0 02 1 0803-0803 ● ●
78 07.874 NUT; SPIRE
M6 		8-98029-416-0 02 1 0804- ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER
4JJ1-TCC ENG(RDU) 		8-98025-201-1 01 1 0803-0803 ●
83 07.833 GUIDE; AIR,FRT BUMPER
4JJ1-TCC ENG(RDU) 		8-98025-201-1 01 1 0804- ● ●
84 07.068 HOOK 8-97387-665-0 01 1 0803-0803 ● ●
84 07.068 HOOK 8-97387-665-0 01 1 0804- ● ● ●
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 0803-0803 ● ●
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 0804- ● ● ●
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 01 1 0803-0803 ● ●
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 01 1 0804- ● ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0803-0803 ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0804-1001 ● ● ●
99 07.039 BOLT; HOOK
M14X55 		0-10956-455-0 02 1 1002-1103 ● ● ●
99 07.039 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1104- ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
4JJ1-TCC ENG(RDU) FOG LAMP<T96> 16.550 		1-71996-035-1 03 1 0803-0803 ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
4JJ1-TCC ENG(RDU) FOG LAMP<T96> 16.550 		1-71996-035-1 03 1 0804-0810 ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
4JJ1-TCC ENG(RDU) 16.550 		1-71996-035-1 03 1 0811- ● ●
