◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51355 - NPR/NQR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#81431) — 45 parça

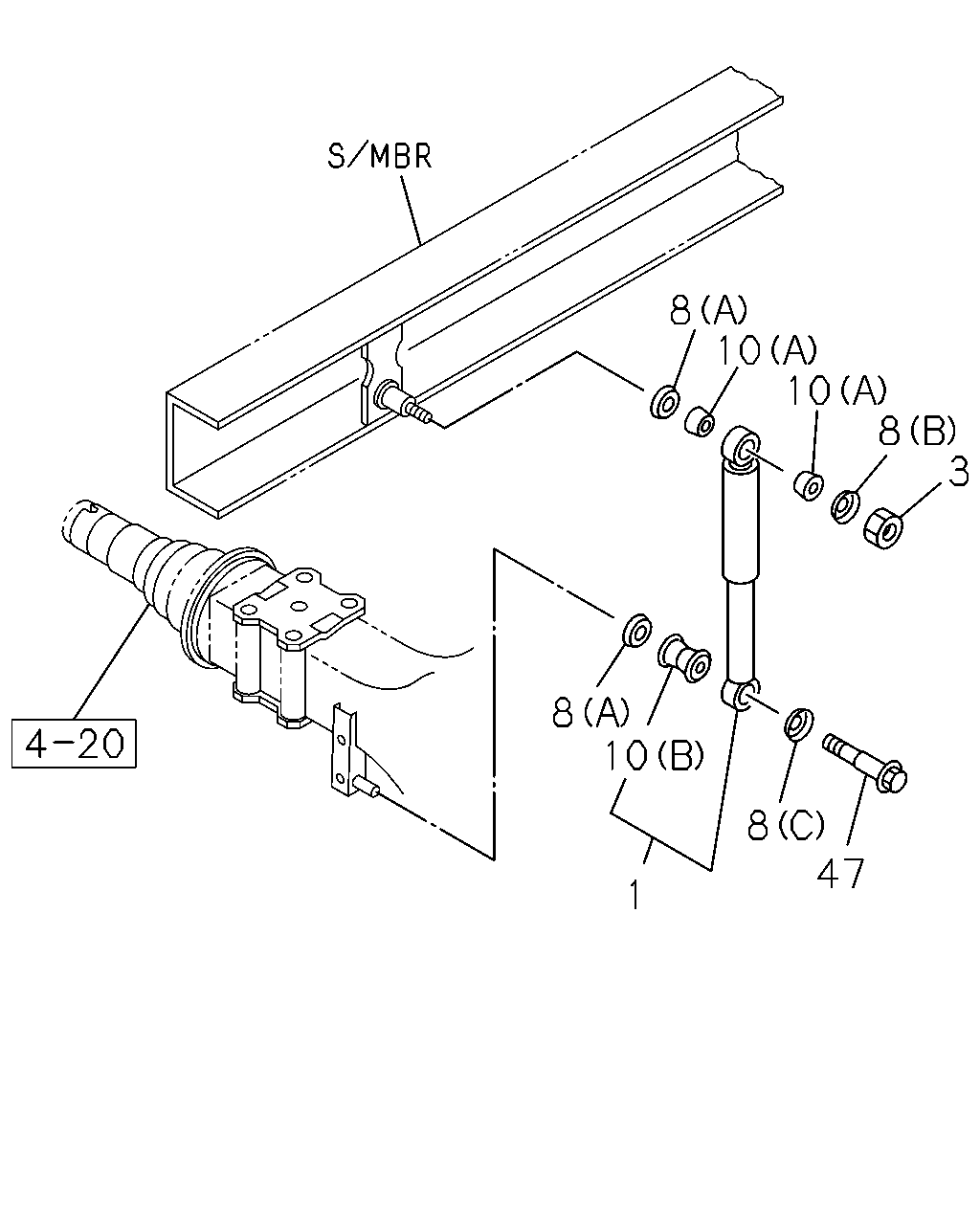

çizim 124963
8 10 10 8 3 8 10 8 47 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0803-0803 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0803-0803 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0803-0803 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0803-0803 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0804-1303 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 0804-1303 ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-651-2 02 1 0804-1303 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 1304- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-97253-651-2 02 1 1304- ●
1 07.395 ABSORBER ASM; SHOCK,RR 8-97253-651-2 02 1 1304- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 		8-98079-868-1 02 1 0803-0803 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. MINI BUS CHASSIS(V4B) 		8-98079-868-1 02 1 0803-0803 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-98079-868-1 02 1 0803-0810 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. MINI BUS CHASSIS(V4B) 		8-98079-868-1 02 1 0803-0810 ●
1 07.395 ABSORBER ASM; SHOCK,RR
MINI BUS CHASSIS(V4B) TIRE SIZE 8.25-16<7QP> 		8-98079-868-1 02 1 0803-0810 ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-98079-868-1 02 1 0811-1303 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. MINI BUS CHASSIS(V4B) 		8-98079-868-1 02 1 0811-1303 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. MINI BUS CHASSIS(V4B) 		8-98079-868-1 02 1 1304- ●
1 07.395 ABSORBER ASM; SHOCK,RR
MINI BUS CHASSIS(V4B) 		8-97253-662-2 02 1 0803-0803 ●
1 07.395 ABSORBER ASM; SHOCK,RR
MINI BUS CHASSIS(V4B) EXC. TIRE SIZE 8.25-16<7QP> 		8-97253-662-2 02 1 0803-0810 ●
1 07.395 ABSORBER ASM; SHOCK,RR
MINI BUS CHASSIS(V4B) 		8-97253-662-2 02 1 0811- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-132-0 02 1 1105-1303 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-132-0 02 1 1105-1303 ●
1 07.395 ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS 		5-87610-132-0 02 1 1105-1303 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-132-0 02 1 1304- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-132-0 02 1 1304- ●
1 07.395 ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS 		5-87610-132-0 02 1 1304- ●
1 07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-133-0 02 1 1304-1304 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. MINI BUS CHASSIS(V4B) BEST VALUE PARTS 		5-87610-133-0 02 1 1304-1304 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. MINI BUS CHASSIS(V4B) BEST VALUE PARTS 		5-87610-133-0 02 1 1304- ●
1 07.395 ABSORBER ASM; SHOCK,RR
MINI BUS CHASSIS(V4B) BEST VALUE PARTS 		5-87610-156-0 02 1 1105- ●
3 07.347 NUT; S/ABS
07.833 M14 		0-91110-514-0 02 1 0803-0803 ● ●
3 07.347 NUT; S/ABS
07.833 M14 		0-91110-514-0 02 1 0804- ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 0803-0803 ● ●
8 07.347 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 0804- ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 0803-0803 ● ●
8 07.347 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 0804- ● ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 0803-0803 ● ●
8 07.347 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 0804- ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0803-0803 ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(B) TOKICO 		8-94382-149-0 02 1 0804- ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0803-0803 ● ●
10 07.388 BUSHING; RUBBER,S/ABS
(A) TOKICO 		9-51631-014-0 04 1 0804- ● ● ●
47 07.347 PIN; S/ABS SETTING
02.483 M10X16 FLANGE 		0-28051-016-0 02 1 0803-0803 ● ●
47 07.347 PIN; S/ABS SETTING
02.483 M10X16 FLANGE 		0-28051-016-0 02 1 0804- ● ● ●
