4-60 — REAR SUSPENSION (#81430) — 108 parça

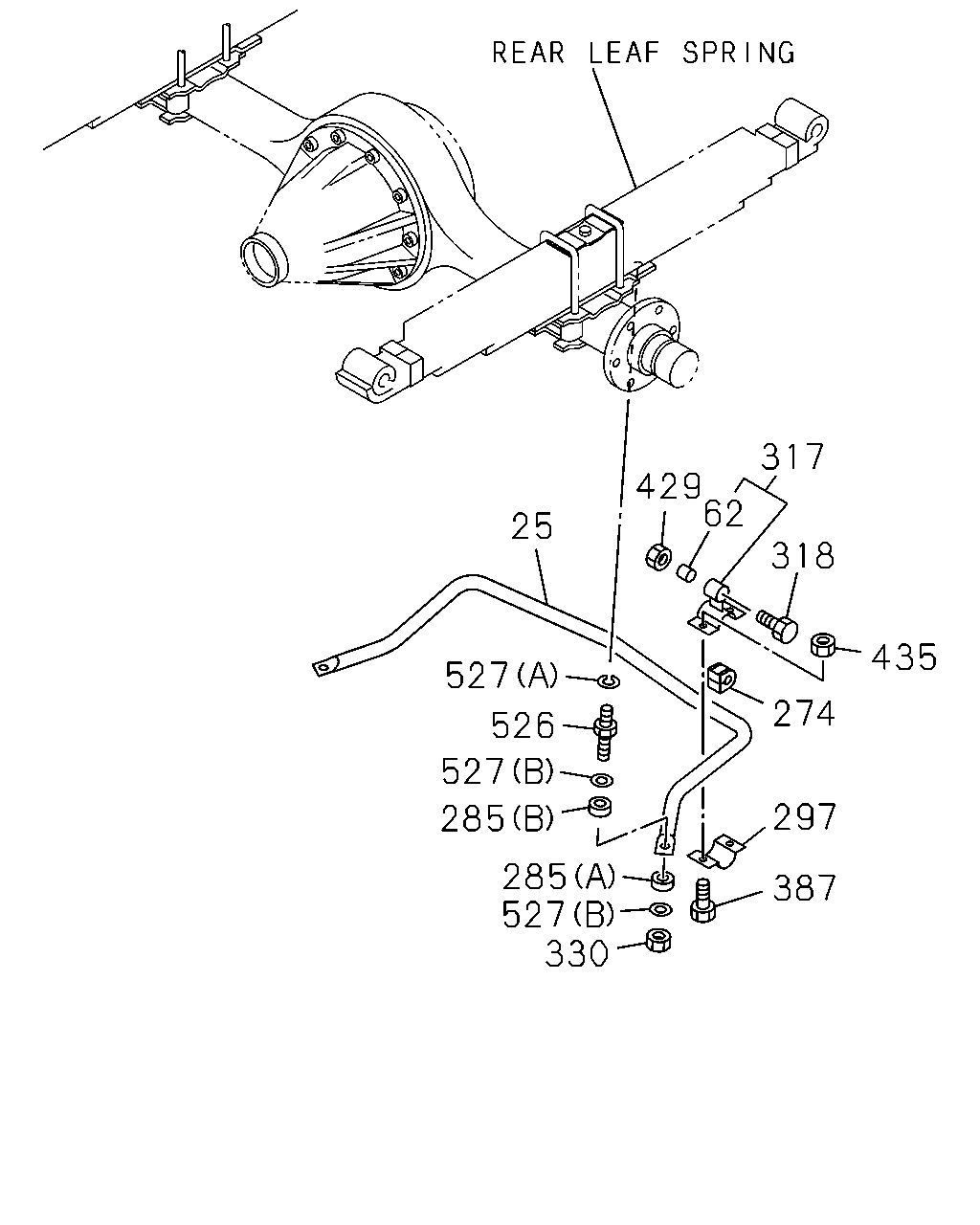

çizim 124675
317 429 62 25 318 435 527 274 526 527 297 285 285 527 330 387
BalonParca AdiParca NoAdetTipApplied Date A B C
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> 		8-98067-239-0 01 1 0803- ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> 		8-98067-239-0 01 1 0803- ●
25 07.241 BAR ASM; STAB,RR SUSP
STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98025-630-0 01 1 0803- ●
62 07.243 BUSHING; LINK ROD
STABILIZER REAR<GN1> 		8-97239-911-0 02 1 0803- ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK
STABILIZER REAR<GN1> 		8-94440-793-0 02 1 0803- ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (A) L=18 		8-97089-556-0 02 1 0803- ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
STABILIZER REAR<GN1> (B) L=29 		8-97089-557-0 02 1 0803- ● ●
297 07.242 CAP; STAB BAR
STABILIZER REAR<GN1> 		8-94178-430-2 02 1 0803- ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR
STABILIZER REAR<GN1> 		8-97239-907-0 02 1 0803- ● ●
318 07.242 BOLT; LINK ROD
STABILIZER REAR<GN1> M14X70 FLANGE 		0-28851-470-0 02 1 0803- ● ●
330 07.242 NUT; STAB
STABILIZER REAR<GN1> M12 LOCK NUT 		0-91370-012-0 02 1 0803- ● ●
387 07.242 BOLT; CAP FIX,STAB BAR
STABILIZER REAR<GN1> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 0803- ● ●
429 07.242 NUT; LINK
STABILIZER REAR<GN1> 06.174 M14 FLANGE 		8-97360-124-0 02 1 0803- ● ●
435 07.242 NUT; CAP
STABILIZER REAR<GN1> 04.085 M10 FLANGE 		0-91180-210-0 04 1 0803-1006 ● ●
435 07.242 NUT; CAP
STABILIZER REAR<GN1> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1007- ● ●
526 07.535 STUD; STABILIZER
STABILIZER REAR<GN1> 07.242 		8-97360-120-0 02 1 0803- ● ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> 05.605 (A) ID=14.2 		0-91510-514-0 02 1 0803- ● ●
527 07.242 WASHER; STABILIZER
STABILIZER REAR<GN1> (B) 		8-97360-055-0 04 1 0803- ● ●

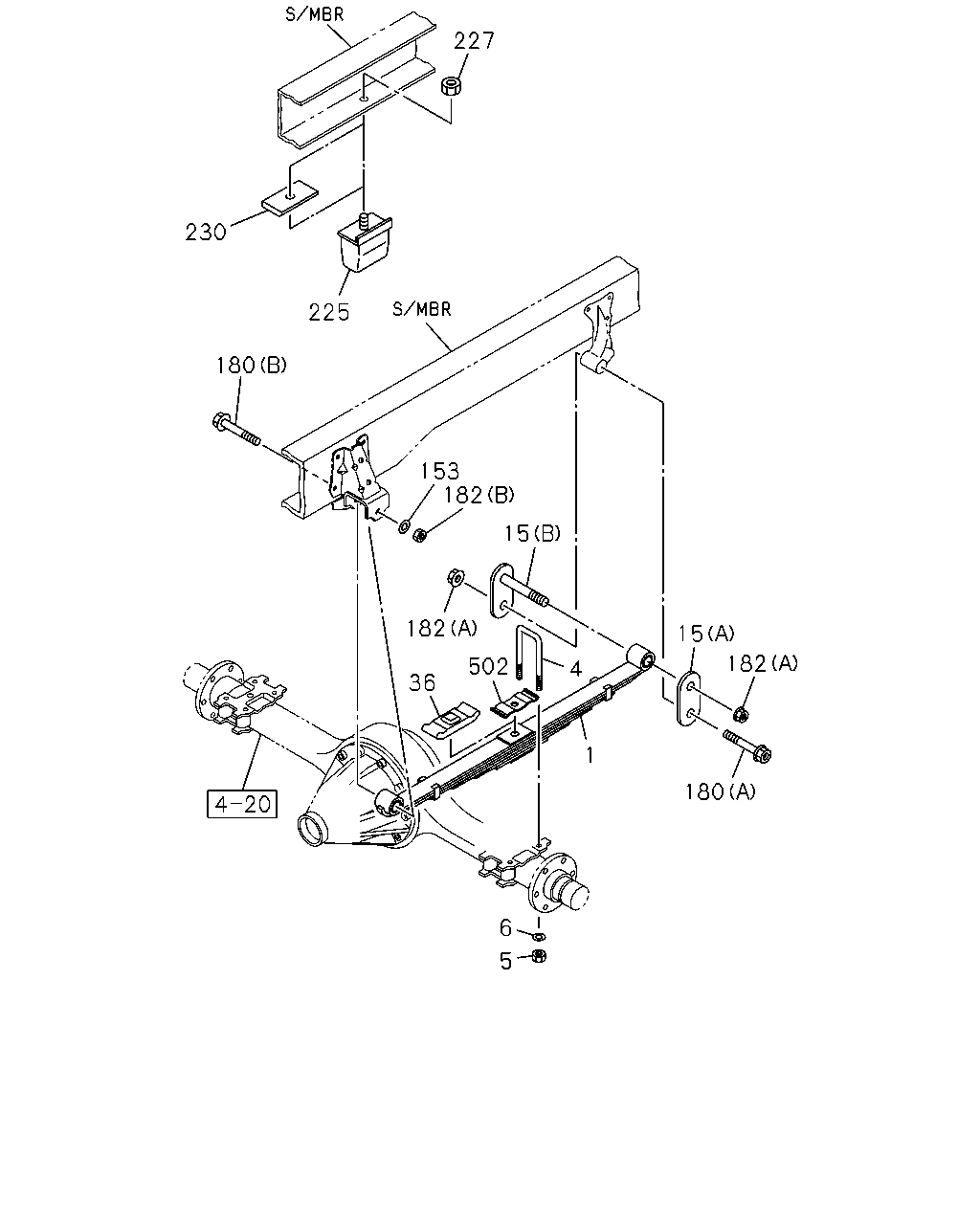

çizim 191675
227 230 225 180 153 182 15 182 15 182 502 4 36 1 180 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-98079-901-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-98079-901-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 5-LEAF 		8-97387-900-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 5-LEAF 		8-97387-900-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> 13-LEAF 		8-98079-903-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> EXC. MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-903-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 13-LEAF 		8-98079-903-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> EXC. MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> 13-LEAF 		8-98079-903-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 13-LEAF 		8-98079-903-0 02 1 0803- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 12-LEAF 		8-98025-051-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 12-LEAF 		8-98025-051-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHTTYPE<7KJ> 5-LEAF 		8-98025-046-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHTTYPE<7KJ> 5-LEAF 		8-98025-046-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHTTYPE<7KJ> 5-LEAF 		8-98025-046-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHTTYPE<7KJ> 5-LEAF 		8-98025-046-0 02 1 0804- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF 		8-98025-046-0 02 1 0804- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98079-902-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-902-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98079-902-0 02 1 0803-0810 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> 13-LEAF 		8-98079-902-0 02 1 0803-0810 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98079-902-0 02 1 0811- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) 13-LEAF 		8-98079-902-0 02 1 0811- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) 10-LEAF 		8-98025-060-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> MINI BUS CHASSIS(V4B) EXC. TIRE SIZE 8.25-16<7QP> 10-LEAF 		8-98025-060-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1> 10-LEAF 		8-98025-058-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS(V4B) EXC. STABILIZER REAR<GN1>,TIRE SIZE 8.25-16<7QP> 10-LEAF 		8-98025-058-0 02 1 0803-0803 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> EXC. STABILIZER REAR<GN1> 13-LEAF 		8-98072-396-0 02 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=255 		8-94127-922-2 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=255 		8-94127-922-2 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHTTYPE<7KJ> L=265 		8-94127-923-2 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) EXC. STABILIZER REAR<GN1>,FRAME STRAIGHTTYPE<7KJ> L=265 		8-94127-923-3 04 1 0804- ●
4 07.516 U-BOLT; RR SPR
L=265 		8-94127-923-3 04 1 0804- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
EXC. MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
EXC. MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
MINI BUS CHASSIS(V4B) TIRE SIZE 8.25-16<7QP> L=345 		1-51371-195-2 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 0803-0810 ●
4 07.516 U-BOLT; RR SPR
EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> L=345 		1-51371-195-2 04 1 0803-0810 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 0811- ●
4 07.516 U-BOLT; RR SPR
EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B) L=345 		1-51371-195-2 04 1 0811- ●
4 07.516 U-BOLT; RR SPR
MINI BUS CHASSIS(V4B) L=315 		1-51371-194-2 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 0803-0803 ●
4 07.516 U-BOLT; RR SPR
MINI BUS CHASSIS(V4B) EXC. TIRE SIZE 8.25-16<7QP> L=315 		1-51371-194-2 04 1 0803-0803 ●
5 07.529 NUT; U-BOLT,RR SPR
FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 0803- ●
5 07.529 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0803- ●
5 07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 M16 		8-97360-121-0 08 1 0803-0803 ●
5 07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 M16 		8-97360-121-0 08 1 0804- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 0804- ●
6 07.516 WASHER; PL,U-BOLT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-97360-118-0 08 1 0803-0803 ●
6 07.516 WASHER; PL,U-BOLT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-97360-118-0 08 1 0804- ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0804- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0803-0803 ● ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0804- ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0803-0803 ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0804- ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 0803-0803 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
07.518 		1-51372-059-0 02 1 0803-0803 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 0803-1112 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
07.518 		1-51372-059-0 02 1 0803-1112 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 1201- ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
4HK1-TCN ENG(RDQ) 07.518 		1-51372-059-0 02 1 1201- ●
153 07.529 WASHER; PL,SPRING PIN
ID=19 		8-97360-119-0 02 1 0803-0803 ● ●
153 07.529 WASHER; PL,SPRING PIN
ID=19 		8-97360-119-0 02 1 0804- ● ● ●
180 07.529 PIN; RR SPR
07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0803-0803 ● ●
180 07.529 PIN; RR SPR
07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0804- ● ● ●
180 07.529 PIN; RR SPR
(B) M18X130 FLANGE 		8-97360-112-0 02 1 0803-0803 ● ●
180 07.529 PIN; RR SPR
(B) M18X130 FLANGE 		8-97360-112-0 02 1 0804- ● ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0803-0803 ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0804- ● ● ●
182 07.529 NUT; PIN,RR SPR
07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0803-0803 ● ●
182 07.529 NUT; PIN,RR SPR
07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0804- ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94379-470-1 02 1 0803-0803 ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94379-470-1 02 1 0803-0803 ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. TIRE SIZE 8.25-16<7QP> 		8-94379-470-1 02 1 0803-0803 ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94379-470-1 02 1 0804-0810 ● ●
225 07.535 RUBBER; CUSHION,RR SPR
EXC. TIRE SIZE 8.25-16<7QP> 		8-94379-470-1 02 1 0804-0810 ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94379-470-1 02 1 0811-1103 ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1104- ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR
TIRE SIZE 8.25-16<7QP> 		8-98021-554-0 02 1 0803-0810 ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0803-0803 ● ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0804- ● ● ●
230 07.518 SPACER; CUSHION RUBBER
TIRE SIZE 8.25-16<7QP> 		8-97136-852-0 02 1 0803-0810 ●
502 07.506 CLAMP; RR LEAF SPR
G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5 		8-94118-509-1 02 1 0803-0803 ●
502 07.506 CLAMP; RR LEAF SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5 		8-94118-509-1 02 1 0803-0803 ●
502 07.506 CLAMP; RR LEAF SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5 		8-94118-509-1 02 1 0804-1112 ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=140 T=4.5 		8-94118-509-1 02 1 0804-1112 ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5 		8-94118-509-1 02 1 1201- ●
502 07.506 CLAMP; RR LEAF SPR
4JJ1-TCC ENG(RDU) REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5 		8-94118-509-1 02 1 1201- ●
502 07.506 CLAMP; RR LEAF SPR
4JJ1-TCC ENG(RDU) 07.518 L=140 T=4.5 		8-94118-509-1 02 1 1201- ●
