Isuzu WW
▶
TRUCKS
▶
NPR
▶
51355 - NPR/NQR(MIDDLE EAST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-36 - POWER STEERING CONTROL; ENGINE SIDE
▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE
(#81424) — 47 parça
Tümü
A - NPR6SN
B - NPR6SS
C - NPR6WN
◀
[436A] 4HK1;EXC.HYDRO BRAKE BOOSTER (20 parça)
[436A] 4HK1;HYDRO BRAKE BOOSTER (18 parça)
[436A] 4JJ1 (9 parça)
▶
29
1
36
7
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98055-007-2
01
1
0803-0910
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98055-007-2
01
1
0911-
●
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)
8-98006-793-2
01
1
0803-0910
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B)
8-98006-793-2
01
1
0803-0910
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)
8-98006-793-4
01
1
0911-
●
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (A)
8-98043-204-4
01
1
0803-0803
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (A)
8-98043-204-4
01
1
0804-
●
●
7
09.181 BOLT; OIL PUMP,P/S
4HK1-TCN ENG(RDQ) 00.780 M10X30 FLANGE
0-28751-030-0
02
1
0803-
●
7
09.181 BOLT; OIL PUMP,P/S
00.780 M10X30 FLANGE
0-28751-030-0
02
1
0803-
●
29
09.171 BOLT; BRKT,POWER STRG
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE
0-28851-420-0
01
1
0803-0910
●
29
09.171 BOLT; BRKT,POWER STRG
M14X20 FLANGE
0-28851-420-0
01
1
0803-0910
●
29
09.171 BOLT; BRKT,POWER STRG
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE
0-28851-420-0
01
1
0911-
●
●
36
06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ)
8-98036-532-0
01
1
0803-0910
●
36
06.606 BRACKET; PLATE,P/S PUMP
8-98036-532-0
01
1
0803-0910
●
36
06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ)
8-98036-532-0
01
1
0911-
●
●
42
06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE
0-91180-108-0
02
1
0803-0910
●
42
06.672 NUT; ADJ PLATE
01.062 M8 FLANGE
0-91180-108-0
02
1
0803-0910
●
42
06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE
0-91180-108-0
02
1
0911-
●
●
42
06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE
0-91180-108-0
01
1
0809-0910
●
42
06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE
0-91180-108-0
01
1
0911-
●
●
23
24
42
1
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98055-007-2
01
1
0803-0910
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98055-007-2
01
1
0911-
●
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)
8-98006-793-2
01
1
0803-0910
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B)
8-98006-793-2
01
1
0803-0910
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)
8-98006-793-4
01
1
0911-
●
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (A)
8-98043-204-4
01
1
0803-0803
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (A)
8-98043-204-4
01
1
0804-
●
●
7
09.181 BOLT; OIL PUMP,P/S
4HK1-TCN ENG(RDQ) 00.780 M10X30 FLANGE
0-28751-030-0
02
1
0803-
●
7
09.181 BOLT; OIL PUMP,P/S
00.780 M10X30 FLANGE
0-28751-030-0
02
1
0803-
●
23
06.660 GEAR; OIL PUMP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ)
8-97114-550-1
01
1
0803-0910
●
23
06.660 GEAR; OIL PUMP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ)
8-97114-550-1
01
1
0911-
●
●
24
06.673 NUT; GEAR,P/S PUMP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 05.816 M12 FLANGE
0-91180-212-0
01
1
0803-0910
●
24
06.673 NUT; GEAR,P/S PUMP
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 05.816 M12 FLANGE
0-91180-212-0
01
1
0911-
●
●
42
06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE
0-91180-108-0
02
1
0803-0910
●
42
06.672 NUT; ADJ PLATE
01.062 M8 FLANGE
0-91180-108-0
02
1
0803-0910
●
42
06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE
0-91180-108-0
02
1
0911-
●
●
42
06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE
0-91180-108-0
01
1
0809-0910
●
42
06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE
0-91180-108-0
01
1
0911-
●
●

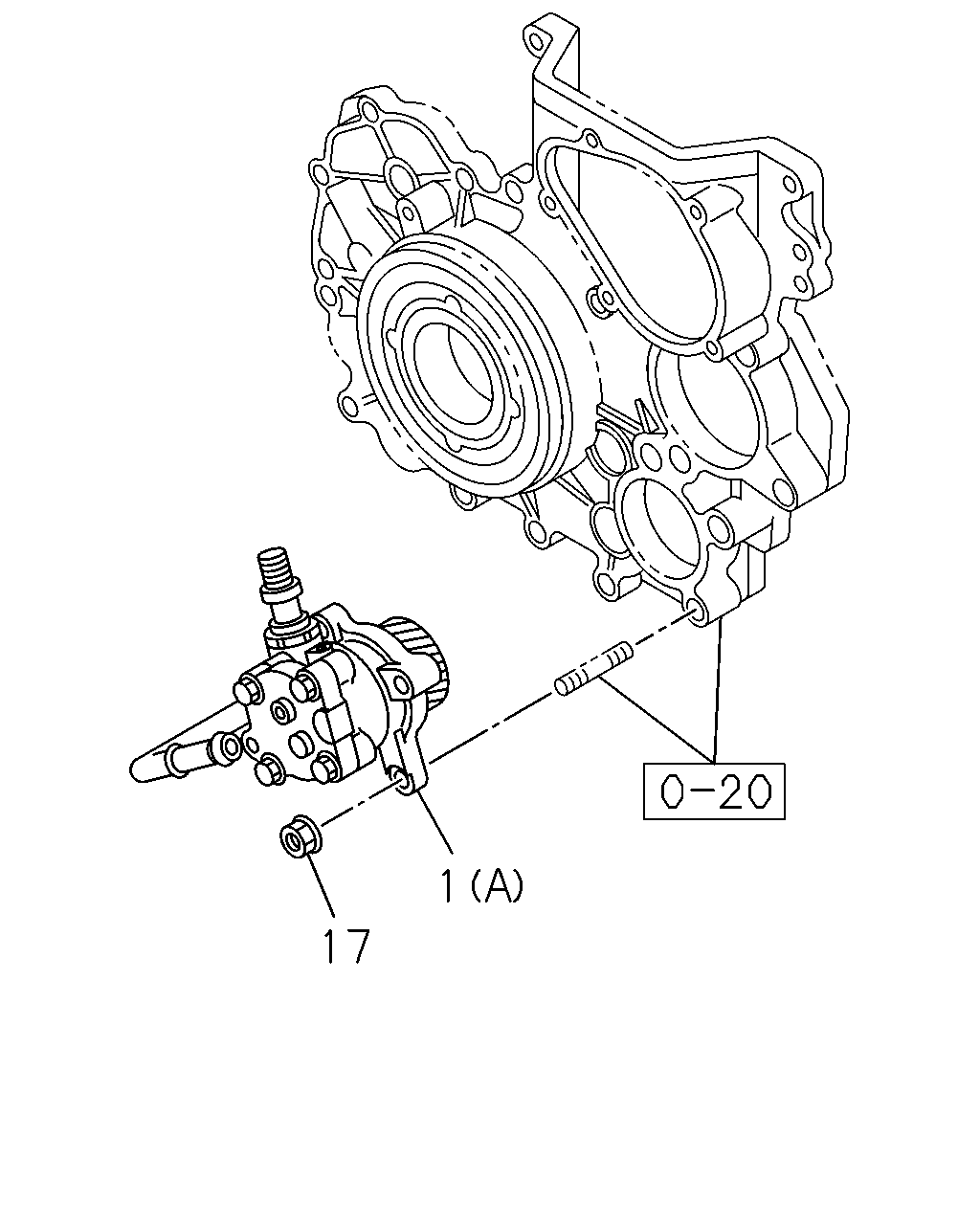

1
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98055-007-2
01
1
0803-0910
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98055-007-2
01
1
0911-
●
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)
8-98006-793-2
01
1
0803-0910
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (B)
8-98006-793-2
01
1
0803-0910
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)
8-98006-793-4
01
1
0911-
●
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (A)
8-98043-204-4
01
1
0803-0803
●
1
06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCC ENG(RDU) (A)
8-98043-204-4
01
1
0804-
●
●
17
06.606 NUT; POWER STRG PUMP
4JJ1-TCC ENG(RDU) 01.540 M8 FLANGE
0-91180-208-0
03
1
0803-0803
●
17
06.606 NUT; POWER STRG PUMP
4JJ1-TCC ENG(RDU) 01.540 M8 FLANGE
0-91180-208-0
03
1
0804-
●
●
