Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#8142) — 270 parça

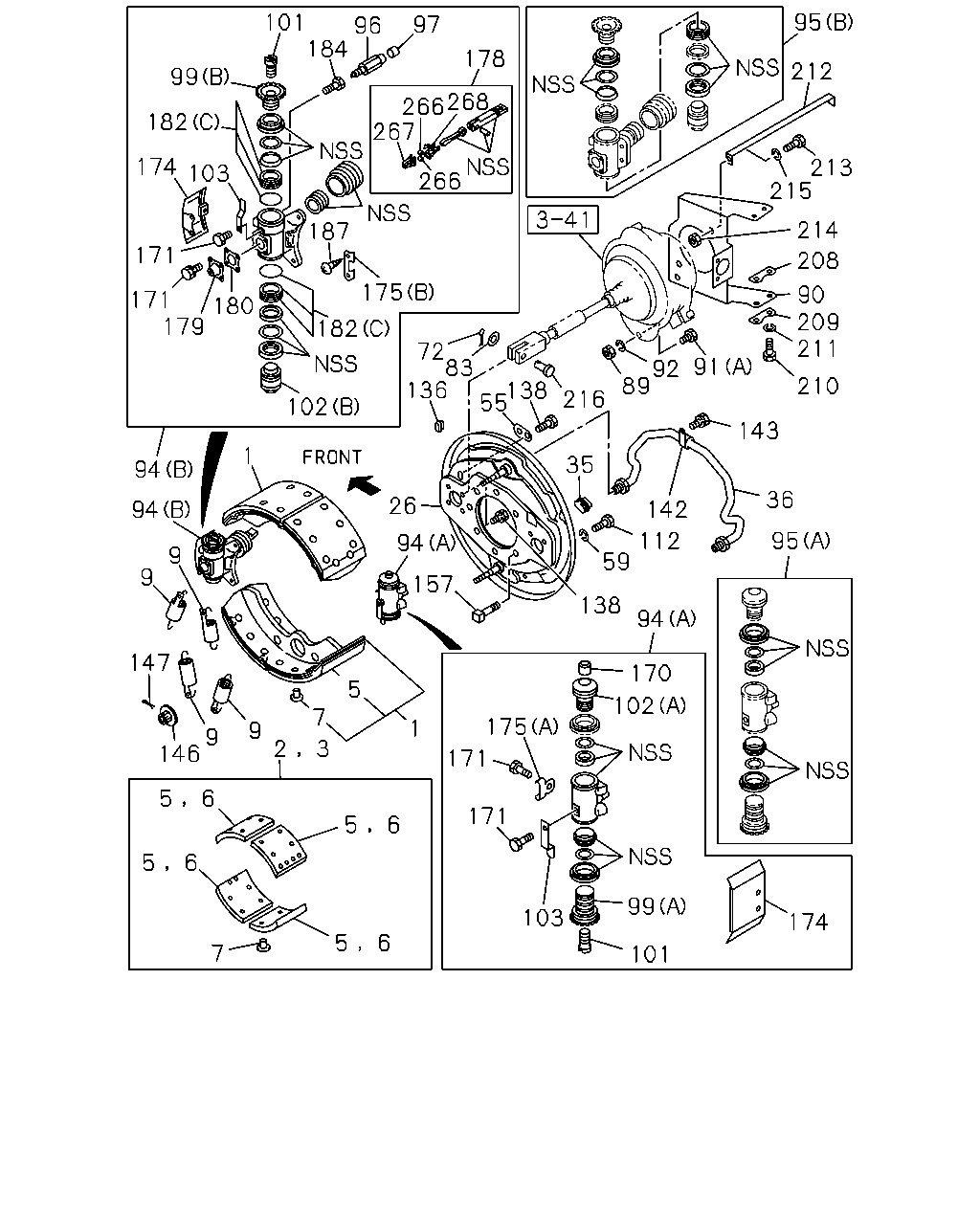

95 101 96 184 97 178 212 99 268 266 267 182 174 266 213 215 103 187 214 171 208 175 90 209 211 171 179 180 182 72 83 136 91 92 89 210 138 55 216 102 143 1 35 94 36 26 142 94 95 112 94 9 59 9 157 138 94 147 170 5 102 7 175 1 9 9 146 2 3 171 5 6 171 5 6 5 6 99 103 174 5 6 7 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHOE; BRK,RR	1-47120-629-0	04	1	0005-	●	●
1	SHOE; BRK,RR	1-47120-632-0	04	1	0005-0210			●	●
1	SHOE; BRK,RR	1-47170-197-0	04	1	0211-			●	●
2	LINING SET; RR BRK,STANDARD	1-88310-525-0	01	1	0005-	●	●
2	LINING SET; RR BRK,STANDARD	1-88310-527-0	02	1	0005-0210			●	●
2	LINING SET; RR BRK,STANDARD	1-88311-149-0	02	1	0211-			●	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-526-0	01	1	0005-	●	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-528-0	02	1	0005-0210			●	●
3	LINING SET; RR BRK,OVER SIZE	1-88311-150-0	02	1	0211-			●	●
5	LINING; RR BRK SHOE,STANDARD	1-47125-807-0	04	1	0005-	●	●
5	LINING; RR BRK SHOE,STANDARD	1-47125-809-0	08	1	0005-0210			●	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-487-0	08	1	0211-			●	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-808-0	04	1	0005-	●	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-810-0	08	1	0005-0210			●	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47126-488-0	08	1	0211-			●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	0005-	●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0005-			●	●
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	0005-	●	●	●	●
26	PLATE; BACK,RR BRK	1-47150-447-0	01	1	0005-	●	●
26	PLATE; BACK,RR BRK	1-47150-446-0	01	1	0005-	●	●
26	PLATE; BACK,RR BRK	1-47150-439-0	01	1	0005-			●	●
26	PLATE; BACK,RR BRK	1-47150-438-0	01	1	0005-			●	●
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	0005-	●	●	●	●
36	PIPE; OIL,RR BRK	1-47415-139-0	01	1	0005-	●	●	●	●
36	PIPE; OIL,RR BRK	1-47415-138-0	01	1	0005-	●	●	●	●
55	PLATE; LK,RR WHEEL CYL	1-47619-032-0	04	1	0005-	●	●	●	●
59	WASHER; LK,RR WHEEL CYL ID=14.2	9-09150-614-0	12	1	0005-0603	●	●	●	●
59	WASHER; LK,RR WHEEL CYL ID=14.2	0-91510-614-0	12	1	0604-	●	●	●	●
72	PIN; SPLIT OD=2.8 L=18	9-08113-018-0	02	1	0005-0606	●	●	●	●
72	PIN; SPLIT OD=2.8 L=18	0-81123-018-0	02	1	0607-	●	●	●	●
83	WASHER; PL ID=10.5 OD=18	9-09160-510-0	02	1	0005-0605			●	●
83	WASHER; PL ID=10.5	0-91610-510-0	02	1	0606-			●	●
89	NUT; CHAMBER M12	9-99110-512-0	04	1	0005-0512	●	●	●	●
89	NUT; CHAMBER M12	0-91110-512-0	04	1	0601-	●	●	●	●
90	BRACKET; CHAMBER	1-48258-157-0	01	1	0005-	●	●
90	BRACKET; CHAMBER	1-48258-121-4	01	1	0005-	●	●
90	BRACKET; CHAMBER	1-48258-147-0	01	1	0005-			●	●
90	BRACKET; CHAMBER	1-48258-146-0	01	1	0005-			●	●
91	BOLT; CHAMBER (B) M6X8	0-20800-608-0	01	1	0005-	●	●
91	BOLT; CHAMBER (B) M6X8	0-20800-608-0	01	1	0005-	●	●
91	BOLT; CHAMBER (A) M12X30	0-20801-230-0	04	1	0005-	●	●	●	●
92	WASHER; LK,CHAMBER ID=12.2	9-09150-612-0	04	1	0005-0603	●	●	●	●
92	WASHER; LK,CHAMBER ID=12.2	0-91510-612-0	04	1	0604-	●	●	●	●
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-589-1	01	1	0005-	●	●
94	CYLINDER; WHEEL,RR BRK (B) FORWARD	1-47600-651-2	01	1	0005-	●	●
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-587-1	01	1	0005-	●	●
94	CYLINDER; WHEEL,RR BRK (B) FORWARD	1-47600-650-2	01	1	0005-	●	●
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-430-2	01	1	0005-0104			●	●
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47601-129-0	01	1	0105-			●	●
94	CYLINDER; WHEEL,RR BRK (B) FORWARD	1-47600-432-2	01	1	0005-0104			●	●
94	CYLINDER; WHEEL,RR BRK (B) FORWARD	1-47601-131-1	01	1	0105-			●	●
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-429-2	01	1	0005-0104			●	●
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47601-128-0	01	1	0105-			●	●
94	CYLINDER; WHEEL,RR BRK (B) FORWARD	1-47600-431-2	01	1	0005-0104			●	●
94	CYLINDER; WHEEL,RR BRK (B) FORWARD	1-47601-130-1	01	1	0105-			●	●
95	CUP SET; RR WHEEL CYL (A) BACKWARD	1-87830-581-0	02	1	0005-	●	●
95	CUP SET; RR WHEEL CYL (B) FORWARD	1-87830-646-0	02	1	0005-	●	●
95	CUP SET; RR WHEEL CYL (B) FORWARD	1-87830-551-0	02	1	0005-			●	●
95	CUP SET; RR WHEEL CYL (A) BACKWARD	1-87830-552-0	02	1	0005-			●	●
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	0005-	●	●
96	SCREW; BLEEDER,RR BRK	1-47615-009-0	02	1	0005-			●	●
97	CAP; BLEEDER,RR WHEEL CYL OD=9.5	9-47619-005-0	02	1	0005-			●	●
99	PISTON; RR WHEEL CYL (A) BACKWARD	1-47624-223-0	01	1	0005-	●	●
99	PISTON; RR WHEEL CYL (B) FORWARD	1-47624-238-0	01	1	0005-	●	●
99	PISTON; RR WHEEL CYL (A) BACKWARD	1-47624-222-0	01	1	0005-	●	●
99	PISTON; RR WHEEL CYL (B) FORWARD	1-47624-237-0	01	1	0005-	●	●
99	PISTON; RR WHEEL CYL (A) BACKWARD	1-47624-157-0	01	1	0005-			●	●
99	PISTON; RR WHEEL CYL (B) FORWARD	1-47624-159-0	01	1	0005-			●	●
99	PISTON; RR WHEEL CYL (A) BACKWARD	1-47624-156-0	01	1	0005-			●	●
99	PISTON; RR WHEEL CYL (B) FORWARD	1-47624-160-0	01	1	0005-			●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	0005-	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	0005-	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-023-0	02	1	0005-			●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-022-0	02	1	0005-			●	●
102	PISTON; REAR WHEEL CYL (A) BACKWARD	1-47624-224-0	02	1	0005-	●	●
102	PISTON; REAR WHEEL CYL (B) FORWARD	1-47624-239-0	02	1	0005-	●	●
102	PISTON; REAR WHEEL CYL (A) BACKWARD	1-47624-158-0	02	1	0005-			●	●
102	PISTON; REAR WHEEL CYL (B) FORWARD	1-47624-161-0	02	1	0005-			●	●
103	SPRING; LK,RR WHEEL CYL,ADJ	1-47629-057-0	04	1	0005-			●	●
112	BOLT; WHEEL CYL SETTING	9-92361-435-0	12	1	0005-	●	●	●	●
136	GROMMET	1-09333-065-2	04	1	0005-	●	●	●	●
138	SCREW; LOCK PLATE M5X10 W/LK WASHER	9-03910-510-0	04	1	0005-0604	●	●	●	●
138	SCREW; LOCK PLATE M5X10 W/LK WASHER	0-36220-510-0	04	1	0605-	●	●	●	●
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	0005-	●	●	●	●
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	0005-	●	●	●	●
146	NUT; HOLDER	1-09440-009-0	04	1	0005-	●	●	●	●
147	PIN; HOLDER OD=1.8 L=20	9-08112-020-0	04	1	0005-0606	●	●	●	●
147	PIN; HOLDER OD=1.8 L=20	0-81122-020-0	04	1	0607-	●	●	●	●
157	BOLT; RR BRK SET M14X50	9-92061-450-0	04	1	0005-0512	●	●
157	BOLT; RR BRK SET M14X50	0-20951-450-0	04	1	0601-	●	●
157	BOLT; RR BRK SET M14X52	1-09000-310-0	04	1	0005-			●	●
170	PIECE; ANCHOR,RR WHEEL CYL	1-47619-039-0	02	1	0005-	●	●
170	PIECE; ANCHOR,RR WHEEL CYL	1-47619-019-0	02	1	0005-			●	●
171	BOLT; RR WHEEL CYL M6X8	0-20800-608-0	02	1	0005-	●	●
171	BOLT; RR WHEEL CYL M6X10	9-01900-610-0	18	1	0005-	●	●
171	BOLT; RR WHEEL CYL M8X18 W/LK WASHER	0-50040-818-0	04	1	0005-0906	●	●	●	●
171	BOLT; RR WHEEL CYL M8X18 W/LK WASHER	0-50540-818-0	04	1	0907-	●	●	●	●
171	BOLT; RR WHEEL CYL M6X10	9-01900-610-0	20	1	0005-			●	●
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	0005-	●	●	●	●
175	HANGER; RR WHEEL BRK (A)	1-47118-084-0	04	1	0005-	●	●	●	●
175	HANGER; RR WHEEL BRK (B)	1-47619-022-0	02	1	0005-	●	●	●	●
178	WEDGE; RR WHEEL CYL	1-47640-005-0	02	1	0005-	●	●
178	WEDGE; RR WHEEL CYL	1-47640-002-0	02	1	0005-			●	●
179	COVER; WEDGE,RR WHEEL CYL	1-47649-011-0	02	1	0005-	●	●
179	COVER; WEDGE,RR WHEEL CYL	1-47649-009-0	02	1	0005-			●	●
180	GASKET; COVER,RR WHEEL CYL	1-47619-016-0	01	1	0005-	●	●
180	GASKET; COVER,RR WHEEL CYL	1-47619-017-0	01	1	0005-	●	●
180	GASKET; COVER,RR WHEEL CYL	1-47619-017-0	02	1	0005-			●	●
182	TAPPET; RR WHEEL CYL (A)	1-47620-094-0	04	1	0005-	●	●
182	TAPPET; RR WHEEL CYL (B)	1-47629-080-0	04	1	0005-	●	●
182	TAPPET; RR WHEEL CYL (C)	1-47620-042-0	02	1	0005-			●	●
184	CONNECTOR; RR WHEEL CYL	1-09660-112-1	04	1	0005-	●	●	●	●
187	SCREW; HANGER	9-03065-616-0	03	1	0005-	●	●
187	SCREW; HANGER	9-03065-616-0	04	1	0005-			●	●
208	WASHER; BRKT L=106	1-42129-028-3	04	1	0005-	●	●
208	WASHER; BRKT LOWER L=106	1-42129-028-3	02	1	0005-			●	●
208	WASHER; BRKT UPPER L=113	1-42129-163-2	02	1	0005-			●	●
209	SHIM; BRKT L=106	1-42129-027-4	12	1	0005-	●	●
209	SHIM; BRKT UPPER L=106	1-42129-027-4	06	1	0005-			●	●
209	SHIM; BRKT LOWER L=113	1-42129-162-1	06	1	0005-			●	●
210	BOLT; BRKT FIX M12X25	0-20801-225-0	08	1	0005-	●	●	●	●
210	BOLT; BRKT FIX M12X38	0-20801-238-0	08	1	0005-	●	●	●	●
211	WASHER; LK,BRKT FIX ID=12.2	9-09150-612-0	16	1	0005-0603	●	●	●	●
211	WASHER; LK,BRKT FIX ID=12.2	0-91510-612-0	16	1	0604-	●	●	●	●
212	STAY	1-48258-156-0	01	1	0005-	●	●
212	STAY	1-48258-078-0	01	1	0005-			●	●
213	BOLT; STAY FIX M12X25	0-20801-225-0	02	1	0005-	●	●	●	●
214	NUT; STAY FIX M12	9-99111-512-0	02	1	0005-0512	●	●	●	●
214	NUT; STAY FIX M12	0-91111-512-0	02	1	0601-	●	●	●	●
215	WASHER; LK,STAY FIX ID=12.2	9-09150-612-0	02	1	0005-0603	●	●	●	●
215	WASHER; LK,STAY FIX ID=12.2	0-91510-612-0	02	1	0604-	●	●	●	●
216	PIN; STAY FIX	9-08234-038-0	02	1	0005-	●	●	●	●
266	ROLLER; WEDGE	1-47643-004-0	04	1	0005-			●	●
267	CAGE; WEDGE	1-47649-007-0	02	1	0005-			●	●
268	RETAINER; WEDGE	1-47649-016-0	02	1	0005-			●	●

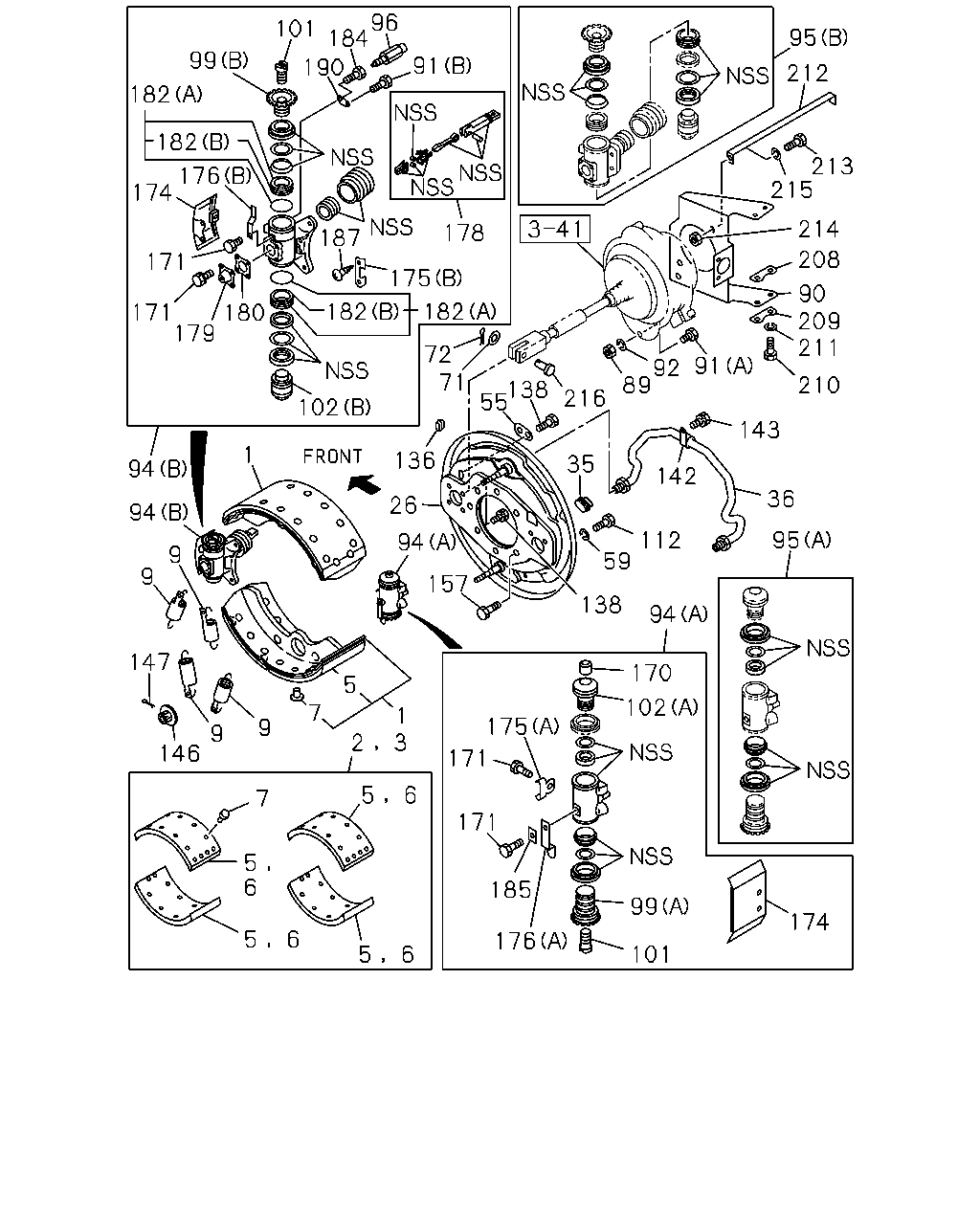

96 184 101 95 99 91 190 212 182 182 213 215 176 174 187 214 178 208 171 175 90 209 211 182 182 171 179 180 72 71 91 92 89 210 138 55 216 102 136 143 1 35 94 142 36 26 94 95 112 94 9 59 9 157 138 94 147 170 5 102 7 1 3 175 9 9 2 146 171 5 6 7 171 5 6 185 99 174 5 6 176 101 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHOE; BRK,RR	1-47120-629-0	04	1	0005-	●	●
1	SHOE; BRK,RR	1-47120-632-0	04	1	0005-0210			●	●
1	SHOE; BRK,RR	1-47170-197-0	04	1	0211-			●	●
2	LINING SET; RR BRK,STANDARD	1-88310-525-0	01	1	0005-	●	●
2	LINING SET; RR BRK,STANDARD	1-88310-527-0	02	1	0005-0210			●	●
2	LINING SET; RR BRK,STANDARD	1-88311-149-0	02	1	0211-			●	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-526-0	01	1	0005-	●	●
3	LINING SET; RR BRK,OVER SIZE	1-88310-528-0	02	1	0005-0210			●	●
3	LINING SET; RR BRK,OVER SIZE	1-88311-150-0	02	1	0211-			●	●
5	LINING; RR BRK SHOE,STANDARD	1-47125-807-0	04	1	0005-	●	●
5	LINING; RR BRK SHOE,STANDARD	1-47125-809-0	08	1	0005-0210			●	●
5	LINING; RR BRK SHOE,STANDARD	1-47126-487-0	08	1	0211-			●	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-808-0	04	1	0005-	●	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47125-810-0	08	1	0005-0210			●	●
6	LINING; RR BRK SHOE,OVER SIZE	1-47126-488-0	08	1	0211-			●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	80	1	0005-	●	●
7	RIVET; LINING,RR BRK D6X11.5	1-09732-019-0	96	1	0005-			●	●
9	SPRING; RETURN,BRK SHOE	1-09583-167-0	08	1	0005-	●	●	●	●
26	PLATE; BACK,RR BRK	1-47150-447-0	01	1	0005-	●	●
26	PLATE; BACK,RR BRK	1-47150-446-0	01	1	0005-	●	●
26	PLATE; BACK,RR BRK	1-47150-439-0	01	1	0005-			●	●
26	PLATE; BACK,RR BRK	1-47150-438-0	01	1	0005-			●	●
35	GROMMET; CHECK HOLE	1-09333-066-1	04	1	0005-	●	●	●	●
36	PIPE; OIL,RR BRK	1-47415-139-0	01	1	0005-	●	●	●	●
36	PIPE; OIL,RR BRK	1-47415-138-0	01	1	0005-	●	●	●	●
55	PLATE; LK,RR WHEEL CYL	1-47619-032-0	04	1	0005-	●	●	●	●
59	WASHER; LK,RR WHEEL CYL ID=14.2	9-09150-614-0	12	1	0005-0603	●	●	●	●
59	WASHER; LK,RR WHEEL CYL ID=14.2	0-91510-614-0	12	1	0604-	●	●	●	●
71	WASHER; PL,JAW JOINT ID=10.5 OD=18	9-09160-510-0	02	1	0005-0605	●	●
71	WASHER; PL,JAW JOINT ID=10.5	0-91610-510-0	02	1	0606-	●	●
72	PIN; SPLIT OD=2.8 L=18	9-08113-018-0	02	1	0005-0606	●	●	●	●
72	PIN; SPLIT OD=2.8 L=18	0-81123-018-0	02	1	0607-	●	●	●	●
89	NUT; CHAMBER M12	9-99110-512-0	04	1	0005-0512	●	●	●	●
89	NUT; CHAMBER M12	0-91110-512-0	04	1	0601-	●	●	●	●
90	BRACKET; CHAMBER	1-48258-157-0	01	1	0005-	●	●
90	BRACKET; CHAMBER	1-48258-121-4	01	1	0005-	●	●
90	BRACKET; CHAMBER	1-48258-147-0	01	1	0005-			●	●
90	BRACKET; CHAMBER	1-48258-146-0	01	1	0005-			●	●
91	BOLT; CHAMBER (B) M6X8	0-20800-608-0	01	1	0005-	●	●
91	BOLT; CHAMBER (B) M6X8	0-20800-608-0	01	1	0005-	●	●
91	BOLT; CHAMBER (A) M12X30	0-20801-230-0	04	1	0005-	●	●	●	●
92	WASHER; LK,CHAMBER ID=12.2	9-09150-612-0	04	1	0005-0603	●	●	●	●
92	WASHER; LK,CHAMBER ID=12.2	0-91510-612-0	04	1	0604-	●	●	●	●
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-589-1	01	1	0005-	●	●
94	CYLINDER; WHEEL,RR BRK (B) FORWARD	1-47600-651-2	01	1	0005-	●	●
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-587-1	01	1	0005-	●	●
94	CYLINDER; WHEEL,RR BRK (B) FORWARD	1-47600-650-2	01	1	0005-	●	●
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-430-2	01	1	0005-0104			●	●
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47601-129-0	01	1	0105-			●	●
94	CYLINDER; WHEEL,RR BRK (B) FORWARD	1-47600-432-2	01	1	0005-0104			●	●
94	CYLINDER; WHEEL,RR BRK (B) FORWARD	1-47601-131-1	01	1	0105-			●	●
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47600-429-2	01	1	0005-0104			●	●
94	CYLINDER; WHEEL,RR BRK (A) BACKWARD	1-47601-128-0	01	1	0105-			●	●
94	CYLINDER; WHEEL,RR BRK (B) FORWARD	1-47600-431-2	01	1	0005-0104			●	●
94	CYLINDER; WHEEL,RR BRK (B) FORWARD	1-47601-130-1	01	1	0105-			●	●
95	CUP SET; RR WHEEL CYL (A) BACKWARD	1-87830-581-0	02	1	0005-	●	●
95	CUP SET; RR WHEEL CYL (B) FORWARD	1-87830-646-0	02	1	0005-	●	●
95	CUP SET; RR WHEEL CYL (B) FORWARD	1-87830-551-0	02	1	0005-			●	●
95	CUP SET; RR WHEEL CYL (A) BACKWARD	1-87830-552-0	02	1	0005-			●	●
96	SCREW; BLEEDER,RR BRK L=44	1-47615-007-0	02	1	0005-	●	●
96	SCREW; BLEEDER,RR BRK	1-47615-009-0	02	1	0005-			●	●
99	PISTON; RR WHEEL CYL (A) BACKWARD	1-47624-223-0	01	1	0005-	●	●
99	PISTON; RR WHEEL CYL (B) FORWARD	1-47624-238-0	01	1	0005-	●	●
99	PISTON; RR WHEEL CYL (A) BACKWARD	1-47624-222-0	01	1	0005-	●	●
99	PISTON; RR WHEEL CYL (B) FORWARD	1-47624-237-0	01	1	0005-	●	●
99	PISTON; RR WHEEL CYL (A) BACKWARD	1-47624-157-0	01	1	0005-			●	●
99	PISTON; RR WHEEL CYL (B) FORWARD	1-47624-159-0	01	1	0005-			●	●
99	PISTON; RR WHEEL CYL (A) BACKWARD	1-47624-156-0	01	1	0005-			●	●
99	PISTON; RR WHEEL CYL (B) FORWARD	1-47624-160-0	01	1	0005-			●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-029-0	02	1	0005-	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-028-0	02	1	0005-	●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-023-0	02	1	0005-			●	●
101	SCREW; ADJ,RR WHEEL CYL	1-47622-022-0	02	1	0005-			●	●
102	PISTON; REAR WHEEL CYL (A) BACKWARD	1-47624-224-0	02	1	0005-	●	●
102	PISTON; REAR WHEEL CYL (B) FORWARD	1-47624-239-0	02	1	0005-	●	●
102	PISTON; REAR WHEEL CYL (A) BACKWARD	1-47624-158-0	02	1	0005-			●	●
102	PISTON; REAR WHEEL CYL (B) FORWARD	1-47624-161-0	02	1	0005-			●	●
112	BOLT; WHEEL CYL SETTING	9-92361-435-0	12	1	0005-	●	●	●	●
136	GROMMET	1-09333-065-2	04	1	0005-	●	●	●	●
138	SCREW; LOCK PLATE M5X10 W/LK WASHER	9-03910-510-0	04	1	0005-0604	●	●	●	●
138	SCREW; LOCK PLATE M5X10 W/LK WASHER	0-36220-510-0	04	1	0605-	●	●	●	●
142	CLAMP; OIL PIPE	1-09700-454-0	02	1	0005-	●	●	●	●
143	BOLT; CLAMP,OIL PIPE M6X10	9-01900-610-0	02	1	0005-	●	●	●	●
146	NUT; HOLDER	1-09440-009-0	04	1	0005-	●	●	●	●
147	PIN; HOLDER OD=1.8 L=20	9-08112-020-0	04	1	0005-0606	●	●	●	●
147	PIN; HOLDER OD=1.8 L=20	0-81122-020-0	04	1	0607-	●	●	●	●
157	BOLT; RR BRK SET M14X50	9-92061-450-0	04	1	0005-0512	●	●
157	BOLT; RR BRK SET M14X50	0-20951-450-0	04	1	0601-	●	●
157	BOLT; RR BRK SET M14X52	1-09000-310-0	04	1	0005-			●	●
170	PIECE; ANCHOR,RR WHEEL CYL	1-47619-039-0	02	1	0005-	●	●
170	PIECE; ANCHOR,RR WHEEL CYL	1-47619-019-0	02	1	0005-			●	●
171	BOLT; RR WHEEL CYL M6X8	0-20800-608-0	02	1	0005-	●	●
171	BOLT; RR WHEEL CYL M6X10	9-01900-610-0	18	1	0005-	●	●
171	BOLT; RR WHEEL CYL M8X18 W/LK WASHER	0-50040-818-0	04	1	0005-0906	●	●	●	●
171	BOLT; RR WHEEL CYL M8X18 W/LK WASHER	0-50540-818-0	04	1	0907-	●	●	●	●
171	BOLT; RR WHEEL CYL M6X10	9-01900-610-0	20	1	0005-			●	●
174	COVER; CYL,RR WHEEL CYL	1-47619-016-0	04	1	0005-	●	●	●	●
175	HANGER; RR WHEEL BRK (A)	1-47118-084-0	04	1	0005-	●	●	●	●
175	HANGER; RR WHEEL BRK (B)	1-47619-022-0	02	1	0005-	●	●	●	●
176	STOPPER; RR WHEEL CYL (A) BACKWARD	1-47169-008-0	02	1	0005-	●	●
176	STOPPER; RR WHEEL CYL (B) FORWARD	1-47629-057-0	02	1	0005-	●	●
178	WEDGE; RR WHEEL CYL	1-47640-005-0	02	1	0005-	●	●
178	WEDGE; RR WHEEL CYL	1-47640-002-0	02	1	0005-			●	●
179	COVER; WEDGE,RR WHEEL CYL	1-47649-011-0	02	1	0005-	●	●
179	COVER; WEDGE,RR WHEEL CYL	1-47649-009-0	02	1	0005-			●	●
180	GASKET; COVER,RR WHEEL CYL	1-47619-016-0	01	1	0005-	●	●
180	GASKET; COVER,RR WHEEL CYL	1-47619-017-0	01	1	0005-	●	●
180	GASKET; COVER,RR WHEEL CYL	1-47619-017-0	02	1	0005-			●	●
182	TAPPET; RR WHEEL CYL (A)	1-47620-094-0	04	1	0005-	●	●
182	TAPPET; RR WHEEL CYL (B)	1-47629-080-0	04	1	0005-	●	●
182	TAPPET; RR WHEEL CYL (C)	1-47620-042-0	02	1	0005-			●	●
184	CONNECTOR; RR WHEEL CYL	1-09660-112-1	04	1	0005-	●	●	●	●
185	PLATE; LK,RR WHEEL CYL	1-47169-009-0	02	1	0005-	●	●
187	SCREW; HANGER	9-03065-616-0	03	1	0005-	●	●
187	SCREW; HANGER	9-03065-616-0	04	1	0005-			●	●
190	PLATE; LK,CONNECTOR	1-47169-009-0	01	1	0005-	●	●
190	PLATE; LK,CONNECTOR	1-47169-009-0	01	1	0005-	●	●
208	WASHER; BRKT L=106	1-42129-028-3	04	1	0005-	●	●
208	WASHER; BRKT LOWER L=106	1-42129-028-3	02	1	0005-			●	●
208	WASHER; BRKT UPPER L=113	1-42129-163-2	02	1	0005-			●	●
209	SHIM; BRKT L=106	1-42129-027-4	12	1	0005-	●	●
209	SHIM; BRKT UPPER L=106	1-42129-027-4	06	1	0005-			●	●
209	SHIM; BRKT LOWER L=113	1-42129-162-1	06	1	0005-			●	●
210	BOLT; BRKT FIX M12X25	0-20801-225-0	08	1	0005-	●	●	●	●
210	BOLT; BRKT FIX M12X38	0-20801-238-0	08	1	0005-	●	●	●	●
211	WASHER; LK,BRKT FIX ID=12.2	9-09150-612-0	16	1	0005-0603	●	●	●	●
211	WASHER; LK,BRKT FIX ID=12.2	0-91510-612-0	16	1	0604-	●	●	●	●
212	STAY	1-48258-156-0	01	1	0005-	●	●
212	STAY	1-48258-078-0	01	1	0005-			●	●
213	BOLT; STAY FIX M12X25	0-20801-225-0	02	1	0005-	●	●	●	●
214	NUT; STAY FIX M12	9-99111-512-0	02	1	0005-0512	●	●	●	●
214	NUT; STAY FIX M12	0-91111-512-0	02	1	0601-	●	●	●	●
215	WASHER; LK,STAY FIX ID=12.2	9-09150-612-0	02	1	0005-0603	●	●	●	●
215	WASHER; LK,STAY FIX ID=12.2	0-91510-612-0	02	1	0604-	●	●	●	●
216	PIN; STAY FIX	9-08234-038-0	02	1	0005-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
