Sayfa 3-58 - Isuzu EPC

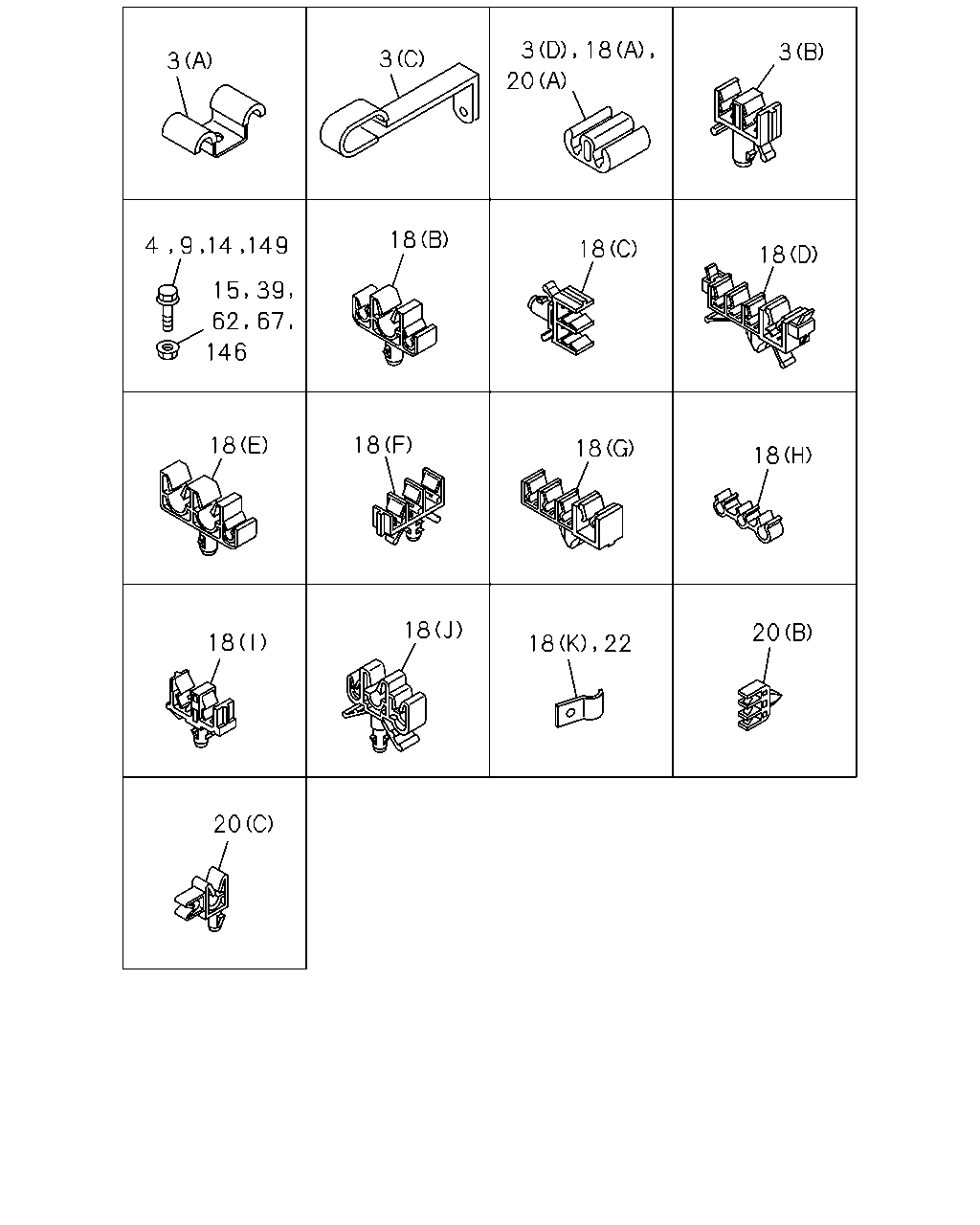

3-58 — FIXING PARTS; OIL PIPING (#81413) — 152 parça

3 18 3 3 3 20 18 18 18 146 18 18 18 18 18 20 18 20 4 9 14 149 18 22 15 39 62 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0803-0910	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0911-	●	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 04.047 (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0803-0910	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 04.047 (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0911-	●	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=10X2 H=22	8-94252-455-2	03	1	0803-0910	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=10X2 H=22	8-94252-455-2	03	1	0911-	●	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0803-0910	●
3	04.685 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0911-	●	●
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-0803	●	●
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0804-	●	●	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0803-0910	●
4	04.686 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0911-	●	●
9	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●	●
9	04.686 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
9	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●	●	●
9	04.686 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
14	04.686 BOLT; CLIP,OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
14	04.686 BOLT; CLIP,OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
14	04.686 BOLT; CLIP,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-			●
14	04.686 BOLT; CLIP,OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-	●
14	04.686 BOLT; CLIP,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0803-		●
15	04.686 NUT; CLIP,OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
15	04.686 NUT; CLIP,OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
15	04.686 NUT; CLIP,OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-			●
15	04.686 NUT; CLIP,OIL PIPE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●
15	04.686 NUT; CLIP,OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.8X2	8-94316-410-0	01	1	0803-	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 2700MM(27W) (D) ID=10 & 4.76X3	8-97326-158-1	02	1	0803-	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3	8-97326-158-1	04	1	0803-0803	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3	8-97326-158-1	04	1	0804-0906	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	04	1	0804-0906			●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3	8-97326-158-1	04	1	0907-	●
18	04.686 CLIP; BRK PIPE 4JJ1-TCC ENG(RDU) (D) ID=10 & 4.76X3	8-97326-158-1	04	1	0907-			●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3	8-97168-819-0	01	1	0803-0803	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=10 & 4.76X3	8-97168-819-0	01	1	0803-0803	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	01	1	0803-0803		●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3	8-97168-819-0	01	1	0804-	●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=10 & 4.76X3	8-97168-819-0	01	1	0804-	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	01	1	0804-		●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	02	1	0803-0803	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	02	1	0804-	●	●	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	07	1	0803-0803	●	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	07	1	0804-	●	●	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	02	1	0803-0803	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94316-410-0	02	1	0804-	●
18	04.686 CLIP; BRK PIPE (C) ID=4.8X2	8-94316-410-0	02	1	0804-			●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	06	1	0803-0803	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	06	1	0804-	●
18	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	06	1	0804-			●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12 & 6.35 & 4.76	8-97305-169-1	02	1	0803-0803	●
18	04.686 CLIP; BRK PIPE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12 & 6.35 & 4.76	8-97305-169-1	02	1	0804-0906	●
18	04.686 CLIP; BRK PIPE (B) ID=12 & 6.35 & 4.76	8-97305-169-1	02	1	0804-0906			●
18	04.686 CLIP; BRK PIPE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12 & 6.35 & 4.76	8-97305-169-1	02	1	0907-	●
18	04.686 CLIP; BRK PIPE 4JJ1-TCC ENG(RDU) (B) ID=12 & 6.35 & 4.76	8-97305-169-1	02	1	0907-			●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X2	8-94389-060-0	01	1	0803-	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (I) ID=4.8X2	8-94455-816-0	01	1	0803-0906	●
18	04.686 CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (I) ID=4.8X2	8-94455-816-0	01	1	0907-	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0803-0906	●
18	04.686 CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0907-	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3	8-97326-158-1	05	1	0803-0906	●	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3	8-97326-158-1	05	1	0907-	●
18	04.686 CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3	8-97326-158-1	05	1	0907-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (K) B=18 L=20	1-09700-372-0	02	1	0803-	●
18	04.686 CLIP; BRK PIPE (K) B=18 L=20	1-09700-372-0	02	1	0803-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (H) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0803-	●
18	04.686 CLIP; BRK PIPE (H) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0803-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0803-	●
18	04.686 CLIP; BRK PIPE 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0803-		●
18	04.686 CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (J) ID=12 & 6.35 & 4.76	8-97202-954-1	03	1	0803-	●
18	04.686 CLIP; BRK PIPE (J) ID=12 & 6.35 & 4.76	8-97202-954-1	03	1	0803-		●
18	04.686 CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.128 (E) ID=10 OR 12X2 & 4.76	8-98058-323-0	02	1	0803-0906	●
18	04.686 CLIP; BRK PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 04.128 (E) ID=10 OR 12X2 & 4.76	8-98058-323-0	02	1	0907-	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 4100MM(41W) (D) ID=10 & 4.76X3	8-97326-158-1	06	1	0803-0906		●
18	04.686 CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (D) ID=10 & 4.76X3	8-97326-158-1	06	1	0907-		●
20	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	0803-0803	●
20	04.686 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	0803-0803	●
20	04.686 CLIP; BRK PIPE 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	0803-0803		●
20	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	0804-0910	●
20	04.686 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	0804-0910	●
20	04.686 CLIP; BRK PIPE 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	0804-0910		●	●
20	04.686 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	0911-	●	●
20	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	0911-	●
20	04.686 CLIP; BRK PIPE 03.162 (C) ID=12 & 6.35	8-97215-437-0	01	1	0911-		●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0803-0803	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0804-	●	●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35	8-94474-113-0	01	1	0803-0803	●
20	04.686 CLIP; BRK PIPE 03.162 (A) ID=6.35 & 6.35	8-94474-113-0	01	1	0803-0803		●
20	04.686 CLIP; BRK PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35	8-94474-113-0	01	1	0804-0910	●
20	04.686 CLIP; BRK PIPE 03.162 (A) ID=6.35 & 6.35	8-94474-113-0	01	1	0804-0910		●	●
20	04.686 CLIP; BRK PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35	8-94474-113-0	01	1	0911-	●	●
20	04.686 CLIP; BRK PIPE 03.162 (A) ID=6.35 & 6.35	8-94474-113-0	01	1	0911-			●
20	04.686 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35	8-94474-113-0	03	1	0803-0910	●
20	04.686 CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35	8-94474-113-0	03	1	0911-	●	●
22	04.686 CLIP; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> B=18 L=20	1-09700-372-0	01	1	0803-0803	●
22	04.686 CLIP; PIPE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> B=18 L=20	1-09700-372-0	01	1	0804-	●
22	04.686 CLIP; PIPE TO FRAME B=18 L=20	1-09700-372-0	01	1	0804-			●
39	04.686 NUT; BRKT FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●	●
39	04.686 NUT; BRKT FIX 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
39	04.686 NUT; BRKT FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●
39	04.686 NUT; BRKT FIX 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
62	04.686 NUT HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-0910	●
62	04.686 NUT HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-	●	●
67	04.686 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0803	●
67	04.686 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-0906	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-0906			●
67	04.686 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●
67	04.686 NUT; BRKT 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-			●
67	04.686 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
67	04.686 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-			●
67	04.686 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10	8-98034-487-0	01	1	0803-0803	●
67	04.686 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10	8-98034-487-1	01	1	0804-	●
67	04.686 NUT; BRKT 00.837 M10	8-98034-487-1	01	1	0804-			●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 06.515 M14	0-91111-514-0	01	1	0803-0910	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 06.515 M14	0-91111-514-0	01	1	0911-	●	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0910	●
67	04.686 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-	●	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0906	●
146	04.686 NUT; PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0906	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-0910	●
146	04.686 NUT; PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-0910	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-	●	●
146	04.686 NUT; PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0803-0910	●
146	04.686 NUT; PIPE HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-	●	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0803-0910	●
149	04.686 BOLT; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0911-	●	●

19 49 49 49 68 68 68 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	04.686 BRACKET; OIL PIPE	8-97389-845-2	01	1	0803-0803	●	●
19	04.686 BRACKET; OIL PIPE	8-97389-845-2	01	1	0804-	●	●	●
49	04.686 BRACKET; BRK PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 06.672 (B)	8-97387-196-0	01	1	0803-0906	●
49	04.686 BRACKET; BRK PIPE 4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER(7QQ) 06.672 (B)	8-97387-196-0	01	1	0907-	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (C)	8-98033-802-1	01	1	0803-0910	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (C)	8-98033-802-1	01	1	0911-	●	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98036-116-2	01	1	0803-0910	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98036-116-2	01	1	0911-1103	●	●
49	04.686 BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98187-801-0	01	1	1104-	●	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (A)	8-98049-137-0	01	1	0803-0803	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (A)	8-98049-137-0	01	1	0804-0906	●
68	04.686 BRACKET; CLIP (A)	8-98049-137-0	01	1	0804-0906			●
68	04.686 BRACKET; CLIP 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (A)	8-98049-137-1	01	1	0907-	●
68	04.686 BRACKET; CLIP 4JJ1-TCC ENG(RDU) (A)	8-98049-137-1	01	1	0907-			●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (D)	8-98060-016-2	01	1	0803-0803	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (D)	8-98060-016-2	01	1	0804-0906	●
68	04.686 BRACKET; CLIP (D)	8-98060-016-2	01	1	0804-0906			●
68	04.686 BRACKET; CLIP 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (D)	8-98060-016-3	01	1	0907-	●
68	04.686 BRACKET; CLIP 4JJ1-TCC ENG(RDU) (D)	8-98060-016-3	01	1	0907-			●
68	04.686 BRACKET; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98017-159-0	01	1	0803-0803	●
68	04.686 BRACKET; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98017-159-0	01	1	0804-	●
68	04.686 BRACKET; CLIP (B)	8-98017-159-0	01	1	0804-			●
68	04.686 BRACKET; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-786-0	01	1	0803-0803	●
68	04.686 BRACKET; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-786-0	01	1	0804-	●
68	04.686 BRACKET; CLIP (C)	8-98034-786-0	01	1	0804-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
