3-52 — BRAKE PIPING; OIL,FRONT (#81411) — 216 parça

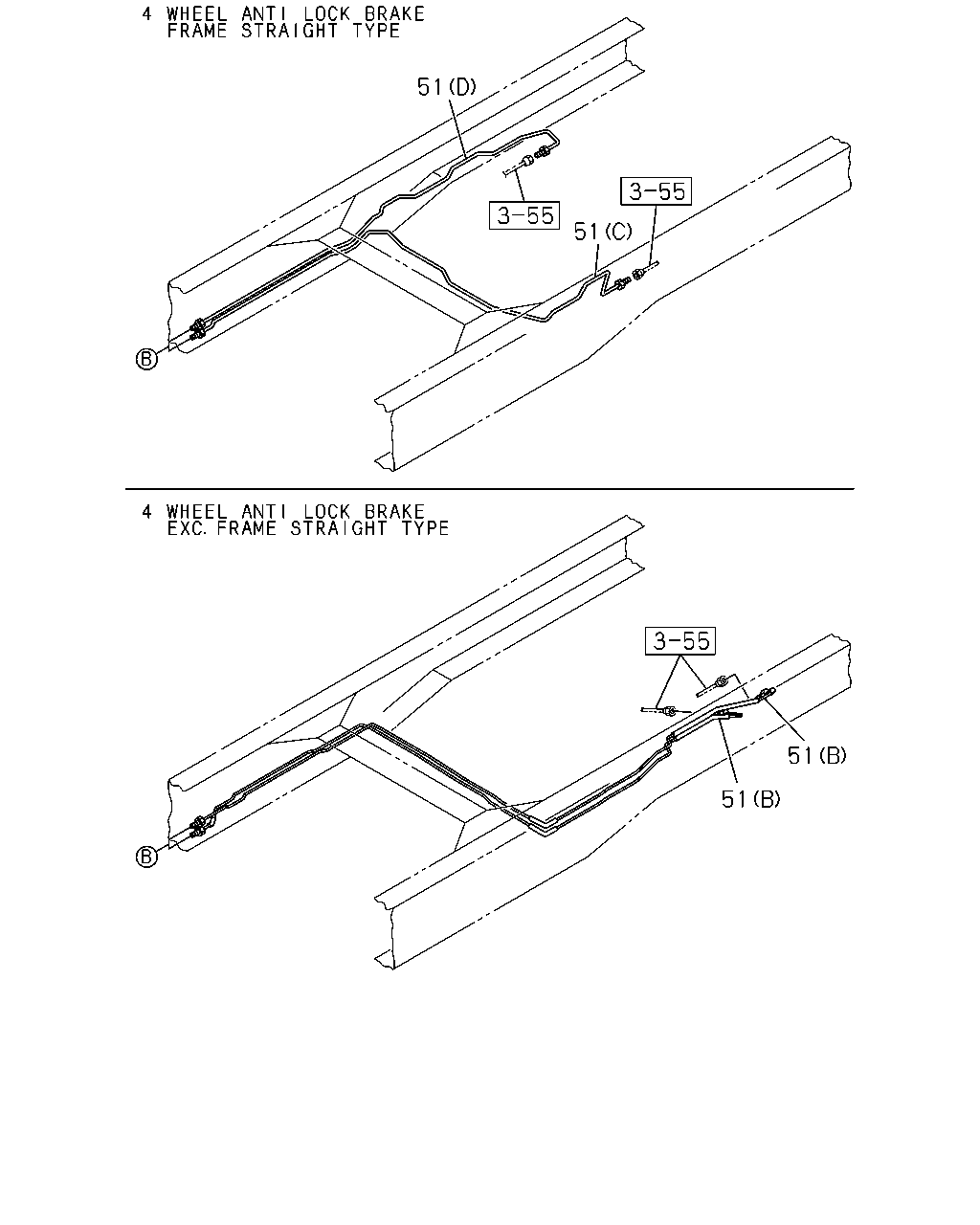

çizim 119718
51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0803-0803 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0907- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0907- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0907- ●
çizim 119722
1 9 9 71
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0803-0803 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0804- ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0803-0803 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0803-0803 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0804- ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0804- ● ● ●
71 04.686 GROMMET; OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 		8-97044-742-1 02 1 0803-0803 ●
71 04.686 GROMMET; OIL PIPE
05.002 		8-97044-742-1 02 1 0803-0803 ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 		8-97044-742-1 02 1 0803-0803 ●
71 04.686 GROMMET; OIL PIPE
05.002 		8-97044-742-1 02 1 0803-0803 ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.002 		8-97044-742-1 02 1 0804- ●
71 04.686 GROMMET; OIL PIPE
05.002 		8-97044-742-1 02 1 0804- ● ●
71 04.686 GROMMET; OIL PIPE
G.V.W. 6.0-6.5TON(RPV) 05.002 		9-09756-034-0 02 1 0803- ●

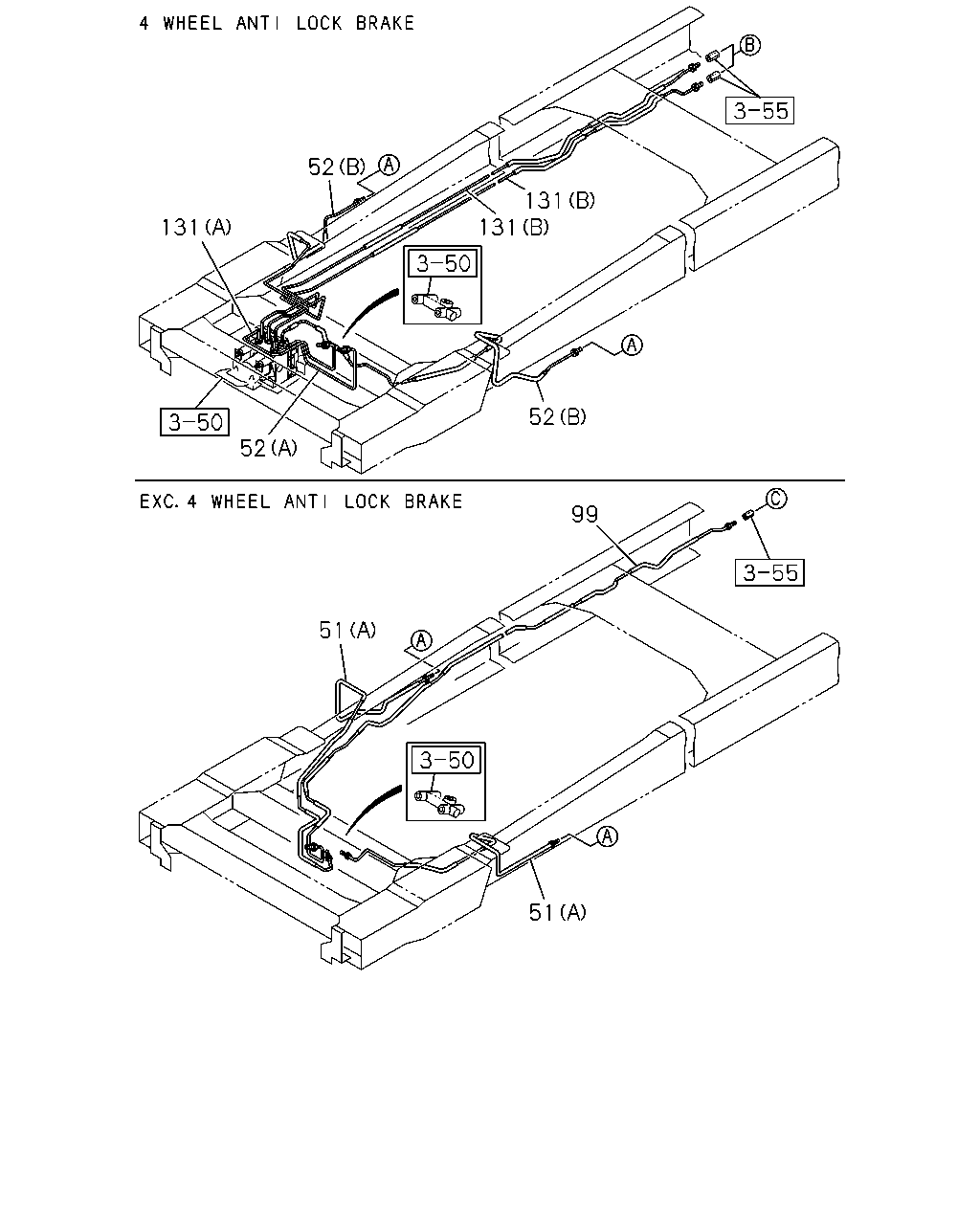

çizim 119811
52 131 131 131 52 52 99 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0803-0803 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0804-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 0907- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0803-0803 ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0804-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (D) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-521-1 01 1 0907- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-534-1 01 1 0907- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) (A) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 0907- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0803-0906 ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0907- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) (A) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0803- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR 		8-98057-263-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR 		8-98057-264-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR 		8-98057-264-0 01 1 0907- ●
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98036-162-0 01 1 0803-0910 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98036-162-0 01 1 0911- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0803-0803 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0804-0906 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0804-0906 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JJ1-TCC ENG(RDU) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0907- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JJ1-TCC ENG(RDU) 4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 0907- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0803-0906 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0803-0906 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0907- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HK1-TCN ENG(RDQ) 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 0907- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 0803- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0803-0906 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0907- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0803-0906 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0907- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0803-0906 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-420-1 01 1 0907-1106 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98192-805-0 01 1 1107- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0803-0906 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-425-1 01 1 0907-1106 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98192-818-0 01 1 1107- ●

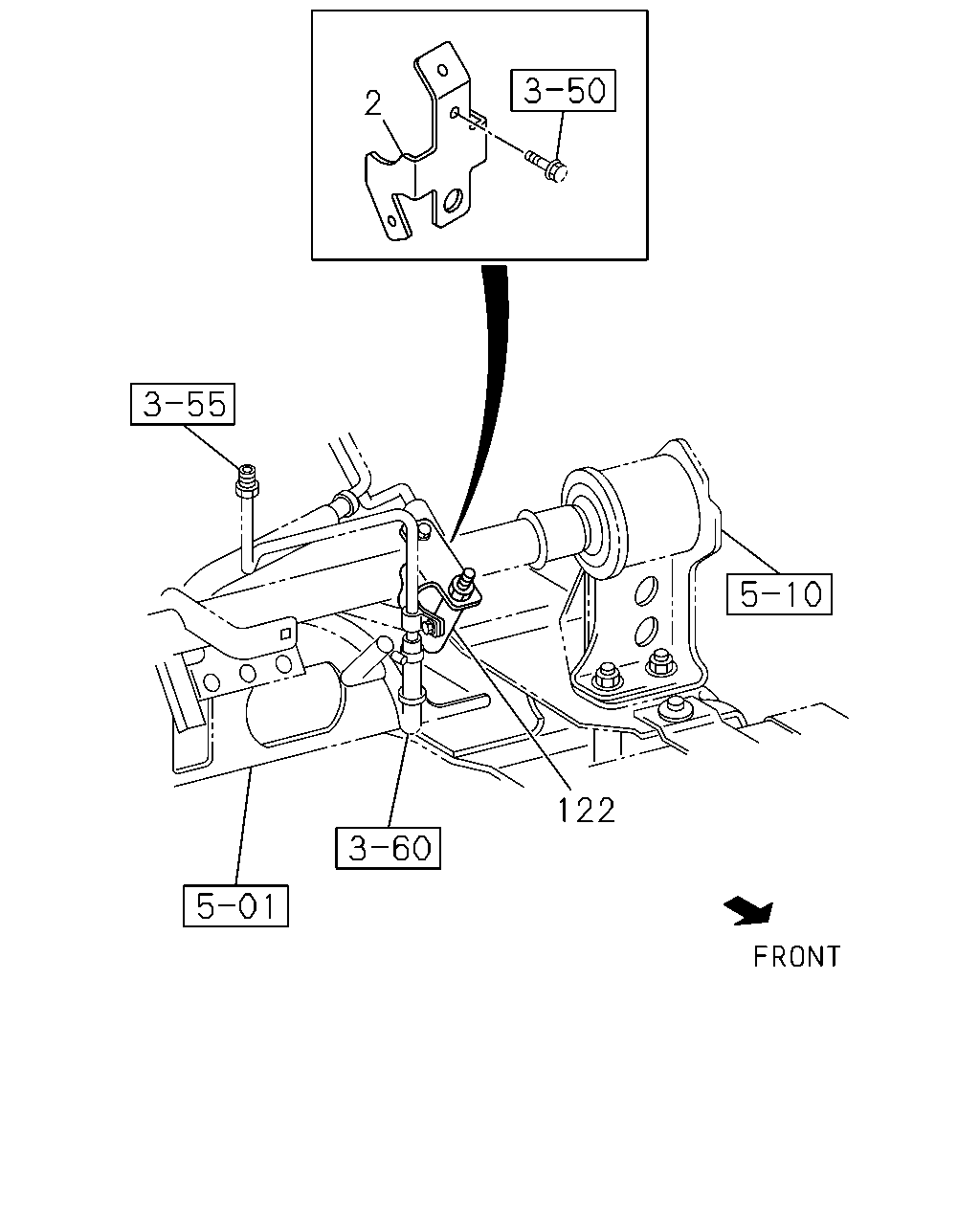

çizim 119822
2 122
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98082-323-0 01 1 0803-0909 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98136-578-0 01 1 0910-0910 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98136-578-0 01 1 0911- ● ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98097-790-0 01 1 0803-0909 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1284 		8-98136-575-0 01 1 0910-0910 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1284 		8-98136-575-0 01 1 0911- ● ●
çizim 191658
52
BalonParca AdiParca NoAdetTipApplied Date A B C
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0803- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR 		8-98057-263-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR 		8-98057-264-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR 		8-98057-264-0 01 1 0907- ●
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98036-162-0 01 1 0803-0910 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98036-162-0 01 1 0911- ● ●

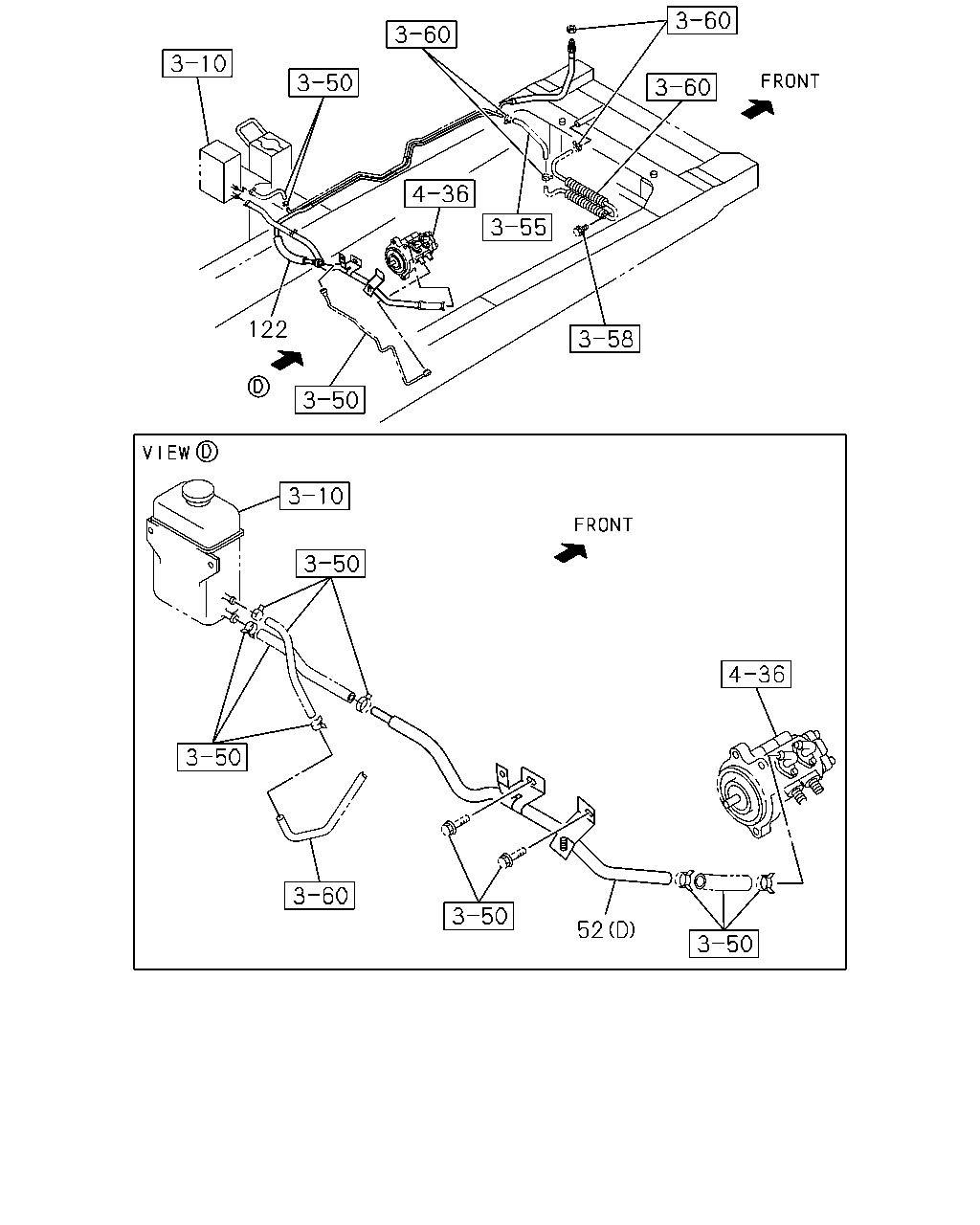

çizim 191661
122 52
BalonParca AdiParca NoAdetTipApplied Date A B C
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0803- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0803-0803 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98056-319-0 01 1 0804-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907- ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) (C) 2WAY TO REAR 		8-98056-319-0 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98056-320-2 01 1 0907- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98056-321-1 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-261-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-318-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-262-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR 		8-98057-263-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) (C) 2WAY TO REAR 		8-98057-263-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT TYPE<7KJ> (C) 2WAY TO REAR 		8-98056-415-0 01 1 0907- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR 		8-98057-264-0 01 1 0803-0906 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (C) 2WAY TO REAR 		8-98057-264-0 01 1 0907- ●
52 04.685 PIPE; BRK
HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98036-162-0 01 1 0803-0910 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (D) 		8-98036-162-0 01 1 0911- ● ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) 		8-98097-790-0 01 1 0803-0909 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1284 		8-98136-575-0 01 1 0910-0910 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1284 		8-98136-575-0 01 1 0911- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
