Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#81410) — 292 parça

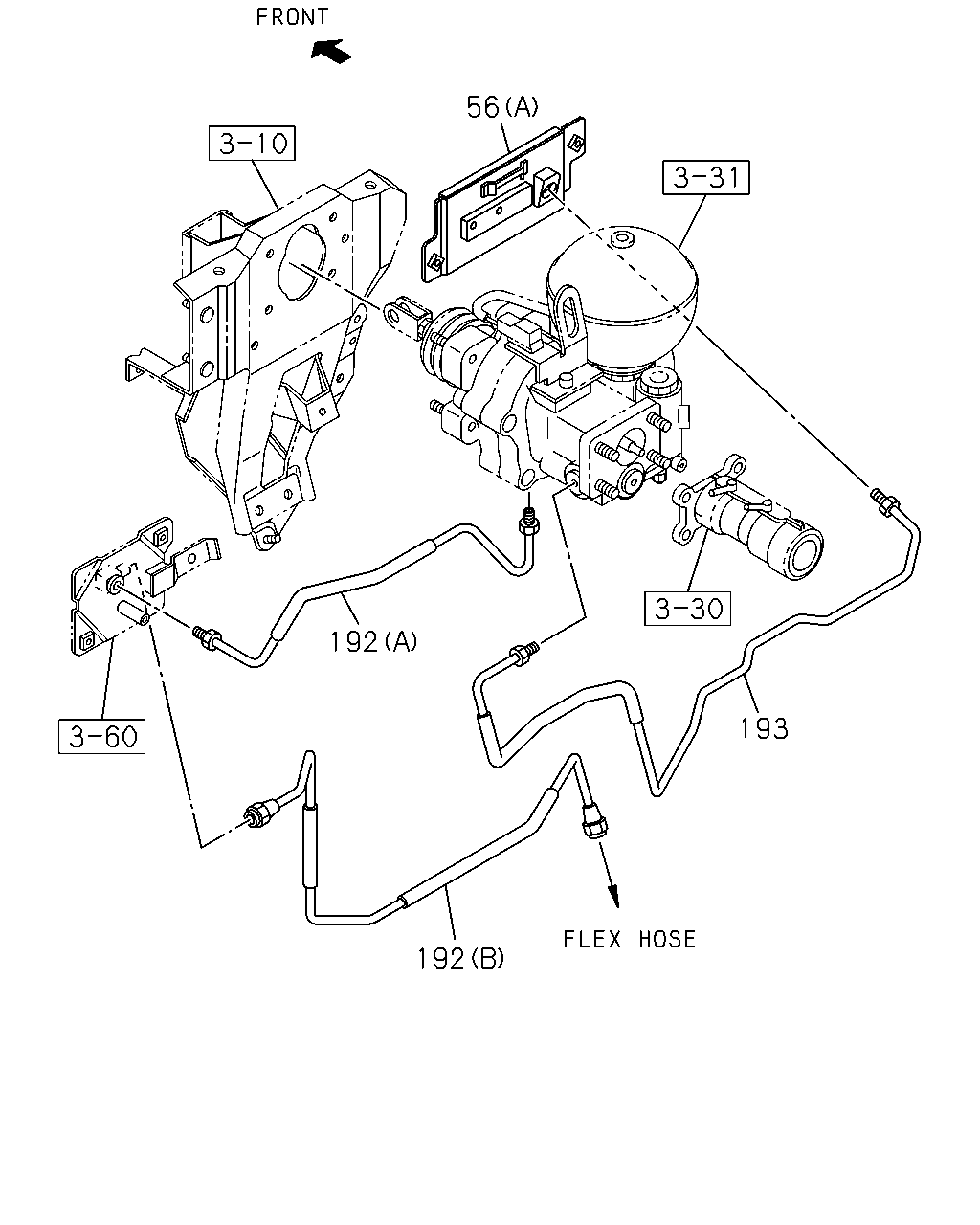

56 192 193 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	0803-0803	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	0804-	●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98056-774-1	01	1	0803-0803	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0803-0803		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98056-774-1	01	1	0804-0910	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0804-0910		●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98056-774-1	01	1	0911-1005	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-774-1	01	1	0911-1005		●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0911-1005			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1006-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1006-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98034-288-4	01	1	0803-0910	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98034-288-4	01	1	0911-1005	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-288-4	01	1	0911-1005		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1006-		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-181-3	01	1	0803-1005	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-309-2	01	1	0803-1005	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1006-	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98033-960-0	01	1	0803-0910	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98033-960-0	01	1	0911-	●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98033-961-3	01	1	0803-0910	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98033-961-3	01	1	0911-	●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98090-257-0	01	1	0803-0910	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98090-257-0	01	1	0911-	●	●

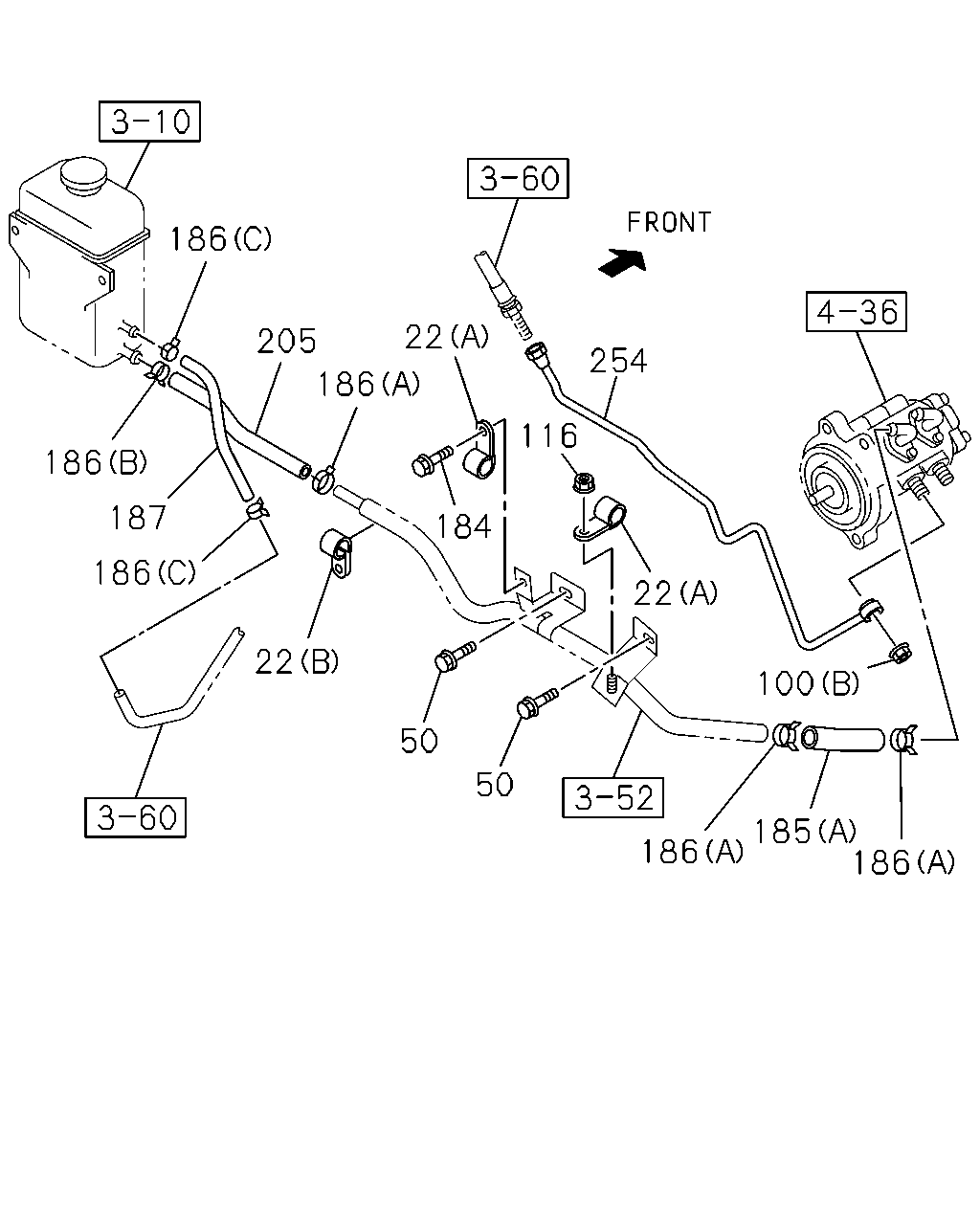

186 22 205 254 186 116 186 187 184 186 22 22 100 50 50 185 186 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	04.685 CLIP HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	0803-0910	●
22	04.685 CLIP 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	0911-	●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	0803-0910	●
22	04.685 CLIP 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	0911-	●	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0803-0910	●
50	04.710 BOLT; PIPE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0911-	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0803-	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	0803-0910	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	0911-	●	●
116	04.686 NUT HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0808	●
116	04.686 NUT 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0809-0910	●
116	04.686 NUT 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-	●	●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0809-0910	●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0911-	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	0803-0910	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	0911-	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0803-0910	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0911-	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 04.930 (C) ID=16	8-94238-568-0	02	1	0803-0910	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 04.930 (C) ID=16	8-94238-568-0	02	1	0911-0911	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21	8-94242-034-0	01	1	0803-0910	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21	8-94242-034-0	01	1	0911-0911	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (A) ID=21	8-98150-355-0	01	1	0912-	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 08.846 (B) ID=22	8-94382-401-0	01	1	0803-0910	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 08.846 (B) ID=22	8-94382-401-0	01	1	0911-1003	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21	8-94242-034-0	02	1	0803-0910	●
186	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21	8-94242-034-0	02	1	0911-	●	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	0803-0910	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	0911-	●	●
205	04.681 HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	0803-0910	●
205	04.681 HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	0911-	●	●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	0803-0910	●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	0911-	●	●

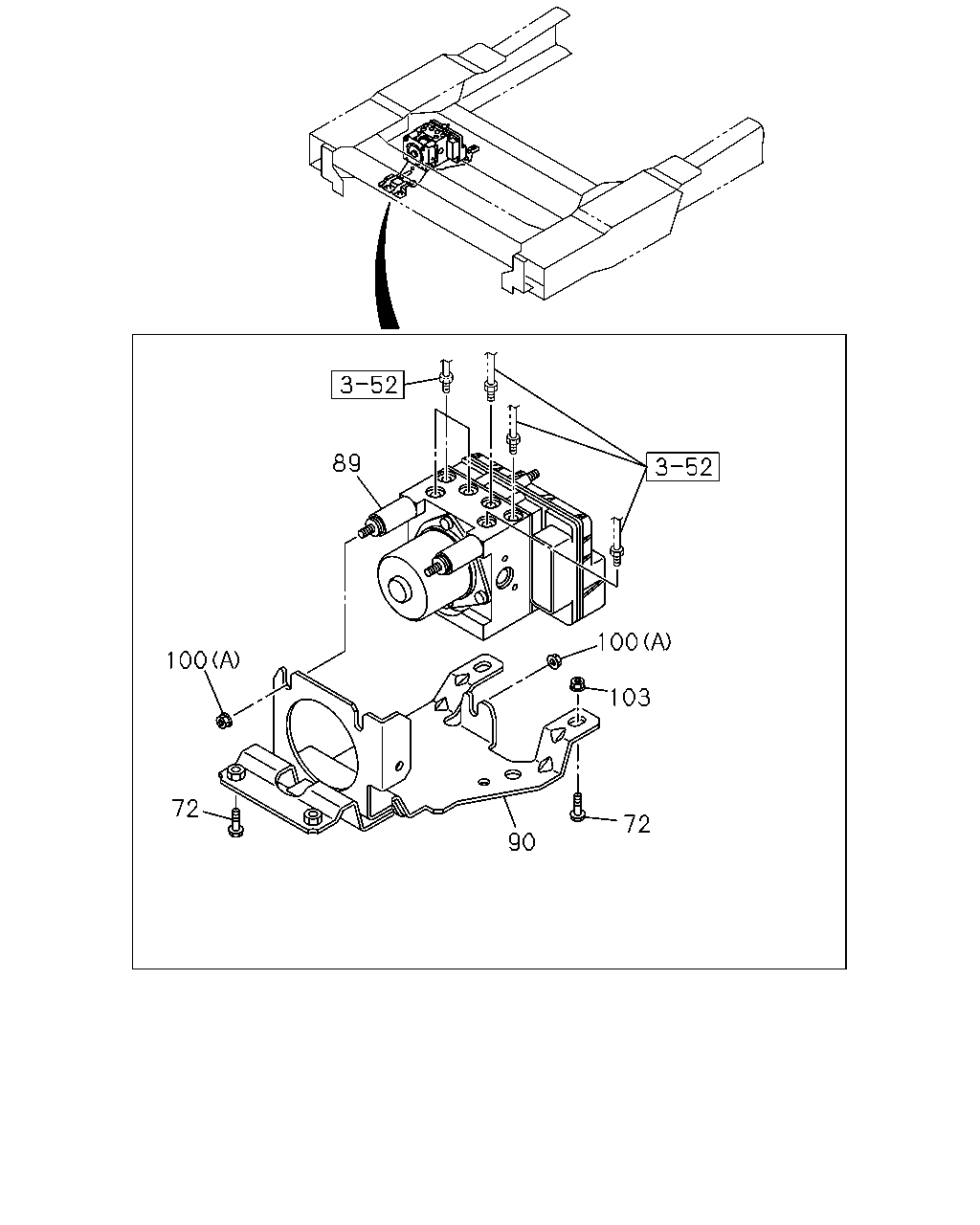

89 100 100 103 72 72 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0803-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98081-561-1	01	1	0803-1006	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1007-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97385-320-0	01	1	0803-	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0803-	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	0803-0910	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	0911-	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●

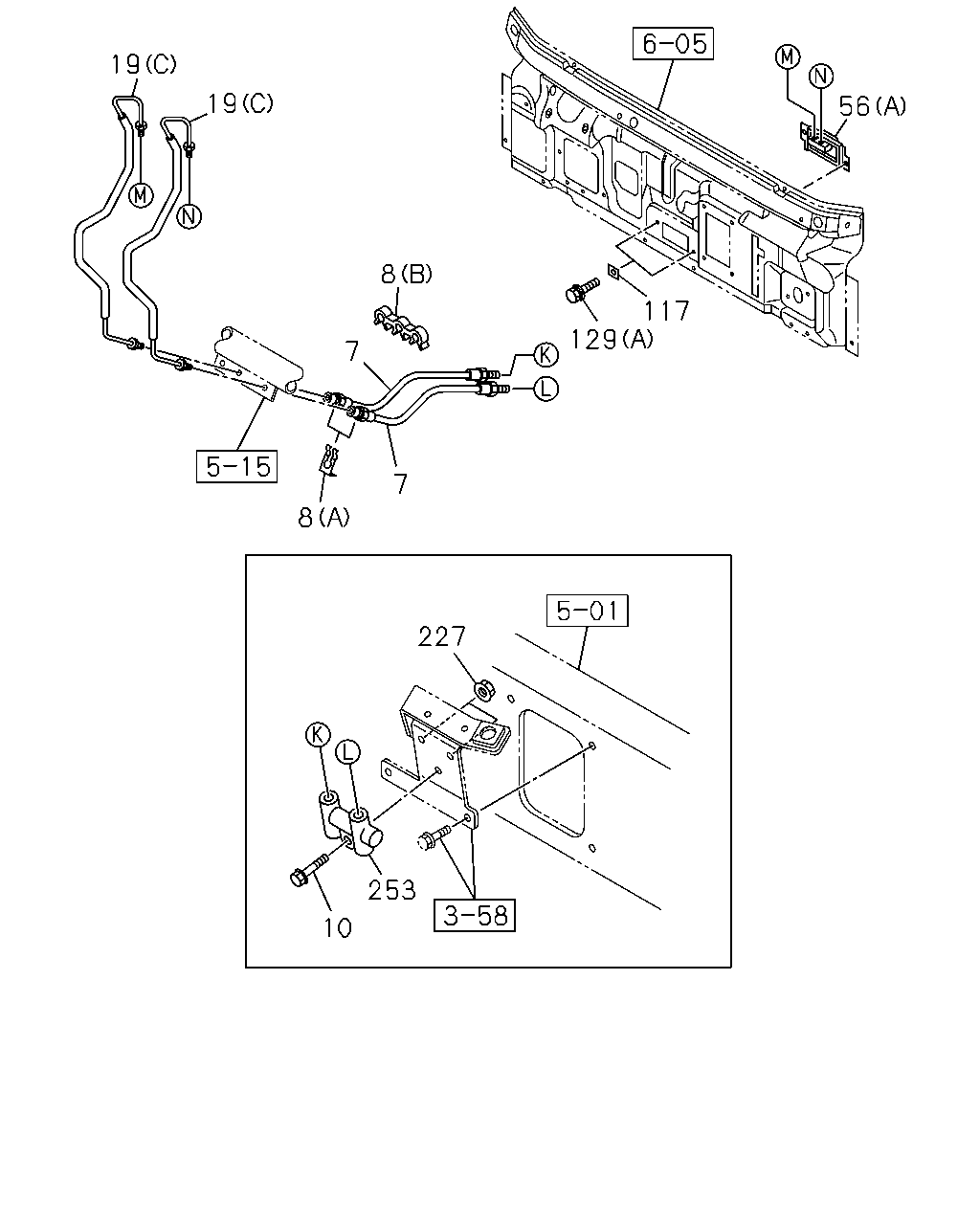

19 19 8 117 129 7 7 8 227 253 10 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	0803-0803	●	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	0804-	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0803-0803	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0804-	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0803-0803	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0804-	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0803-0803	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0804-	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	0803-0803	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98056-155-1	02	1	0803-0803		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	0804-0910	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98056-155-1	02	1	0804-0910		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	0911-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98056-155-1	02	1	0911-			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	0803-0803	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	0803-0803		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	0804-0910	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	0804-0910		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	0911-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	0911-			●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-0	02	1	0803-0906	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-1	02	1	0907-0910	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-1	02	1	0911-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	0803-0910	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	0911-	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	0803-0803	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	0804-	●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98056-774-1	01	1	0803-0803	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0803-0803		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98056-774-1	01	1	0804-0910	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0804-0910		●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98056-774-1	01	1	0911-1005	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-774-1	01	1	0911-1005		●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0911-1005			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1006-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1006-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98034-288-4	01	1	0803-0910	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98034-288-4	01	1	0911-1005	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-288-4	01	1	0911-1005		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1006-		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-181-3	01	1	0803-1005	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-309-2	01	1	0803-1005	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1006-	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	0803-0803	●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	0804-	●	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0803-0803	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0804-	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0803-0803	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-	●	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0803-0910	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0911-	●	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0803	●
227	04.685 NUT; JOINT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0803	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0803		●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-0906	●
227	04.685 NUT; JOINT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-0906	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-0906		●	●
227	04.685 NUT; JOINT 4JJ1-TCC ENG(RDU) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●
227	04.685 NUT; JOINT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●
227	04.685 NUT; JOINT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-		●
227	04.685 NUT; JOINT 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-			●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	0803-	●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	5-47456-009-1	01	1	0803-0803	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	0803-0803		●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	5-47456-009-1	01	1	0804-0906	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	0804-0906		●	●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	5-47456-009-1	01	1	0907-	●
253	04.840 JOINT 4HK1-TCN ENG(RDQ) 04.686	5-47456-009-1	01	1	0907-		●
253	04.840 JOINT 4JJ1-TCC ENG(RDU) 04.686	5-47456-009-1	01	1	0907-			●

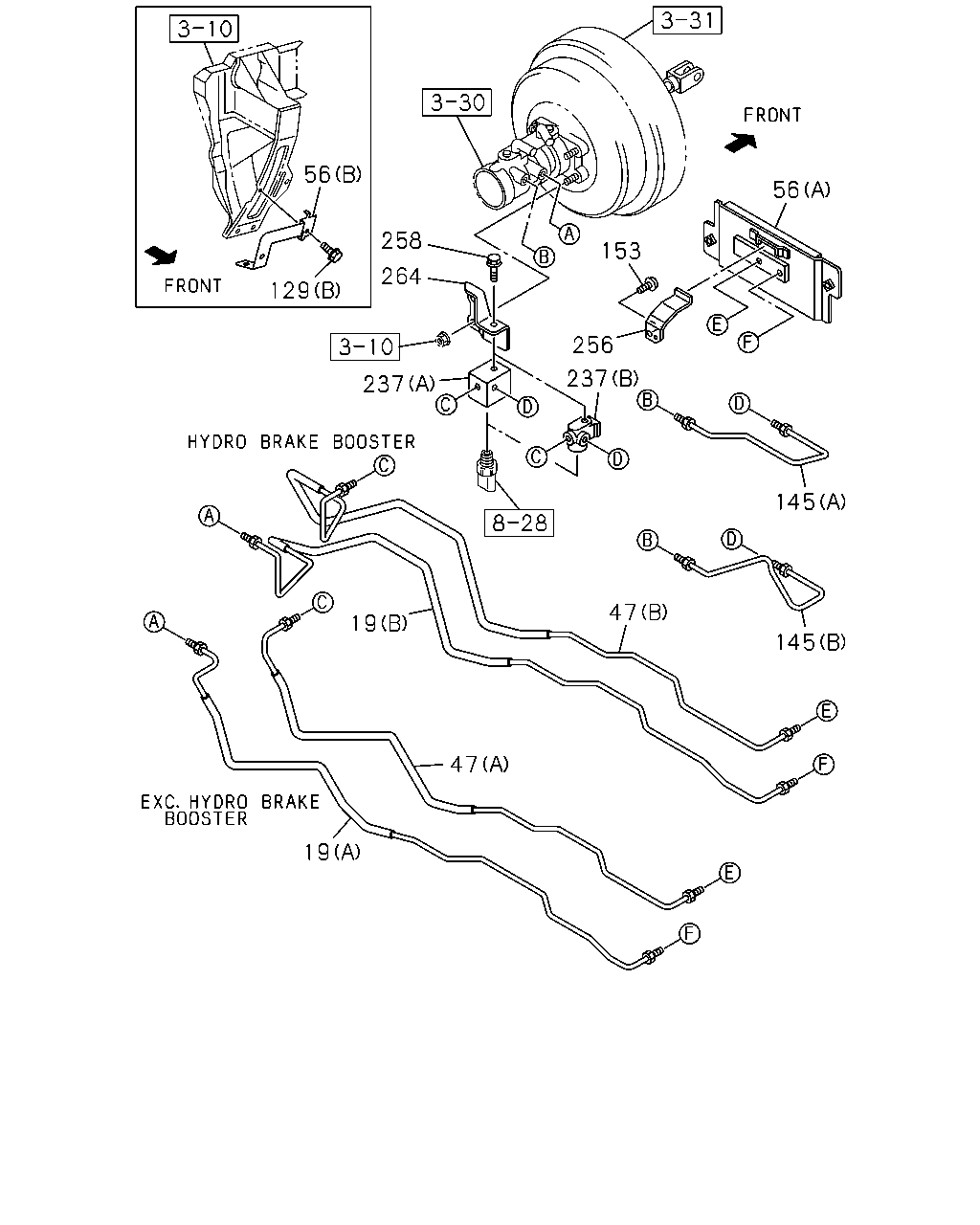

56 56 258 153 264 129 256 237 237 145 47 19 145 47 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	0803-0803	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98056-155-1	02	1	0803-0803		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	0804-0910	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98056-155-1	02	1	0804-0910		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	0911-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98056-155-1	02	1	0911-			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	0803-0803	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	0803-0803		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	0804-0910	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	0804-0910		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	0911-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	0911-			●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-0	02	1	0803-0906	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-1	02	1	0907-0910	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-1	02	1	0911-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	0803-0910	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	0911-	●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-944-2	01	1	0803-0906	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=1054	8-98133-416-0	01	1	0907-	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-014-0	01	1	0803-0906	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=876	8-98133-415-0	01	1	0907-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	0803-0803	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	0804-	●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98056-774-1	01	1	0803-0803	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0803-0803		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98056-774-1	01	1	0804-0910	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0804-0910		●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98056-774-1	01	1	0911-1005	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-774-1	01	1	0911-1005		●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0911-1005			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1006-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1006-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98034-288-4	01	1	0803-0910	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98034-288-4	01	1	0911-1005	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-288-4	01	1	0911-1005		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1006-		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-181-3	01	1	0803-1005	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-309-2	01	1	0803-1005	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1006-	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0803-0803	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0804-	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0803-0803	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-	●	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0803-0910	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0911-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	0803-0803	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98070-477-1	01	1	0803-0803		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	0804-0910	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98070-477-1	01	1	0804-0910		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	0911-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	0911-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98070-477-1	01	1	0911-			●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98033-954-2	01	1	0803-0906	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=228	8-98133-411-0	01	1	0907-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98033-956-1	01	1	0803-0906	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=247	8-98133-410-0	01	1	0907-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98070-483-0	01	1	0803-0910	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98070-483-0	01	1	0911-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-483-0	01	1	0911-		●
153	04.730 SCREW; BRKT FIX 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0803-0803	●	●
153	04.730 SCREW; BRKT FIX 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0804-0808	●	●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0809-	●	●	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98007-865-3	01	1	0803-0906	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98111-748-1	01	1	0907-	●
256	04.840 BRACKET; BRK PIPE	8-98039-683-1	01	1	0803-0803	●	●
256	04.840 BRACKET; BRK PIPE	8-98039-683-1	01	1	0804-0808	●	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98039-683-4	01	1	0809-1005	●	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-521-0	01	1	1006-	●	●	●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-	●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	0803-	●

130 131

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	0803-	●
	131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0803-	●

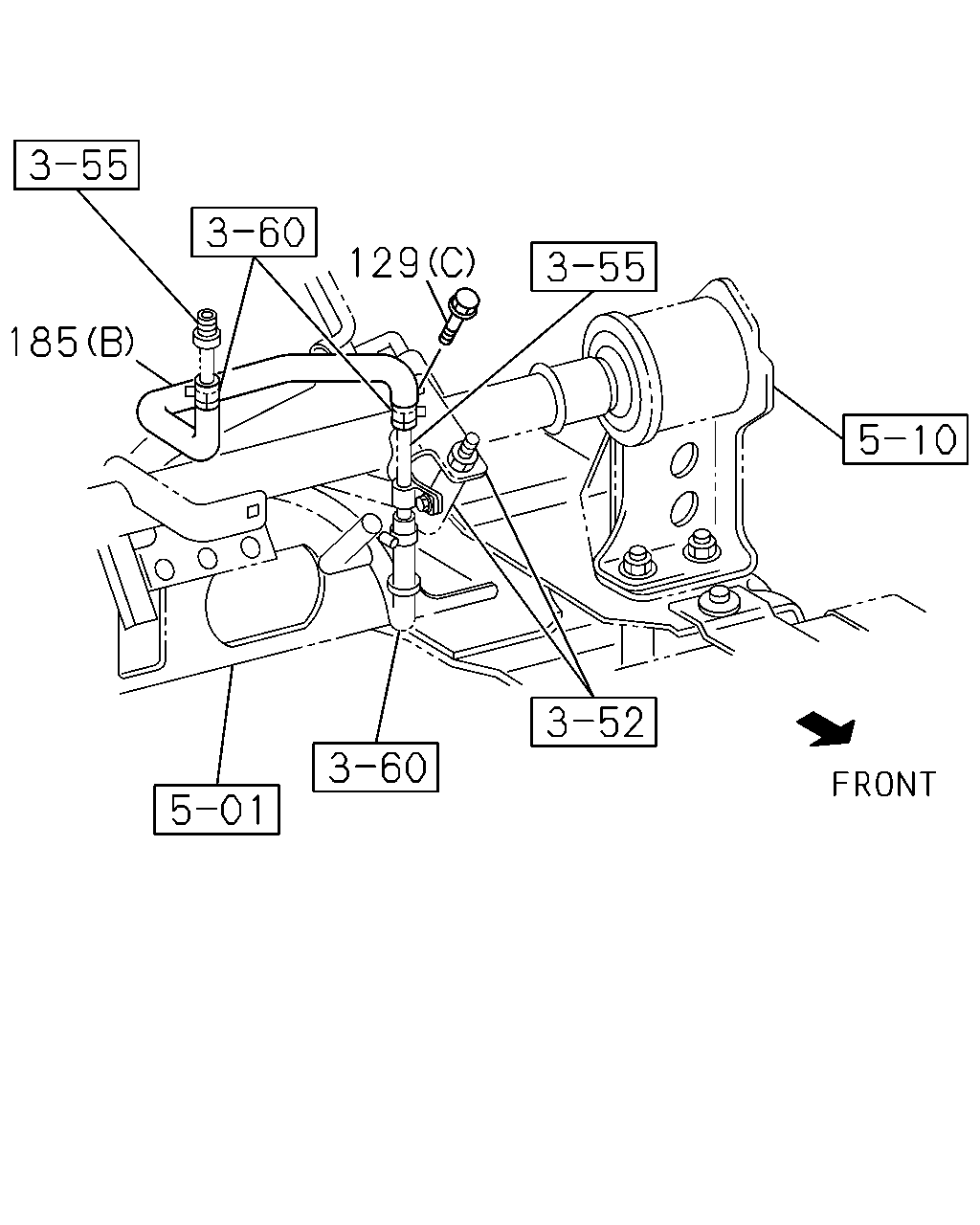

129 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0803-0803	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0804-	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0803-0803	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-	●	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0803-0910	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0911-	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	0803-0910	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	0911-	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0803-0910	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	0911-	●	●

56 56 153 129 256 19 145 145 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	0803-0803	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98056-155-1	02	1	0803-0803		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	0804-0910	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98056-155-1	02	1	0804-0910		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98056-155-1	02	1	0911-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98056-155-1	02	1	0911-			●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	0803-0803	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	0803-0803		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	0804-0910	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	0804-0910		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98076-015-0	01	1	0911-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	0911-			●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-0	02	1	0803-0906	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-1	02	1	0907-0910	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98080-579-1	02	1	0911-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	0803-0910	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	0911-	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	0803-0803	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	0804-	●	●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98056-774-1	01	1	0803-0803	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0803-0803		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98056-774-1	01	1	0804-0910	●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0804-0910		●	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98056-774-1	01	1	0911-1005	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-774-1	01	1	0911-1005		●
56	04.686 BRACKET; UNION,BRK (A)	8-98056-774-1	01	1	0911-1005			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1006-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1006-			●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98034-288-4	01	1	0803-0910	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98034-288-4	01	1	0911-1005	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98034-288-4	01	1	0911-1005		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-270-1	01	1	1006-		●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98046-181-3	01	1	0803-1005	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1006-	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-309-2	01	1	0803-1005	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1006-	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0803-0803	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0804-	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0803-0803	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-	●	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0803-0910	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0911-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	0803-0803	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98070-477-1	01	1	0803-0803		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	0804-0910	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98070-477-1	01	1	0804-0910		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	0911-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98070-477-1	01	1	0911-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (C)	8-98070-477-1	01	1	0911-			●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B)	8-98033-954-2	01	1	0803-0906	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (B) L=228	8-98133-411-0	01	1	0907-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98033-956-1	01	1	0803-0906	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=247	8-98133-410-0	01	1	0907-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98070-483-0	01	1	0803-0910	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98070-483-0	01	1	0911-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98070-483-0	01	1	0911-		●
153	04.730 SCREW; BRKT FIX 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0803-0803	●	●
153	04.730 SCREW; BRKT FIX 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0804-0808	●	●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0809-	●	●	●
256	04.840 BRACKET; BRK PIPE	8-98039-683-1	01	1	0803-0803	●	●
256	04.840 BRACKET; BRK PIPE	8-98039-683-1	01	1	0804-0808	●	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98039-683-4	01	1	0809-1005	●	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-521-0	01	1	1006-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
