Sayfa 3-11 - Isuzu EPC

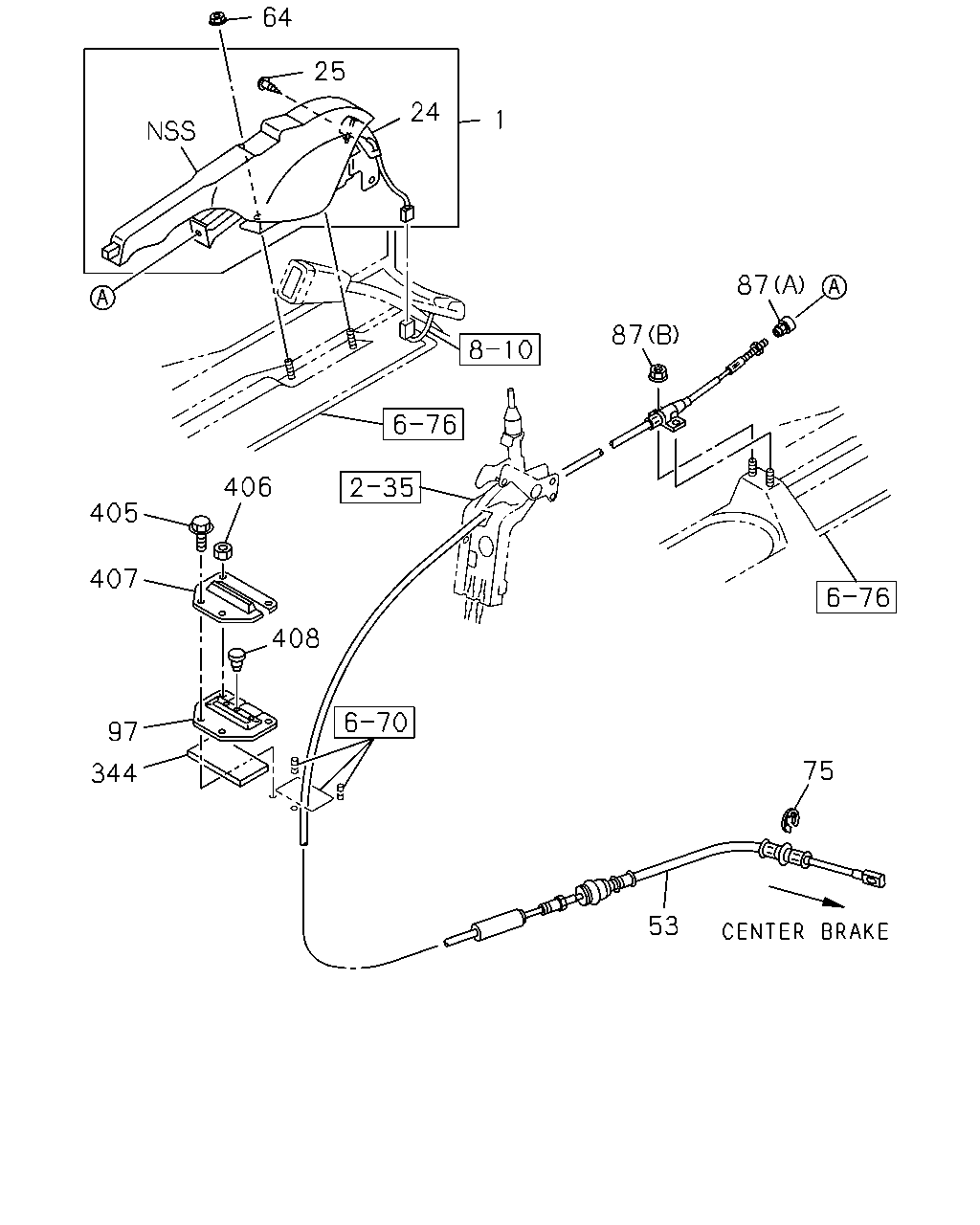

3-11 — PARKING BRAKE CONTROL (#81405) — 390 parça

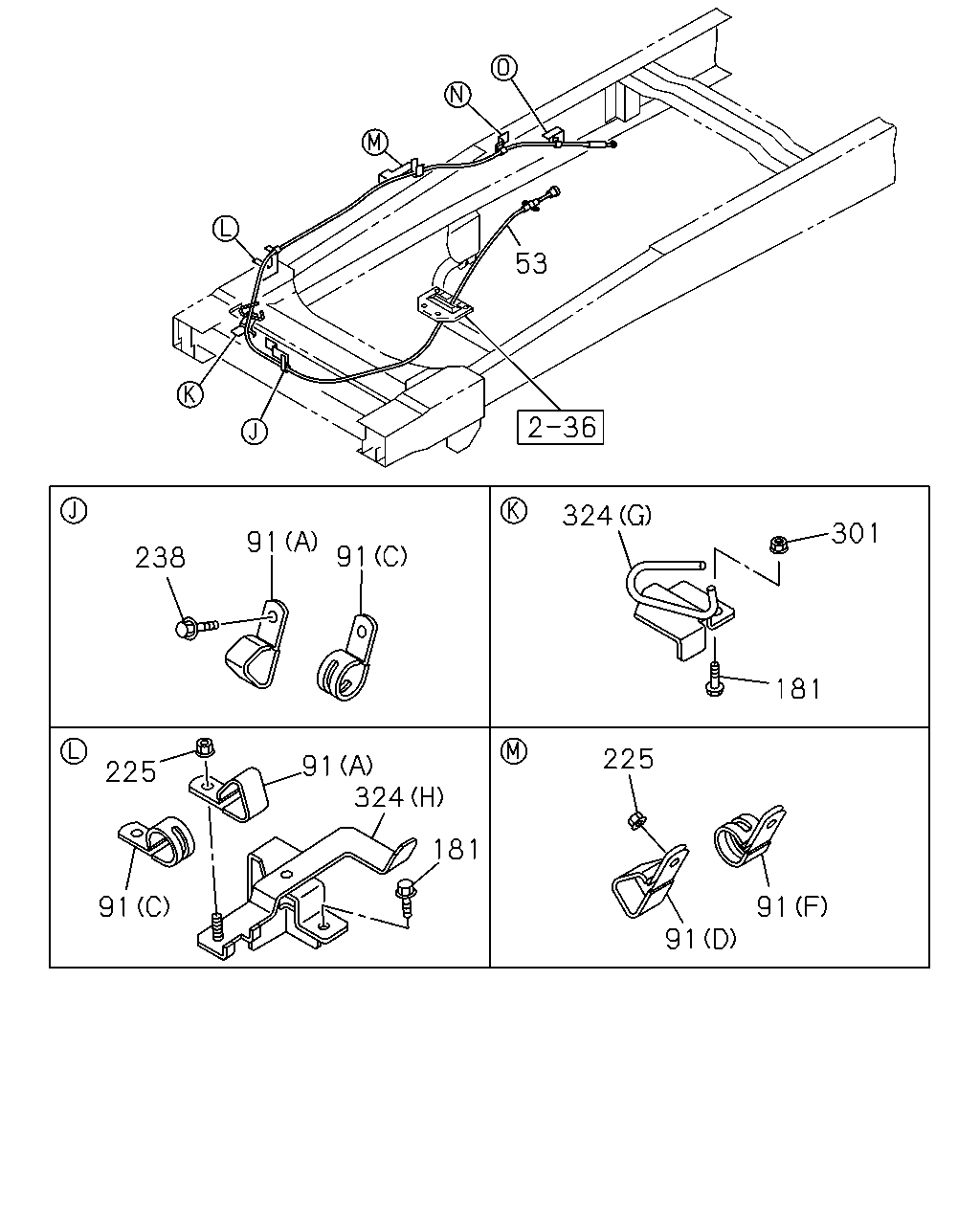

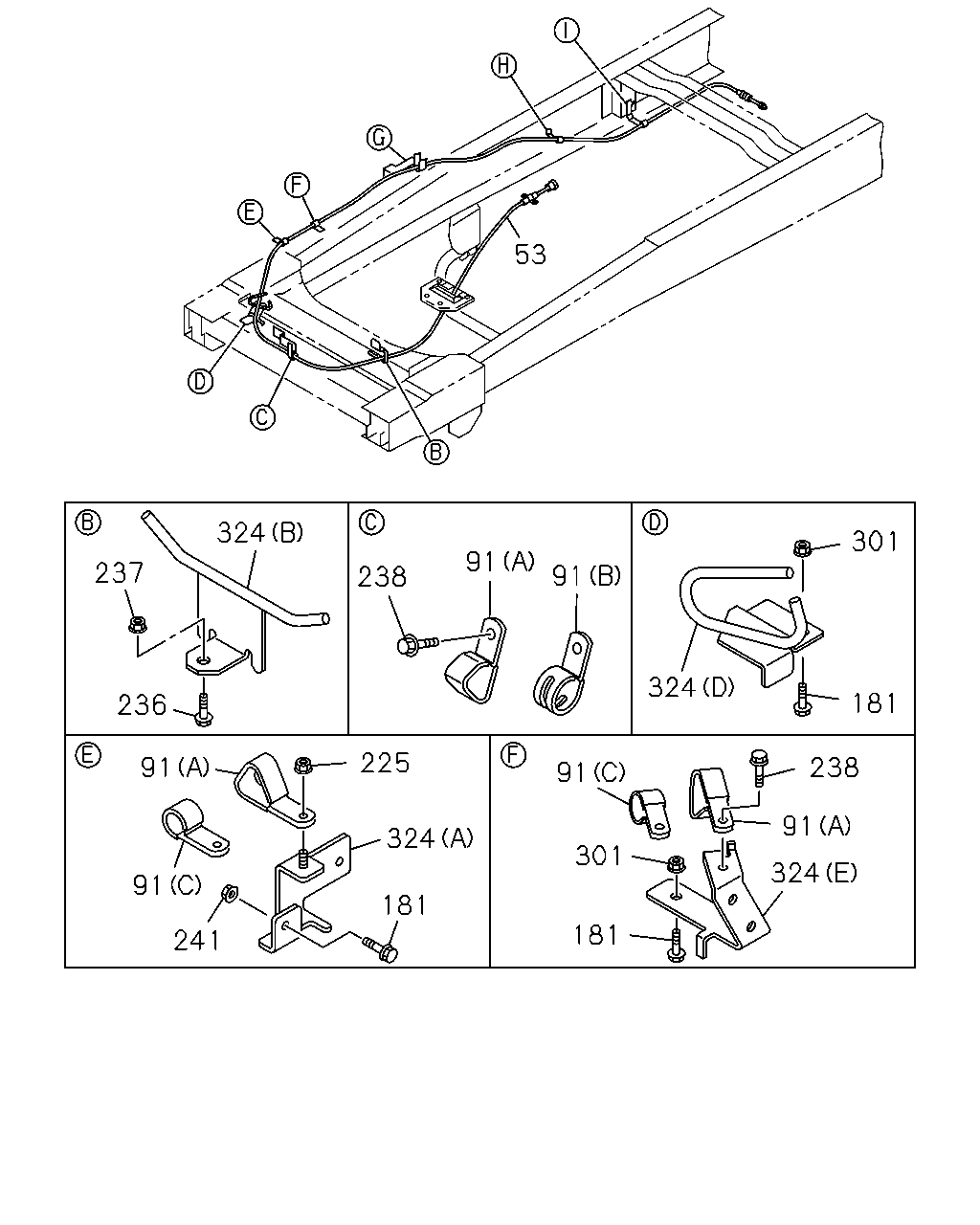

53 324 301 91 91 238 181 225 91 324 225 181 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	04.779 CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98049-098-4	01	1	0803-	●
53	04.779 CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98060-996-3	01	1	0803-	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98060-996-3	01	1	0803-		●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98049-096-1	01	1	0803-0803	●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98049-096-1	01	1	0804-	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98049-096-1	01	1	0804-			●
53	04.779 CABLE; PARK BRK,FRT LWR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-121-3	01	1	0803-0906	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-121-3	01	1	0907-	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98023-698-0	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28	0-95235-255-0	01	1	0803-	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28	0-95235-255-0	01	1	0803-	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B) ID=16 L=28	0-95235-556-0	01	1	0803-	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=24 L=40	1-09701-139-0	01	1	0803-	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0803-0803		●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0803-0803		●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0803-0803		●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0804-		●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0804-		●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0804-		●
91	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-332-1	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-332-1	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-332-1	01	1	0804-			●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-		●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0906	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0906			●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
181	04.785 BOLT; BRKT 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-			●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803		●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803		●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-			●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-		●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0803-	●
238	04.785 BOLT; CLIP TO BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0803-		●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-			●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803		●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●	●
324	04.785 BRACKET EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (C)	8-98111-394-1	01	1	0803-	●
324	04.785 BRACKET (C)	8-98111-394-1	01	1	0803-		●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) 04.047 (B)	8-98061-626-1	01	1	0803-	●	●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) (D)	8-98094-197-0	01	1	0803-1110	●	●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) 04.010 (D)	8-98189-804-0	01	1	1111-	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> 04.047 (E)	8-98034-185-1	01	1	0803-	●
324	04.785 BRACKET 04.047 (E)	8-98034-185-1	01	1	0803-		●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-516-0	01	1	0803-	●
324	04.785 BRACKET (A)	8-98099-516-0	01	1	0803-		●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (H)	8-98091-693-0	01	1	0803-0803	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (H)	8-98091-693-0	01	1	0804-	●		●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (G)	8-98101-848-0	01	1	0803-0803	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (G)	8-98101-848-0	01	1	0804-1110	●		●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) 04.047 (G)	8-98189-805-0	01	1	1111-	●		●
324	04.785 BRACKET (F)	8-98014-921-0	01	1	0804-0909			●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (F)	8-98014-921-0	01	1	0910-			●

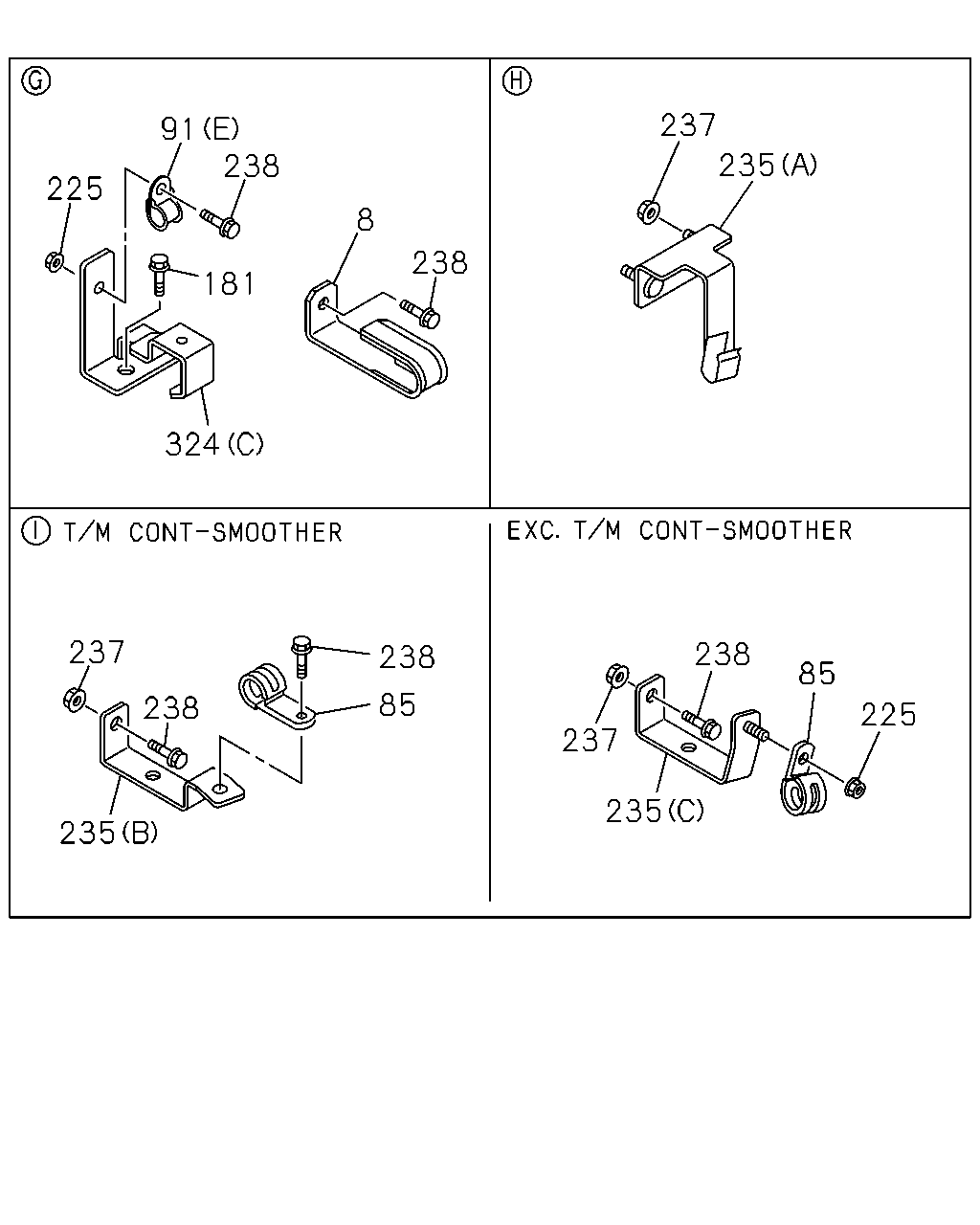

181 324 301 241 87 85 225 237 235 368 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
85	04.785 CLIP; BRKT EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20	1-09701-012-0	01	1	0803-0803	●
85	04.785 CLIP; BRKT FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20	1-09701-012-0	01	1	0803-0803	●
85	04.785 CLIP; BRKT ID=14.5 L=20	1-09701-012-0	01	1	0803-0803		●
85	04.785 CLIP; BRKT EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20	1-09701-012-0	01	1	0804-	●
85	04.785 CLIP; BRKT FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20	1-09701-012-0	01	1	0804-	●
85	04.785 CLIP; BRKT ID=14.5 L=20	1-09701-012-0	01	1	0804-		●	●
87	04.785 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-0803	●	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	0803-0803	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	0804-	●	●	●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-		●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0906	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0906			●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
181	04.785 BOLT; BRKT 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-			●
223	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20	1-09701-138-1	01	1	0803-	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803		●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803		●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-			●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-907-0	01	1	0803-	●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98087-322-0	01	1	0803-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (C)	8-98087-322-0	01	1	0803-		●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98034-410-3	01	1	0803-0803	●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98034-410-3	01	1	0804-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (D)	8-98034-410-3	01	1	0804-			●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (A)	8-98105-435-0	01	1	0803-0909	●
235	04.785 BRACKET; CONT CABLE TO FRAME (A)	8-98105-435-0	01	1	0803-0909		●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (A)	8-98106-986-1	01	1	0910-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (A)	8-98106-986-1	01	1	0910-		●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
237	04.785 NUT; BRKT TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910	●
237	04.785 NUT; BRKT TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910	●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910		●	●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910		●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-	●	●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-	●
237	04.785 NUT; BRKT TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-		●	●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-		●
241	04.785 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803		●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●	●
324	04.785 BRACKET EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (C)	8-98111-394-1	01	1	0803-	●
324	04.785 BRACKET (C)	8-98111-394-1	01	1	0803-		●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) 04.047 (B)	8-98061-626-1	01	1	0803-	●	●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) (D)	8-98094-197-0	01	1	0803-1110	●	●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) 04.010 (D)	8-98189-804-0	01	1	1111-	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> 04.047 (E)	8-98034-185-1	01	1	0803-	●
324	04.785 BRACKET 04.047 (E)	8-98034-185-1	01	1	0803-		●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-516-0	01	1	0803-	●
324	04.785 BRACKET (A)	8-98099-516-0	01	1	0803-		●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (H)	8-98091-693-0	01	1	0803-0803	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (H)	8-98091-693-0	01	1	0804-	●		●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (G)	8-98101-848-0	01	1	0803-0803	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (G)	8-98101-848-0	01	1	0804-1110	●		●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) 04.047 (G)	8-98189-805-0	01	1	1111-	●		●
324	04.785 BRACKET (F)	8-98014-921-0	01	1	0804-0909			●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (F)	8-98014-921-0	01	1	0910-			●
368	04.785 BRACKET; T/M SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97372-863-1	01	1	0803-	●

64 25 24 1 87 87 406 405 407 408 97 75 344 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.592 STEM ASM; PARKING BRK GRAY	8-97406-006-0	01	1	0803-0803	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97406-006-0	01	1	0804-1303	●	●	●
1	04.592 STEM ASM; PARKING BRK GRAY	8-97426-514-0	01	1	1304-	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0803-0803	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0804-1303	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1304-	●	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0803-0803	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	0804-	●	●	●
53	04.779 CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98049-098-4	01	1	0803-	●
53	04.779 CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98060-996-3	01	1	0803-	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98060-996-3	01	1	0803-		●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98049-096-1	01	1	0803-0803	●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98049-096-1	01	1	0804-	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98049-096-1	01	1	0804-			●
53	04.779 CABLE; PARK BRK,FRT LWR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-121-3	01	1	0803-0906	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-121-3	01	1	0907-	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0803-0803	●	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0804-	●	●	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	0803-0803	●	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	0804-	●	●	●
87	04.785 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0803-	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-0803	●	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	0803-0803	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	0804-	●	●	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97091-890-0	01	1	0803-0803	●	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97091-890-0	01	1	0804-	●	●	●
344	04.595 GASKET; DASH LWR MANUAL TILT CAB<RWZ> 04.047	8-97096-753-0	01	1	0803-	●	●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	0803-0803	●	●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	0804-	●	●	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	0803-0803	●	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-	●	●	●
407	04.785 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	0803-0803	●	●
407	04.785 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	0804-	●	●	●
408	04.785 CAP; GROMMET TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010	8-97371-108-0	02	1	0803-	●

53 324 301 91 237 91 238 324 181 236 225 91 238 91 91 324 301 324 91 181 181 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	04.779 CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98049-098-4	01	1	0803-	●
53	04.779 CABLE; PARK BRK,FRT LWR FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98060-996-3	01	1	0803-	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98060-996-3	01	1	0803-		●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98049-096-1	01	1	0803-0803	●
53	04.779 CABLE; PARK BRK,FRT LWR EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98049-096-1	01	1	0804-	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98049-096-1	01	1	0804-			●
53	04.779 CABLE; PARK BRK,FRT LWR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-121-3	01	1	0803-0906	●
53	04.779 CABLE; PARK BRK,FRT LWR 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98057-121-3	01	1	0907-	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98023-698-0	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28	0-95235-255-0	01	1	0803-	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28	0-95235-255-0	01	1	0803-	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B) ID=16 L=28	0-95235-556-0	01	1	0803-	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=24 L=40	1-09701-139-0	01	1	0803-	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0803-0803		●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0803-0803		●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0803-0803		●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0804-		●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0804-		●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0804-		●
91	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-332-1	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-332-1	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-332-1	01	1	0804-			●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-		●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0906	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0906			●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
181	04.785 BOLT; BRKT 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-			●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803		●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803		●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-			●
236	04.785 BOLT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0803-	●	●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
237	04.785 NUT; BRKT TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910	●
237	04.785 NUT; BRKT TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910	●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910		●	●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910		●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-	●	●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-	●
237	04.785 NUT; BRKT TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-		●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-		●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0803-	●
238	04.785 BOLT; CLIP TO BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0803-		●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-			●
241	04.785 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-		●
241	04.785 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803		●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
301	04.785 NUT; BRKT,BRK & CLU PEDAL 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●	●
324	04.785 BRACKET EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (C)	8-98111-394-1	01	1	0803-	●
324	04.785 BRACKET (C)	8-98111-394-1	01	1	0803-		●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) 04.047 (B)	8-98061-626-1	01	1	0803-	●	●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) (D)	8-98094-197-0	01	1	0803-1110	●	●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) 04.010 (D)	8-98189-804-0	01	1	1111-	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> 04.047 (E)	8-98034-185-1	01	1	0803-	●
324	04.785 BRACKET 04.047 (E)	8-98034-185-1	01	1	0803-		●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-516-0	01	1	0803-	●
324	04.785 BRACKET (A)	8-98099-516-0	01	1	0803-		●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (H)	8-98091-693-0	01	1	0803-0803	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (H)	8-98091-693-0	01	1	0804-	●		●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (G)	8-98101-848-0	01	1	0803-0803	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (G)	8-98101-848-0	01	1	0804-1110	●		●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) 04.047 (G)	8-98189-805-0	01	1	1111-	●		●
324	04.785 BRACKET (F)	8-98014-921-0	01	1	0804-0909			●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (F)	8-98014-921-0	01	1	0910-			●

237 91 238 235 225 8 238 181 324 237 238 238 85 85 238 225 237 235 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	04.592 GUIDE; PARKING BRK EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ>	8-98110-964-0	01	1	0803-	●
8	04.592 GUIDE; PARKING BRK	8-98110-964-0	01	1	0803-		●
85	04.785 CLIP; BRKT EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20	1-09701-012-0	01	1	0803-0803	●
85	04.785 CLIP; BRKT FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20	1-09701-012-0	01	1	0803-0803	●
85	04.785 CLIP; BRKT ID=14.5 L=20	1-09701-012-0	01	1	0803-0803		●
85	04.785 CLIP; BRKT EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20	1-09701-012-0	01	1	0804-	●
85	04.785 CLIP; BRKT FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20	1-09701-012-0	01	1	0804-	●
85	04.785 CLIP; BRKT ID=14.5 L=20	1-09701-012-0	01	1	0804-		●	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98023-698-0	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28	0-95235-255-0	01	1	0803-	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (C) ID=13 L=28	0-95235-255-0	01	1	0803-	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B) ID=16 L=28	0-95235-556-0	01	1	0803-	●
91	04.785 CLIP; PARKING BRK CABLE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=24 L=40	1-09701-139-0	01	1	0803-	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0803-0803		●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0803-0803		●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0803-0803		●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A)	8-97036-333-1	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0804-		●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0804-		●	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (A)	8-97036-333-1	01	1	0804-		●
91	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-332-1	01	1	0803-0803	●
91	04.785 CLIP; PARKING BRK CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-332-1	01	1	0804-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-332-1	01	1	0804-			●
181	04.785 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-		●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0906	●	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-0906			●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●	●
181	04.785 BOLT; BRKT 4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-			●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803		●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-0803		●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-		●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-			●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98033-907-0	01	1	0803-	●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98087-322-0	01	1	0803-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (C)	8-98087-322-0	01	1	0803-		●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98034-410-3	01	1	0803-0803	●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98034-410-3	01	1	0804-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (D)	8-98034-410-3	01	1	0804-			●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (A)	8-98105-435-0	01	1	0803-0909	●
235	04.785 BRACKET; CONT CABLE TO FRAME (A)	8-98105-435-0	01	1	0803-0909		●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME STRAIGHT TYPE<7KJ> (A)	8-98106-986-1	01	1	0910-	●
235	04.785 BRACKET; CONT CABLE TO FRAME (A)	8-98106-986-1	01	1	0910-		●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
237	04.785 NUT; BRKT TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0803-0803		●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910	●
237	04.785 NUT; BRKT TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910	●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910		●	●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0804-0910		●
237	04.785 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-	●	●
237	04.785 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-	●
237	04.785 NUT; BRKT TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-	●
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-		●	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0803-		●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0803-	●
238	04.785 BOLT; CLIP TO BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0803-		●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
238	04.785 BOLT; CLIP TO BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
238	04.785 BOLT; CLIP TO BRKT FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-			●
324	04.785 BRACKET EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (C)	8-98111-394-1	01	1	0803-	●
324	04.785 BRACKET (C)	8-98111-394-1	01	1	0803-		●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) 04.047 (B)	8-98061-626-1	01	1	0803-	●	●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) (D)	8-98094-197-0	01	1	0803-1110	●	●
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) 04.010 (D)	8-98189-804-0	01	1	1111-	●	●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> 04.047 (E)	8-98034-185-1	01	1	0803-	●
324	04.785 BRACKET 04.047 (E)	8-98034-185-1	01	1	0803-		●
324	04.785 BRACKET FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-516-0	01	1	0803-	●
324	04.785 BRACKET (A)	8-98099-516-0	01	1	0803-		●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (H)	8-98091-693-0	01	1	0803-0803	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (H)	8-98091-693-0	01	1	0804-	●		●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (G)	8-98101-848-0	01	1	0803-0803	●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (G)	8-98101-848-0	01	1	0804-1110	●		●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) 04.047 (G)	8-98189-805-0	01	1	1111-	●		●
324	04.785 BRACKET (F)	8-98014-921-0	01	1	0804-0909			●
324	04.785 BRACKET 4JJ1-TCC ENG(RDU) (F)	8-98014-921-0	01	1	0910-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
