Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#81400) — 228 parça

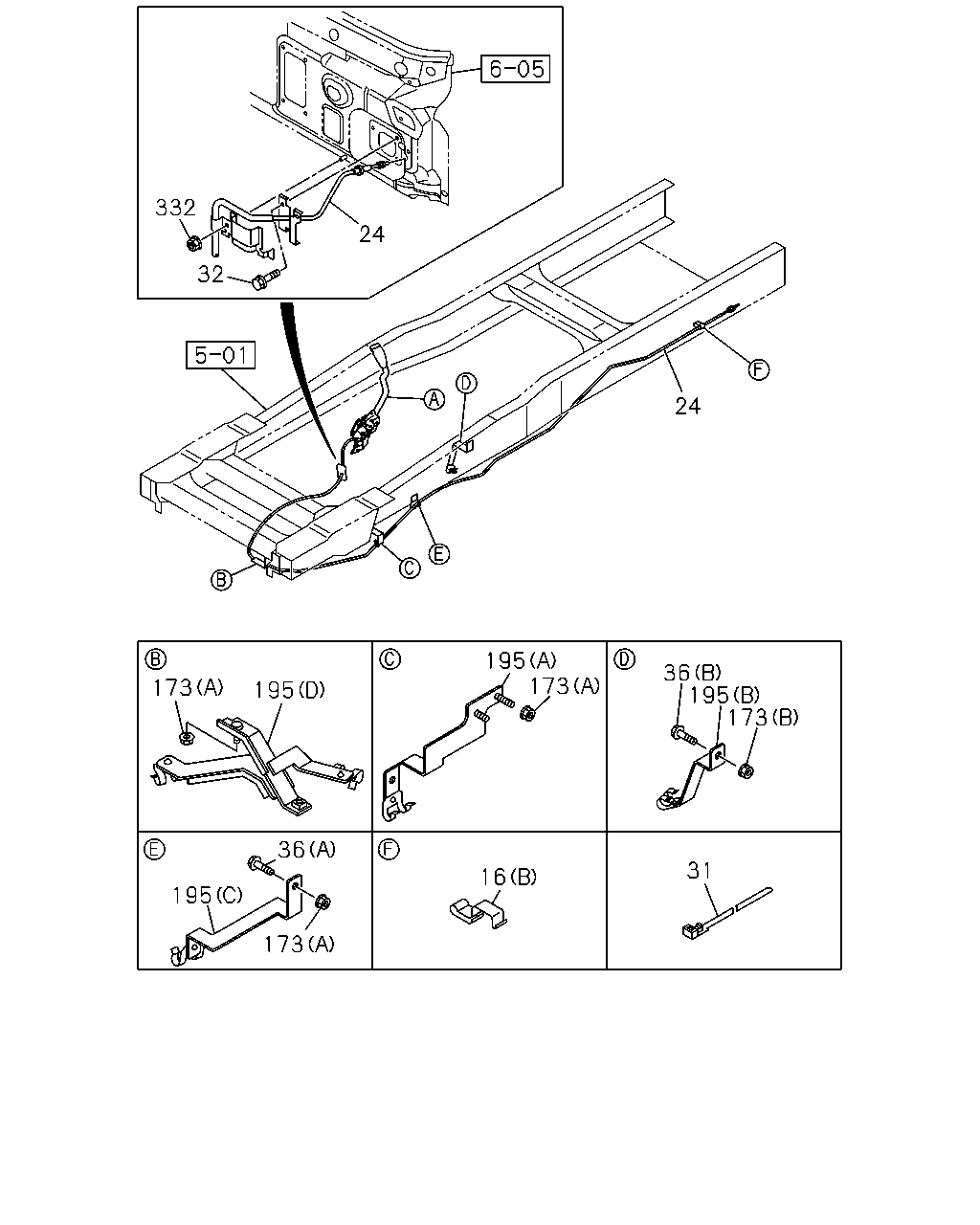

332 24 32 24 195 173 36 195 173 173 195 36 31 16 195 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=6.0	5-09709-024-0	01	1	0803-0803
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=6.0	5-09709-024-0	02	1	0803-0805
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	0806-
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) (A)	8-98050-126-0	01	1	0803-0803
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	0803-
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	0803-
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98085-645-1	01	1	0803-1204
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98212-275-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3477	8-98223-355-1	01	1	1208-
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3413	8-98085-646-1	01	1	0803-1204
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3413	8-98212-276-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3399	8-98223-354-1	01	1	1208-
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3401	8-98085-643-2	01	1	0803-1204
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3401	8-98212-273-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3387	8-98223-349-1	01	1	1208-
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4163	8-98115-258-0	01	1	0803-1204
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4163	8-98212-288-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4163	8-98223-301-1	01	1	1208-
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3323	8-98085-644-2	01	1	0803-1204
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3323	8-98212-274-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3309	8-98223-348-1	01	1	1208-
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 L=250	5-09707-030-1	01	1	0803-0803
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 02.559 L=250	5-09707-030-1	01	1	0803-0804
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 02.559 L=250	5-09707-030-1	01	1	0803-0804
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 02.559 L=250	5-09707-030-1	01	1	0805-
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 02.559 L=250	5-09707-030-1	01	1	0805-
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 02.559 L=250	5-09707-030-1	01	1	0805-
31	04.439 CLIP; BAND,CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 02.559 L=250	5-09707-030-1	01	1	0805-
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	0803-0803
32	04.439 BOLT; CLIP,CABLE DUMP CHASSIS(V4D) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	0803-
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	0803-
36	04.439 BOLT; PTO BRKT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803
36	04.439 BOLT; PTO BRKT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-
36	04.439 BOLT; PTO BRKT DUMP CHASSIS(V4D) 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-
36	04.439 BOLT; PTO BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0803-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0803-0803
173	04.439 NUT; BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0803-0803
173	04.439 NUT; BRKT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0803-0803
173	04.439 NUT; BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0803-
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0803-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0803-
173	04.439 NUT; BRKT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0803-
173	04.439 NUT; BRKT DUMP CHASSIS(V4D) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0803-
173	04.439 NUT; BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0803-
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) (C)	8-98086-269-2	01	1	0803-0803
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (C)	8-98086-269-2	01	1	0803-
195	04.439 BRACKET; CONT CABLE DUMP CHASSIS(V4D) (C)	8-98086-269-2	01	1	0803-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (D)	8-98112-829-0	01	1	0803-0803
195	04.439 BRACKET; CONT CABLE DUMP CHASSIS(V4D) (D)	8-98112-829-0	01	1	0803-0804
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (D)	8-98112-829-0	01	1	0803-0804
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (D)	8-98112-829-0	01	1	0805-1112
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (D)	8-98203-716-0	01	1	1201-
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (B)	8-98101-144-0	01	1	0803-
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (A)	8-98101-145-0	01	1	0803-
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (D)	8-98119-504-0	01	1	0805-1112
195	04.439 BRACKET; CONT CABLE DUMP CHASSIS(V4D) (D)	8-98119-504-0	01	1	0805-1112
195	04.439 BRACKET; CONT CABLE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (D)	8-98203-717-0	01	1	1201-
195	04.439 BRACKET; CONT CABLE DUMP CHASSIS(V4D) (D)	8-98203-717-0	01	1	1201-
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-0803
332	04.439 NUT; PTO CONT CABLE DUMP CHASSIS(V4D) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-

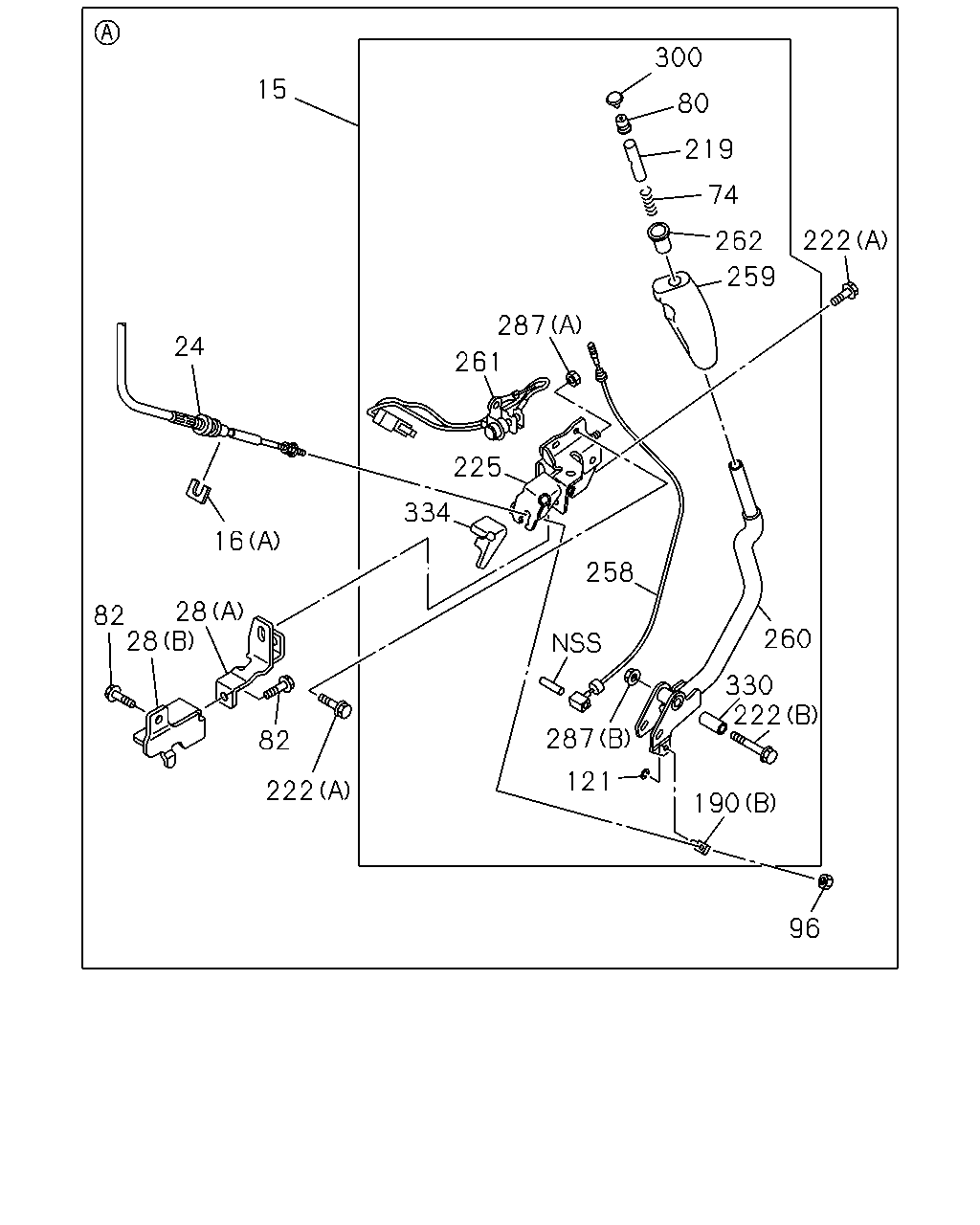

15 24 16 82 28 28 82 222 334 225 261 287 300 80 219 74 262 259 222 258 287 121 260 330 222 190 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.439 LEVER ASM; PTO CONT DUMP CHASSIS(V4D)	8-98070-129-3	01	1	0803-1006
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98070-129-3	01	1	0803-1006
15	04.439 LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4>	8-98070-129-3	01	1	1007-
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98070-129-3	01	1	1007-
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=6.0	5-09709-024-0	01	1	0803-0803
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=6.0	5-09709-024-0	02	1	0803-0805
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) 02.559 (B) T=4.5 & 9	8-97371-947-0	02	1	0806-
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) (A)	8-98050-126-0	01	1	0803-0803
16	04.439 CLIP; CABLE,PTO DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	0803-
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98050-126-0	01	1	0803-
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98085-645-1	01	1	0803-1204
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98212-275-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3477	8-98223-355-1	01	1	1208-
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3413	8-98085-646-1	01	1	0803-1204
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3413	8-98212-276-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3399	8-98223-354-1	01	1	1208-
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3401	8-98085-643-2	01	1	0803-1204
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3401	8-98212-273-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3387	8-98223-349-1	01	1	1208-
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4163	8-98115-258-0	01	1	0803-1204
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4163	8-98212-288-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4163	8-98223-301-1	01	1	1208-
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3323	8-98085-644-2	01	1	0803-1204
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3323	8-98212-274-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3309	8-98223-348-1	01	1	1208-
28	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D) (A)	8-98096-005-2	01	1	0803-1006
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98096-005-2	01	1	0803-1006
28	04.439 BRACKET; CONT LEVER DUMP CONTROL LEVER<RC4> (A)	8-98096-005-2	01	1	1007-
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (A)	8-98096-005-2	01	1	1007-
28	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D) (B)	8-98096-006-0	01	1	0803-1006
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98096-006-0	01	1	0803-1006
28	04.439 BRACKET; CONT LEVER DUMP CONTROL LEVER<RC4> (B)	8-98096-006-0	01	1	1007-
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B)	8-98096-006-0	01	1	1007-
74	04.439 SPRING; RETURN,CONT LEVER DUMP CHASSIS(V4D)	8-98029-874-0	01	1	0803-1006
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98029-874-0	01	1	0803-1006
74	04.439 SPRING; RETURN,CONT LEVER DUMP CONTROL LEVER<RC4>	8-98029-874-0	01	1	1007-
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98029-874-0	01	1	1007-
80	04.439 COVER; CONT LEVER DUMP CHASSIS(V4D)	8-97122-741-0	01	1	0803-1006
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-741-0	01	1	0803-1006
80	04.439 COVER; CONT LEVER DUMP CONTROL LEVER<RC4>	8-97122-741-0	01	1	1007-
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97122-741-0	01	1	1007-
82	04.128 BOLT; CONT LEVER DUMP CHASSIS(V4D) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0803-1006
82	04.128 BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0803-1006
82	04.128 BOLT; CONT LEVER DUMP CONTROL LEVER<RC4> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1007-
82	04.128 BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1007-
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	0803-0803
96	04.439 NUT DUMP CHASSIS(V4D) 03.330 M6	0-91110-506-0	01	1	0803-
96	04.439 NUT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.330 M6	0-91110-506-0	01	1	0803-
121	04.439 RING; SNAP DUMP CHASSIS(V4D) 03.485 ID=4	0-91805-504-0	01	1	0803-1006
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.485 ID=4	0-91805-504-0	01	1	0803-1006
121	04.439 RING; SNAP DUMP CONTROL LEVER<RC4> 03.485 ID=4	0-91805-504-0	01	1	1007-
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 03.485 ID=4	0-91805-504-0	01	1	1007-
190	04.439 BOSS; LEVER,PTO DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	0803-1006
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	0803-1006
190	04.439 BOSS; LEVER,PTO DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1007-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1007-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0803-0903
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	0904-
219	04.439 KNOB; LEVER DUMP CHASSIS(V4D)	8-97122-736-0	01	1	0803-1006
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-736-0	01	1	0803-1006
219	04.439 KNOB; LEVER DUMP CONTROL LEVER<RC4>	8-97122-736-0	01	1	1007-
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97122-736-0	01	1	1007-
222	04.439 BOLT; LEVER DUMP CHASSIS(V4D) (B) M8X60	0-10855-860-0	01	1	0803-1006
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) M8X60	0-10855-860-0	01	1	0803-1006
222	04.439 BOLT; LEVER DUMP CONTROL LEVER<RC4> (B) M8X60	0-10855-860-0	01	1	1007-
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B) M8X60	0-10855-860-0	01	1	1007-
222	04.439 BOLT; LEVER DUMP CHASSIS(V4D) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0803-1006
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0803-1006
222	04.439 BOLT; LEVER DUMP CONTROL LEVER<RC4> 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1007-
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1007-
225	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D)	8-98077-250-2	01	1	0803-1006
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-250-2	01	1	0803-1006
225	04.439 BRACKET; CONT LEVER DUMP CONTROL LEVER<RC4>	8-98077-250-2	01	1	1007-
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98077-250-2	01	1	1007-
258	04.439 CABLE; DUMP CONT DUMP CHASSIS(V4D)	8-98077-160-1	01	1	0803-1006
258	04.439 CABLE; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-160-1	01	1	0803-1006
258	04.439 CABLE; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98077-160-1	01	1	1007-
258	04.439 CABLE; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98077-160-1	01	1	1007-
259	04.439 GRIP; CONT LEVER DUMP CHASSIS(V4D)	8-97141-653-0	01	1	0803-1006
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97141-653-0	01	1	0803-1006
259	04.439 GRIP; CONT LEVER DUMP CONTROL LEVER<RC4>	8-97141-653-0	01	1	1007-
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97141-653-0	01	1	1007-
260	04.439 LEVER; DUMP CONT DUMP CHASSIS(V4D)	8-98077-136-1	01	1	0803-1006
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-136-1	01	1	0803-1006
260	04.439 LEVER; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98077-136-1	01	1	1007-
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98077-136-1	01	1	1007-
261	04.439 SWITCH; DUMP CONT DUMP CHASSIS(V4D)	8-98081-899-2	01	1	0803-1006
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98081-899-2	01	1	0803-1006
261	04.439 SWITCH; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98081-899-2	01	1	1007-
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98081-899-2	01	1	1007-
262	04.439 RETAINER; SPRING DUMP CHASSIS(V4D)	8-97129-397-0	01	1	0803-1006
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97129-397-0	01	1	0803-1006
262	04.439 RETAINER; SPRING DUMP CONTROL LEVER<RC4>	8-97129-397-0	01	1	1007-
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97129-397-0	01	1	1007-
287	04.439 NUT; SWITCH,CONT LEVER DUMP CHASSIS(V4D) 03.330 (A) M6	0-91110-506-0	01	1	0803-1006
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.330 (A) M6	0-91110-506-0	01	1	0803-1006
287	04.439 NUT; SWITCH,CONT LEVER DUMP CONTROL LEVER<RC4> 03.330 (A) M6	0-91110-506-0	01	1	1007-
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 03.330 (A) M6	0-91110-506-0	01	1	1007-
287	04.439 NUT; SWITCH,CONT LEVER DUMP CHASSIS(V4D) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	0803-1006
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	0803-1006
287	04.439 NUT; SWITCH,CONT LEVER DUMP CONTROL LEVER<RC4> 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1007-
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1007-
300	04.439 CAP; KNOB DUMP CHASSIS(V4D)	8-97122-740-0	01	1	0803-1006
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-740-0	01	1	0803-1006
300	04.439 CAP; KNOB DUMP CONTROL LEVER<RC4>	8-97122-740-0	01	1	1007-
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-97122-740-0	01	1	1007-
330	04.439 COLOR; DUMP CONT DUMP CHASSIS(V4D)	8-98049-802-0	01	1	0803-1006
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98049-802-0	01	1	0803-1006
330	04.439 COLOR; DUMP CONT DUMP CONTROL LEVER<RC4>	8-98049-802-0	01	1	1007-
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98049-802-0	01	1	1007-
334	04.439 SHEET; PTO DUMP CHASSIS(V4D)	8-98109-990-1	01	1	0811-1006
334	04.439 SHEET; PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98109-990-1	01	1	0811-1006
334	04.439 SHEET; PTO DUMP CONTROL LEVER<RC4>	8-98109-990-1	01	1	1007-
334	04.439 SHEET; PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4>	8-98109-990-1	01	1	1007-

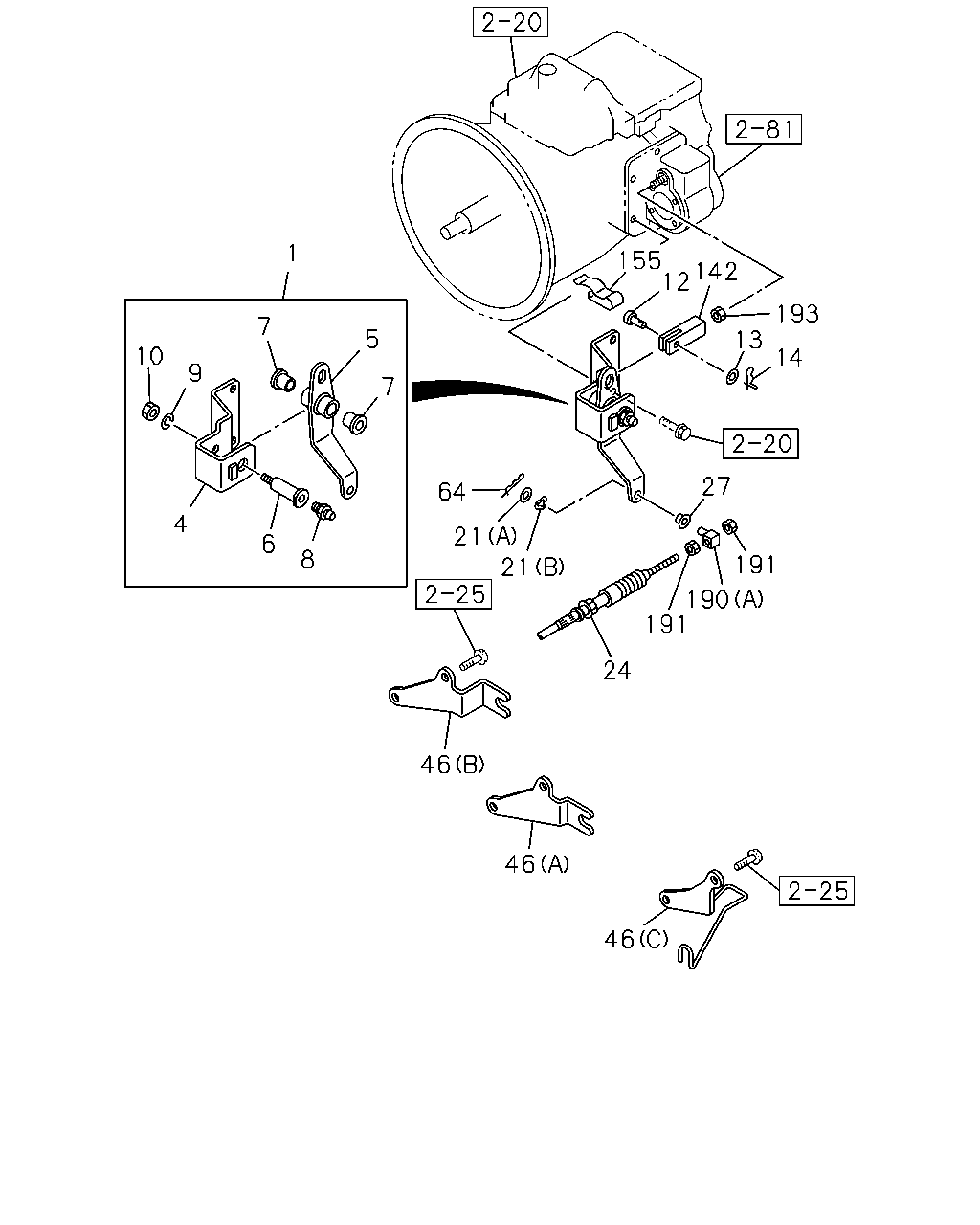

1 155 142 12 193 7 5 13 10 14 9 7 27 64 4 21 21 6 8 191 190 191 24 46 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-714-0	01	1	0803-1107
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-089-1	01	1	1108-
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-717-0	01	1	0803-1107
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-099-1	01	1	1108-
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-718-0	01	1	0803-
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98032-720-0	01	1	0803-1107
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98150-101-0	01	1	1108-
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	5-33659-053-0	02	1	0803-
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0803-
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=8.2	0-91510-508-0	01	1	0803-
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.334 M8	0-91110-508-0	01	1	0803-
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-692-0	01	1	0803-
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=12.5 OD=22	0-91610-512-0	01	1	0803-
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97581-216-0	01	1	0803-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0803-0903
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0904-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0803-0903
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0904-
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98085-645-1	01	1	0803-1204
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3491	8-98212-275-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3477	8-98223-355-1	01	1	1208-
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3413	8-98085-646-1	01	1	0803-1204
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3413	8-98212-276-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3399	8-98223-354-1	01	1	1208-
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3401	8-98085-643-2	01	1	0803-1204
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3401	8-98212-273-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3387	8-98223-349-1	01	1	1208-
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4163	8-98115-258-0	01	1	0803-1204
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4163	8-98212-288-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT DUMP CHASSIS(V4D) L=4163	8-98223-301-1	01	1	1208-
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3323	8-98085-644-2	01	1	0803-1204
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3323	8-98212-274-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3309	8-98223-348-1	01	1	1208-
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	0803-0903
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.042	8-94367-367-0	01	1	0904-
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98032-829-2	01	1	0803-0903
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98032-829-2	01	1	0904-
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98081-815-0	01	1	0803-0903
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-98081-815-0	01	1	0904-
46	04.439 BRACKET; PTO,TRANS SIDE 4HK1-TCN ENG(RDQ) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98133-150-0	01	1	0910-
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	0803-0903
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 00.833 L=27.7	8-94111-137-0	01	1	0904-
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-691-0	01	1	0803-
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.240 T=5.5	5-09709-047-0	01	1	0803-
190	04.439 BOSS; LEVER,PTO DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	0803-1006
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	0803-1006
190	04.439 BOSS; LEVER,PTO DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1007-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CONTROL LEVER<RC4> (B)	8-98029-878-0	01	1	1007-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0803-0903
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	0904-
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	0803-0903
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 03.330 M6	0-91110-506-0	02	1	0904-
193	04.439 NUT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M12	0-91111-512-0	01	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
