◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#8140) — 10 parça

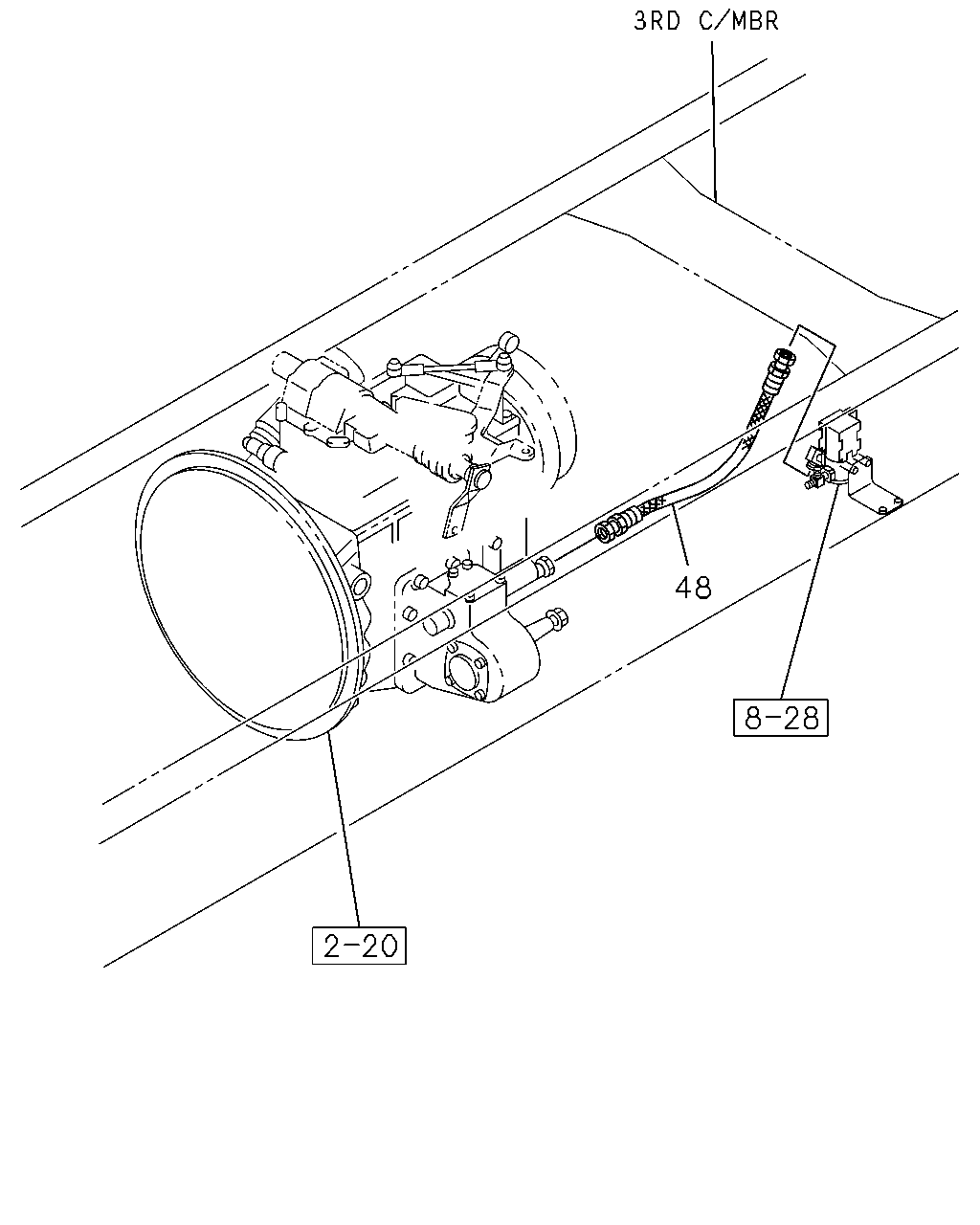

çizim 77591
48
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 HOSE; FLEX,PTO
FTS ALL(FT****) TRANSMISSION SIDE PTO WO/LEVER(SH5) ENGINE REAR PTO(SV1) L=230 		1-09363-784-0 01 1 0104-0210 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ENGINE REAR PTO(SV1) L=230 		1-09363-784-0 01 1 0104-0210 ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ENGINE REAR PTO(SV1) L=270 		1-09363-687-0 01 1 0005-0103 ● ● ●
48 HOSE; FLEX,PTO
FSS ALL(FS****) TRANSMISSION SIDE PTO WO/LEVER(SH5) ENGINE REAR PTO(SV1) L=270 		1-09363-687-0 01 1 0104-0210 ●
48 HOSE; FLEX,PTO
FTS ALL(FT****) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO(SV1) L=270 		1-09363-687-0 01 1 0104-0210 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO(SV1) L=270 		1-09363-687-0 01 1 0104-0210 ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO(SV1) L=320 		1-09363-625-0 01 1 0005-0103 ● ● ●
48 HOSE; FLEX,PTO
FSS ALL(FS****) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ENGINE REAR PTO(SV1) L=320 		1-09363-625-0 01 1 0104-0210 ●
çizim 103004
55
BalonParca AdiParca NoAdetTipApplied Date A B C D
55 GROMMET; CABLE 1-09983-068-0 01 1 0005-0210 ● ● ●
55 GROMMET; CABLE 1-09983-068-0 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
