Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#81398) — 213 parça

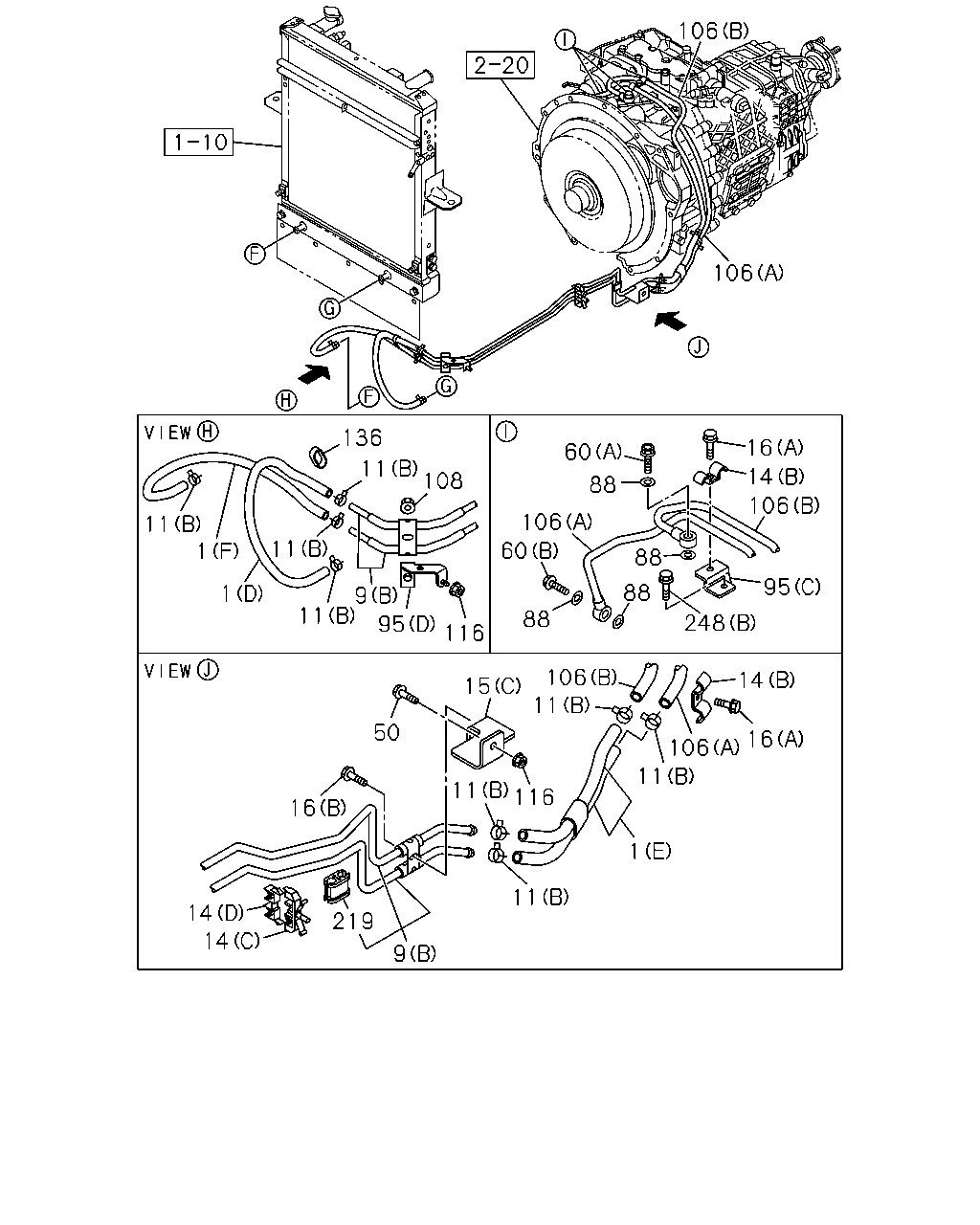

106 106 16 14 106 95 248 14 16 106 11 172 11 11 60 106 60 88 88 88 106 11 172 116 16 50 15 16 219 9 219 14 14 14 14 116 9 95 9 11 1 1 11 11 11 136 108 9 219 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98041-423-2	01	1	0803-0810
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-377-0	01	1	0803-0810
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-374-0	01	1	0811-0906
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-374-0	01	1	0907-
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	0803-0906
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	0907-
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98041-425-2	01	1	0803-0906
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98041-425-2	01	1	0907-
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	0803-0906
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	0907-
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98086-380-0	02	1	0803-0906
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98086-380-0	02	1	0907-
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98092-312-2	01	1	0803-0810
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98135-507-0	01	1	0811-0903
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98140-324-0	01	1	0904-0906
9	04.128 PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98140-324-0	01	1	0907-1402
9	04.128 PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98207-455-0	01	1	1403-
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-610-0	01	1	0803-0810
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98135-505-0	01	1	0811-0906
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98135-505-0	01	1	0907-
11	04.128 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	0803-0906
11	04.128 CLIP; PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	0907-
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	0803-0906
11	04.128 CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	0907-
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	12	1	0803-0906
11	04.128 CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	12	1	0907-
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0803-
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0803-0906
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0907-
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0803-0906
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0907-
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0803-0906
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0907-
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	0803-0906
15	04.128 BRACKET; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	0907-
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-763-0	01	1	0803-0906
15	04.128 BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-763-0	01	1	0907-
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	0803-0906
15	04.128 BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	0907-
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0803-0906
16	04.128 BOLT; CLIP,ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0907-
50	04.128 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0906
50	04.128 BOLT; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-
50	04.128 BOLT; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	0803-
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0803-0805
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0803-
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97349-876-0	01	1	0803-
95	04.128 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-4	01	1	0803-0906
95	04.128 BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-5	01	1	0907-
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-762-0	01	1	0803-0906
95	04.128 BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-762-0	01	1	0907-
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-619-0	01	1	0803-0906
95	04.128 BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-619-0	01	1	0907-
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98017-110-0	01	1	0803-
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	0803-
108	04.128 NUT; PIPE CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-0906
108	04.128 NUT; PIPE CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0906
116	04.128 NUT; BRKT,FLEX HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	01	1	0803-0906
136	04.128 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	01	1	0907-
172	04.128 HOSE; FLEX,ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98135-562-0	01	1	0811-0906
172	04.128 HOSE; FLEX,ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98135-562-0	01	1	0907-
172	04.128 HOSE; FLEX,ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98135-563-0	01	1	0811-0906
172	04.128 HOSE; FLEX,ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98135-563-0	01	1	0907-
219	04.128 CLIP; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	01	1	0803-0906
219	04.128 CLIP; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	01	1	0907-1402
219	04.128 CLIP; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	02	1	1403-
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-0906
248	04.128 BOLT; RETAINER 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0907-

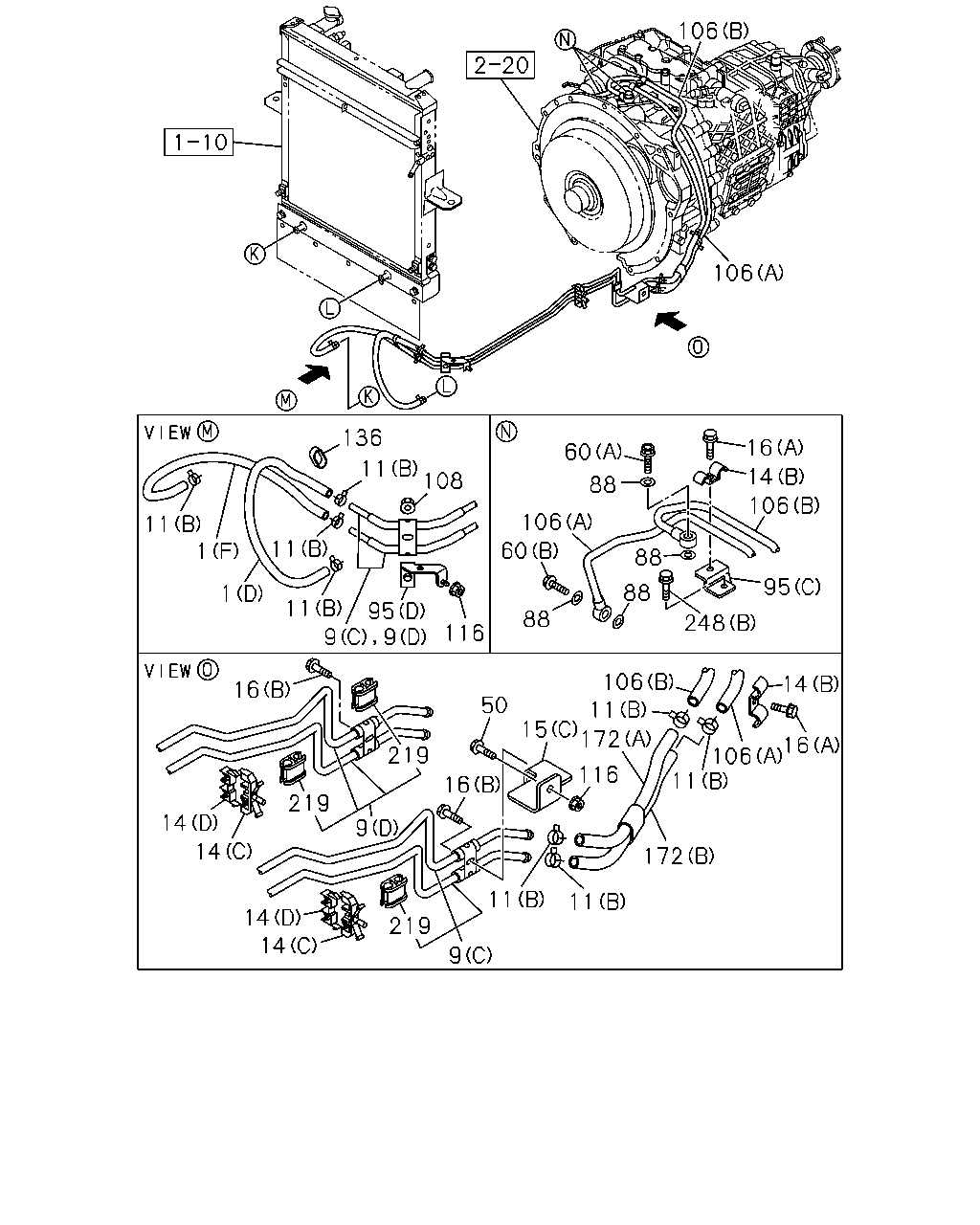

14 14 219 16 50 15 11 116 11 1 11 11 106 106 16 14 248 95 88 88 106 14 16 60 88 106 60 88 11 1 11 11 95 116 9 108 11 136 106 106 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98041-423-2	01	1	0803-0810
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-377-0	01	1	0803-0810
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-374-0	01	1	0811-0906
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-374-0	01	1	0907-
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	0803-0906
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	0907-
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98041-425-2	01	1	0803-0906
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98041-425-2	01	1	0907-
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	0803-0906
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	0907-
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98086-380-0	02	1	0803-0906
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98086-380-0	02	1	0907-
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98092-312-2	01	1	0803-0810
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98135-507-0	01	1	0811-0903
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98140-324-0	01	1	0904-0906
9	04.128 PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98140-324-0	01	1	0907-1402
9	04.128 PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98207-455-0	01	1	1403-
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-610-0	01	1	0803-0810
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98135-505-0	01	1	0811-0906
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98135-505-0	01	1	0907-
11	04.128 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	0803-0906
11	04.128 CLIP; PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	0907-
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	0803-0906
11	04.128 CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	0907-
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	12	1	0803-0906
11	04.128 CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	12	1	0907-
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0803-
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0803-0906
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0907-
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0803-0906
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0907-
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0803-0906
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0907-
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	0803-0906
15	04.128 BRACKET; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	0907-
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-763-0	01	1	0803-0906
15	04.128 BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-763-0	01	1	0907-
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	0803-0906
15	04.128 BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	0907-
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0803-0906
16	04.128 BOLT; CLIP,ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0907-
50	04.128 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0803-0906
50	04.128 BOLT; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-
50	04.128 BOLT; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0907-
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	0803-
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0803-0805
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0803-
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97349-876-0	01	1	0803-
95	04.128 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-4	01	1	0803-0906
95	04.128 BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-5	01	1	0907-
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-762-0	01	1	0803-0906
95	04.128 BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-762-0	01	1	0907-
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-619-0	01	1	0803-0906
95	04.128 BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-619-0	01	1	0907-
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98017-110-0	01	1	0803-
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	0803-
108	04.128 NUT; PIPE CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE	0-91180-106-0	01	1	0803-0906
108	04.128 NUT; PIPE CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0906
116	04.128 NUT; BRKT,FLEX HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-
136	04.128 CLIP; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	01	1	0803-0906
136	04.128 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	01	1	0907-
219	04.128 CLIP; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	01	1	0803-0906
219	04.128 CLIP; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	01	1	0907-1402
219	04.128 CLIP; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=10X2 H=22	8-94252-455-2	02	1	1403-
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-0906
248	04.128 BOLT; RETAINER 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0907-

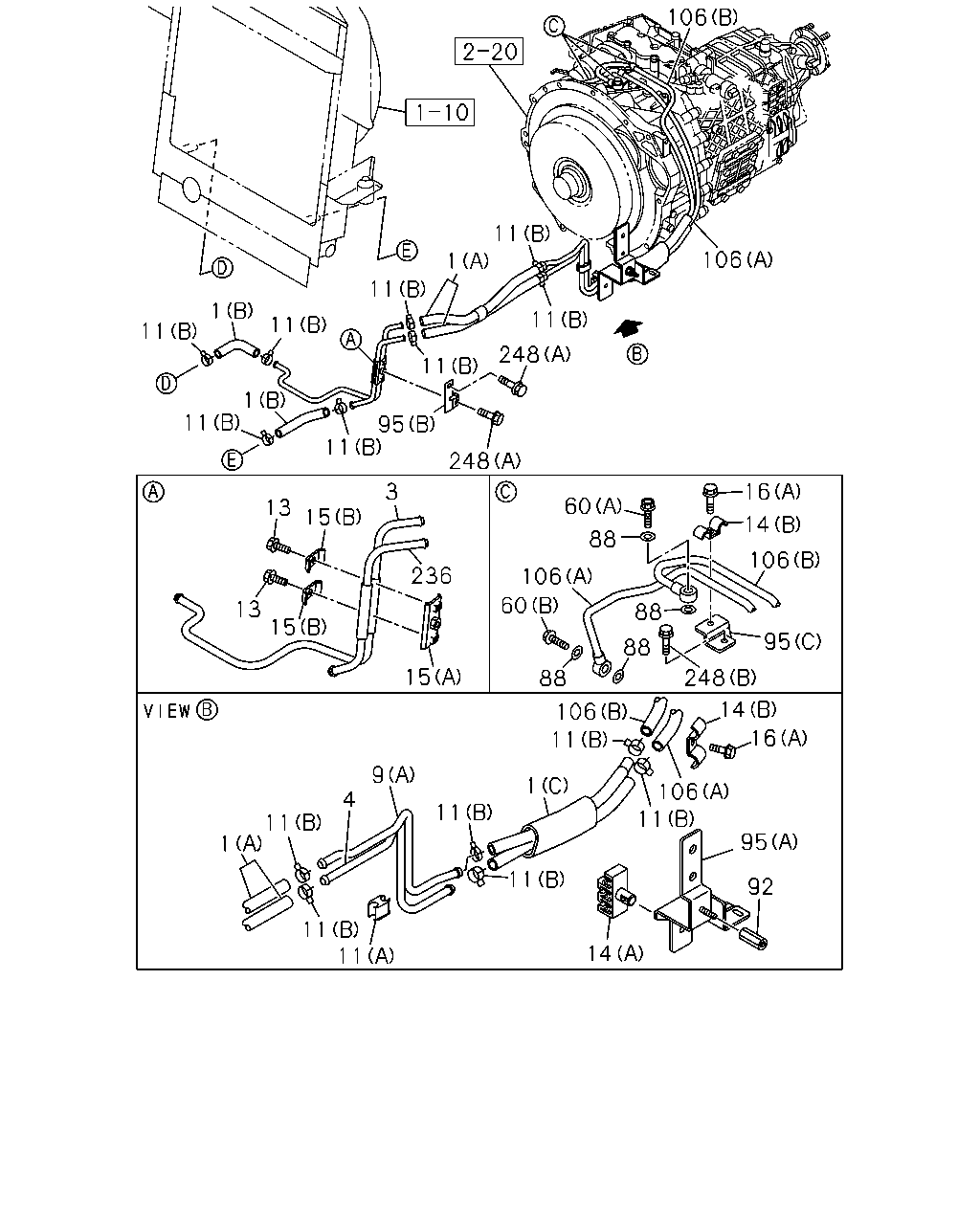

11 1 11 11 1 13 11 11 1 11 106 106 1 11 11 4 11 9 11 11 1 11 11 14 106 106 95 92 16 14 248 88 88 88 95 106 60 15 15 13 15 3 95 11 11 248 248 60 88 106 16 14 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98041-423-2	01	1	0803-0810
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-377-0	01	1	0803-0810
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-374-0	01	1	0811-0906
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98086-374-0	01	1	0907-
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	0803-0906
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98041-422-2	01	1	0907-
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98041-425-2	01	1	0803-0906
1	04.128 HOSE; ATF 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98041-425-2	01	1	0907-
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	0803-0906
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98086-370-0	01	1	0907-
1	04.128 HOSE; ATF TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98086-380-0	02	1	0803-0906
1	04.128 HOSE; ATF 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98086-380-0	02	1	0907-
3	04.128 PIPE; OIL,A/T TO OIL COOLER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-093-1	01	1	0803-0906
3	04.128 PIPE; OIL,A/T TO OIL COOLER 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-093-1	01	1	0907-
4	04.128 PIPE; ATF,OUTLET,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98081-268-0	01	1	0803-0810
4	04.128 PIPE; ATF,OUTLET,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-506-0	01	1	0811-0906
4	04.128 PIPE; ATF,OUTLET,A/T 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98135-506-0	01	1	0907-
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98092-312-2	01	1	0803-0810
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98135-507-0	01	1	0811-0903
9	04.128 PIPE; ATF,INL,A/T FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98140-324-0	01	1	0904-0906
9	04.128 PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98140-324-0	01	1	0907-1402
9	04.128 PIPE; ATF,INL,A/T 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98207-455-0	01	1	1403-
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-610-0	01	1	0803-0810
9	04.128 PIPE; ATF,INL,A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98135-505-0	01	1	0811-0906
9	04.128 PIPE; ATF,INL,A/T 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98135-505-0	01	1	0907-
11	04.128 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	0803-0906
11	04.128 CLIP; PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	08	1	0907-
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	0803-0906
11	04.128 CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 (A) ID=10X2 H=22	8-94252-455-2	01	1	0907-
11	04.128 CLIP; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	12	1	0803-0906
11	04.128 CLIP; PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	12	1	0907-
13	04.128 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> M6X25 W/LK WASHER	0-50540-625-0	02	1	0803-0906
13	04.128 BOLT; BRKT 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> M6X25 W/LK WASHER	0-50540-625-0	02	1	0907-
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0803-
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0803-0906
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0907-
14	04.128 CLIP; PIPE TO ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0803-0906
14	04.128 CLIP; PIPE TO ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 (C) ID=10 & 4.76X3	8-97326-158-1	01	1	0907-
14	04.128 CLIP; PIPE TO ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0803-0906
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0907-
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	0803-0906
15	04.128 BRACKET; ATF PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98041-180-3	01	1	0907-
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-763-0	01	1	0803-0906
15	04.128 BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-763-0	01	1	0907-
15	04.128 BRACKET; ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	0803-0906
15	04.128 BRACKET; ATF PIPE 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-764-0	02	1	0907-
16	04.128 BOLT; CLIP,ENG SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-
16	04.128 BOLT; CLIP,ENG SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0803-0906
16	04.128 BOLT; CLIP,ENG SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0907-
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 EYE-BOLT	8-98060-382-0	01	1	0803-
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 (B) M14X30 EYE-BOLT	1-09675-146-0	01	1	0803-0805
60	04.128 BOLT; EYE,ATF PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0803-
92	04.128 NUT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10	8-98034-487-0	01	1	0803-0906
92	04.128 NUT; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10	8-98034-487-1	01	1	0907-
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97349-876-0	01	1	0803-
95	04.128 BRACKET; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-4	01	1	0803-0906
95	04.128 BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98033-840-5	01	1	0907-
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-762-0	01	1	0803-0906
95	04.128 BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98035-762-0	01	1	0907-
95	04.128 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-619-0	01	1	0803-0906
95	04.128 BRACKET; CLIP 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98057-619-0	01	1	0907-
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98017-110-0	01	1	0803-
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98035-638-0	01	1	0803-
236	04.128 PIPE; OIL,OIL COOLER TO A/T TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-094-1	01	1	0803-0906
236	04.128 PIPE; OIL,OIL COOLER TO A/T 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-094-1	01	1	0907-
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0803-
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-0906
248	04.128 BOLT; RETAINER 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
