1-56 — EXHAUST BRAKE SYSTEM (#81384) — 9 parça

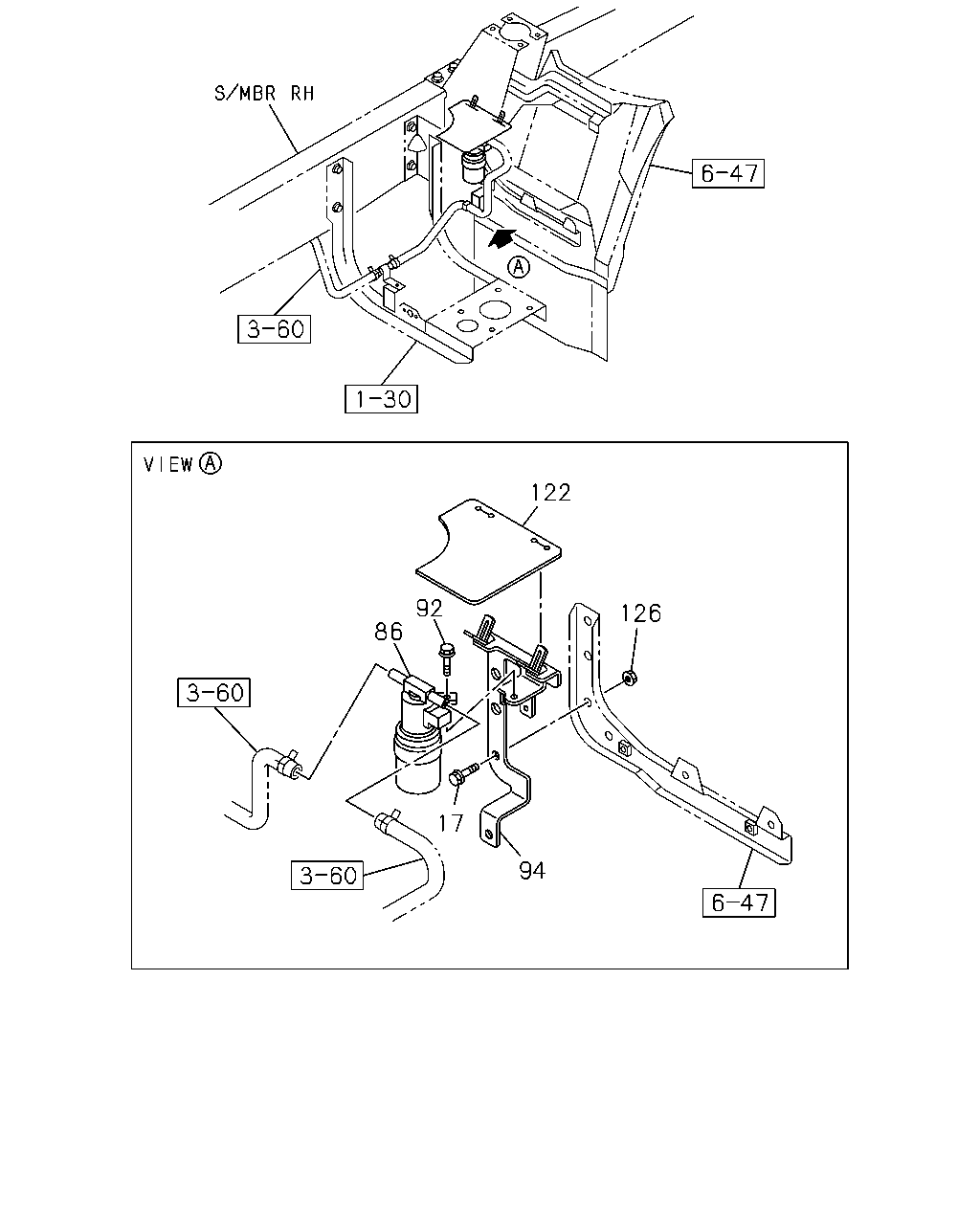

çizim 97348
122 92 126 86 17 94
BalonParca AdiParca NoAdetTipApplied Date
17 03.634 BOLT; BRKT
EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810-
86 03.636 VALVE; MAG,EXH BRK
EXHAUST BRAKE<NF8> 		8-98043-344-0 01 1 0810-
92 08.900 BOLT; MAG VLV
EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810-
94 03.634 BRACKET; MAG VLV,EXH BRAKE
EXHAUST BRAKE<NF8> 		8-98034-053-3 01 1 0810-
122 03.640 PROTECTOR; MAG VLV
EXHAUST BRAKE<NF8> 		8-98087-988-0 01 1 0810-
126 03.634 NUT; BRKT
EXHAUST BRAKE<NF8> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-
çizim 97474
1 8 5 5
BalonParca AdiParca NoAdetTipApplied Date
1 03.632 BRAKE UNIT; EXH
EXHAUST BRAKE<NF8> 		8-98033-200-1 01 1 0810-
5 03.634 GASKET; EXH BRAKE UNIT
EXHAUST BRAKE<NF8> ID=54 		8-94328-354-0 02 1 0810-
8 03.632 NUT; EXH BRAKE UNIT FIX
EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 0810-
