1-50 — EXHAUST PIPE AND SILENCER (#81382) — 109 parça

25 329 1 36 44 8 43 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> (B)	8-98108-160-0	01	1	0810-1205
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> (B)	8-98215-932-0	01	1	1206-
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8> (A)	8-98117-520-0	01	1	0810-1205
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8> (A)	8-98216-285-0	01	1	1206-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0810-
8	03.704 BRACKET; EXH PIPE 03.613	8-98020-555-0	01	1	0810-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EXHAUST BRAKE<NF8>	8-98108-164-1	01	1	0810-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0810-
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0810-1010
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1011-
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0810-
44	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-

2 36 1 329 44 8 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> (B)	8-98108-160-0	01	1	0810-1205
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> (B)	8-98215-932-0	01	1	1206-
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8> (A)	8-98117-520-0	01	1	0810-1205
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8> (A)	8-98216-285-0	01	1	1206-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0810-
8	03.704 BRACKET; EXH PIPE 03.613	8-98020-555-0	01	1	0810-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0810-
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0810-1010
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1011-
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0810-
44	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-

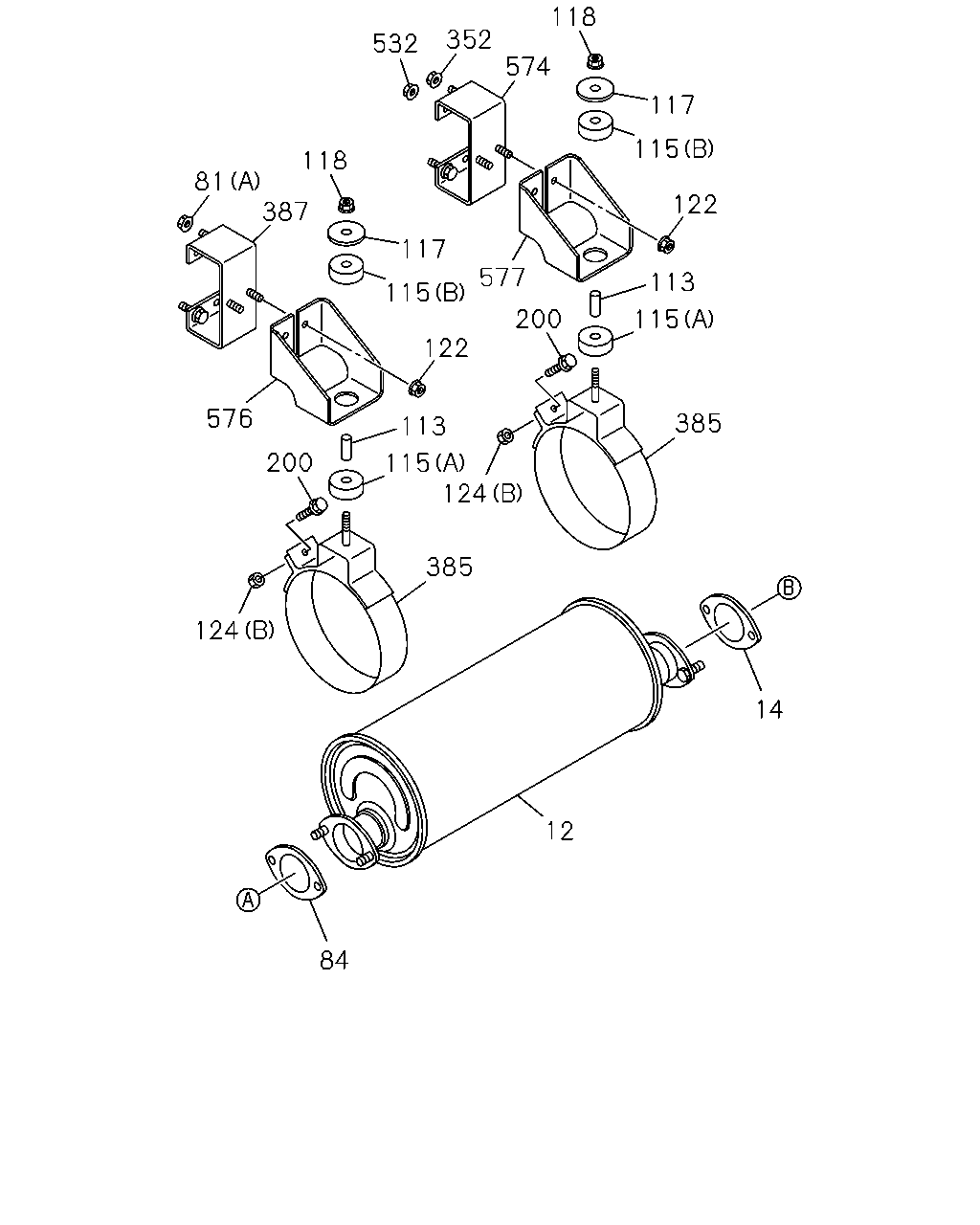

118 352 532 574 117 115 118 81 387 122 117 577 113 115 200 115 122 576 385 113 200 115 124 385 124 14 12 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH	8-98117-518-0	01	1	0810-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0810-
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0810-
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0810-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	0810-1010
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.704 ID=64.7	8-94328-352-0	01	1	0810-1010
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1011-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1011-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0810-
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	0810-
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	0810-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0810-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0810-
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER 02.334 (B) M8	0-91110-508-0	02	1	0810-
200	03.704 BOLT; SUPPORT RUBBER 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0810-0909
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
385	03.704 BRACKET; SILENCER MTG 03.706	8-97076-020-0	02	1	0810-
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	0810-
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
574	03.706 SPACER; DPD	8-98044-774-0	01	1	0810-
576	03.706 BRACKET; DPD FRT TO FRAME	8-98074-124-1	01	1	0810-
577	03.706 BRACKET; DPD RR TO FRAME	8-98074-124-1	01	1	0810-

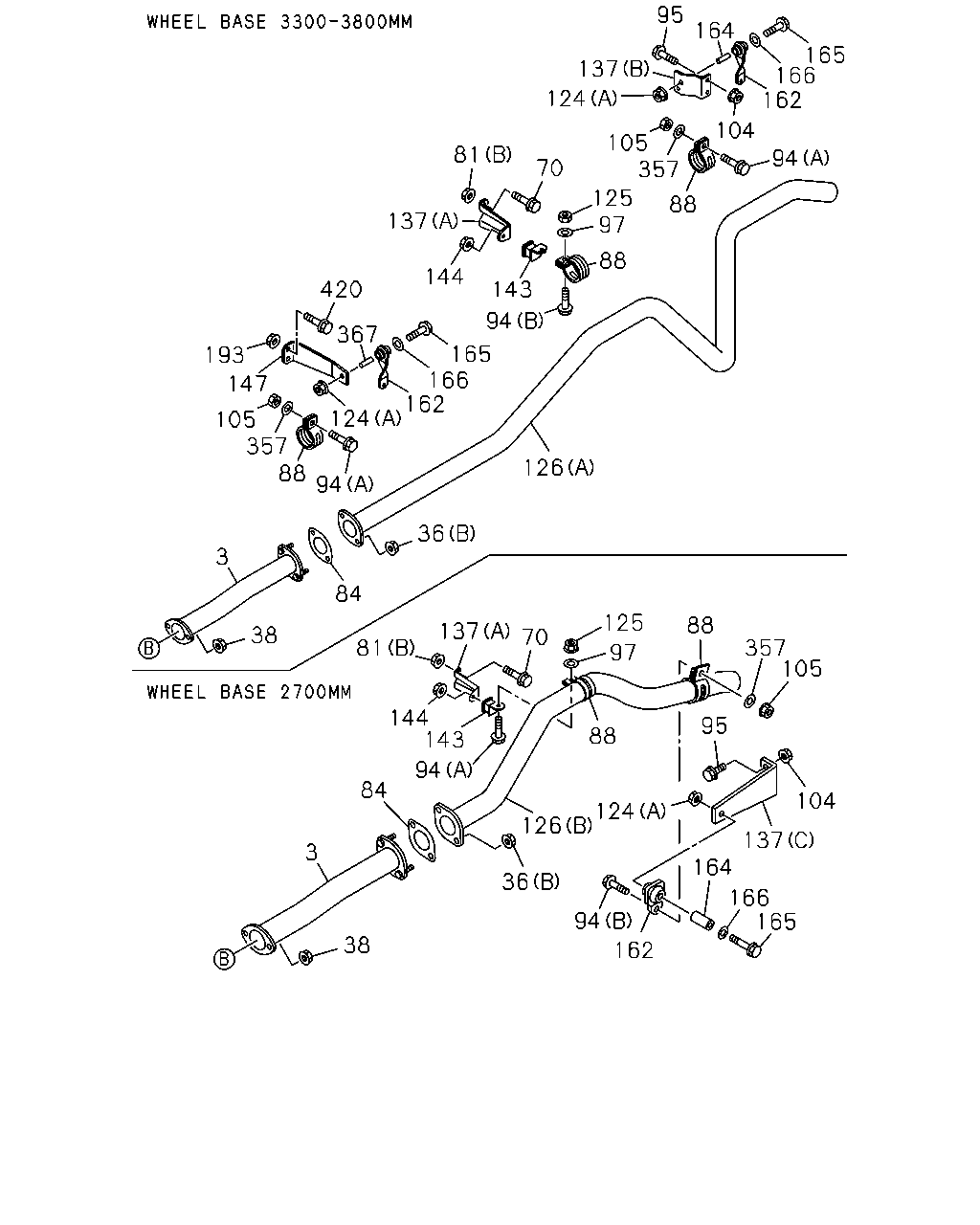

95 164 165 166 162 137 124 104 105 357 81 94 70 125 97 88 137 88 144 420 143 94 367 165 166 162 193 147 124 105 357 88 126 94 36 3 84 125 88 137 38 70 81 357 105 97 144 143 95 88 94 84 104 124 126 137 3 164 36 166 165 94 38 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3800MM(38W)	8-98117-521-0	01	1	0810-
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W)	8-98117-522-0	01	1	0810-1010
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-98117-522-0	01	1	1011-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0810-
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0810-1010
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1011-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0810-
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0810-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	0810-1010
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.704 ID=64.7	8-94328-352-0	01	1	0810-1010
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1011-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1011-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0810-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97373-158-0	01	1	0810-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0810-
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
94	03.704 BOLT; CLAMP 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
94	03.704 BOLT; CLAMP 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	0810-
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0810-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0810-
105	03.704 NUT; CLAMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.833 M10	0-91110-510-0	01	1	0810-
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER 02.334 (B) M8	0-91110-508-0	02	1	0810-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0810-
126	03.705 PIPE; EXH,RR (A)	8-98090-128-1	01	1	0810-
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) (B)	8-98078-964-0	01	1	1011-
137	03.706 BRACKET; TAIL PIPE 03.613 (A)	8-97096-651-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	0810-1010
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	1011-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) (C)	8-97169-014-0	01	1	1011-
143	03.704 RUBBER; SUPPORT	8-98034-767-0	01	1	0810-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-
147	03.704 BRACKET; VERTICAL PIPE	8-98117-604-0	01	1	0810-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) L=115	8-98034-765-0	01	1	0810-1010
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0810-1010
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) L=115	8-98034-765-0	01	1	1011-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) L=115	8-98034-765-0	01	1	1011-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2700MM(27W)	8-98032-150-0	01	1	1011-
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0810-1010
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1011-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2700MM(27W) L=23	8-98006-011-0	01	1	1011-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X70 FLANGE	0-28051-070-0	01	1	0810-1010
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0810-1010
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X70 FLANGE	0-28051-070-0	01	1	1011-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X70 FLANGE	0-28051-070-0	01	1	1011-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1011-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-
193	03.704 NUT; BRKT,VERTICAL PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
357	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-
367	03.704 COLLAR; DIST,SUPPORT RUBBER 03.706 L=37.5	9-22151-217-0	01	1	0810-
420	03.704 BOLT; BRKT,VERTICAL PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
