◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51396 - NPR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#81376) — 19 parça

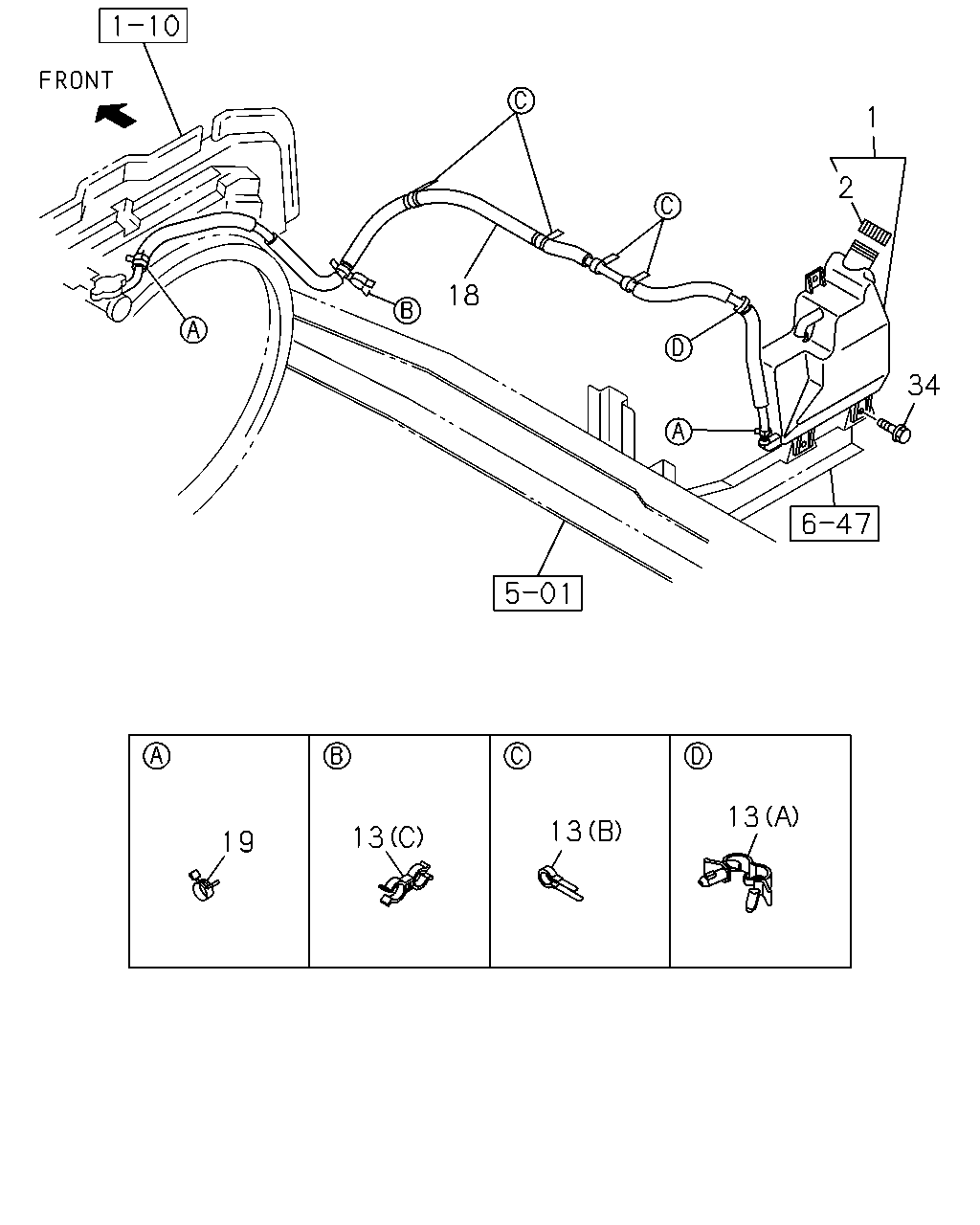

çizim 89206
1 2 18 34 13 13 13 19
BalonParca AdiParca NoAdetTipApplied Date
1 01.219 TANK; SURGE,RAD 8-97387-632-1 01 1 0810-1010
1 01.219 TANK; SURGE,RAD 8-98178-179-0 01 1 1011-
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0810-1010
2 01.203 CAP; SURGE TANK 8-98178-074-0 01 1 1011-
13 01.240 CLIP; HOSE,SURGE TANK
03.162 (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0810-
13 01.240 CLIP; HOSE,SURGE TANK
(B) ID=14 L=47 		5-09700-319-0 04 1 0810-
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (C) ID=10 & 11 		8-94438-996-0 01 1 0810-
18 01.240 HOSE; RAD TO SURGE TANK
L=1490 		8-98095-673-0 01 1 0810-
19 01.240 CLIP; HOSE,SURGE TANK
01.219 ID=12 		8-94238-610-0 02 1 0810-0911
19 01.240 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 0912-
34 01.203 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 0810-

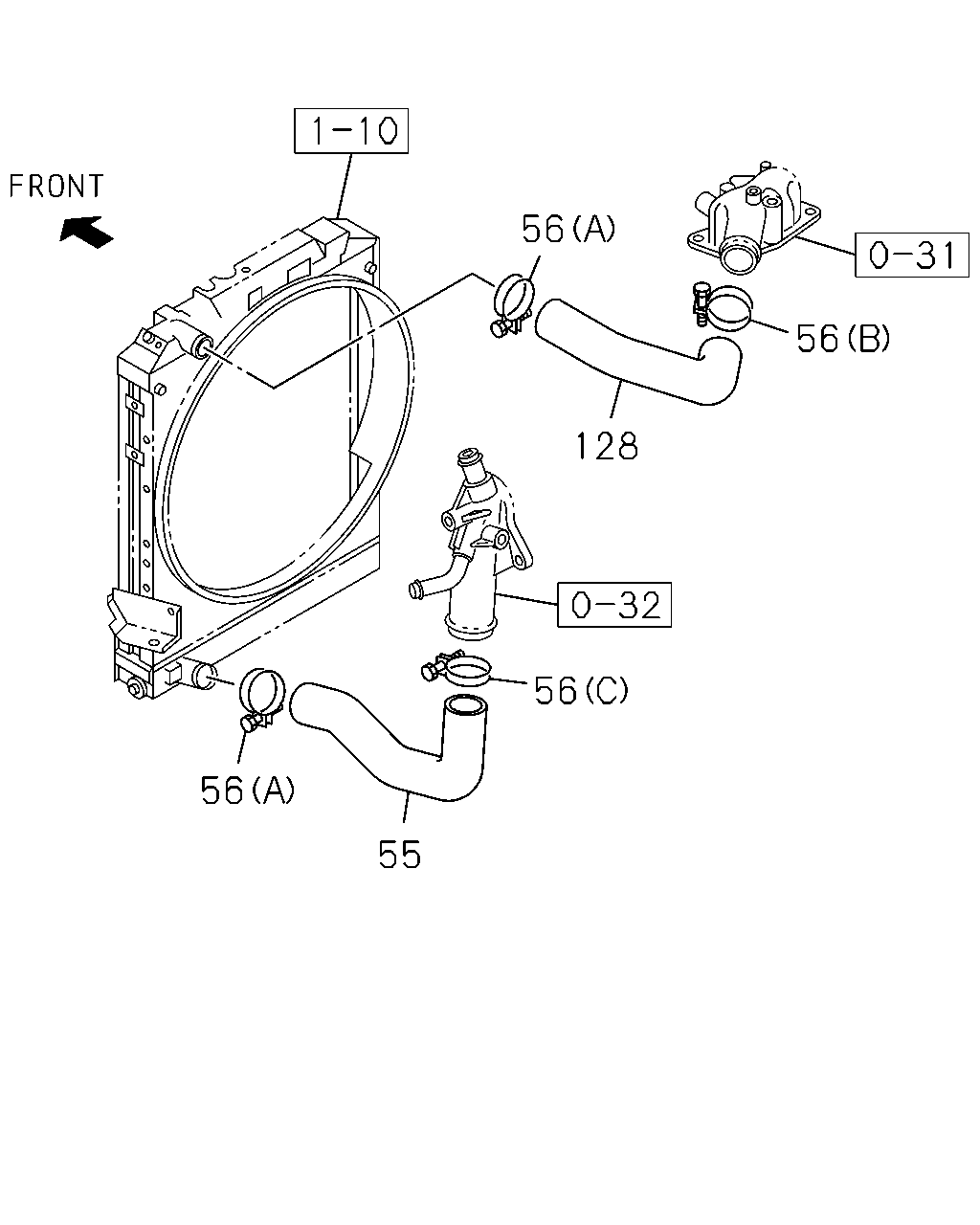

çizim 183656
56 56 128 56 56 55
BalonParca AdiParca NoAdetTipApplied Date
55 01.173 HOSE; WATER,RAD OUTLET 8-98095-579-0 01 1 0810-
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98036-282-0 02 1 0810-0901
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 02 1 0902-
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=52 		8-98036-283-0 01 1 0810-0901
56 01.166 CLIP; WATER HOSE,RAD
00.413 (B) ID=52 		1-09704-057-0 01 1 0902-
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98036-284-0 01 1 0810-0901
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98133-957-0 01 1 0902-
128 01.159 HOSE; WATER,RAD INL 8-98095-578-0 01 1 0810-
