2-75 — TRANSFER CONTROL (#8137) — 228 parça

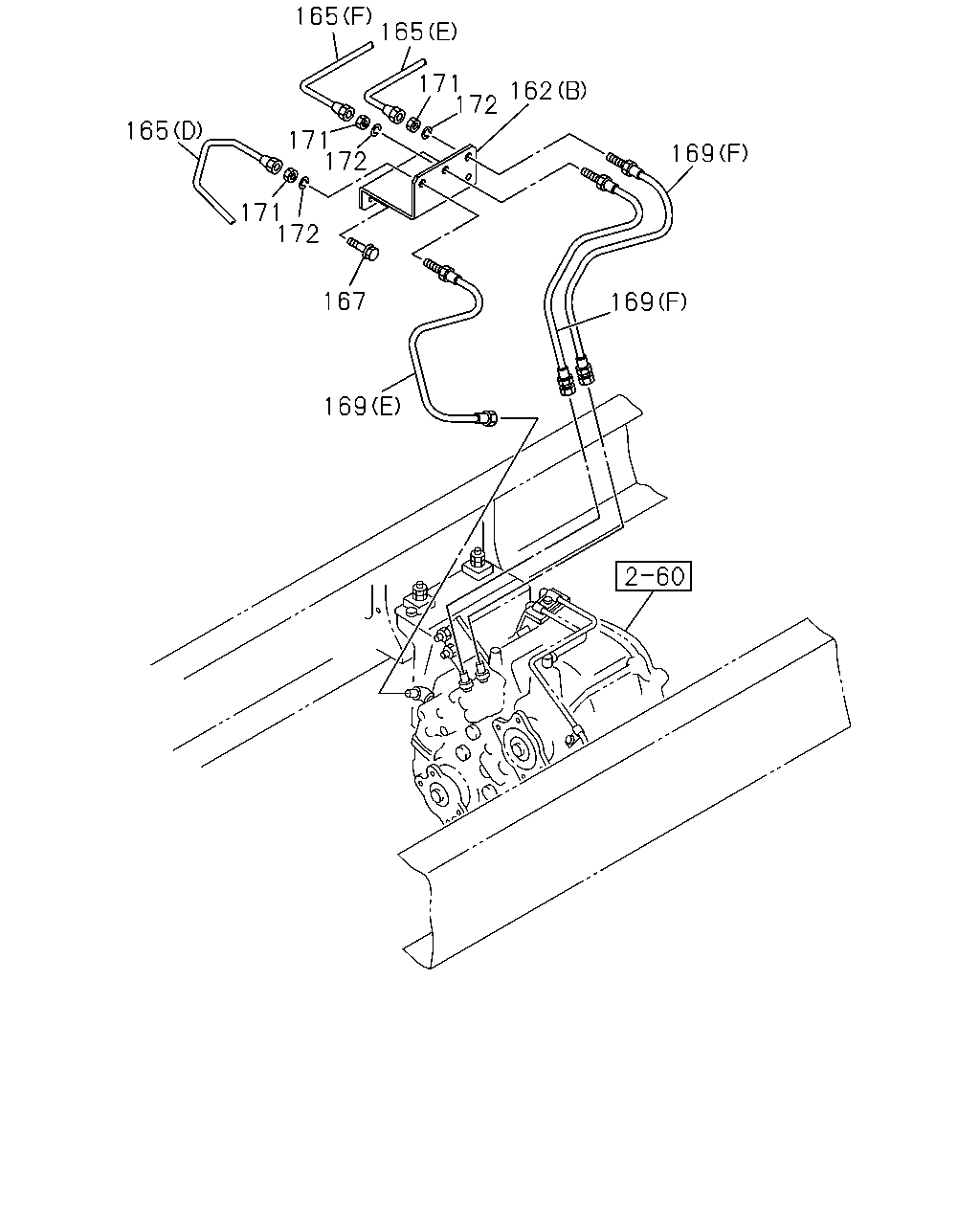

çizim 77286
165 165 171 172 162 165 171 172 169 171 172 167 169 169
BalonParca AdiParca NoAdetTipApplied Date A B C D
162 BRACKET; FLEX HOSE,TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-47476-553-1 01 1 0005-0210 ● ●
162 BRACKET; FLEX HOSE,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-47476-553-1 01 1 0005-0210 ● ●
162 BRACKET; FLEX HOSE,TRANSFER
(B) 		1-47479-525-0 01 1 0211- ● ●
162 BRACKET; FLEX HOSE,TRANSFER
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A) 		1-47478-885-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1594 SERVICED BY L=1620 		1-47428-820-0 01 1 0005-0006 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=718 SERVICED BY L=1620 		1-47428-820-0 01 1 0007-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(F) 		1-49123-731-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(D) L=1625 SERVICED BY L=1700 		1-47428-821-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) 		1-49123-730-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-49115-609-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-49115-610-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD7Q M/T(X5K) (C) L=1013 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD7Q M/T(X5K) (B) L=1089 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD7Q M/T(X5K) (A) L=2398 SERVICED BY L=2500 		1-47428-826-0 01 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 03 1 0005-0512 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 03 1 0601- ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 05 1 0211-0512 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 05 1 0601- ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ● ● ● ●
167 BOLT; CLIP,AIR PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X50 FLANGE 		0-28080-850-0 01 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
MLD7Q M/T(X5K) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (A) L=260 		0-07120-260-0 01 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (B) L=300 		1-09363-608-0 02 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
(F) L=320 		1-09363-656-0 02 1 0211- ● ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (B) L=300 		0-07120-300-0 02 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (A) L=260 		1-09363-609-0 01 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
(E) OD=12.7 L=450 		1-09363-631-0 01 1 0211- ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) L=300 		0-07120-300-0 01 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) L=300 		1-09363-608-0 01 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
(D) L=370 		1-09363-771-0 01 1 0211-0506 ● ●
169 HOSE; FLEX,TRANSFER CONT
(D) L=340 		1-09363-617-0 01 1 0507- ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) L=340 		0-07120-340-0 02 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) L=340 		1-09363-622-0 02 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (B) L=370 		0-07120-370-0 02 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (B) L=370 		1-09363-621-0 02 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
(C) L=460 		1-09363-648-0 02 1 0211- ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A) L=450 		0-07120-450-0 01 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A) OD=12.7 L=450 		1-09363-631-0 01 1 0205-0210 ● ●
171 NUT; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M12 		9-09840-280-0 03 1 0005-0210 ● ● ● ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0211- ● ●
172 WASHER; LK,FLEX HOSE
TRANSMISSION OIL COOLER<C2C> ID=12.2 		9-09150-512-0 03 1 0005-0210 ● ● ● ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 03 1 0211-0603 ● ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 03 1 0604- ● ●

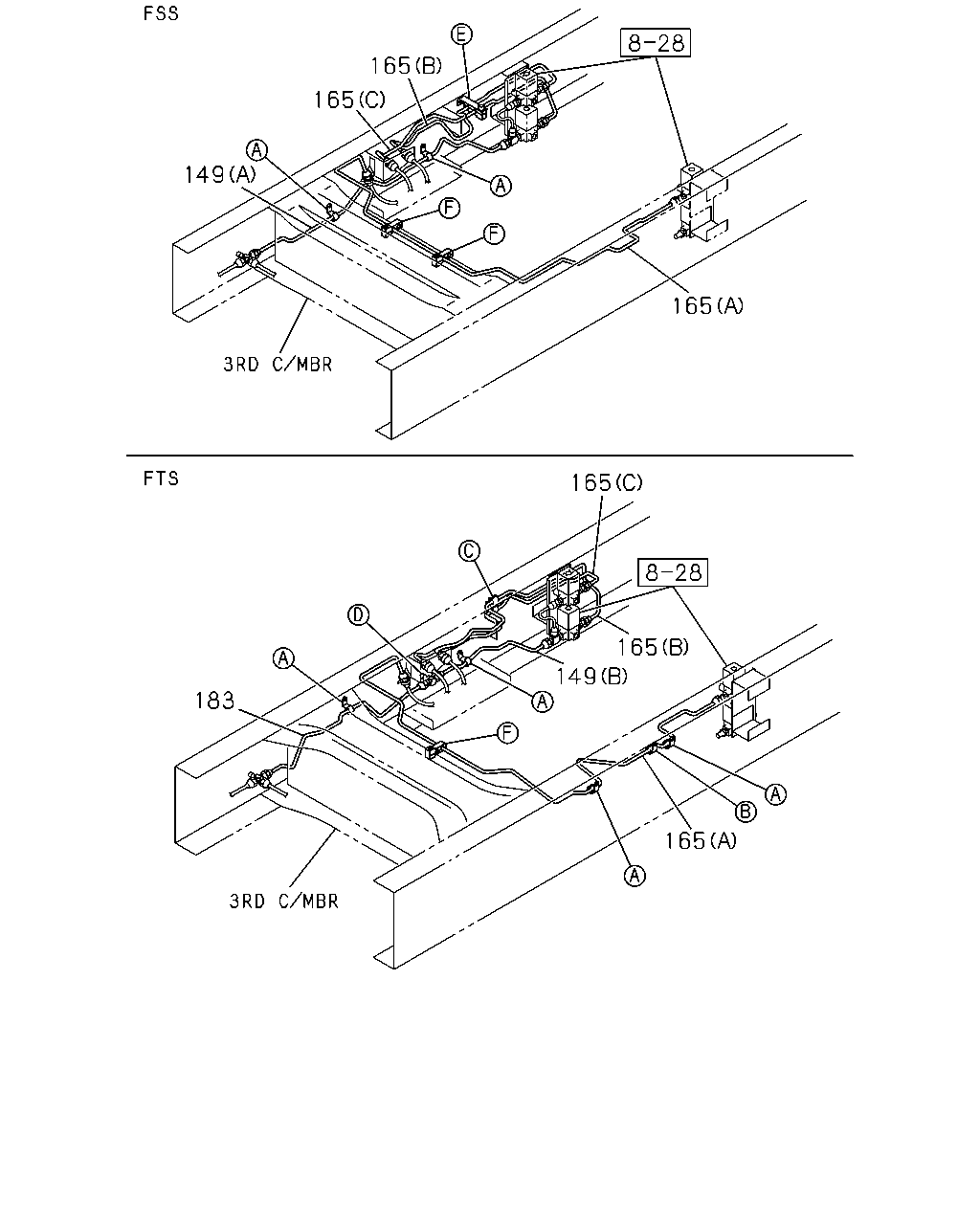

çizim 78036
165 165 149 165 165 165 149 183 165
BalonParca AdiParca NoAdetTipApplied Date A B C D
149 PIPE; AIR,MAG VLV TO UNION
(A) 		1-49116-375-0 01 1 0005-0210 ● ●
149 PIPE; AIR,MAG VLV TO UNION
(D) 		1-49123-605-0 01 1 0211- ● ●
149 PIPE; AIR,MAG VLV TO UNION
(C) 		1-49123-729-0 01 1 0211- ● ●
149 PIPE; AIR,MAG VLV TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-49116-484-0 01 1 0005-0210 ● ●
149 PIPE; AIR,MAG VLV TO UNION
(E) SERVICED BY L=1620 		1-47428-820-0 01 1 0211- ● ●
149 PIPE; AIR,MAG VLV TO UNION
MLD7Q M/T(X5K) (B) L=1013 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ● ●
149 PIPE; AIR,MAG VLV TO UNION
(F) 		1-49123-224-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1594 SERVICED BY L=1620 		1-47428-820-0 01 1 0005-0006 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=718 SERVICED BY L=1620 		1-47428-820-0 01 1 0007-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(F) 		1-49123-731-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(D) L=1625 SERVICED BY L=1700 		1-47428-821-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) 		1-49123-730-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-49115-609-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-49115-610-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD7Q M/T(X5K) (C) L=1013 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD7Q M/T(X5K) (B) L=1089 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD7Q M/T(X5K) (A) L=2398 SERVICED BY L=2500 		1-47428-826-0 01 1 0005-0210 ● ●
183 PIPE; AIR,UNION TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-49116-483-0 01 1 0005-0210 ● ●
183 PIPE; AIR,UNION TO UNION
MLD7Q M/T(X5K) L=599 SERVICED BY L=600 		1-47428-809-0 01 1 0005-0210 ● ●
183 PIPE; AIR,UNION TO UNION 1-49123-604-0 01 1 0211- ● ●

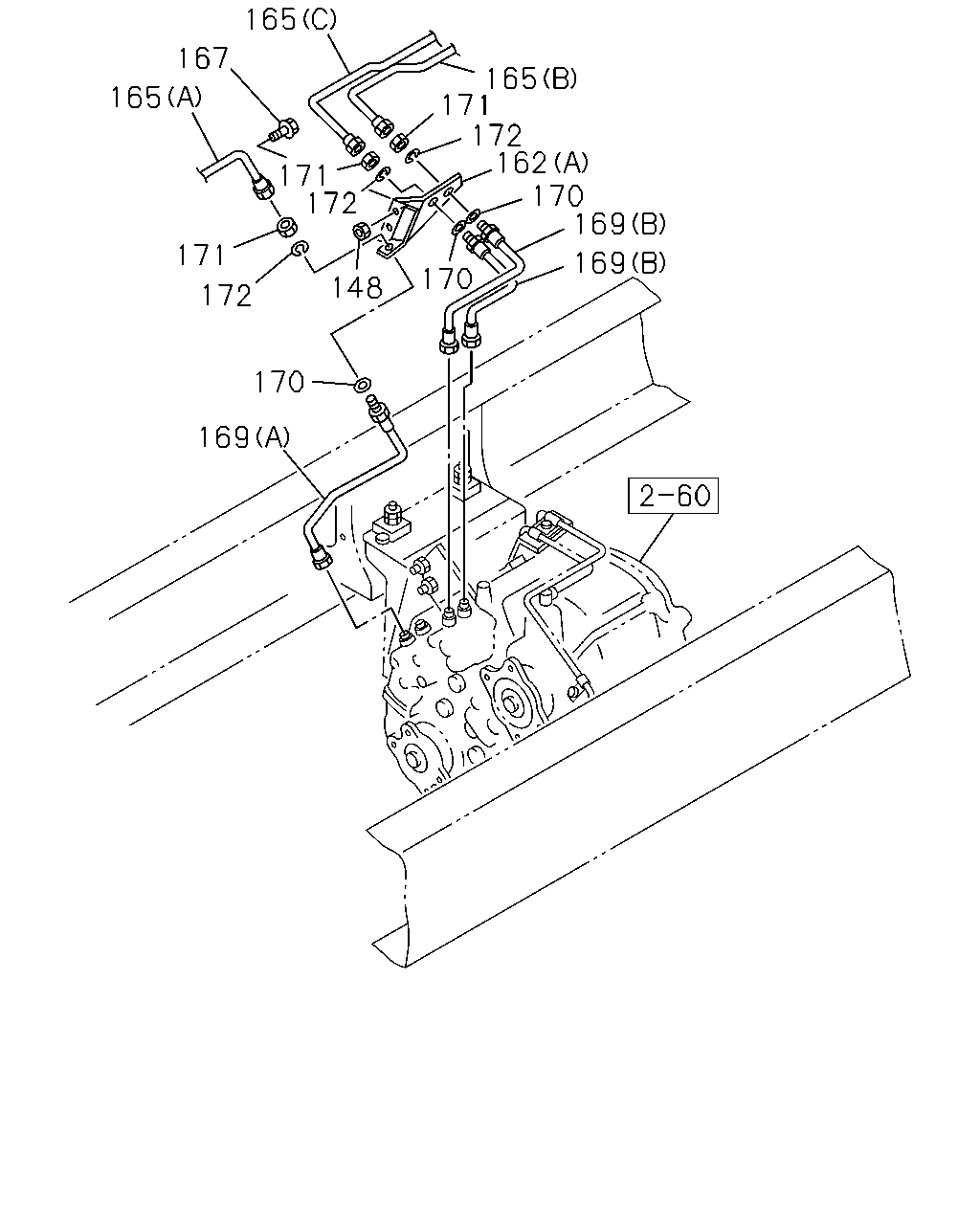

çizim 78042
165 167 165 171 172 162 170 169 165 171 172 171 169 170 148 172 170 169
BalonParca AdiParca NoAdetTipApplied Date A B C D
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 06 1 0211-0602 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
148 NUT; CLIP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
162 BRACKET; FLEX HOSE,TRANSFER
TRANSMISSION OIL COOLER<C2C> (A) 		1-47476-553-1 01 1 0005-0210 ● ●
162 BRACKET; FLEX HOSE,TRANSFER
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) 		1-47476-553-1 01 1 0005-0210 ● ●
162 BRACKET; FLEX HOSE,TRANSFER
(B) 		1-47479-525-0 01 1 0211- ● ●
162 BRACKET; FLEX HOSE,TRANSFER
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A) 		1-47478-885-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1594 SERVICED BY L=1620 		1-47428-820-0 01 1 0005-0006 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=718 SERVICED BY L=1620 		1-47428-820-0 01 1 0007-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(F) 		1-49123-731-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(D) L=1625 SERVICED BY L=1700 		1-47428-821-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) 		1-49123-730-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-49115-609-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-49115-610-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD7Q M/T(X5K) (C) L=1013 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD7Q M/T(X5K) (B) L=1089 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD7Q M/T(X5K) (A) L=2398 SERVICED BY L=2500 		1-47428-826-0 01 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 03 1 0005-0512 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 03 1 0601- ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 05 1 0211-0512 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 05 1 0601- ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ● ● ● ●
167 BOLT; CLIP,AIR PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X50 FLANGE 		0-28080-850-0 01 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
MLD7Q M/T(X5K) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (A) L=260 		0-07120-260-0 01 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (B) L=300 		1-09363-608-0 02 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
(F) L=320 		1-09363-656-0 02 1 0211- ● ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (B) L=300 		0-07120-300-0 02 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (A) L=260 		1-09363-609-0 01 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
(E) OD=12.7 L=450 		1-09363-631-0 01 1 0211- ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) L=300 		0-07120-300-0 01 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) L=300 		1-09363-608-0 01 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
(D) L=370 		1-09363-771-0 01 1 0211-0506 ● ●
169 HOSE; FLEX,TRANSFER CONT
(D) L=340 		1-09363-617-0 01 1 0507- ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) L=340 		0-07120-340-0 02 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) L=340 		1-09363-622-0 02 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (B) L=370 		0-07120-370-0 02 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (B) L=370 		1-09363-621-0 02 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
(C) L=460 		1-09363-648-0 02 1 0211- ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A) L=450 		0-07120-450-0 01 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A) OD=12.7 L=450 		1-09363-631-0 01 1 0205-0210 ● ●
170 GASKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> ID=11 OD=18 		9-09572-510-0 03 1 0005-0204 ● ● ● ●
171 NUT; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M12 		9-09840-280-0 03 1 0005-0210 ● ● ● ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0211- ● ●
172 WASHER; LK,FLEX HOSE
TRANSMISSION OIL COOLER<C2C> ID=12.2 		9-09150-512-0 03 1 0005-0210 ● ● ● ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 03 1 0211-0603 ● ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 03 1 0604- ● ●

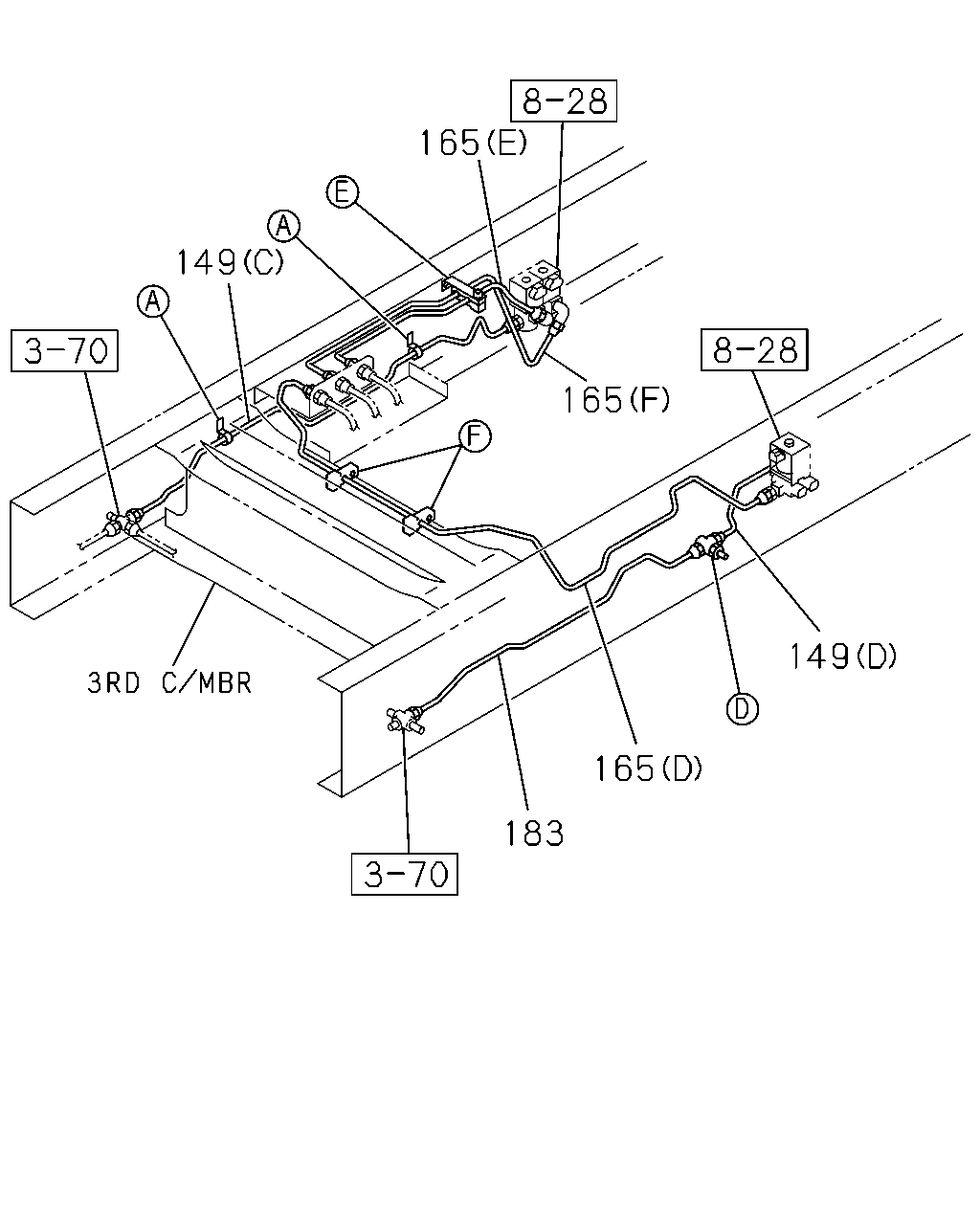

çizim 79018
165 149 165 149 165 183
BalonParca AdiParca NoAdetTipApplied Date A B C D
149 PIPE; AIR,MAG VLV TO UNION
(A) 		1-49116-375-0 01 1 0005-0210 ● ●
149 PIPE; AIR,MAG VLV TO UNION
(D) 		1-49123-605-0 01 1 0211- ● ●
149 PIPE; AIR,MAG VLV TO UNION
(C) 		1-49123-729-0 01 1 0211- ● ●
149 PIPE; AIR,MAG VLV TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-49116-484-0 01 1 0005-0210 ● ●
149 PIPE; AIR,MAG VLV TO UNION
(E) SERVICED BY L=1620 		1-47428-820-0 01 1 0211- ● ●
149 PIPE; AIR,MAG VLV TO UNION
MLD7Q M/T(X5K) (B) L=1013 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ● ●
149 PIPE; AIR,MAG VLV TO UNION
(F) 		1-49123-224-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=1594 SERVICED BY L=1620 		1-47428-820-0 01 1 0005-0006 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=718 SERVICED BY L=1620 		1-47428-820-0 01 1 0007-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(F) 		1-49123-731-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=843 		1-49113-917-3 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(D) L=1625 SERVICED BY L=1700 		1-47428-821-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) 		1-49119-379-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) 		1-49123-730-0 01 1 0211- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A) L=1859 SERVICED BY L=2000 		1-47426-359-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-49115-609-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (C) 		1-49115-610-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD7Q M/T(X5K) (C) L=1013 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD7Q M/T(X5K) (B) L=1089 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
MLD7Q M/T(X5K) (A) L=2398 SERVICED BY L=2500 		1-47428-826-0 01 1 0005-0210 ● ●
183 PIPE; AIR,UNION TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) 		1-49116-483-0 01 1 0005-0210 ● ●
183 PIPE; AIR,UNION TO UNION
MLD7Q M/T(X5K) L=599 SERVICED BY L=600 		1-47428-809-0 01 1 0005-0210 ● ●
183 PIPE; AIR,UNION TO UNION 1-49123-604-0 01 1 0211- ● ●

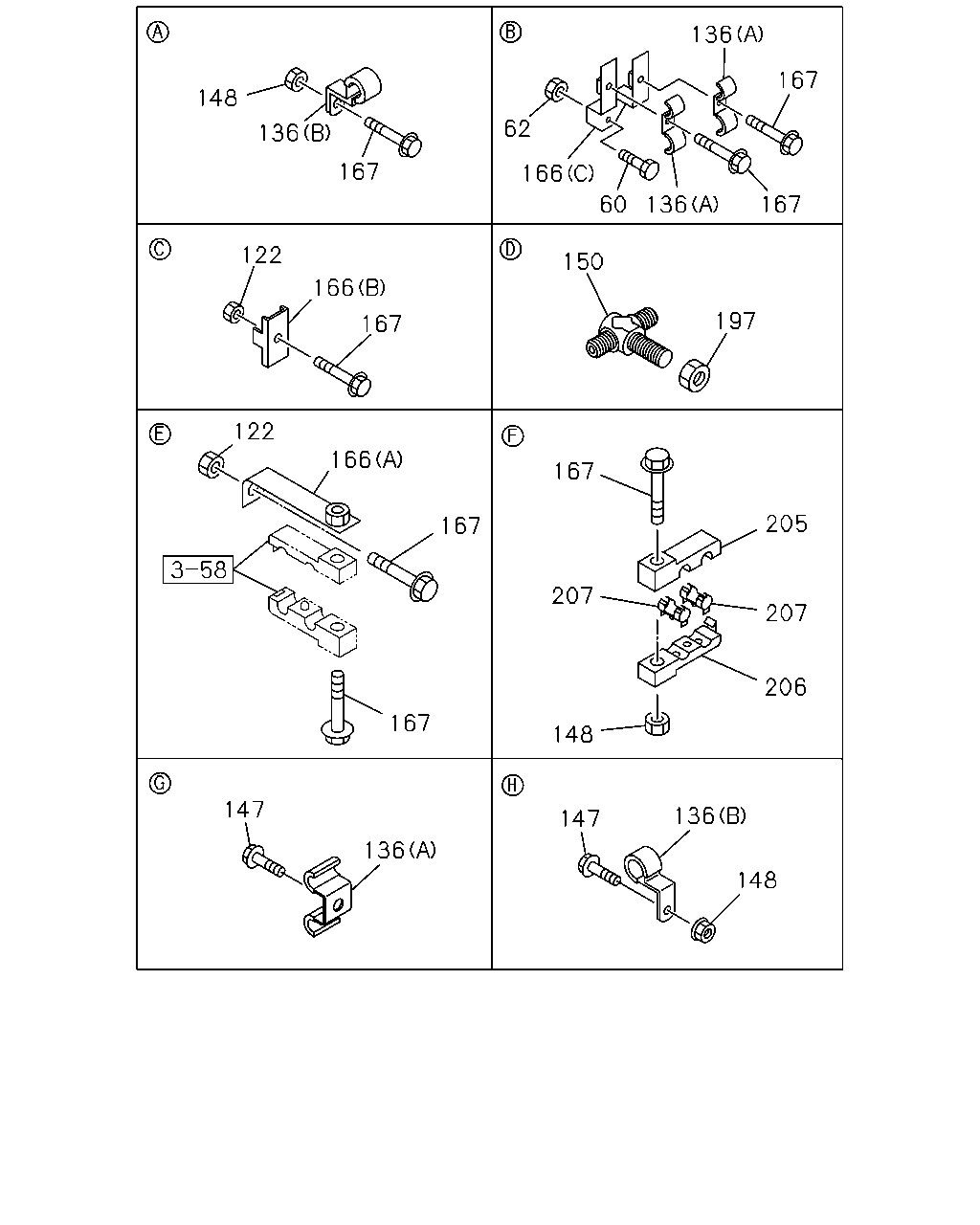

çizim 79156
136 167 148 62 136 167 166 60 136 167 122 150 166 197 167 122 166 167 205 167 207 207 206 167 148 147 136 147 136 148
BalonParca AdiParca NoAdetTipApplied Date A B C D
60 BOLT; BRKT
MLD7Q M/T(X5K) M8X25 FLANGE 		0-28680-825-0 01 1 0005-0210 ● ●
62 NUT; BRKT
MLD7Q M/T(X5K) M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ● ●
122 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ● ● ● ●
122 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
122 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
136 CLIP; AIR PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 0005-0210 ● ● ● ●
136 CLIP; AIR PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 02 1 0211- ● ●
136 CLIP; AIR PIPE
(A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0005- ● ●
136 CLIP; AIR PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) ID=6 H=20 L=20 		1-09700-603-0 02 1 0005-0210 ● ●
136 CLIP; AIR PIPE
MLD7Q M/T(X5K) (A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0005-0210 ● ●
136 CLIP; AIR PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 0211- ● ●
147 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0211-0512 ● ●
147 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ●
147 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ● ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 06 1 0211-0602 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
148 NUT; CLIP
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
150 UNION; AIR PIPE
M12 2WAY 		1-09654-234-2 01 1 0005-0210 ● ●
150 UNION; AIR PIPE
M12 2WAY 		1-09654-234-2 01 1 0211- ● ●
166 BRACKET; CLIP,AIR PIPE
(A) 		1-23335-352-0 01 1 0005- ● ●
166 BRACKET; CLIP,AIR PIPE
(B) 		1-47475-427-1 01 1 0005-0210 ● ●
166 BRACKET; CLIP,AIR PIPE
MLD7Q M/T(X5K) (C) M8 W/NUT 		1-47475-439-2 01 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28080-850-0 03 1 0005-0512 ● ●
167 BOLT; CLIP,AIR PIPE
M8X50 FLANGE 		0-28050-850-0 03 1 0601- ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 05 1 0211-0512 ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 05 1 0601- ● ●
167 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ● ● ● ●
167 BOLT; CLIP,AIR PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
M8X40 FLANGE 		0-28680-840-0 01 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) M8X50 FLANGE 		0-28080-850-0 01 1 0005-0210 ● ●
167 BOLT; CLIP,AIR PIPE
MLD7Q M/T(X5K) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ● ●
197 NUT; UNION
M12 		9-99111-412-0 01 1 0005-0210 ● ●
197 NUT; UNION
M12 FLANGE 		0-91150-212-0 01 1 0211-0602 ● ●
197 NUT; UNION
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 04 1 0211- ● ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 02 1 0005-0210 ● ●
205 CLIP; UPR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) ID=10 & 10 		1-09709-241-0 01 1 0005-0210 ● ●
206 CLIP; LWR
ID=10 & 10 		1-09709-243-0 04 1 0211- ● ●
206 CLIP; LWR
ID=10 & 10 		1-09709-243-0 02 1 0005-0210 ● ●
206 CLIP; LWR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) ID=10 & 10 		1-09709-243-0 01 1 0005-0210 ● ●
207 COLLAR
ID=6 		1-47459-010-0 04 1 0211- ● ●
207 COLLAR
ID=8 		1-47459-011-0 04 1 0211- ● ●
207 COLLAR
ID=6 		1-47459-010-0 02 1 0005-0210 ● ●
207 COLLAR
ID=8 		1-47459-011-0 02 1 0005-0210 ● ●
207 COLLAR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) ID=6 		1-47459-010-0 01 1 0005-0210 ● ●
207 COLLAR
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) ID=8 		1-47459-011-0 01 1 0005-0210 ● ●

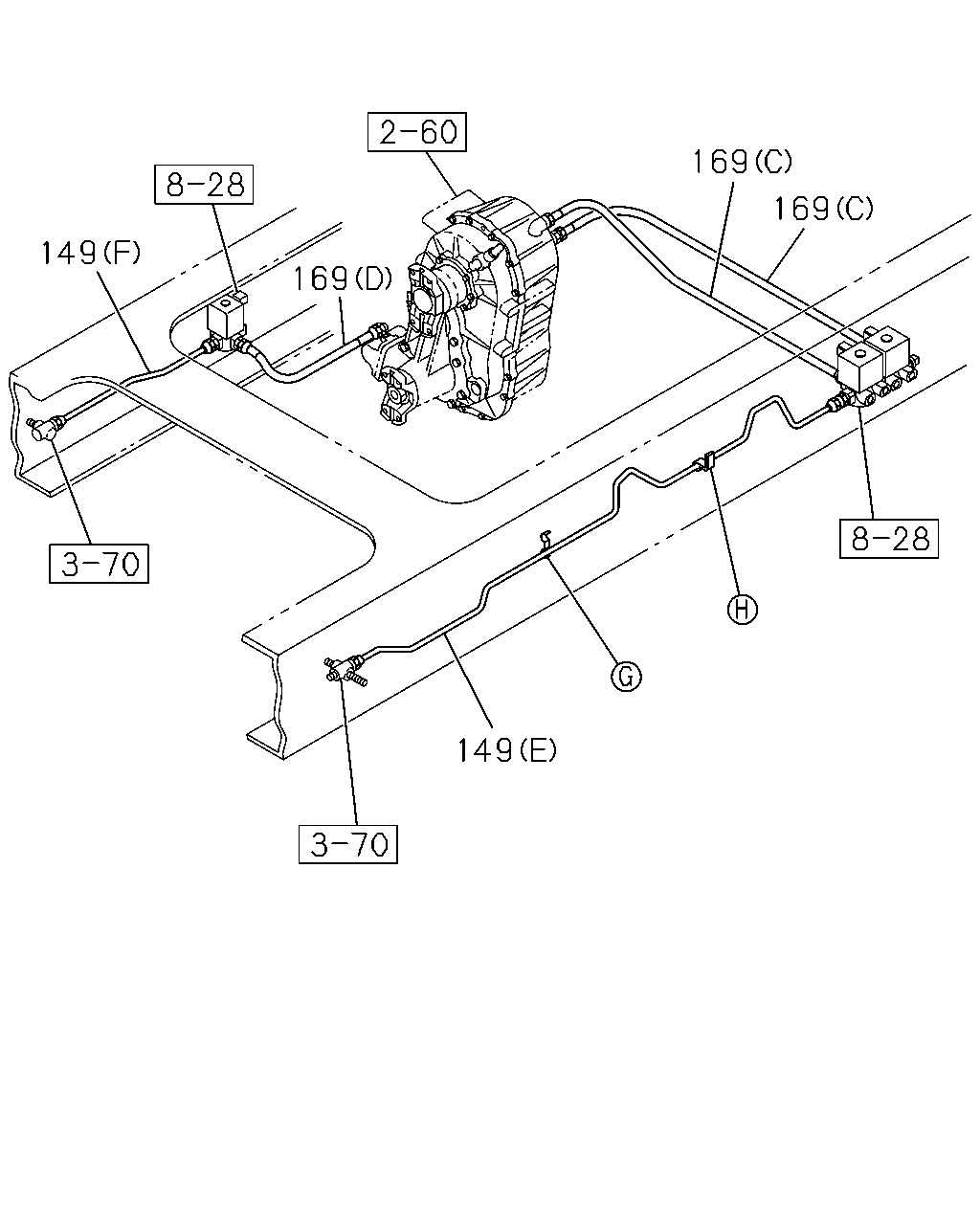

çizim 103448
169 169 149 169 149
BalonParca AdiParca NoAdetTipApplied Date A B C D
149 PIPE; AIR,MAG VLV TO UNION
(A) 		1-49116-375-0 01 1 0005-0210 ● ●
149 PIPE; AIR,MAG VLV TO UNION
(D) 		1-49123-605-0 01 1 0211- ● ●
149 PIPE; AIR,MAG VLV TO UNION
(C) 		1-49123-729-0 01 1 0211- ● ●
149 PIPE; AIR,MAG VLV TO UNION
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (B) 		1-49116-484-0 01 1 0005-0210 ● ●
149 PIPE; AIR,MAG VLV TO UNION
(E) SERVICED BY L=1620 		1-47428-820-0 01 1 0211- ● ●
149 PIPE; AIR,MAG VLV TO UNION
MLD7Q M/T(X5K) (B) L=1013 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ● ●
149 PIPE; AIR,MAG VLV TO UNION
(F) 		1-49123-224-0 01 1 0211- ● ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (A) L=260 		0-07120-260-0 01 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (B) L=300 		1-09363-608-0 02 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
(F) L=320 		1-09363-656-0 02 1 0211- ● ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (B) L=300 		0-07120-300-0 02 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
TRANSMISSION OIL COOLER<C2C> (A) L=260 		1-09363-609-0 01 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
(E) OD=12.7 L=450 		1-09363-631-0 01 1 0211- ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) L=300 		0-07120-300-0 01 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) L=300 		1-09363-608-0 01 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
(D) L=370 		1-09363-771-0 01 1 0211-0506 ● ●
169 HOSE; FLEX,TRANSFER CONT
(D) L=340 		1-09363-617-0 01 1 0507- ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) L=340 		0-07120-340-0 02 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (B) L=340 		1-09363-622-0 02 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (B) L=370 		0-07120-370-0 02 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (B) L=370 		1-09363-621-0 02 1 0205-0210 ● ●
169 HOSE; FLEX,TRANSFER CONT
(C) L=460 		1-09363-648-0 02 1 0211- ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A) L=450 		0-07120-450-0 01 1 0005-0204 ● ●
169 HOSE; FLEX,TRANSFER CONT
MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A) OD=12.7 L=450 		1-09363-631-0 01 1 0205-0210 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
