Isuzu WW
▶
TRUCKS
▶
NPR
▶
51396 - NPR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

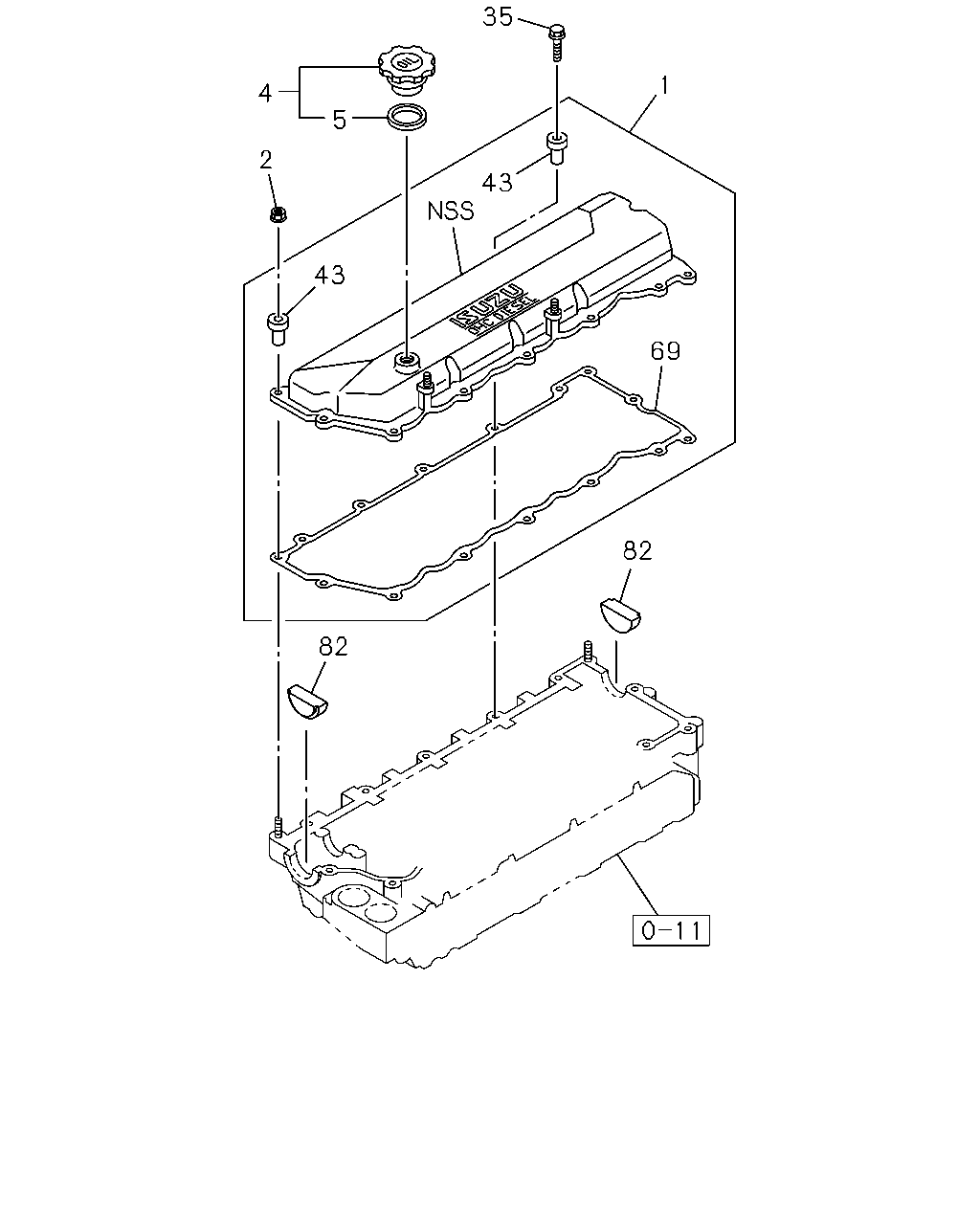

0-10 — CYLINDER HEAD COVER
(#81340) — 14 parça
35
1
4
5
2
43
43
69
82
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.386 COVER; CYL HD
8-97226-760-1
01
1
0810-0910
1
00.386 COVER; CYL HD
8-97113-025-3
01
1
0911-1006
1
00.386 COVER; CYL HD
8-98171-615-0
01
1
1007-
2
00.413 NUT; COVER,HD
01.062 M8 FLANGE
0-91180-108-0
02
1
0810-
4
01.758 CAP; OIL FILLER
8-94133-207-5
01
1
0810-
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40
8-94123-623-1
01
1
0810-
35
00.293 BOLT; NOISE SHIELD COVER
00.685 M8X40 FLANGE
0-28650-840-0
06
1
0810-0910
35
00.293 BOLT; NOISE SHIELD COVER
03.403 M8X30 FLANGE
0-28650-830-0
13
1
0911-
43
00.413 RUBBER; MTG,HD COVER,OUTER
OD=23
8-97190-120-2
08
1
0810-0910
43
00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23
8-97105-689-6
15
1
0911-
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97189-871-1
01
1
0810-0910
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97105-690-2
01
1
0911-
82
00.386 PLUG; CYL HD COVER
8-94399-605-0
02
1
0810-1005
82
00.386 PLUG; CYL HD COVER
8-98163-813-0
02
1
1006-
