Sayfa 2-61 - Isuzu EPC

2-61 — TRANSFER CASE AND GEAR SHIFTER (#8134) — 404 parça

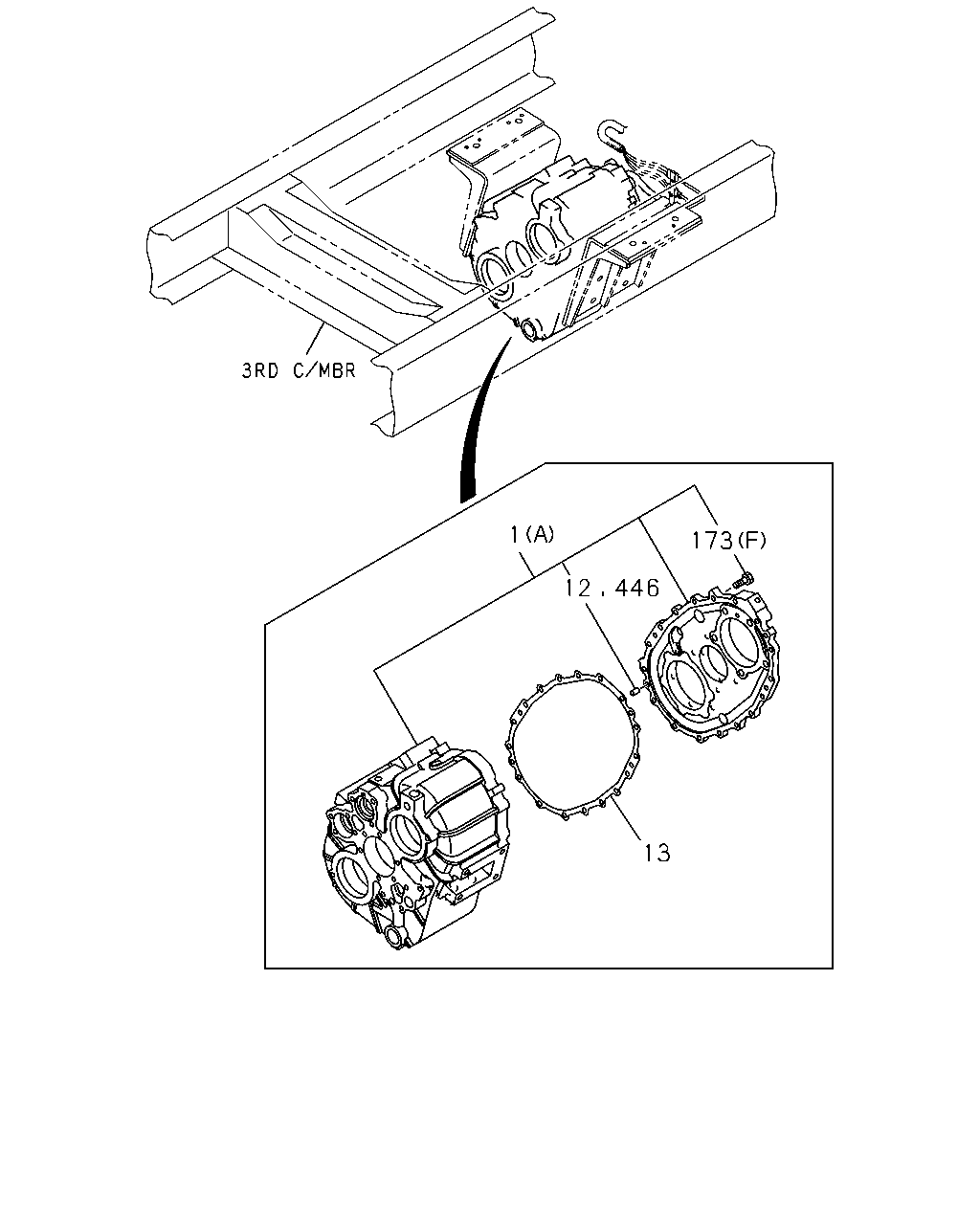

1 173 446 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CASE; TRANSFER (B)	1-36110-047-0	01	1	0211-	●	●
1	CASE; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36110-038-0	01	1	0005-0205	●	●	●	●
1	CASE; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36110-048-0	01	1	0206-0210	●	●	●	●
1	CASE; TRANSFER (A)	1-36110-051-0	01	1	0211-			●	●
12	PIN; STRAIGHT,TRANSFER CASE TRANSMISSION OIL COOLER<C2C>	9-08161-016-0	02	1	0005-0210	●	●	●	●
12	PIN; STRAIGHT,TRANSFER CASE OD=12 L=20	9-08161-220-0	02	1	0211-	●	●
13	GASKET; COVER TO TRANSFER CASE ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C>	1-36132-003-0	01	1	0005-0210	●	●	●	●
13	GASKET; COVER TO TRANSFER CASE ALSO INCLUDED IN REPAIR KIT(T/F).	1-36132-003-0	01	1	0211-			●	●
173	BOLT; COVER (D) M12X30 FLANGE	0-28181-230-0	15	1	0211-0512	●	●
173	BOLT; COVER (D) M12X30 FLANGE	0-28151-230-0	15	1	0601-	●	●
173	BOLT; COVER TRANSMISSION OIL COOLER<C2C> (F) M10X30 W/LK WASHER	0-50051-030-0	04	1	0005-0210	●	●	●	●
173	BOLT; COVER (F) M10X30 W/LK WASHER	0-50051-030-0	14	1	0211-0906			●	●
173	BOLT; COVER (F) M10X30 W/LK WASHER	0-50551-030-0	14	1	0907-			●	●
173	BOLT; COVER (A) M8X25 FLANGE	0-28080-825-0	12	1	0211-0512	●	●
173	BOLT; COVER (A) M8X25 FLANGE	0-28050-825-0	12	1	0601-	●	●
173	BOLT; COVER (B) M10X45 FLANGE	0-28181-045-0	03	1	0211-0512	●	●
173	BOLT; COVER (B) M10X45 FLANGE	0-28151-045-0	03	1	0601-	●	●
173	BOLT; COVER (C) M12X100 FLANGE	0-28181-200-0	02	1	0211-0512	●	●
173	BOLT; COVER (C) M12X100 FLANGE	0-28151-200-0	02	1	0601-	●	●
173	BOLT; COVER (E) M10X20 W/LK WASHER	0-50051-020-0	02	1	0211-0512	●	●
173	BOLT; COVER (E) M10X20 W/LK WASHER	0-50551-020-0	02	1	0601-	●	●
446	PIN; STRAIGHT	9-08161-016-0	02	1	0211-			●	●

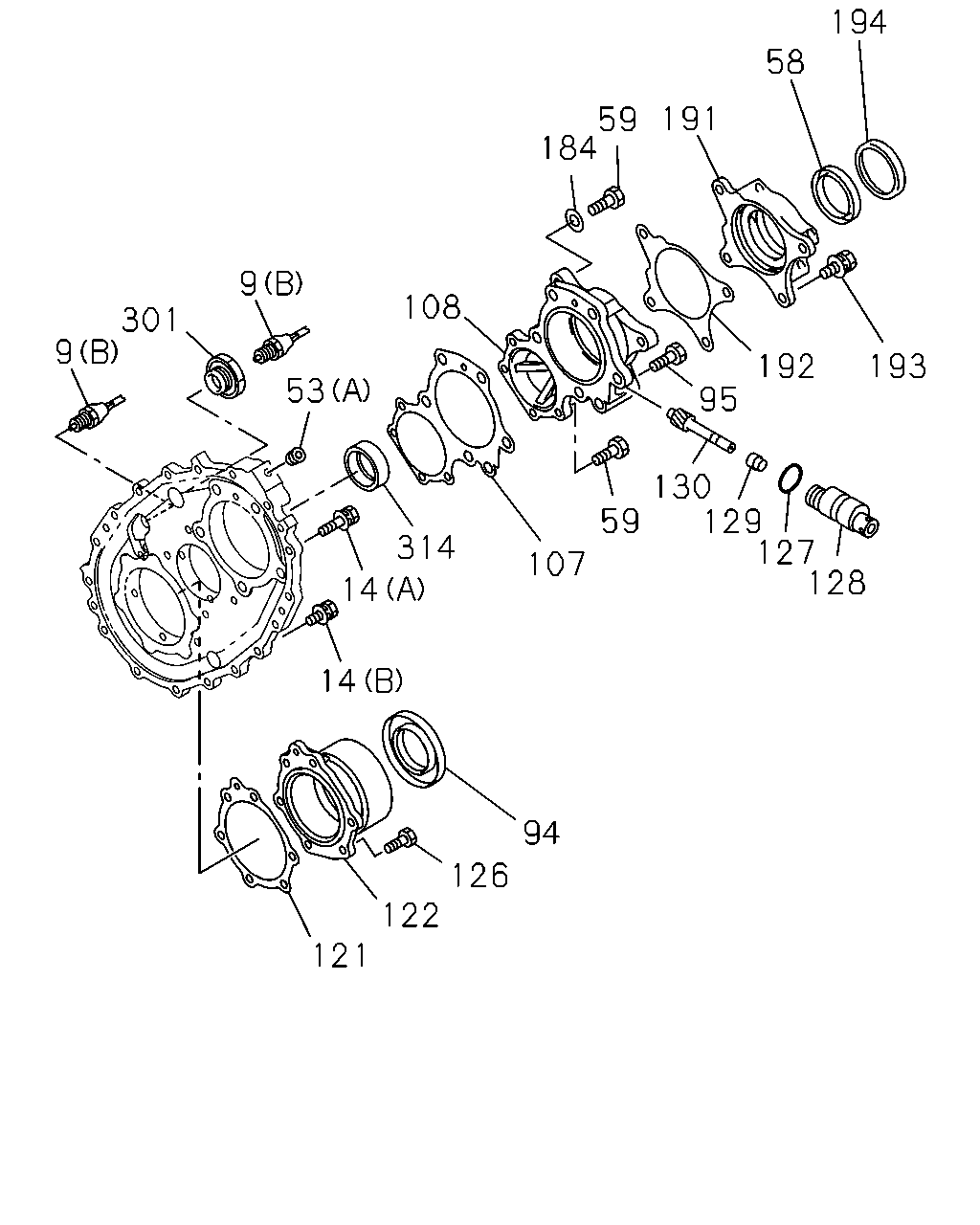

194 58 191 59 184 9 108 301 9 192 193 53 95 130 129 127 128 59 314 107 14 14 94 126 122 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	SWITCH; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-82340-534-0	01	1	0005-0210	●	●	●	●
9	SWITCH; TRANSFER (A)	1-82340-534-0	01	1	0211-	●	●	●	●
9	SWITCH; TRANSFER TRANSMISSION OIL COOLER<C2C> (B)	1-82440-082-0	02	1	0005-0210	●	●	●	●
9	SWITCH; TRANSFER (B)	1-82440-082-0	01	1	0211-			●	●
14	BOLT; COVER TO TRANSFER CASE TRANSMISSION OIL COOLER<C2C> (A) M10X30 W/LK WASHER	0-50051-030-0	11	1	0005-0210	●	●	●	●
14	BOLT; COVER TO TRANSFER CASE (A) M10X30 W/LK WASHER	0-50051-030-0	01	1	0211-0906			●	●
14	BOLT; COVER TO TRANSFER CASE (A) M10X30 W/LK WASHER	0-50551-030-0	01	1	0907-			●	●
14	BOLT; COVER TO TRANSFER CASE TRANSMISSION OIL COOLER<C2C> (B) M10X45 W/LK WASHER	0-50051-045-0	02	1	0005-0210	●	●	●	●
14	BOLT; COVER TO TRANSFER CASE (B) M10X45 W/LK WASHER	0-50051-045-0	02	1	0211-0906			●	●
14	BOLT; COVER TO TRANSFER CASE (B) M10X45 W/LK WASHER	0-50551-045-0	02	1	0907-			●	●
53	PLUG; COVER TRANSMISSION OIL COOLER<C2C> (A)	9-09205-510-0	01	1	0005-0210	●	●	●	●
53	PLUG; COVER (A)	9-09205-510-0	01	1	0211-			●	●
53	PLUG; COVER TRANSMISSION OIL COOLER<C2C> (B) M16X12	9-99202-316-0	02	1	0005-0210	●	●	●	●
53	PLUG; COVER (B) M16X12	9-99202-316-0	02	1	0211-0606			●	●
53	PLUG; COVER (B) M16X12	0-92002-416-0	02	1	0607-			●	●
53	PLUG; COVER (C) M16X12	1-09604-009-0	01	1	0211-	●	●
58	SEAL; OIL,RR UPR TRANSMISSION OIL COOLER<C2C> NOK	1-09625-173-0	01	1	0005-0210	●	●	●	●
58	SEAL; OIL,RR UPR NOK	1-09625-173-0	01	1	0211-			●	●
59	BOLT; UPR COVER TRANSMISSION OIL COOLER<C2C> M14X65	0-16806-465-0	01	1	0005-0210	●	●	●	●
59	BOLT; UPR COVER M14X65	0-16806-465-0	01	1	0211-			●	●
59	BOLT; UPR COVER TRANSMISSION OIL COOLER<C2C> M14X40	0-23801-440-0	04	1	0005-0210	●	●	●	●
59	BOLT; UPR COVER M14X40	0-23801-440-0	04	1	0211-0512			●	●
59	BOLT; UPR COVER M14X40	0-23851-440-0	04	1	0601-			●	●
59	BOLT; UPR COVER TRANSMISSION OIL COOLER<C2C> M10X30 W/LK WASHER	0-50051-030-0	04	1	0005-0210	●	●	●	●
59	BOLT; UPR COVER M10X30 W/LK WASHER	0-50051-030-0	04	1	0211-0906			●	●
59	BOLT; UPR COVER M10X30 W/LK WASHER	0-50551-030-0	04	1	0907-			●	●
94	SEAL; OIL,RR COVER,OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> NOK	1-09625-484-0	01	1	0005-0210	●	●	●	●
94	SEAL; OIL,RR COVER,OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). NOK	1-09625-484-1	01	1	0211-			●	●
94	SEAL; OIL,RR COVER,OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F).	1-09625-553-0	01	1	0211-	●	●
95	SCREW; BUSHING,DRIVEN GEAR TRANSMISSION OIL COOLER<C2C> M6X12.5 FLANGE	1-09044-063-0	01	1	0005-0210	●	●	●	●
95	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0211-0805			●	●
95	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	8-98014-141-0	01	1	0806-			●	●
107	GASKET; COVER TO CASE ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C>	9-36123-009-0	01	1	0005-0210	●	●	●	●
107	GASKET; COVER TO CASE ALSO INCLUDED IN REPAIR KIT(T/F).	9-36123-009-0	01	1	0211-			●	●
108	COVER; UPR,TRANSFER TRANSMISSION OIL COOLER<C2C>	1-36121-006-2	01	1	0005-0210	●	●	●	●
108	COVER; UPR,TRANSFER	1-36121-006-2	01	1	0211-			●	●
121	GASKET; RR COVER,LWR ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C>	1-36156-006-0	01	1	0005-0210	●	●	●	●
121	GASKET; RR COVER,LWR ALSO INCLUDED IN REPAIR KIT(T/F).	1-36156-006-0	01	1	0211-			●	●
122	COVER; RR,OUTPUT TRANSMISSION OIL COOLER<C2C>	1-36121-005-0	01	1	0005-0210	●	●	●	●
122	COVER; RR,OUTPUT	1-36121-005-0	01	1	0211-			●	●
126	BOLT; RR COVER TRANSMISSION OIL COOLER<C2C> M10X25 W/LK WASHER	0-50051-025-0	06	1	0005-0210	●	●	●	●
126	BOLT; RR COVER M10X25 W/LK WASHER	0-50051-025-0	06	1	0211-0906			●	●
126	BOLT; RR COVER M10X25 W/LK WASHER	0-50551-025-0	06	1	0907-			●	●
126	BOLT; RR COVER M8X25 FLANGE	0-28080-825-0	12	1	0211-0512	●	●
126	BOLT; RR COVER M8X25 FLANGE	0-28050-825-0	12	1	0601-	●	●
127	GASKET; BUSHING,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C>	1-09623-370-0	01	1	0005-0210	●	●	●	●
127	GASKET; BUSHING,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F).	1-09623-370-0	01	1	0211-			●	●
127	GASKET; BUSHING,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F).	1-09623-246-0	01	1	0211-	●	●
128	BUSHING; DRIVEN GEAR TRANSMISSION OIL COOLER<C2C>	1-33373-039-1	01	1	0005-0210	●	●	●	●
128	BUSHING; DRIVEN GEAR	1-33373-039-1	01	1	0211-			●	●
129	SEAL; OIL,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> NOK	1-09625-510-0	01	1	0005-0210	●	●	●	●
129	SEAL; OIL,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F). NOK	1-09625-510-0	01	1	0211-	●	●	●	●
130	GEAR; DRIVEN,SPD,TRANSFER TRANSMISSION OIL COOLER<C2C> Z=12	1-33372-074-5	01	1	0005-0210	●	●	●	●
130	GEAR; DRIVEN,SPD,TRANSFER Z=12	1-33372-074-5	01	1	0211-			●	●
130	GEAR; DRIVEN,SPD,TRANSFER Z=15	1-33372-147-4	01	1	0211-	●	●
184	WASHER; LK,UPR COVER TRANSMISSION OIL COOLER<C2C> ID=14.2	9-09150-514-0	05	1	0005-0210	●	●	●	●
184	WASHER; LK,UPR COVER ID=14.2	9-09150-514-0	05	1	0211-0603			●	●
184	WASHER; LK,UPR COVER ID=14.2	0-91510-514-0	05	1	0604-			●	●
191	RETAINER; OIL SEAL,RR UPR TRANSMISSION OIL COOLER<C2C>	1-36155-007-0	01	1	0005-0210	●	●	●	●
191	RETAINER; OIL SEAL,RR UPR	1-36155-007-0	01	1	0211-			●	●
192	GASKET; RET,RR UPR ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C>	1-36156-005-0	01	1	0005-0210	●	●	●	●
192	GASKET; RET,RR UPR ALSO INCLUDED IN REPAIR KIT(T/F).	1-36156-005-0	01	1	0211-			●	●
193	BOLT; RET TRANSMISSION OIL COOLER<C2C> M12X28	0-50051-228-0	04	1	0005-0210	●	●	●	●
193	BOLT; RET M12X28	0-50051-228-0	04	1	0211-			●	●
194	COVER; OIL SEAL,RR UPR TRANSMISSION OIL COOLER<C2C>	1-33139-001-1	01	1	0005-0210	●	●	●	●
194	COVER; OIL SEAL,RR UPR	1-33139-001-1	01	1	0211-			●	●
301	ADAPTER; SWITCH,TRANSFER TRANSMISSION OIL COOLER<C2C>	1-09669-101-0	01	1	0005-0205	●	●	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT TRANSMISSION OIL COOLER<C2C> T=19.5	1-36355-022-0	01	1	0005-0210	●	●	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=19.5	1-36355-022-0	01	1	0211-			●	●
314	PIECE; DISTANCE,OUTPUT SHAFT TRANSMISSION OIL COOLER<C2C> T=19.7	1-36355-023-0	01	1	0005-0210	●	●	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=19.7	1-36355-023-0	01	1	0211-			●	●
314	PIECE; DISTANCE,OUTPUT SHAFT TRANSMISSION OIL COOLER<C2C> T=19.9	1-36355-024-0	01	1	0005-0210	●	●	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=19.9	1-36355-024-0	01	1	0211-			●	●
314	PIECE; DISTANCE,OUTPUT SHAFT TRANSMISSION OIL COOLER<C2C> T=20.1	1-36355-025-0	01	1	0005-0210	●	●	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.1	1-36355-025-0	01	1	0211-			●	●
314	PIECE; DISTANCE,OUTPUT SHAFT TRANSMISSION OIL COOLER<C2C> T=20.3	1-36355-026-0	01	1	0005-0210	●	●	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.3	1-36355-026-0	01	1	0211-			●	●
314	PIECE; DISTANCE,OUTPUT SHAFT TRANSMISSION OIL COOLER<C2C> T=20.5	1-36355-027-0	01	1	0005-0210	●	●	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.5	1-36355-027-0	01	1	0211-			●	●
314	PIECE; DISTANCE,OUTPUT SHAFT TRANSMISSION OIL COOLER<C2C> T=20.7	1-36355-028-0	01	1	0005-0210	●	●	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.7	1-36355-028-0	01	1	0211-			●	●
314	PIECE; DISTANCE,OUTPUT SHAFT TRANSMISSION OIL COOLER<C2C> T=20.9	1-36355-029-0	01	1	0005-0210	●	●	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=20.9	1-36355-029-0	01	1	0211-			●	●
314	PIECE; DISTANCE,OUTPUT SHAFT TRANSMISSION OIL COOLER<C2C> T=21.1	1-36355-030-0	01	1	0005-0210	●	●	●	●
314	PIECE; DISTANCE,OUTPUT SHAFT T=21.1	1-36355-030-0	01	1	0211-			●	●

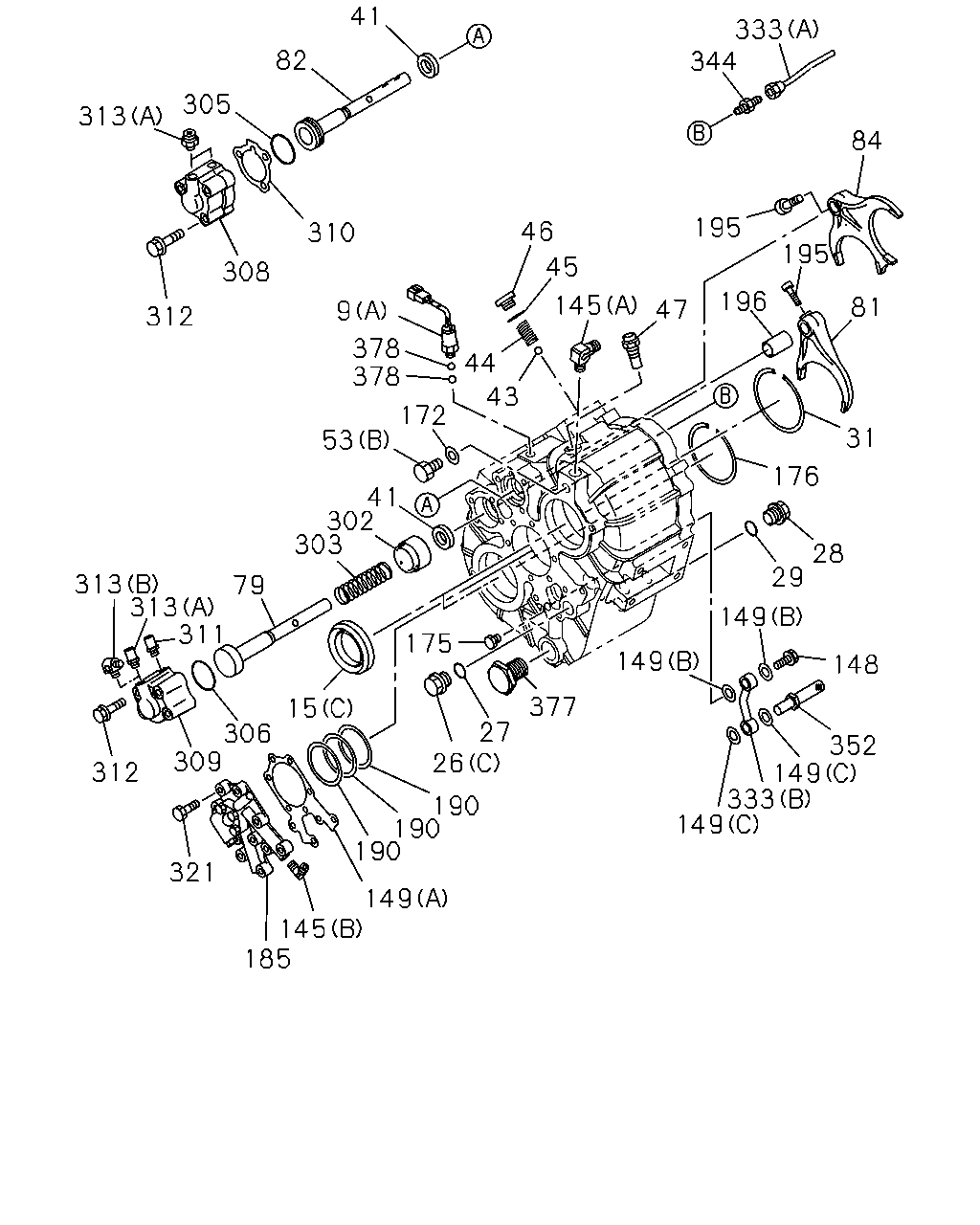

41 333 344 82 305 313 84 195 46 310 195 45 308 196 145 81 47 312 378 378 44 43 172 31 53 176 41 302 303 28 29 313 313 311 79 149 175 149 148 377 15 27 26 306 309 352 149 333 149 312 190 190 190 321 149 145 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	SEAL; OIL,INPUT & FRT OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (C)	1-09625-202-1	02	1	0005-0210	●	●	●	●
15	SEAL; OIL,INPUT & FRT OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). (C)	1-09625-202-1	02	1	0211-			●	●
15	SEAL; OIL,INPUT & FRT OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). (A)	1-09625-549-0	01	1	0211-	●	●
15	SEAL; OIL,INPUT & FRT OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). (B)	1-09625-552-0	01	1	0211-	●	●
26	PLUG; FILLER,TRANSFER CASE TRANSMISSION OIL COOLER<C2C> (C) M24X17 FLANGE	1-09604-064-1	01	1	0005-0201	●	●	●	●
26	PLUG; FILLER,TRANSFER CASE TRANSMISSION OIL COOLER<C2C> (C) M24X17 FLANGE	1-09604-022-0	01	1	0202-0210	●	●	●	●
26	PLUG; FILLER,TRANSFER CASE (C) M24X17 FLANGE	1-09604-022-0	01	1	0211-			●	●
26	PLUG; FILLER,TRANSFER CASE (A) M24X17 FLANGE	1-09604-023-0	01	1	0211-	●	●
26	PLUG; FILLER,TRANSFER CASE (B) PT1/8	1-09605-050-0	02	1	0211-	●	●
27	GASKET; FILLER PLUG ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> ID=26.8	1-09623-058-0	01	1	0005-0210	●	●	●	●
27	GASKET; FILLER PLUG ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8	1-09623-058-0	01	1	0211-	●	●	●	●
28	PLUG; DRAIN,TRANSFER CASE TRANSMISSION OIL COOLER<C2C> M24X17 FLANGE	1-09604-023-0	01	1	0005-0210	●	●	●	●
28	PLUG; DRAIN,TRANSFER CASE M24X17 FLANGE	1-09604-023-0	01	1	0211-	●	●	●	●
29	GASKET; DRAIN PLUG ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> ID=26.8	1-09623-058-0	01	1	0005-0210	●	●	●	●
29	GASKET; DRAIN PLUG ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8	1-09623-058-0	01	1	0211-	●	●	●	●
31	RING; SNAP,INPUT TRANSMISSION OIL COOLER<C2C>	9-09950-184-0	01	1	0005-0210	●	●	●	●
31	RING; SNAP,INPUT	9-09950-184-0	01	1	0211-			●	●
41	SEAL; OIL,SHIFT ROD ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C>	1-09625-377-0	02	1	0005-0210	●	●	●	●
41	SEAL; OIL,SHIFT ROD ALSO INCLUDED IN REPAIR KIT(T/F).	1-09625-377-0	02	1	0211-			●	●
41	SEAL; OIL,SHIFT ROD ALSO INCLUDED IN REPAIR KIT(T/F).	1-09625-547-0	01	1	0211-	●	●
43	BALL; LK,SHIFT ROD TRANSMISSION OIL COOLER<C2C>	9-00097-013-0	01	1	0005-0210	●	●	●	●
43	BALL; LK,SHIFT ROD	9-00097-013-0	01	1	0211-	●	●	●	●
44	SPRING; COIL,LK TRANSMISSION OIL COOLER<C2C>	9-09940-323-0	01	1	0005-0210	●	●	●	●
44	SPRING; COIL,LK	9-09940-323-0	01	1	0211-	●	●	●	●
45	GASKET; SEAT,PLUG ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C>	9-09571-520-0	01	1	0005-0201	●	●	●	●
45	GASKET; SEAT,PLUG ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> ID=20.5 OD=28.0	9-09571-420-0	01	1	0202-0210	●	●	●	●
45	GASKET; SEAT,PLUG ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0	9-09571-420-0	01	1	0211-	●	●	●	●
46	SEAT; SPR TRANSMISSION OIL COOLER<C2C>	9-09862-175-0	01	1	0005-0210	●	●	●	●
46	SEAT; SPR	9-09862-175-0	01	1	0211-			●	●
47	BREATHER; TRANSFER CASE TRANSMISSION OIL COOLER<C2C>	9-36122-015-1	01	1	0005-0210	●	●	●	●
47	BREATHER; TRANSFER CASE	9-36122-015-1	01	1	0211-			●	●
53	PLUG; COVER TRANSMISSION OIL COOLER<C2C> (A)	9-09205-510-0	01	1	0005-0210	●	●	●	●
53	PLUG; COVER (A)	9-09205-510-0	01	1	0211-			●	●
53	PLUG; COVER TRANSMISSION OIL COOLER<C2C> (B) M16X12	9-99202-316-0	02	1	0005-0210	●	●	●	●
53	PLUG; COVER (B) M16X12	9-99202-316-0	02	1	0211-0606			●	●
53	PLUG; COVER (B) M16X12	0-92002-416-0	02	1	0607-			●	●
53	PLUG; COVER (C) M16X12	1-09604-009-0	01	1	0211-	●	●
79	ROD; SHIFT,NEUTRAL & FRT DRIVE TRANSMISSION OIL COOLER<C2C>	1-36564-027-0	01	1	0005-0210	●	●	●	●
79	ROD; SHIFT,NEUTRAL & FRT DRIVE	1-36564-027-0	01	1	0211-			●	●
81	FORK; SHIFT,NEUTRAL & FRT DRIVE TRANSMISSION OIL COOLER<C2C>	1-36561-020-0	01	1	0005-0210	●	●	●	●
81	FORK; SHIFT,NEUTRAL & FRT DRIVE	1-36561-020-0	01	1	0211-			●	●
82	ROD; SHIFT,LOW & HIGH TRANSMISSION OIL COOLER<C2C>	1-36564-026-0	01	1	0005-0210	●	●	●	●
82	ROD; SHIFT,LOW & HIGH	1-36564-026-0	01	1	0211-			●	●
84	FORK; SHIFT,LOW & HIGH TRANSMISSION OIL COOLER<C2C>	1-36561-019-1	01	1	0005-0210	●	●	●	●
84	FORK; SHIFT,LOW & HIGH	1-36561-019-1	01	1	0211-			●	●
84	FORK; SHIFT,LOW & HIGH	1-36561-011-2	01	1	0211-	●	●
145	CONNECTOR; OIL PIPE,TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-09650-325-1	01	1	0005-0210	●	●	●	●
145	CONNECTOR; OIL PIPE,TRANSFER (A)	1-09650-325-1	01	1	0211-			●	●
145	CONNECTOR; OIL PIPE,TRANSFER TRANSMISSION OIL COOLER<C2C> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0005-0210	●	●	●	●
145	CONNECTOR; OIL PIPE,TRANSFER (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0211-0607			●	●
145	CONNECTOR; OIL PIPE,TRANSFER (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0608-			●	●
145	CONNECTOR; OIL PIPE,TRANSFER (C) PT1/4 2WAY	1-09660-693-0	01	1	0211-	●	●
148	BOLT; EYE,OIL PIPE TRANSMISSION OIL COOLER<C2C> M12X27 FLANGE	1-09675-085-0	01	1	0005-0210	●	●	●	●
148	BOLT; EYE,OIL PIPE M12X27 FLANGE	1-09675-085-0	01	1	0211-	●	●	●	●
149	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (A)	1-36289-029-0	01	1	0005-0210	●	●	●	●
149	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN REPAIR KIT(T/F). (A)	1-36289-029-0	01	1	0211-			●	●
149	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (B) ID=12.2	9-09572-012-0	02	1	0005-0210	●	●	●	●
149	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN REPAIR KIT(T/F). (B) ID=12.2	9-09572-012-0	02	1	0211-			●	●
149	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (C)	9-09572-016-0	02	1	0005-0210	●	●	●	●
149	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN REPAIR KIT(T/F). (C)	9-09572-016-0	02	1	0211-			●	●
172	GASKET; PLUG TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09571-616-0	02	1	0005-0210	●	●	●	●
172	GASKET; PLUG ID=16.2	9-09571-616-0	02	1	0211-			●	●
175	PLUG; LEVEL,TRANSFER CASE TRANSMISSION OIL COOLER<C2C>	9-09864-007-1	01	1	0005-0210	●	●	●	●
175	PLUG; LEVEL,TRANSFER CASE	9-09864-007-1	01	1	0211-			●	●
176	RING; SNAP,FRT OUTPUT TRANSMISSION OIL COOLER<C2C>	9-09950-089-0	01	1	0005-0210	●	●	●	●
176	RING; SNAP,FRT OUTPUT	9-09950-089-0	01	1	0211-			●	●
185	PUMP ASM; OIL,TRANSFER TRANSMISSION OIL COOLER<C2C>	1-13110-036-2	01	1	0005-0210	●	●	●	●
185	PUMP ASM; OIL,TRANSFER	1-13110-036-2	01	1	0211-			●	●
185	PUMP ASM; OIL,TRANSFER	1-34150-071-1	01	1	0211-	●	●
190	SHIM; BRG ADJ,IDLE SHAFT TRANSMISSION OIL COOLER<C2C> T=0.10	9-36153-020-0	AR	1	0005-0210	●	●	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.10	9-36153-020-0	AR	1	0211-			●	●
190	SHIM; BRG ADJ,IDLE SHAFT TRANSMISSION OIL COOLER<C2C> T=0.12	9-36153-021-0	AR	1	0005-0210	●	●	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.12	9-36153-021-0	AR	1	0211-			●	●
190	SHIM; BRG ADJ,IDLE SHAFT TRANSMISSION OIL COOLER<C2C> T=0.14	9-36153-022-0	AR	1	0005-0210	●	●	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.14	9-36153-022-0	AR	1	0211-			●	●
190	SHIM; BRG ADJ,IDLE SHAFT TRANSMISSION OIL COOLER<C2C> T=0.16	9-36153-023-0	AR	1	0005-0210	●	●	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.16	9-36153-023-0	AR	1	0211-			●	●
190	SHIM; BRG ADJ,IDLE SHAFT TRANSMISSION OIL COOLER<C2C> T=0.18	9-36153-024-0	AR	1	0005-0210	●	●	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.18	9-36153-024-0	AR	1	0211-			●	●
190	SHIM; BRG ADJ,IDLE SHAFT TRANSMISSION OIL COOLER<C2C> T=0.20	9-36153-025-0	AR	1	0005-0210	●	●	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.20	9-36153-025-0	AR	1	0211-			●	●
190	SHIM; BRG ADJ,IDLE SHAFT TRANSMISSION OIL COOLER<C2C> T=0.50	9-36153-026-0	AR	1	0005-0210	●	●	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=0.50	9-36153-026-0	AR	1	0211-			●	●
190	SHIM; BRG ADJ,IDLE SHAFT TRANSMISSION OIL COOLER<C2C> T=1.00	9-36153-027-0	AR	1	0005-0210	●	●	●	●
190	SHIM; BRG ADJ,IDLE SHAFT T=1.00	9-36153-027-0	AR	1	0211-			●	●
195	BOLT; SHIFT FORK TRANSMISSION OIL COOLER<C2C> M12X20	1-09052-039-0	02	1	0005-0210	●	●	●	●
195	BOLT; SHIFT FORK M12X20	1-09052-039-0	02	1	0211-			●	●
195	BOLT; SHIFT FORK M12X20	1-09052-039-0	01	1	0211-	●	●
196	COLLAR; DIST,SHIFT ROD TRANSMISSION OIL COOLER<C2C>	1-36577-004-0	01	1	0005-0210	●	●	●	●
196	COLLAR; DIST,SHIFT ROD	1-36577-004-0	01	1	0211-			●	●
302	SEAT; SPRING TRANSMISSION OIL COOLER<C2C>	1-36572-002-1	01	1	0005-0210	●	●	●	●
302	SEAT; SPRING	1-36572-002-1	01	1	0211-			●	●
303	SPRING; NEUTRAL-FRONT TRANSMISSION OIL COOLER<C2C>	1-09580-489-0	01	1	0005-0210	●	●	●	●
303	SPRING; NEUTRAL-FRONT	1-09580-489-0	01	1	0211-			●	●
305	GASKET; PISTON,LOW-HIGH ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> ID=43.7	9-09561-344-0	01	1	0005-0210	●	●	●	●
305	GASKET; PISTON,LOW-HIGH ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7	9-09561-344-0	01	1	0211-			●	●
306	GASKET; PISTON,NEUTRAL-FRONT TRANSMISSION OIL COOLER<C2C> ID=43.7	9-09561-344-0	01	1	0005-0210	●	●	●	●
306	GASKET; PISTON,NEUTRAL-FRONT ID=43.7	9-09561-344-0	01	1	0211-			●	●
308	CYLINDER; AIR SHIFT,LOW-HIGH TRANSMISSION OIL COOLER<C2C>	1-36569-010-0	01	1	0005-0210	●	●	●	●
308	CYLINDER; AIR SHIFT,LOW-HIGH	1-36569-010-0	01	1	0211-			●	●
309	CYLINDER; AIR SHIFT,NEUTRAL-FRONT TRANSMISSION OIL COOLER<C2C>	1-36569-009-0	01	1	0005-0210	●	●	●	●
309	CYLINDER; AIR SHIFT,NEUTRAL-FRONT	1-36569-009-0	01	1	0211-			●	●
310	GASKET; AIR CYL TRANSMISSION OIL COOLER<C2C>	1-36579-001-0	01	1	0005-0210	●	●	●	●
310	GASKET; AIR CYL	1-36579-001-0	01	1	0211-			●	●
311	BREATHER; AIR CYL TRANSMISSION OIL COOLER<C2C>	9-36122-013-0	01	1	0005-0210	●	●	●	●
311	BREATHER; AIR CYL	9-36122-013-0	01	1	0211-			●	●
312	BOLT; AIR CYL TRANSMISSION OIL COOLER<C2C> M10X65 FLANGE	8-94344-540-1	07	1	0005-0210	●	●	●	●
312	BOLT; AIR CYL M10X65 FLANGE	8-94344-540-1	07	1	0211-			●	●
313	CONNECTOR; AIR CYL TRANSMISSION OIL COOLER<C2C> (A) M20 & PT1/4	9-09902-386-0	03	1	0005-0204			●	●
313	CONNECTOR; AIR CYL MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) M20 & PT1/4	9-09902-386-0	03	1	0005-0204	●	●
313	CONNECTOR; AIR CYL TRANSMISSION OIL COOLER<C2C> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0205-0210			●	●
313	CONNECTOR; AIR CYL MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	0205-0210	●	●
313	CONNECTOR; AIR CYL (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0211-			●	●
313	CONNECTOR; AIR CYL MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (B) M20 & PT1/4 ELBOW	1-48269-012-0	01	1	0005-0204	●	●
313	CONNECTOR; AIR CYL MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0205-0210	●	●
313	CONNECTOR; AIR CYL (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-			●	●
313	CONNECTOR; AIR CYL MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A) M20 & PT1/4	9-09902-386-0	02	1	0005-0204	●	●
313	CONNECTOR; AIR CYL MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0205-0210	●	●
321	BOLT; PUMP HSG TRANSMISSION OIL COOLER<C2C> M10X35 FLANGE	0-28181-035-0	08	1	0005-0210	●	●	●	●
321	BOLT; PUMP HSG M10X35 FLANGE	0-28181-035-0	08	1	0211-0512			●	●
321	BOLT; PUMP HSG M10X35 FLANGE	0-28151-035-0	08	1	0601-			●	●
321	BOLT; PUMP HSG TRANSMISSION OIL COOLER<C2C> M10X50 FLANGE	0-28181-050-0	02	1	0005-0210	●	●	●	●
321	BOLT; PUMP HSG M10X50 FLANGE	0-28181-050-0	02	1	0211-0512			●	●
321	BOLT; PUMP HSG M10X50 FLANGE	0-28151-050-0	02	1	0601-			●	●
321	BOLT; PUMP HSG M8X50	0-10805-850-0	04	1	0211-0512	●	●
321	BOLT; PUMP HSG M8X50	0-10855-850-0	04	1	0601-	●	●
333	PIPE; OIL,TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36161-030-0	01	1	0005-0210	●	●	●	●
333	PIPE; OIL,TRANSFER (A)	1-36161-030-0	01	1	0211-			●	●
333	PIPE; OIL,TRANSFER TRANSMISSION OIL COOLER<C2C> (B)	1-36161-033-0	01	1	0005-0210	●	●	●	●
333	PIPE; OIL,TRANSFER (B)	1-36161-033-0	01	1	0211-			●	●
333	PIPE; OIL,TRANSFER (C)	1-36161-029-0	01	1	0211-	●	●
344	CONNECTOR TRANSMISSION OIL COOLER<C2C>	9-09221-808-1	01	1	0005-0210	●	●	●	●
344	CONNECTOR	9-09221-808-1	01	1	0211-0607			●	●
344	CONNECTOR	0-92111-808-0	01	1	0608-			●	●
344	CONNECTOR L=45	8-94338-874-0	01	1	0211-	●	●
352	FILTER; OIL TRANSMISSION OIL COOLER<C2C>	1-36289-001-0	01	1	0005-0210	●	●	●	●
352	FILTER; OIL	1-36289-001-0	01	1	0211-	●	●	●	●
377	ADAPTER; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-09669-131-0	01	1	0005-0210	●	●	●	●
377	ADAPTER; OIL PIPE	1-09669-131-0	01	1	0211-			●	●
378	BALL; CONT SWITCH TRANSMISSION OIL COOLER<C2C>	9-00097-013-0	02	1	0005-0210	●	●	●	●
378	BALL; CONT SWITCH	9-00097-013-0	02	1	0211-			●	●
378	BALL; CONT SWITCH	9-00097-013-0	01	1	0211-	●	●

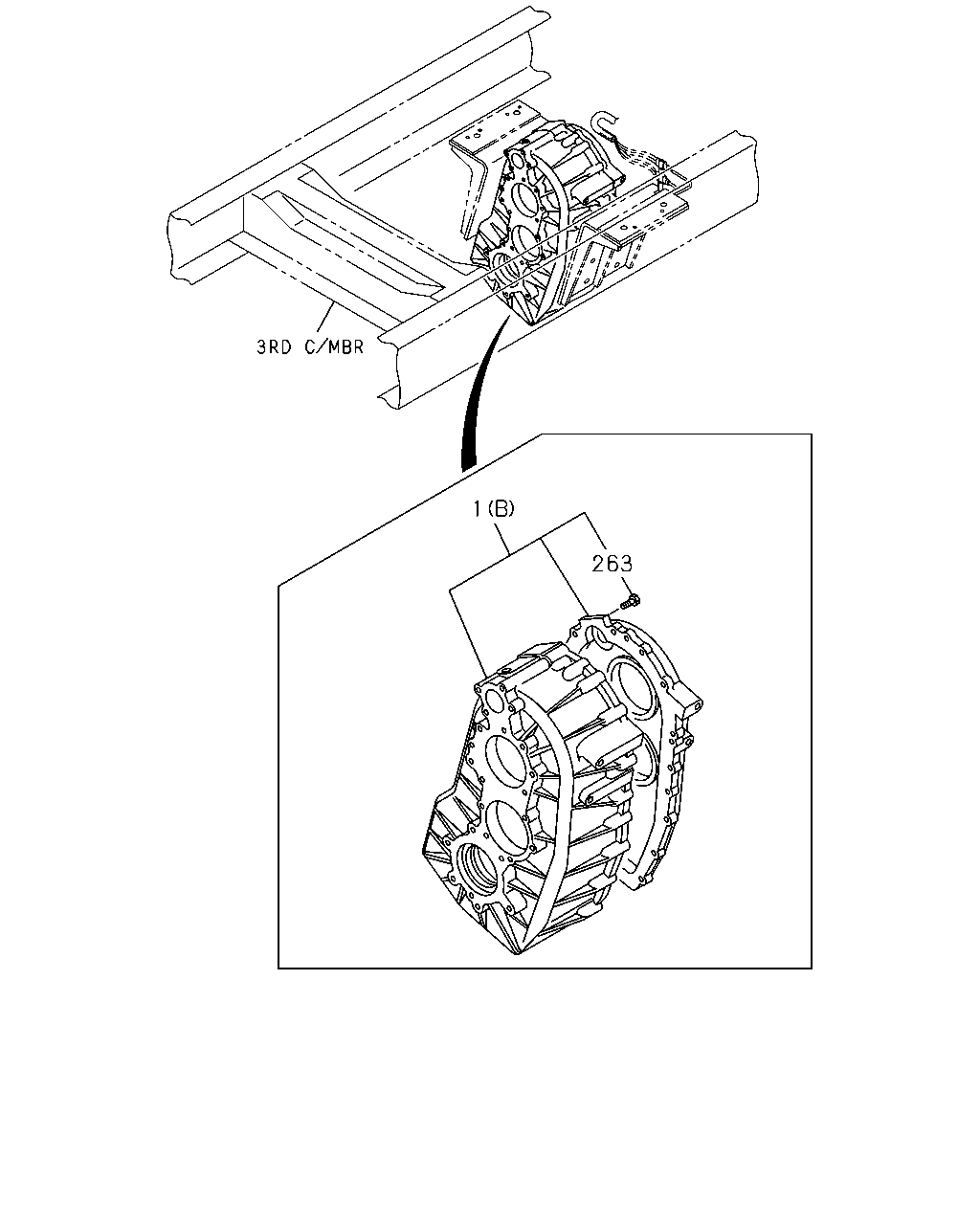

1 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CASE; TRANSFER (B)	1-36110-047-0	01	1	0211-	●	●
1	CASE; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36110-038-0	01	1	0005-0205	●	●	●	●
1	CASE; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36110-048-0	01	1	0206-0210	●	●	●	●
1	CASE; TRANSFER (A)	1-36110-051-0	01	1	0211-			●	●
263	BOLT; TRANSFER CASE M10X30 FLANGE	0-28181-030-0	21	1	0211-0512	●	●
263	BOLT; TRANSFER CASE M10X30 FLANGE	0-28151-030-0	21	1	0601-	●	●

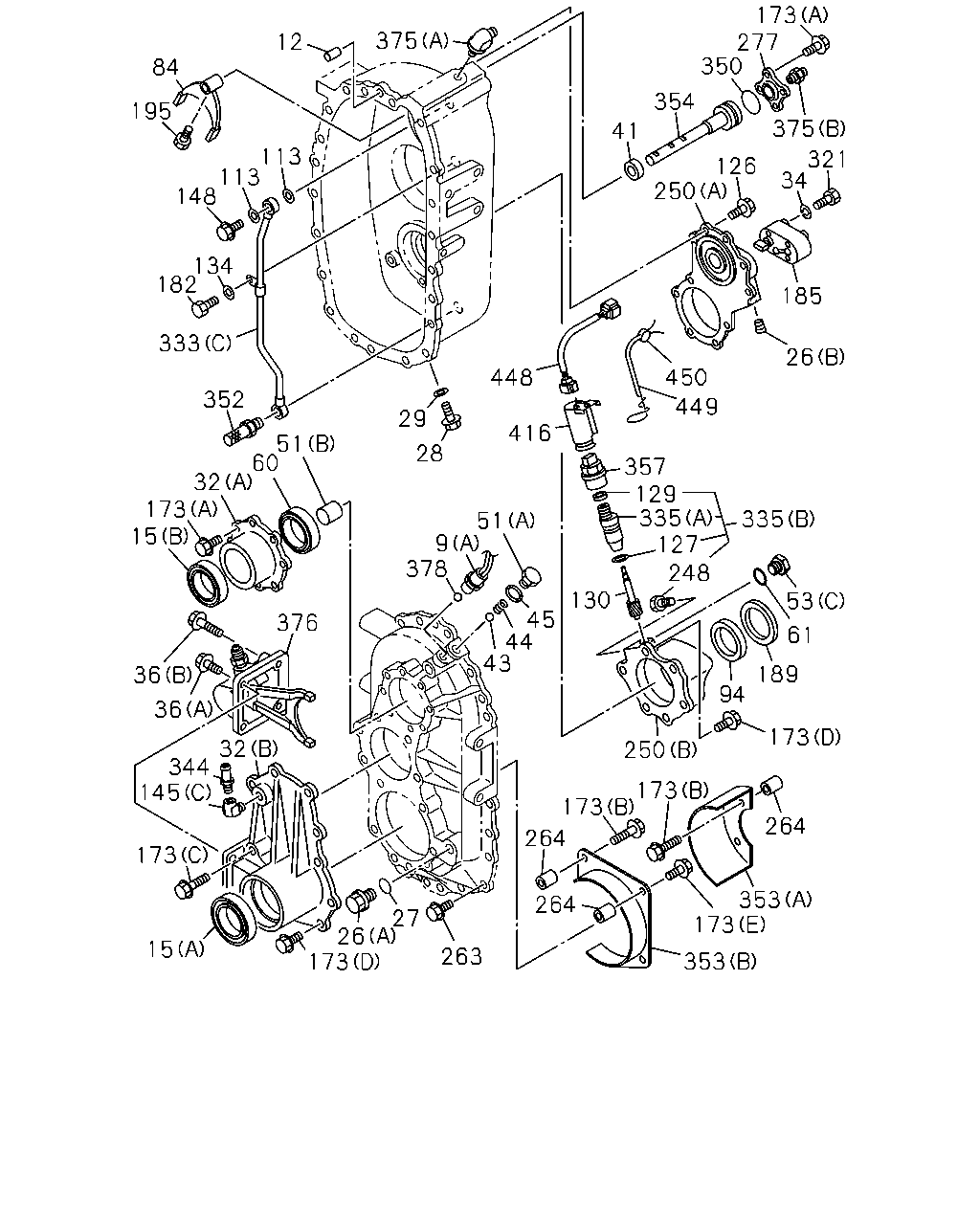

173 277 350 375 12 84 375 354 195 41 113 113 148 321 34 126 250 134 182 185 333 26 448 450 352 449 29 416 51 60 28 357 129 335 127 248 32 173 15 335 51 9 378 130 53 45 44 43 376 61 189 36 94 36 32 344 145 173 250 173 173 264 264 173 264 353 173 27 26 173 15 263 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	SWITCH; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-82340-534-0	01	1	0005-0210	●	●	●	●
9	SWITCH; TRANSFER (A)	1-82340-534-0	01	1	0211-	●	●	●	●
9	SWITCH; TRANSFER TRANSMISSION OIL COOLER<C2C> (B)	1-82440-082-0	02	1	0005-0210	●	●	●	●
9	SWITCH; TRANSFER (B)	1-82440-082-0	01	1	0211-			●	●
12	PIN; STRAIGHT,TRANSFER CASE TRANSMISSION OIL COOLER<C2C>	9-08161-016-0	02	1	0005-0210	●	●	●	●
12	PIN; STRAIGHT,TRANSFER CASE OD=12 L=20	9-08161-220-0	02	1	0211-	●	●
15	SEAL; OIL,INPUT & FRT OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> (C)	1-09625-202-1	02	1	0005-0210	●	●	●	●
15	SEAL; OIL,INPUT & FRT OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). (C)	1-09625-202-1	02	1	0211-			●	●
15	SEAL; OIL,INPUT & FRT OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). (A)	1-09625-549-0	01	1	0211-	●	●
15	SEAL; OIL,INPUT & FRT OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). (B)	1-09625-552-0	01	1	0211-	●	●
26	PLUG; FILLER,TRANSFER CASE TRANSMISSION OIL COOLER<C2C> (C) M24X17 FLANGE	1-09604-064-1	01	1	0005-0201	●	●	●	●
26	PLUG; FILLER,TRANSFER CASE TRANSMISSION OIL COOLER<C2C> (C) M24X17 FLANGE	1-09604-022-0	01	1	0202-0210	●	●	●	●
26	PLUG; FILLER,TRANSFER CASE (C) M24X17 FLANGE	1-09604-022-0	01	1	0211-			●	●
26	PLUG; FILLER,TRANSFER CASE (A) M24X17 FLANGE	1-09604-023-0	01	1	0211-	●	●
26	PLUG; FILLER,TRANSFER CASE (B) PT1/8	1-09605-050-0	02	1	0211-	●	●
27	GASKET; FILLER PLUG ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> ID=26.8	1-09623-058-0	01	1	0005-0210	●	●	●	●
27	GASKET; FILLER PLUG ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8	1-09623-058-0	01	1	0211-	●	●	●	●
28	PLUG; DRAIN,TRANSFER CASE TRANSMISSION OIL COOLER<C2C> M24X17 FLANGE	1-09604-023-0	01	1	0005-0210	●	●	●	●
28	PLUG; DRAIN,TRANSFER CASE M24X17 FLANGE	1-09604-023-0	01	1	0211-	●	●	●	●
29	GASKET; DRAIN PLUG ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> ID=26.8	1-09623-058-0	01	1	0005-0210	●	●	●	●
29	GASKET; DRAIN PLUG ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8	1-09623-058-0	01	1	0211-	●	●	●	●
32	COVER; TRANSFER CASE,FRT (A)	1-36121-029-0	01	1	0211-	●	●
32	COVER; TRANSFER CASE,FRT (B)	1-36121-030-0	01	1	0211-	●	●
34	WASHER; LK,COVER ID=8.2	9-09150-508-0	04	1	0211-0603	●	●
34	WASHER; LK,COVER ID=8.2	0-91510-508-0	04	1	0604-	●	●
36	BOLT; SHIFT UNIT (A) M10X25 FLANGE	0-28181-025-0	03	1	0211-0512	●	●
36	BOLT; SHIFT UNIT (A) M10X25 FLANGE	0-28151-025-0	03	1	0601-	●	●
36	BOLT; SHIFT UNIT (B) M10X60 FLANGE	0-28181-060-0	01	1	0211-0512	●	●
36	BOLT; SHIFT UNIT (B) M10X60 FLANGE	0-28151-060-0	01	1	0601-	●	●
41	SEAL; OIL,SHIFT ROD ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C>	1-09625-377-0	02	1	0005-0210	●	●	●	●
41	SEAL; OIL,SHIFT ROD ALSO INCLUDED IN REPAIR KIT(T/F).	1-09625-377-0	02	1	0211-			●	●
41	SEAL; OIL,SHIFT ROD ALSO INCLUDED IN REPAIR KIT(T/F).	1-09625-547-0	01	1	0211-	●	●
43	BALL; LK,SHIFT ROD TRANSMISSION OIL COOLER<C2C>	9-00097-013-0	01	1	0005-0210	●	●	●	●
43	BALL; LK,SHIFT ROD	9-00097-013-0	01	1	0211-	●	●	●	●
44	SPRING; COIL,LK TRANSMISSION OIL COOLER<C2C>	9-09940-323-0	01	1	0005-0210	●	●	●	●
44	SPRING; COIL,LK	9-09940-323-0	01	1	0211-	●	●	●	●
45	GASKET; SEAT,PLUG ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C>	9-09571-520-0	01	1	0005-0201	●	●	●	●
45	GASKET; SEAT,PLUG ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> ID=20.5 OD=28.0	9-09571-420-0	01	1	0202-0210	●	●	●	●
45	GASKET; SEAT,PLUG ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0	9-09571-420-0	01	1	0211-	●	●	●	●
51	PLUG; SHIFT ROD (A)	9-09862-175-0	01	1	0211-	●	●
51	PLUG; SHIFT ROD (B) OD=24 L=31	9-33545-011-1	01	1	0211-	●	●
53	PLUG; COVER TRANSMISSION OIL COOLER<C2C> (A)	9-09205-510-0	01	1	0005-0210	●	●	●	●
53	PLUG; COVER (A)	9-09205-510-0	01	1	0211-			●	●
53	PLUG; COVER TRANSMISSION OIL COOLER<C2C> (B) M16X12	9-99202-316-0	02	1	0005-0210	●	●	●	●
53	PLUG; COVER (B) M16X12	9-99202-316-0	02	1	0211-0606			●	●
53	PLUG; COVER (B) M16X12	0-92002-416-0	02	1	0607-			●	●
53	PLUG; COVER (C) M16X12	1-09604-009-0	01	1	0211-	●	●
60	SEAL; OIL,FRT COVER,UPR ALSO INCLUDED IN REPAIR KIT(T/F).	1-09625-548-0	01	1	0211-	●	●
61	GASKET; COVER ID=16.2 OD=24	9-09571-416-0	01	1	0211-	●	●
84	FORK; SHIFT,LOW & HIGH TRANSMISSION OIL COOLER<C2C>	1-36561-019-1	01	1	0005-0210	●	●	●	●
84	FORK; SHIFT,LOW & HIGH	1-36561-019-1	01	1	0211-			●	●
84	FORK; SHIFT,LOW & HIGH	1-36561-011-2	01	1	0211-	●	●
94	SEAL; OIL,RR COVER,OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> NOK	1-09625-484-0	01	1	0005-0210	●	●	●	●
94	SEAL; OIL,RR COVER,OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F). NOK	1-09625-484-1	01	1	0211-			●	●
94	SEAL; OIL,RR COVER,OUTPUT ALSO INCLUDED IN REPAIR KIT(T/F).	1-09625-553-0	01	1	0211-	●	●
113	GASKET; OIL,TRANSFER ID=12.2	1-09630-084-0	02	1	0211-1312	●	●
113	GASKET; OIL,TRANSFER ID=12.2	8-98251-344-0	02	1	1401-	●	●
126	BOLT; RR COVER TRANSMISSION OIL COOLER<C2C> M10X25 W/LK WASHER	0-50051-025-0	06	1	0005-0210	●	●	●	●
126	BOLT; RR COVER M10X25 W/LK WASHER	0-50051-025-0	06	1	0211-0906			●	●
126	BOLT; RR COVER M10X25 W/LK WASHER	0-50551-025-0	06	1	0907-			●	●
126	BOLT; RR COVER M8X25 FLANGE	0-28080-825-0	12	1	0211-0512	●	●
126	BOLT; RR COVER M8X25 FLANGE	0-28050-825-0	12	1	0601-	●	●
127	GASKET; BUSHING,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C>	1-09623-370-0	01	1	0005-0210	●	●	●	●
127	GASKET; BUSHING,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F).	1-09623-370-0	01	1	0211-			●	●
127	GASKET; BUSHING,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F).	1-09623-246-0	01	1	0211-	●	●
129	SEAL; OIL,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F). TRANSMISSION OIL COOLER<C2C> NOK	1-09625-510-0	01	1	0005-0210	●	●	●	●
129	SEAL; OIL,DRIVEN GEAR ALSO INCLUDED IN REPAIR KIT(T/F). NOK	1-09625-510-0	01	1	0211-	●	●	●	●
130	GEAR; DRIVEN,SPD,TRANSFER TRANSMISSION OIL COOLER<C2C> Z=12	1-33372-074-5	01	1	0005-0210	●	●	●	●
130	GEAR; DRIVEN,SPD,TRANSFER Z=12	1-33372-074-5	01	1	0211-			●	●
130	GEAR; DRIVEN,SPD,TRANSFER Z=15	1-33372-147-4	01	1	0211-	●	●
134	WASHER; PL ID=10.5 OD=22	9-09164-610-0	01	1	0211-0605	●	●
134	WASHER; PL ID=10.5 OD=22	0-91614-610-0	01	1	0606-	●	●
145	CONNECTOR; OIL PIPE,TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-09650-325-1	01	1	0005-0210	●	●	●	●
145	CONNECTOR; OIL PIPE,TRANSFER (A)	1-09650-325-1	01	1	0211-			●	●
145	CONNECTOR; OIL PIPE,TRANSFER TRANSMISSION OIL COOLER<C2C> (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0005-0210	●	●	●	●
145	CONNECTOR; OIL PIPE,TRANSFER (B) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0211-0607			●	●
145	CONNECTOR; OIL PIPE,TRANSFER (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0608-			●	●
145	CONNECTOR; OIL PIPE,TRANSFER (C) PT1/4 2WAY	1-09660-693-0	01	1	0211-	●	●
148	BOLT; EYE,OIL PIPE TRANSMISSION OIL COOLER<C2C> M12X27 FLANGE	1-09675-085-0	01	1	0005-0210	●	●	●	●
148	BOLT; EYE,OIL PIPE M12X27 FLANGE	1-09675-085-0	01	1	0211-	●	●	●	●
173	BOLT; COVER (D) M12X30 FLANGE	0-28181-230-0	15	1	0211-0512	●	●
173	BOLT; COVER (D) M12X30 FLANGE	0-28151-230-0	15	1	0601-	●	●
173	BOLT; COVER TRANSMISSION OIL COOLER<C2C> (F) M10X30 W/LK WASHER	0-50051-030-0	04	1	0005-0210	●	●	●	●
173	BOLT; COVER (F) M10X30 W/LK WASHER	0-50051-030-0	14	1	0211-0906			●	●
173	BOLT; COVER (F) M10X30 W/LK WASHER	0-50551-030-0	14	1	0907-			●	●
173	BOLT; COVER (A) M8X25 FLANGE	0-28080-825-0	12	1	0211-0512	●	●
173	BOLT; COVER (A) M8X25 FLANGE	0-28050-825-0	12	1	0601-	●	●
173	BOLT; COVER (B) M10X45 FLANGE	0-28181-045-0	03	1	0211-0512	●	●
173	BOLT; COVER (B) M10X45 FLANGE	0-28151-045-0	03	1	0601-	●	●
173	BOLT; COVER (C) M12X100 FLANGE	0-28181-200-0	02	1	0211-0512	●	●
173	BOLT; COVER (C) M12X100 FLANGE	0-28151-200-0	02	1	0601-	●	●
173	BOLT; COVER (E) M10X20 W/LK WASHER	0-50051-020-0	02	1	0211-0512	●	●
173	BOLT; COVER (E) M10X20 W/LK WASHER	0-50551-020-0	02	1	0601-	●	●
182	BOLT; OIL PIPE,TRANSFER M10X20 W/LK WASHER	0-50051-020-0	01	1	0211-0512	●	●
182	BOLT; OIL PIPE,TRANSFER M10X20 W/LK WASHER	0-50551-020-0	01	1	0601-	●	●
185	PUMP ASM; OIL,TRANSFER TRANSMISSION OIL COOLER<C2C>	1-13110-036-2	01	1	0005-0210	●	●	●	●
185	PUMP ASM; OIL,TRANSFER	1-13110-036-2	01	1	0211-			●	●
185	PUMP ASM; OIL,TRANSFER	1-34150-071-1	01	1	0211-	●	●
189	COVER; DUST,OIL SEAL	1-33139-011-1	01	1	0211-	●	●
195	BOLT; SHIFT FORK TRANSMISSION OIL COOLER<C2C> M12X20	1-09052-039-0	02	1	0005-0210	●	●	●	●
195	BOLT; SHIFT FORK M12X20	1-09052-039-0	02	1	0211-			●	●
195	BOLT; SHIFT FORK M12X20	1-09052-039-0	01	1	0211-	●	●
248	BOLT M6X12.5 FLANGE	1-09044-063-0	01	1	0211-0805	●	●
248	BOLT M6X12.5 FLANGE	8-98014-141-0	01	1	0806-	●	●
250	COVER; OIL PUMP,TRANSFER (A)	1-36121-028-0	01	1	0211-	●	●
250	COVER; OIL PUMP,TRANSFER (B)	1-36121-031-0	01	1	0211-	●	●
263	BOLT; TRANSFER CASE M10X30 FLANGE	0-28181-030-0	21	1	0211-0512	●	●
263	BOLT; TRANSFER CASE M10X30 FLANGE	0-28151-030-0	21	1	0601-	●	●
264	SPACER L=28	8-97108-653-0	03	1	0211-	●	●
277	COVER; SHIFT ROD,TRANSFER	1-36135-004-0	01	1	0211-	●	●
321	BOLT; PUMP HSG TRANSMISSION OIL COOLER<C2C> M10X35 FLANGE	0-28181-035-0	08	1	0005-0210	●	●	●	●
321	BOLT; PUMP HSG M10X35 FLANGE	0-28181-035-0	08	1	0211-0512			●	●
321	BOLT; PUMP HSG M10X35 FLANGE	0-28151-035-0	08	1	0601-			●	●
321	BOLT; PUMP HSG TRANSMISSION OIL COOLER<C2C> M10X50 FLANGE	0-28181-050-0	02	1	0005-0210	●	●	●	●
321	BOLT; PUMP HSG M10X50 FLANGE	0-28181-050-0	02	1	0211-0512			●	●
321	BOLT; PUMP HSG M10X50 FLANGE	0-28151-050-0	02	1	0601-			●	●
321	BOLT; PUMP HSG M8X50	0-10805-850-0	04	1	0211-0512	●	●
321	BOLT; PUMP HSG M8X50	0-10855-850-0	04	1	0601-	●	●
333	PIPE; OIL,TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36161-030-0	01	1	0005-0210	●	●	●	●
333	PIPE; OIL,TRANSFER (A)	1-36161-030-0	01	1	0211-			●	●
333	PIPE; OIL,TRANSFER TRANSMISSION OIL COOLER<C2C> (B)	1-36161-033-0	01	1	0005-0210	●	●	●	●
333	PIPE; OIL,TRANSFER (B)	1-36161-033-0	01	1	0211-			●	●
333	PIPE; OIL,TRANSFER (C)	1-36161-029-0	01	1	0211-	●	●
335	BUSHING (A)	1-33373-074-0	01	1	0211-	●	●
335	BUSHING (B)	1-33373-076-0	01	1	0211-	●	●
344	CONNECTOR TRANSMISSION OIL COOLER<C2C>	9-09221-808-1	01	1	0005-0210	●	●	●	●
344	CONNECTOR	9-09221-808-1	01	1	0211-0607			●	●
344	CONNECTOR	0-92111-808-0	01	1	0608-			●	●
344	CONNECTOR L=45	8-94338-874-0	01	1	0211-	●	●
350	RING; SNAP,RING GEAR ID=43.7	9-09561-344-0	01	1	0211-	●	●
352	FILTER; OIL TRANSMISSION OIL COOLER<C2C>	1-36289-001-0	01	1	0005-0210	●	●	●	●
352	FILTER; OIL	1-36289-001-0	01	1	0211-	●	●	●	●
353	BAFFLE (A)	1-36379-007-0	01	1	0211-	●	●
353	BAFFLE (B)	1-36379-008-0	01	1	0211-	●	●
354	ROD; AIR SHIFTER	1-36564-036-0	01	1	0211-	●	●
357	SENSOR; SPEED 25 PULSE	1-80240-029-0	01	1	0211-1301	●	●
357	SENSOR; SPEED 25 PULSE	8-98234-167-0	01	1	1302-	●	●
375	NIPPLE (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0211-	●	●
375	NIPPLE (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-	●	●
376	SHIFT UNIT; DIFF LOCK	1-48260-083-0	01	1	0211-	●	●
378	BALL; CONT SWITCH TRANSMISSION OIL COOLER<C2C>	9-00097-013-0	02	1	0005-0210	●	●	●	●
378	BALL; CONT SWITCH	9-00097-013-0	02	1	0211-			●	●
378	BALL; CONT SWITCH	9-00097-013-0	01	1	0211-	●	●
416	PROTECTOR; SENSOR	8-97168-308-0	01	1	0211-0808	●	●
416	PROTECTOR; SENSOR	8-98119-901-0	01	1	0809-	●	●
448	HARNESS; SPEED SENSOR	1-82670-078-0	01	1	0211-	●	●
449	WIRE; LEAD SEAL	1-80249-010-0	01	1	0211-	●	●
450	SEAL; REED	1-15739-002-0	01	1	0211-0407	●	●
450	SEAL; REED	1-15739-008-0	01	1	0408-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
