1 |

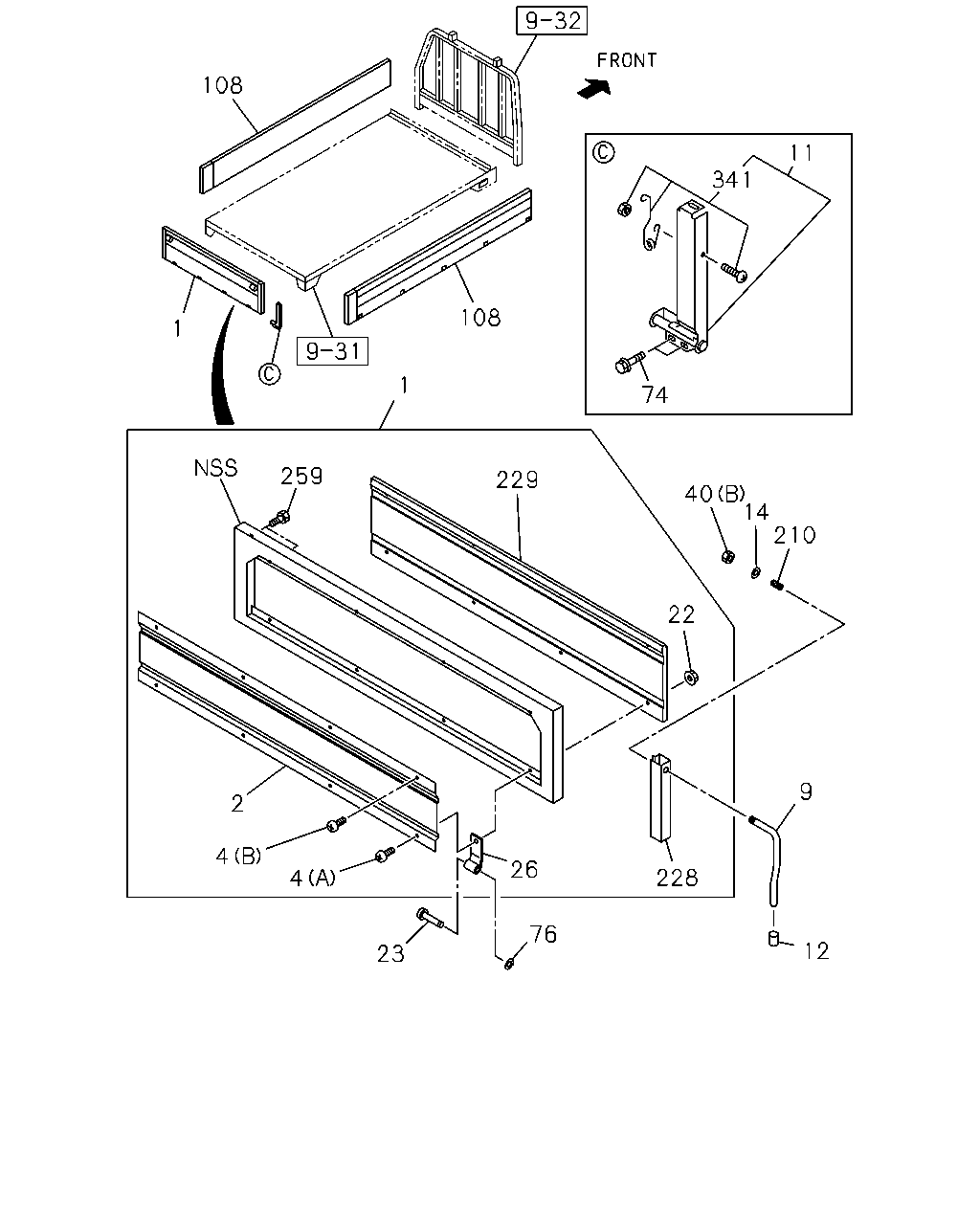

17.185 GATE ASM; RR
RR BODY FLAT BED(RS6)
L=1787 H=380 B=50 PLYWOOD TAKADA
|
8-97594-650-0 |
01 |
1 |
0804-0810 |
| |
1 |
17.185 GATE ASM; RR
RR BODY FLAT BED(RS6)
L=1787 H=380 B=50 PLYWOOD TAKADA
|
8-97594-801-1 |
01 |
1 |
0811-1404 |
| |
1 |
17.185 GATE ASM; RR
RR BODY FLAT BED(RS6)
L=1787 H=380 B=50 PLYWOOD TAKADA
|
8-97565-787-1 |
01 |
1 |
1405- |
| |
2 |
17.185 PANEL; RR GATE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97590-081-0 |
01 |
1 |
0804- |
| |
4 |
17.185 SCREW; PANEL,RR GATE
RR BODY FLAT BED(RS6)
(B)
M8X16
|
8-94193-952-3 |
04 |
1 |
0804- |
| |
4 |
17.185 SCREW; PANEL,RR GATE
RR BODY FLAT BED(RS6)
(A)
M8X21
|
8-94193-953-3 |
04 |
1 |
0804- |
| |
9 |
17.204 HANDLE; LATCH,RR GATE
RR BODY FLAT BED(RS6)
TAKADA
|
8-94196-400-2 |
01 |
1 |
0804- |
| |
9 |
17.204 HANDLE; LATCH,RR GATE
RR BODY FLAT BED(RS6)
TAKADA
|
8-94196-401-2 |
01 |
1 |
0804- |
| |
11 |
17.198 LOCK ASM; VERTICAL
RR BODY FLAT BED(RS6)
TAKADA
|
8-97591-898-0 |
01 |
1 |
0804- |
| |
11 |
17.198 LOCK ASM; VERTICAL
RR BODY FLAT BED(RS6)
TAKADA
|
8-97591-899-0 |
01 |
1 |
0804- |
| |
12 |
17.204 PIECE; END,RR HANDLE
RR BODY FLAT BED(RS6)
TAKADA
|
8-94193-344-0 |
02 |
1 |
0804- |
| |
14 |
17.204 WASHER; PL,HANDLE
RR BODY FLAT BED(RS6)
ID=12.5
|
0-91614-512-0 |
02 |
1 |
0804- |
| |
22 |
17.185 NUT; PLATE,RR GATE
RR BODY FLAT BED(RS6)
M8
|
8-94193-954-1 |
08 |
1 |
0804-1303 |
| |
22 |
17.185 NUT; PLATE,RR GATE
RR BODY FLAT BED(RS6)
17.447
M8
|
8-97565-434-0 |
08 |
1 |
1304- |
| |
23 |
17.208 PIN; HINGE,RR GATE
RR BODY FLAT BED(RS6)
OD=10 L=58.5
|
8-94193-933-2 |
04 |
1 |
0804- |
| |
26 |
17.208 HINGE; UPR,RR GATE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97590-079-0 |
04 |
1 |
0804-0810 |
| |
26 |
17.208 HINGE; UPR,RR GATE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97590-078-0 |
04 |
1 |
0811- |
| |
40 |
17.202 NUT; STOPPER RUBBER
RR BODY FLAT BED(RS6)
01.062
(A)
M6 FLANGE
IDN
|
0-91180-106-0 |
06 |
1 |
0804- |
| |
40 |
17.202 NUT; STOPPER RUBBER
RR BODY FLAT BED(RS6)
17.447
(B)
M12
|
9-09130-412-0 |
02 |
1 |
0804- |
| |
74 |
17.490 SCREW; LOCK
RR BODY FLAT BED(RS6)
17.185
M8X25
|
8-94194-111-2 |
04 |
1 |
0804- |
| |
76 |
17.505 RING; SNAP,GATE HINGE PIN
RR BODY FLAT BED(RS6)
ID=8
|
8-94194-117-1 |
16 |
1 |
0804- |
| |
108 |

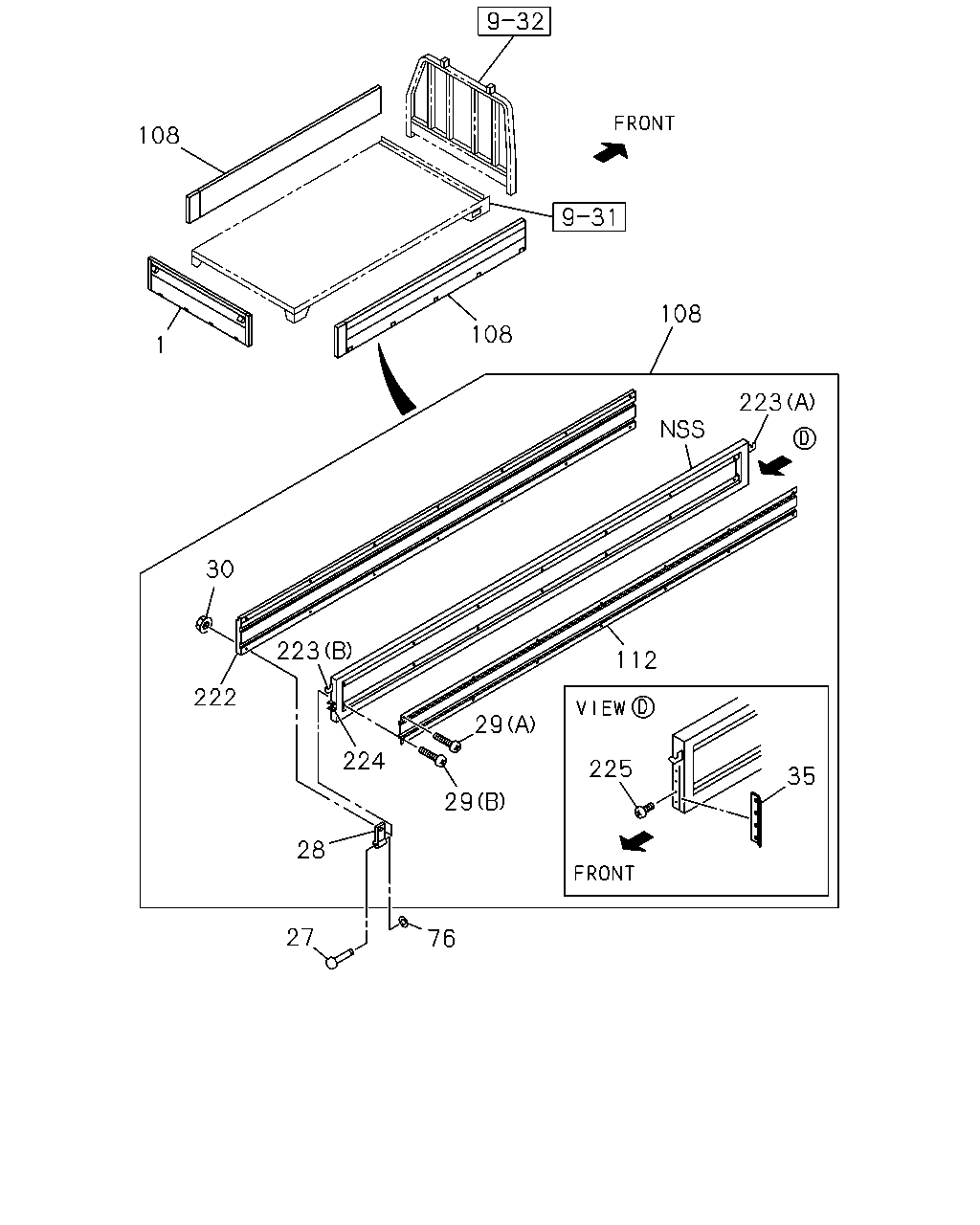

17.505 GATE ASM; SIDE
RR BODY FLAT BED(RS6)
L=2983 H=393 B=50 PLYWOOD TAKADA
|
8-97594-100-3 |
01 |
1 |
0804- |
| |
108 |
17.505 GATE ASM; SIDE
RR BODY FLAT BED(RS6)
L=2983 H=393 B=50 PLYWOOD TAKADA
|
8-97594-101-3 |
01 |
1 |
0804- |
| |
210 |
17.505 SPRING; LATCH HANDLE
RR BODY FLAT BED(RS6)
TAKADA
|
8-94194-192-1 |
02 |
1 |
0804- |
| |
228 |
17.505 BRACKET; LATCH HANDLE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-782-0 |
01 |
1 |
0804- |
| |
228 |
17.505 BRACKET; LATCH HANDLE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-783-0 |
01 |
1 |
0804- |
| |
229 |
17.505 BOARD; RR GATE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97594-242-0 |
01 |
1 |
0804-1404 |
| |
229 |
17.505 BOARD; RR GATE
RR BODY FLAT BED(RS6)
TAKADA
|
8-97565-792-1 |
01 |
1 |
1405- |
| |
259 |
17.505 BOLT; BRKT,RR GATE
RR BODY FLAT BED(RS6)
OUTER
M8X20 TAKADA
|
8-94194-115-0 |
02 |
1 |
0804-1303 |
| |
259 |
17.505 BOLT; BRKT,RR GATE
RR BODY FLAT BED(RS6)
OUTER
M8X20 TAKADA
|
8-97590-324-0 |
02 |
1 |
1304- |
| |
259 |
17.505 BOLT; BRKT,RR GATE
RR BODY FLAT BED(RS6)
INNER
M8X40 TAKADA
|
8-97593-296-0 |
02 |
1 |
0804-1303 |
| |
259 |
17.505 BOLT; BRKT,RR GATE
RR BODY FLAT BED(RS6)
INNER
M8X40 TAKADA
|
8-97590-325-0 |
02 |
1 |
1304- |
| |
341 |
17.505 SPRING KIT; VERTICAL LOCK
RR BODY FLAT BED(RS6)
TAKADA
|
8-97594-448-0 |
01 |
1 |
0804- |
| |
341 |
17.505 SPRING KIT; VERTICAL LOCK
RR BODY FLAT BED(RS6)
TAKADA
|
8-97594-449-0 |
01 |
1 |
0804- |
