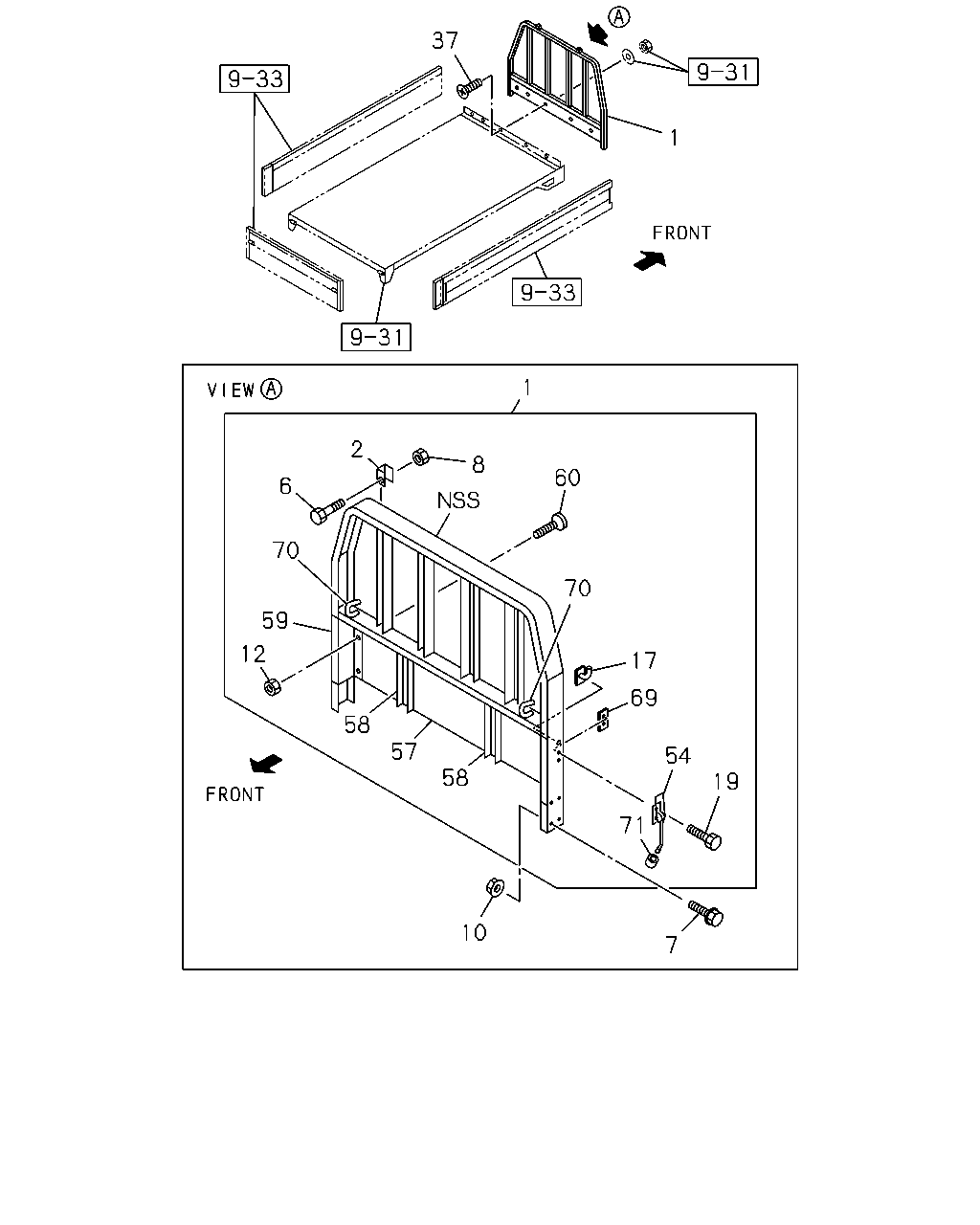

9-32 — REAR BODY; GUARD FRAME
(#81336) — 22 parça
Tümü
A - NMR5SE
B - NMR5SN
37
1
1
2
8
60
6
70
70
59
12
17
69
58
57
54
58
19
71
10
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED(RS6) TAKADA
8-98071-453-2
01
1
0804-
●
2
17.447 STOPPER; GUARD FRAME
RR BODY FLAT BED(RS6)
8-97590-396-0
02
1
0804-
●
6
17.447 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED(RS6)
8-97590-488-0
02
1
0804-
●
7
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6) 17.455 M10X22
8-97233-077-0
08
1
0804-0912
●
7
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6) 07.833 M10X25 FLANGE IDN
0-28661-025-0
08
1
1001-
●
8
17.447 NUT; STOPPER BOLT
RR BODY FLAT BED(RS6) M10
8-97590-493-0
02
1
0804-
●
10
17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6) 17.455 M10 FLANGE
8-97065-439-0
08
1
0804-0912
●
10
17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6) 04.085 M10 FLANGE
0-91180-210-0
08
1
1001-
●
12
17.455 NUT; GUARD FRAME
RR BODY FLAT BED(RS6) 17.447 M8 FLANGE
8-94193-939-2
04
1
0804-
●
17
17.455 HOOK; GUARD FRAME
RR BODY FLAT BED(RS6) TAKADA
8-97593-683-0
02
1
0804-
●
19
17.455 BOLT; HANDLE TO GUARD FRAME
RR BODY FLAT BED(RS6) M8X20
8-94193-942-2
04
1
0804-
●
37
17.455 BOLT; GUARD FRAME
08.143 M6X16 W/LK&PL WASHER IDN
0-52010-616-0
02
1
0804-0805
●
●
37
17.455 BOLT; GUARD FRAME
RR BODY FLAT BED(RS6) M8X26
8-97065-436-0
05
1
0804-
●
54
17.455 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED(RS6) TAKADA
8-97593-639-1
02
1
0804-
●
57
17.400 BOARD; HEADER
RR BODY FLAT BED(RS6) TAKADA
8-97594-738-1
01
1
0804-
●
58
17.505 MEMBER; HEADER BOARD
RR BODY FLAT BED(RS6) TAKADA
8-94194-452-0
02
1
0804-
●
59
17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED(RS6) TAKADA
8-94194-453-0
01
1
0804-
●
59
17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED(RS6) TAKADA
8-94194-454-0
01
1
0804-
●
60
17.455 SCREW; BOARD
RR BODY FLAT BED(RS6) M8X30 TAKADA
8-94193-938-3
04
1
0804-
●
69
17.455 SETTING PLATE; LOCK HANDLE
RR BODY FLAT BED(RS6) TAKADA
8-97591-976-0
02
1
0804-
●
70
17.455 HOOK; ROPE,GUARD FRAME
RR BODY FLAT BED(RS6) TAKADA
8-97592-598-0
02
1
0804-
●
71
17.204 PIECE; END,FRT HANDLE
RR BODY FLAT BED(RS6) 17.615 ID=12
9-61203-650-0
02
1
0804-
●
