9-31 — REAR BODY; FLOOR AND FENDER (#81335) — 85 parça

132 132 132 132 132 132 132 132 130 132 132 132 132 132 132 132 132 132 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6)	8-97594-566-0	01	1	0804-1203
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6)	8-97565-224-0	01	1	1204-
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6)	8-97594-567-0	01	1	0804-1203
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6)	8-97565-225-0	01	1	1204-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (A)	8-97594-152-0	10	1	0804-0808
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (A)	8-97594-152-0	06	1	0809-1203
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (F)	8-97565-409-0	02	1	1204-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (B)	8-97594-153-0	02	1	0804-0808
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (B)	8-97594-153-0	04	1	0809-1203
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (G)	8-97594-161-0	04	1	1204-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (C)	8-97594-151-0	02	1	0804-1203
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (H)	8-97565-408-0	02	1	1204-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (D)	8-97594-154-0	02	1	0804-1203
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (D)	8-97594-154-0	10	1	1204-
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (E)	8-97594-155-0	02	1	0809-1203

23 24 81 64 52 1 71 53 8 53 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6)	8-97162-719-0	02	1	0804-1604
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6)	8-98253-301-0	02	1	1605-
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED(RS6)	8-97190-220-0	02	1	0804-
23	17.405 NUT; ANGLE RR BODY FLAT BED(RS6) 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	0804-
24	17.405 WASHER; ANGLE RR BODY FLAT BED(RS6) 04.047 ID=8.2 OD=40	8-97182-975-0	01	1	0804-
39	08.212 WASHER; PL,MUD COVER RR BODY FLAT BED(RS6) ID=6.4 OD=18	8-97076-852-0	02	1	0804-
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED(RS6) M8X60 W/LK WASHER	0-50740-860-0	08	1	0804-
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED(RS6) 01.062 M8 FLANGE IDN	0-91180-108-0	16	1	0804-
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED(RS6) 03.706 ID=8.4 OD=26 IDN	0-91614-808-0	08	1	0804-
71	08.212 STAY; RR FENDER RR BODY FLAT BED(RS6)	8-97179-830-1	08	1	0804-

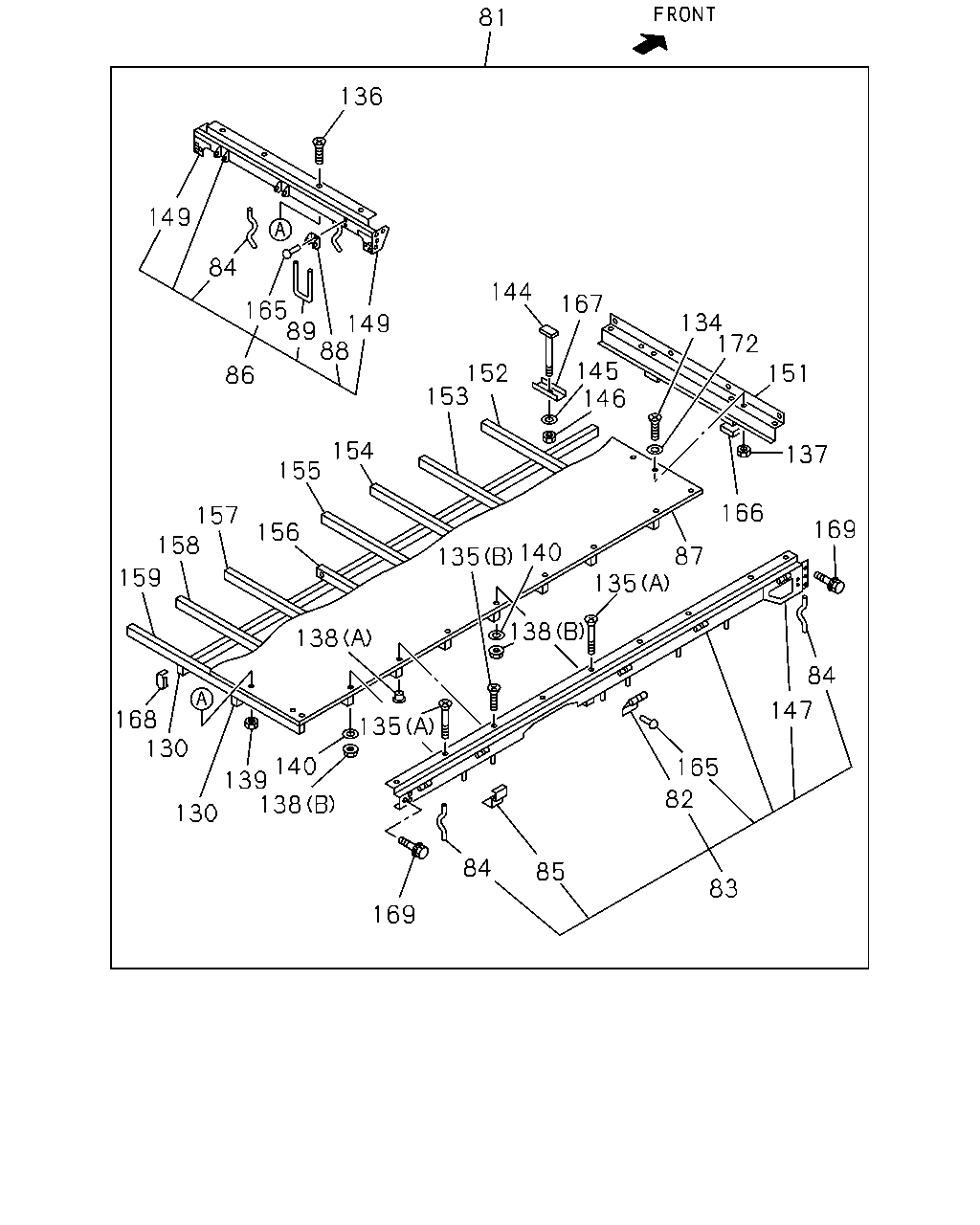

81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97594-104-7	01	1	0804-

81 136 149 84 144 167 165 149 89 88 134 172 145 146 152 153 151 86 154 137 155 166 157 158 169 156 135 140 87 159 135 138 138 84 135 147 168 130 140 139 138 165 82 130 84 85 83 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97594-104-7	01	1	0804-
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-219-0	12	1	0804-
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) TAKADA	8-97594-510-0	01	1	0804-
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) TAKADA	8-97594-511-0	01	1	0804-
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) REAR TAKADA	8-94194-318-0	03	1	0804-0810
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) SIDE TAKADA	8-97593-866-0	12	1	0804-0810
84	08.820 HOOK; ROPE RR BODY FLAT BED(RS6) TAKADA	8-97593-866-0	15	1	0811-
85	08.212 BRACKET; SIDE FRAME RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	04	1	0804-
86	17.202 FRAME; RR RR BODY FLAT BED(RS6) TAKADA	8-97594-568-0	01	1	0804-
87	17.400 BOARD; FLOOR RR BODY FLAT BED(RS6)	8-97594-527-0	01	1	0804-1110
87	17.400 BOARD; FLOOR RR BODY FLAT BED(RS6) TAKADA	8-97565-203-1	01	1	1111-
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-251-0	04	1	0804-0810
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-250-0	04	1	0811-1203
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-251-0	04	1	1204-
89	17.400 STEP; RR RR BODY FLAT BED(RS6) TAKADA	8-97592-957-0	01	1	0804-
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6)	8-97594-566-0	01	1	0804-1203
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6)	8-97565-224-0	01	1	1204-
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6)	8-97594-567-0	01	1	0804-1203
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6)	8-97565-225-0	01	1	1204-
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	06	1	0804-1110
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	1111-
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8X103 TAKADA	8-97591-961-2	12	1	0804-0808
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	12	1	0809-
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (B) M8X16 TAKADA	8-94195-024-3	02	1	0804-
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	0804-
137	17.447 NUT; BOARD,FRT RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	06	1	0804-1110
137	17.447 NUT; BOARD,FRT RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1111-
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	12	1	0804-
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) 17.185 (A) M8	8-94193-954-1	02	1	0804-1303
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8	8-97565-434-0	02	1	1304-
139	17.447 NUT; BOARD,RR RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	0804-
140	17.447 WASHER; PL,BOARD,SIDE RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	08	1	0804-
144	17.447 BOLT; BOLSTER TO SILL RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	14	1	0804-
145	17.447 WASHER; PL,BOLSTER TO SILL RR BODY FLAT BED(RS6) 03.706 ID=10.5 OD=32	9-09164-810-0	18	1	0804-1203
145	17.447 WASHER; PL,BOLSTER TO SILL RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	18	1	1204-
146	17.447 NUT; BOLSTER TO SILL RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	18	1	0804-
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-174-0	01	1	0804-
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-175-0	01	1	0804-
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-186-0	01	1	0804-
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-187-0	01	1	0804-
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-108-0	01	1	0804-1110
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-189-0	01	1	1111-1203
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-219-0	01	1	1204-
152	17.208 BOLSTER; NO 2,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	0804-
153	17.208 BOLSTER; NO 3,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	0804-
154	17.208 BOLSTER; NO 4,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	0804-
155	17.208 BOLSTER; NO 5,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-543-1	01	1	0804-
156	17.208 BOLSTER; NO 6,RR BODY RR BODY FLAT BED(RS6) L=780 TAKADA	8-97594-117-1	01	1	0804-
157	17.208 BOLSTER; NO 7,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-543-1	01	1	0804-
158	17.208 BOLSTER; NO 8,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	0804-
159	17.208 BOLSTER; NO 9,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-547-0	01	1	0804-
165	17.447 RIVET; HINGE LWR RR BODY FLAT BED(RS6) TAKADA	8-97592-609-0	32	1	0804-
166	17.208 SPACER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97594-119-0	02	1	0804-
167	17.447 WASHER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	14	1	0804-
168	08.212 COVER; SILL,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97565-106-0	02	1	1204-
169	17.447 BOLT; CONNECTOR,RR CORNER RR BODY FLAT BED(RS6) 17.185 M8X25	8-94194-111-2	06	1	0804-
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-94193-940-1	04	1	0804-1110
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-94193-940-1	05	1	1111-1303
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-97565-435-0	05	1	1304-
