8-90 — RADIO AND TV (#81332) — 38 parça

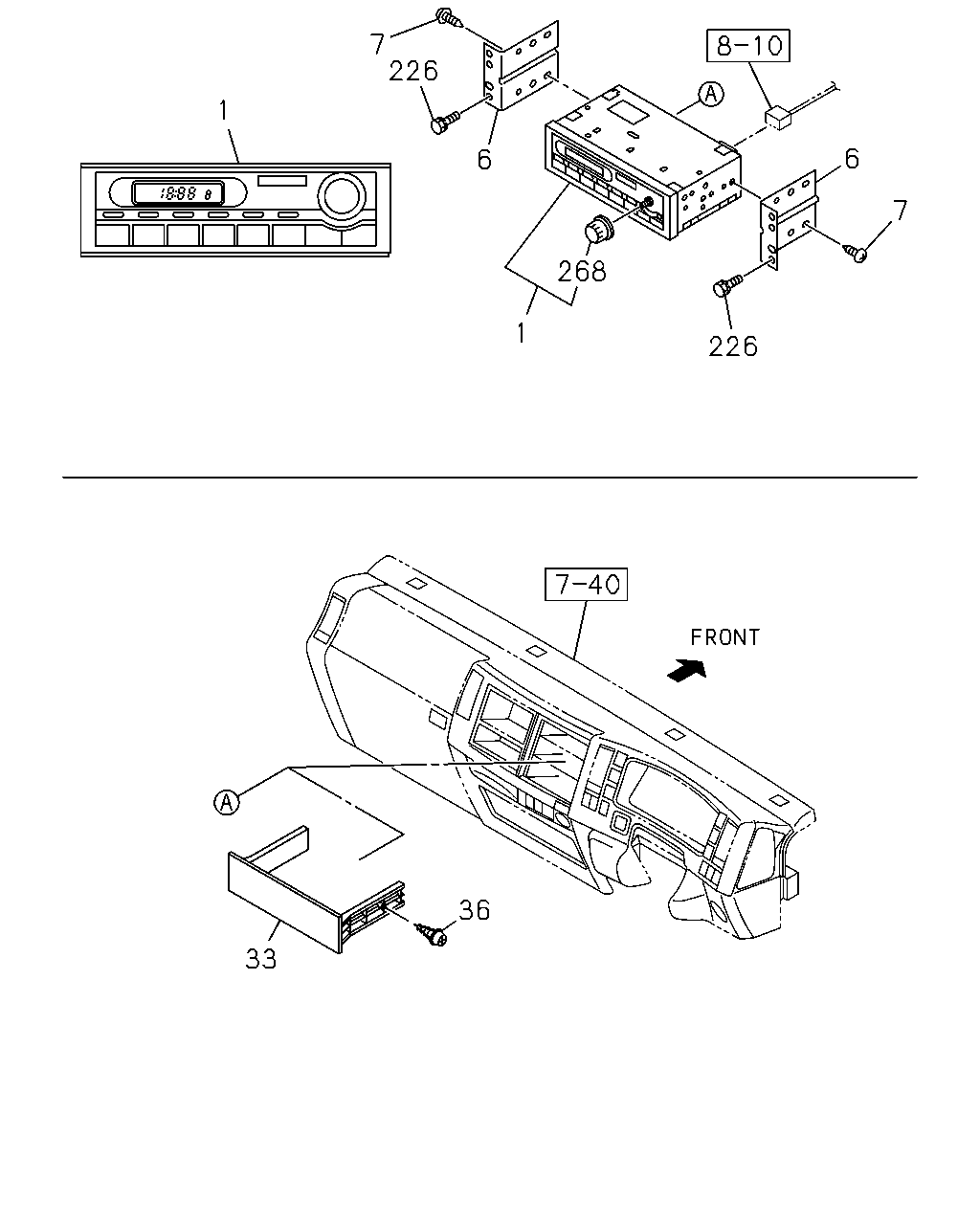

çizim 14383
7 226 1 6 6 7 268 1 226 36 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.650 RADIO
AM/FM RADIO(U69) IDN 		8-98083-559-0 01 1 0804- ●
1 09.650 RADIO
VOLTAGE 12V<TRQ> AM/FM RADIO(U69) IDN 		8-98083-559-0 01 1 0804- ●
1 09.650 RADIO
AM/FM RADIO(U69) EXC. VOLTAGE 12V<TRQ> IDN 		8-98032-643-0 01 1 0804- ●
6 09.645 BRACKET; RADIO TO PANEL
IDN 		8-97585-617-0 02 1 0804- ● ●
7 09.650 SCREW; RADIO
AM/FM RADIO(U69) M5X7 HEXALOBULAR SOCKET IDN 		8-98063-767-0 04 1 0804- ● ●
33 09.650 COVER; RADIO
EXC. AM/FM RADIO(U69) BLACK IDN 		8-97407-896-2 01 1 0804- ● ●
36 09.779 SCREW; COVER
EXC. AM/FM RADIO(U69) 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0804- ● ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0804-1101 ● ●
226 09.647 BOLT; BRKT
16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 02 1 1102-1212 ● ●
226 09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 1301- ● ●
268 09.649 KNOB; VOL
AM/FM RADIO(U69) CLARION IDN 		8-97375-820-0 01 1 0804- ● ●

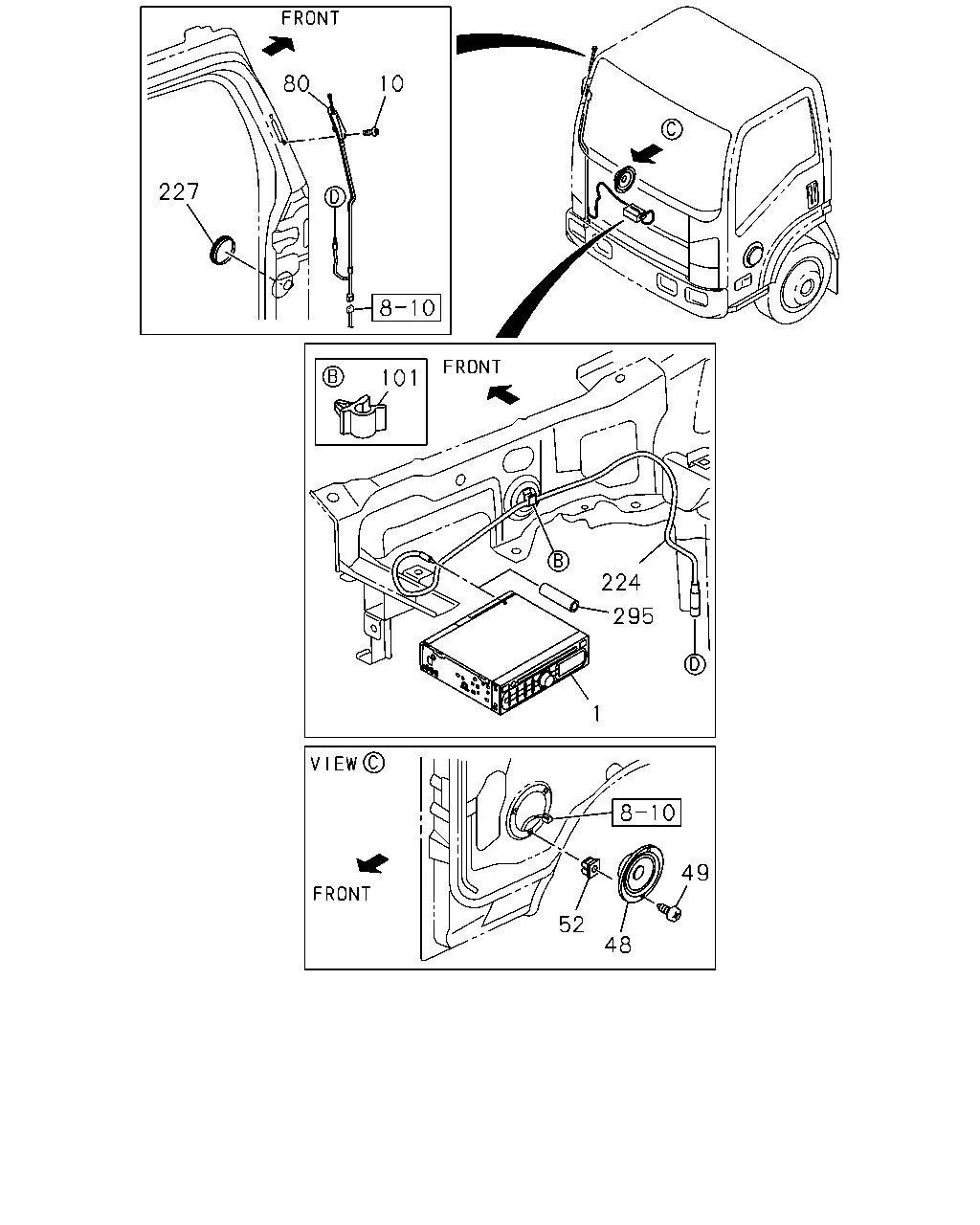

çizim 183507
80 10 227 101 224 295 1 49 52 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.650 RADIO
AM/FM RADIO(U69) IDN 		8-98083-559-0 01 1 0804- ●
1 09.650 RADIO
VOLTAGE 12V<TRQ> AM/FM RADIO(U69) IDN 		8-98083-559-0 01 1 0804- ●
1 09.650 RADIO
AM/FM RADIO(U69) EXC. VOLTAGE 12V<TRQ> IDN 		8-98032-643-0 01 1 0804- ●
10 09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES IDN 		8-98061-742-0 02 1 0804- ● ●
48 09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> 		8-97317-000-0 02 1 0804-0805 ●
48 09.650 SPEAKER; AUDIO
VOLTAGE 12V<TRQ> 2-SPEAKER SYSTEM BASE<U95> 		8-97317-000-0 02 1 0804-0805 ●
48 09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> EXC. VOLTAGE 12V<TRQ> 		8-97317-001-0 02 1 0804-0805 ●
48 09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> IDN 		8-97317-001-1 02 1 0806- ● ●
49 09.655 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0804- ● ●
52 09.655 GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> 01.269 D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 06 1 0804- ● ●
80 09.645 ANTENNA
IDN 		8-97387-265-3 01 1 0804- ● ●
101 09.649 CLIP; FEEDER TO BRKT
09.647 ID=4.8 		8-94128-483-0 01 1 0804- ● ●
224 09.647 CABLE; EXT,FEEDER
IDN 		8-98029-970-1 01 1 0804-0805 ● ●
224 09.647 CABLE; EXT,FEEDER
4JB1-TC ENG(RDT) IDN 		8-98029-970-1 01 1 0806-0906 ●
224 09.647 CABLE; EXT,FEEDER
EXC. VOLTAGE 12V<TRQ> IDN 		8-98029-970-1 01 1 0806-0906 ●
224 09.647 CABLE; EXT,FEEDER
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98029-970-1 01 1 0806-0906 ●
224 09.647 CABLE; EXT,FEEDER
4JB1-TC ENG(RDT) IDN 		8-98029-970-1 01 1 0907-1005 ●
224 09.647 CABLE; EXT,FEEDER
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98029-970-1 01 1 0907-1005 ●
224 09.647 CABLE; EXT,FEEDER
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> IDN 		8-98029-970-1 01 1 0907-1005 ●
224 09.647 CABLE; EXT,FEEDER
4JB1-TC ENG(RDT) IDN 		8-98029-970-1 01 1 1006-1006 ●
224 09.647 CABLE; EXT,FEEDER
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98029-970-1 01 1 1006-1006 ●
224 09.647 CABLE; EXT,FEEDER
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> IDN 		8-98029-970-1 01 1 1006-1006 ●
224 09.647 CABLE; EXT,FEEDER
4JB1-TC ENG(RDT) IDN 		8-98029-970-1 01 1 1006- ●
224 09.647 CABLE; EXT,FEEDER
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98029-970-1 01 1 1006- ●
224 09.647 CABLE; EXT,FEEDER
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> IDN 		8-98029-970-1 01 1 1006- ●
227 09.647 PROTECTOR; EDGE
IDN 		8-98053-117-0 01 1 0804- ● ●
295 09.665 INSULATOR; ANTENNA
EXC. AM/FM RADIO(U69) IDN 		8-98095-617-1 01 1 0804- ● ●
