Isuzu WW
▶
TRUCKS
▶
NLR
▶
51395 - NLR/NMR(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶

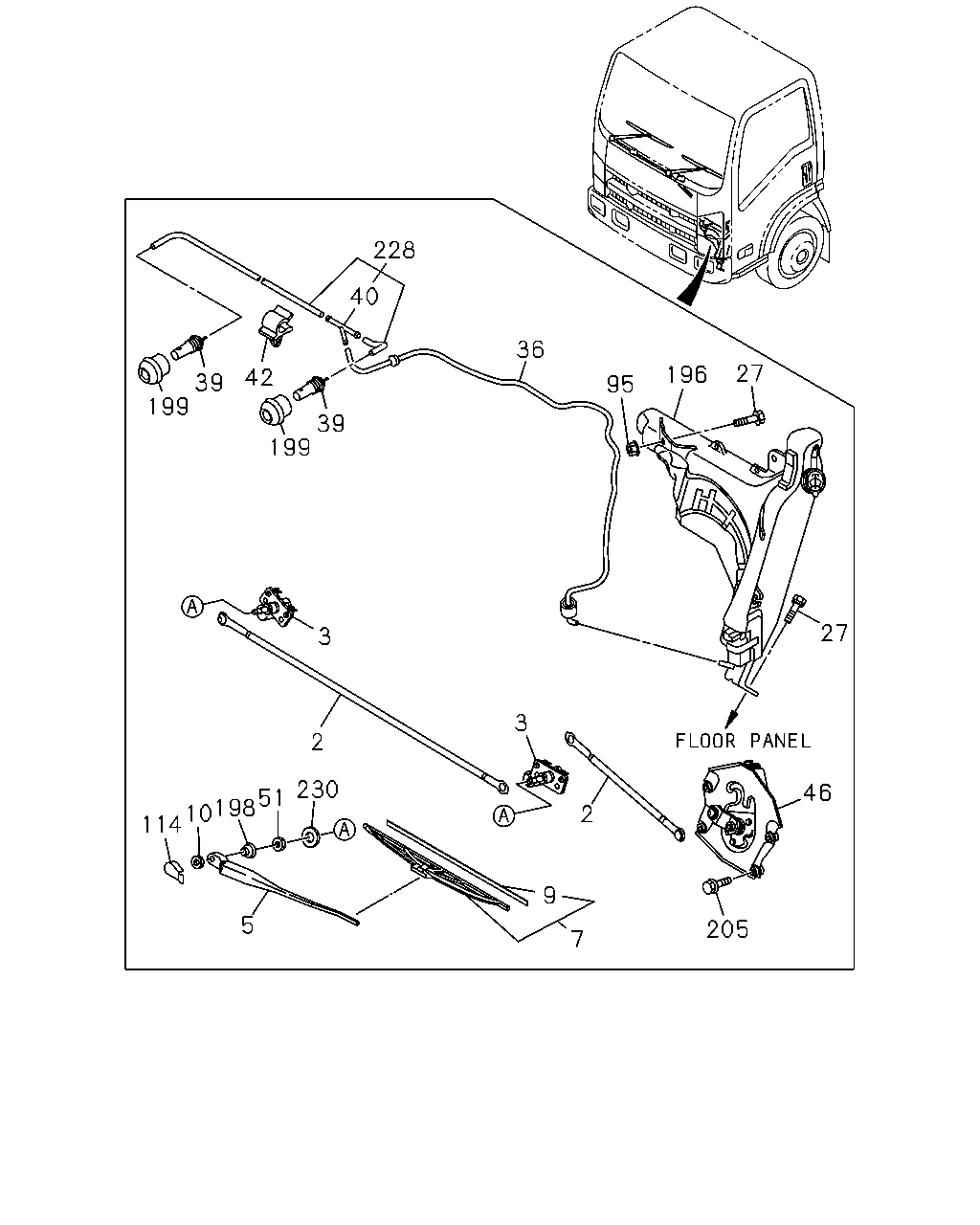

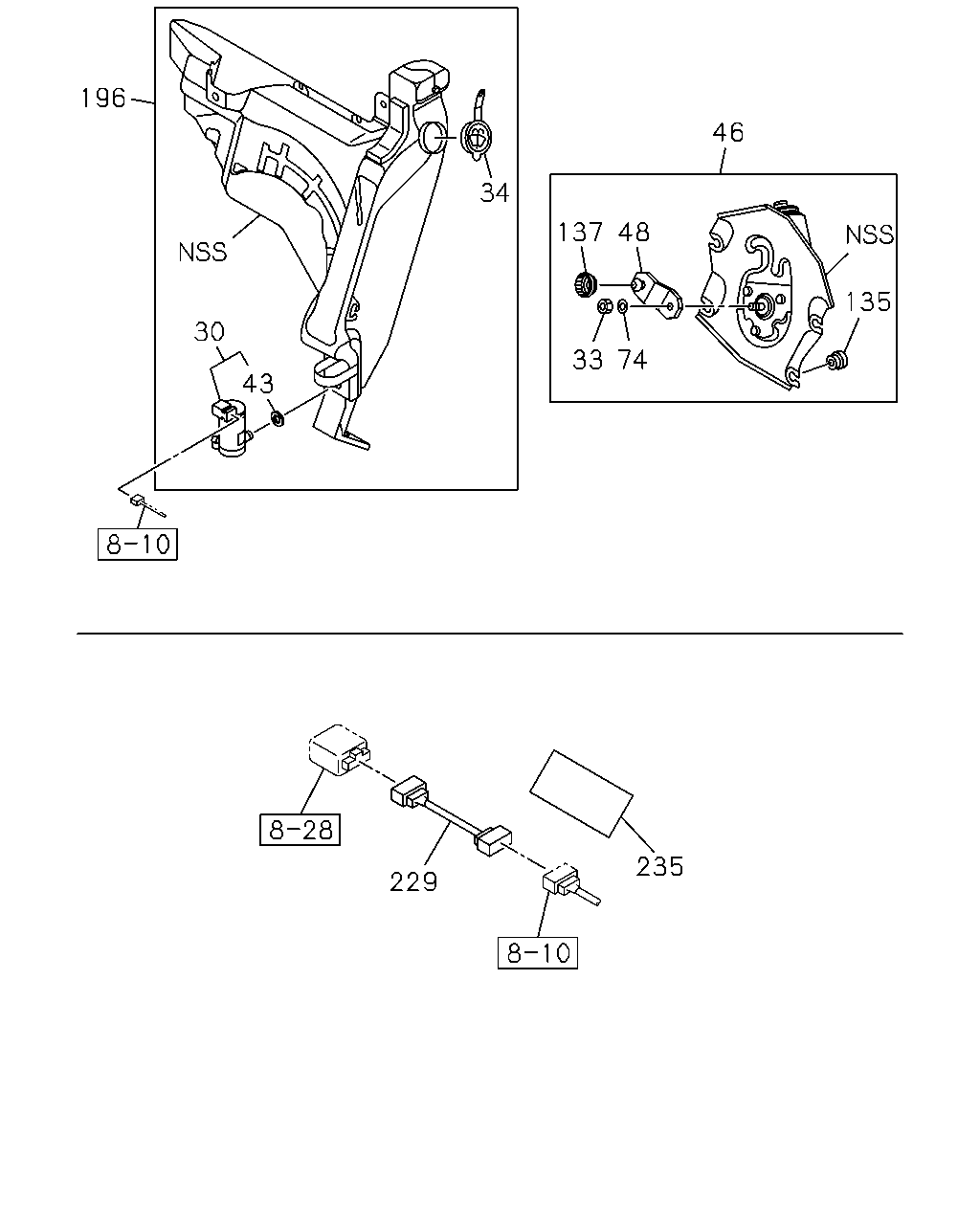

8-80 — WINDSHIELD WIPER AND WASHER
(#81331) — 46 parça
Tümü
A - NMR5SE
B - NMR5SN
◀
[880A] NO.2 (18 parça)
[880A] NO.1 (28 parça)
▶
196
30
43
34
48
46
137
74
33
135
235
229
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
16.065 MOTOR ASM; FRT WASHER TANK
8-97855-138-0
01
1
0804-
●
30
16.065 MOTOR ASM; FRT WASHER TANK
VOLTAGE 12V<TRQ>
8-97855-138-0
01
1
0804-
●
30
16.065 MOTOR ASM; FRT WASHER TANK
EXC. VOLTAGE 12V<TRQ>
8-97855-139-0
01
1
0804-
●
33
16.064 NUT; MOTOR TO ARM
M8 IDN
8-97855-157-0
01
1
0804-
●
●
34
16.065 CAP; WASHER TANK
IDN
8-97855-140-0
01
1
0804-
●
●
43
16.065 RUBBER; GASKET,TANK
10.154 IDN
8-94352-050-0
01
1
0804-
●
●
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
8-98029-122-3
01
1
0804-
●
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
VOLTAGE 12V<TRQ>
8-98029-122-3
01
1
0804-
●
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
EXC. VOLTAGE 12V<TRQ> IDN
8-98029-123-3
01
1
0804-
●
48
16.063 ARM; WIPER MOTOR
IDN
8-98052-215-0
01
1
0804-
●
●
74
16.063 WASHER; ARM TO MOTOR
ID=8 IDN
8-97855-158-0
01
1
0804-
●
●
135
16.250 RUBBER; CUSHION,WIPER MOTOR
IDN
8-98052-214-0
04
1
0804-
●
●
137
16.063 SEAL; JOINT,WIPER MOTOR
IDN
8-98052-218-0
01
1
0804-
●
●
196
16.065 TANK; WASHER
IDN
8-98029-137-3
01
1
0804-
●
196
16.065 TANK; WASHER
VOLTAGE 12V<TRQ> IDN
8-98029-137-3
01
1
0804-
●
196
16.065 TANK; WASHER
EXC. VOLTAGE 12V<TRQ> IDN
8-98029-135-3
01
1
0804-
●
229
02.480 HARNESS; WASHER TANK
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ>
8-98236-608-0
01
1
1302-1308
●
235
16.062 INSULATOR; HARNESS
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ>
8-98236-321-0
01
1
1302-1308
●
228
40
36
27
196
42
39
199
95
39
199
27
3
3
2
230
46
51
198
10
114
2
9
5
205
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
16.063 LINK; FRT WIPER
L=400 W/CAP STAMP M
8-98053-767-0
01
1
0804-
●
●
2
16.063 LINK; FRT WIPER
L=590 W/CAP
8-98053-770-0
01
1
0804-
●
●
3
16.063 PIVOT ASM; FRT WIPER
8-98053-763-0
01
1
0804-
●
●
3
16.063 PIVOT ASM; FRT WIPER
IDN
8-98053-764-0
01
1
0804-
●
●
5
16.063 ARM; WIPER
IDN
8-98053-784-0
01
1
0804-
●
●
5
16.063 ARM; WIPER
IDN
8-98053-785-0
01
1
0804-
●
●
7
16.062 BLADE; WIPER
IDN
8-98053-790-0
02
1
0804-
●
●
9
16.062 RUBBER; FRT WIPER BLADE
L=475 IDN
8-98053-793-0
02
1
0804-
●
●
10
16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8 IDN
0-91110-508-0
02
1
0804-
●
●
27
16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER
8-94310-730-0
02
1
0804-
●
●
36
16.065 HOSE; WASHER
L=1070
8-98029-171-2
01
1
0804-
●
●
39
16.065 NOZZLE; WINDSHIELD WASHER
IDN
8-98029-139-1
02
1
0804-
●
●
40
16.065 JOINT; WASHER HOSE
3WAY IDN
5-83363-033-0
01
1
0804-
●
●
42
16.065 CLIP; WASHER HOSE
8-94144-956-0
01
1
0804-
●
●
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
8-98029-122-3
01
1
0804-
●
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
VOLTAGE 12V<TRQ>
8-98029-122-3
01
1
0804-
●
46
16.064 MOTOR ASM; FRT WINDSHIELD WIPER
EXC. VOLTAGE 12V<TRQ> IDN
8-98029-123-3
01
1
0804-
●
51
16.063 NUT; WIPER MOTOR LINK
M24 IDN
8-98029-167-0
02
1
0804-
●
●
95
16.065 NUT; WASHER TANK
01.062 M8 FLANGE IDN
0-91180-108-0
01
1
0804-
●
●
114
16.063 COVER; FRT WIPER ARM
BLACK IDN
8-94282-851-0
02
1
0804-
●
●
196
16.065 TANK; WASHER
IDN
8-98029-137-3
01
1
0804-
●
196
16.065 TANK; WASHER
VOLTAGE 12V<TRQ> IDN
8-98029-137-3
01
1
0804-
●
196
16.065 TANK; WASHER
EXC. VOLTAGE 12V<TRQ> IDN
8-98029-135-3
01
1
0804-
●
198
16.063 COVER; PIVOT,WIPER
IDN
8-98029-164-0
02
1
0804-
●
●
199
16.063 COVER; NOZZLE,WIPER
IDN
8-98079-030-0
02
1
0804-
●
●
205
16.064 BOLT; WIPER MOTOR
16.090 M6X25 W/LK&PL WASHER
8-98018-440-0
04
1
0804-
●
●
228
16.065 HOSE ASM; WASHER
8-98029-169-1
01
1
0804-
●
●
230
16.064 COLLAR; WIPER LINK
IDN
8-98029-097-0
02
1
0804-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
