Sayfa 2-60 - Isuzu EPC

2-60 — TRANSFER (#8133) — 538 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

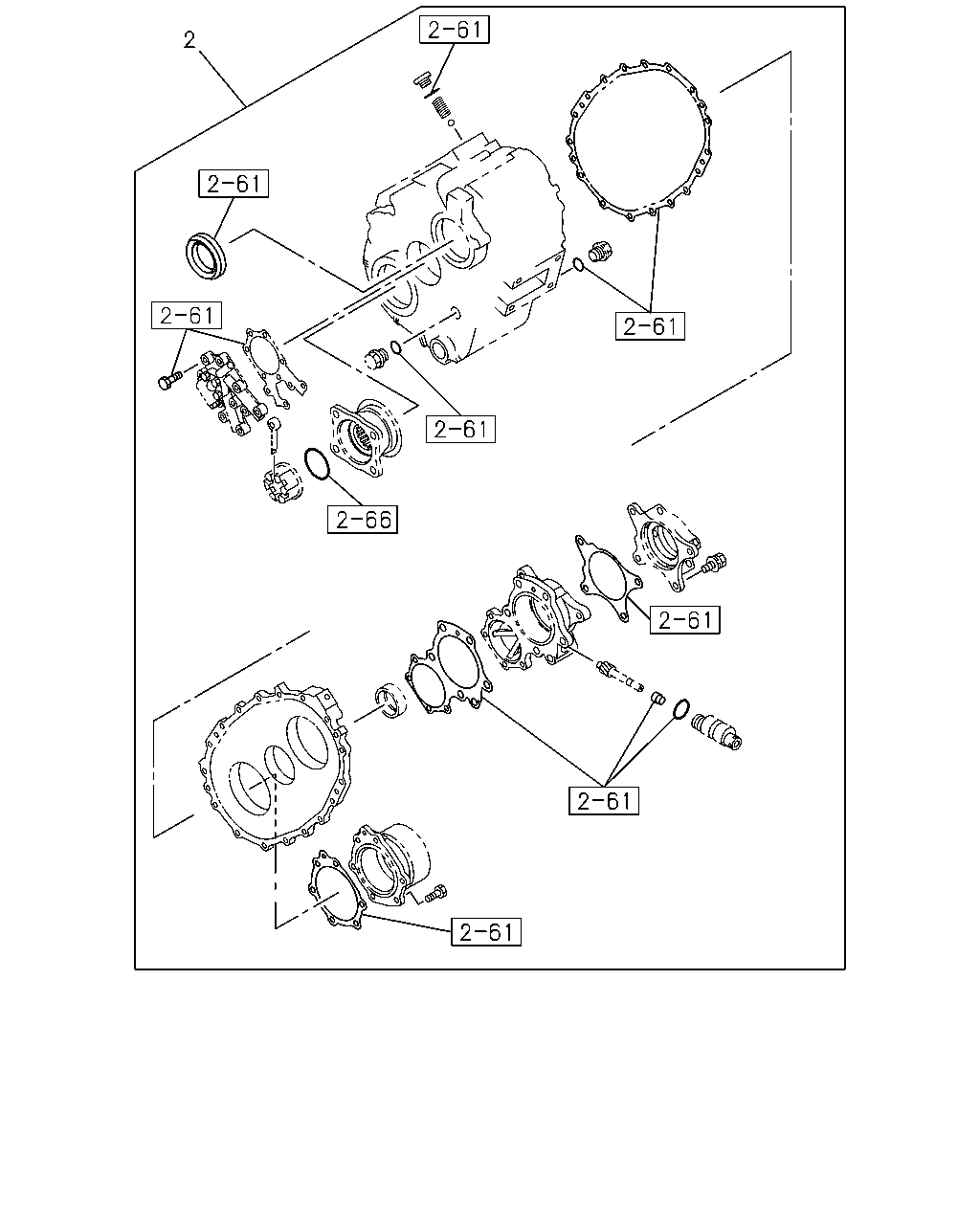

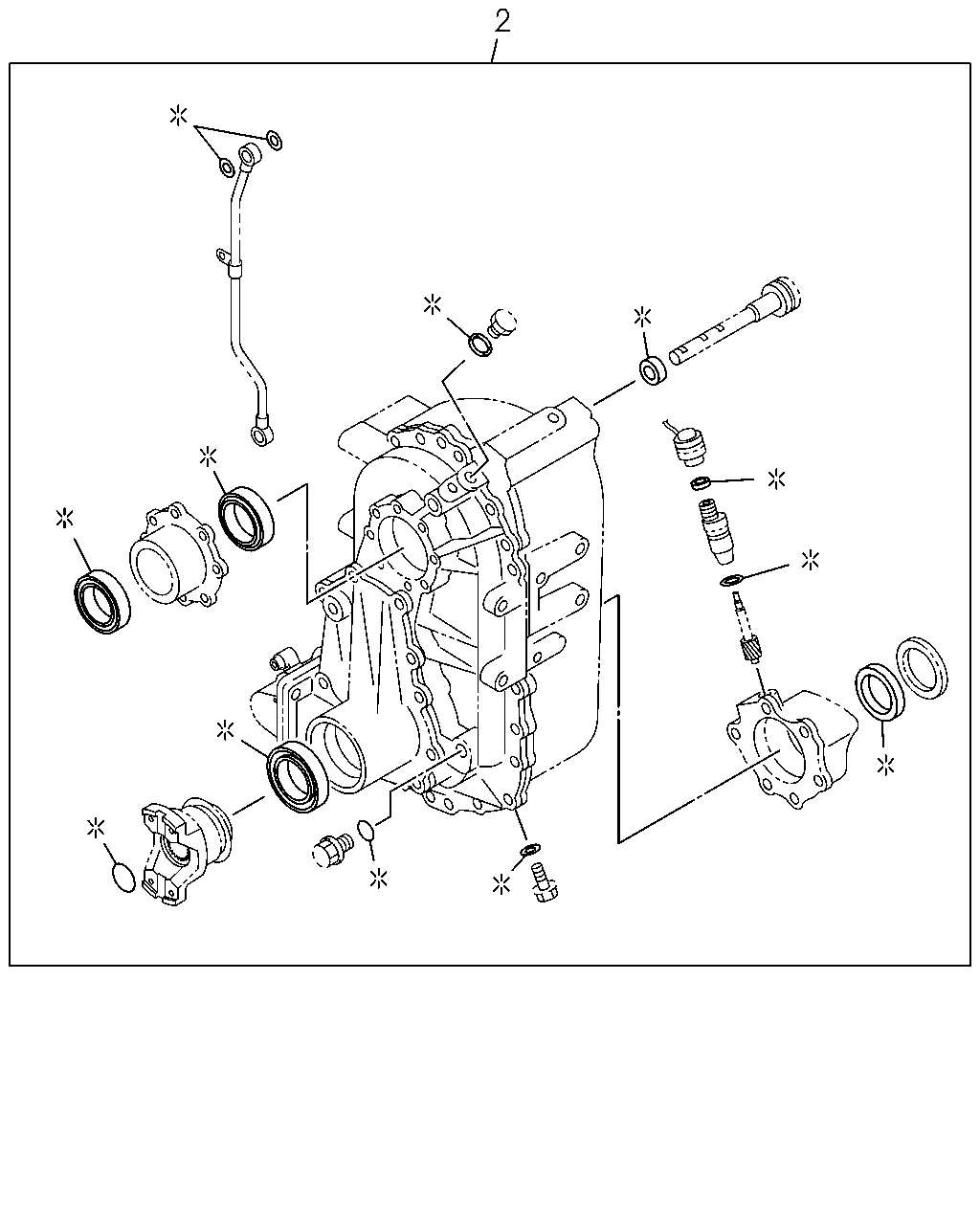

2	REPAIR KIT; TRANSFER OVERHAUL	1-87830-823-1	01	1	0211-1312	●	●
2	REPAIR KIT; TRANSFER OVERHAUL	1-87831-437-0	01	1	1401-	●	●
2	REPAIR KIT; TRANSFER OVERHAUL TRANSMISSION OIL COOLER<C2C>	1-87830-218-6	01	1	0005-0210	●	●	●	●
2	REPAIR KIT; TRANSFER OVERHAUL	1-87830-218-6	01	1	0211-			●	●

1 91 90 84 90 84 86 31 31 85 87 88 87 86 91 88 4 3 4 3

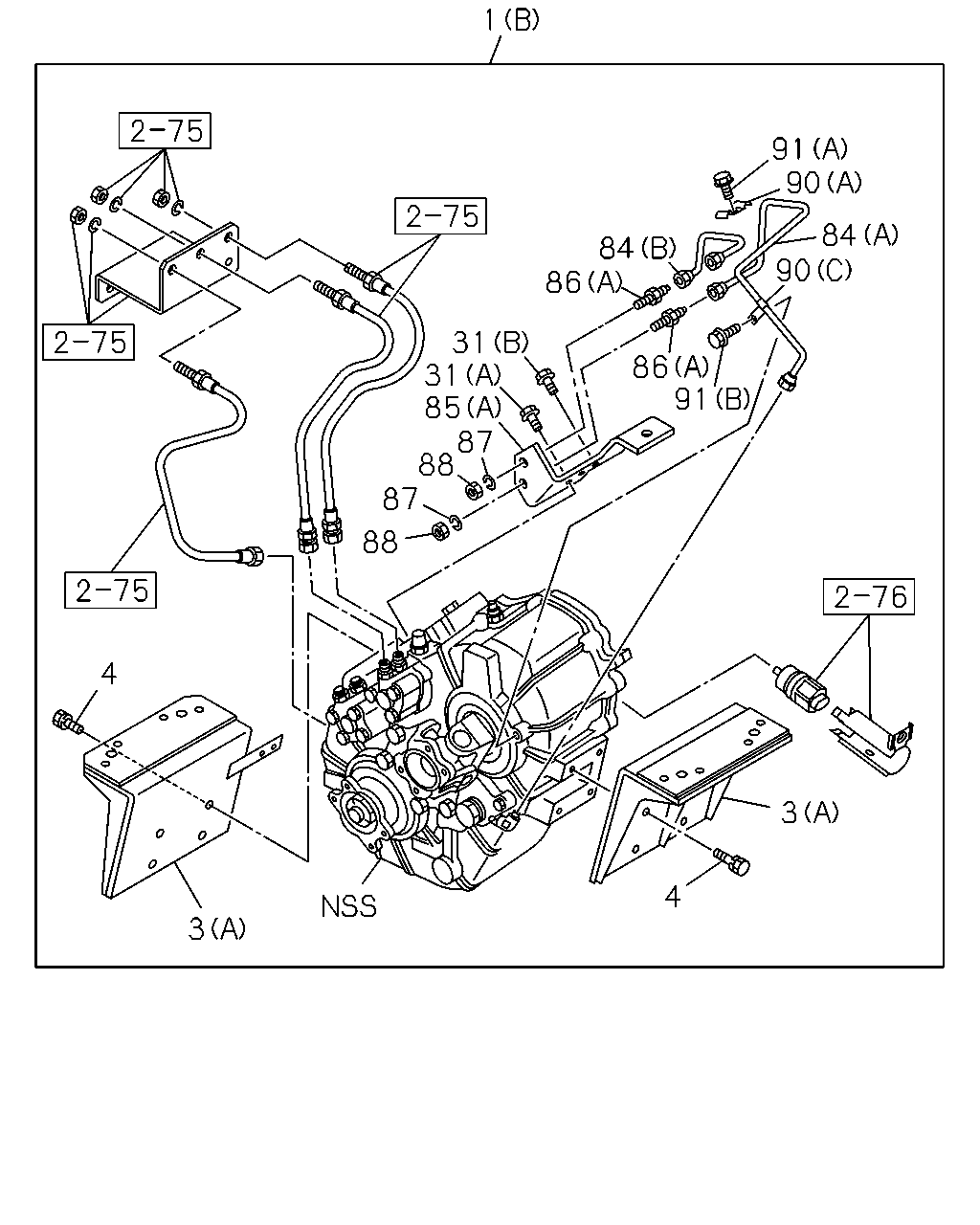

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSFER ASM (B)	1-36000-704-0	01	1	0211-			●	●
1	TRANSFER ASM TRANSMISSION OIL COOLER<C2C> (A)	1-36000-637-0	01	1	0005-0210			●	●
1	TRANSFER ASM MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A)	1-36000-637-0	01	1	0005-0210	●	●
1	TRANSFER ASM MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36000-668-0	01	1	0005-0210	●	●
1	TRANSFER ASM (C)	1-36000-695-0	01	1	0211-	●	●
3	BRACKET; TRANSFER (B)	1-53291-065-4	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (A)	1-36183-164-0	01	1	0211-0706			●	●
3	BRACKET; TRANSFER (A)	8-98093-614-0	01	1	0707-			●	●
3	BRACKET; TRANSFER (B)	1-53291-064-5	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (A)	1-36183-163-0	01	1	0211-0706			●	●
3	BRACKET; TRANSFER (A)	8-98093-613-0	01	1	0707-			●	●
3	BRACKET; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36183-164-0	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (C)	1-53291-093-1	01	1	0211-			●	●
3	BRACKET; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36183-163-0	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (C)	1-53291-092-1	01	1	0211-			●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q) (B)	1-53291-061-4	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q) (B)	1-53291-060-3	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-114-6	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-180-0	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) (C)	1-53291-096-0	01	1	0005-0210	●	●
3	BRACKET; TRANSFER (B)	1-53291-098-1	01	1	0211-	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) (C)	1-53291-097-1	01	1	0005-0210	●	●
3	BRACKET; TRANSFER (B)	1-53291-099-1	01	1	0211-	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-217-0	01	1	0005-0005	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-225-1	01	1	0006-0210	●	●
3	BRACKET; TRANSFER (A)	1-36183-185-2	01	1	0211-0506	●	●
3	BRACKET; TRANSFER (A)	8-98013-516-0	01	1	0507-	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-218-0	01	1	0005-0210	●	●
3	BRACKET; TRANSFER (A)	1-36183-184-1	01	1	0211-0506	●	●
3	BRACKET; TRANSFER (A)	8-98013-515-0	01	1	0507-	●	●
4	BOLT; BRKT TO TRANSFER M12X30 FLANGE	0-28681-230-0	AR	1	0005-0210	●	●	●	●
4	BOLT; BRKT TO TRANSFER M12X25 FLANGE	0-28151-225-0	08	1	0707-	●	●	●	●
4	BOLT; BRKT TO TRANSFER M12X30 W/LK WASHER	0-50051-230-0	08	1	0211-0706	●	●
4	BOLT; BRKT TO TRANSFER M12X30 FLANGE	0-28681-230-0	AR	1	0211-0512			●	●
4	BOLT; BRKT TO TRANSFER M12X30 FLANGE	0-28651-230-0	AR	1	0601-			●	●
31	BOLT; BRKT (C) M8X40 FLANGE	0-28680-840-0	02	1	0211-0512			●	●
31	BOLT; BRKT (C) M8X40 FLANGE	0-28650-840-0	02	1	0601-			●	●
31	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M10X16 FLANGE	0-28181-016-0	01	1	0005-0210	●	●	●	●
31	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512			●	●
31	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-			●	●
31	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (B) M12X20 FLANGE	0-28181-220-0	02	1	0005-0210	●	●	●	●
31	BOLT; BRKT (B) M12X20 FLANGE	0-28181-220-0	02	1	0211-0512			●	●
31	BOLT; BRKT (B) M12X20 FLANGE	0-28151-220-0	02	1	0601-			●	●

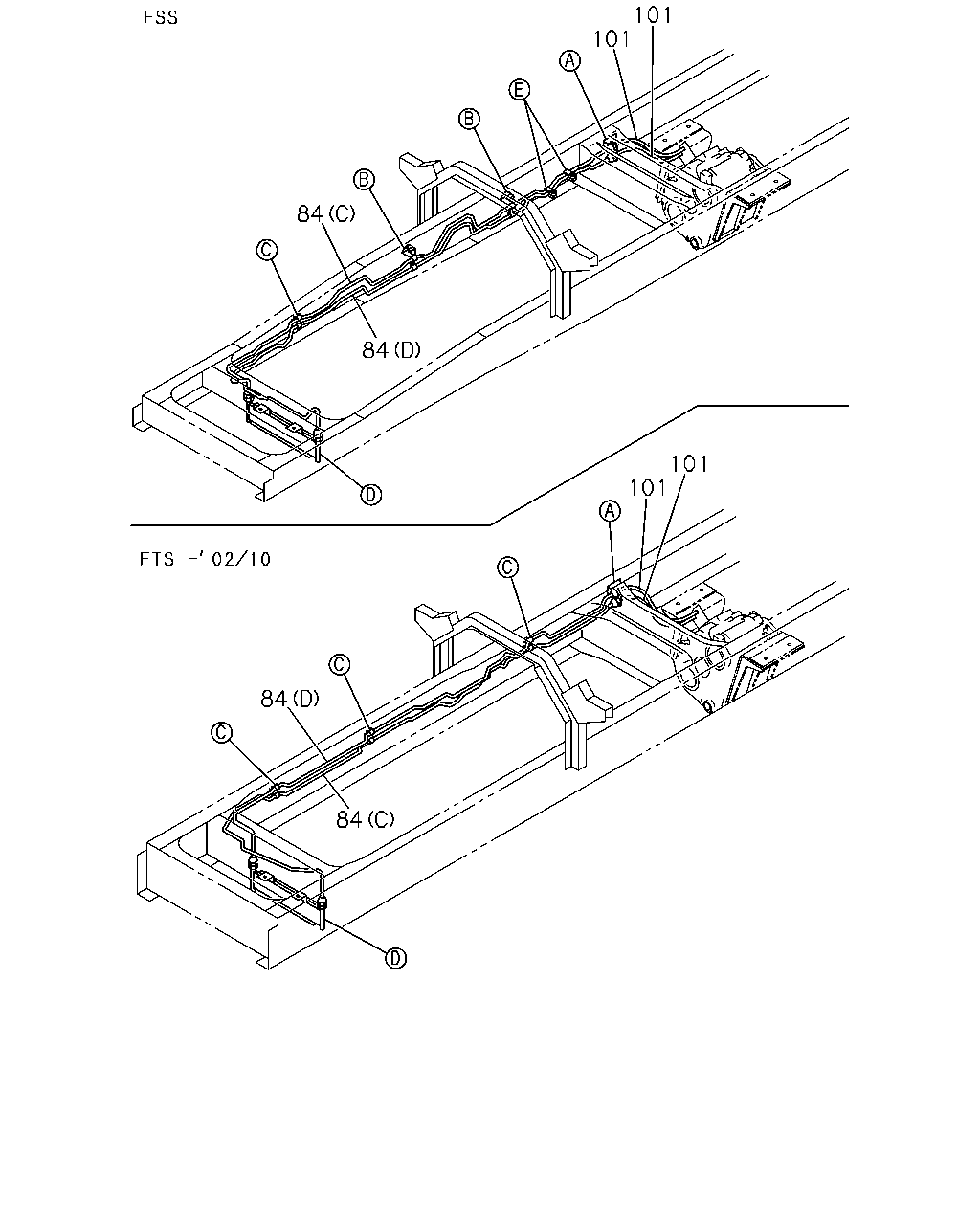

84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (C)	1-49165-524-0	01	1	0005-0012			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (C)	1-49165-656-0	01	1	0101-0210			●	●
84	PIPE; T/F,COOLER (B)	1-36161-032-1	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (D)	1-49165-525-0	01	1	0005-0012			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (D)	1-49165-657-0	01	1	0101-0210			●	●
84	PIPE; T/F,COOLER (A)	1-36161-041-0	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (B)	1-36161-032-1	01	1	0005-0210	●	●	●	●
84	PIPE; T/F,COOLER (C)	1-49166-693-0	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (A)	1-36161-041-0	01	1	0005-0210	●	●	●	●
84	PIPE; T/F,COOLER (D)	1-49166-694-0	01	1	0211-0408			●	●
84	PIPE; T/F,COOLER (D)	1-49167-377-0	01	1	0409-			●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (C)	1-47429-919-1	01	1	0005-0210	●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (D)	1-47429-920-0	01	1	0005-0104	●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (D)	1-49166-074-0	01	1	0105-0210	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-417-0	01	1	0005-0005	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-653-0	01	1	0006-0009	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-832-0	01	1	0010-0210	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (D)	1-49165-418-0	01	1	0005-0104	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (D)	1-49166-075-0	01	1	0105-0210	●	●

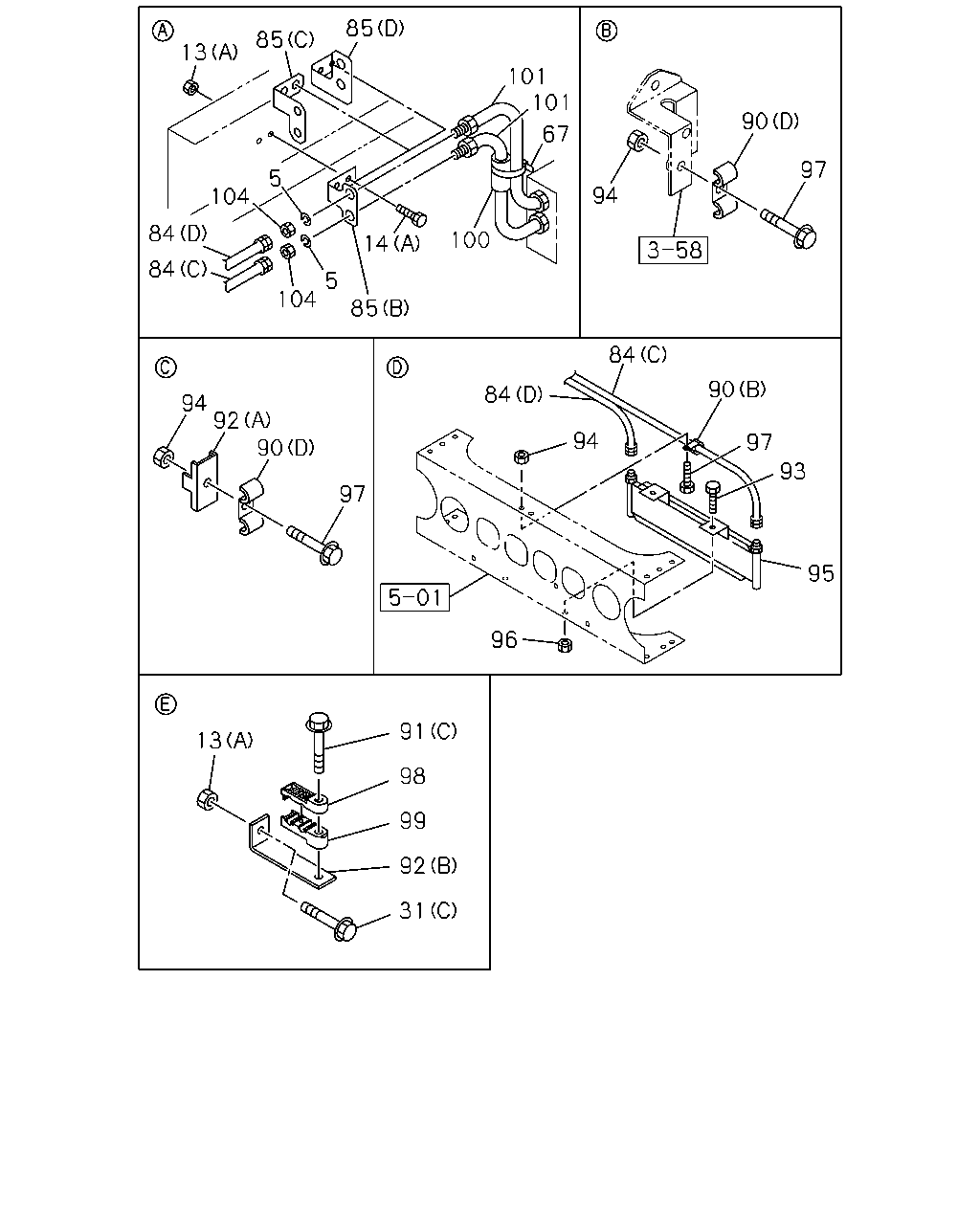

85	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B)	1-47477-643-1	01	1	0005-0210			●	●
85	BRACKET; FLEX HOSE (A)	1-36183-222-0	01	1	0211-			●	●
85	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (A)	1-36183-222-0	01	1	0005-0210	●	●	●	●
85	BRACKET; FLEX HOSE (C)	1-47478-593-0	01	1	0211-0301			●	●
85	BRACKET; FLEX HOSE (D)	1-47479-673-0	01	1	0302-			●	●
85	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B)	1-47477-806-0	01	1	0005-0210	●	●
86	UNION TRANSMISSION OIL COOLER<C2C> (A)	1-09654-274-1	02	1	0005-0210	●	●	●	●
86	UNION (A)	1-09654-274-1	02	1	0211-			●	●
87	WASHER TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09150-516-0	02	1	0005-0210	●	●	●	●
87	WASHER ID=16.2	9-09150-516-0	02	1	0211-0603			●	●
87	WASHER ID=16.2	0-91510-516-0	02	1	0604-			●	●
88	NUT TRANSMISSION OIL COOLER<C2C> M16	9-99110-416-0	02	1	0005-0210	●	●	●	●
88	NUT M16	9-99110-416-0	02	1	0211-0512			●	●
88	NUT M16	0-91110-516-0	02	1	0601-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	0005-0210			●	●
90	CLIP (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	0211-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (C)	1-09700-695-2	01	1	0005-0210	●	●	●	●
90	CLIP (C)	1-09700-695-2	01	1	0211-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25	1-09701-212-0	01	1	0005-0210	●	●	●	●
90	CLIP (A) ID=9 & 9 L=25	1-09701-212-2	01	1	0211-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0210	●	●	●	●
90	CLIP (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0211-0707			●	●
90	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	0005-0210	●	●
91	BOLT (C) M8X50 FLANGE	0-28080-850-0	02	1	0211-0512			●	●
91	BOLT (C) M8X50 FLANGE	0-28050-850-0	02	1	0601-			●	●
91	BOLT TRANSMISSION OIL COOLER<C2C> (B) M10X16 FLANGE	0-28181-016-0	01	1	0005-0210	●	●	●	●
91	BOLT (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512			●	●
91	BOLT (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-			●	●
91	BOLT TRANSMISSION OIL COOLER<C2C> (A) M6X35 FLANGE	0-28680-635-0	01	1	0005-0210	●	●	●	●
91	BOLT (A) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512			●	●
91	BOLT (A) M6X35 FLANGE	0-28650-635-0	01	1	0601-			●	●

7 8 4 9 12 11 3 12 7 3 8 9 12 42 3 16 17 12 43 3 67 1 81 41 67 4 16 17

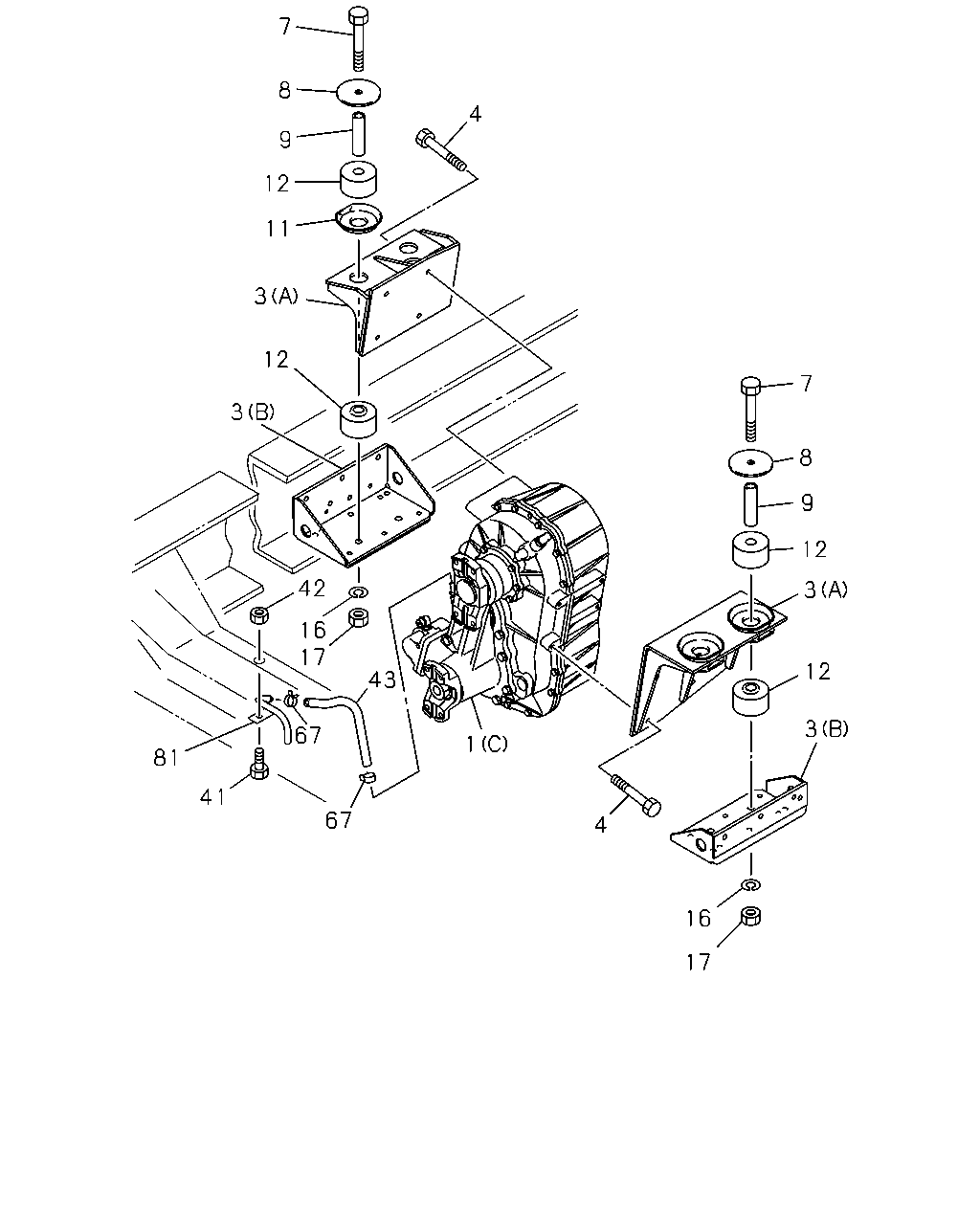

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSFER ASM (B)	1-36000-704-0	01	1	0211-			●	●
1	TRANSFER ASM TRANSMISSION OIL COOLER<C2C> (A)	1-36000-637-0	01	1	0005-0210			●	●
1	TRANSFER ASM MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A)	1-36000-637-0	01	1	0005-0210	●	●
1	TRANSFER ASM MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36000-668-0	01	1	0005-0210	●	●
1	TRANSFER ASM (C)	1-36000-695-0	01	1	0211-	●	●
3	BRACKET; TRANSFER (B)	1-53291-065-4	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (A)	1-36183-164-0	01	1	0211-0706			●	●
3	BRACKET; TRANSFER (A)	8-98093-614-0	01	1	0707-			●	●
3	BRACKET; TRANSFER (B)	1-53291-064-5	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (A)	1-36183-163-0	01	1	0211-0706			●	●
3	BRACKET; TRANSFER (A)	8-98093-613-0	01	1	0707-			●	●
3	BRACKET; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36183-164-0	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (C)	1-53291-093-1	01	1	0211-			●	●
3	BRACKET; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36183-163-0	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (C)	1-53291-092-1	01	1	0211-			●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q) (B)	1-53291-061-4	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q) (B)	1-53291-060-3	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-114-6	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-180-0	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) (C)	1-53291-096-0	01	1	0005-0210	●	●
3	BRACKET; TRANSFER (B)	1-53291-098-1	01	1	0211-	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) (C)	1-53291-097-1	01	1	0005-0210	●	●
3	BRACKET; TRANSFER (B)	1-53291-099-1	01	1	0211-	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-217-0	01	1	0005-0005	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-225-1	01	1	0006-0210	●	●
3	BRACKET; TRANSFER (A)	1-36183-185-2	01	1	0211-0506	●	●
3	BRACKET; TRANSFER (A)	8-98013-516-0	01	1	0507-	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-218-0	01	1	0005-0210	●	●
3	BRACKET; TRANSFER (A)	1-36183-184-1	01	1	0211-0506	●	●
3	BRACKET; TRANSFER (A)	8-98013-515-0	01	1	0507-	●	●
4	BOLT; BRKT TO TRANSFER M12X30 FLANGE	0-28681-230-0	AR	1	0005-0210	●	●	●	●
4	BOLT; BRKT TO TRANSFER M12X25 FLANGE	0-28151-225-0	08	1	0707-	●	●	●	●
4	BOLT; BRKT TO TRANSFER M12X30 W/LK WASHER	0-50051-230-0	08	1	0211-0706	●	●
4	BOLT; BRKT TO TRANSFER M12X30 FLANGE	0-28681-230-0	AR	1	0211-0512			●	●
4	BOLT; BRKT TO TRANSFER M12X30 FLANGE	0-28651-230-0	AR	1	0601-			●	●
7	BOLT; CUSHION RUBBER TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE	0-28081-025-0	08	1	0005-0210	●	●	●	●
7	BOLT; CUSHION RUBBER M10X25 FLANGE	0-28081-025-0	08	1	0211-0512			●	●
7	BOLT; CUSHION RUBBER M10X25 FLANGE	0-28051-025-0	08	1	0601-			●	●
7	BOLT; CUSHION RUBBER	1-09000-239-1	04	1	0211-	●	●
8	PLATE; CUSHION RUBBER	1-09503-134-0	04	1	0211-	●	●
9	PIECE; DIST,CUSHION RUBBER	1-36181-002-0	04	1	0211-	●	●
11	SEAT; CUSHION RUBBER	1-36189-070-0	02	1	0211-	●	●
12	RUBBER; CUSHION,LWR,TRANSFER TRANSMISSION OIL COOLER<C2C>	1-36189-026-2	04	1	0005-0210	●	●	●	●
12	RUBBER; CUSHION,LWR,TRANSFER	1-36189-026-2	04	1	0211-			●	●
12	RUBBER; CUSHION,LWR,TRANSFER	1-36189-040-1	08	1	0211-	●	●
16	WASHER; LK,CUSHION RUBBER ID=16.2	9-09150-616-0	04	1	0211-0603	●	●
16	WASHER; LK,CUSHION RUBBER ID=16.2	0-91510-616-0	04	1	0604-	●	●
17	NUT; CUSHION RUBBER M16	9-99110-516-0	04	1	0211-0512	●	●
17	NUT; CUSHION RUBBER M16	0-91110-516-0	04	1	0601-	●	●
41	BOLT; BRKT,BREATHER M8X30 FLANGE	0-28680-830-0	01	1	0211-0512	●	●
41	BOLT; BRKT,BREATHER M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
42	NUT; BRKT,BREATHER M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●
42	NUT; BRKT,BREATHER M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
43	HOSE; RUBBER,BREATHER SERVICED BY L=1800	1-09360-320-0	01	1	0211-0506	●	●
43	HOSE; RUBBER,BREATHER L=345 SERVICED BY L=1800	1-09360-320-0	01	1	0507-	●	●
67	CLIP; BAND TRANSMISSION OIL COOLER<C2C> L=250	5-09707-030-1	01	1	0005-0210	●	●	●	●
67	CLIP; BAND L=250	5-09707-030-1	01	1	0211-			●	●
67	CLIP; BAND ID=14	1-09704-102-0	02	1	0211-	●	●
81	PIPE; BREATHER	1-49115-033-0	01	1	0211-	●	●

64 57 10 4 64 57 10 7 12 3 91 90 12 65 64 84 8 84 90 65 3 64 31 31 85 87 88 87 86 91 64 64 57 7 57 10 88 10 3 3 12 1 12 4 14 65 32 64 65 3 64 13

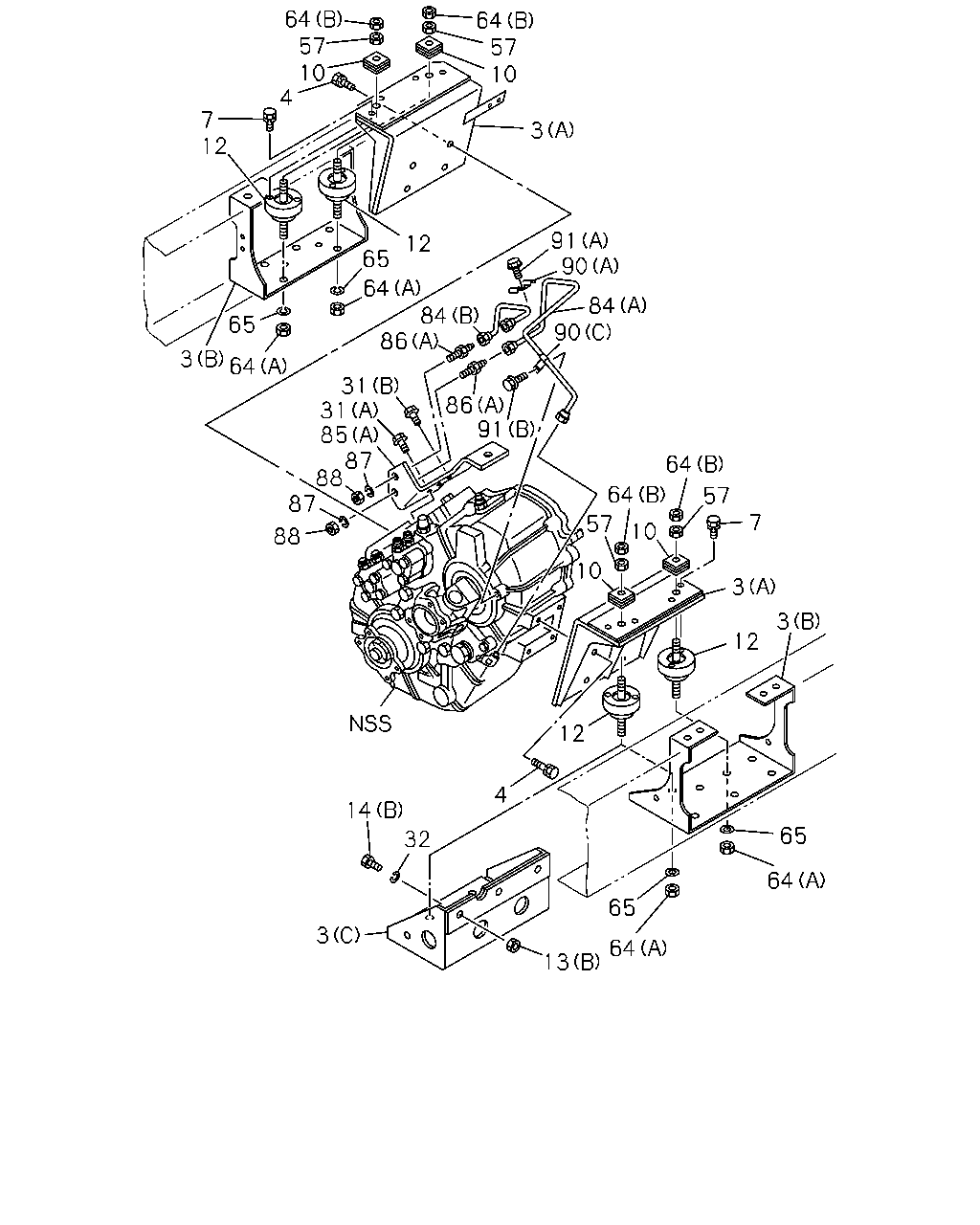

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSFER ASM (B)	1-36000-704-0	01	1	0211-			●	●
1	TRANSFER ASM TRANSMISSION OIL COOLER<C2C> (A)	1-36000-637-0	01	1	0005-0210			●	●
1	TRANSFER ASM MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A)	1-36000-637-0	01	1	0005-0210	●	●
1	TRANSFER ASM MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36000-668-0	01	1	0005-0210	●	●
1	TRANSFER ASM (C)	1-36000-695-0	01	1	0211-	●	●
3	BRACKET; TRANSFER (B)	1-53291-065-4	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (A)	1-36183-164-0	01	1	0211-0706			●	●
3	BRACKET; TRANSFER (A)	8-98093-614-0	01	1	0707-			●	●
3	BRACKET; TRANSFER (B)	1-53291-064-5	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (A)	1-36183-163-0	01	1	0211-0706			●	●
3	BRACKET; TRANSFER (A)	8-98093-613-0	01	1	0707-			●	●
3	BRACKET; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36183-164-0	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (C)	1-53291-093-1	01	1	0211-			●	●
3	BRACKET; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36183-163-0	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (C)	1-53291-092-1	01	1	0211-			●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q) (B)	1-53291-061-4	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q) (B)	1-53291-060-3	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-114-6	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-180-0	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) (C)	1-53291-096-0	01	1	0005-0210	●	●
3	BRACKET; TRANSFER (B)	1-53291-098-1	01	1	0211-	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) (C)	1-53291-097-1	01	1	0005-0210	●	●
3	BRACKET; TRANSFER (B)	1-53291-099-1	01	1	0211-	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-217-0	01	1	0005-0005	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-225-1	01	1	0006-0210	●	●
3	BRACKET; TRANSFER (A)	1-36183-185-2	01	1	0211-0506	●	●
3	BRACKET; TRANSFER (A)	8-98013-516-0	01	1	0507-	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-218-0	01	1	0005-0210	●	●
3	BRACKET; TRANSFER (A)	1-36183-184-1	01	1	0211-0506	●	●
3	BRACKET; TRANSFER (A)	8-98013-515-0	01	1	0507-	●	●
4	BOLT; BRKT TO TRANSFER M12X30 FLANGE	0-28681-230-0	AR	1	0005-0210	●	●	●	●
4	BOLT; BRKT TO TRANSFER M12X25 FLANGE	0-28151-225-0	08	1	0707-	●	●	●	●
4	BOLT; BRKT TO TRANSFER M12X30 W/LK WASHER	0-50051-230-0	08	1	0211-0706	●	●
4	BOLT; BRKT TO TRANSFER M12X30 FLANGE	0-28681-230-0	AR	1	0211-0512			●	●
4	BOLT; BRKT TO TRANSFER M12X30 FLANGE	0-28651-230-0	AR	1	0601-			●	●
7	BOLT; CUSHION RUBBER TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE	0-28081-025-0	08	1	0005-0210	●	●	●	●
7	BOLT; CUSHION RUBBER M10X25 FLANGE	0-28081-025-0	08	1	0211-0512			●	●
7	BOLT; CUSHION RUBBER M10X25 FLANGE	0-28051-025-0	08	1	0601-			●	●
7	BOLT; CUSHION RUBBER	1-09000-239-1	04	1	0211-	●	●
8	PLATE; CUSHION RUBBER	1-09503-134-0	04	1	0211-	●	●
10	RUBBER; CUSHION,UPR,TRANSFER TRANSMISSION OIL COOLER<C2C>	1-36189-027-0	04	1	0005-0210	●	●	●	●
10	RUBBER; CUSHION,UPR,TRANSFER	1-36189-027-0	04	1	0211-			●	●
12	RUBBER; CUSHION,LWR,TRANSFER TRANSMISSION OIL COOLER<C2C>	1-36189-026-2	04	1	0005-0210	●	●	●	●
12	RUBBER; CUSHION,LWR,TRANSFER	1-36189-026-2	04	1	0211-			●	●
12	RUBBER; CUSHION,LWR,TRANSFER	1-36189-040-1	08	1	0211-	●	●
13	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	04	1	0211-0602			●	●
13	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0603-			●	●
13	NUT; BRKT (B) M14	9-99110-514-0	12	1	0211-0512			●	●
13	NUT; BRKT (B) M14	0-91110-514-0	12	1	0601-			●	●
14	BOLT; BRKT (B) M14X40	0-20801-440-0	12	1	0211-0512			●	●
14	BOLT; BRKT (B) M14X40	0-20851-440-0	12	1	0601-			●	●
14	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●	●	●	●
14	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512			●	●
14	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●
31	BOLT; BRKT (C) M8X40 FLANGE	0-28680-840-0	02	1	0211-0512			●	●
31	BOLT; BRKT (C) M8X40 FLANGE	0-28650-840-0	02	1	0601-			●	●
31	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M10X16 FLANGE	0-28181-016-0	01	1	0005-0210	●	●	●	●
31	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512			●	●
31	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-			●	●
31	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (B) M12X20 FLANGE	0-28181-220-0	02	1	0005-0210	●	●	●	●
31	BOLT; BRKT (B) M12X20 FLANGE	0-28181-220-0	02	1	0211-0512			●	●
31	BOLT; BRKT (B) M12X20 FLANGE	0-28151-220-0	02	1	0601-			●	●
32	WASHER; LK,BRKT ID=14.2	9-09150-814-0	12	1	0211-0603			●	●
32	WASHER; LK,BRKT ID=14.2	0-91510-814-0	12	1	0604-			●	●
57	NUT; CUSHION RUBBER,UPR TRANSMISSION OIL COOLER<C2C> M12	9-99110-512-0	04	1	0005-0210	●	●	●	●
57	NUT; CUSHION RUBBER,UPR M12	9-99110-512-0	04	1	0211-0512			●	●
57	NUT; CUSHION RUBBER,UPR M12	0-91110-512-0	04	1	0601-			●	●
64	NUT; CUSHION RUBBER,LWR (A) M14	9-99110-414-0	04	1	0005-0210	●	●	●	●
64	NUT; CUSHION RUBBER,LWR (A) M14	9-99110-414-0	04	1	0211-0512			●	●
64	NUT; CUSHION RUBBER,LWR (A) M14	0-91110-514-0	04	1	0601-			●	●
64	NUT; CUSHION RUBBER,LWR TRANSMISSION OIL COOLER<C2C> (B) M12	9-99111-412-0	04	1	0005-0210	●	●	●	●
64	NUT; CUSHION RUBBER,LWR (B) M12	9-99111-412-0	04	1	0211-0512			●	●
64	NUT; CUSHION RUBBER,LWR (B) M12	0-91111-512-0	04	1	0601-			●	●
65	WASHER; LK,CUSHION RUBBER,LWR ID=14.2	9-09150-514-0	04	1	0005-0210	●	●	●	●
65	WASHER; LK,CUSHION RUBBER,LWR ID=14.2	9-09150-514-0	04	1	0211-0603			●	●
65	WASHER; LK,CUSHION RUBBER,LWR ID=14.2	0-91510-514-0	04	1	0604-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (C)	1-49165-524-0	01	1	0005-0012			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (C)	1-49165-656-0	01	1	0101-0210			●	●
84	PIPE; T/F,COOLER (B)	1-36161-032-1	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (D)	1-49165-525-0	01	1	0005-0012			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (D)	1-49165-657-0	01	1	0101-0210			●	●
84	PIPE; T/F,COOLER (A)	1-36161-041-0	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (B)	1-36161-032-1	01	1	0005-0210	●	●	●	●
84	PIPE; T/F,COOLER (C)	1-49166-693-0	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (A)	1-36161-041-0	01	1	0005-0210	●	●	●	●
84	PIPE; T/F,COOLER (D)	1-49166-694-0	01	1	0211-0408			●	●
84	PIPE; T/F,COOLER (D)	1-49167-377-0	01	1	0409-			●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (C)	1-47429-919-1	01	1	0005-0210	●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (D)	1-47429-920-0	01	1	0005-0104	●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (D)	1-49166-074-0	01	1	0105-0210	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-417-0	01	1	0005-0005	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-653-0	01	1	0006-0009	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-832-0	01	1	0010-0210	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (D)	1-49165-418-0	01	1	0005-0104	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (D)	1-49166-075-0	01	1	0105-0210	●	●
85	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B)	1-47477-643-1	01	1	0005-0210			●	●
85	BRACKET; FLEX HOSE (A)	1-36183-222-0	01	1	0211-			●	●
85	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (A)	1-36183-222-0	01	1	0005-0210	●	●	●	●
85	BRACKET; FLEX HOSE (C)	1-47478-593-0	01	1	0211-0301			●	●
85	BRACKET; FLEX HOSE (D)	1-47479-673-0	01	1	0302-			●	●
85	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B)	1-47477-806-0	01	1	0005-0210	●	●
86	UNION TRANSMISSION OIL COOLER<C2C> (A)	1-09654-274-1	02	1	0005-0210	●	●	●	●
86	UNION (A)	1-09654-274-1	02	1	0211-			●	●
87	WASHER TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09150-516-0	02	1	0005-0210	●	●	●	●
87	WASHER ID=16.2	9-09150-516-0	02	1	0211-0603			●	●
87	WASHER ID=16.2	0-91510-516-0	02	1	0604-			●	●
88	NUT TRANSMISSION OIL COOLER<C2C> M16	9-99110-416-0	02	1	0005-0210	●	●	●	●
88	NUT M16	9-99110-416-0	02	1	0211-0512			●	●
88	NUT M16	0-91110-516-0	02	1	0601-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	0005-0210			●	●
90	CLIP (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	0211-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (C)	1-09700-695-2	01	1	0005-0210	●	●	●	●
90	CLIP (C)	1-09700-695-2	01	1	0211-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25	1-09701-212-0	01	1	0005-0210	●	●	●	●
90	CLIP (A) ID=9 & 9 L=25	1-09701-212-2	01	1	0211-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0210	●	●	●	●
90	CLIP (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0211-0707			●	●
90	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	0005-0210	●	●
91	BOLT (C) M8X50 FLANGE	0-28080-850-0	02	1	0211-0512			●	●
91	BOLT (C) M8X50 FLANGE	0-28050-850-0	02	1	0601-			●	●
91	BOLT TRANSMISSION OIL COOLER<C2C> (B) M10X16 FLANGE	0-28181-016-0	01	1	0005-0210	●	●	●	●
91	BOLT (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512			●	●
91	BOLT (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-			●	●
91	BOLT TRANSMISSION OIL COOLER<C2C> (A) M6X35 FLANGE	0-28680-635-0	01	1	0005-0210	●	●	●	●
91	BOLT (A) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512			●	●
91	BOLT (A) M6X35 FLANGE	0-28650-635-0	01	1	0601-			●	●

64 57 10 4 64 57 10 7 12 3 91 90 12 65 64 84 8 84 90 65 3 64 31 31 85 87 88 87 86 91 64 64 57 7 57 10 88 10 3 3 12 12 4 14 65 32 64 65 3 64 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	BRACKET; TRANSFER (B)	1-53291-065-4	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (A)	1-36183-164-0	01	1	0211-0706			●	●
3	BRACKET; TRANSFER (A)	8-98093-614-0	01	1	0707-			●	●
3	BRACKET; TRANSFER (B)	1-53291-064-5	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (A)	1-36183-163-0	01	1	0211-0706			●	●
3	BRACKET; TRANSFER (A)	8-98093-613-0	01	1	0707-			●	●
3	BRACKET; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36183-164-0	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (C)	1-53291-093-1	01	1	0211-			●	●
3	BRACKET; TRANSFER TRANSMISSION OIL COOLER<C2C> (A)	1-36183-163-0	01	1	0005-0210			●	●
3	BRACKET; TRANSFER (C)	1-53291-092-1	01	1	0211-			●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q) (B)	1-53291-061-4	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q) (B)	1-53291-060-3	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-114-6	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-180-0	01	1	0005-0210	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) (C)	1-53291-096-0	01	1	0005-0210	●	●
3	BRACKET; TRANSFER (B)	1-53291-098-1	01	1	0211-	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) (C)	1-53291-097-1	01	1	0005-0210	●	●
3	BRACKET; TRANSFER (B)	1-53291-099-1	01	1	0211-	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-217-0	01	1	0005-0005	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-225-1	01	1	0006-0210	●	●
3	BRACKET; TRANSFER (A)	1-36183-185-2	01	1	0211-0506	●	●
3	BRACKET; TRANSFER (A)	8-98013-516-0	01	1	0507-	●	●
3	BRACKET; TRANSFER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-36183-218-0	01	1	0005-0210	●	●
3	BRACKET; TRANSFER (A)	1-36183-184-1	01	1	0211-0506	●	●
3	BRACKET; TRANSFER (A)	8-98013-515-0	01	1	0507-	●	●
4	BOLT; BRKT TO TRANSFER M12X30 FLANGE	0-28681-230-0	AR	1	0005-0210	●	●	●	●
4	BOLT; BRKT TO TRANSFER M12X25 FLANGE	0-28151-225-0	08	1	0707-	●	●	●	●
4	BOLT; BRKT TO TRANSFER M12X30 W/LK WASHER	0-50051-230-0	08	1	0211-0706	●	●
4	BOLT; BRKT TO TRANSFER M12X30 FLANGE	0-28681-230-0	AR	1	0211-0512			●	●
4	BOLT; BRKT TO TRANSFER M12X30 FLANGE	0-28651-230-0	AR	1	0601-			●	●
7	BOLT; CUSHION RUBBER TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE	0-28081-025-0	08	1	0005-0210	●	●	●	●
7	BOLT; CUSHION RUBBER M10X25 FLANGE	0-28081-025-0	08	1	0211-0512			●	●
7	BOLT; CUSHION RUBBER M10X25 FLANGE	0-28051-025-0	08	1	0601-			●	●
7	BOLT; CUSHION RUBBER	1-09000-239-1	04	1	0211-	●	●
8	PLATE; CUSHION RUBBER	1-09503-134-0	04	1	0211-	●	●
10	RUBBER; CUSHION,UPR,TRANSFER TRANSMISSION OIL COOLER<C2C>	1-36189-027-0	04	1	0005-0210	●	●	●	●
10	RUBBER; CUSHION,UPR,TRANSFER	1-36189-027-0	04	1	0211-			●	●
12	RUBBER; CUSHION,LWR,TRANSFER TRANSMISSION OIL COOLER<C2C>	1-36189-026-2	04	1	0005-0210	●	●	●	●
12	RUBBER; CUSHION,LWR,TRANSFER	1-36189-026-2	04	1	0211-			●	●
12	RUBBER; CUSHION,LWR,TRANSFER	1-36189-040-1	08	1	0211-	●	●
13	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	04	1	0211-0602			●	●
13	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0603-			●	●
13	NUT; BRKT (B) M14	9-99110-514-0	12	1	0211-0512			●	●
13	NUT; BRKT (B) M14	0-91110-514-0	12	1	0601-			●	●
14	BOLT; BRKT (B) M14X40	0-20801-440-0	12	1	0211-0512			●	●
14	BOLT; BRKT (B) M14X40	0-20851-440-0	12	1	0601-			●	●
14	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●	●	●	●
14	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512			●	●
14	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●
31	BOLT; BRKT (C) M8X40 FLANGE	0-28680-840-0	02	1	0211-0512			●	●
31	BOLT; BRKT (C) M8X40 FLANGE	0-28650-840-0	02	1	0601-			●	●
31	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M10X16 FLANGE	0-28181-016-0	01	1	0005-0210	●	●	●	●
31	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512			●	●
31	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-			●	●
31	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (B) M12X20 FLANGE	0-28181-220-0	02	1	0005-0210	●	●	●	●
31	BOLT; BRKT (B) M12X20 FLANGE	0-28181-220-0	02	1	0211-0512			●	●
31	BOLT; BRKT (B) M12X20 FLANGE	0-28151-220-0	02	1	0601-			●	●
32	WASHER; LK,BRKT ID=14.2	9-09150-814-0	12	1	0211-0603			●	●
32	WASHER; LK,BRKT ID=14.2	0-91510-814-0	12	1	0604-			●	●
57	NUT; CUSHION RUBBER,UPR TRANSMISSION OIL COOLER<C2C> M12	9-99110-512-0	04	1	0005-0210	●	●	●	●
57	NUT; CUSHION RUBBER,UPR M12	9-99110-512-0	04	1	0211-0512			●	●
57	NUT; CUSHION RUBBER,UPR M12	0-91110-512-0	04	1	0601-			●	●
64	NUT; CUSHION RUBBER,LWR (A) M14	9-99110-414-0	04	1	0005-0210	●	●	●	●
64	NUT; CUSHION RUBBER,LWR (A) M14	9-99110-414-0	04	1	0211-0512			●	●
64	NUT; CUSHION RUBBER,LWR (A) M14	0-91110-514-0	04	1	0601-			●	●
64	NUT; CUSHION RUBBER,LWR TRANSMISSION OIL COOLER<C2C> (B) M12	9-99111-412-0	04	1	0005-0210	●	●	●	●
64	NUT; CUSHION RUBBER,LWR (B) M12	9-99111-412-0	04	1	0211-0512			●	●
64	NUT; CUSHION RUBBER,LWR (B) M12	0-91111-512-0	04	1	0601-			●	●
65	WASHER; LK,CUSHION RUBBER,LWR ID=14.2	9-09150-514-0	04	1	0005-0210	●	●	●	●
65	WASHER; LK,CUSHION RUBBER,LWR ID=14.2	9-09150-514-0	04	1	0211-0603			●	●
65	WASHER; LK,CUSHION RUBBER,LWR ID=14.2	0-91510-514-0	04	1	0604-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (C)	1-49165-524-0	01	1	0005-0012			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (C)	1-49165-656-0	01	1	0101-0210			●	●
84	PIPE; T/F,COOLER (B)	1-36161-032-1	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (D)	1-49165-525-0	01	1	0005-0012			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (D)	1-49165-657-0	01	1	0101-0210			●	●
84	PIPE; T/F,COOLER (A)	1-36161-041-0	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (B)	1-36161-032-1	01	1	0005-0210	●	●	●	●
84	PIPE; T/F,COOLER (C)	1-49166-693-0	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (A)	1-36161-041-0	01	1	0005-0210	●	●	●	●
84	PIPE; T/F,COOLER (D)	1-49166-694-0	01	1	0211-0408			●	●
84	PIPE; T/F,COOLER (D)	1-49167-377-0	01	1	0409-			●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (C)	1-47429-919-1	01	1	0005-0210	●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (D)	1-47429-920-0	01	1	0005-0104	●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (D)	1-49166-074-0	01	1	0105-0210	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-417-0	01	1	0005-0005	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-653-0	01	1	0006-0009	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-832-0	01	1	0010-0210	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (D)	1-49165-418-0	01	1	0005-0104	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (D)	1-49166-075-0	01	1	0105-0210	●	●
85	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B)	1-47477-643-1	01	1	0005-0210			●	●
85	BRACKET; FLEX HOSE (A)	1-36183-222-0	01	1	0211-			●	●
85	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (A)	1-36183-222-0	01	1	0005-0210	●	●	●	●
85	BRACKET; FLEX HOSE (C)	1-47478-593-0	01	1	0211-0301			●	●
85	BRACKET; FLEX HOSE (D)	1-47479-673-0	01	1	0302-			●	●
85	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B)	1-47477-806-0	01	1	0005-0210	●	●
86	UNION TRANSMISSION OIL COOLER<C2C> (A)	1-09654-274-1	02	1	0005-0210	●	●	●	●
86	UNION (A)	1-09654-274-1	02	1	0211-			●	●
87	WASHER TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09150-516-0	02	1	0005-0210	●	●	●	●
87	WASHER ID=16.2	9-09150-516-0	02	1	0211-0603			●	●
87	WASHER ID=16.2	0-91510-516-0	02	1	0604-			●	●
88	NUT TRANSMISSION OIL COOLER<C2C> M16	9-99110-416-0	02	1	0005-0210	●	●	●	●
88	NUT M16	9-99110-416-0	02	1	0211-0512			●	●
88	NUT M16	0-91110-516-0	02	1	0601-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	0005-0210			●	●
90	CLIP (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	0211-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (C)	1-09700-695-2	01	1	0005-0210	●	●	●	●
90	CLIP (C)	1-09700-695-2	01	1	0211-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25	1-09701-212-0	01	1	0005-0210	●	●	●	●
90	CLIP (A) ID=9 & 9 L=25	1-09701-212-2	01	1	0211-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0210	●	●	●	●
90	CLIP (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0211-0707			●	●
90	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	0005-0210	●	●
91	BOLT (C) M8X50 FLANGE	0-28080-850-0	02	1	0211-0512			●	●
91	BOLT (C) M8X50 FLANGE	0-28050-850-0	02	1	0601-			●	●
91	BOLT TRANSMISSION OIL COOLER<C2C> (B) M10X16 FLANGE	0-28181-016-0	01	1	0005-0210	●	●	●	●
91	BOLT (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512			●	●
91	BOLT (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-			●	●
91	BOLT TRANSMISSION OIL COOLER<C2C> (A) M6X35 FLANGE	0-28680-635-0	01	1	0005-0210	●	●	●	●
91	BOLT (A) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512			●	●
91	BOLT (A) M6X35 FLANGE	0-28650-635-0	01	1	0601-			●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	REPAIR KIT; TRANSFER OVERHAUL	1-87830-823-1	01	1	0211-1312	●	●
2	REPAIR KIT; TRANSFER OVERHAUL	1-87831-437-0	01	1	1401-	●	●
2	REPAIR KIT; TRANSFER OVERHAUL TRANSMISSION OIL COOLER<C2C>	1-87830-218-6	01	1	0005-0210	●	●	●	●
2	REPAIR KIT; TRANSFER OVERHAUL	1-87830-218-6	01	1	0211-			●	●

85 85 13 101 101 90 67 97 5 94 104 84 100 14 84 5 104 85 84 90 84 94 92 90 94 97 93 97 95 96 91 13 98 99 92 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	WASHER; LK TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09150-516-0	02	1	0005-0210	●	●	●	●
5	WASHER; LK ID=16.2	9-09150-516-0	02	1	0211-0603			●	●
5	WASHER; LK ID=16.2	0-91510-516-0	02	1	0604-			●	●
13	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	04	1	0211-0602			●	●
13	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0603-			●	●
13	NUT; BRKT (B) M14	9-99110-514-0	12	1	0211-0512			●	●
13	NUT; BRKT (B) M14	0-91110-514-0	12	1	0601-			●	●
14	BOLT; BRKT (B) M14X40	0-20801-440-0	12	1	0211-0512			●	●
14	BOLT; BRKT (B) M14X40	0-20851-440-0	12	1	0601-			●	●
14	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●	●	●	●
14	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512			●	●
14	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●	●
31	BOLT; BRKT (C) M8X40 FLANGE	0-28680-840-0	02	1	0211-0512			●	●
31	BOLT; BRKT (C) M8X40 FLANGE	0-28650-840-0	02	1	0601-			●	●
31	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (A) M10X16 FLANGE	0-28181-016-0	01	1	0005-0210	●	●	●	●
31	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512			●	●
31	BOLT; BRKT (A) M10X16 FLANGE	0-28151-016-0	01	1	0601-			●	●
31	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> (B) M12X20 FLANGE	0-28181-220-0	02	1	0005-0210	●	●	●	●
31	BOLT; BRKT (B) M12X20 FLANGE	0-28181-220-0	02	1	0211-0512			●	●
31	BOLT; BRKT (B) M12X20 FLANGE	0-28151-220-0	02	1	0601-			●	●
67	CLIP; BAND TRANSMISSION OIL COOLER<C2C> L=250	5-09707-030-1	01	1	0005-0210	●	●	●	●
67	CLIP; BAND L=250	5-09707-030-1	01	1	0211-			●	●
67	CLIP; BAND ID=14	1-09704-102-0	02	1	0211-	●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (C)	1-49165-524-0	01	1	0005-0012			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (C)	1-49165-656-0	01	1	0101-0210			●	●
84	PIPE; T/F,COOLER (B)	1-36161-032-1	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (D)	1-49165-525-0	01	1	0005-0012			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (D)	1-49165-657-0	01	1	0101-0210			●	●
84	PIPE; T/F,COOLER (A)	1-36161-041-0	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (B)	1-36161-032-1	01	1	0005-0210	●	●	●	●
84	PIPE; T/F,COOLER (C)	1-49166-693-0	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (A)	1-36161-041-0	01	1	0005-0210	●	●	●	●
84	PIPE; T/F,COOLER (D)	1-49166-694-0	01	1	0211-0408			●	●
84	PIPE; T/F,COOLER (D)	1-49167-377-0	01	1	0409-			●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (C)	1-47429-919-1	01	1	0005-0210	●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (D)	1-47429-920-0	01	1	0005-0104	●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (D)	1-49166-074-0	01	1	0105-0210	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-417-0	01	1	0005-0005	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-653-0	01	1	0006-0009	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-832-0	01	1	0010-0210	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (D)	1-49165-418-0	01	1	0005-0104	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (D)	1-49166-075-0	01	1	0105-0210	●	●
85	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B)	1-47477-643-1	01	1	0005-0210			●	●
85	BRACKET; FLEX HOSE (A)	1-36183-222-0	01	1	0211-			●	●
85	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (A)	1-36183-222-0	01	1	0005-0210	●	●	●	●
85	BRACKET; FLEX HOSE (C)	1-47478-593-0	01	1	0211-0301			●	●
85	BRACKET; FLEX HOSE (D)	1-47479-673-0	01	1	0302-			●	●
85	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (B)	1-47477-806-0	01	1	0005-0210	●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	0005-0210			●	●
90	CLIP (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	0211-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (C)	1-09700-695-2	01	1	0005-0210	●	●	●	●
90	CLIP (C)	1-09700-695-2	01	1	0211-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25	1-09701-212-0	01	1	0005-0210	●	●	●	●
90	CLIP (A) ID=9 & 9 L=25	1-09701-212-2	01	1	0211-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0210	●	●	●	●
90	CLIP (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0211-0707			●	●
90	CLIP (B) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-			●	●
90	CLIP TRANSMISSION OIL COOLER<C2C> (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	04	1	0005-0210	●	●
91	BOLT (C) M8X50 FLANGE	0-28080-850-0	02	1	0211-0512			●	●
91	BOLT (C) M8X50 FLANGE	0-28050-850-0	02	1	0601-			●	●
91	BOLT TRANSMISSION OIL COOLER<C2C> (B) M10X16 FLANGE	0-28181-016-0	01	1	0005-0210	●	●	●	●
91	BOLT (B) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512			●	●
91	BOLT (B) M10X16 FLANGE	0-28151-016-0	01	1	0601-			●	●
91	BOLT TRANSMISSION OIL COOLER<C2C> (A) M6X35 FLANGE	0-28680-635-0	01	1	0005-0210	●	●	●	●
91	BOLT (A) M6X35 FLANGE	0-28680-635-0	01	1	0211-0512			●	●
91	BOLT (A) M6X35 FLANGE	0-28650-635-0	01	1	0601-			●	●
92	BRACKET TRANSMISSION OIL COOLER<C2C> (A)	1-47475-427-1	02	1	0005-0210			●	●
92	BRACKET (A)	1-47475-427-1	02	1	0211-			●	●
92	BRACKET MLD6D M/T(X5Q) TRANSMISSION OIL COOLER<C2C> (A)	1-47475-427-1	03	1	0005-0210	●	●
92	BRACKET MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (A)	1-47475-427-1	04	1	0005-0210	●	●
92	BRACKET (B)	1-23335-352-0	02	1	0211-			●	●
93	BOLT TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE	0-28681-025-0	02	1	0005-0210	●	●	●	●
93	BOLT M10X25 FLANGE	0-28681-025-0	02	1	0211-0512			●	●
93	BOLT M10X25 FLANGE	0-28651-025-0	02	1	0601-			●	●
94	NUT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0005-0210			●	●
94	NUT M8 FLANGE	0-91150-108-0	02	1	0211-0602			●	●
94	NUT M8 FLANGE	0-91180-108-0	02	1	0603-			●	●
94	NUT MLD6D M/T(X5Q) TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●
94	NUT MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	05	1	0005-0210	●	●
95	COOLER TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	0005-0210	●	●	●	●
95	COOLER	1-21700-290-0	01	1	0211-0609			●	●
95	COOLER	1-21700-394-0	01	1	0610-1405			●	●
95	COOLER	8-98269-766-0	01	1	1406-			●	●
96	NUT TRANSMISSION OIL COOLER<C2C> M10 FLANGE	0-91150-210-0	02	1	0005-0210	●	●	●	●
96	NUT M10 FLANGE	0-91150-210-0	02	1	0211-0602			●	●
96	NUT M10 FLANGE	0-91180-210-0	02	1	0603-			●	●
97	BOLT TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE	0-28080-816-0	02	1	0005-0210			●	●
97	BOLT M8X16 FLANGE	0-28080-816-0	02	1	0211-0512			●	●
97	BOLT M8X16 FLANGE	0-28050-816-0	02	1	0601-			●	●
97	BOLT TRANSMISSION OIL COOLER<C2C> M8X50 FLANGE	0-28080-850-0	01	1	0005-0210			●	●
97	BOLT M8X50 FLANGE	0-28080-850-0	01	1	0211-0512			●	●
97	BOLT M8X50 FLANGE	0-28050-850-0	01	1	0601-			●	●
97	BOLT TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	0005-0210	●	●	●	●
97	BOLT M8X20 FLANGE	0-28680-820-0	01	1	0211-0512			●	●
97	BOLT M8X20 FLANGE	0-28650-820-0	01	1	0601-			●	●
97	BOLT MLD6D M/T(X5Q) TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●	●
97	BOLT MLD6D M/T(X5Q) TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28680-840-0	03	1	0005-0210	●	●
97	BOLT MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> M8X40 FLANGE	0-28680-840-0	04	1	0005-0210	●	●
98	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	0211-			●	●
99	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	0211-			●	●
100	SLEEVE TRANSMISSION OIL COOLER<C2C> ID=32 OD=36 L=50	1-09337-023-0	01	1	0005-0210	●	●	●	●
100	SLEEVE ID=32 OD=36 L=50	1-09337-023-0	01	1	0211-			●	●
101	HOSE; FLEX TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	02	1	0005-0210	●	●	●	●
101	HOSE; FLEX L=360	1-09364-839-0	02	1	0211-			●	●
104	NUT; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	9-99111-416-0	02	1	0005-0210	●	●	●	●
104	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0211-0512			●	●
104	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0601-			●	●

101 101 84 84 101 101 84 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (C)	1-49165-524-0	01	1	0005-0012			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (C)	1-49165-656-0	01	1	0101-0210			●	●
84	PIPE; T/F,COOLER (B)	1-36161-032-1	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (D)	1-49165-525-0	01	1	0005-0012			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (D)	1-49165-657-0	01	1	0101-0210			●	●
84	PIPE; T/F,COOLER (A)	1-36161-041-0	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (B)	1-36161-032-1	01	1	0005-0210	●	●	●	●
84	PIPE; T/F,COOLER (C)	1-49166-693-0	01	1	0211-			●	●
84	PIPE; T/F,COOLER TRANSMISSION OIL COOLER<C2C> (A)	1-36161-041-0	01	1	0005-0210	●	●	●	●
84	PIPE; T/F,COOLER (D)	1-49166-694-0	01	1	0211-0408			●	●
84	PIPE; T/F,COOLER (D)	1-49167-377-0	01	1	0409-			●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (C)	1-47429-919-1	01	1	0005-0210	●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (D)	1-47429-920-0	01	1	0005-0104	●	●
84	PIPE; T/F,COOLER MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) TRANSMISSION OIL COOLER<C2C> (D)	1-49166-074-0	01	1	0105-0210	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-417-0	01	1	0005-0005	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-653-0	01	1	0006-0009	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (C)	1-49165-832-0	01	1	0010-0210	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (D)	1-49165-418-0	01	1	0005-0104	●	●
84	PIPE; T/F,COOLER MLD7Q M/T(X5K) TRANSMISSION OIL COOLER<C2C> (D)	1-49166-075-0	01	1	0105-0210	●	●
101	HOSE; FLEX TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	02	1	0005-0210	●	●	●	●
101	HOSE; FLEX L=360	1-09364-839-0	02	1	0211-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
