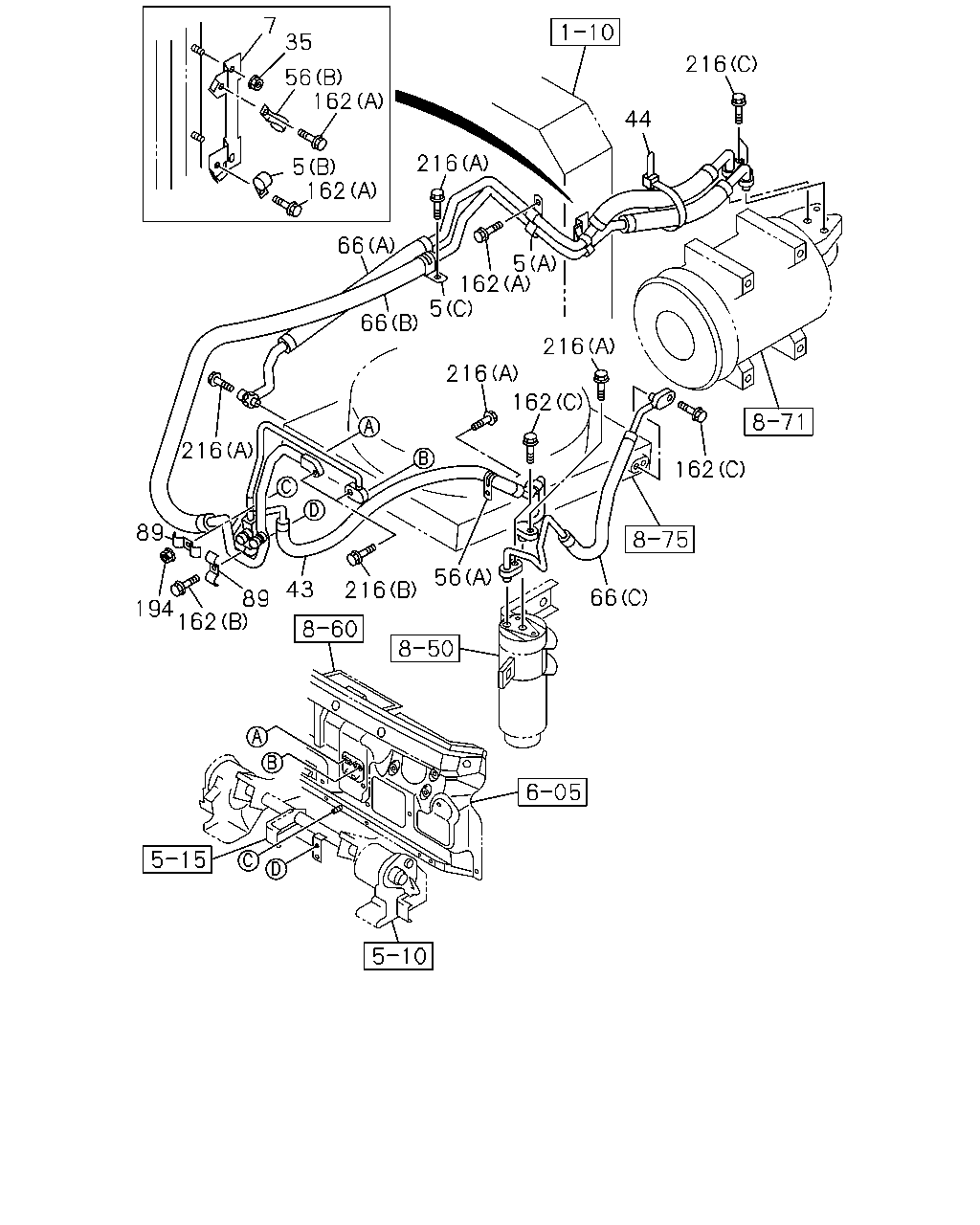

8-52 — PIPING; AIR CONDITIONING (#81325) — 39 parça

7 35 216 56 162 44 216 5 162 66 5 162 5 66 216 216 162 216 162 89 56 43 216 66 89 194 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.686 (B) ID=16 L=20 IDN	0-95235-532-0	01	1	0804-
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C)	8-98038-798-0	01	1	0804-
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98052-857-0	01	1	0804-
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97388-130-1	01	1	0804-
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98088-340-0	01	1	0804-
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.559 L=250 IDN	5-09707-030-1	01	1	0804-
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 L=140 IDN	5-09707-031-1	01	1	0804-
56	09.242 CLIP; PIPE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98032-641-0	01	1	0804-
56	09.242 CLIP; PIPE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	0804-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) HIGH PRESSURE	8-98038-579-3	01	1	0804-
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) HIGH PRESSURE	8-98001-205-2	01	1	0804-
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98001-207-1	01	1	0804-1009
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98159-611-1	01	1	1010-
89	09.242 BRACKET; A/C PIPE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98029-613-0	02	1	0804-1009
89	09.242 BRACKET; A/C PIPE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98151-264-0	02	1	1010-
162	09.173 BOLT; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0804-
162	09.173 BOLT; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 (B) M6X20 FLANGE IDN	0-28650-620-0	01	1	0804-
162	09.173 BOLT; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.685 (C) M6X25 FLANGE IDN	0-28650-625-0	02	1	0804-
194	09.242 NUT; HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	0804-
216	09.173 BOLT; HOSE FIX 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 06.216 (C) M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-
216	09.173 BOLT; HOSE FIX 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.685 (A) M6X25 FLANGE IDN	0-28650-625-0	02	1	0804-
216	09.173 BOLT; HOSE FIX 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.685 (A) M6X25 FLANGE IDN	0-28650-625-0	02	1	0804-

202 50 43 148 147 50 66 67 67 67 66 67 147 148 67 66 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98088-340-0	01	1	0804-
50	09.222 GASKET; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=7.5 IDN	1-83539-316-0	02	1	0804-
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) HIGH PRESSURE	8-98038-579-3	01	1	0804-
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) HIGH PRESSURE	8-98001-205-2	01	1	0804-
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98001-207-1	01	1	0804-1009
66	09.225 HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98159-611-1	01	1	1010-
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.222 (D) ID=7.5 IDN	1-83539-316-0	02	1	0804-
67	09.260 GASKET; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=11.7 IDN	8-97095-907-0	02	1	0804-
67	09.260 GASKET; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.225 (B) ID=14.5 IDN	8-97095-908-0	01	1	0804-
67	09.260 GASKET; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) ID=17.6	8-98036-895-0	01	1	0804-
147	09.242 CAP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) CAP MARK L	1-83539-331-0	01	1	0804-
147	09.242 CAP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) CAP MARK H IDN	8-97095-911-0	01	1	0804-
148	09.262 VALVE; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) IDN	8-97095-909-0	01	1	0804-
148	09.262 VALVE; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98031-629-0	01	1	0804-
202	09.275 SWITCH; PRESSURE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	1-83564-392-1	01	1	0804-
