8-50 — AIR CONDITIONING SYSTEM; FRONT (#81324) — 22 parça

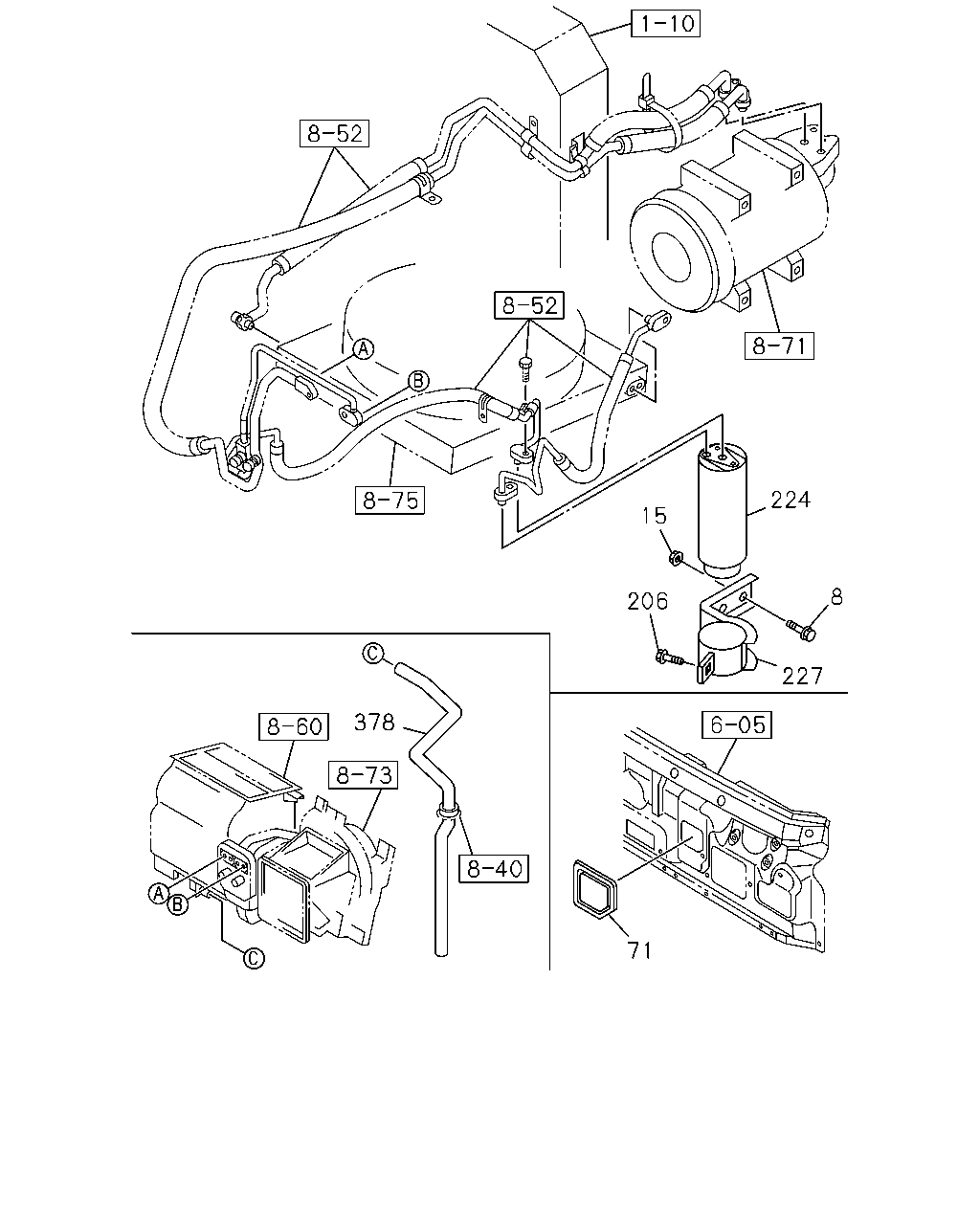

çizim 141337
224 15 8 206 227 378 71
BalonParca AdiParca NoAdetTipApplied Date A B
8 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 02 1 0804- ●
15 09.173 NUT; BRKT
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0804- ●
71 09.190 COVER; EVAP,A/C
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) IDN 		8-98017-234-1 01 1 0804-1301 ●
71 09.190 COVER; EVAP,A/C
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) IDN 		8-98017-234-1 01 1 0804-1301 ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41) IDN 		8-98017-234-1 01 1 1302- ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) IDN 		8-98017-234-1 01 1 1302- ●
206 09.242 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6X16 		8-97096-525-0 01 1 0804- ●
224 09.195 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97096-593-0 01 1 0804- ●
227 09.196 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98042-566-0 01 1 0804- ●
378 09.211 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98001-241-2 01 1 0804- ●
378 09.211 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98001-241-2 01 1 0804- ●

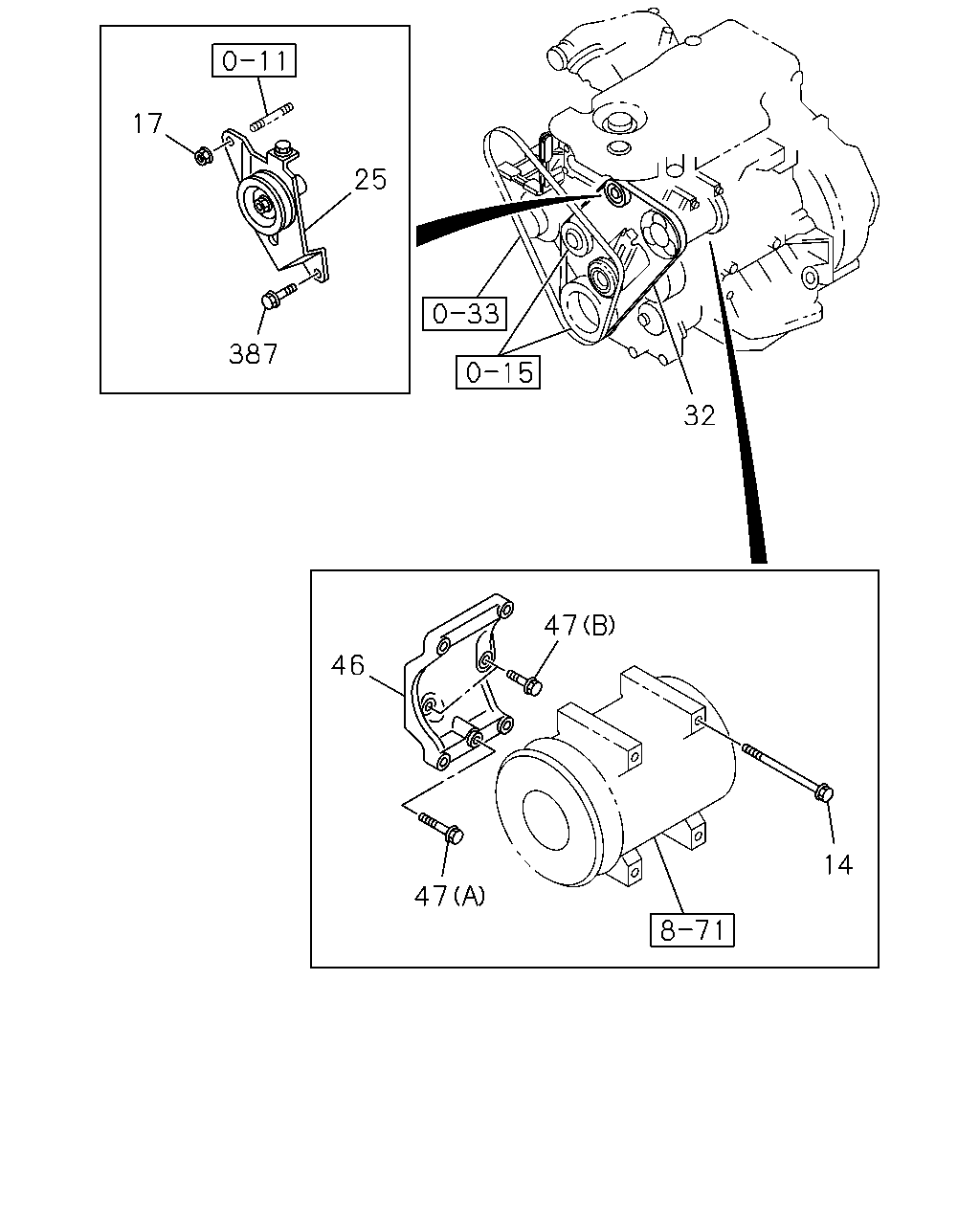

çizim 183511
17 25 387 32 47 46 14 47
BalonParca AdiParca NoAdetTipApplied Date A B
14 09.171 BOLT; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 0804- ●
17 09.171 NUT; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.540 M8 FLANGE IDN 		0-91180-208-0 01 1 0804- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE 		8-98051-011-0 01 1 0804-1006 ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE 		8-98114-437-0 01 1 1007- ●
32 01.066 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) BEST VALUE PARTS 		5-87610-103-0 01 1 0804- ●
32 01.066 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1369 MITSUBOSHI 		8-94252-342-0 01 1 0804-0804 ●
32 01.066 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0805- ●
46 09.171 BRACKET; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242 		8-98037-322-0 01 1 0804- ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X45 FLANGE 		0-28050-845-0 01 1 0804- ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 06.216 (B) M8X25 FLANGE IDN 		0-28650-825-0 02 1 0804- ●
387 09.190 BOLT; TENSIONER FIX
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.531 M8X20 FLANGE IDN 		0-28650-820-0 01 1 0804- ●
