Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#81323) — 137 parça

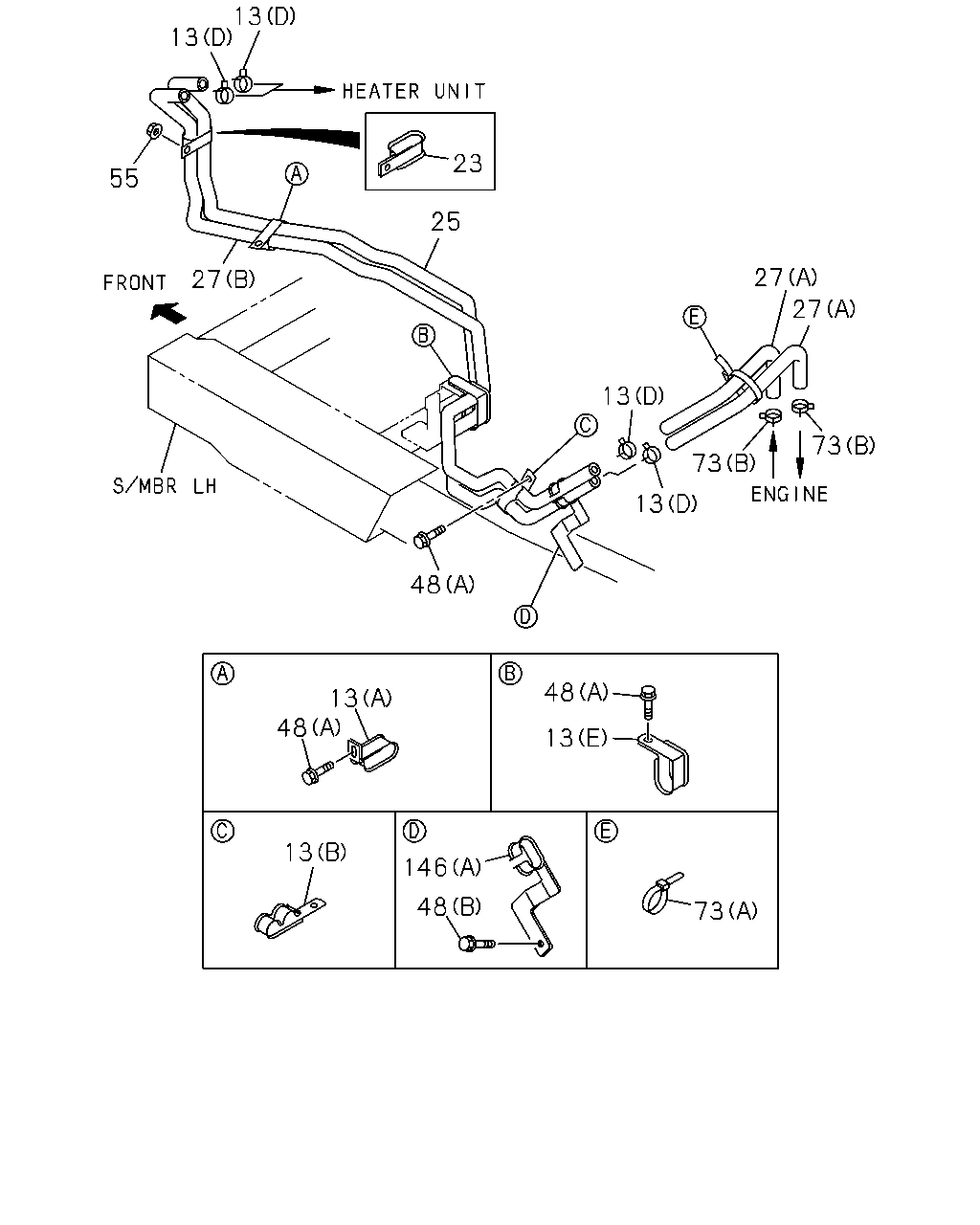

13 13 23 55 25 27 27 27 13 73 73 13 48 48 13 48 13 13 146 48 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (D) ID=22	8-97359-141-0	04	1	0804-1206	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	0804-1206		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) B=14	8-98029-678-0	01	1	0804-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	0804-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (B)	8-98040-023-0	01	1	0804-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	0804-		●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	0804-	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	0804-		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	0804-		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0804-		●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41) B=18	8-97359-144-0	01	1	0804-1205	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	0804-1205		●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41) B=18	8-98166-023-0	01	1	1206-	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98037-398-1	01	1	0804-1206	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98178-532-0	01	1	1207-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98085-568-2	01	1	0804-1206		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A)	8-97205-283-0	02	1	0804-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98037-397-2	01	1	0804-1206	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98178-529-0	01	1	1207-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) (C)	8-98009-701-0	01	1	0804-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98085-567-2	01	1	0804-1206		●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-		●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-	●	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-		●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.559 (A) L=250 IDN	5-09707-030-1	01	1	0804-	●	●
73	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.278 (B) ID=22	8-97359-141-0	02	1	0804-	●	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A)	8-98106-382-0	01	1	0804-1206	●	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A)	8-98178-391-0	01	1	1207-	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98060-001-0	01	1	0804-		●

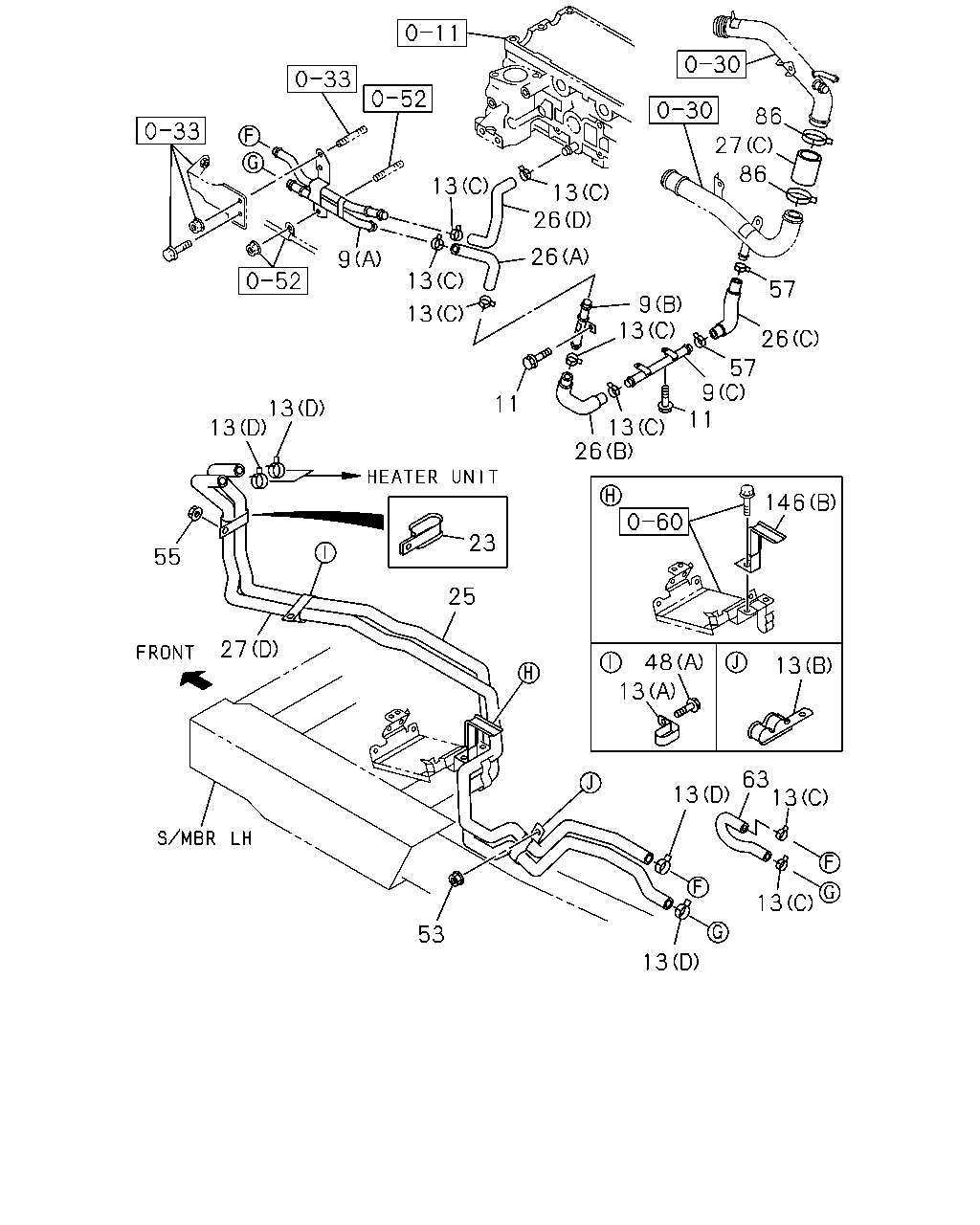

86 27 86 13 13 26 26 9 13 57 9 13 13 26 57 9 11 11 13 13 13 26 146 23 55 25 27 48 13 13 63 13 13 13 53 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98180-418-2	01	1	1207-		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (B)	8-97381-481-3	01	1	0804-		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (C)	8-97383-035-1	01	1	0804-		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98028-829-1	01	1	0804-		●
11	08.845 BOLT; HTR PIPE 4JJ1-TCC ENG(RDU) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0804-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (D) ID=22	8-97359-141-0	04	1	0804-1206	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	0804-1206		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) B=14	8-98029-678-0	01	1	0804-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	0804-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (B)	8-98040-023-0	01	1	0804-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	0804-		●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	0804-	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	0804-		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	0804-		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0804-		●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41) B=18	8-97359-144-0	01	1	0804-1205	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	0804-1205		●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41) B=18	8-98166-023-0	01	1	1206-	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98037-398-1	01	1	0804-1206	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41)	8-98178-532-0	01	1	1207-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98085-568-2	01	1	0804-1206		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98085-567-2	01	1	1207-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98085-568-2	01	1	1207-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (D)	8-97383-048-1	01	1	0804-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (B)	8-98000-099-1	01	1	0804-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (C)	8-98000-101-2	01	1	0804-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (A)	0-03516-240-0	01	1	0804-0910		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98143-868-0	01	1	0911-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A)	8-97205-283-0	02	1	0804-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98037-397-2	01	1	0804-1206	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98178-529-0	01	1	1207-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) (C)	8-98009-701-0	01	1	0804-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98085-567-2	01	1	0804-1206		●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-		●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-	●	●
53	08.845 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-		●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-		●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=20.8	8-94125-862-1	02	1	0804-		●
63	08.846 HOSE; WATER 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	0804-		●
86	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=40.5	8-97313-472-0	02	1	0804-		●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A)	8-98106-382-0	01	1	0804-1206	●	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A)	8-98178-391-0	01	1	1207-	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98060-001-0	01	1	0804-		●

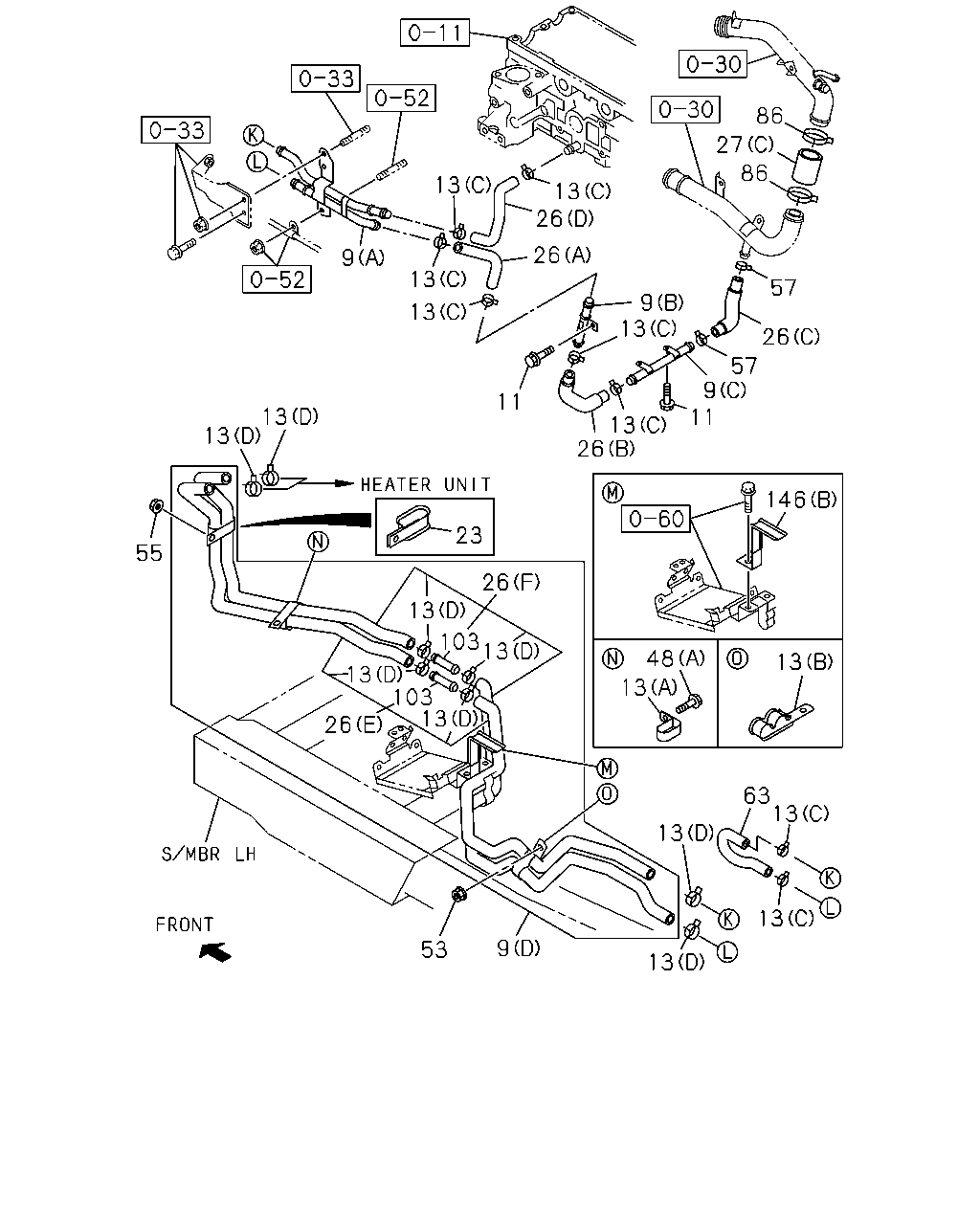

13 13 63 13 13 9 53 26 13 103 13 13 103 13 26 23 11 26 13 11 146 48 13 13 55 13 13 9 13 13 13 13 26 26 86 27 9 13 57 26 57 86 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98180-418-2	01	1	1207-		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (B)	8-97381-481-3	01	1	0804-		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (C)	8-97383-035-1	01	1	0804-		●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98028-829-1	01	1	0804-		●
11	08.845 BOLT; HTR PIPE 4JJ1-TCC ENG(RDU) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0804-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (D) ID=22	8-97359-141-0	04	1	0804-1206	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	0804-1206		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22	8-97359-141-0	04	1	1207-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (A) B=14	8-98029-678-0	01	1	0804-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	0804-		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41) (B)	8-98040-023-0	01	1	0804-	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98040-023-0	01	1	0804-		●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (E)	8-98029-677-0	01	1	0804-	●
13	08.846 CLIP; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98029-677-0	01	1	0804-		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 (C) ID=20.8	8-94125-862-1	06	1	0804-		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=20.8	8-94125-862-1	02	1	0804-		●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41) B=18	8-97359-144-0	01	1	0804-1205	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-97359-144-0	01	1	0804-1205		●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41) B=18	8-98166-023-0	01	1	1206-	●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1206-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98085-567-2	01	1	1207-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98085-568-2	01	1	1207-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (D)	8-97383-048-1	01	1	0804-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (B)	8-98000-099-1	01	1	0804-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (C)	8-98000-101-2	01	1	0804-		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (A)	0-03516-240-0	01	1	0804-0910		●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98143-868-0	01	1	0911-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A)	8-97205-283-0	02	1	0804-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98037-397-2	01	1	0804-1206	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (B)	8-98178-529-0	01	1	1207-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) (C)	8-98009-701-0	01	1	0804-		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98085-567-2	01	1	0804-1206		●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0804-		●
48	09.262 BOLT; CLIP FIX 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	0804-	●	●
53	08.845 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-		●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-	●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-		●
57	08.846 CLIP; HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=20.8	8-94125-862-1	02	1	0804-		●
63	08.846 HOSE; WATER 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	0804-		●
86	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) 01.166 ID=40.5	8-97313-472-0	02	1	0804-		●
103	08.866 CONNECTOR; HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	9-09703-048-0	02	1	1207-		●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A)	8-98106-382-0	01	1	0804-1206	●	●
146	08.846 BRACKET; HTR HOSE 4JB1-TC ENG(RDT) HEATER & DEFROSTER(C41) (A)	8-98178-391-0	01	1	1207-	●	●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98060-001-0	01	1	0804-		●
