Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#81322) — 227 parça

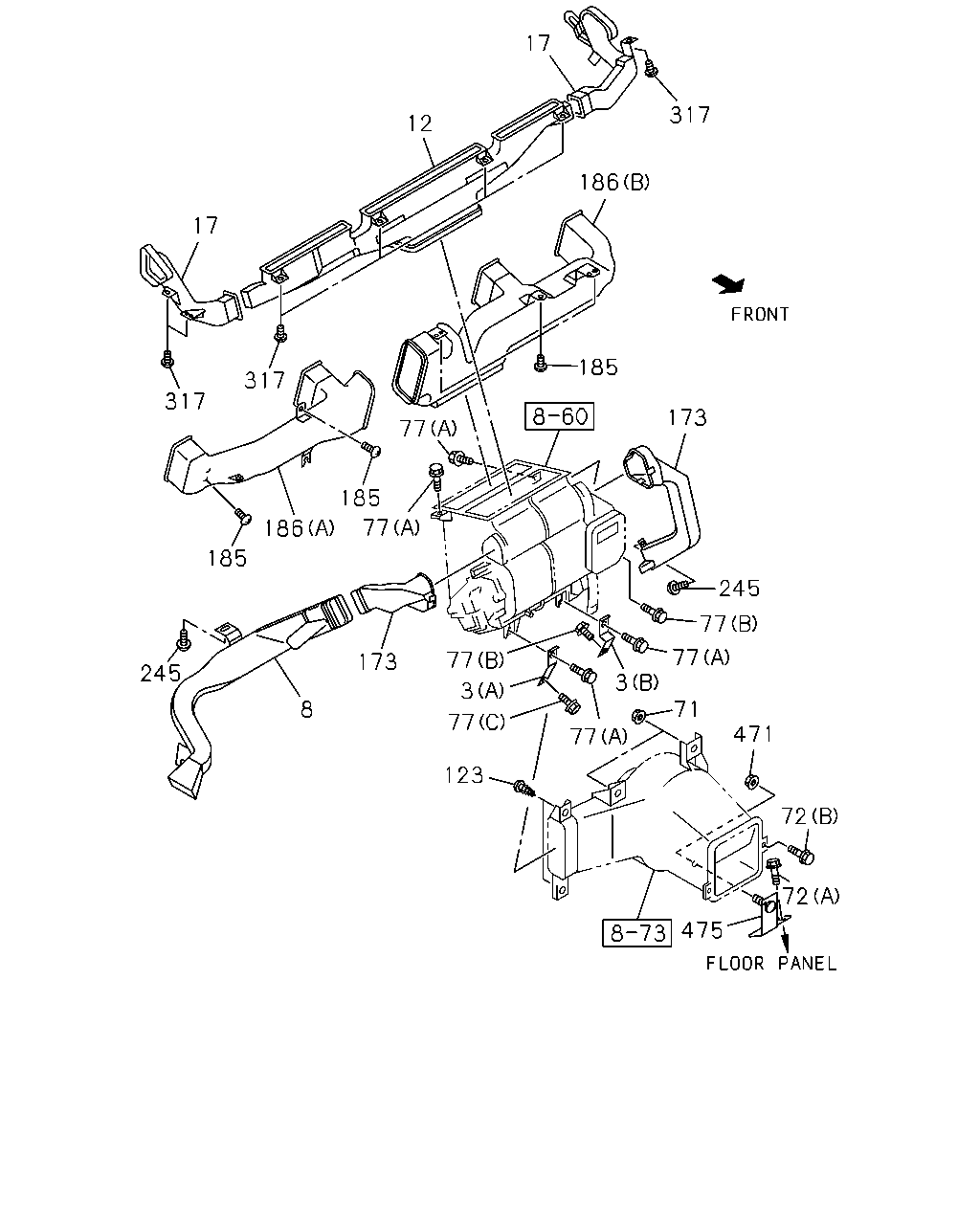

17 317 12 186 17 185 317 317 173 77 185 77 186 185 245 77 77 77 173 245 3 3 8 71 77 471 77 123 72 72 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)	8-98082-473-1	01	1	0804-	●
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98082-473-1	01	1	0804-		●
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B)	8-98082-474-1	01	1	0804-	●
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98082-474-1	01	1	0804-		●
8	09.786 DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98084-146-0	01	1	0804-0804	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98084-146-0	01	1	0804-0804		●
8	09.786 DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98084-146-0	01	1	0804-	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98084-146-0	01	1	0804-		●
12	09.779 NOZZLE; DEFROSTER	8-97585-478-3	01	1	0804-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-469-0	01	1	0804-0804	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-469-0	01	1	0804-0804		●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-469-1	01	1	0804-	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-469-1	01	1	0804-		●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-475-5	01	1	0804-0804	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-475-5	01	1	0804-0804		●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-475-5	01	1	0804-	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-475-5	01	1	0804-		●
71	08.845 NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-	●
71	08.845 NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-		●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0804-	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0804-		●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-		●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1302-	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1302-		●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	0804-	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	0804-		●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-1301	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-1301		●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1302-	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0804-	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0804-		●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0804-1101	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0804-1101		●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212		●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-		●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-504-3	01	1	0804-0804	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-504-3	01	1	0804-0804		●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-504-3	01	1	0804-	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-504-3	01	1	0804-		●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98084-145-0	01	1	0804-0804	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98084-145-0	01	1	0804-0804		●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98084-145-0	01	1	0804-1411	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98084-145-0	01	1	0804-1411		●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98246-555-0	01	1	1412-	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98246-555-0	01	1	1412-		●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0804-0804	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0804-0804		●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0804-1003	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0804-1003		●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1004-1101	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1004-1101		●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212		●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)	8-97585-466-6	01	1	0804-0804	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97585-466-6	01	1	0804-0804		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)	8-97585-466-7	01	1	0804-1410	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97585-466-7	01	1	0804-1410		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)	8-98285-582-0	01	1	1411-	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98285-582-0	01	1	1411-		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B)	8-97585-484-4	01	1	0804-0804	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-484-4	01	1	0804-0804		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B)	8-97585-484-5	01	1	0804-1410	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97585-484-5	01	1	0804-1410		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B)	8-98285-589-0	01	1	1411-	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98285-589-0	01	1	1411-		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (C)	8-98054-361-0	01	1	0804-0804	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (C)	8-98054-361-0	01	1	0804-0804		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (C)	8-98054-361-0	01	1	0804-	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (C)	8-98054-361-0	01	1	0804-		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (E) IDN	8-98054-371-0	01	1	0804-0804	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (E) IDN	8-98054-371-0	01	1	0804-0804		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (E) IDN	8-98054-371-0	01	1	0804-	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (E) IDN	8-98054-371-0	01	1	0804-		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (D)	8-98054-379-1	01	1	0804-0804	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (D)	8-98054-379-1	01	1	0804-0804		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (D) IDN	8-98054-379-2	01	1	0804-	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (D) IDN	8-98054-379-2	01	1	0804-		●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 09.264	1-09987-144-0	02	1	0804-0804	●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.264	1-09987-144-0	02	1	0804-0804		●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 09.264	1-09987-144-0	02	1	0804-	●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.264	1-09987-144-0	02	1	0804-		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0804	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0804		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0808	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0808		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-1101	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-1101		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-		●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0804-1101	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●
471	08.866 NUT; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-	●
471	08.866 NUT; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-		●
475	09.277 BRACKET; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98001-196-2	01	1	0804-	●
475	09.277 BRACKET; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98001-196-2	01	1	0804-		●

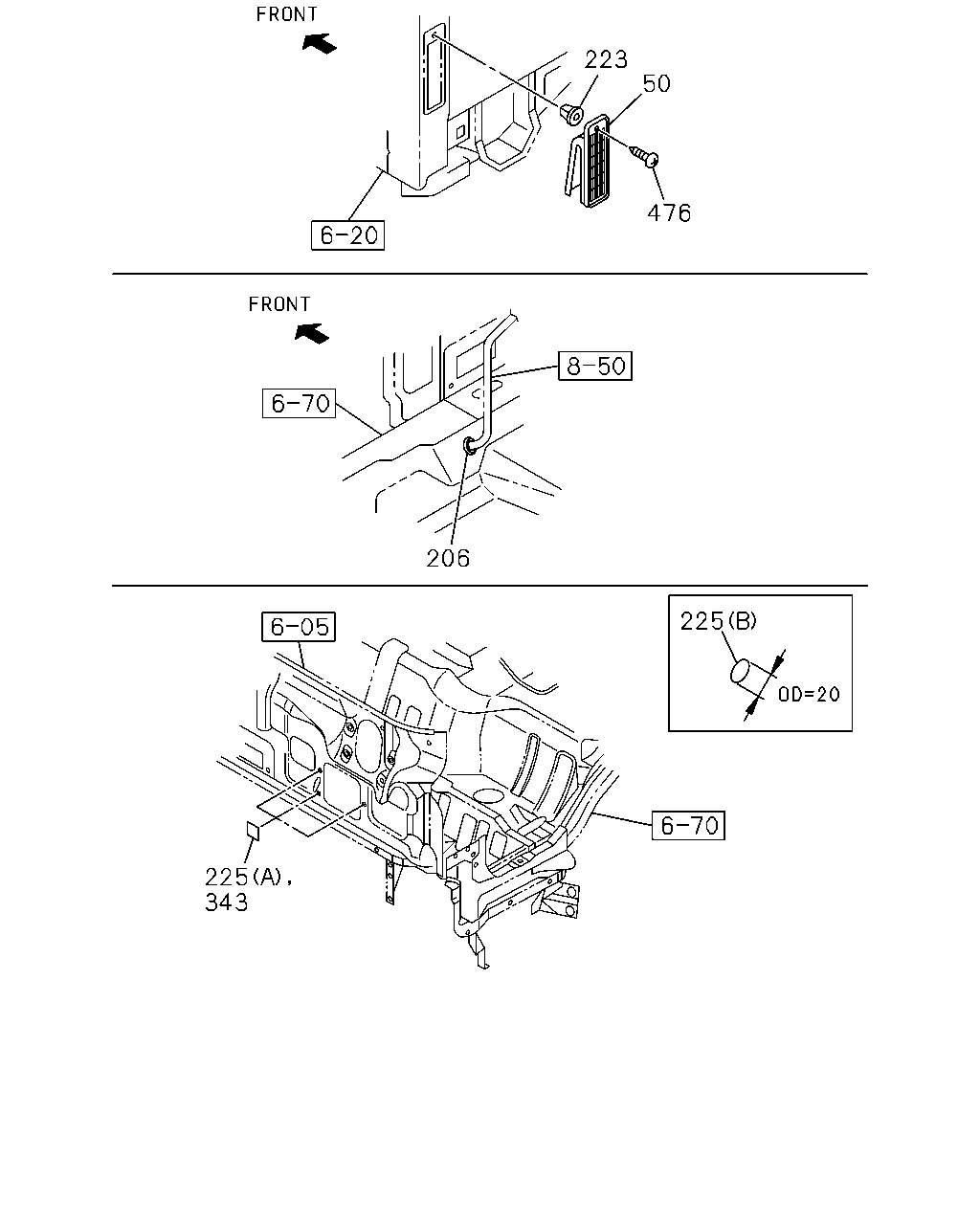

223 50 476 206 225 225 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	08.845 VALVE ASM; HTR IDN	8-98080-998-1	01	1	0804-	●	●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT IDN	8-98019-649-0	01	1	0804-	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5 IDN	8-94441-539-0	01	1	0804-	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41) (A) IDN	8-97856-616-0	01	1	1303-	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) IDN	8-97856-616-0	01	1	1303-		●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) IDN	8-97856-616-0	01	1	0804-0810	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) IDN	8-97856-616-0	01	1	0804-0810		●
225	08.845 SEAL; WATER EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 16.165 (B) OD=20 T=0.05 BLACK IDN	5-76777-036-0	01	1	0804-1301	●
225	08.845 SEAL; WATER EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.165 (B) OD=20 T=0.05 BLACK IDN	5-76777-036-0	01	1	0804-1301		●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41) 16.165 (B) OD=20 T=0.05 BLACK IDN	5-76777-036-0	01	1	1302-	●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.165 (B) OD=20 T=0.05 BLACK IDN	5-76777-036-0	01	1	1302-		●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) IDN	8-97856-616-0	02	1	0804-0810	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) IDN	8-97856-616-0	02	1	0804-0810		●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) IDN	8-97856-616-0	03	1	0811-1302	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) IDN	8-97856-616-0	03	1	0811-1302		●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A) IDN	8-97856-616-0	02	1	1303-	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) IDN	8-97856-616-0	02	1	1303-		●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) IDN	8-97856-616-0	02	1	0804-0804	●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) IDN	8-97856-616-0	02	1	0804-0804		●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) IDN	8-97856-616-0	02	1	0804-	●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) IDN	8-97856-616-0	02	1	0804-		●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR IDN	8-98062-675-0	01	1	0804-	●	●

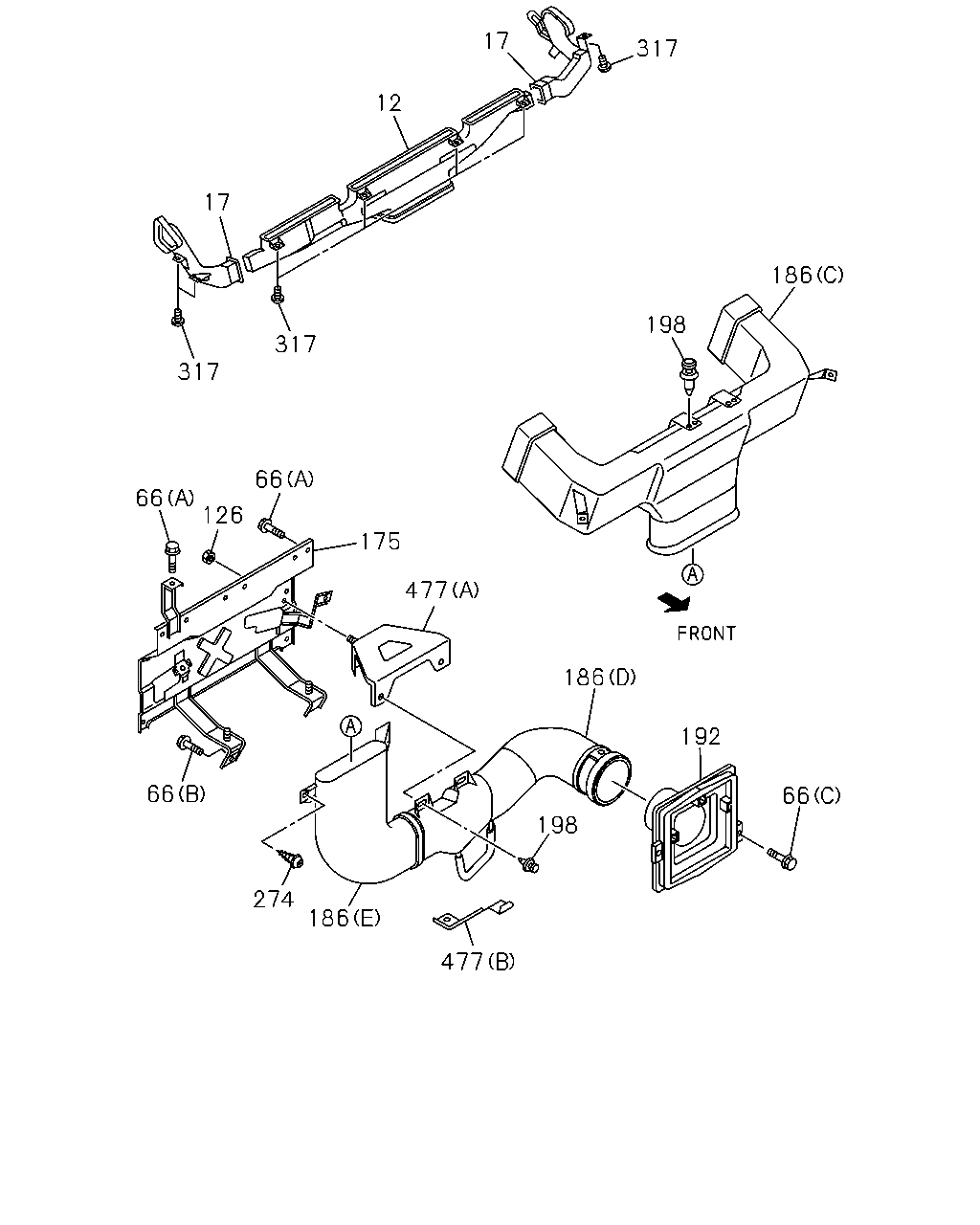

186 198 186 192 66 198 477 186 274 66 477 175 66 126 66 317 317 12 17 317 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	09.779 NOZZLE; DEFROSTER	8-97585-478-3	01	1	0804-	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-469-0	01	1	0804-0804	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-469-0	01	1	0804-0804		●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-469-1	01	1	0804-	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-469-1	01	1	0804-		●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-475-5	01	1	0804-0804	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97585-475-5	01	1	0804-0804		●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-97585-475-5	01	1	0804-	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97585-475-5	01	1	0804-		●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0804-0804	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0804-0804		●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0804-	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0804-		●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	03	1	0804-0804	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	03	1	0804-0804		●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	03	1	0804-	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	03	1	0804-		●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0804-0804	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0804-0804		●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0804-	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0804-		●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-0804	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-0804		●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-1001	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-1001		●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	1002-	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),KD PREPARATORY PACK VAR.4 <7TV> 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	1002-	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	1002-		●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	1002-		●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41)	8-98091-542-1	01	1	0804-0804	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60)	8-98091-542-1	01	1	0804-0804		●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41)	8-98091-542-5	01	1	0804-1206	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65)	8-98091-542-5	01	1	0804-1206		●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41)	8-98221-687-0	01	1	1207-	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65)	8-98221-687-0	01	1	1207-		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)	8-97585-466-6	01	1	0804-0804	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97585-466-6	01	1	0804-0804		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)	8-97585-466-7	01	1	0804-1410	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97585-466-7	01	1	0804-1410		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (A)	8-98285-582-0	01	1	1411-	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98285-582-0	01	1	1411-		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B)	8-97585-484-4	01	1	0804-0804	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-484-4	01	1	0804-0804		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B)	8-97585-484-5	01	1	0804-1410	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97585-484-5	01	1	0804-1410		●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) (B)	8-98285-589-0	01	1	1411-	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98285-589-0	01	1	1411-		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (C)	8-98054-361-0	01	1	0804-0804	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (C)	8-98054-361-0	01	1	0804-0804		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (C)	8-98054-361-0	01	1	0804-	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (C)	8-98054-361-0	01	1	0804-		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (E) IDN	8-98054-371-0	01	1	0804-0804	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (E) IDN	8-98054-371-0	01	1	0804-0804		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (E) IDN	8-98054-371-0	01	1	0804-	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (E) IDN	8-98054-371-0	01	1	0804-		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (D)	8-98054-379-1	01	1	0804-0804	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (D)	8-98054-379-1	01	1	0804-0804		●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (D) IDN	8-98054-379-2	01	1	0804-	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (D) IDN	8-98054-379-2	01	1	0804-		●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 03.417	8-98054-386-1	01	1	0804-0804	●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 03.417	8-98054-386-1	01	1	0804-0804		●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 03.417 IDN	8-98054-386-4	01	1	0804-	●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 03.417 IDN	8-98054-386-4	01	1	0804-		●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 09.264	1-09987-144-0	05	1	0804-0804	●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 09.264	1-09987-144-0	05	1	0804-0804		●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 09.264	1-09987-144-0	05	1	0804-	●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 09.264	1-09987-144-0	05	1	0804-		●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0804-0804	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0804-0804		●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0804-1101	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0804-1101		●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212		●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0804	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0804		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0808	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0808		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-1101	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-1101		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212		●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-		●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0804-1101	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (A) IDN	8-98091-304-0	01	1	0804-0804	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (A) IDN	8-98091-304-0	01	1	0804-0804		●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (A) IDN	8-98091-304-0	01	1	0804-	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (A) IDN	8-98091-304-0	01	1	0804-		●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (B)	8-98091-306-0	01	1	0804-0804	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (B)	8-98091-306-0	01	1	0804-0804		●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (B)	8-98091-306-0	01	1	0804-0808	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B)	8-98091-306-0	01	1	0804-0808		●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (B)	8-98132-529-1	01	1	0809-1001	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B)	8-98132-529-1	01	1	0809-1001		●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),KD PREPARATORY PACK VAR.4 <7TV> (B)	8-98132-529-1	01	1	1002-1005	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98132-529-1	01	1	1002-1005		●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),KD PREPARATORY PACK VAR.4 <7TV> (B)	8-98164-455-0	01	1	1006-	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-455-0	01	1	1006-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
