◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51395 - NLR/NMR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#81321) — 35 parça

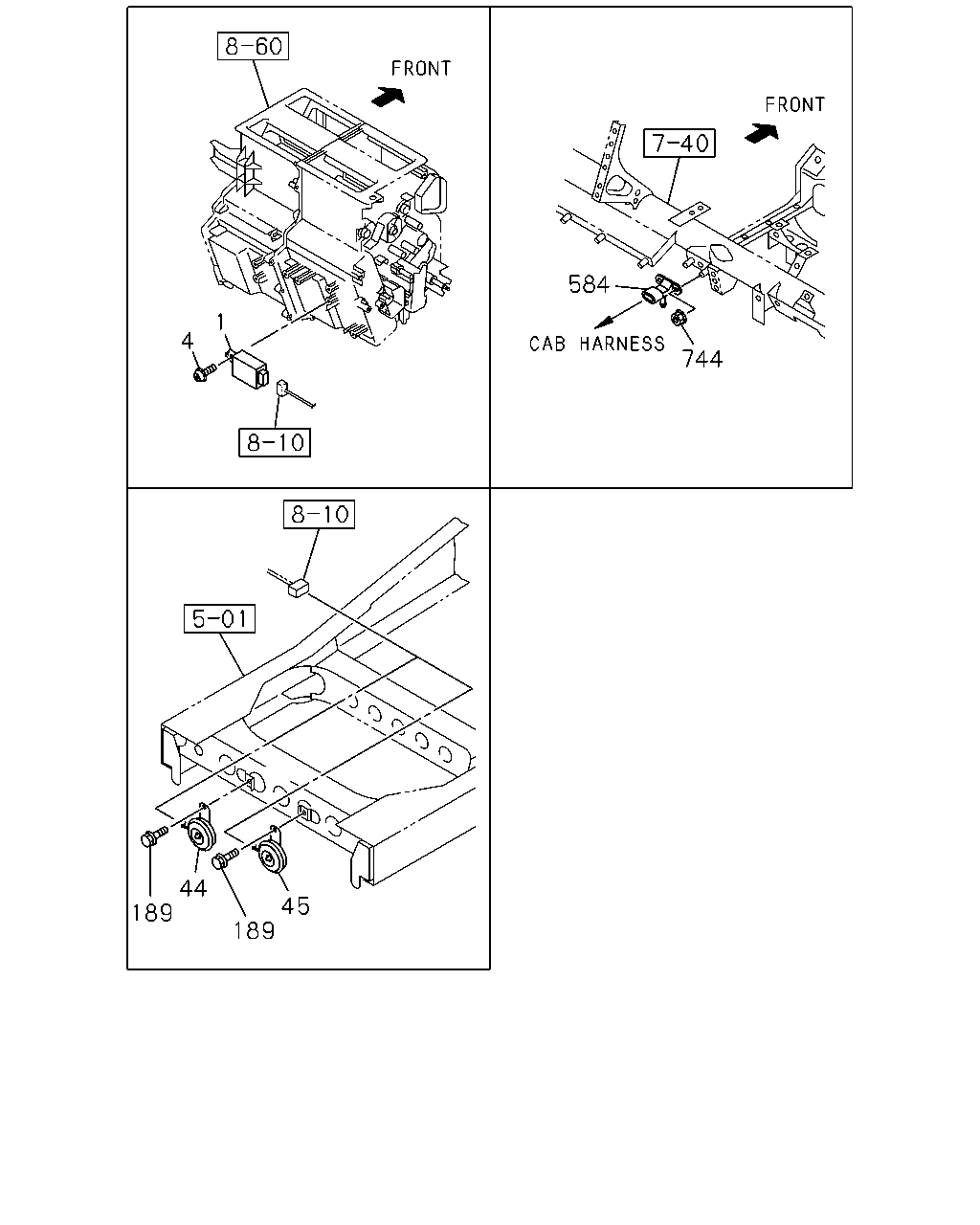

çizim 143736
584 1 4 744 44 189 45 189
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER
IDN 		8-98001-519-0 01 1 0804- ●
1 02.575 UNIT; FLASHER
VOLTAGE 12V<TRQ> IDN 		8-98001-519-0 01 1 0804- ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 12V<TRQ> IDN 		8-98025-533-1 01 1 0804- ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101 ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98022-024-0 01 1 0804- ●
44 02.810 HORN; HIGH NOTE
VOLTAGE 12V<TRQ> DUAL HEAVY DUTY HORN(6KK) 		8-98022-024-0 01 1 0804- ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 12V<TRQ> 		8-98022-022-0 01 1 0804- ●
45 02.810 HORN; LOW NOTE 8-98022-025-0 01 1 0804- ●
45 02.810 HORN; LOW NOTE
VOLTAGE 12V<TRQ> 		8-98022-025-0 01 1 0804- ●
45 02.810 HORN; LOW NOTE
EXC. VOLTAGE 12V<TRQ> IDN 		8-98022-023-0 01 1 0804- ●
189 02.812 BOLT; HORN
02.559 M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 0804-1004 ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 0804-1004 ● ●
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1005- ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1005- ● ●
584 02.440 SENSOR; PRESSURE
4JJ1-TCC ENG(RDU) 03.331 		8-98020-514-0 01 1 0804- ●
744 09.277 NUT; SENSOR
4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 0804- ●
çizim 143862
531 666
BalonParca AdiParca NoAdetTipApplied Date A B
531 02.769 RELAY; MAIN
4JJ1-TCC ENG(RDU) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0804-1402 ●
531 02.769 RELAY; MAIN
4JJ1-TCC ENG(RDU) 02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ●
666 02.173 RELAY; STARTER
4JJ1-TCC ENG(RDU) 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0804-1005 ●
666 02.173 RELAY; STARTER
4JJ1-TCC ENG(RDU) 24V 10A PANASONIC 		8-98167-173-0 01 1 1006- ●

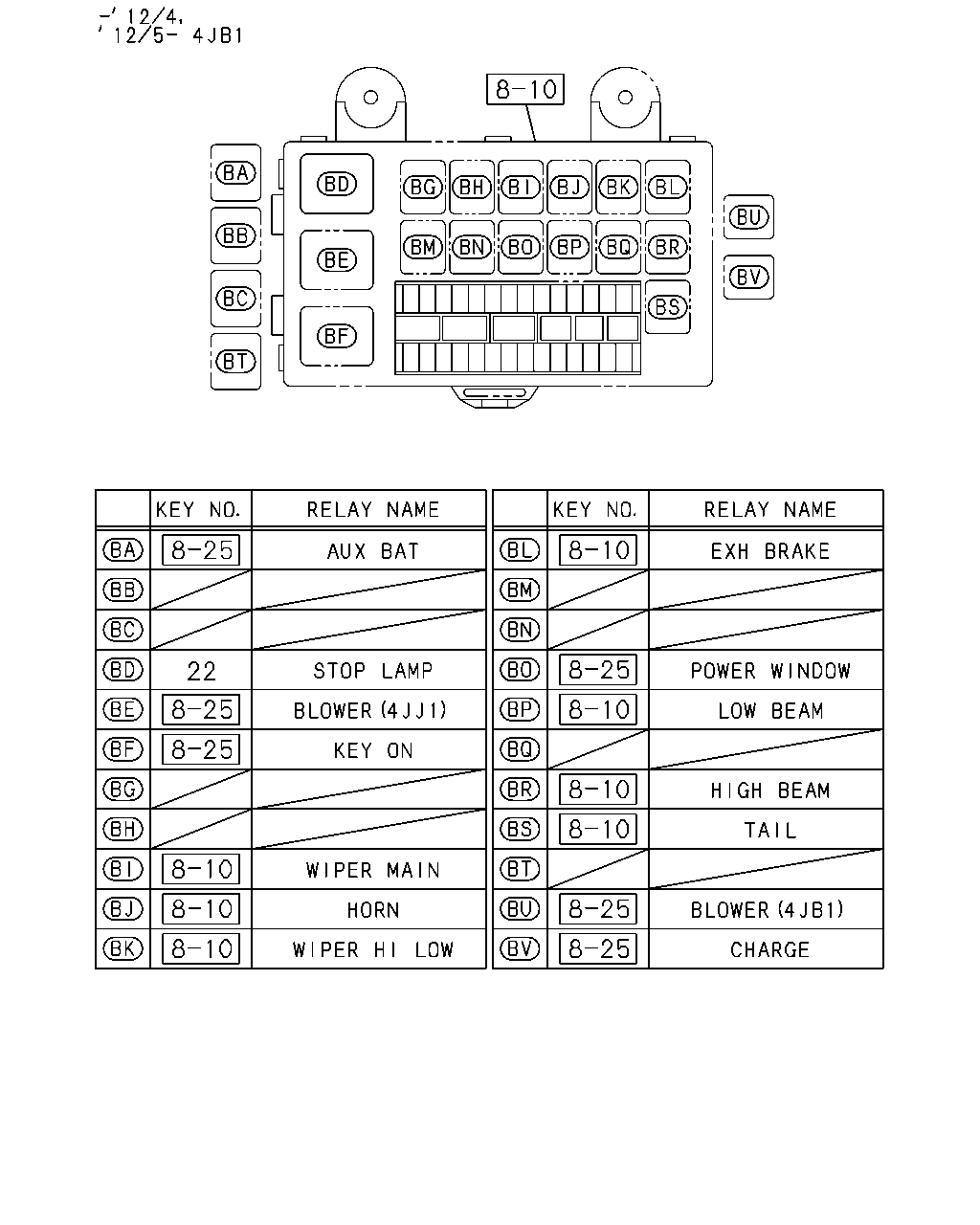

çizim 143942
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0804- ● ●
22 02.679 RELAY; STOP LAMP
4JJ1-TCC ENG(RDU) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ●

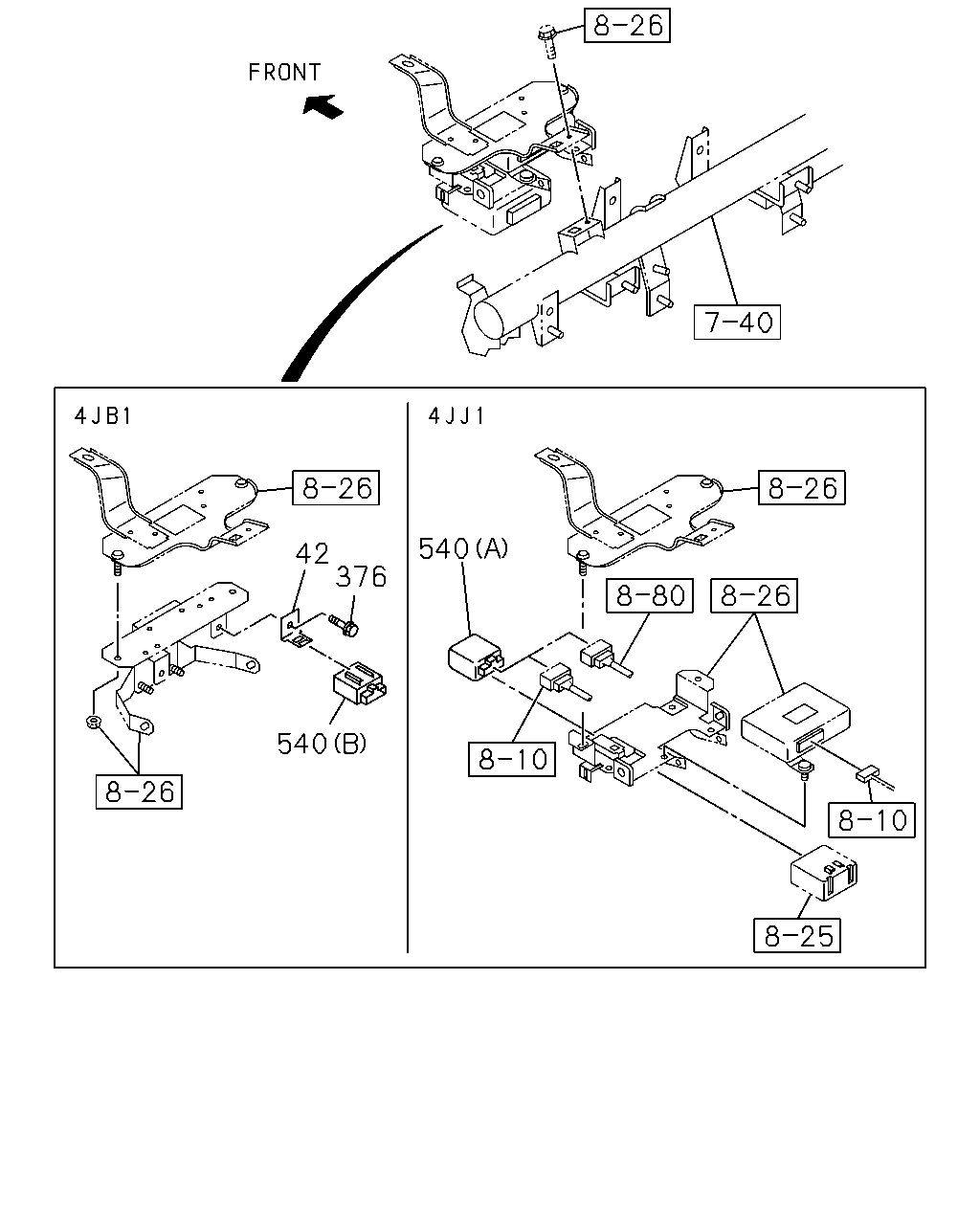

çizim 144127
42 540 376 540
BalonParca AdiParca NoAdetTipApplied Date A B
42 09.766 BRACKET; RELAY
INTERMITTENT WIPER<C13> 		8-98094-199-0 01 1 0804- ●
42 09.766 BRACKET; RELAY
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> 		8-98094-199-0 01 1 0804- ●
376 03.342 BOLT; RELAY
INTERMITTENT WIPER<C13> 01.531 M8X20 FLANGE IDN 		0-28650-820-0 01 1 0804- ●
376 03.342 BOLT; RELAY
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> 01.531 M8X20 FLANGE IDN 		0-28650-820-0 01 1 0804- ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (B) 		8-98032-320-1 01 1 0804- ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> (B) 		8-98032-320-1 01 1 0804- ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ> (A) 		8-98060-388-0 01 1 0804-0906 ●
540 16.067 RELAY; WIPER INTERVAL
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ> (A) 		8-98060-388-0 01 1 0907-1308 ●
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ> (A) 		8-98233-976-0 01 1 1309- ●

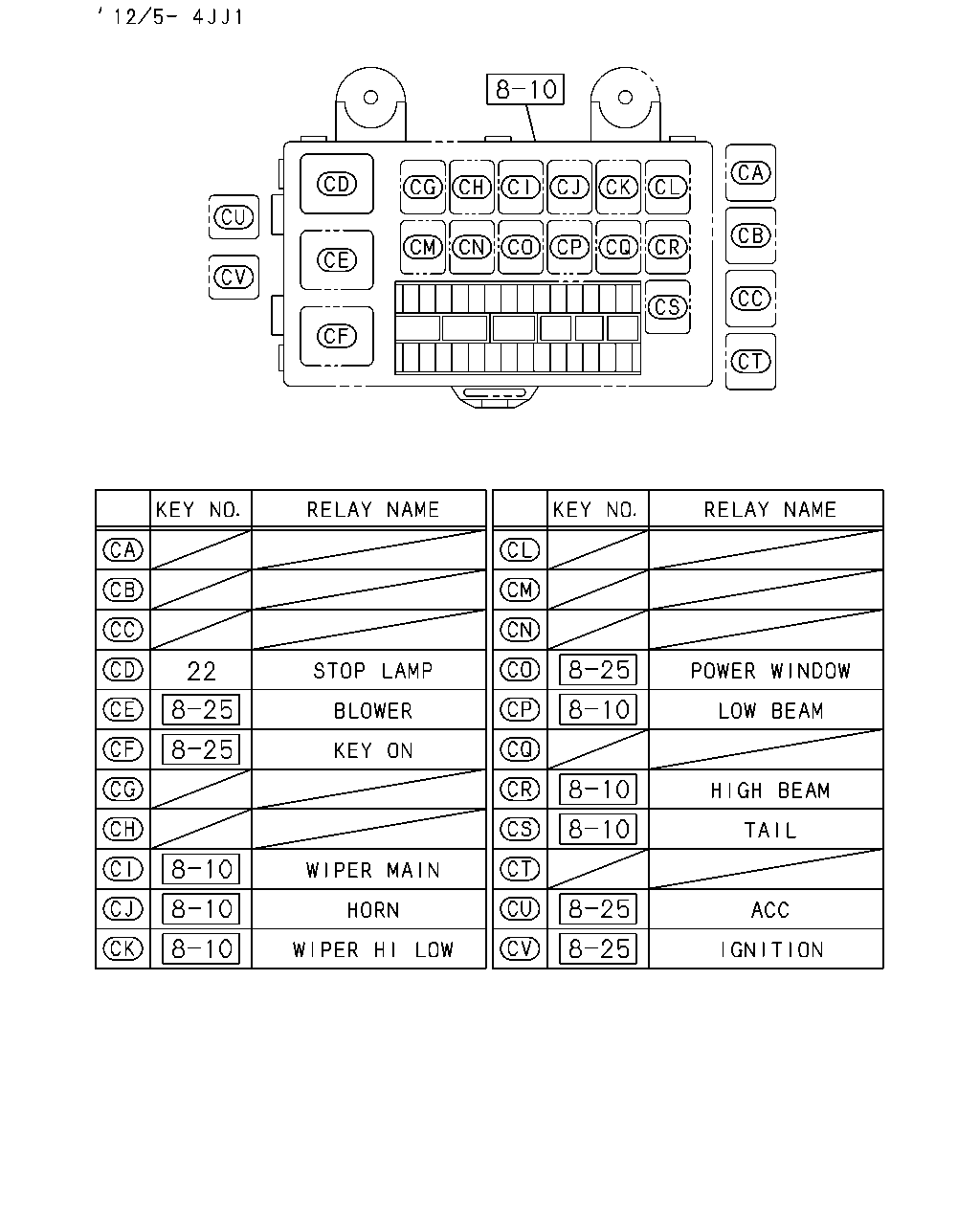

çizim 183513
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0804- ● ●
22 02.679 RELAY; STOP LAMP
4JJ1-TCC ENG(RDU) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ●
