Sayfa 2-39 - Isuzu EPC

2-39 — POWER ASSISTOR (#8132) — 285 parça

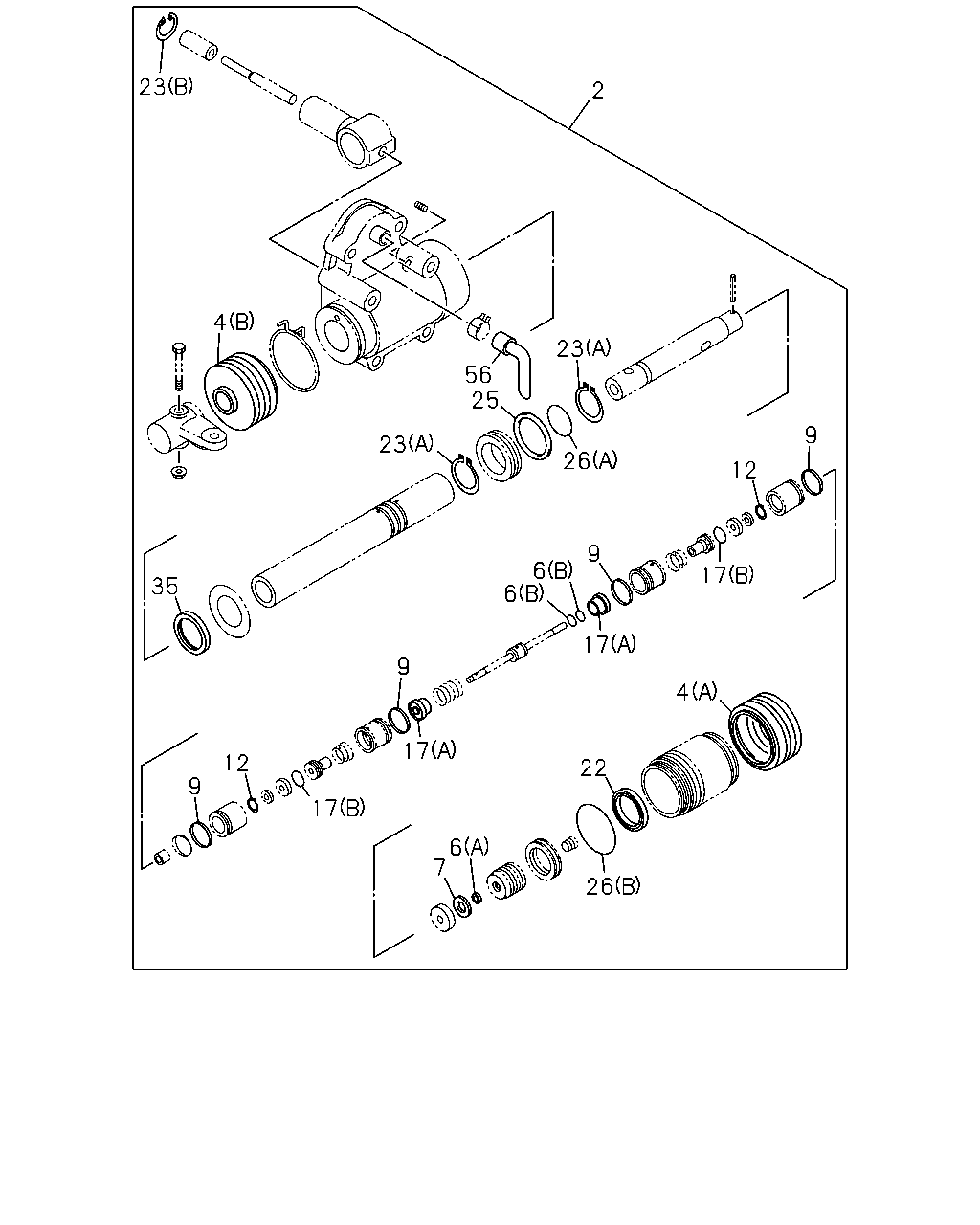

23 2 4 23 56 25 9 23 26 12 9 6 6 17 35 17 9 4 17 12 22 9 17 6 7 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	REPAIR KIT; POWER SHIFTER	1-33738-028-0	01	1	0005-0210	●
2	REPAIR KIT; POWER SHIFTER FTS ALL(FT****)	1-33738-028-0	01	1	0211-0405		●
2	REPAIR KIT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0406-		●
2	REPAIR KIT; POWER SHIFTER FTS ALL(FT****)	1-33738-028-0	01	1	0406-		●
2	REPAIR KIT; POWER SHIFTER	1-33739-593-0	01	1	0005-0108			●
2	REPAIR KIT; POWER SHIFTER	1-33738-103-0	01	1	0109-0210			●
4	BOOT; POWER SHIFTER (A)	1-33739-843-0	01	1	0005-0210	●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (A)	1-33739-843-0	01	1	0211-0405		●
4	BOOT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0406-		●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (A)	1-33739-843-0	01	1	0406-		●
4	BOOT; POWER SHIFTER (B)	1-33739-844-0	01	1	0005-0210	●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (B)	1-33739-844-0	01	1	0211-0405		●
4	BOOT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0406-		●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (B)	1-33739-844-0	01	1	0406-		●
4	BOOT; POWER SHIFTER (C)	1-33739-847-0	01	1	0005-0210	●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (C)	1-33739-847-0	01	1	0211-0405		●
4	BOOT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0406-		●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (C)	1-33739-847-0	01	1	0406-		●
4	BOOT; POWER SHIFTER (A)	1-33739-038-0	01	1	0005-0210			●
4	BOOT; POWER SHIFTER (B)	1-33739-571-0	01	1	0005-0108			●
4	BOOT; POWER SHIFTER (B)	1-33738-101-0	01	1	0109-0210			●
6	GASKET (A)	1-33739-013-0	01	1	0005-0210			●
6	GASKET (B)	1-33739-583-0	02	1	0005-0210			●
7	FILTER; AIR	1-33739-033-0	01	1	0005-0210			●
9	RING; SQUARE	1-33739-086-0	04	1	0005-0210			●
12	RING; RET	1-33739-016-0	02	1	0005-0210			●
17	SEAL ASM; VALVE (B)	1-33739-584-0	02	1	0005-0210			●
17	SEAL ASM; VALVE (A)	9-83335-055-0	02	1	0005-0210			●
22	SEAL; OIL	1-33739-353-0	01	1	0005-0210			●
23	RING; RET (A)	1-33739-022-0	02	1	0005-0210			●
23	RING; RET (B)	1-33739-564-0	01	1	0005-0210			●
25	RING; "X",PISTON	1-33739-420-0	01	1	0005-0210			●
26	GASKET (A)	1-33739-496-0	01	1	0005-0210			●
26	GASKET (B)	1-33739-573-0	01	1	0005-0210			●
35	GASKET; CUP	1-33739-073-0	01	1	0005-0210			●
56	HOSE; POWER SHIFTER	1-33739-848-0	01	1	0005-0210	●
56	HOSE; POWER SHIFTER FTS ALL(FT****)	1-33739-848-0	01	1	0211-0405		●
56	HOSE; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0406-		●
56	HOSE; POWER SHIFTER FTS ALL(FT****)	1-33739-848-0	01	1	0406-		●
56	HOSE; POWER SHIFTER	1-33739-570-0	01	1	0005-0210			●

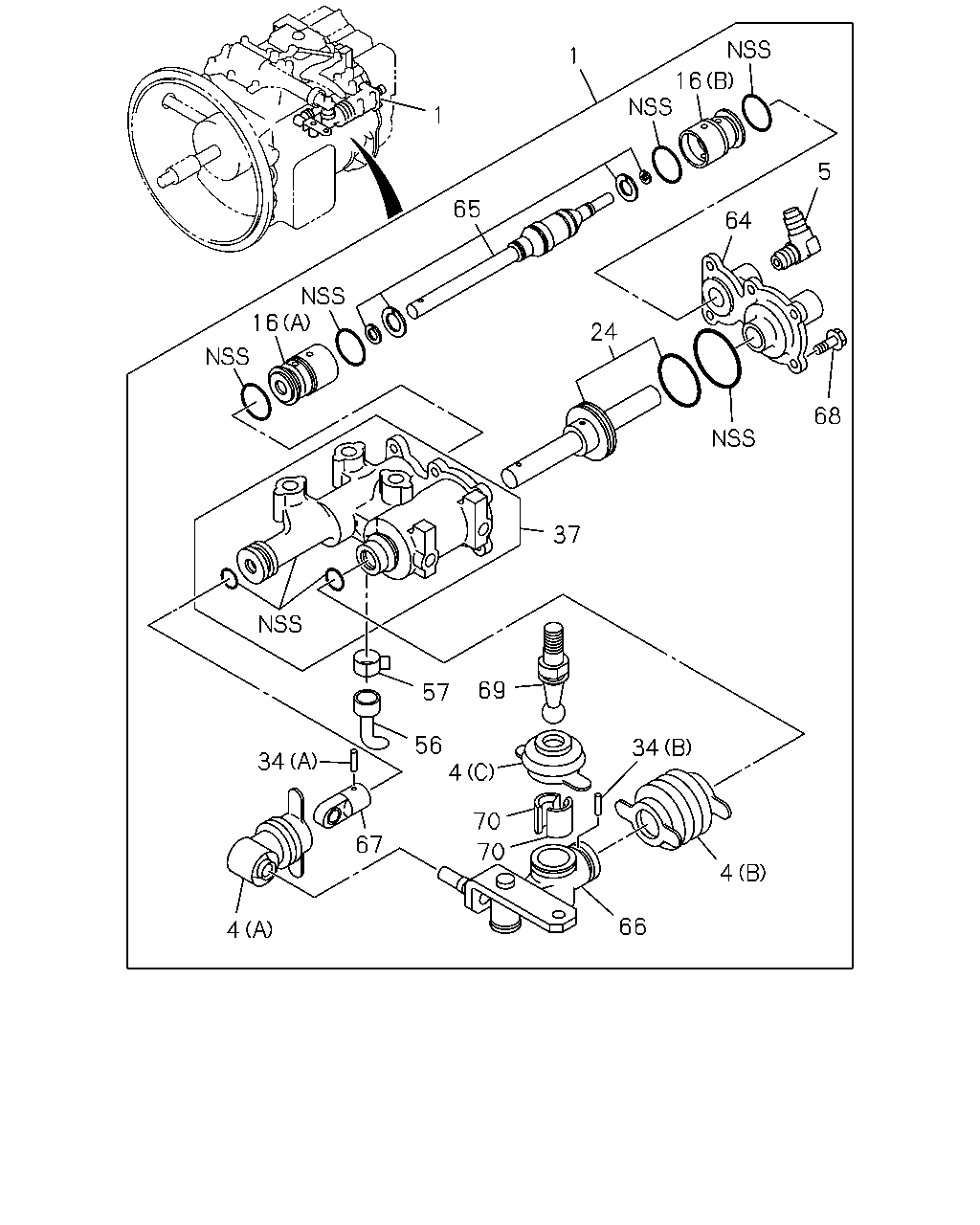

1 16 1 5 65 64 16 24 68 37 69 57 56 4 34 34 70 67 70 4 66 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ASSISTOR ASM; POWER,SHIFT	1-33730-233-3	01	1	0005-0210	●
1	ASSISTOR ASM; POWER,SHIFT FTS ALL(FT****)	1-33730-233-3	01	1	0211-0405		●
1	ASSISTOR ASM; POWER,SHIFT FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33730-233-3	01	1	0406-0705		●
1	ASSISTOR ASM; POWER,SHIFT FTS ALL(FT****)	1-33730-233-3	01	1	0406-0705		●
1	ASSISTOR ASM; POWER,SHIFT FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	0706-		●
1	ASSISTOR ASM; POWER,SHIFT FTS ALL(FT****)	8-98022-843-0	01	1	0706-		●
1	ASSISTOR ASM; POWER,SHIFT	1-33730-127-2	01	1	0005-0210			●
4	BOOT; POWER SHIFTER (A)	1-33739-843-0	01	1	0005-0210	●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (A)	1-33739-843-0	01	1	0211-0405		●
4	BOOT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0406-		●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (A)	1-33739-843-0	01	1	0406-		●
4	BOOT; POWER SHIFTER (B)	1-33739-844-0	01	1	0005-0210	●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (B)	1-33739-844-0	01	1	0211-0405		●
4	BOOT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0406-		●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (B)	1-33739-844-0	01	1	0406-		●
4	BOOT; POWER SHIFTER (C)	1-33739-847-0	01	1	0005-0210	●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (C)	1-33739-847-0	01	1	0211-0405		●
4	BOOT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0406-		●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (C)	1-33739-847-0	01	1	0406-		●
4	BOOT; POWER SHIFTER (A)	1-33739-038-0	01	1	0005-0210			●
4	BOOT; POWER SHIFTER (B)	1-33739-571-0	01	1	0005-0108			●
4	BOOT; POWER SHIFTER (B)	1-33738-101-0	01	1	0109-0210			●
5	CONNECTOR; CYL M12 & PT1/8	9-09224-306-2	01	1	0005-0210	●
5	CONNECTOR; CYL FTS ALL(FT****) M12 & PT1/8	9-09224-306-2	01	1	0211-0405		●
5	CONNECTOR; CYL FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	9-09224-306-2	01	1	0406-0705		●
5	CONNECTOR; CYL FTS ALL(FT****) M12 & PT1/8	9-09224-306-2	01	1	0406-0705		●
5	CONNECTOR; CYL FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	0706-		●
5	CONNECTOR; CYL FTS ALL(FT****) M12 & PT1/8	0-92124-306-0	01	1	0706-		●
5	CONNECTOR; CYL	1-33739-017-0	01	1	0005-0210			●
16	SEAT; VALVE (A)	1-33739-838-1	01	1	0005-0210	●
16	SEAT; VALVE FTS ALL(FT****) (A)	1-33739-838-1	01	1	0211-0405		●
16	SEAT; VALVE FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-838-1	01	1	0406-0705		●
16	SEAT; VALVE FTS ALL(FT****) (A)	1-33739-838-1	01	1	0406-0705		●
16	SEAT; VALVE FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	0706-		●
16	SEAT; VALVE FTS ALL(FT****) (A)	8-97388-032-0	01	1	0706-		●
16	SEAT; VALVE (B)	1-33739-839-1	01	1	0005-0210	●
16	SEAT; VALVE FTS ALL(FT****) (B)	1-33739-839-1	01	1	0211-0405		●
16	SEAT; VALVE FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-839-1	01	1	0406-0705		●
16	SEAT; VALVE FTS ALL(FT****) (B)	1-33739-839-1	01	1	0406-0705		●
16	SEAT; VALVE FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	0706-		●
16	SEAT; VALVE FTS ALL(FT****) (B)	8-97388-033-0	01	1	0706-		●
16	SEAT; VALVE (C)	1-33739-585-0	02	1	0005-0210			●
24	PISTON	1-33739-836-1	01	1	0005-0210	●
24	PISTON FTS ALL(FT****)	1-33739-836-1	01	1	0211-0405		●
24	PISTON FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	0406-		●
24	PISTON FTS ALL(FT****)	1-33739-836-1	01	1	0406-		●
24	PISTON	1-33739-578-0	01	1	0005-0210			●
34	PIN; STRAIGHT,POWER SHIFTER (B)	1-33739-885-0	01	1	0005-0210	●
34	PIN; STRAIGHT,POWER SHIFTER FTS ALL(FT****) (B)	1-33739-885-0	01	1	0211-0405		●
34	PIN; STRAIGHT,POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0406-		●
34	PIN; STRAIGHT,POWER SHIFTER FTS ALL(FT****) (B)	1-33739-885-0	01	1	0406-		●
34	PIN; STRAIGHT,POWER SHIFTER (A)	1-33739-974-0	01	1	0005-0210	●
34	PIN; STRAIGHT,POWER SHIFTER FTS ALL(FT****) (A)	1-33739-974-0	01	1	0211-0405		●
34	PIN; STRAIGHT,POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0406-		●
34	PIN; STRAIGHT,POWER SHIFTER FTS ALL(FT****) (A)	1-33739-974-0	01	1	0406-		●
34	PIN; STRAIGHT,POWER SHIFTER (C)	1-33739-575-0	01	1	0005-0210			●
37	HOUSING; POWER SHIFTER	1-33739-969-0	01	1	0005-0210	●
37	HOUSING; POWER SHIFTER FTS ALL(FT****)	1-33739-969-0	01	1	0211-0405		●
37	HOUSING; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	0406-		●
37	HOUSING; POWER SHIFTER FTS ALL(FT****)	1-33739-969-0	01	1	0406-		●
37	HOUSING; POWER SHIFTER	1-33739-574-0	01	1	0005-0210			●
56	HOSE; POWER SHIFTER	1-33739-848-0	01	1	0005-0210	●
56	HOSE; POWER SHIFTER FTS ALL(FT****)	1-33739-848-0	01	1	0211-0405		●
56	HOSE; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0406-		●
56	HOSE; POWER SHIFTER FTS ALL(FT****)	1-33739-848-0	01	1	0406-		●
56	HOSE; POWER SHIFTER	1-33739-570-0	01	1	0005-0210			●
57	CLAMP; HOSE	1-33739-849-0	01	1	0005-0210	●
57	CLAMP; HOSE FTS ALL(FT****)	1-33739-849-0	01	1	0211-0405		●
57	CLAMP; HOSE FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	0406-		●
57	CLAMP; HOSE FTS ALL(FT****)	1-33739-849-0	01	1	0406-		●
57	CLAMP; HOSE	1-33739-569-0	01	1	0005-0210			●
64	COVER; HOUSING	1-33739-970-0	01	1	0005-0210	●
64	COVER; HOUSING FTS ALL(FT****)	1-33739-970-0	01	1	0211-0405		●
64	COVER; HOUSING FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-970-0	01	1	0406-		●
64	COVER; HOUSING FTS ALL(FT****)	1-33739-970-0	01	1	0406-		●
65	VALVE; POWER SHIFTER	1-33739-971-0	01	1	0005-0210	●
65	VALVE; POWER SHIFTER FTS ALL(FT****)	1-33739-971-0	01	1	0211-0405		●
65	VALVE; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-971-0	01	1	0406-0705		●
65	VALVE; POWER SHIFTER FTS ALL(FT****)	1-33739-971-0	01	1	0406-0705		●
65	VALVE; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	8-97388-029-0	01	1	0706-		●
65	VALVE; POWER SHIFTER FTS ALL(FT****)	8-97388-029-0	01	1	0706-		●
66	JOINT ASM; POWER SHIFTER	1-33739-972-0	01	1	0005-0210	●
66	JOINT ASM; POWER SHIFTER FTS ALL(FT****)	1-33739-972-0	01	1	0211-0405		●
66	JOINT ASM; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-972-0	01	1	0406-		●
66	JOINT ASM; POWER SHIFTER FTS ALL(FT****)	1-33739-972-0	01	1	0406-		●
67	JOINT; BALL,POWER SHIFTER	1-33739-973-0	01	1	0005-0210	●
67	JOINT; BALL,POWER SHIFTER FTS ALL(FT****)	1-33739-973-0	01	1	0211-0405		●
67	JOINT; BALL,POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-973-0	01	1	0406-		●
67	JOINT; BALL,POWER SHIFTER FTS ALL(FT****)	1-33739-973-0	01	1	0406-		●
68	BOLT; COVER M6X12 FLANGE	1-33739-842-0	06	1	0005-0210	●
68	BOLT; COVER FTS ALL(FT****) M6X12 FLANGE	1-33739-842-0	06	1	0211-0405		●
68	BOLT; COVER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE	1-33739-842-0	06	1	0406-		●
68	BOLT; COVER FTS ALL(FT****) M6X12 FLANGE	1-33739-842-0	06	1	0406-		●
69	STUD; BALL,POWER SHIFTER	1-33739-846-0	01	1	0005-0210	●
69	STUD; BALL,POWER SHIFTER FTS ALL(FT****)	1-33739-846-0	01	1	0211-0405		●
69	STUD; BALL,POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-846-0	01	1	0406-		●
69	STUD; BALL,POWER SHIFTER FTS ALL(FT****)	1-33739-846-0	01	1	0406-		●
70	SEAT; BALL STUD	1-33659-118-0	02	1	0005-0210	●
70	SEAT; BALL STUD FTS ALL(FT****)	1-33659-118-0	02	1	0211-0405		●
70	SEAT; BALL STUD FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33659-118-0	02	1	0406-		●
70	SEAT; BALL STUD FTS ALL(FT****)	1-33659-118-0	02	1	0406-		●

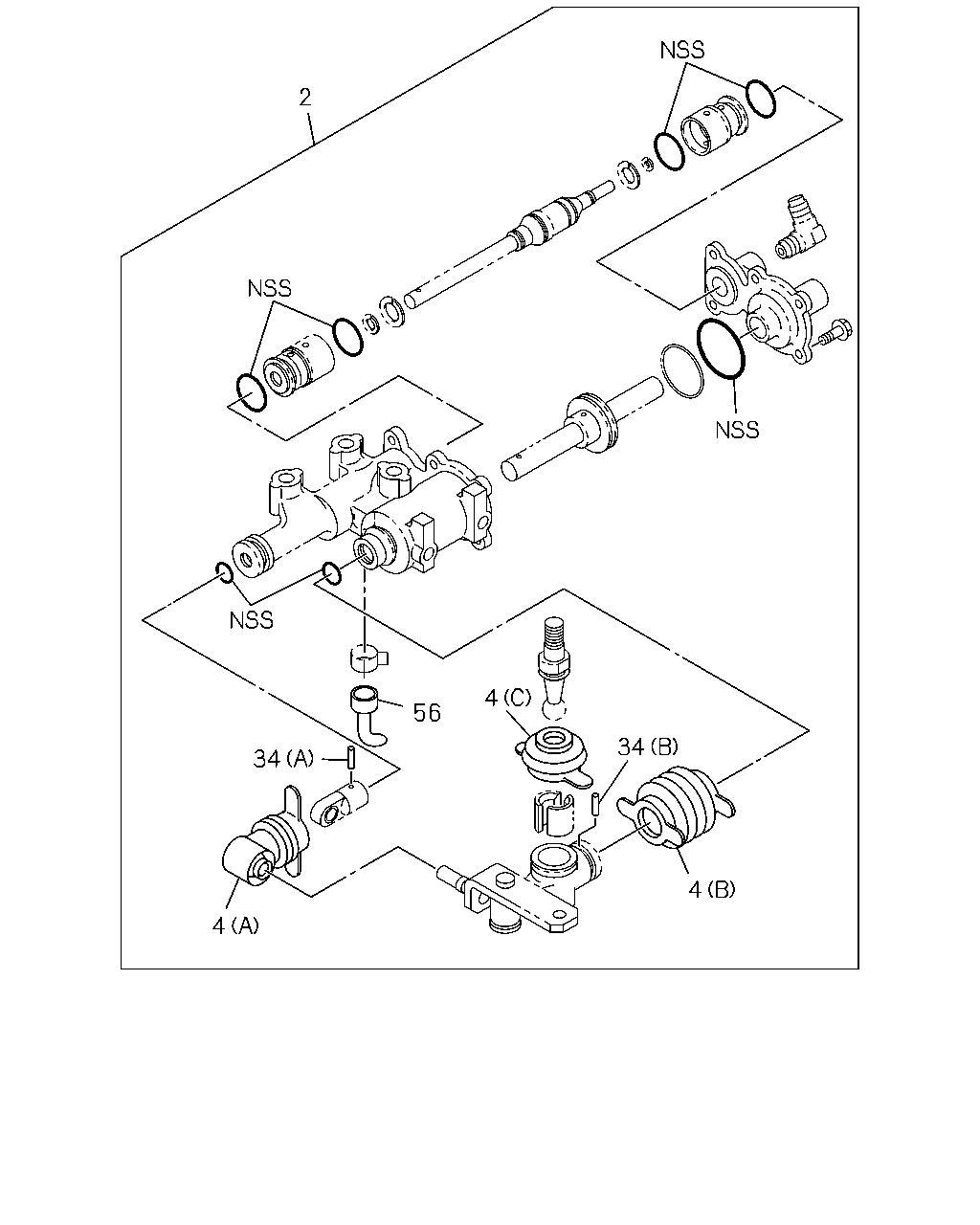

2 4 56 34 34 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	REPAIR KIT; POWER SHIFTER	1-33738-028-0	01	1	0005-0210	●
2	REPAIR KIT; POWER SHIFTER FTS ALL(FT****)	1-33738-028-0	01	1	0211-0405		●
2	REPAIR KIT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33738-028-0	01	1	0406-		●
2	REPAIR KIT; POWER SHIFTER FTS ALL(FT****)	1-33738-028-0	01	1	0406-		●
2	REPAIR KIT; POWER SHIFTER	1-33739-593-0	01	1	0005-0108			●
2	REPAIR KIT; POWER SHIFTER	1-33738-103-0	01	1	0109-0210			●
4	BOOT; POWER SHIFTER (A)	1-33739-843-0	01	1	0005-0210	●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (A)	1-33739-843-0	01	1	0211-0405		●
4	BOOT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0406-		●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (A)	1-33739-843-0	01	1	0406-		●
4	BOOT; POWER SHIFTER (B)	1-33739-844-0	01	1	0005-0210	●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (B)	1-33739-844-0	01	1	0211-0405		●
4	BOOT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0406-		●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (B)	1-33739-844-0	01	1	0406-		●
4	BOOT; POWER SHIFTER (C)	1-33739-847-0	01	1	0005-0210	●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (C)	1-33739-847-0	01	1	0211-0405		●
4	BOOT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0406-		●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (C)	1-33739-847-0	01	1	0406-		●
4	BOOT; POWER SHIFTER (A)	1-33739-038-0	01	1	0005-0210			●
4	BOOT; POWER SHIFTER (B)	1-33739-571-0	01	1	0005-0108			●
4	BOOT; POWER SHIFTER (B)	1-33738-101-0	01	1	0109-0210			●
34	PIN; STRAIGHT,POWER SHIFTER (B)	1-33739-885-0	01	1	0005-0210	●
34	PIN; STRAIGHT,POWER SHIFTER FTS ALL(FT****) (B)	1-33739-885-0	01	1	0211-0405		●
34	PIN; STRAIGHT,POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0406-		●
34	PIN; STRAIGHT,POWER SHIFTER FTS ALL(FT****) (B)	1-33739-885-0	01	1	0406-		●
34	PIN; STRAIGHT,POWER SHIFTER (A)	1-33739-974-0	01	1	0005-0210	●
34	PIN; STRAIGHT,POWER SHIFTER FTS ALL(FT****) (A)	1-33739-974-0	01	1	0211-0405		●
34	PIN; STRAIGHT,POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0406-		●
34	PIN; STRAIGHT,POWER SHIFTER FTS ALL(FT****) (A)	1-33739-974-0	01	1	0406-		●
34	PIN; STRAIGHT,POWER SHIFTER (C)	1-33739-575-0	01	1	0005-0210			●
56	HOSE; POWER SHIFTER	1-33739-848-0	01	1	0005-0210	●
56	HOSE; POWER SHIFTER FTS ALL(FT****)	1-33739-848-0	01	1	0211-0405		●
56	HOSE; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0406-		●
56	HOSE; POWER SHIFTER FTS ALL(FT****)	1-33739-848-0	01	1	0406-		●
56	HOSE; POWER SHIFTER	1-33739-570-0	01	1	0005-0210			●

1 23 59 34 33 1 36 62 58 41 27 4 57 56 25 24 23 37 9 23 8 26 48 12 61 18 14 40 20 9 11 6 6 17 35 16 21 17 15 9 4 14 18 10 61 12 17 22 3 8 16 9 63 17 5 6 7 60 26 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ASSISTOR ASM; POWER,SHIFT	1-33730-233-3	01	1	0005-0210	●
1	ASSISTOR ASM; POWER,SHIFT FTS ALL(FT****)	1-33730-233-3	01	1	0211-0405		●
1	ASSISTOR ASM; POWER,SHIFT FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33730-233-3	01	1	0406-0705		●
1	ASSISTOR ASM; POWER,SHIFT FTS ALL(FT****)	1-33730-233-3	01	1	0406-0705		●
1	ASSISTOR ASM; POWER,SHIFT FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	8-98022-843-0	01	1	0706-		●
1	ASSISTOR ASM; POWER,SHIFT FTS ALL(FT****)	8-98022-843-0	01	1	0706-		●
1	ASSISTOR ASM; POWER,SHIFT	1-33730-127-2	01	1	0005-0210			●
3	NUT; LK,ROD	1-33739-025-0	01	1	0005-0210			●
4	BOOT; POWER SHIFTER (A)	1-33739-843-0	01	1	0005-0210	●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (A)	1-33739-843-0	01	1	0211-0405		●
4	BOOT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-843-0	01	1	0406-		●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (A)	1-33739-843-0	01	1	0406-		●
4	BOOT; POWER SHIFTER (B)	1-33739-844-0	01	1	0005-0210	●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (B)	1-33739-844-0	01	1	0211-0405		●
4	BOOT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-844-0	01	1	0406-		●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (B)	1-33739-844-0	01	1	0406-		●
4	BOOT; POWER SHIFTER (C)	1-33739-847-0	01	1	0005-0210	●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (C)	1-33739-847-0	01	1	0211-0405		●
4	BOOT; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (C)	1-33739-847-0	01	1	0406-		●
4	BOOT; POWER SHIFTER FTS ALL(FT****) (C)	1-33739-847-0	01	1	0406-		●
4	BOOT; POWER SHIFTER (A)	1-33739-038-0	01	1	0005-0210			●
4	BOOT; POWER SHIFTER (B)	1-33739-571-0	01	1	0005-0108			●
4	BOOT; POWER SHIFTER (B)	1-33738-101-0	01	1	0109-0210			●
5	CONNECTOR; CYL M12 & PT1/8	9-09224-306-2	01	1	0005-0210	●
5	CONNECTOR; CYL FTS ALL(FT****) M12 & PT1/8	9-09224-306-2	01	1	0211-0405		●
5	CONNECTOR; CYL FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	9-09224-306-2	01	1	0406-0705		●
5	CONNECTOR; CYL FTS ALL(FT****) M12 & PT1/8	9-09224-306-2	01	1	0406-0705		●
5	CONNECTOR; CYL FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8	0-92124-306-0	01	1	0706-		●
5	CONNECTOR; CYL FTS ALL(FT****) M12 & PT1/8	0-92124-306-0	01	1	0706-		●
5	CONNECTOR; CYL	1-33739-017-0	01	1	0005-0210			●
6	GASKET (A)	1-33739-013-0	01	1	0005-0210			●
6	GASKET (B)	1-33739-583-0	02	1	0005-0210			●
7	FILTER; AIR	1-33739-033-0	01	1	0005-0210			●
8	TUBE	1-33739-560-0	02	1	0005-0210			●
9	RING; SQUARE	1-33739-086-0	04	1	0005-0210			●
10	CYLINDER; POWER SHIFTER	1-33739-572-0	01	1	0005-0210			●
11	PLATE; CYL	1-33739-576-0	01	1	0005-0210			●
12	RING; RET	1-33739-016-0	02	1	0005-0210			●
14	SPRING; VALVE LIFTER (A)	1-33739-066-0	01	1	0005-0210			●
14	SPRING; VALVE LIFTER (B)	1-33739-568-0	01	1	0005-0210			●
15	SPRING; VALVE SEAL	1-33739-582-0	01	1	0005-0210			●
16	SEAT; VALVE (A)	1-33739-838-1	01	1	0005-0210	●
16	SEAT; VALVE FTS ALL(FT****) (A)	1-33739-838-1	01	1	0211-0405		●
16	SEAT; VALVE FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-838-1	01	1	0406-0705		●
16	SEAT; VALVE FTS ALL(FT****) (A)	1-33739-838-1	01	1	0406-0705		●
16	SEAT; VALVE FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (A)	8-97388-032-0	01	1	0706-		●
16	SEAT; VALVE FTS ALL(FT****) (A)	8-97388-032-0	01	1	0706-		●
16	SEAT; VALVE (B)	1-33739-839-1	01	1	0005-0210	●
16	SEAT; VALVE FTS ALL(FT****) (B)	1-33739-839-1	01	1	0211-0405		●
16	SEAT; VALVE FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-839-1	01	1	0406-0705		●
16	SEAT; VALVE FTS ALL(FT****) (B)	1-33739-839-1	01	1	0406-0705		●
16	SEAT; VALVE FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (B)	8-97388-033-0	01	1	0706-		●
16	SEAT; VALVE FTS ALL(FT****) (B)	8-97388-033-0	01	1	0706-		●
16	SEAT; VALVE (C)	1-33739-585-0	02	1	0005-0210			●
17	SEAL ASM; VALVE (B)	1-33739-584-0	02	1	0005-0210			●
17	SEAL ASM; VALVE (A)	9-83335-055-0	02	1	0005-0210			●
18	LIFTER; VALVE	1-33739-586-0	02	1	0005-0210			●
20	ROD ASM; W/CAP	1-33739-765-0	01	1	0005-0210			●
21	PIPE; AIR,POWER SHIFTER	1-33739-587-0	01	1	0005-0210			●
22	SEAL; OIL	1-33739-353-0	01	1	0005-0210			●
23	RING; RET (A)	1-33739-022-0	02	1	0005-0210			●
23	RING; RET (B)	1-33739-564-0	01	1	0005-0210			●
24	PISTON	1-33739-836-1	01	1	0005-0210	●
24	PISTON FTS ALL(FT****)	1-33739-836-1	01	1	0211-0405		●
24	PISTON FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-836-1	01	1	0406-		●
24	PISTON FTS ALL(FT****)	1-33739-836-1	01	1	0406-		●
24	PISTON	1-33739-578-0	01	1	0005-0210			●
25	RING; "X",PISTON	1-33739-420-0	01	1	0005-0210			●
26	GASKET (A)	1-33739-496-0	01	1	0005-0210			●
26	GASKET (B)	1-33739-573-0	01	1	0005-0210			●
27	ROD; POWER SHIFTER	1-33739-580-0	01	1	0005-0210			●
33	STRIKER; POWER SHIFTER	1-33739-577-0	01	1	0005-0210			●
34	PIN; STRAIGHT,POWER SHIFTER (B)	1-33739-885-0	01	1	0005-0210	●
34	PIN; STRAIGHT,POWER SHIFTER FTS ALL(FT****) (B)	1-33739-885-0	01	1	0211-0405		●
34	PIN; STRAIGHT,POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-885-0	01	1	0406-		●
34	PIN; STRAIGHT,POWER SHIFTER FTS ALL(FT****) (B)	1-33739-885-0	01	1	0406-		●
34	PIN; STRAIGHT,POWER SHIFTER (A)	1-33739-974-0	01	1	0005-0210	●
34	PIN; STRAIGHT,POWER SHIFTER FTS ALL(FT****) (A)	1-33739-974-0	01	1	0211-0405		●
34	PIN; STRAIGHT,POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-974-0	01	1	0406-		●
34	PIN; STRAIGHT,POWER SHIFTER FTS ALL(FT****) (A)	1-33739-974-0	01	1	0406-		●
34	PIN; STRAIGHT,POWER SHIFTER (C)	1-33739-575-0	01	1	0005-0210			●
35	GASKET; CUP	1-33739-073-0	01	1	0005-0210			●
36	SCREW; SET	1-33739-040-0	01	1	0005-0210			●
37	HOUSING; POWER SHIFTER	1-33739-969-0	01	1	0005-0210	●
37	HOUSING; POWER SHIFTER FTS ALL(FT****)	1-33739-969-0	01	1	0211-0405		●
37	HOUSING; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-969-0	01	1	0406-		●
37	HOUSING; POWER SHIFTER FTS ALL(FT****)	1-33739-969-0	01	1	0406-		●
37	HOUSING; POWER SHIFTER	1-33739-574-0	01	1	0005-0210			●
40	NUT; LEVER	1-33739-940-0	01	1	0005-0210			●
41	BOLT; SET,LEVER	1-33739-939-0	01	1	0005-0210			●
47	BUSHING; CYL	1-33739-567-0	01	1	0005-0210			●
48	LEVER; CONT,CABLE	1-33739-559-0	01	1	0005-0210			●
56	HOSE; POWER SHIFTER	1-33739-848-0	01	1	0005-0210	●
56	HOSE; POWER SHIFTER FTS ALL(FT****)	1-33739-848-0	01	1	0211-0405		●
56	HOSE; POWER SHIFTER FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-848-0	01	1	0406-		●
56	HOSE; POWER SHIFTER FTS ALL(FT****)	1-33739-848-0	01	1	0406-		●
56	HOSE; POWER SHIFTER	1-33739-570-0	01	1	0005-0210			●
57	CLAMP; HOSE	1-33739-849-0	01	1	0005-0210	●
57	CLAMP; HOSE FTS ALL(FT****)	1-33739-849-0	01	1	0211-0405		●
57	CLAMP; HOSE FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8>	1-33739-849-0	01	1	0406-		●
57	CLAMP; HOSE FTS ALL(FT****)	1-33739-849-0	01	1	0406-		●
57	CLAMP; HOSE	1-33739-569-0	01	1	0005-0210			●
58	CLAMP; BOOT	1-33739-562-0	01	1	0005-0108			●
59	SHIM; POWER SHIFTER	1-33739-563-0	01	1	0005-0108			●
59	SHIM; POWER SHIFTER	1-33738-102-0	01	1	0109-0210			●
60	COLLAR; CYL	1-33739-561-0	01	1	0005-0210			●
61	PLATE; VLV LIFTER	1-33739-581-0	02	1	0005-0210			●
62	PIN; PIPE	1-33739-566-0	01	1	0005-0210			●
63	CLAMP; CYL	1-33739-565-0	01	1	0005-0210			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
