8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#81319) — 111 parça
çizim 138217
30 29 257
BalonParca AdiParca NoAdetTipApplied Date A B
29 16.263 SWITCH; DOOR
BLACK IDN 		8-98022-211-0 01 1 0804- ● ●
30 16.263 SCREW; DOOR SW
M5X18 IDN 		8-98047-201-0 01 1 0804- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(B) IDN 		8-98029-914-1 01 1 0804- ● ●
257 16.081 COVER; HOLE,SW
(A) IDN 		8-98029-917-0 01 1 0804- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
çizim 138265
151 154 315
BalonParca AdiParca NoAdetTipApplied Date A B
151 09.277 RELAY; HTR & A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ●
154 09.277 RELAY; CONDENSER FAN
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0804- ●
315 09.277 RELAY; EXH BRAKE CONT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0804- ● ●

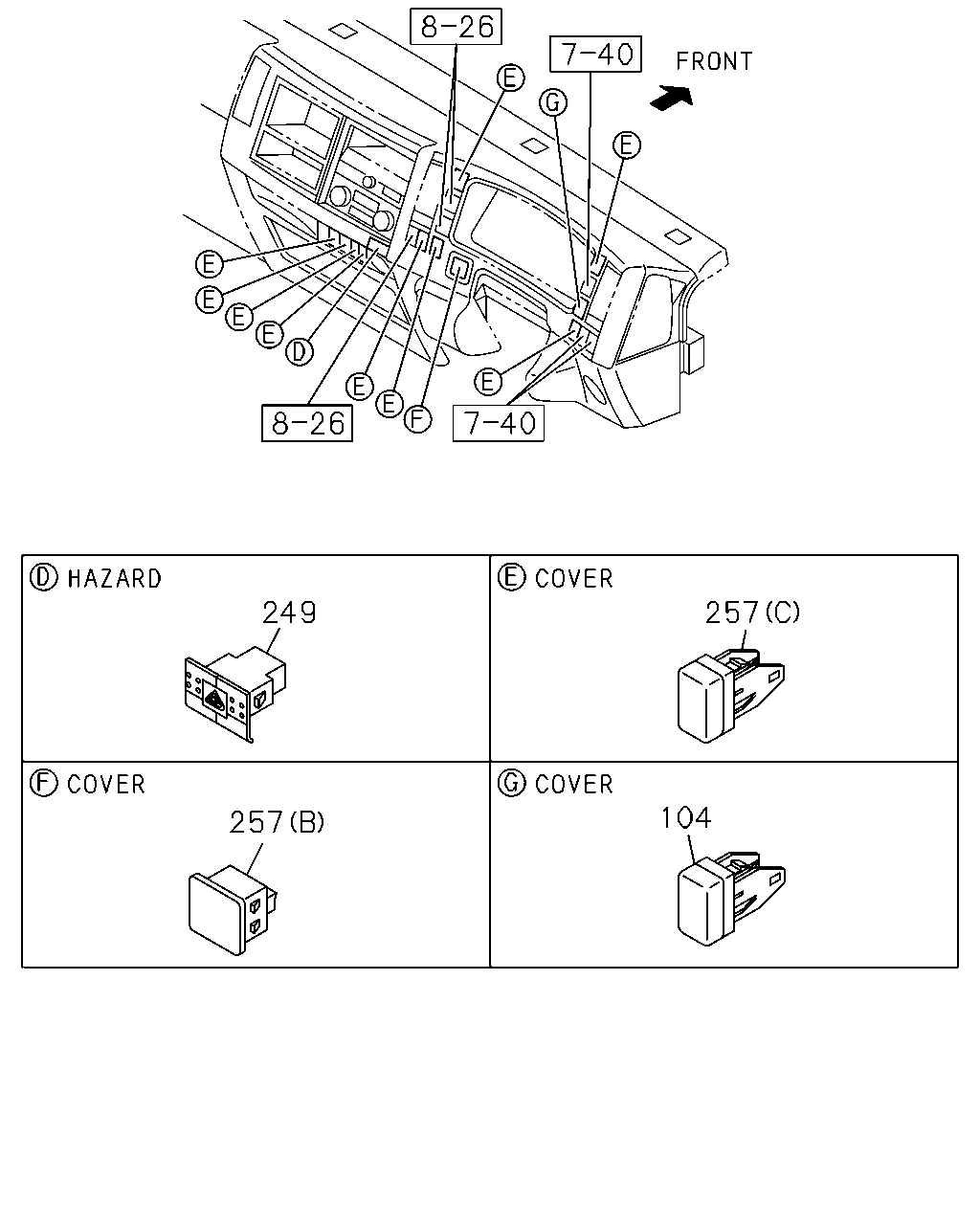

çizim 138382
249 257 104 257
BalonParca AdiParca NoAdetTipApplied Date A B
104 09.778 COVER; SW HOLE,FOG LAMP
16.081 		8-98025-954-1 01 1 0804- ● ●
249 02.485 SWITCH; HAZARD 8-98011-707-2 01 1 0804- ●
249 02.485 SWITCH; HAZARD
VOLTAGE 12V<TRQ> 		8-98011-707-2 01 1 0804- ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 12V<TRQ> 		8-97386-922-1 01 1 0804- ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(B) IDN 		8-98029-914-1 01 1 0804- ● ●
257 16.081 COVER; HOLE,SW
(A) IDN 		8-98029-917-0 01 1 0804- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 0804-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907- ● ●
çizim 138500
26 21
BalonParca AdiParca NoAdetTipApplied Date A B
21 02.575 SWITCH; CLU
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0804-0804 ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0804-0804 ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 0805- ● ●
26 03.636 SWITCH; ACCEL
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 0804- ● ●

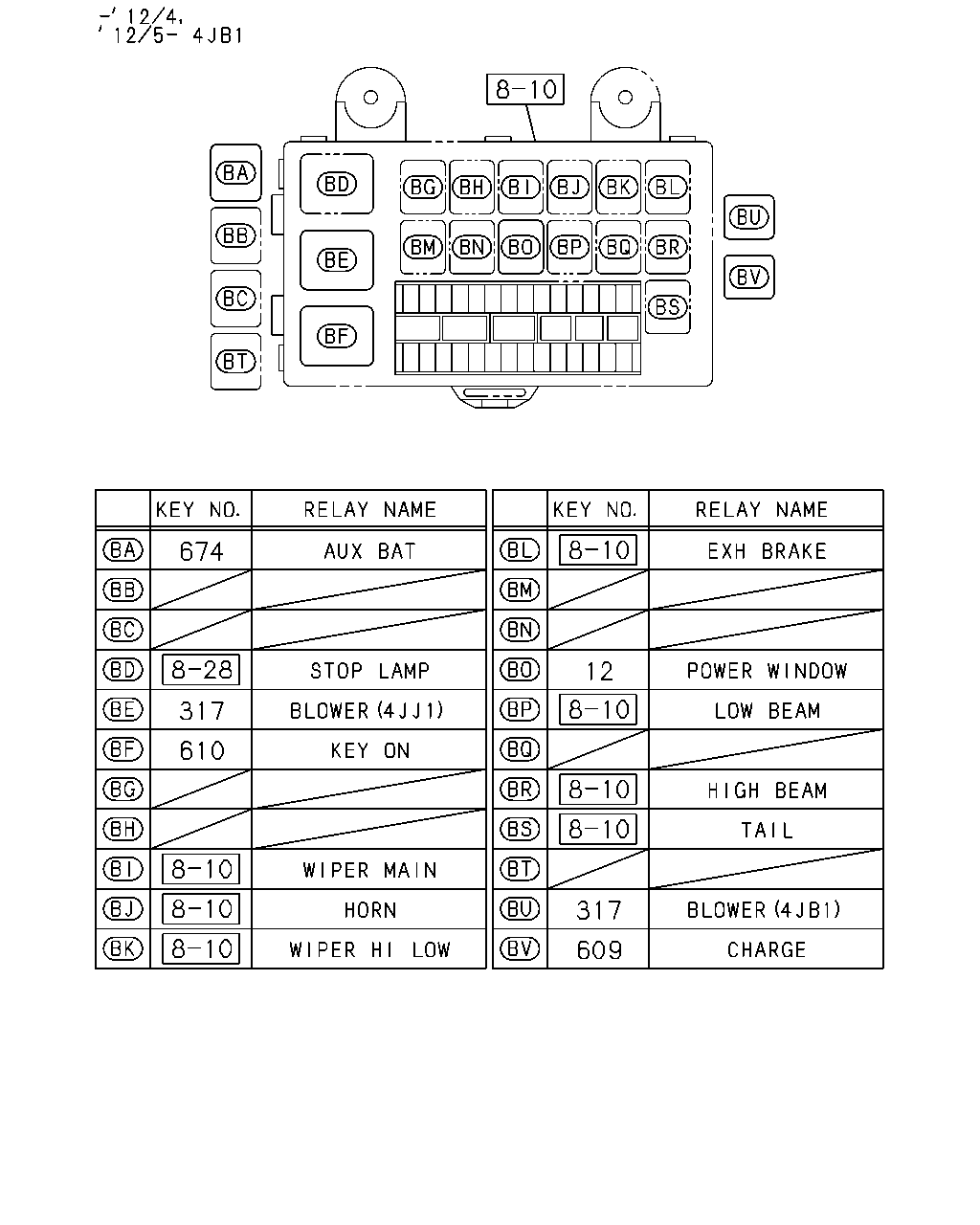

çizim 138516
674 12 317 610 317 609
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
4JB1-TC ENG(RDT) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0804- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0804- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JB1-TC ENG(RDT) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 12V 35A 		8-97180-794-1 01 1 0804- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ●
609 02.485 RELAY; CHARGE
4JB1-TC ENG(RDT) 02.510 12V 		8-97063-441-2 01 1 0804- ● ●
610 02.510 RELAY; KEY ON
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0804- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804-1204 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ●
674 02.510 RELAY; BATTERY
4JB1-TC ENG(RDT) 12V 20A IDN 		8-97173-037-1 01 1 0804- ● ●

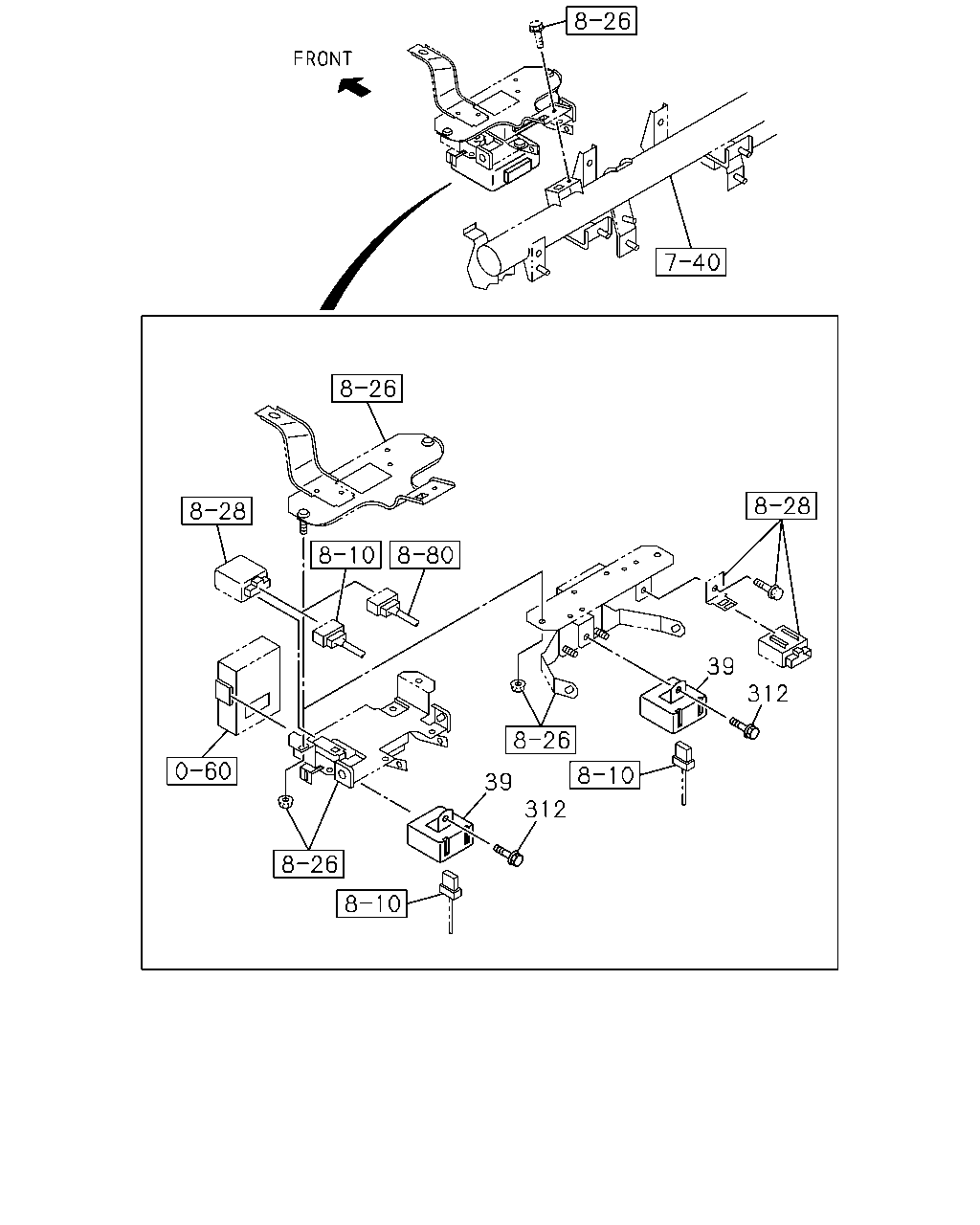

çizim 183515
39 312 39 312
BalonParca AdiParca NoAdetTipApplied Date A B
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97359-591-0 01 1 0804- ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 12V<TRQ> 		8-97359-591-0 01 1 0804- ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 12V<TRQ> 		8-98060-789-0 01 1 0804-0906 ●
39 16.341 RELAY; DOOR LK
4JJ1-TCC ENG(RDU) AUTO DOOR LOCK<AU4> EXC. VOLTAGE 12V<TRQ> 		8-98060-789-0 01 1 0907- ●
312 02.483 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.531 M8X20 FLANGE IDN 		0-28650-820-0 01 1 0804- ●
312 02.483 BOLT; RELAY
AUTO DOOR LOCK<AU4> VOLTAGE 12V<TRQ> 01.531 M8X20 FLANGE IDN 		0-28650-820-0 01 1 0804- ●

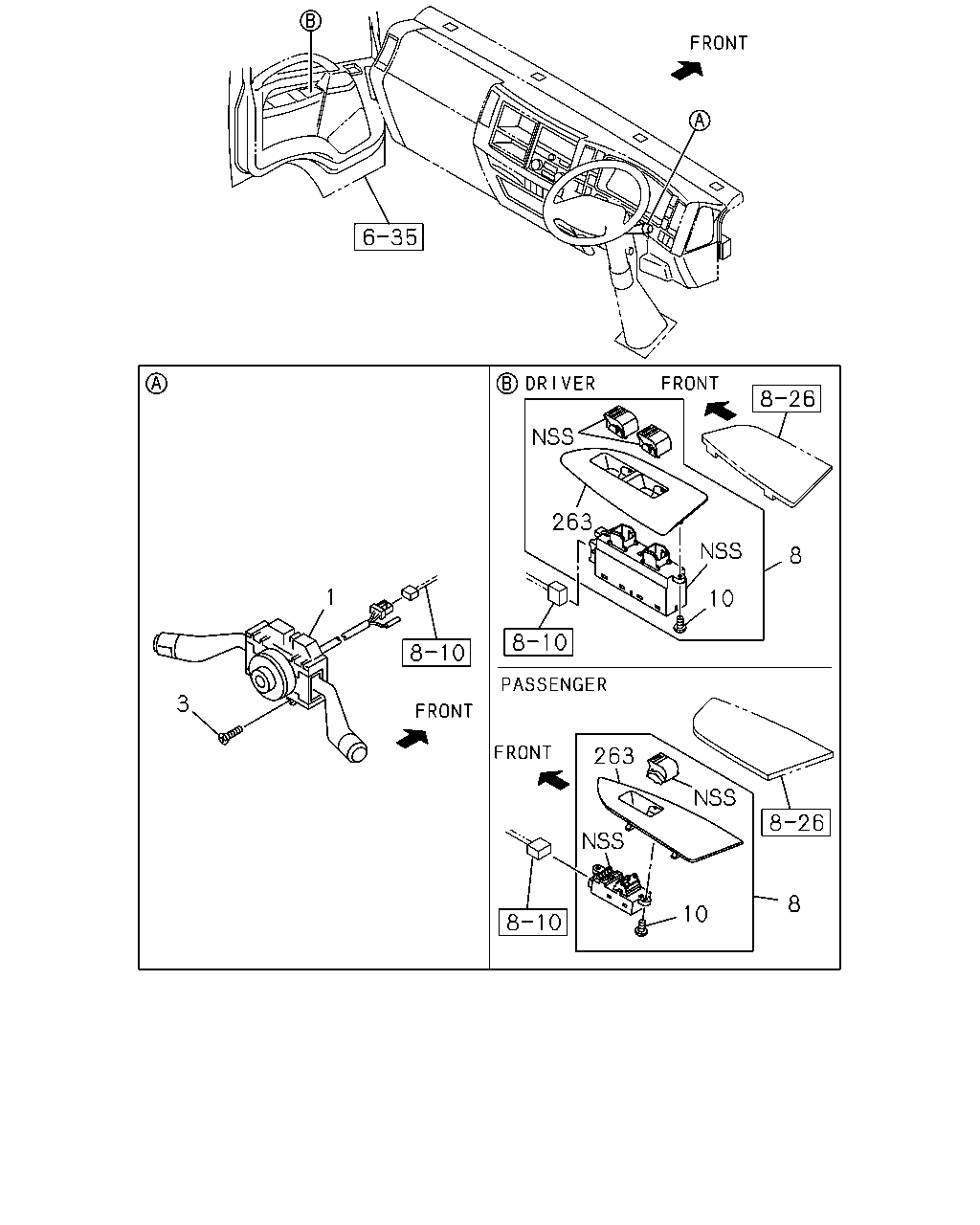

çizim 183534
263 8 1 10 3 263 8 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98072-670-1 01 1 0804-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> 		8-98072-670-1 01 1 0804-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-733-0 01 1 1311- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> 		8-98243-733-0 01 1 1311- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98072-665-1 01 1 0804-1310 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98243-731-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98072-671-2 01 1 0804-1310 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13> 		8-98072-671-2 01 1 0804-1310 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-734-0 01 1 1311- ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13> 		8-98243-734-0 01 1 1311- ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98072-663-2 01 1 0804-1310 ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98243-732-0 01 1 1311- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ> 		8-98069-995-1 01 1 0804-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ> 		8-98243-729-0 01 1 1311- ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ> 		8-98069-993-2 01 1 0804-1310 ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ> 		8-98243-728-0 01 1 1311- ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0804- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97387-034-2 01 1 0804-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98316-415-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98112-663-0 01 1 0804-0809 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> DRIVER SIDE 		8-98112-663-0 01 1 0804-0809 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98129-847-0 01 1 0810-1001 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> DRIVER SIDE 		8-98129-847-0 01 1 0810-1001 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98159-545-0 01 1 1002-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> DRIVER SIDE 		8-98159-545-0 01 1 1002-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98298-752-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> DRIVER SIDE 		8-98298-752-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> DRIVER SIDE 		8-98003-785-1 01 1 0804-0809 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> DRIVER SIDE 		8-98129-844-0 01 1 0810-1001 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> DRIVER SIDE 		8-98159-543-0 01 1 1002-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> DRIVER SIDE 		8-98298-750-0 01 1 1510- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 01 1 0804- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-98153-865-0 02 1 0804- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98153-836-0 01 1 0804- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98153-841-0 01 1 0804- ● ●

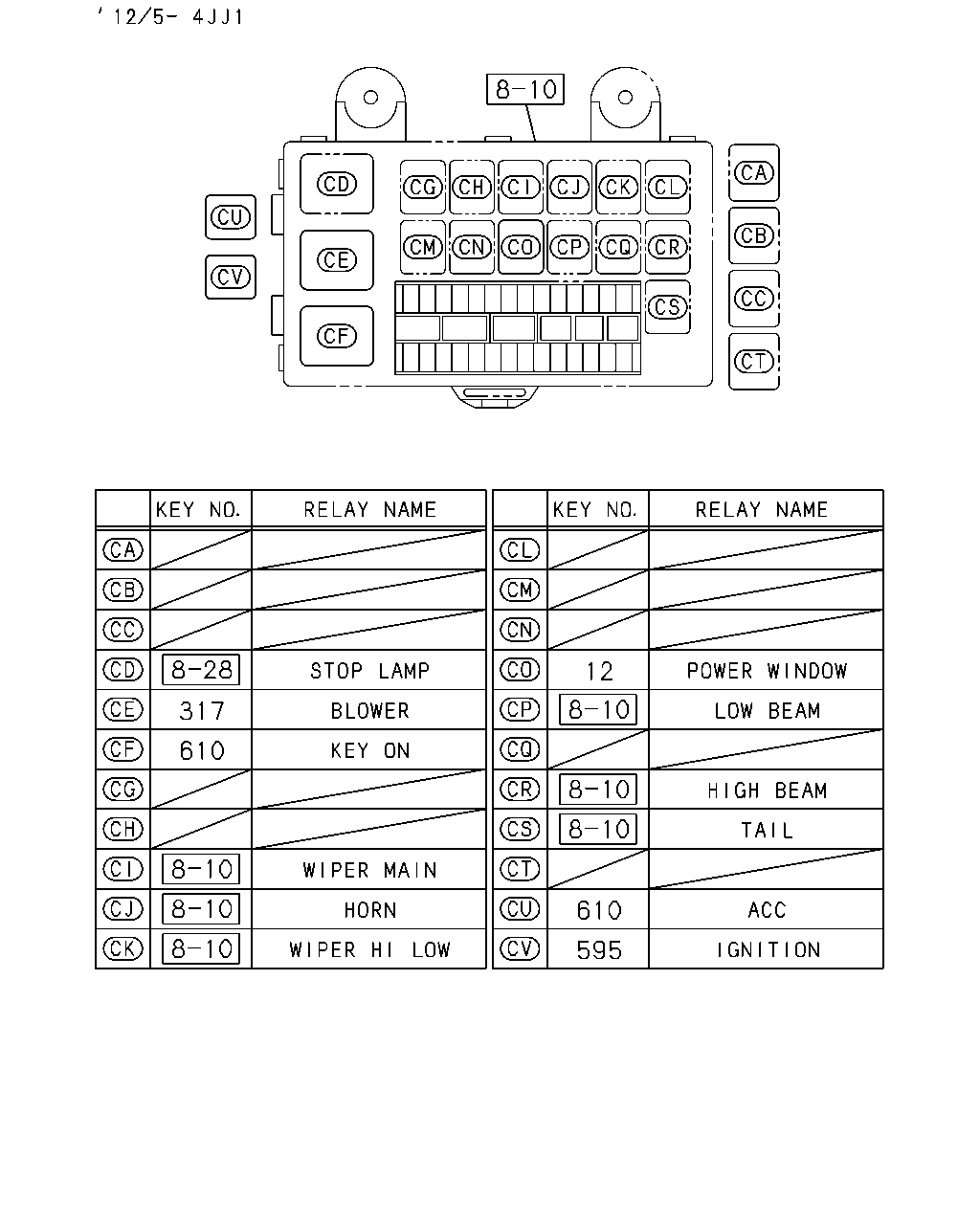

çizim 183536
12 317 610 610 595
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
4JB1-TC ENG(RDT) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0804- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0804- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JB1-TC ENG(RDT) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 12V 35A 		8-97180-794-1 01 1 0804- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804- ●
595 02.510 RELAY; IGNITION
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ●
610 02.510 RELAY; KEY ON
4JB1-TC ENG(RDT) 09.277 12V 30A 		8-97210-972-1 01 1 0804- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804-1204 ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ●
610 02.510 RELAY; KEY ON
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ●
