8-21 — METER ASM (#81318) — 19 parça

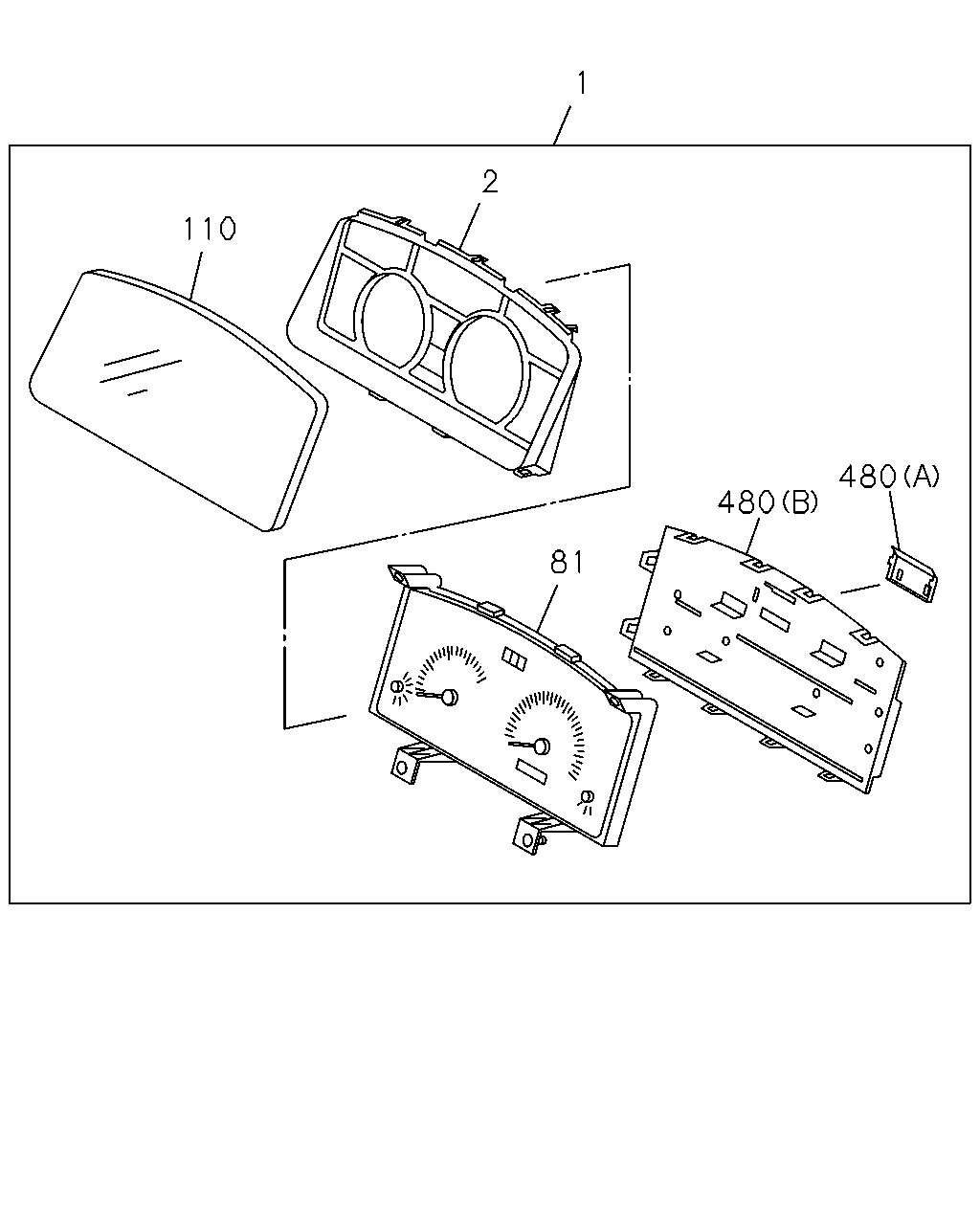

çizim 138004
1 2 110 480 480 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) 		8-98080-732-2 01 1 0804- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCC ENG(RDU) 		8-98113-284-2 01 1 0804- ●
2 09.735 PANEL; CLUSTER
4JB1-TC ENG(RDT) 		8-98054-432-0 01 1 0804- ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 0804- ●
81 09.735 METER SUB ASM
4JB1-TC ENG(RDT) 		8-98095-811-0 01 1 0804- ● ●
81 09.735 METER SUB ASM
4JJ1-TCC ENG(RDU) 		8-98113-318-0 01 1 0804- ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT) 		8-98054-642-0 01 1 0804- ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1-TCC ENG(RDU) 		8-98054-431-0 01 1 0804- ●
480 09.748 COVER; METER
4JB1-TC ENG(RDT) (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0804- ● ●
480 09.748 COVER; METER
4JB1-TC ENG(RDT) (B) BLACK 		8-98054-433-0 01 1 0804- ●
480 09.748 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 0804- ●

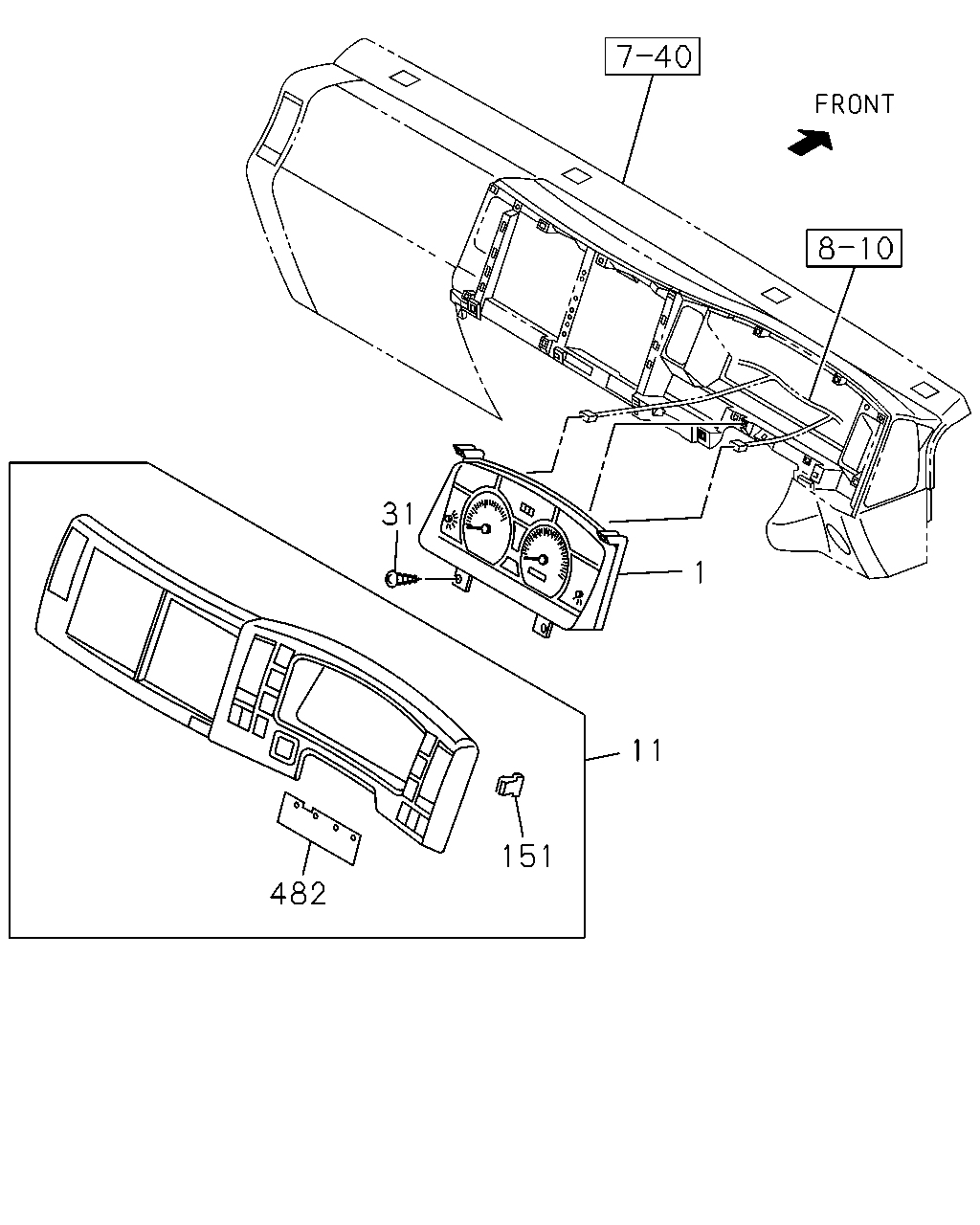

çizim 183508
31 1 11 151 482
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) 		8-98080-732-2 01 1 0804- ● ●
1 09.735 METER COMPL; CLUSTER
4JJ1-TCC ENG(RDU) 		8-98113-284-2 01 1 0804- ●
11 09.743 CLUSTER ASM; METER
DARK GRAY IDN 		8-97405-350-6 01 1 0804- ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0804-1101 ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
151 09.747 CLIP; METER CLUSTER
16.085 IDN 		8-98021-271-0 13 1 0804- ● ●
482 09.772 SEAL; CLUSTER METER
IDN 		8-98116-842-0 01 1 0806- ● ●
