Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#81317) — 144 parça

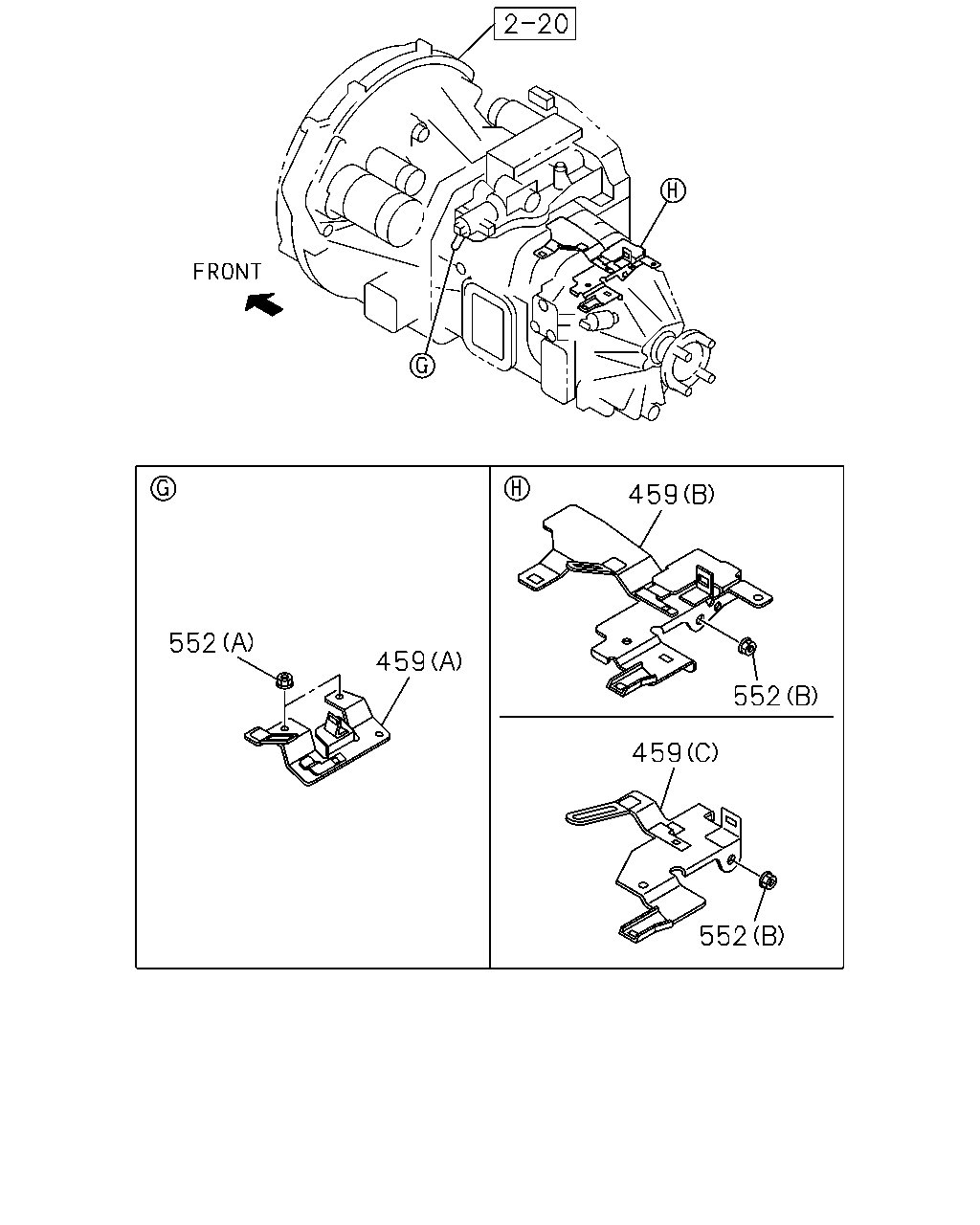

459 552 459 552 459 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (A)	8-98020-227-3	01	1	0804-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (B)	8-98030-990-2	01	1	0804-1109	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCC ENG(RDU) (C)	8-98196-974-0	01	1	1110-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 01.062 (A) M8 FLANGE IDN	0-91180-108-0	02	1	0804-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	01	1	0804-	●

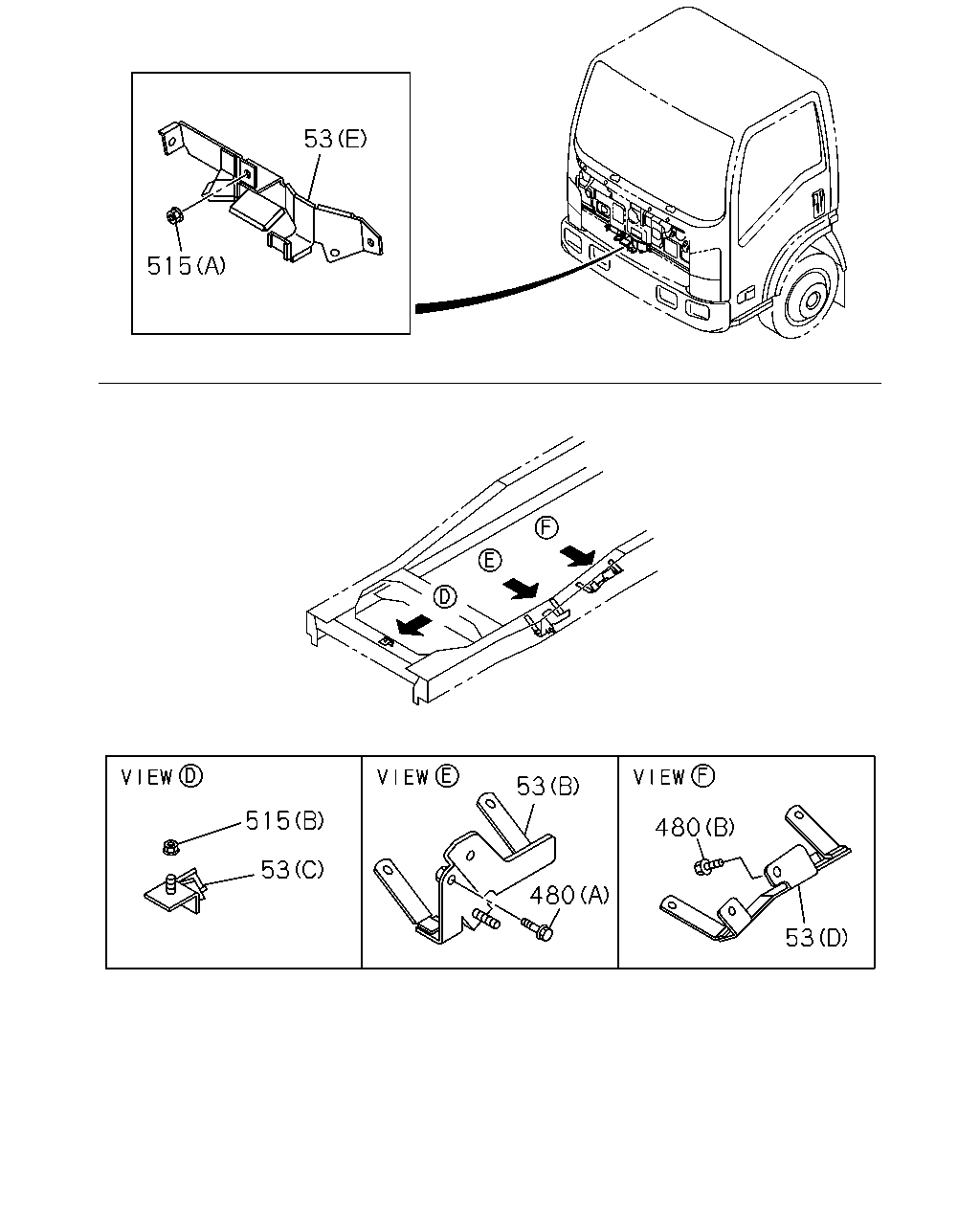

53 515 53 515 480 53 480 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS (A) IDN	8-98052-458-0	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS EXC. VOLTAGE 12V<TRQ> (F)	8-98074-502-0	01	1	0804-	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (G) IDN	8-98084-590-0	01	1	0804-0810		●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (G) IDN	8-98084-590-0	01	1	0804-0810	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (G) IDN	8-98084-590-0	01	1	0811-		●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (G) IDN	8-98084-590-0	01	1	0811-	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE IDN	0-28650-625-0	01	1	0804-	●	●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE IDN	0-28650-820-0	01	1	0804-	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	0804-0804		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE IDN	0-91180-106-0	02	1	0804-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-	●	●

529 313 480 38 139 150 516 480 377 377 386 377 386 386 386 24 515 577 219 294 515 552 515 552 519 516 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-1409	●	●
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS IDN	8-98297-112-0	01	1	1410-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-0810		●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-0810	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-1101		●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-1101	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212		●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-		●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●
150	02.343 BOLT; CLIP 4JB1-TC ENG(RDT) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●
219	02.559 NUT 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0804-	●	●
294	02.559 NUT 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●
313	02.559 BOLT; BRKT EXC. VOLTAGE 12V<TRQ> 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0804-1004	●	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER IDN	8-98141-255-0	03	1	1005-	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER IDN	8-97086-825-0	03	1	0804-1004	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER IDN	8-98164-836-0	01	1	1005-	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER IDN	8-97086-825-0	01	1	0804-1004	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER IDN	8-98141-255-0	01	1	1005-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0804-1004	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE IDN	0-28650-625-0	01	1	0804-	●	●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE IDN	0-28650-820-0	01	1	0804-	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	0804-0804		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE IDN	0-91180-106-0	02	1	0804-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-	●	●
516	02.559 BOLT; HARNESS 09.650 (B) M5X7 HEXALOBULAR SOCKET IDN	8-98063-767-0	01	1	0804-	●	●
516	02.559 BOLT; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-1111	●
519	02.559 NUT; EARTH CABLE 4JB1-TC ENG(RDT) 04.439 M12	0-91111-512-0	01	1	0804-	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0804-	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 01.062 (A) M8 FLANGE IDN	0-91180-108-0	02	1	0804-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	01	1	0804-	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-	●	●
577	02.559 NUT; FUSE BOX EXC. VOLTAGE 12V<TRQ> 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-	●

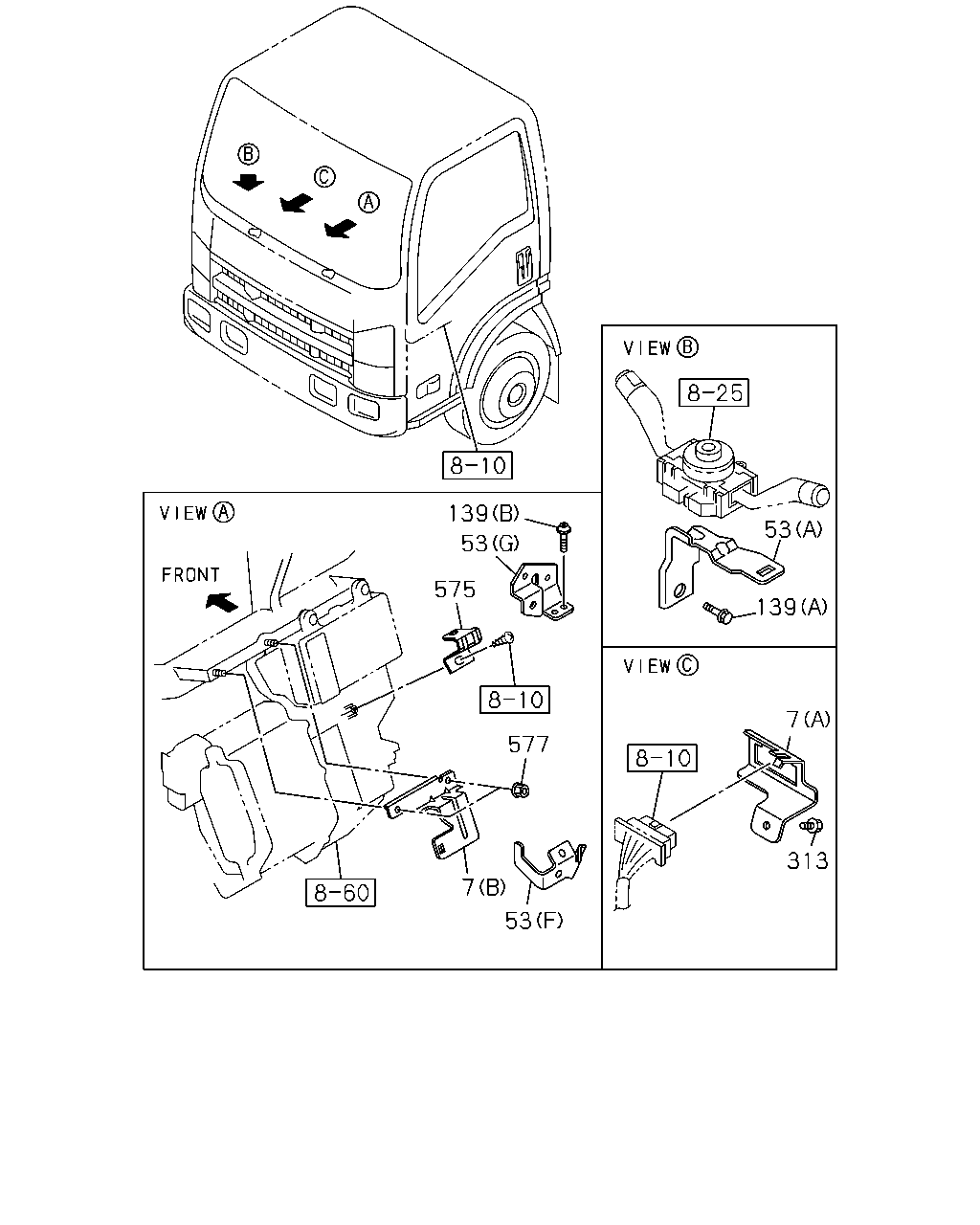

139 53 53 575 139 7 577 313 7 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR EXC. VOLTAGE 12V<TRQ> (B)	8-98029-762-4	01	1	0804-	●
7	02.559 BRACKET; CONNECTOR EXC. VOLTAGE 12V<TRQ> (A)	8-98043-070-1	01	1	0804-	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS (A) IDN	8-98052-458-0	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS EXC. VOLTAGE 12V<TRQ> (F)	8-98074-502-0	01	1	0804-	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (G) IDN	8-98084-590-0	01	1	0804-0810		●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) (G) IDN	8-98084-590-0	01	1	0804-0810	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (G) IDN	8-98084-590-0	01	1	0811-		●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (G) IDN	8-98084-590-0	01	1	0811-	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-0810		●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-0810	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-1101		●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-1101	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212		●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-		●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●
313	02.559 BOLT; BRKT EXC. VOLTAGE 12V<TRQ> 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0804-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-	●	●
577	02.559 NUT; FUSE BOX EXC. VOLTAGE 12V<TRQ> 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-	●

22 16 22 617 483 488 22 22 22 48 22 483 488 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (G) L=140 IDN	5-09707-031-1	01	1	1401-	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16 IDN	8-94413-325-0	01	1	0804-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0804-	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	0804-	●
16	02.559 CLIP; HARNESS (A) L=155 IDN	8-97173-307-0	14	1	0804-	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0804-	●	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	0804-0904		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	0804-0904	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	0905-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	0905-	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	01	1	0804-0904	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	01	1	0905-	●
22	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) (H) ID=20	8-94241-972-0	02	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (C) ID=34	8-98069-482-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0804-	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 09.001 (A) ID=11 H=20 L=25	1-09700-848-0	01	1	0804-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47 IDN	5-09700-319-0	06	1	0804-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47 IDN	5-09700-319-0	09	1	0804-	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (C) ID=20	8-94241-972-0	01	1	0804-0806	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) ID=20	8-94241-972-0	01	1	0807-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) (A) ID=11 L=20	0-95235-035-0	01	1	0804-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) 04.342 (B) L=197	1-83574-032-0	01	1	0804-	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250 IDN	5-09707-030-1	01	1	0804-	●	●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED(RS6) 02.587 (B) L=112	8-94232-618-0	05	1	0804-1104		●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED(RS6) 02.587 (B) L=112	8-94232-618-0	04	1	1105-		●
617	02.559 STRAP; BAND 4JJ1-TCC ENG(RDU) 03.162 L=140 IDN	5-09707-031-1	01	1	1012-1106	●

16 16 16 16 16 22 513 507 48 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (G) L=140 IDN	5-09707-031-1	01	1	1401-	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16 IDN	8-94413-325-0	01	1	0804-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0804-	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (E) ID=6 & 10	8-94154-844-0	01	1	0804-	●
16	02.559 CLIP; HARNESS (A) L=155 IDN	8-97173-307-0	14	1	0804-	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0804-	●	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	0804-0904		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	0804-0904	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	0905-		●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	0905-	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	01	1	0804-0904	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	01	1	0905-	●
22	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) (H) ID=20	8-94241-972-0	02	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (C) ID=34	8-98069-482-0	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0804-	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 09.001 (A) ID=11 H=20 L=25	1-09700-848-0	01	1	0804-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47 IDN	5-09700-319-0	06	1	0804-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47 IDN	5-09700-319-0	09	1	0804-	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (C) ID=20	8-94241-972-0	01	1	0804-0806	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C) ID=20	8-94241-972-0	01	1	0807-	●	●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0804-0902	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) 130X80 IDN	8-97304-373-0	01	1	0808-		●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) 130X80 IDN	8-97304-373-0	01	1	0808-	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309	●	●
