◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51395 - NLR/NMR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶

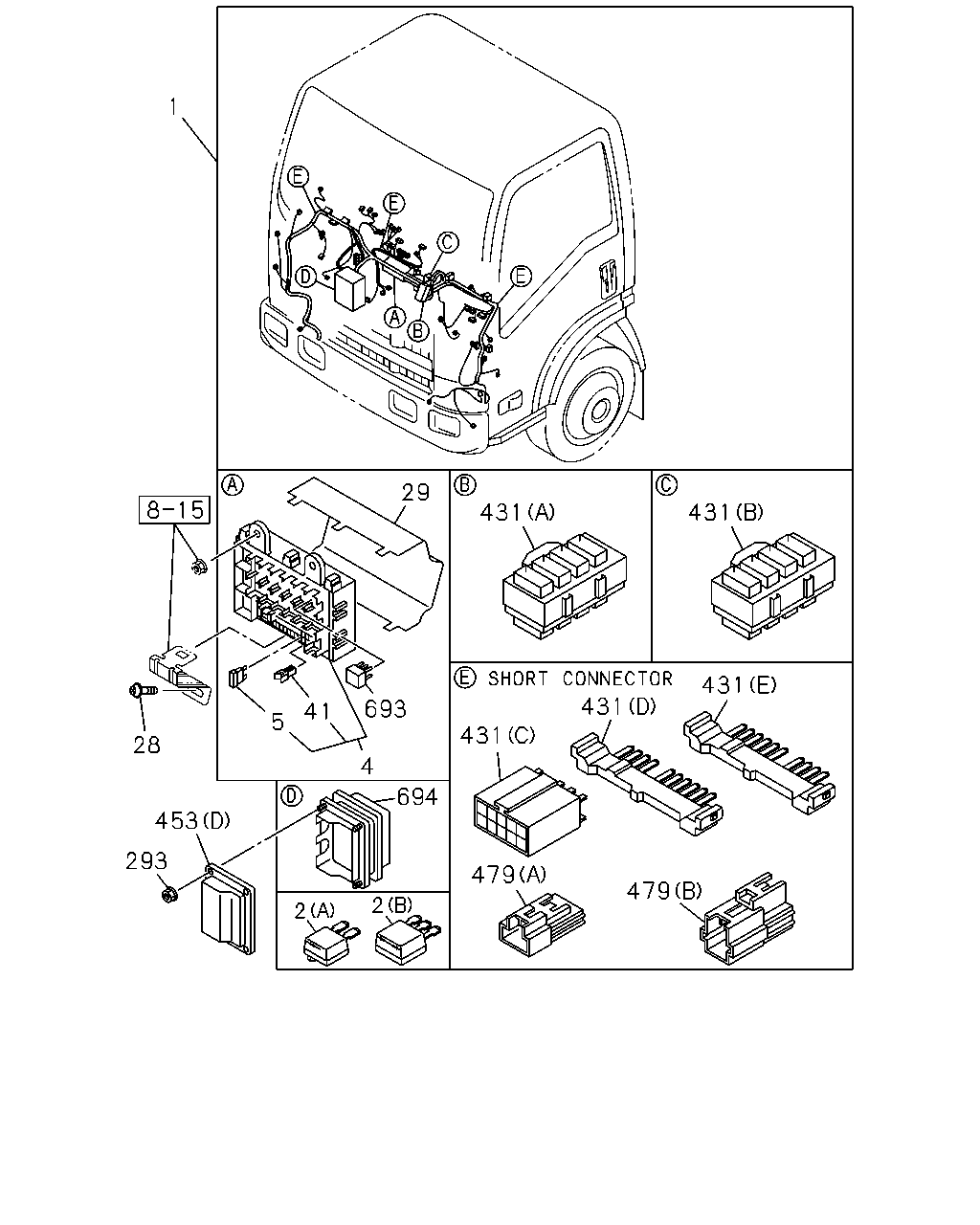

8-10 — WIRING HARNESS AND FUSE (#81316) — 320 parça
çizim 135976
1 29 431 431 431 431 693 41 5 431 28 4 694 453 293 479 479 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB 8-98071-873-3 01 1 0804-0805 ●
1 02.480 HARNESS; CAB
VOLTAGE 12V<TRQ> 		8-98071-873-3 01 1 0804-0805 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98123-245-3 01 1 0806- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> 		8-98123-245-3 01 1 0806- ●
1 02.480 HARNESS; CAB
EXC. VOLTAGE 12V<TRQ> 		8-98087-337-3 01 1 0804-0906 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 		8-98087-337-4 01 1 0907-1005 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> 		8-98158-582-0 01 1 1006-1006 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 		8-98158-582-0 01 1 1006-1204 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 		8-98207-642-0 01 1 1205- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A IDN 		8-94422-639-1 AR 1 0804- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A IDN 		8-94422-640-1 AR 1 0804- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98083-232-0 01 1 0804-0805 ●
4 02.483 BOX ASM; FUSE,HARNESS
VOLTAGE 12V<TRQ> 		8-98083-232-0 01 1 0804-0805 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) 		8-98083-232-0 01 1 0806- ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> 		8-98083-232-0 01 1 0806- ●
4 02.483 BOX ASM; FUSE,HARNESS
EXC. VOLTAGE 12V<TRQ> 		8-98067-619-0 01 1 0804-0906 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 		8-98067-619-0 01 1 0907-1005 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> 		8-98067-619-0 01 1 1006-1006 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 		8-98067-619-1 01 1 1006- ●
5 02.485 FUSE; FACIA HARNESS
25A WHITE IDN 		8-98062-982-0 AR 1 0804- ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED IDN 		8-98054-257-0 AR 1 0804- ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE IDN 		8-98054-258-0 AR 1 0804- ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW IDN 		8-98054-259-0 AR 1 0804- ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0804-1101 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
29 02.483 COVER; FUSE BOX
IDN 		8-98056-968-0 01 1 0804-0805 ● ●
29 02.483 COVER; FUSE BOX
4JB1-TC ENG(RDT) IDN 		8-98056-968-0 01 1 0806-0906 ●
29 02.483 COVER; FUSE BOX
EXC. VOLTAGE 12V<TRQ> IDN 		8-98056-968-0 01 1 0806-0906 ●
29 02.483 COVER; FUSE BOX
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98056-968-0 01 1 0806-0906 ●
29 02.483 COVER; FUSE BOX
4JB1-TC ENG(RDT) IDN 		8-98056-968-0 01 1 0907-1005 ●
29 02.483 COVER; FUSE BOX
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98056-968-0 01 1 0907-1005 ●
29 02.483 COVER; FUSE BOX
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> IDN 		8-98056-968-0 01 1 0907-1005 ●
29 02.483 COVER; FUSE BOX
4JB1-TC ENG(RDT) IDN 		8-98056-968-0 01 1 1006-1006 ●
29 02.483 COVER; FUSE BOX
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98056-968-0 01 1 1006-1006 ●
29 02.483 COVER; FUSE BOX
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> IDN 		8-98056-968-0 01 1 1006-1006 ●
29 02.483 COVER; FUSE BOX
4JB1-TC ENG(RDT) IDN 		8-98056-968-0 01 1 1006- ●
29 02.483 COVER; FUSE BOX
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98056-968-0 01 1 1006- ●
29 02.483 COVER; FUSE BOX
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> IDN 		8-98056-968-0 01 1 1006- ●
41 08.821 PULLER; FUSE
IDN 		8-98054-260-0 01 1 0804-0805 ● ●
41 08.821 PULLER; FUSE
4JB1-TC ENG(RDT) IDN 		8-98054-260-0 01 1 0806-0906 ●
41 08.821 PULLER; FUSE
EXC. VOLTAGE 12V<TRQ> IDN 		8-98054-260-0 01 1 0806-0906 ●
41 08.821 PULLER; FUSE
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98054-260-0 01 1 0806-0906 ●
41 08.821 PULLER; FUSE
4JB1-TC ENG(RDT) IDN 		8-98054-260-0 01 1 0907-1005 ●
41 08.821 PULLER; FUSE
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98054-260-0 01 1 0907-1005 ●
41 08.821 PULLER; FUSE
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> IDN 		8-98054-260-0 01 1 0907-1005 ●
41 08.821 PULLER; FUSE
4JB1-TC ENG(RDT) IDN 		8-98054-260-0 01 1 1006-1006 ●
41 08.821 PULLER; FUSE
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98054-260-0 01 1 1006-1006 ●
41 08.821 PULLER; FUSE
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> IDN 		8-98054-260-0 01 1 1006-1006 ●
41 08.821 PULLER; FUSE
4JB1-TC ENG(RDT) IDN 		8-98054-260-0 01 1 1006- ●
41 08.821 PULLER; FUSE
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98054-260-0 01 1 1006- ●
41 08.821 PULLER; FUSE
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> IDN 		8-98054-260-0 01 1 1006- ●
293 02.559 NUT
01.062 M6 FLANGE IDN 		0-91180-106-0 04 1 0804- ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P IDN 		8-97077-943-0 02 1 0804-0805 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (C) 10P IDN 		8-97077-943-0 02 1 0806-0906 ●
431 02.530 CONNECTOR; JOINT
EXC. VOLTAGE 12V<TRQ> (C) 10P IDN 		8-97077-943-0 02 1 0806-0906 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> (C) 10P IDN 		8-97077-943-0 02 1 0806-0906 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (C) 10P IDN 		8-97077-943-0 02 1 0907-1005 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> (C) 10P IDN 		8-97077-943-0 02 1 0907-1005 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> (C) 10P IDN 		8-97077-943-0 02 1 0907-1005 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (C) 10P IDN 		8-97077-943-0 02 1 1006-1006 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> (C) 10P IDN 		8-97077-943-0 02 1 1006-1006 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> (C) 10P IDN 		8-97077-943-0 02 1 1006-1006 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (C) 10P IDN 		8-97077-943-0 02 1 1006-1204 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> (C) 10P IDN 		8-97077-943-0 02 1 1006-1204 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> (C) 10P IDN 		8-97077-943-0 02 1 1006-1204 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (C) 10P IDN 		8-97077-943-0 02 1 1205- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> (C) 10P IDN 		8-97077-943-0 02 1 1205- ●
431 02.530 CONNECTOR; JOINT
(B) IDN 		8-98046-206-0 01 1 0804-0805 ● ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) IDN 		8-98046-206-0 01 1 0806-0906 ●
431 02.530 CONNECTOR; JOINT
EXC. VOLTAGE 12V<TRQ> (B) IDN 		8-98046-206-0 01 1 0806-0906 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> (B) IDN 		8-98046-206-0 01 1 0806-0906 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) IDN 		8-98046-206-0 01 1 0907-1005 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> (B) IDN 		8-98046-206-0 01 1 0907-1005 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> (B) IDN 		8-98046-206-0 01 1 0907-1005 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) IDN 		8-98046-206-0 01 1 1006-1006 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> (B) IDN 		8-98046-206-0 01 1 1006-1006 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> (B) IDN 		8-98046-206-0 01 1 1006-1006 ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) (B) IDN 		8-98046-206-0 01 1 1006- ●
431 02.530 CONNECTOR; JOINT
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> (B) IDN 		8-98046-206-0 01 1 1006- ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> (B) IDN 		8-98046-206-0 01 1 1006- ●
431 02.530 CONNECTOR; JOINT
EXC. VOLTAGE 12V<TRQ> (D) 10P BLUE IDN 		1-82699-598-0 02 1 0804-0906 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> (D) 10P BLUE IDN 		1-82699-598-0 02 1 0907-1005 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> (D) 10P BLUE IDN 		1-82699-598-0 01 1 1006-1006 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> (D) 10P BLUE IDN 		1-82699-598-0 01 1 1006-1204 ●
431 02.530 CONNECTOR; JOINT
EXC. VOLTAGE 12V<TRQ> (E) 10P GREEN IDN 		1-82699-599-0 01 1 0804-0906 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> (E) 10P GREEN IDN 		1-82699-599-0 01 1 0907-1005 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> (E) 10P GREEN IDN 		1-82699-599-0 01 1 1006-1006 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> (E) 10P GREEN IDN 		1-82699-599-0 01 1 1006-1204 ●
431 02.530 CONNECTOR; JOINT
EXC. VOLTAGE 12V<TRQ> (A) 		8-98046-205-0 01 1 0804-0906 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> (A) 		8-98046-205-0 01 1 0907-1005 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> (A) 		8-98046-205-0 01 1 1006-1006 ●
431 02.530 CONNECTOR; JOINT
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> (A) 		8-98046-205-0 01 1 1006- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (A) IDN 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 0804- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (A) IDN 		8-94417-716-0 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (A) IDN 		8-94417-716-0 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (A) IDN 		8-94417-716-0 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (A) IDN 		8-94417-716-0 01 1 0809-1409 ●
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 01 1 0809-1409 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (A) IDN 		8-94417-716-0 02 1 1410- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (B) 		8-98031-850-1 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (B) 		8-98031-850-1 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98031-850-1 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (B) 		8-98031-850-1 01 1 0809- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0809- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (C) 		8-98031-851-2 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (C) 		8-98031-851-2 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-98031-851-2 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (C) 		8-98031-851-2 01 1 0809- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0809- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (E) IDN 		8-94452-553-0 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) IDN 		8-94452-553-0 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (E) IDN 		8-94452-553-0 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
(E) IDN 		8-94452-553-0 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) IDN 		8-94452-553-0 01 1 0809- ●
453 02.483 PROTECTOR; HARNESS
(E) IDN 		8-94452-553-0 01 1 0809- ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (A) IDN 		8-98108-678-0 01 1 0804- ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (A) IDN 		8-98108-678-0 01 1 0804- ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41) (B) IDN 		8-98108-679-0 01 1 0804- ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65) (B) IDN 		8-98108-679-0 01 1 0804- ●
693 02.694 RELAY; FUSE BOX
02.510 12V 20A IDN 		8-97173-037-1 AR 1 0804-0805 ●
693 02.694 RELAY; FUSE BOX
VOLTAGE 12V<TRQ> 02.510 12V 20A IDN 		8-97173-037-1 AR 1 0804-0805 ●
693 02.694 RELAY; FUSE BOX
4JB1-TC ENG(RDT) 02.510 12V 20A IDN 		8-97173-037-1 AR 1 0806- ●
693 02.694 RELAY; FUSE BOX
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> 02.510 12V 20A IDN 		8-97173-037-1 AR 1 0806- ●
693 02.694 RELAY; FUSE BOX
EXC. VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 0804-0906 ●
693 02.694 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 0907-1005 ●
693 02.694 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 1006-1006 ●
693 02.694 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 1006- ●
694 02.483 BOX ASM; CONNECTOR
IDN 		8-98057-772-0 01 1 0804-0805 ● ●
694 02.483 BOX ASM; CONNECTOR
4JB1-TC ENG(RDT) IDN 		8-98057-772-0 01 1 0806-0906 ●
694 02.483 BOX ASM; CONNECTOR
EXC. VOLTAGE 12V<TRQ> IDN 		8-98057-772-0 01 1 0806-0906 ●
694 02.483 BOX ASM; CONNECTOR
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98057-772-0 01 1 0806-0906 ●
694 02.483 BOX ASM; CONNECTOR
4JB1-TC ENG(RDT) IDN 		8-98057-772-0 01 1 0907-1005 ●
694 02.483 BOX ASM; CONNECTOR
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98057-772-0 01 1 0907-1005 ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> IDN 		8-98057-772-0 01 1 0907-1005 ●
694 02.483 BOX ASM; CONNECTOR
4JB1-TC ENG(RDT) IDN 		8-98057-772-0 01 1 1006-1006 ●
694 02.483 BOX ASM; CONNECTOR
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98057-772-0 01 1 1006-1006 ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> IDN 		8-98057-772-0 01 1 1006-1006 ●
694 02.483 BOX ASM; CONNECTOR
4JB1-TC ENG(RDT) IDN 		8-98057-772-0 01 1 1006- ●
694 02.483 BOX ASM; CONNECTOR
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> IDN 		8-98057-772-0 01 1 1006- ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> IDN 		8-98057-772-0 01 1 1006- ●

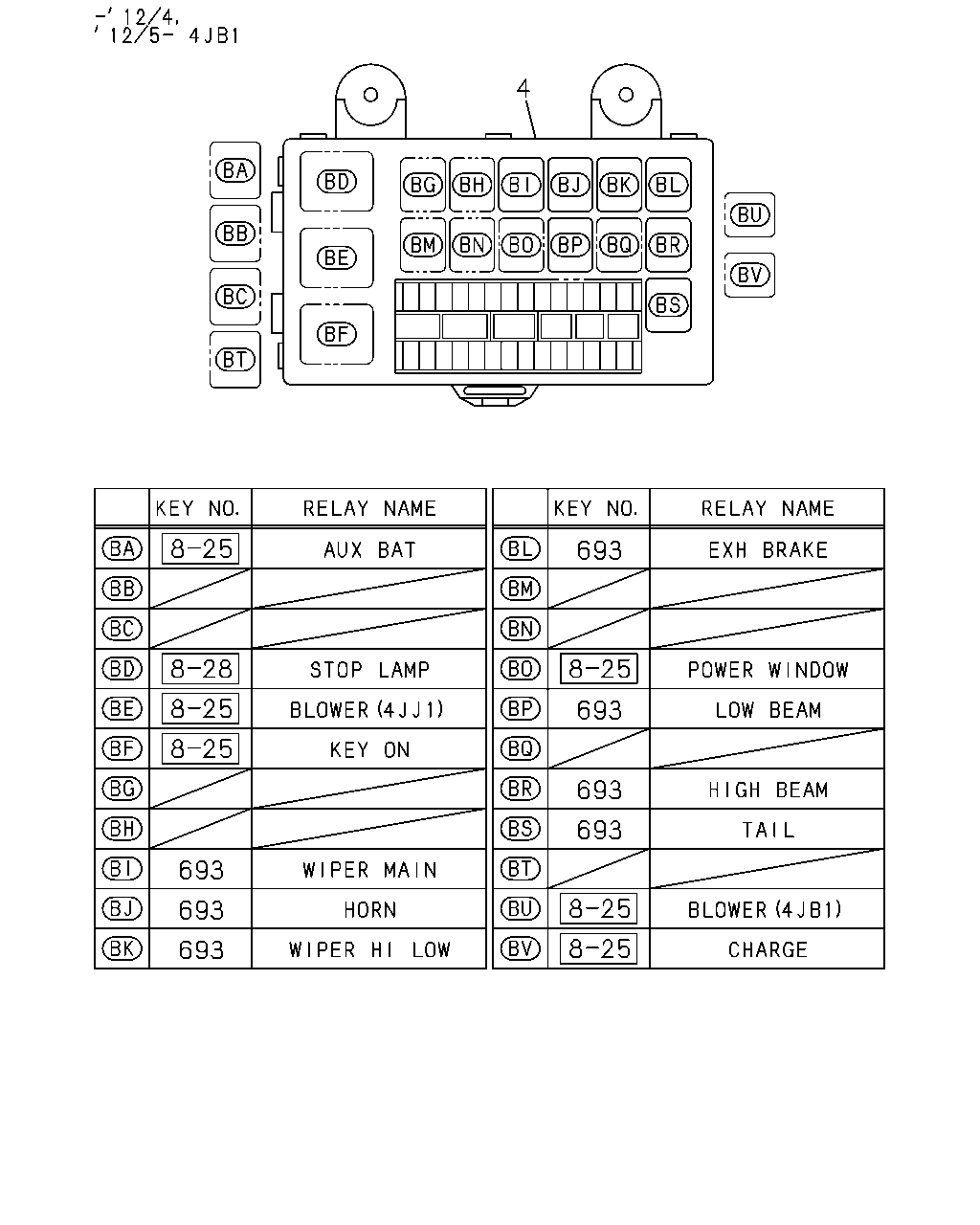

çizim 136273
4 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS 8-98083-232-0 01 1 0804-0805 ●
4 02.483 BOX ASM; FUSE,HARNESS
VOLTAGE 12V<TRQ> 		8-98083-232-0 01 1 0804-0805 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) 		8-98083-232-0 01 1 0806- ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> 		8-98083-232-0 01 1 0806- ●
4 02.483 BOX ASM; FUSE,HARNESS
EXC. VOLTAGE 12V<TRQ> 		8-98067-619-0 01 1 0804-0906 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 		8-98067-619-0 01 1 0907-1005 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> 		8-98067-619-0 01 1 1006-1006 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 		8-98067-619-1 01 1 1006- ●
693 02.694 RELAY; FUSE BOX
02.510 12V 20A IDN 		8-97173-037-1 AR 1 0804-0805 ●
693 02.694 RELAY; FUSE BOX
VOLTAGE 12V<TRQ> 02.510 12V 20A IDN 		8-97173-037-1 AR 1 0804-0805 ●
693 02.694 RELAY; FUSE BOX
4JB1-TC ENG(RDT) 02.510 12V 20A IDN 		8-97173-037-1 AR 1 0806- ●
693 02.694 RELAY; FUSE BOX
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> 02.510 12V 20A IDN 		8-97173-037-1 AR 1 0806- ●
693 02.694 RELAY; FUSE BOX
EXC. VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 0804-0906 ●
693 02.694 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 0907-1005 ●
693 02.694 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 1006-1006 ●
693 02.694 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 1006- ●

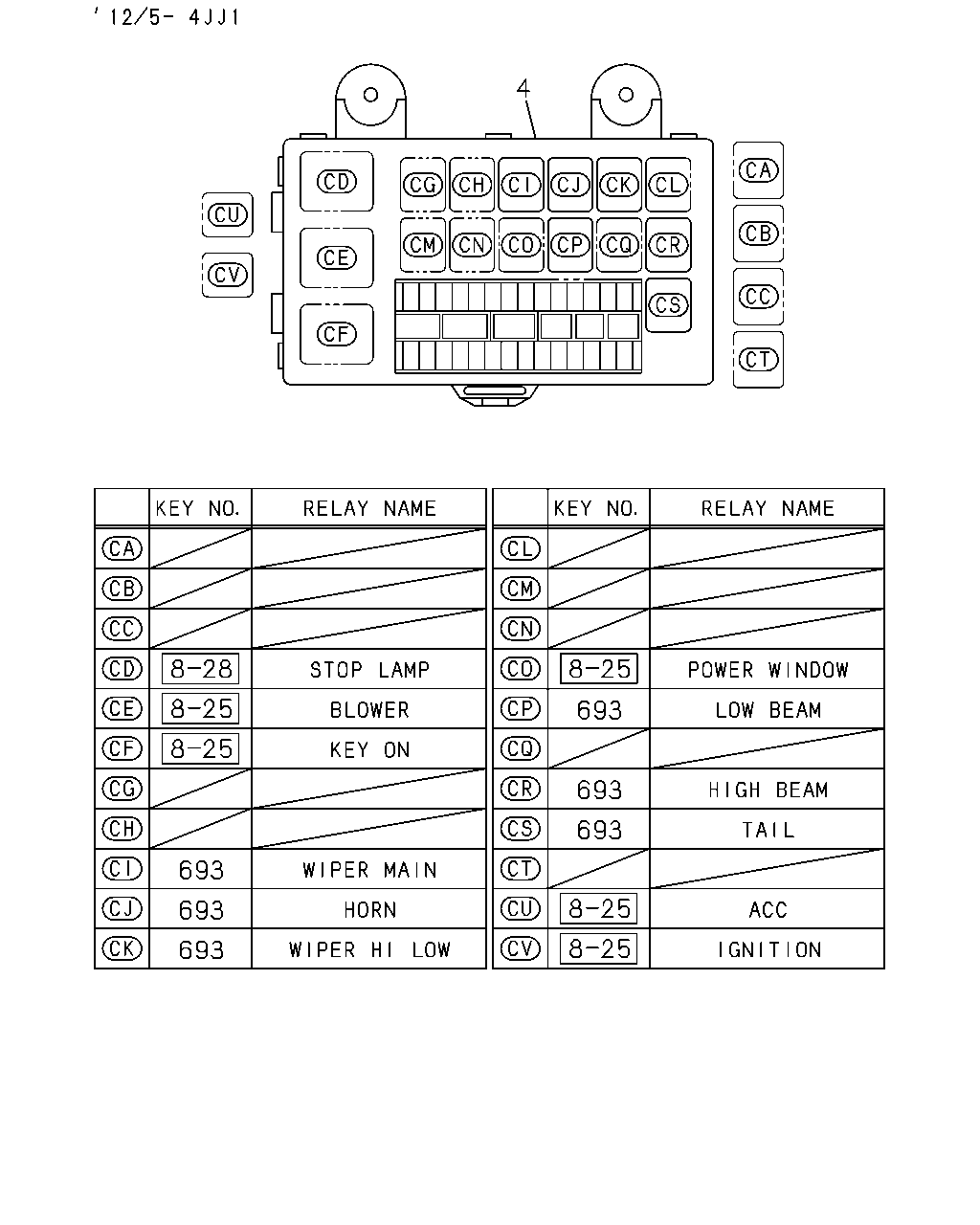

çizim 136506
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS 8-98083-232-0 01 1 0804-0805 ●
4 02.483 BOX ASM; FUSE,HARNESS
VOLTAGE 12V<TRQ> 		8-98083-232-0 01 1 0804-0805 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) 		8-98083-232-0 01 1 0806- ●
4 02.483 BOX ASM; FUSE,HARNESS
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> 		8-98083-232-0 01 1 0806- ●
4 02.483 BOX ASM; FUSE,HARNESS
EXC. VOLTAGE 12V<TRQ> 		8-98067-619-0 01 1 0804-0906 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 		8-98067-619-0 01 1 0907-1005 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> 		8-98067-619-0 01 1 1006-1006 ●
4 02.483 BOX ASM; FUSE,HARNESS
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 		8-98067-619-1 01 1 1006- ●
693 02.694 RELAY; FUSE BOX
02.510 12V 20A IDN 		8-97173-037-1 AR 1 0804-0805 ●
693 02.694 RELAY; FUSE BOX
VOLTAGE 12V<TRQ> 02.510 12V 20A IDN 		8-97173-037-1 AR 1 0804-0805 ●
693 02.694 RELAY; FUSE BOX
4JB1-TC ENG(RDT) 02.510 12V 20A IDN 		8-97173-037-1 AR 1 0806- ●
693 02.694 RELAY; FUSE BOX
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> 02.510 12V 20A IDN 		8-97173-037-1 AR 1 0806- ●
693 02.694 RELAY; FUSE BOX
EXC. VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 0804-0906 ●
693 02.694 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 0907-1005 ●
693 02.694 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 1006-1006 ●
693 02.694 RELAY; FUSE BOX
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 AR 1 1006- ●
çizim 136818
374 18 85 204 18
BalonParca AdiParca NoAdetTipApplied Date A B
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98071-076-2 01 1 0804- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-076-2 01 1 0804- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> IDN 		8-98071-075-2 01 1 0804- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87> IDN 		8-98071-075-2 01 1 0804- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> 		8-98046-746-5 01 1 0804- ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> 		8-98046-744-2 01 1 0804- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98071-084-2 01 1 0804-0904 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-084-2 01 1 0804-0904 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98071-084-3 01 1 0905- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-084-3 01 1 0905- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98071-083-1 01 1 0804-0904 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87> 		8-98071-083-1 01 1 0804-0904 ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> IDN 		8-98071-083-2 01 1 0905- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, CORNERINGLAMP<T87> IDN 		8-98071-083-2 01 1 0905- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> 		8-98077-596-2 01 1 0804-0904 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> 		8-98077-596-3 01 1 0905- ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> 		8-98046-749-1 01 1 0804-0904 ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> 		8-98046-749-2 01 1 0905- ●
85 06.495 HARNESS; ROOM LAMP 8-98049-963-3 01 1 0804- ● ●
204 02.559 HARNESS; CABLE,FLOOR
IDN 		8-98070-787-4 01 1 0804- ● ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 0804- ● ●

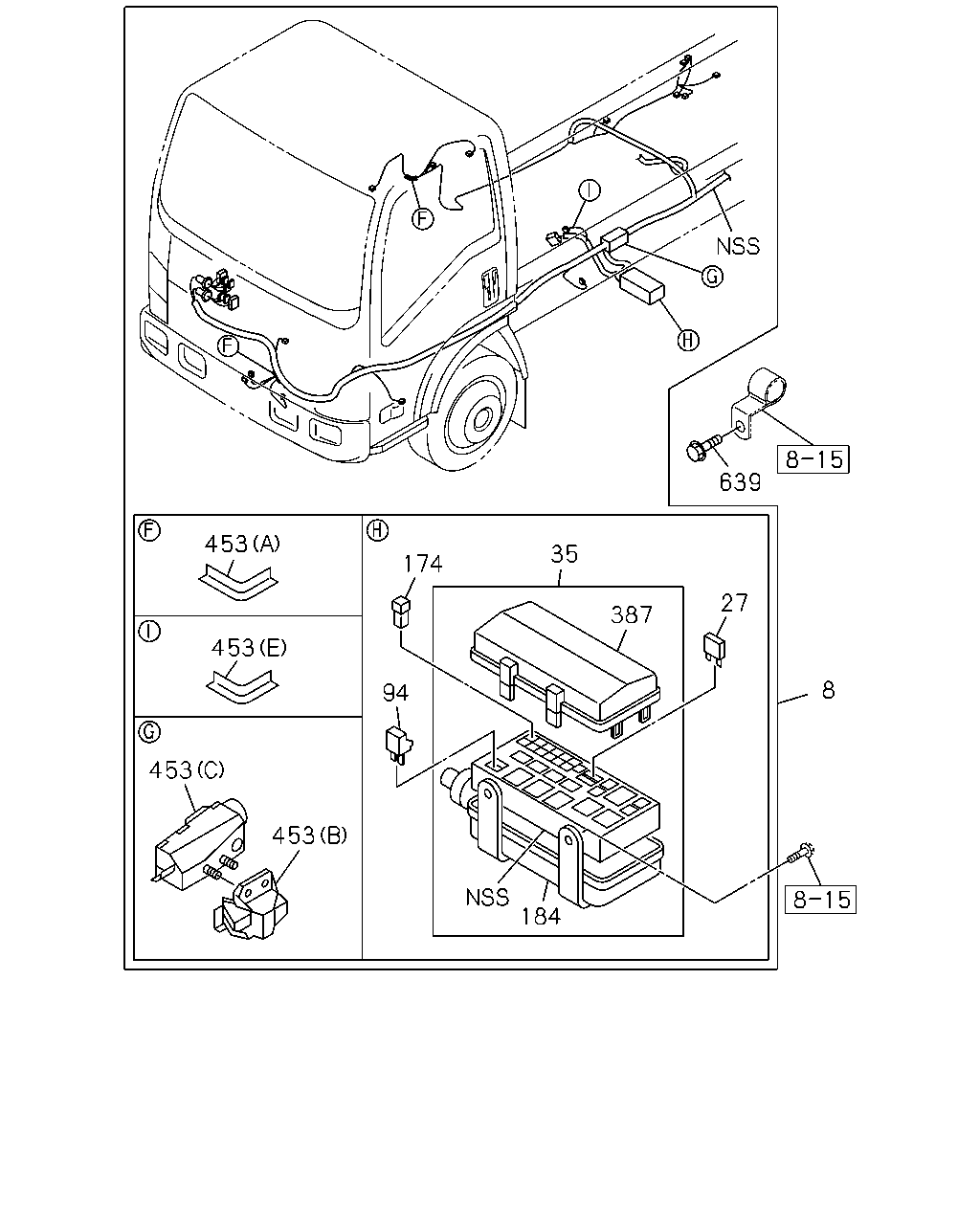

çizim 136904
639 453 35 174 27 387 453 8 94 453 453 184
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98112-213-1 01 1 0804-0804 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98118-563-0 01 1 0805-0805 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98122-380-4 01 1 0806-1409 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98293-854-0 01 1 1410- ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98108-351-1 01 1 0804-0804 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98117-968-0 01 1 0805-0808 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98117-969-2 01 1 0805-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98293-846-0 01 1 1410- ●
27 08.965 FUSE UNIT
02.485 10A RED IDN 		8-98054-257-0 AR 1 0804- ● ●
27 08.965 FUSE UNIT
02.485 15A BLUE IDN 		8-98054-258-0 AR 1 0804- ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW IDN 		8-98054-259-0 AR 1 0804- ● ●
35 02.530 BOX; RELAY & FUSE
4JB1-TC ENG(RDT) 		8-98030-763-0 01 1 0804-0804 ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 0804-0804 ●
35 02.530 BOX; RELAY & FUSE
4JB1-TC ENG(RDT) 		8-98030-763-0 01 1 0805-0808 ●
35 02.530 BOX; RELAY & FUSE
4JJ1-TCC ENG(RDU) 		8-98030-763-0 01 1 0805-0808 ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 0805-0808 ●
35 02.530 BOX; RELAY & FUSE
4JB1-TC ENG(RDT) 		8-98030-763-0 01 1 0809- ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 0809- ●
94 02.483 DIODE; FRAME HARNESS
4JB1-TC ENG(RDT) BLACK 2P-1.5A IDN 		8-94422-639-1 01 1 0804-0804 ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A IDN 		8-94422-639-1 01 1 0804-0804 ●
94 02.483 DIODE; FRAME HARNESS
4JB1-TC ENG(RDT) BLACK 2P-1.5A IDN 		8-94422-639-1 01 1 0805-0808 ●
94 02.483 DIODE; FRAME HARNESS
4JJ1-TCC ENG(RDU) BLACK 2P-1.5A IDN 		8-94422-639-1 01 1 0805-0808 ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A IDN 		8-94422-639-1 01 1 0805-0808 ●
94 02.483 DIODE; FRAME HARNESS
4JB1-TC ENG(RDT) BLACK 2P-1.5A IDN 		8-94422-639-1 01 1 0809- ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A IDN 		8-94422-639-1 01 1 0809- ●
174 08.965 FUSE; SLOW BLOW
30A PINK IDN 		8-98079-191-0 AR 1 0804- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN IDN 		8-98079-192-0 AR 1 0804- ● ●
174 08.965 FUSE; SLOW BLOW
50A RED IDN 		8-98079-193-0 AR 1 0804- ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW IDN 		8-97219-407-0 AR 1 0804- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1-TC ENG(RDT) IDN 		8-98030-766-0 01 1 0804-0804 ●
184 02.559 COVER; RELAY & FUSE BOX
IDN 		8-98030-766-0 01 1 0804-0804 ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1-TC ENG(RDT) IDN 		8-98030-766-0 01 1 0805-0808 ●
184 02.559 COVER; RELAY & FUSE BOX
4JJ1-TCC ENG(RDU) IDN 		8-98030-766-0 01 1 0805-0808 ●
184 02.559 COVER; RELAY & FUSE BOX
IDN 		8-98030-766-0 01 1 0805-0808 ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1-TC ENG(RDT) IDN 		8-98030-766-0 01 1 0809- ●
184 02.559 COVER; RELAY & FUSE BOX
IDN 		8-98030-766-0 01 1 0809- ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 0804- ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (A) IDN 		8-94417-716-0 01 1 1410- ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 0804- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (A) IDN 		8-94417-716-0 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (A) IDN 		8-94417-716-0 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (A) IDN 		8-94417-716-0 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (A) IDN 		8-94417-716-0 01 1 0809-1409 ●
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 01 1 0809-1409 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (A) IDN 		8-94417-716-0 02 1 1410- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (B) 		8-98031-850-1 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (B) 		8-98031-850-1 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98031-850-1 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (B) 		8-98031-850-1 01 1 0809- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 0809- ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (C) 		8-98031-851-2 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (C) 		8-98031-851-2 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-98031-851-2 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (C) 		8-98031-851-2 01 1 0809- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 0809- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (E) IDN 		8-94452-553-0 01 1 0804-0804 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) IDN 		8-94452-553-0 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (E) IDN 		8-94452-553-0 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
(E) IDN 		8-94452-553-0 01 1 0805-0808 ●
453 02.483 PROTECTOR; HARNESS
4JB1-TC ENG(RDT) (E) IDN 		8-94452-553-0 01 1 0809- ●
453 02.483 PROTECTOR; HARNESS
(E) IDN 		8-94452-553-0 01 1 0809- ●
639 08.900 BOLT; CLIP
4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0804- ● ●

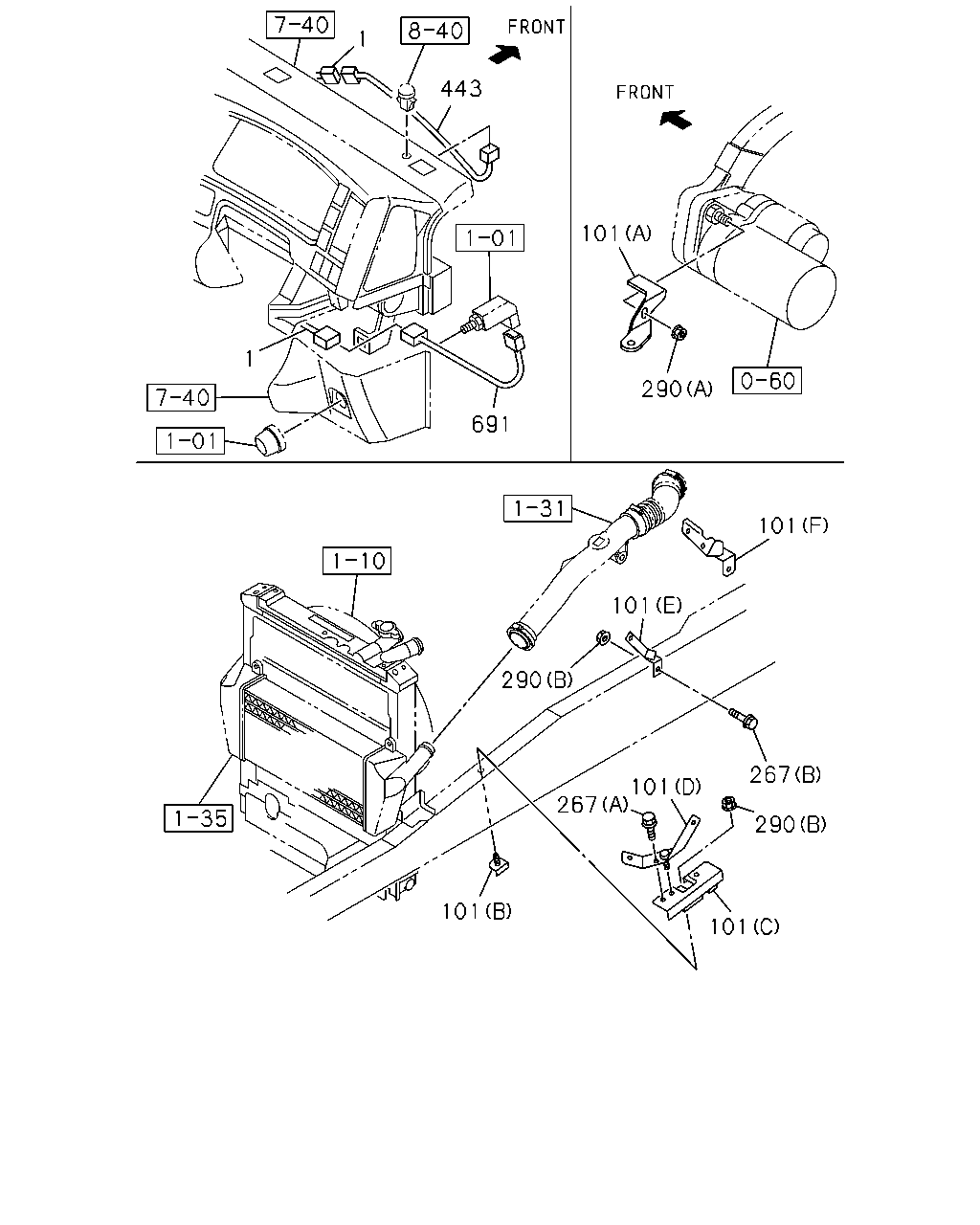

çizim 136958
443 1 101 290 691 1 101 101 290 267 101 267 290 101 101
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB 8-98071-873-3 01 1 0804-0805 ●
1 02.480 HARNESS; CAB
VOLTAGE 12V<TRQ> 		8-98071-873-3 01 1 0804-0805 ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) 		8-98123-245-3 01 1 0806- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) VOLTAGE 12V<TRQ> 		8-98123-245-3 01 1 0806- ●
1 02.480 HARNESS; CAB
EXC. VOLTAGE 12V<TRQ> 		8-98087-337-3 01 1 0804-0906 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 		8-98087-337-4 01 1 0907-1005 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. AUTO DOOR LOCK<AU4>,VOLTAGE 12V<TRQ> 		8-98158-582-0 01 1 1006-1006 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 		8-98158-582-0 01 1 1006-1204 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) EXC. VOLTAGE 12V<TRQ> 		8-98207-642-0 01 1 1205- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) 02.183 (A) 		8-98030-725-1 01 1 0804- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (C) 		8-98078-070-1 01 1 0804- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (D) 		8-98078-071-1 01 1 0804- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (E) 		8-98079-011-1 01 1 0804-1205 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (F) 		8-98217-757-0 01 1 1206- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) (B) 		8-98093-465-1 01 1 0804- ●
267 02.483 BOLT; BRKT
4JJ1-TCC ENG(RDU) 00.685 (A) M6X25 FLANGE IDN 		0-28650-625-0 01 1 0804- ●
267 02.483 BOLT; BRKT
4JJ1-TCC ENG(RDU) 06.216 (B) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0804- ●
290 02.483 NUT; BRKT
4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE IDN 		0-91180-108-0 02 1 0804- ●
290 02.483 NUT; BRKT
4JJ1-TCC ENG(RDU) 03.162 (A) M10 FLANGE IDN 		0-91180-110-0 01 1 0804- ●
443 02.480 HARNESS; EXT,A/C
COOLER WO/HEATER(C65) 		8-98103-712-0 01 1 0804- ●
691 02.480 HARNESS; IDLE CONT
4JJ1-TCC ENG(RDU) IDN 		8-98049-014-2 01 1 0804-1012 ●
691 02.480 HARNESS; IDLE CONT
4JJ1-TCC ENG(RDU) SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> IDN 		8-98049-014-2 01 1 1101- ●

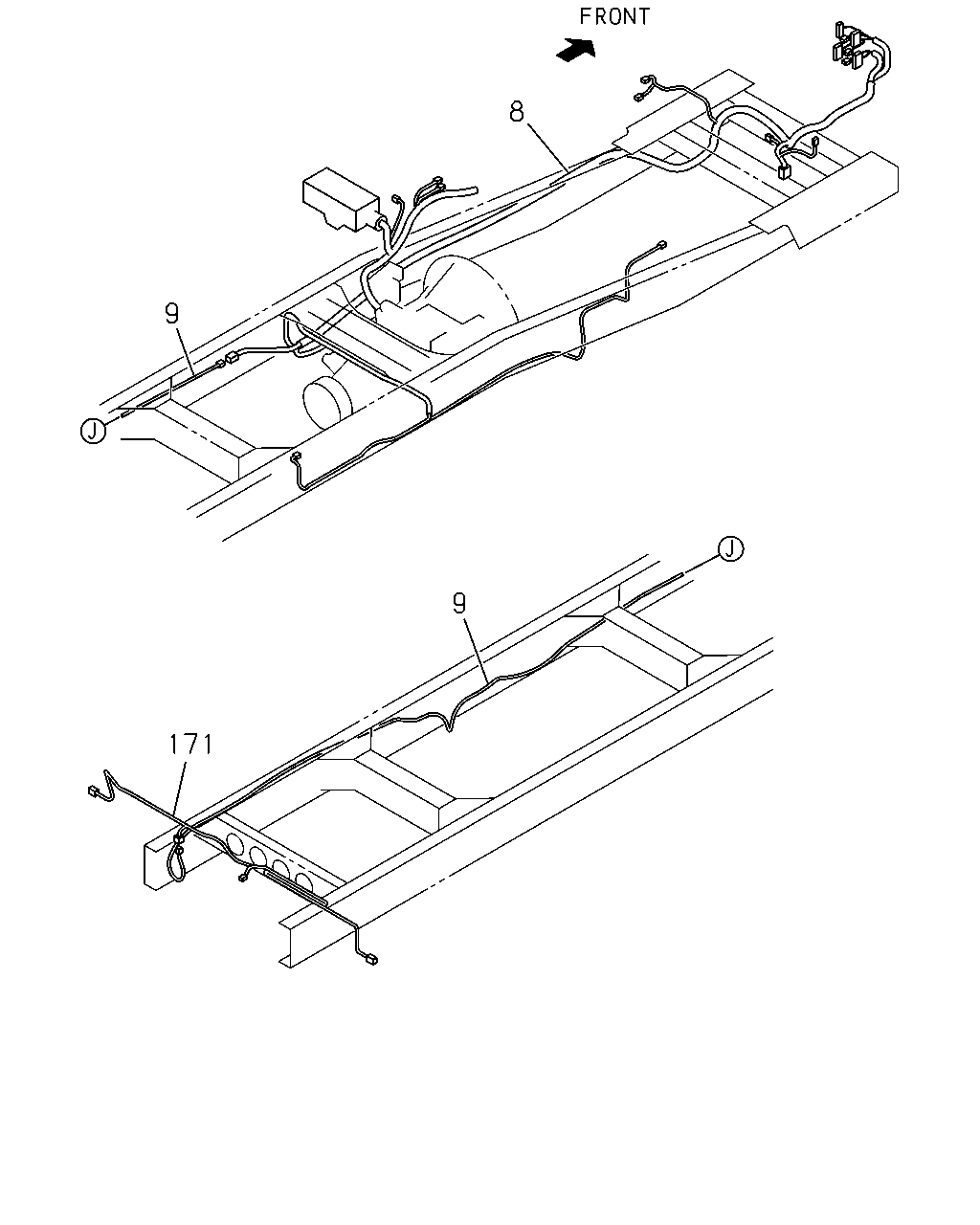

çizim 183533
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98112-213-1 01 1 0804-0804 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98118-563-0 01 1 0805-0805 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98122-380-4 01 1 0806-1409 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98293-854-0 01 1 1410- ● ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98108-351-1 01 1 0804-0804 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98117-968-0 01 1 0805-0808 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98117-969-2 01 1 0805-1409 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) 		8-98293-846-0 01 1 1410- ●
9 02.480 HARNESS; FRAME,RR 8-98048-413-4 01 1 0804- ●
9 02.480 HARNESS; FRAME,RR 8-98048-422-2 01 1 0804- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98008-095-2 01 1 0804-0911 ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
IDN 		8-98156-028-0 01 1 0912- ● ●
çizim 183535
575 575 13 710 329
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) IDN 		8-97218-750-1 01 1 0804- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) 		8-98083-030-5 01 1 0804-1006 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) 		8-98147-731-0 01 1 1007-1111 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) 		8-98172-159-1 01 1 1112- ●
329 02.480 CABLE; ENG TO FRAME
4JB1-TC ENG(RDT) IDN 		8-97260-486-1 01 1 0804- ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCC ENG(RDU) 		8-98039-854-1 01 1 0804- ●
575 02.525 HARNESS; GLOW PLUG
4JB1-TC ENG(RDT) IDN 		8-97212-328-0 01 1 0804- ● ●
710 02.525 HARNESS; EXT,STARTER
4JB1-TC ENG(RDT) 02.480 		8-98112-215-1 01 1 0804- ● ●

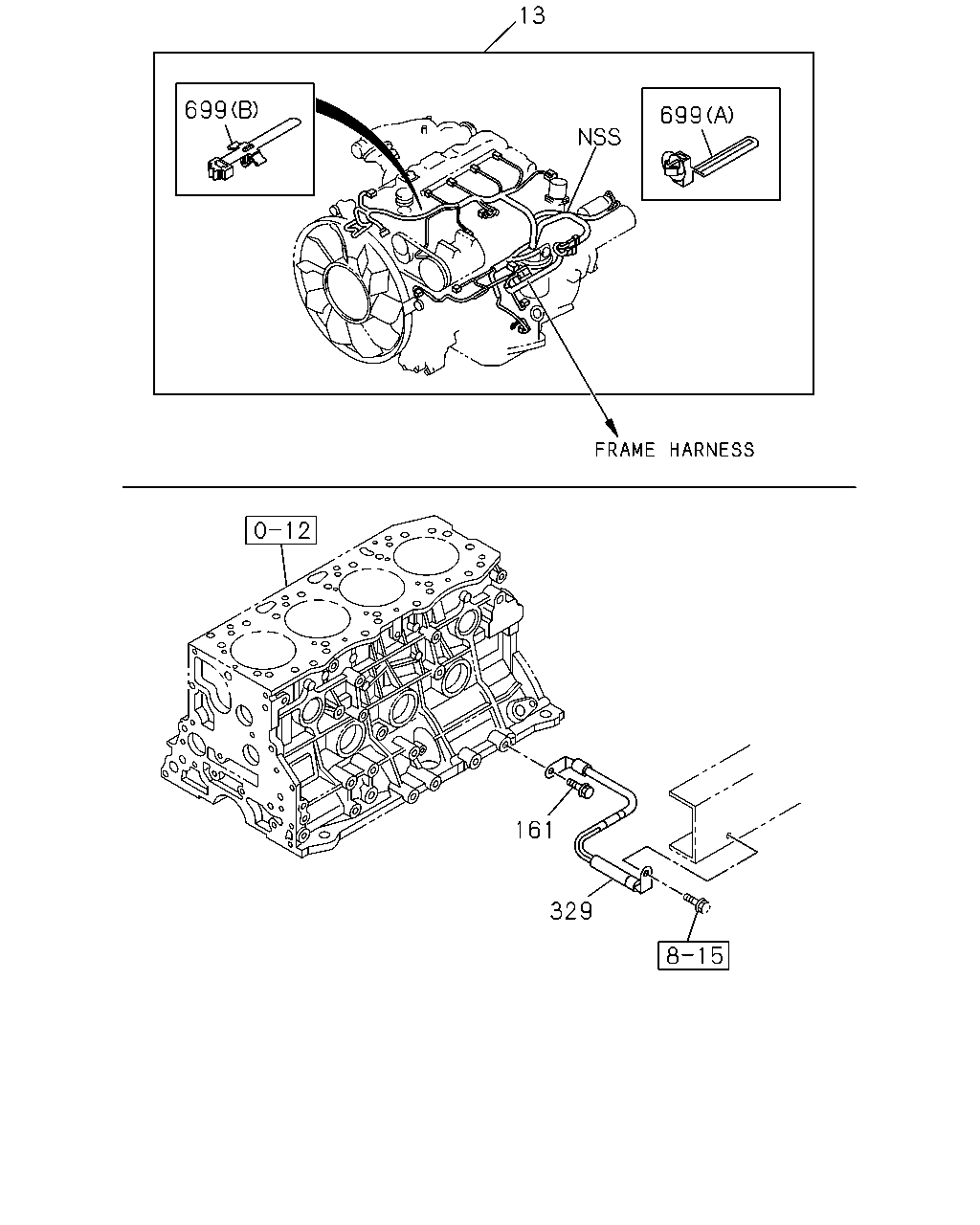

çizim 183537
13 699 699 161 329
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) IDN 		8-97218-750-1 01 1 0804- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) 		8-98083-030-5 01 1 0804-1006 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) 		8-98147-731-0 01 1 1007-1111 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) 		8-98172-159-1 01 1 1112- ●
161 02.559 BOLT; GROUND,HARNESS
4JJ1-TCC ENG(RDU) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0804- ●
329 02.480 CABLE; ENG TO FRAME
4JB1-TC ENG(RDT) IDN 		8-97260-486-1 01 1 0804- ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCC ENG(RDU) 		8-98039-854-1 01 1 0804- ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) 04.105 (A) L=140 		8-97122-360-0 03 1 0804- ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCC ENG(RDU) (B) 		8-98088-438-0 01 1 0804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
