8-01 — LAMP; FRONT AND FRONT SIDE (#81313) — 127 parça

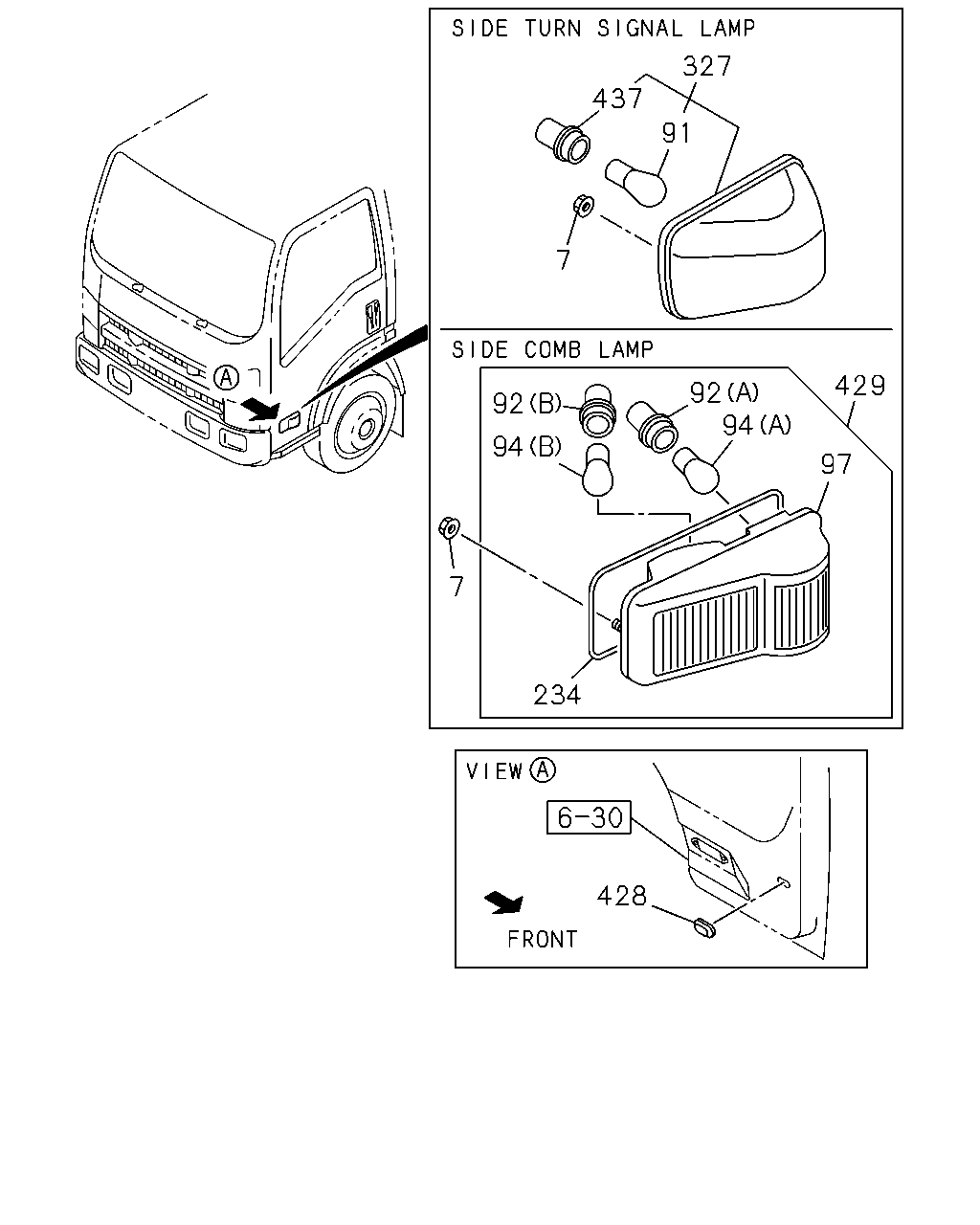

327 91 437 7 94 92 429 97 92 94 7 234 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.587 NUT; FRT COMB LAMP 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-	●	●
91	08.991 BULB; SIDE TURN SIGNAL 12V 21W IDN	8-97179-967-0	02	1	0804-	●
91	08.991 BULB; SIDE TURN SIGNAL VOLTAGE 12V<TRQ> EXC. CORNERING LAMP<T87> 12V 21W IDN	8-97179-967-0	02	1	0804-		●
91	08.991 BULB; SIDE TURN SIGNAL EXC. VOLTAGE 12V<TRQ>,CORNERING LAMP<T87> 24V 21W IDN	8-98051-495-0	02	1	0804-		●
92	02.596 SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ> 02.575 (B)	8-97172-959-0	02	1	0804-		●
92	02.596 SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ> (A) IDN	8-98051-390-0	02	1	0804-		●
94	08.991 BULB; SIDE COMB LAMP CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ> (A) 24V 21W IDN	8-98051-495-0	02	1	0804-		●
94	08.991 BULB; SIDE COMB LAMP CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ> (B) 24V 21W	8-98051-496-0	02	1	0804-		●
97	02.895 LAMP UNIT; COMB CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ>	8-98051-419-0	01	1	0804-		●
97	02.895 LAMP UNIT; COMB CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ>	8-98051-420-0	01	1	0804-		●
234	02.590 GASKET; SIDE COMB LAMP CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ>	8-98051-432-0	02	1	0804-		●
327	02.585 LAMP ASM; SIDE TURN SIGNAL IDN	8-97410-184-4	01	1	0804-	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL VOLTAGE 12V<TRQ> EXC. CORNERING LAMP<T87> IDN	8-97410-184-4	01	1	0804-		●
327	02.585 LAMP ASM; SIDE TURN SIGNAL IDN	8-97410-185-3	01	1	0804-	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL VOLTAGE 12V<TRQ> EXC. CORNERING LAMP<T87> IDN	8-97410-185-3	01	1	0804-		●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. VOLTAGE 12V<TRQ>,CORNERING LAMP<T87> IDN	8-97410-180-4	01	1	0804-		●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. VOLTAGE 12V<TRQ>,CORNERING LAMP<T87> IDN	8-97410-181-3	01	1	0804-		●
428	02.587 GROMMET; SIDE COMB LAMP 17.447 IDN	8-94430-184-1	02	1	0804-	●	●
429	02.585 LAMP ASM; SIDE COMB CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ>	8-98039-776-2	01	1	0804-		●
429	02.585 LAMP ASM; SIDE COMB CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ>	8-98039-777-2	01	1	0804-		●
437	02.596 SOCKET; SIDE,TURN IDN	8-98051-390-0	02	1	0804-	●
437	02.596 SOCKET; SIDE,TURN EXC. CORNERING LAMP<T87> IDN	8-98051-390-0	02	1	0804-		●

331 431 357 399 355 432 1 4 23 420 20 457 382 5 5 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.725 LAMP ASM; HEAD	8-98098-485-1	01	1	0804-1208	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ>	8-98098-485-1	01	1	0804-1208		●
1	02.725 LAMP ASM; HEAD	8-98225-593-0	01	1	1209-1301	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ>	8-98225-593-0	01	1	1209-1301		●
1	02.725 LAMP ASM; HEAD	8-98225-636-0	01	1	1302-1305	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ>	8-98225-636-0	01	1	1302-1305		●
1	02.725 LAMP ASM; HEAD IDN	8-98241-321-0	01	1	1306-	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ> IDN	8-98241-321-0	01	1	1306-		●
1	02.725 LAMP ASM; HEAD	8-98098-486-1	01	1	0804-1208	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ>	8-98098-486-1	01	1	0804-1208		●
1	02.725 LAMP ASM; HEAD	8-98225-594-0	01	1	1209-1301	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ>	8-98225-594-0	01	1	1209-1301		●
1	02.725 LAMP ASM; HEAD	8-98225-637-0	01	1	1302-1305	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ>	8-98225-637-0	01	1	1302-1305		●
1	02.725 LAMP ASM; HEAD IDN	8-98241-322-0	01	1	1306-	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ> IDN	8-98241-322-0	01	1	1306-		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98098-479-1	01	1	0804-1208		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98225-599-0	01	1	1209-1301		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98225-640-0	01	1	1302-1305		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98241-325-0	01	1	1306-		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98098-480-1	01	1	0804-1208		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98225-600-0	01	1	1209-1301		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98225-641-0	01	1	1302-1305		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98241-326-0	01	1	1306-		●
4	02.727 HEADLAMP UNIT IDN	8-98051-400-0	01	1	0804-1301	●	●
4	02.727 HEADLAMP UNIT IDN	8-98226-182-0	01	1	1302-	●	●
4	02.727 HEADLAMP UNIT IDN	8-98051-401-0	01	1	0804-1301	●	●
4	02.727 HEADLAMP UNIT IDN	8-98226-183-0	01	1	1302-	●	●
5	02.727 BULB; HEADLAMP 08.991 (B) 12V 5W IDN	8-94124-595-0	02	1	0804-	●
5	02.727 BULB; HEADLAMP VOLTAGE 12V<TRQ> 08.991 (B) 12V 5W IDN	8-94124-595-0	02	1	0804-		●
5	02.727 BULB; HEADLAMP (A) 12V 60/55W IDN	8-97106-708-0	02	1	0804-	●
5	02.727 BULB; HEADLAMP VOLTAGE 12V<TRQ> (A) 12V 60/55W IDN	8-97106-708-0	02	1	0804-		●
5	02.727 BULB; HEADLAMP EXC. VOLTAGE 12V<TRQ> (B) 24V 5W IDN	1-82194-042-0	02	1	0804-		●
5	02.727 BULB; HEADLAMP EXC. VOLTAGE 12V<TRQ> (A) 24V 75/70W IDN	1-82194-063-0	02	1	0804-		●
20	02.736 SCREW; HEADLAMP IDN	8-97378-871-0	06	1	0804-	●	●
23	02.727 COVER; BULB,HEADLAMP IDN	8-97232-491-0	02	1	0804-	●	●
331	02.585 LAMP; TURN SIGNAL	8-97410-188-2	01	1	0804-0911	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 12V<TRQ>	8-97410-188-2	01	1	0804-0911		●
331	02.585 LAMP; TURN SIGNAL IDN	8-98155-460-0	01	1	0912-	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 12V<TRQ> IDN	8-98155-460-0	01	1	0912-		●
331	02.585 LAMP; TURN SIGNAL	8-97410-189-2	01	1	0804-0911	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 12V<TRQ>	8-97410-189-2	01	1	0804-0911		●
331	02.585 LAMP; TURN SIGNAL IDN	8-98155-461-0	01	1	0912-	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 12V<TRQ> IDN	8-98155-461-0	01	1	0912-		●
331	02.585 LAMP; TURN SIGNAL EXC. VOLTAGE 12V<TRQ>	8-97585-172-2	01	1	0804-0911		●
331	02.585 LAMP; TURN SIGNAL EXC. VOLTAGE 12V<TRQ> IDN	8-98155-458-0	01	1	0912-		●
331	02.585 LAMP; TURN SIGNAL EXC. VOLTAGE 12V<TRQ>	8-97585-173-2	01	1	0804-0911		●
331	02.585 LAMP; TURN SIGNAL EXC. VOLTAGE 12V<TRQ> IDN	8-98155-459-0	01	1	0912-		●
355	02.726 SCREW; TURN SIGNAL IDN	8-98051-428-0	04	1	0804-	●	●
357	08.991 BULB; TURN SIGNAL 12V 21W IDN	8-97179-967-0	02	1	0804-	●
357	08.991 BULB; TURN SIGNAL VOLTAGE 12V<TRQ> 12V 21W IDN	8-97179-967-0	02	1	0804-		●
357	08.991 BULB; TURN SIGNAL EXC. VOLTAGE 12V<TRQ> 24V 21W AMBER IDN	8-97323-806-0	02	1	0804-		●
382	02.575 PLUG; SOCKET,HEADLAMP IDN	8-98069-364-0	02	1	0804-1208	●	●
382	02.575 PLUG; SOCKET,HEADLAMP IDN	8-98225-685-0	02	1	1209-	●	●
399	02.596 SOCKET; TURN SIGNAL IDN	8-98051-387-0	02	1	0804-0911	●	●
399	02.596 SOCKET; TURN SIGNAL EXC. VOLTAGE 12V<TRQ> IDN	8-98051-387-0	02	1	0912-		●
399	02.596 SOCKET; TURN SIGNAL IDN	8-98051-386-0	02	1	0912-	●
399	02.596 SOCKET; TURN SIGNAL VOLTAGE 12V<TRQ> IDN	8-98051-386-0	02	1	0912-		●
408	02.727 CAP; BREATHER,HEADLAMP IDN	8-97378-874-0	02	1	0804-	●	●
420	02.737 SPRING; BULB,HEADLAMP IDN	8-97378-875-0	02	1	0804-1301	●	●
420	02.737 SPRING; BULB,HEADLAMP IDN	8-98218-601-0	02	1	1302-	●	●
431	02.727 CAP; TURN SIGNAL,LAMP IDN	8-97378-874-0	02	1	0804-	●	●
432	02.726 FASTENER; TURN SIGNAL,LAMP IDN	8-98051-431-0	04	1	0804-	●	●
457	16.450 GRIP; HEADLAMP IDN	8-98241-354-0	02	1	1306-	●	●

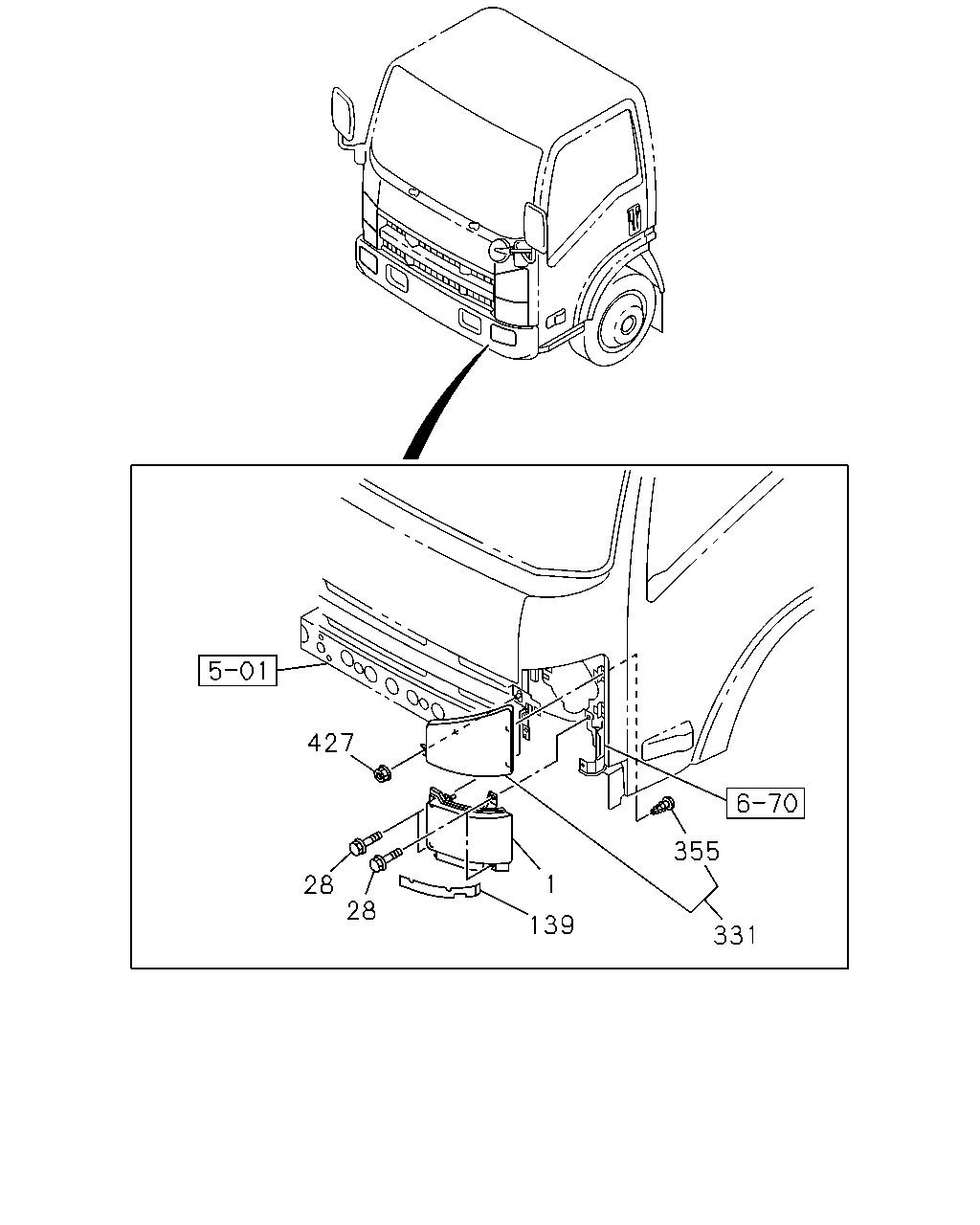

427 355 1 28 28 139 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.725 LAMP ASM; HEAD	8-98098-485-1	01	1	0804-1208	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ>	8-98098-485-1	01	1	0804-1208		●
1	02.725 LAMP ASM; HEAD	8-98225-593-0	01	1	1209-1301	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ>	8-98225-593-0	01	1	1209-1301		●
1	02.725 LAMP ASM; HEAD	8-98225-636-0	01	1	1302-1305	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ>	8-98225-636-0	01	1	1302-1305		●
1	02.725 LAMP ASM; HEAD IDN	8-98241-321-0	01	1	1306-	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ> IDN	8-98241-321-0	01	1	1306-		●
1	02.725 LAMP ASM; HEAD	8-98098-486-1	01	1	0804-1208	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ>	8-98098-486-1	01	1	0804-1208		●
1	02.725 LAMP ASM; HEAD	8-98225-594-0	01	1	1209-1301	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ>	8-98225-594-0	01	1	1209-1301		●
1	02.725 LAMP ASM; HEAD	8-98225-637-0	01	1	1302-1305	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ>	8-98225-637-0	01	1	1302-1305		●
1	02.725 LAMP ASM; HEAD IDN	8-98241-322-0	01	1	1306-	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ> IDN	8-98241-322-0	01	1	1306-		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98098-479-1	01	1	0804-1208		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98225-599-0	01	1	1209-1301		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98225-640-0	01	1	1302-1305		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98241-325-0	01	1	1306-		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98098-480-1	01	1	0804-1208		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98225-600-0	01	1	1209-1301		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98225-641-0	01	1	1302-1305		●
1	02.725 LAMP ASM; HEAD EXC. VOLTAGE 12V<TRQ> IDN	8-98241-326-0	01	1	1306-		●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0804-1005	●	●
28	02.762 BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1006-	●	●
139	02.726 COVER; HEADLAMP IDN	8-98034-056-1	02	1	0804-	●	●
331	02.585 LAMP; TURN SIGNAL	8-97410-188-2	01	1	0804-0911	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 12V<TRQ>	8-97410-188-2	01	1	0804-0911		●
331	02.585 LAMP; TURN SIGNAL IDN	8-98155-460-0	01	1	0912-	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 12V<TRQ> IDN	8-98155-460-0	01	1	0912-		●
331	02.585 LAMP; TURN SIGNAL	8-97410-189-2	01	1	0804-0911	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 12V<TRQ>	8-97410-189-2	01	1	0804-0911		●
331	02.585 LAMP; TURN SIGNAL IDN	8-98155-461-0	01	1	0912-	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 12V<TRQ> IDN	8-98155-461-0	01	1	0912-		●
331	02.585 LAMP; TURN SIGNAL EXC. VOLTAGE 12V<TRQ>	8-97585-172-2	01	1	0804-0911		●
331	02.585 LAMP; TURN SIGNAL EXC. VOLTAGE 12V<TRQ> IDN	8-98155-458-0	01	1	0912-		●
331	02.585 LAMP; TURN SIGNAL EXC. VOLTAGE 12V<TRQ>	8-97585-173-2	01	1	0804-0911		●
331	02.585 LAMP; TURN SIGNAL EXC. VOLTAGE 12V<TRQ> IDN	8-98155-459-0	01	1	0912-		●
355	02.726 SCREW; TURN SIGNAL IDN	8-98051-428-0	04	1	0804-	●	●
427	02.587 NUT; TURN SIGNAL LAMP 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-	●	●
