◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#8131) — 170 parça

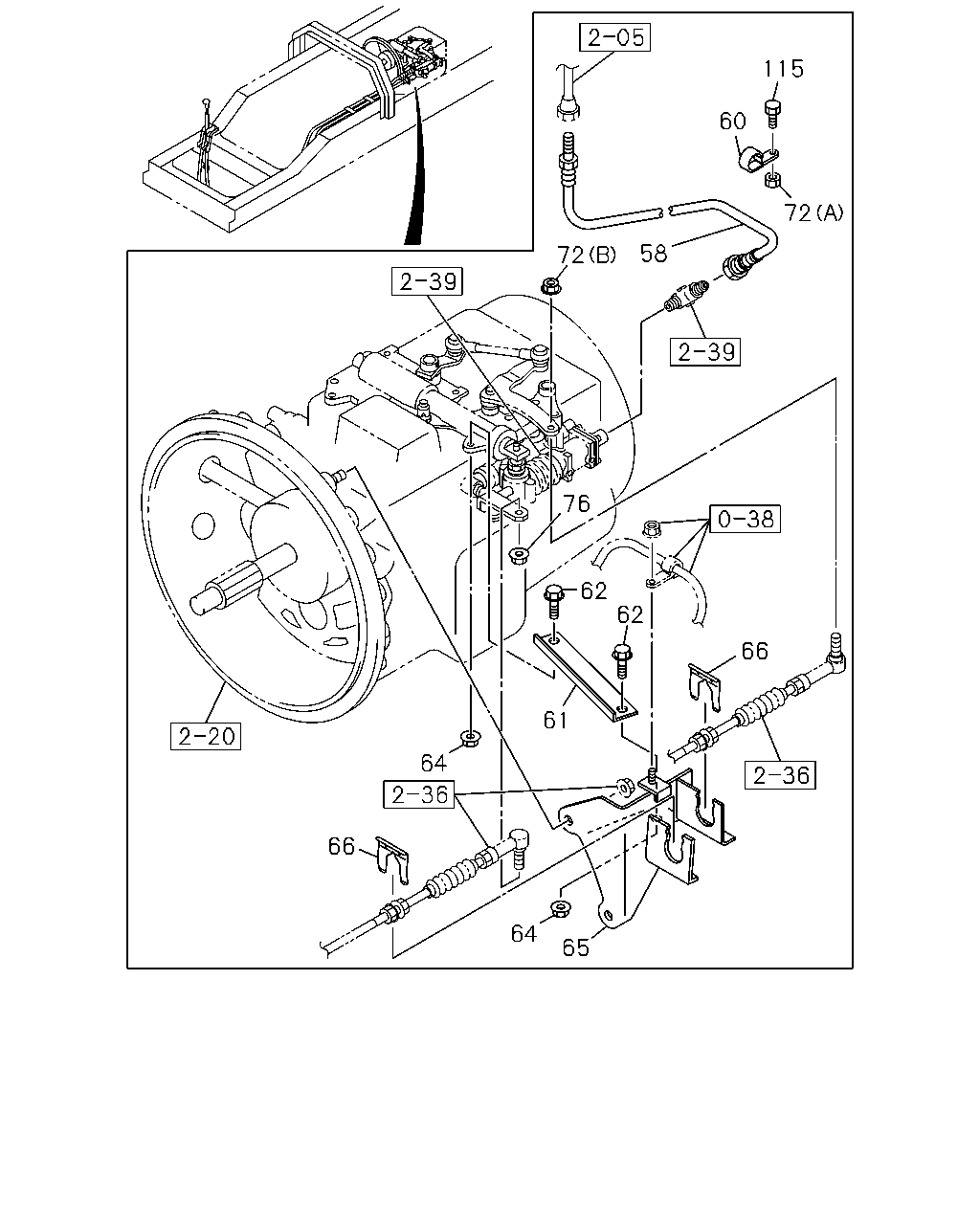

çizim 76833
115 60 72 58 72 76 62 62 66 61 64 66 64 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
58 HOSE; FLEX,POWER ASSISTOR
L=1000 		1-09363-698-0 01 1 0005-0210 ● ●
58 HOSE; FLEX,POWER ASSISTOR
FTS ALL(FT****) L=740 		1-09363-675-0 01 1 0211-0405 ●
58 HOSE; FLEX,POWER ASSISTOR
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> L=740 		1-09363-675-0 01 1 0406- ●
58 HOSE; FLEX,POWER ASSISTOR
FTS ALL(FT****) L=740 		1-09363-675-0 01 1 0406- ●
60 CLIP; FLEX HOSE
ID=13 L=20 		9-09525-235-0 02 1 0005-0210 ● ●
60 CLIP; FLEX HOSE
FTS ALL(FT****) ID=13 L=20 		9-09525-235-0 02 1 0211-0405 ●
60 CLIP; FLEX HOSE
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20 		9-09525-235-0 02 1 0406-0606 ●
60 CLIP; FLEX HOSE
FTS ALL(FT****) ID=13 L=20 		9-09525-235-0 02 1 0406-0606 ●
60 CLIP; FLEX HOSE
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20 		0-95235-235-0 02 1 0607- ●
60 CLIP; FLEX HOSE
FTS ALL(FT****) ID=13 L=20 		0-95235-235-0 02 1 0607- ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0005-0210 ● ● ●
61 STAY; BRKT,TRANS CONT
FTS ALL(FT****) 		1-33657-267-0 01 1 0211-0405 ●
61 STAY; BRKT,TRANS CONT
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0406- ●
61 STAY; BRKT,TRANS CONT
FTS ALL(FT****) 		1-33657-267-0 01 1 0406- ●
61 STAY; BRKT,TRANS CONT
FSS ALL(FS****) 		1-33657-349-0 01 1 0211-0405 ●
61 STAY; BRKT,TRANS CONT
FSS ALL(FS****) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0406- ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 0005-0210 ● ●
62 BOLT; STAY
FSS ALL(FS****) M10X30 FLANGE 		0-28681-030-0 01 1 0211-0512 ●
62 BOLT; STAY
FSS ALL(FS****) M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 02 1 0005-0210 ●
62 BOLT; STAY
FTS ALL(FT****) M10X30 FLANGE 		0-28681-030-0 02 1 0211-0512 ●
62 BOLT; STAY
FTS ALL(FT****) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0005-0210 ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> 		8-97382-842-0 01 1 0406- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ENGINE REAR PTO(SV1) 		1-33657-774-0 01 1 0005-0210 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FSS ALL(FS****) 		1-33657-825-0 01 1 0211-0405 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FSS ALL(FS****) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-825-0 01 1 0406- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) 		1-33657-642-0 01 1 0005-0210 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-641-1 01 1 0005-0210 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FTS ALL(FT****) 		1-33657-641-1 01 1 0211- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-643-0 01 1 0005-0210 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0005-0210 ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0211- ●
72 NUT; TRANS CONT,SELECT
(B) M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ● ●
72 NUT; TRANS CONT,SELECT
(B) M8 FLANGE 		1-09440-049-0 01 1 0211- ●
72 NUT; TRANS CONT,SELECT
(A) M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ● ●
72 NUT; TRANS CONT,SELECT
(A) M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ●
72 NUT; TRANS CONT,SELECT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-056-0 01 1 0005-0210 ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0211- ●
115 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ● ●
115 BOLT; CLIP
FTS ALL(FT****) M8X16 FLANGE 		0-28080-816-0 02 1 0211-0405 ●
115 BOLT; CLIP
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ●
115 BOLT; CLIP
FTS ALL(FT****) M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ●
115 BOLT; CLIP
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
115 BOLT; CLIP
FTS ALL(FT****) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
115 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●

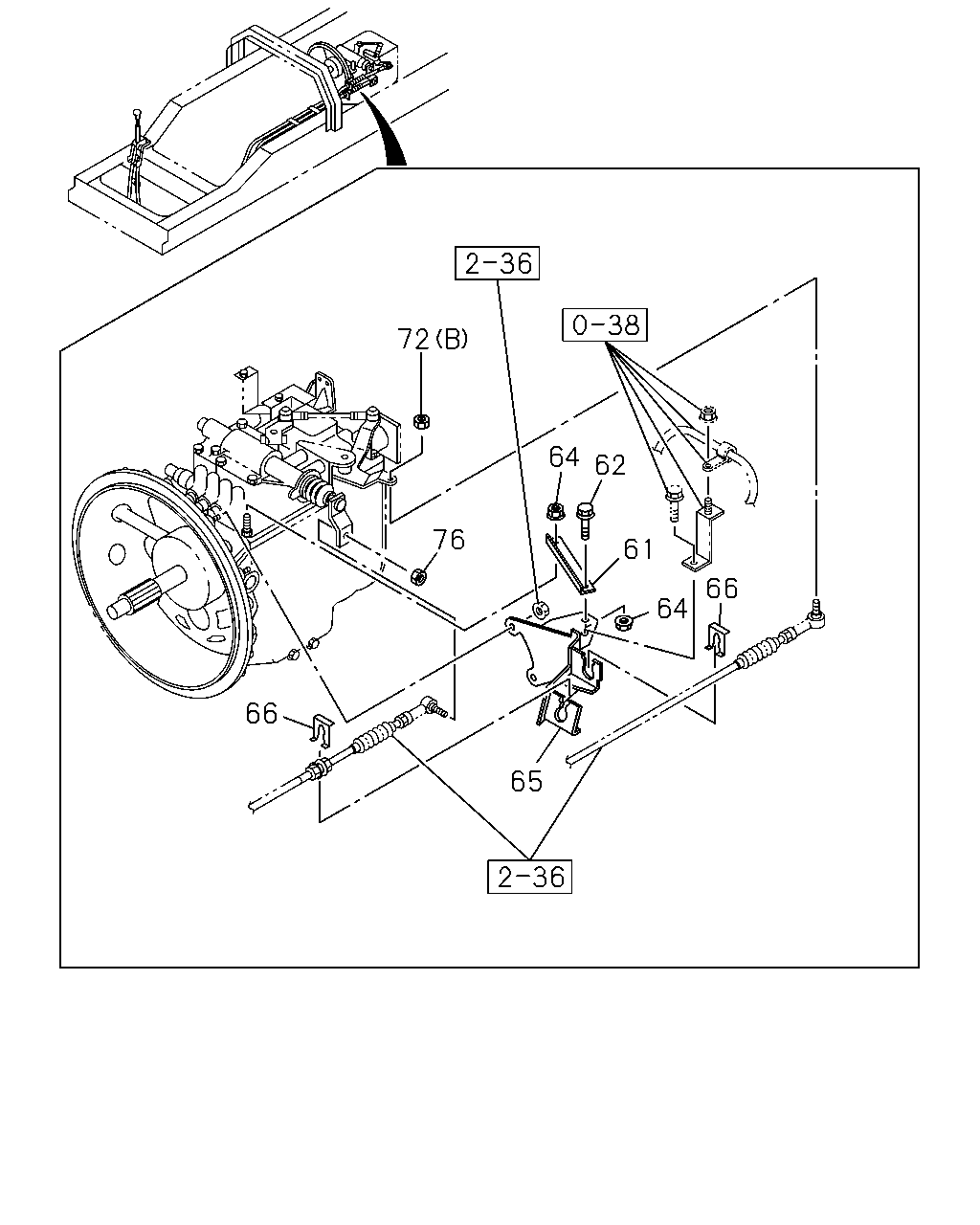

çizim 76888
72 64 62 76 61 66 64 66 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0005-0210 ● ● ●
61 STAY; BRKT,TRANS CONT
FTS ALL(FT****) 		1-33657-267-0 01 1 0211-0405 ●
61 STAY; BRKT,TRANS CONT
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0406- ●
61 STAY; BRKT,TRANS CONT
FTS ALL(FT****) 		1-33657-267-0 01 1 0406- ●
61 STAY; BRKT,TRANS CONT
FSS ALL(FS****) 		1-33657-349-0 01 1 0211-0405 ●
61 STAY; BRKT,TRANS CONT
FSS ALL(FS****) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0406- ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 0005-0210 ● ●
62 BOLT; STAY
FSS ALL(FS****) M10X30 FLANGE 		0-28681-030-0 01 1 0211-0512 ●
62 BOLT; STAY
FSS ALL(FS****) M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 02 1 0005-0210 ●
62 BOLT; STAY
FTS ALL(FT****) M10X30 FLANGE 		0-28681-030-0 02 1 0211-0512 ●
62 BOLT; STAY
FTS ALL(FT****) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0005-0210 ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> 		8-97382-842-0 01 1 0406- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ENGINE REAR PTO(SV1) 		1-33657-774-0 01 1 0005-0210 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FSS ALL(FS****) 		1-33657-825-0 01 1 0211-0405 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FSS ALL(FS****) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-825-0 01 1 0406- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) 		1-33657-642-0 01 1 0005-0210 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-641-1 01 1 0005-0210 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FTS ALL(FT****) 		1-33657-641-1 01 1 0211- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-643-0 01 1 0005-0210 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0005-0210 ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0211- ●
72 NUT; TRANS CONT,SELECT
(B) M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ● ●
72 NUT; TRANS CONT,SELECT
(B) M8 FLANGE 		1-09440-049-0 01 1 0211- ●
72 NUT; TRANS CONT,SELECT
(A) M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ● ●
72 NUT; TRANS CONT,SELECT
(A) M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ●
72 NUT; TRANS CONT,SELECT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-056-0 01 1 0005-0210 ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0211- ●

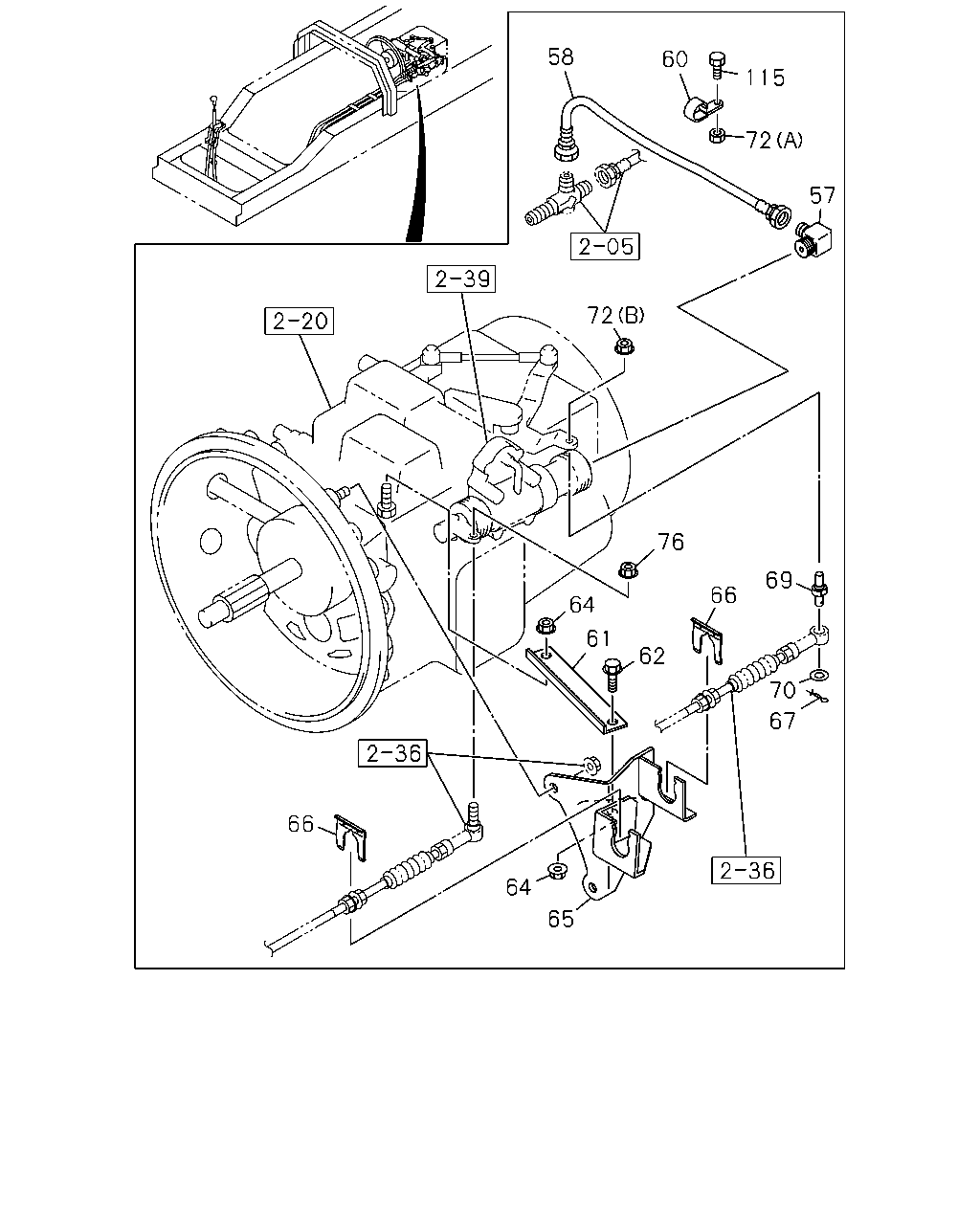

çizim 77366
58 60 115 72 57 72 76 69 66 64 61 62 70 67 66 64 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
57 NIPPLE; POWER ASSISTOR 1-09661-002-1 01 1 0005-0210 ●
58 HOSE; FLEX,POWER ASSISTOR
L=1000 		1-09363-698-0 01 1 0005-0210 ● ●
58 HOSE; FLEX,POWER ASSISTOR
FTS ALL(FT****) L=740 		1-09363-675-0 01 1 0211-0405 ●
58 HOSE; FLEX,POWER ASSISTOR
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> L=740 		1-09363-675-0 01 1 0406- ●
58 HOSE; FLEX,POWER ASSISTOR
FTS ALL(FT****) L=740 		1-09363-675-0 01 1 0406- ●
60 CLIP; FLEX HOSE
ID=13 L=20 		9-09525-235-0 02 1 0005-0210 ● ●
60 CLIP; FLEX HOSE
FTS ALL(FT****) ID=13 L=20 		9-09525-235-0 02 1 0211-0405 ●
60 CLIP; FLEX HOSE
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20 		9-09525-235-0 02 1 0406-0606 ●
60 CLIP; FLEX HOSE
FTS ALL(FT****) ID=13 L=20 		9-09525-235-0 02 1 0406-0606 ●
60 CLIP; FLEX HOSE
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20 		0-95235-235-0 02 1 0607- ●
60 CLIP; FLEX HOSE
FTS ALL(FT****) ID=13 L=20 		0-95235-235-0 02 1 0607- ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0005-0210 ● ● ●
61 STAY; BRKT,TRANS CONT
FTS ALL(FT****) 		1-33657-267-0 01 1 0211-0405 ●
61 STAY; BRKT,TRANS CONT
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0406- ●
61 STAY; BRKT,TRANS CONT
FTS ALL(FT****) 		1-33657-267-0 01 1 0406- ●
61 STAY; BRKT,TRANS CONT
FSS ALL(FS****) 		1-33657-349-0 01 1 0211-0405 ●
61 STAY; BRKT,TRANS CONT
FSS ALL(FS****) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0406- ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 0005-0210 ● ●
62 BOLT; STAY
FSS ALL(FS****) M10X30 FLANGE 		0-28681-030-0 01 1 0211-0512 ●
62 BOLT; STAY
FSS ALL(FS****) M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 02 1 0005-0210 ●
62 BOLT; STAY
FTS ALL(FT****) M10X30 FLANGE 		0-28681-030-0 02 1 0211-0512 ●
62 BOLT; STAY
FTS ALL(FT****) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0005-0210 ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> 		8-97382-842-0 01 1 0406- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ENGINE REAR PTO(SV1) 		1-33657-774-0 01 1 0005-0210 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FSS ALL(FS****) 		1-33657-825-0 01 1 0211-0405 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FSS ALL(FS****) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-825-0 01 1 0406- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) 		1-33657-642-0 01 1 0005-0210 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-641-1 01 1 0005-0210 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FTS ALL(FT****) 		1-33657-641-1 01 1 0211- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-643-0 01 1 0005-0210 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0005-0210 ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0211- ●
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 0005-0210 ●
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 0005-0210 ●
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 0005-0210 ●
72 NUT; TRANS CONT,SELECT
(B) M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ● ●
72 NUT; TRANS CONT,SELECT
(B) M8 FLANGE 		1-09440-049-0 01 1 0211- ●
72 NUT; TRANS CONT,SELECT
(A) M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ● ●
72 NUT; TRANS CONT,SELECT
(A) M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ●
72 NUT; TRANS CONT,SELECT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-056-0 01 1 0005-0210 ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0211- ●
115 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ● ●
115 BOLT; CLIP
FTS ALL(FT****) M8X16 FLANGE 		0-28080-816-0 02 1 0211-0405 ●
115 BOLT; CLIP
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ●
115 BOLT; CLIP
FTS ALL(FT****) M8X16 FLANGE 		0-28080-816-0 02 1 0406-0512 ●
115 BOLT; CLIP
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
115 BOLT; CLIP
FTS ALL(FT****) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
115 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●

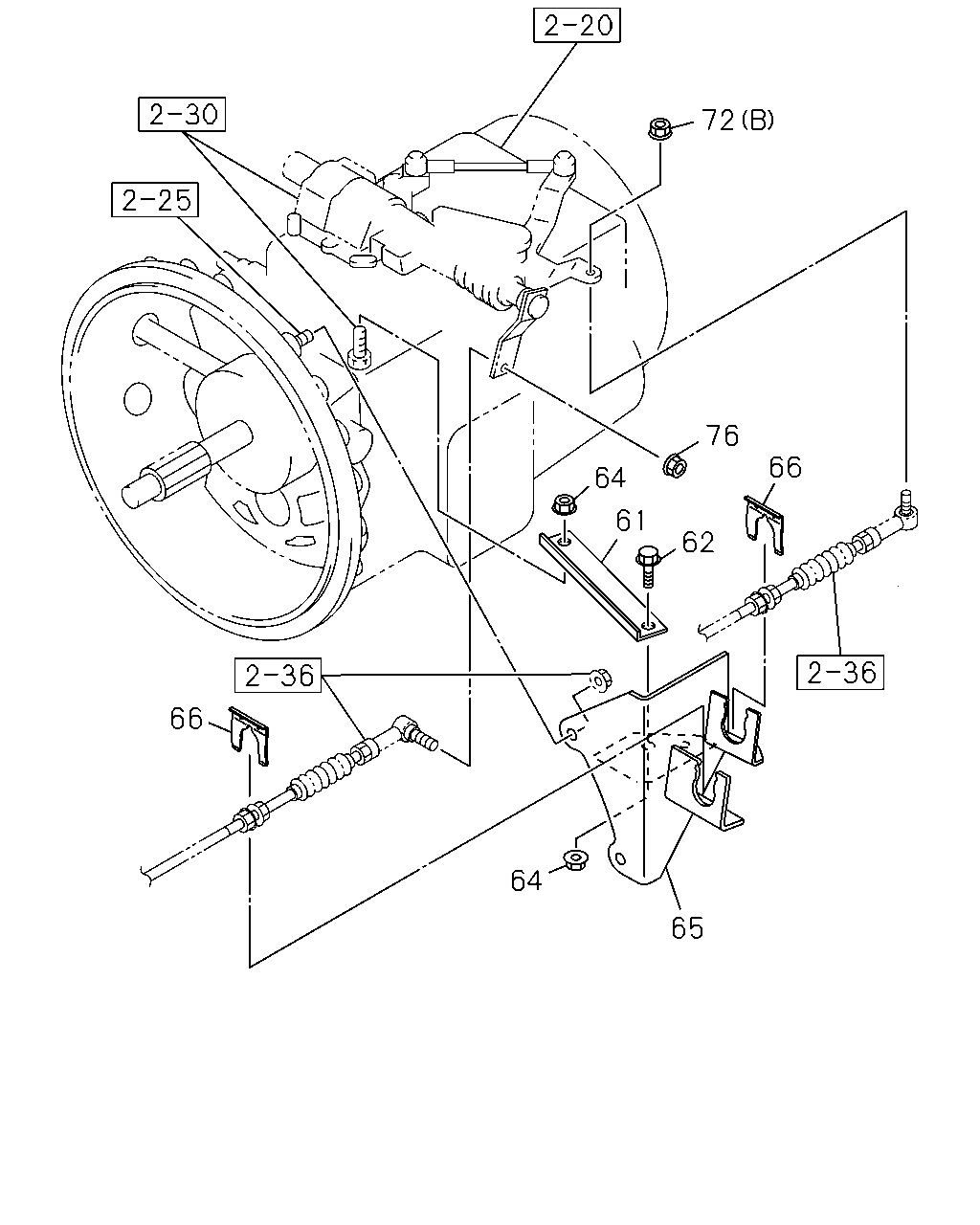

çizim 78626
72 76 66 64 61 62 66 64 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0005-0210 ● ● ●
61 STAY; BRKT,TRANS CONT
FTS ALL(FT****) 		1-33657-267-0 01 1 0211-0405 ●
61 STAY; BRKT,TRANS CONT
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 0406- ●
61 STAY; BRKT,TRANS CONT
FTS ALL(FT****) 		1-33657-267-0 01 1 0406- ●
61 STAY; BRKT,TRANS CONT
FSS ALL(FS****) 		1-33657-349-0 01 1 0211-0405 ●
61 STAY; BRKT,TRANS CONT
FSS ALL(FS****) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0406- ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 0005-0210 ● ●
62 BOLT; STAY
FSS ALL(FS****) M10X30 FLANGE 		0-28681-030-0 01 1 0211-0512 ●
62 BOLT; STAY
FSS ALL(FS****) M10X30 FLANGE 		0-28651-030-0 01 1 0601- ●
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 02 1 0005-0210 ●
62 BOLT; STAY
FTS ALL(FT****) M10X30 FLANGE 		0-28681-030-0 02 1 0211-0512 ●
62 BOLT; STAY
FTS ALL(FT****) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0005-0210 ● ● ●
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> 		8-97382-842-0 01 1 0406- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ENGINE REAR PTO(SV1) 		1-33657-774-0 01 1 0005-0210 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FSS ALL(FS****) 		1-33657-825-0 01 1 0211-0405 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FSS ALL(FS****) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-825-0 01 1 0406- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) 		1-33657-642-0 01 1 0005-0210 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-641-1 01 1 0005-0210 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FTS ALL(FT****) 		1-33657-641-1 01 1 0211- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-643-0 01 1 0005-0210 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0005-0210 ● ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0211- ●
72 NUT; TRANS CONT,SELECT
(B) M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ● ●
72 NUT; TRANS CONT,SELECT
(B) M8 FLANGE 		1-09440-049-0 01 1 0211- ●
72 NUT; TRANS CONT,SELECT
(A) M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ● ●
72 NUT; TRANS CONT,SELECT
(A) M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ●
72 NUT; TRANS CONT,SELECT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0005-0210 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-056-0 01 1 0005-0210 ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
