7-20 — MIRROR AND MIRROR STAY (#81306) — 32 parça

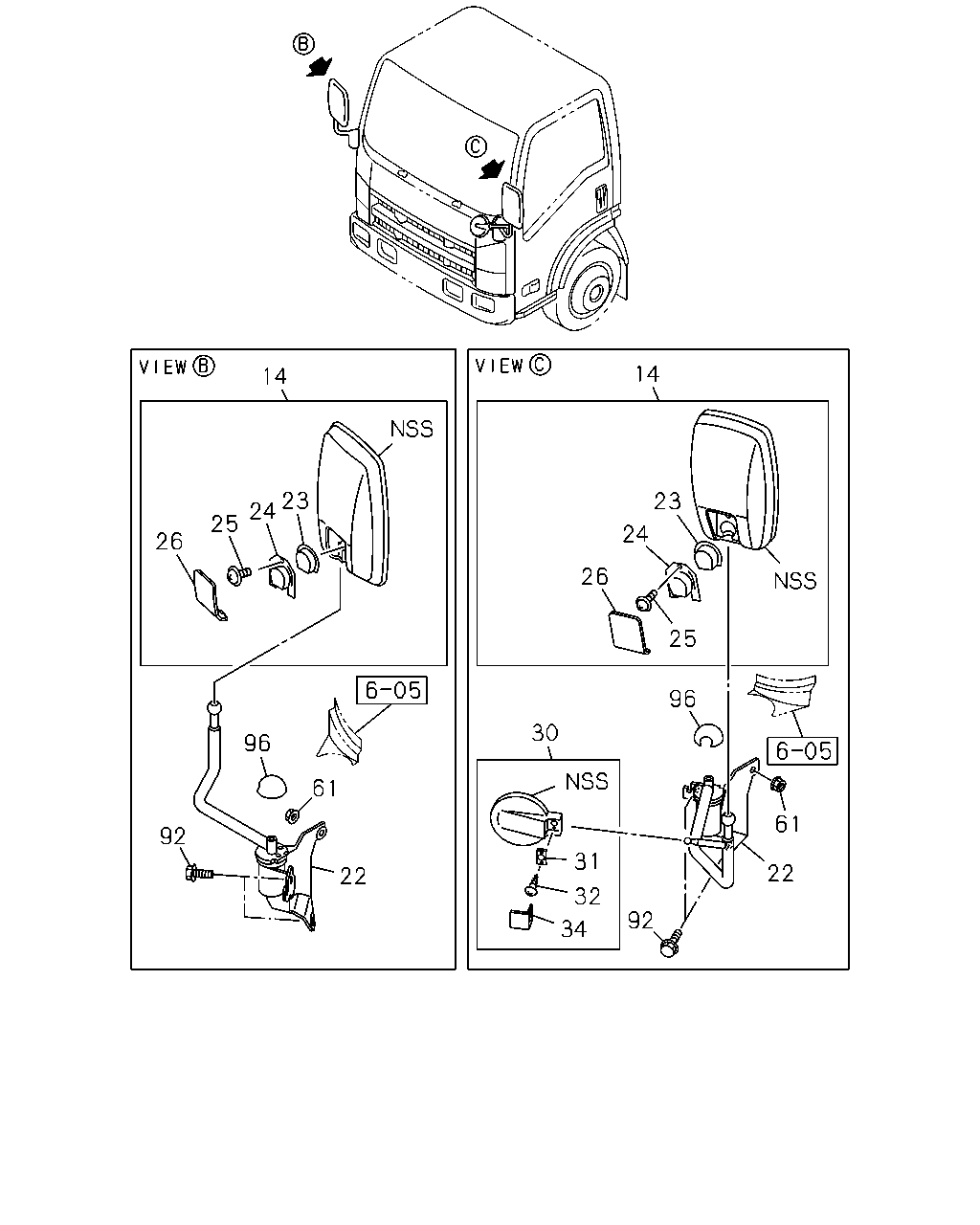

çizim 133104
14 14 23 24 23 25 24 26 26 25 96 30 96 61 61 92 31 22 22 32 92 34
BalonParca AdiParca NoAdetTipApplied Date A B
14 16.068 MIRROR ASM; OUTSIDE
IDN 		8-94262-542-3 01 1 0804- ● ●
14 16.068 MIRROR ASM; OUTSIDE
IDN 		8-94262-542-3 01 1 0804- ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> UNDER MIRROR<RR9> 		8-98070-507-0 01 1 0804- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37> EXC. UNDER MIRROR<RR9> IDN 		8-98070-505-0 01 1 0804- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> IDN 		8-98038-224-1 01 1 0804- ●
22 16.069 STAY; OUTSIDE MIRROR
IDN 		8-98038-224-1 01 1 0804- ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> 		8-98027-519-0 01 1 0804- ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98027-519-0 01 1 0804- ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> EXC. UNDER MIRROR<RR9> IDN 		8-98070-509-0 01 1 0804- ●
22 16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> IDN 		8-98070-509-0 01 1 0804- ●
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 IDN 		8-94262-545-0 01 1 0804- ● ●
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 IDN 		8-94262-545-0 01 1 0804- ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 IDN 		8-94262-546-1 01 1 0804- ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 IDN 		8-94262-546-1 01 1 0804- ● ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 IDN 		8-94279-365-0 01 1 0804- ● ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 IDN 		8-94279-365-0 01 1 0804- ● ●
26 16.069 COVER; OUTSIDE MIRROR
T=2.3 IDN 		8-94262-547-2 01 1 0804- ● ●
26 16.069 COVER; OUTSIDE MIRROR
T=2.3 IDN 		8-94262-547-2 01 1 0804- ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 0804- ● ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 0804- ● ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 0804- ● ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 0804- ● ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0804- ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0804- ●
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 06.216 M8X25 FLANGE IDN 		0-28650-825-0 04 1 0804- ●
92 16.069 BOLT; STAY BRKT,MIRROR
06.216 M8X25 FLANGE IDN 		0-28650-825-0 04 1 0804- ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> IDN 		8-98027-552-2 02 1 0804- ●
96 16.069 CAP; MIRROR STAY
IDN 		8-98027-552-2 02 1 0804- ●
çizim 133139
2 1 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY IDN 		8-98097-534-1 01 1 0804- ● ●
2 16.069 SCREW; MIRROR TO BODY
WINDOW RR<8LF> 16.070 M6X26 		8-98033-674-0 02 1 0804- ● ●
64 16.069 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 OD=20 T=0.05 WHITE IDN 		8-98059-421-0 02 1 0804- ● ●
64 16.069 SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 OD=20 T=0.05 BLACK IDN 		5-76777-036-0 02 1 0804- ● ●
