6-80 — BACK PANEL (#81300) — 18 parça

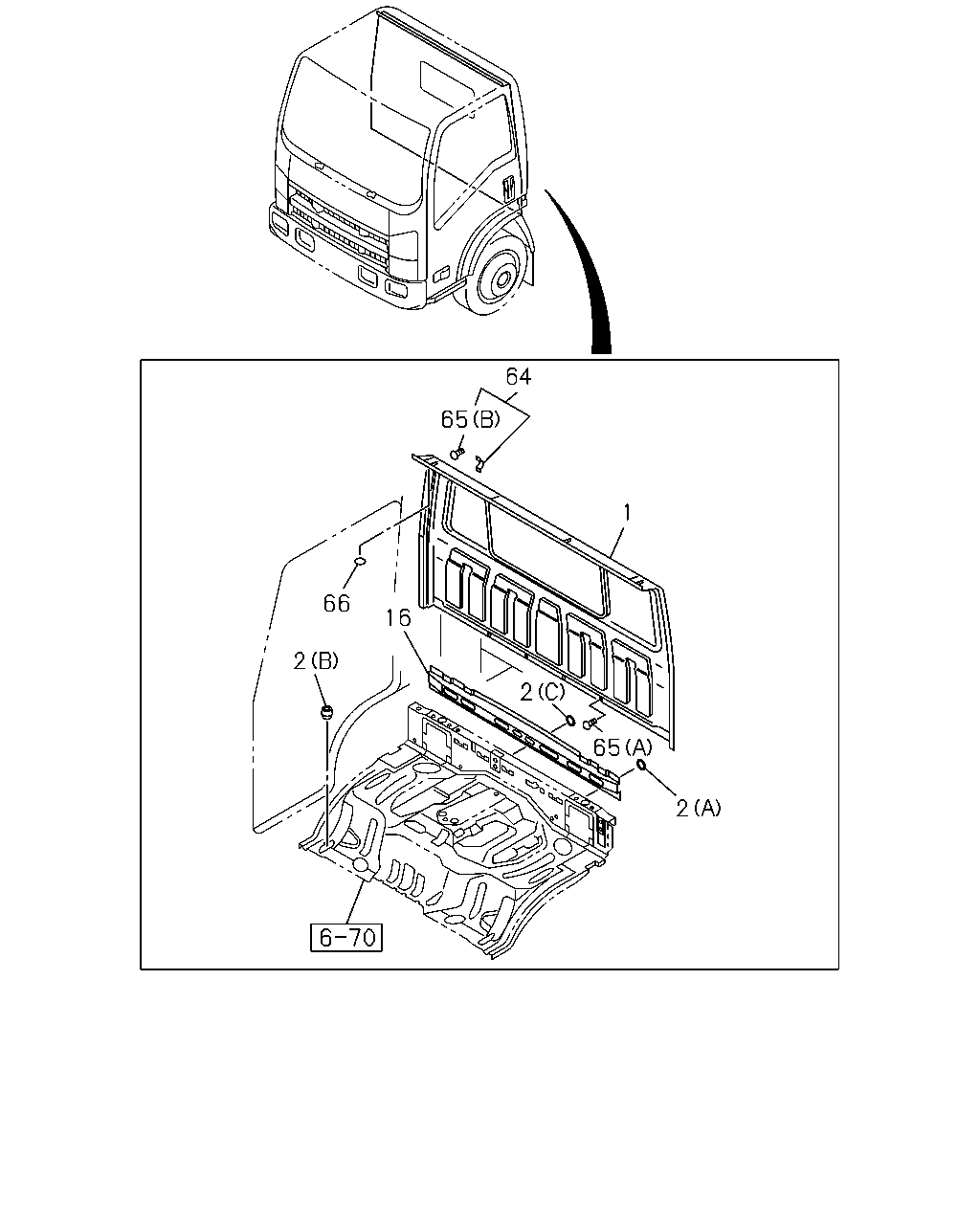

çizim 132428
64 65 1 66 16 2 2 65 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> IDN 		8-97584-303-4 01 1 0804- ● ●
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> IDN 		8-97584-300-3 01 1 0804- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 0804- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0804- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=12.1 IDN 		8-97898-423-0 04 1 0804- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0804- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0804- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
EXC. WINDOW RR<8LF> IDN 		8-98313-204-0 01 1 1505- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
IDN 		8-97584-607-3 01 1 0804-1504 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
WINDOW RR<8LF> IDN 		8-97584-607-3 01 1 1505- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 IDN 		8-97584-611-1 01 1 0804- ● ●
65 17.198 STUD; BACK PANEL
(B) IDN 		8-94389-701-0 01 1 0804- ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 0804-1001 ● ●
65 17.198 STUD; BACK PANEL
RR BODY FLAT BED(RS6) 16.588 (A) M6X12 		8-98013-112-0 04 1 1002- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE IDN 		8-98059-421-0 03 1 0804- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE IDN 		8-98059-421-0 04 1 0804- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK IDN 		5-76777-036-0 03 1 0804- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK IDN 		5-76777-036-0 04 1 0804- ● ●
