2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#8130) — 72 parça

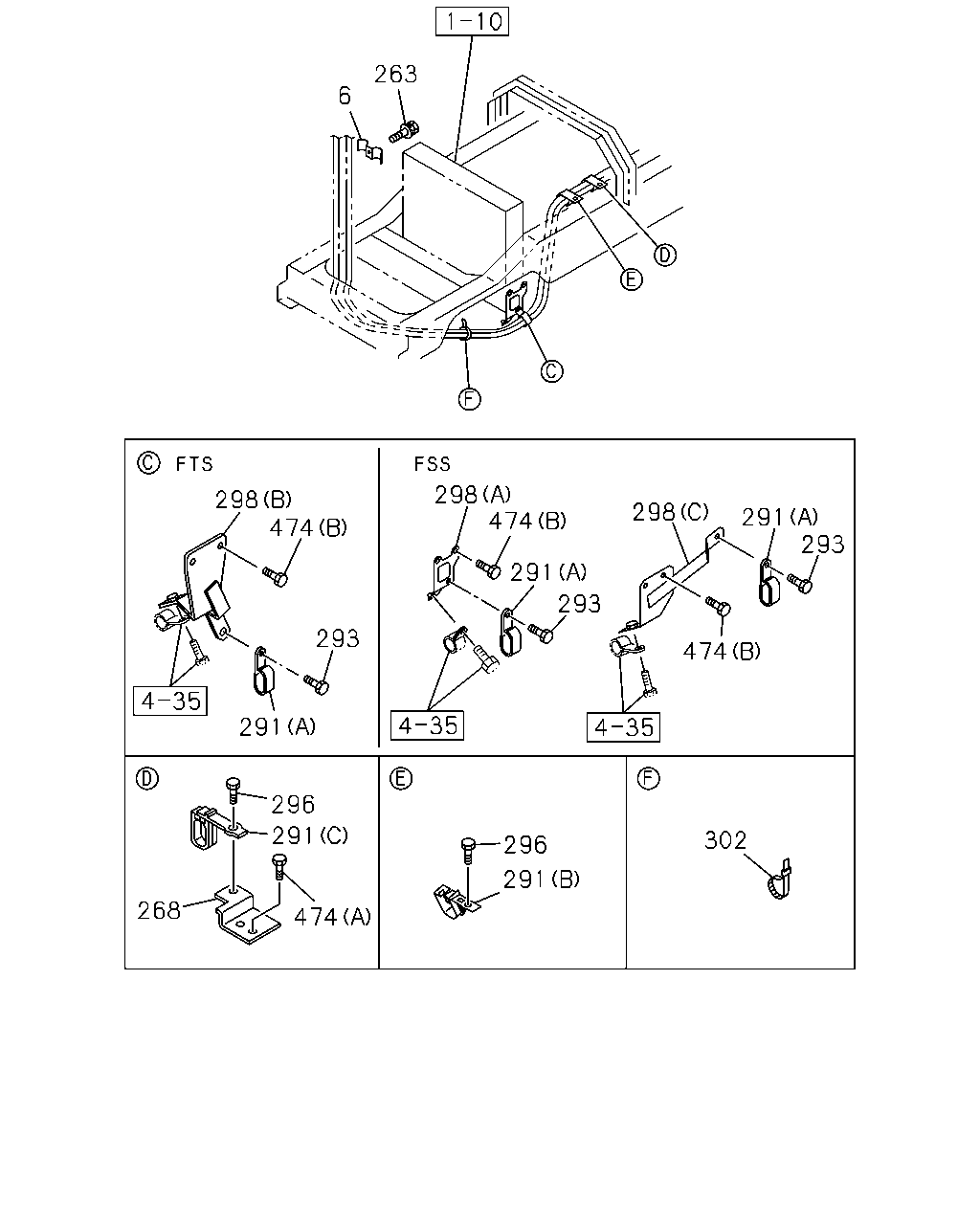

263 6 298 474 298 474 298 291 293 291 293 293 474 291 296 291 302 296 291 268 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0005-0210	●	●	●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0211-				●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0005-0210	●	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0211-				●
268	BRACKET; LINK ROD	1-36183-224-0	01	1	0005-0210	●	●	●
268	BRACKET; LINK ROD	1-36183-224-0	01	1	0211-0212				●
268	BRACKET; LINK ROD FTS ALL(FT****)	1-36183-224-0	01	1	0301-				●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	0005-0210	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=10 & 10 M8	1-09701-220-0	01	1	0211-				●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	01	1	0005-0210	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-245-0	01	1	0211-0506				●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-312-0	01	1	0507-				●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	0005-0210	●	●	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	9-09535-026-0	01	1	0211-0606				●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	0607-				●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28080-816-0	01	1	0211-0512				●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28050-816-0	01	1	0601-				●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28080-820-0	02	1	0211-0512				●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28050-820-0	02	1	0601-				●
298	BRACKET FSS ALL(FS****) (A)	1-82659-149-0	01	1	0005-0210			●
298	BRACKET FSS ALL(FS****) (C)	1-36183-232-0	01	1	0211-0301			●
298	BRACKET FSS ALL(FS****) (C)	1-36183-237-1	01	1	0302-			●
298	BRACKET FTS ALL(FT****) (B)	1-36183-220-0	01	1	0005-0210			●
298	BRACKET (B)	1-36183-220-0	01	1	0005-0210	●	●
298	BRACKET FTS ALL(FT****) (B)	1-36183-220-0	01	1	0211-				●
302	CLIP; BAND L=300	1-09707-001-1	01	1	0005-0210	●	●	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	0211-				●
474	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	0005-0210	●	●	●
474	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	0211-0212				●
474	BOLT; BRKT FTS ALL(FT****) (A) M8X20 FLANGE	0-28080-820-0	02	1	0301-0512				●
474	BOLT; BRKT FTS ALL(FT****) (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-				●
474	BOLT; BRKT (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0005-0210	●	●	●
474	BOLT; BRKT (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0211-				●

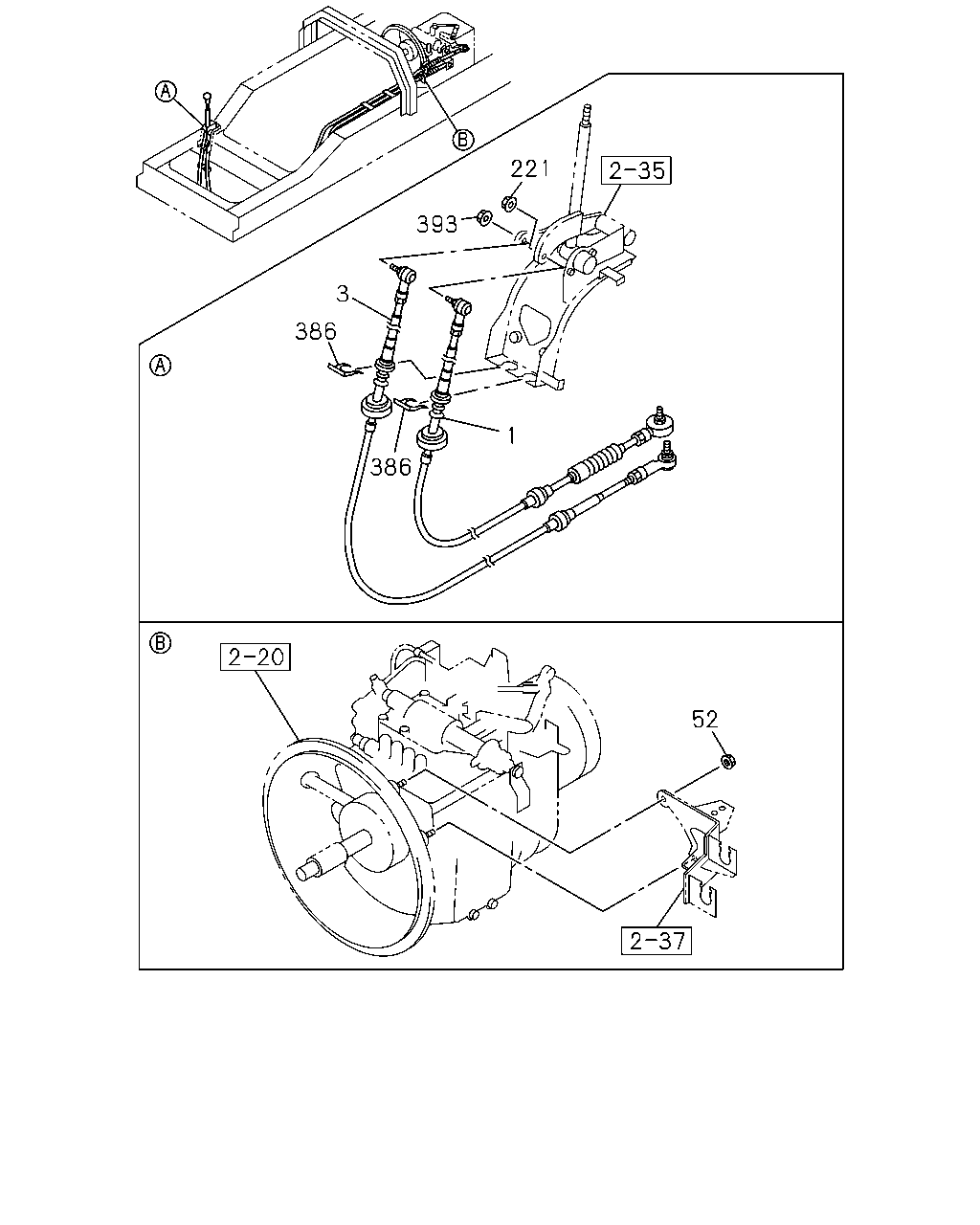

221 393 3 386 1 386 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CABLE; SHIFT,TRANS CONT FSS ALL(FS****) ENGINE REAR PTO(SV1) ASSISTOR SHIFT CONTROL<WX8> L=3555	8-97383-566-0	01	1	0406-				●
1	CABLE; SHIFT,TRANS CONT FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=3495	8-97383-565-0	01	1	0406-				●
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO(SV1) L=3480	1-33671-646-0	01	1	0005-0210			●
1	CABLE; SHIFT,TRANS CONT FSS ALL(FS****) ENGINE REAR PTO(SV1) L=3575	1-33671-843-1	01	1	0211-0405				●
1	CABLE; SHIFT,TRANS CONT FSS ALL(FS****) ENGINE REAR PTO(SV1) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575	1-33671-843-1	01	1	0406-				●
1	CABLE; SHIFT,TRANS CONT EXC. ENGINE REAR PTO(SV1) L=3408	1-33671-160-0	01	1	0005-0210			●
1	CABLE; SHIFT,TRANS CONT FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) L=3515	1-33671-837-1	01	1	0211-0405				●
1	CABLE; SHIFT,TRANS CONT FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1),ASSISTOR SHIFT CONTROL<WX8> L=3515	1-33671-837-1	01	1	0406-				●
1	CABLE; SHIFT,TRANS CONT L=3465	1-33670-926-0	01	1	0005-0210		●
1	CABLE; SHIFT,TRANS CONT FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) L=3550	1-33671-848-1	01	1	0211-				●
1	CABLE; SHIFT,TRANS CONT ENGINE REAR PTO(SV1) L=3438	1-33671-621-0	01	1	0005-0210	●
1	CABLE; SHIFT,TRANS CONT FTS ALL(FT****) ENGINE REAR PTO(SV1) L=3610	1-33671-841-1	01	1	0211-				●
1	CABLE; SHIFT,TRANS CONT EXC. ENGINE REAR PTO(SV1) L=3377.5	1-33670-811-0	01	1	0005-0210	●
3	CABLE; SELECT,TRANS CONT FSS ALL(FS****) ENGINE REAR PTO(SV1) ASSISTOR SHIFT CONTROL<WX8> L=3665	8-97383-467-0	01	1	0406-				●
3	CABLE; SELECT,TRANS CONT FSS ALL(FS****) ASSISTOR SHIFT CONTROL<WX8> EXC. ENGINE REAR PTO(SV1) L=3605	8-97383-466-0	01	1	0406-				●
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO(SV1) L=3595	1-33671-647-0	01	1	0005-0210			●
3	CABLE; SELECT,TRANS CONT FSS ALL(FS****) ENGINE REAR PTO(SV1) L=3695	1-33671-844-1	01	1	0211-0405				●
3	CABLE; SELECT,TRANS CONT FSS ALL(FS****) ENGINE REAR PTO(SV1) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3695	1-33671-844-1	01	1	0406-				●
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO(SV1) L=3525	1-33671-161-0	01	1	0005-0210			●
3	CABLE; SELECT,TRANS CONT FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1) L=3635	1-33671-838-1	01	1	0211-0405				●
3	CABLE; SELECT,TRANS CONT FSS ALL(FS****) EXC. ENGINE REAR PTO(SV1),ASSISTOR SHIFT CONTROL<WX8> L=3635	1-33671-838-1	01	1	0406-				●
3	CABLE; SELECT,TRANS CONT L=3580	1-33670-933-0	01	1	0005-0210		●
3	CABLE; SELECT,TRANS CONT ENGINE REAR PTO(SV1) L=3661	1-33671-622-0	01	1	0005-0210	●
3	CABLE; SELECT,TRANS CONT FTS ALL(FT****) ENGINE REAR PTO(SV1) L=3505	1-33671-842-1	01	1	0211-				●
3	CABLE; SELECT,TRANS CONT EXC. ENGINE REAR PTO(SV1) L=3601	1-33670-812-0	01	1	0005-0210	●
3	CABLE; SELECT,TRANS CONT FTS ALL(FT****) EXC. ENGINE REAR PTO(SV1) L=3665	1-33671-849-1	01	1	0211-				●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0210	●	●	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0211-0602				●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-				●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0005-0210	●	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0211-1011				●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-				●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0005-0210	●	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	0211-				●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0005-0210	●	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0211-1011				●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-				●
