◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51395 - NLR/NMR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#81294) — 10 parça

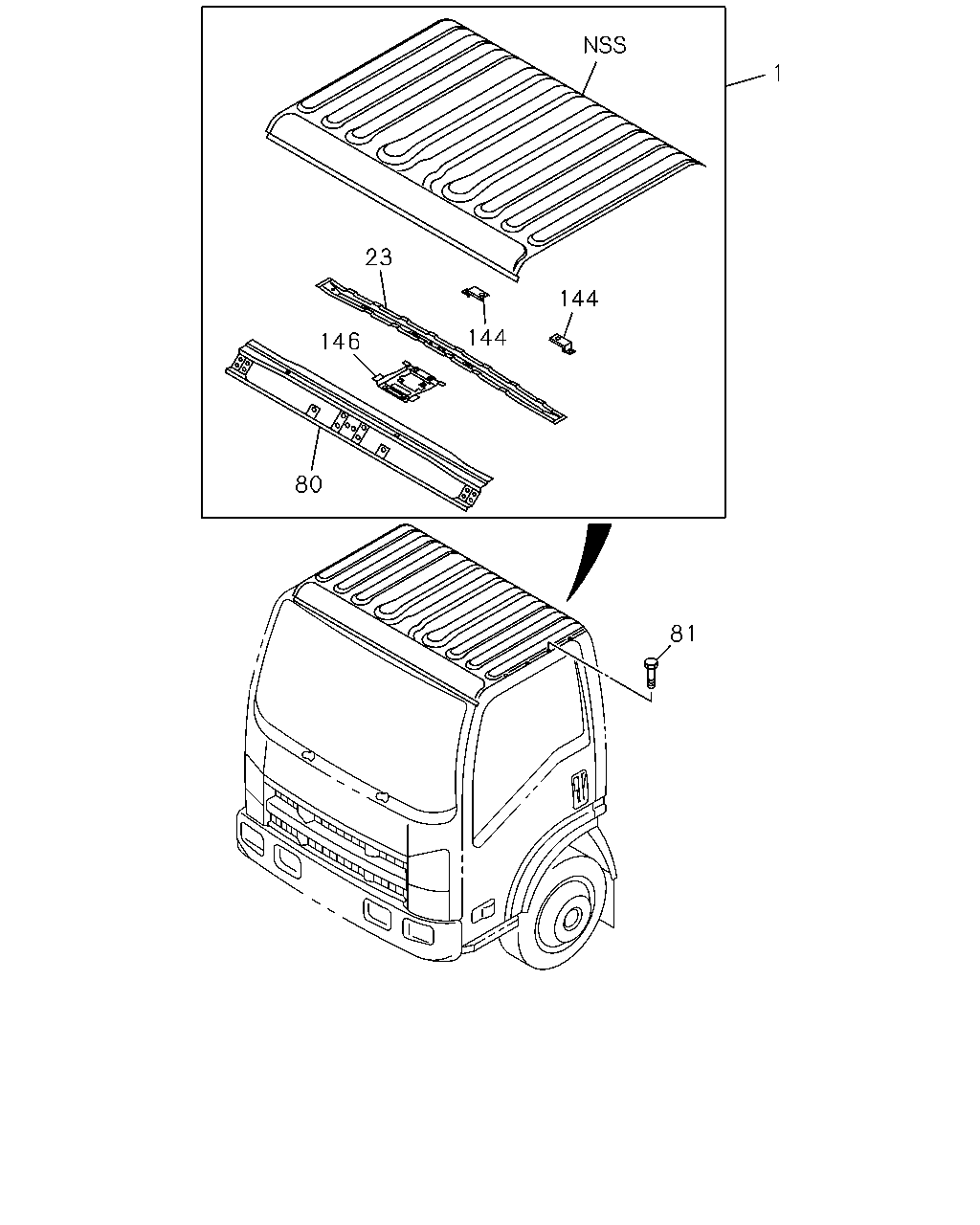

çizim 131702
1 23 144 144 146 80 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.585 PANEL; ROOF 8-97584-169-6 01 1 0804-1503 ● ●
1 16.585 PANEL; ROOF
IDN 		8-98287-343-0 01 1 1504- ● ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-97584-197-0 01 1 0804-1503 ● ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-98287-358-0 01 1 1504- ● ●
80 16.585 PANEL; HEADER,ROOF 8-97584-189-4 01 1 0804-1503 ● ●
80 16.585 PANEL; HEADER,ROOF 8-98287-352-0 01 1 1504- ● ●
81 16.585 BOLT; ROOF
16.450 M8X15.5 HEXALOBULAR 		8-98028-744-0 08 1 0804-0910 ● ●
81 16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR IDN 		8-98141-874-0 08 1 0911- ● ●
144 16.585 BRACKET; ROOF
IDN 		8-98013-931-1 02 1 0804- ● ●
146 16.570 REINFORCEMENT; ROOM LAMP 8-98009-289-4 01 1 0804- ● ●
