1 |

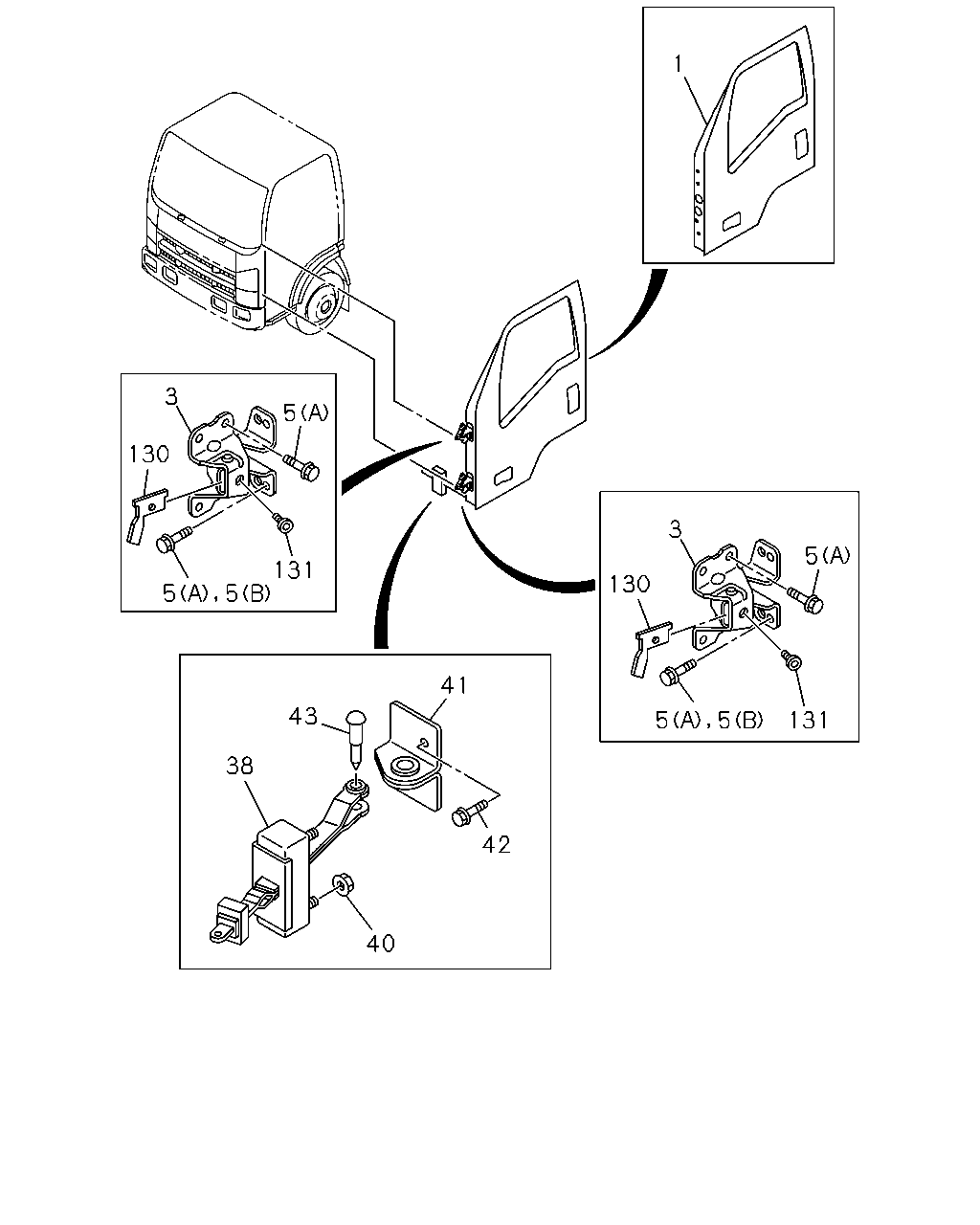

16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
|
8-98075-728-0 |
01 |
1 |
0804-1012 |
● |
|
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87>
|
8-98075-728-0 |
01 |
1 |
0804-1012 |
|
● |
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
|
8-98171-226-0 |
01 |
1 |
1101-1411 |
● |
|
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87>
|
8-98171-226-0 |
01 |
1 |
1101-1411 |
|
● |
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
IDN
|
8-98260-603-0 |
01 |
1 |
1412- |
● |
|
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87>
IDN
|
8-98260-603-0 |
01 |
1 |
1412- |
|
● |
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
|
8-98075-729-0 |
01 |
1 |
0804-1012 |
● |
|
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87>
|
8-98075-729-0 |
01 |
1 |
0804-1012 |
|
● |
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
|
8-98171-234-0 |
01 |
1 |
1101-1411 |
● |
|
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87>
|
8-98171-234-0 |
01 |
1 |
1101-1411 |
|
● |
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
IDN
|
8-98260-604-0 |
01 |
1 |
1412- |
● |
|
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87>
IDN
|
8-98260-604-0 |
01 |
1 |
1412- |
|
● |
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87>
|
8-98025-690-4 |
01 |
1 |
0804-1012 |
|
● |
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87>
|
8-98171-220-0 |
01 |
1 |
1101-1411 |
|
● |
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87>
|
8-98260-593-0 |
01 |
1 |
1412- |
|
● |
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87>
|
8-98025-691-4 |
01 |
1 |
0804-1012 |
|
● |
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87>
|
8-98171-228-0 |
01 |
1 |
1101-1411 |
|
● |
| |
1 |
16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87>
|
8-98260-594-0 |
01 |
1 |
1412- |
|
● |
| |
3 |
16.320 HINGE; DOOR FRT
|
8-98038-293-0 |
04 |
1 |
0804-1104 |
● |
● |
| |
3 |
16.320 HINGE; DOOR FRT
IDN
|
8-98191-302-0 |
04 |
1 |
1105- |
● |
● |
| |
5 |
16.320 BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV>
(A)
M8X20 FLANGE
|
8-98049-756-0 |
08 |
1 |
0804- |
● |
● |
| |
5 |
16.320 BOLT; HINGE
(B)
M8X23 FLANGE
|
8-98029-440-0 |
08 |
1 |
0804-1408 |
● |
● |
| |
5 |
16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV>
(B)
M8X23 FLANGE
|
8-98029-440-0 |
08 |
1 |
0804-1408 |
● |
● |
| |
5 |
16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV>
(B)
M8X23 FLANGE
|
8-98029-440-0 |
08 |
1 |
1409- |
● |
● |
| |
5 |
16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV>
(B)
M8X23 FLANGE
|
8-98029-440-0 |
08 |
1 |
1409- |
● |
● |
| |
5 |
16.320 BOLT; HINGE
(A)
M8X20 FLANGE
|
8-98049-756-0 |
12 |
1 |
0804- |
● |
● |
| |
38 |
16.320 CHECKER ASM; DOOR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
|
8-98029-417-5 |
02 |
1 |
0804-1203 |
● |
|
| |
38 |
16.320 CHECKER ASM; DOOR
|
8-98029-417-5 |
02 |
1 |
0804-1203 |
|
● |
| |
38 |
16.320 CHECKER ASM; DOOR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
IDN
|
8-98208-189-1 |
02 |
1 |
1204-1508 |
● |
|
| |
38 |
16.320 CHECKER ASM; DOOR
IDN
|
8-98208-189-1 |
02 |
1 |
1204-1508 |
|
● |
| |
38 |
16.320 CHECKER ASM; DOOR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
IDN
|
8-98296-601-0 |
02 |
1 |
1509- |
● |
|
| |
38 |
16.320 CHECKER ASM; DOOR
IDN
|
8-98296-601-0 |
02 |
1 |
1509- |
|
● |
| |
40 |
16.320 NUT; CHECKER
M8 FLANGE
|
8-98029-441-0 |
04 |
1 |
0804-1012 |
● |
● |
| |
40 |
16.320 NUT; CHECKER
01.840
M8 W/DISHED WASHER
|
8-97329-625-0 |
04 |
1 |
1101- |
● |
● |
| |
41 |
16.320 BRACKET; CHECKER
IDN
|
8-98029-290-3 |
02 |
1 |
0804- |
● |
● |
| |
42 |
16.320 BOLT; BRKT
M6X20 W/PL WASHER
IDN
|
8-98032-159-2 |
04 |
1 |
0804- |
● |
● |
| |
43 |
16.320 PIN
IDN
|
8-98037-152-2 |
02 |
1 |
0804- |
● |
● |
| |
130 |
16.320 STOPPER; HINGE
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
IDN
|
8-98038-299-1 |
04 |
1 |
0804- |
● |
|
| |
130 |
16.320 STOPPER; HINGE
IDN
|
8-98038-299-1 |
04 |
1 |
0804- |
|
● |
| |
131 |
16.350 BOLT; DOOR STOPPER
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT ST
AY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL
LONG STAY<6TF>
M10X11
IDN
|
8-98039-593-1 |
04 |
1 |
0804- |
● |
|
| |
131 |
16.350 BOLT; DOOR STOPPER
M10X11
IDN
|
8-98039-593-1 |
04 |
1 |
0804- |
|
● |
