5-20 — BATTERY CARRIER (#81280) — 52 parça

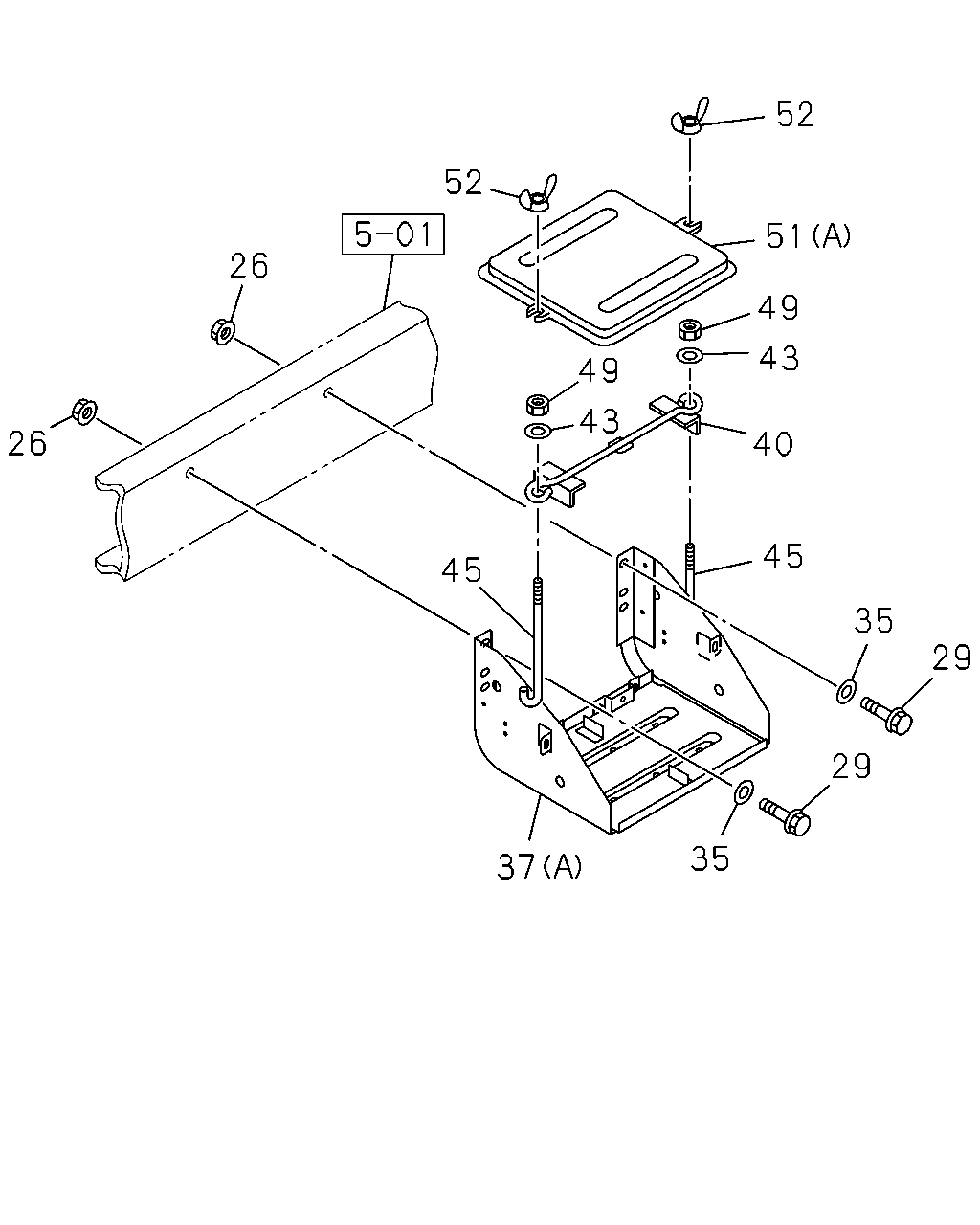

52 52 51 26 49 43 49 43 26 40 45 45 35 29 29 35 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	02.334 NUT; BRKT 4JJ1-TCC ENG(RDU) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0804-	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0804-	●	●
37	02.333 BRACKET; BATTERY BATTERY 95D31L<TQ8> (B)	8-97384-065-0	01	1	0804-	●	●
37	02.333 BRACKET; BATTERY BATTERY 130E41L<8MC> (B)	8-97384-064-0	01	1	0804-		●
37	02.333 BRACKET; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> (B)	8-97384-064-0	01	1	0804-	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A) IDN	8-97384-067-2	01	1	0804-	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A) IDN	8-97384-068-2	01	1	0804-	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> IDN	5-53615-004-1	01	1	0804-	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	0804-	●
45	02.334 ROD; TENSION,BATTERY L=120 IDN	9-53616-615-0	02	1	0804-	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0804-	●
51	02.335 COVER; BATTERY BATTERY 95D31L<TQ8> (C) IDN	8-97313-780-0	01	1	0804-	●	●
51	02.335 COVER; BATTERY BATTERY 130E41L<8MC> 02.345 (B)	9-53612-046-2	01	1	0804-		●
51	02.335 COVER; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.345 (B)	9-53612-046-2	01	1	0804-	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A) IDN	8-97120-747-0	01	1	0804-	●
52	02.335 NUT; WING,COVER FIX BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	0804-		●
52	02.335 NUT; WING,COVER FIX VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	0804-	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT IDN	0-91118-408-0	02	1	0804-	●

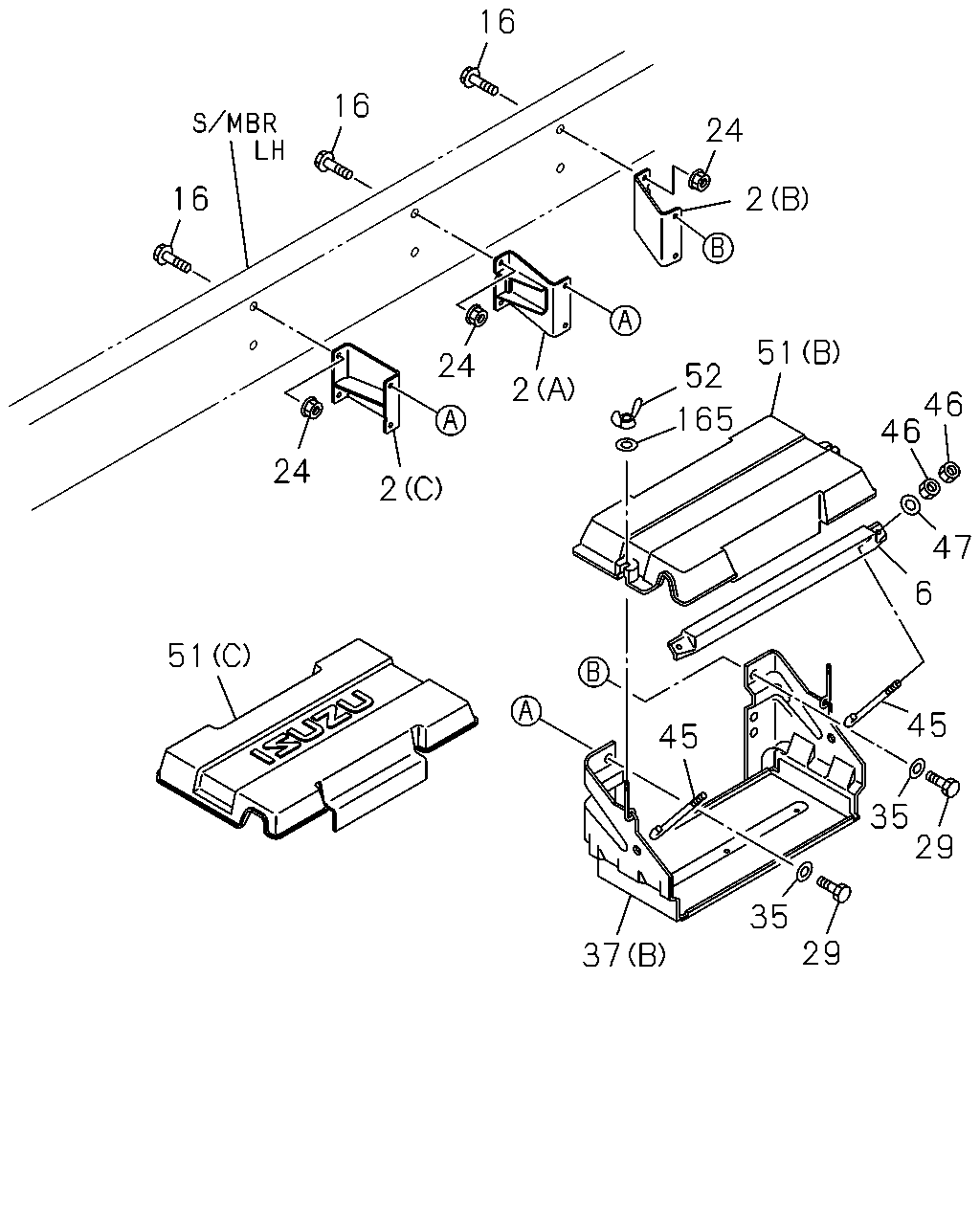

16 16 24 16 2 51 24 52 2 46 46 165 24 2 47 6 51 45 45 35 29 35 29 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) BATTERY 95D31L<TQ8> (C)	8-98095-029-0	01	1	0804-	●	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (B)	8-98095-027-0	01	1	0804-	●	●
2	02.333 BRACKET; BATTERY 4JB1-TC ENG(RDT) BATTERY 130E41L<8MC> (A)	8-98095-028-0	01	1	0804-	●	●
6	02.333 BRACKET; BATTERY CARRIER BATTERY 95D31L<TQ8> IDN	8-94108-314-0	01	1	0804-	●	●
6	02.333 BRACKET; BATTERY CARRIER BATTERY 130E41L<8MC>	9-53616-153-0	01	1	0804-		●
6	02.333 BRACKET; BATTERY CARRIER VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC>	9-53616-153-0	01	1	0804-	●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-0912	●	●
16	02.334 BOLT; BRKT TO FRAME 4JB1-TC ENG(RDT) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> 02.277 M10X35 FLANGE IDN	0-28651-035-0	04	1	1001-	●	●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> 04.085 M10 FLANGE	0-91180-210-0	01	1	0804-0912	●	●
24	02.334 NUT; BRKT TO FRAME 4JB1-TC ENG(RDT) BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	1001-	●	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0804-	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0804-	●	●
37	02.333 BRACKET; BATTERY BATTERY 95D31L<TQ8> (B)	8-97384-065-0	01	1	0804-	●	●
37	02.333 BRACKET; BATTERY BATTERY 130E41L<8MC> (B)	8-97384-064-0	01	1	0804-		●
37	02.333 BRACKET; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> (B)	8-97384-064-0	01	1	0804-	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A) IDN	8-97384-067-2	01	1	0804-	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A) IDN	8-97384-068-2	01	1	0804-	●
45	02.334 ROD; TENSION,BATTERY L=120 IDN	9-53616-615-0	02	1	0804-	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	02	1	0804-		●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY 95D31L<TQ8> 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	02	1	0804-	●
46	02.334 WASHER; PL,BATTERY TO CARRIER VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	02	1	0804-	●
47	02.334 NUT; BRKT BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> M8 IDN	0-91110-508-0	02	1	0804-		●
47	02.334 NUT; BRKT BATTERY 95D31L<TQ8> M8 IDN	0-91110-508-0	02	1	0804-	●
47	02.334 NUT; BRKT VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M8 IDN	0-91110-508-0	02	1	0804-	●
51	02.335 COVER; BATTERY BATTERY 95D31L<TQ8> (C) IDN	8-97313-780-0	01	1	0804-	●	●
51	02.335 COVER; BATTERY BATTERY 130E41L<8MC> 02.345 (B)	9-53612-046-2	01	1	0804-		●
51	02.335 COVER; BATTERY VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.345 (B)	9-53612-046-2	01	1	0804-	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> EXC. VOLTAGE 12V<TRQ> (A) IDN	8-97120-747-0	01	1	0804-	●
52	02.335 NUT; WING,COVER FIX BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	0804-		●
52	02.335 NUT; WING,COVER FIX VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> M5 WING NUT	0-91118-405-0	02	1	0804-	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT IDN	0-91118-408-0	02	1	0804-	●
165	02.334 WASHER; COVER BATTERY 130E41L<8MC> 02.335 ID=5.3 OD=16 IDN	0-91614-705-0	02	1	0804-		●
165	02.334 WASHER; COVER VOLTAGE 12V<TRQ> BATTERY 130E41L<8MC> 02.335 ID=5.3 OD=16 IDN	0-91614-705-0	02	1	0804-	●
